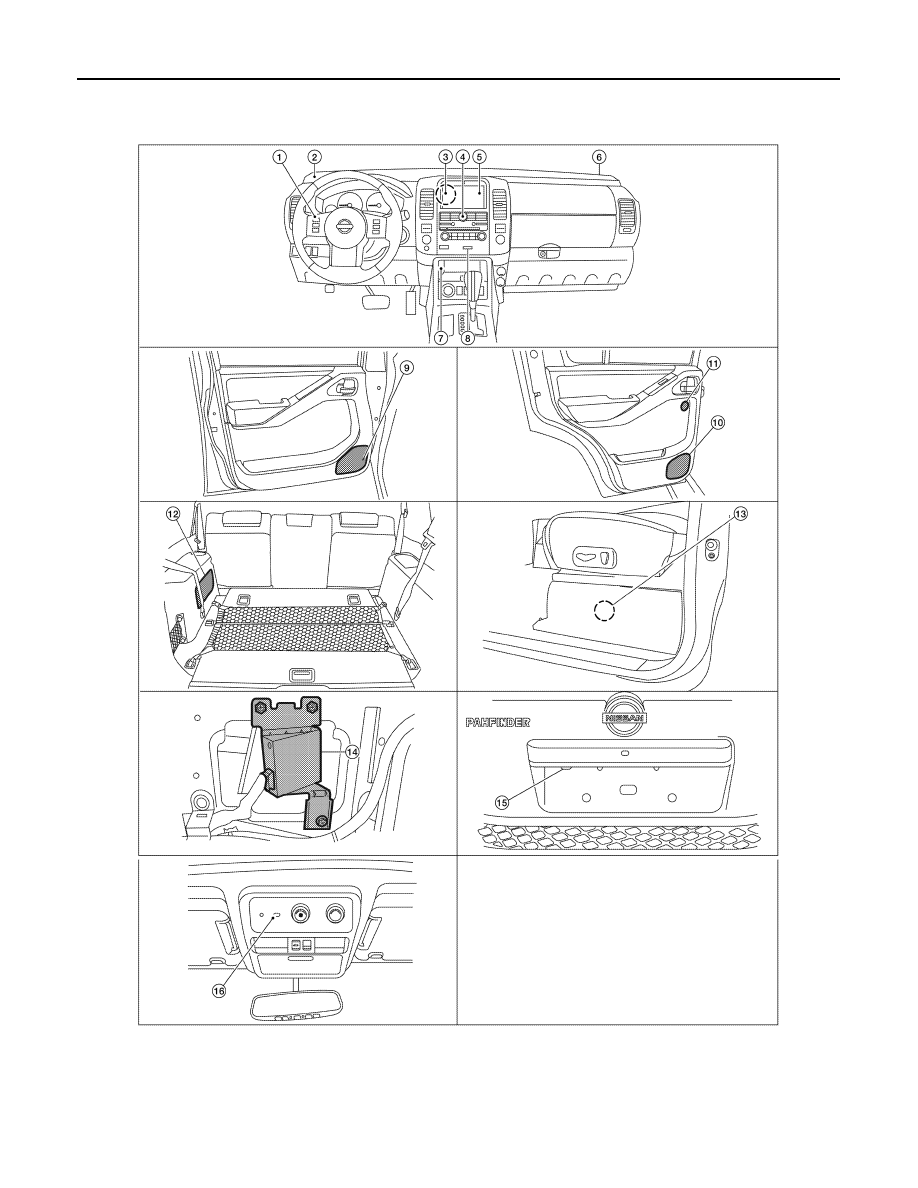

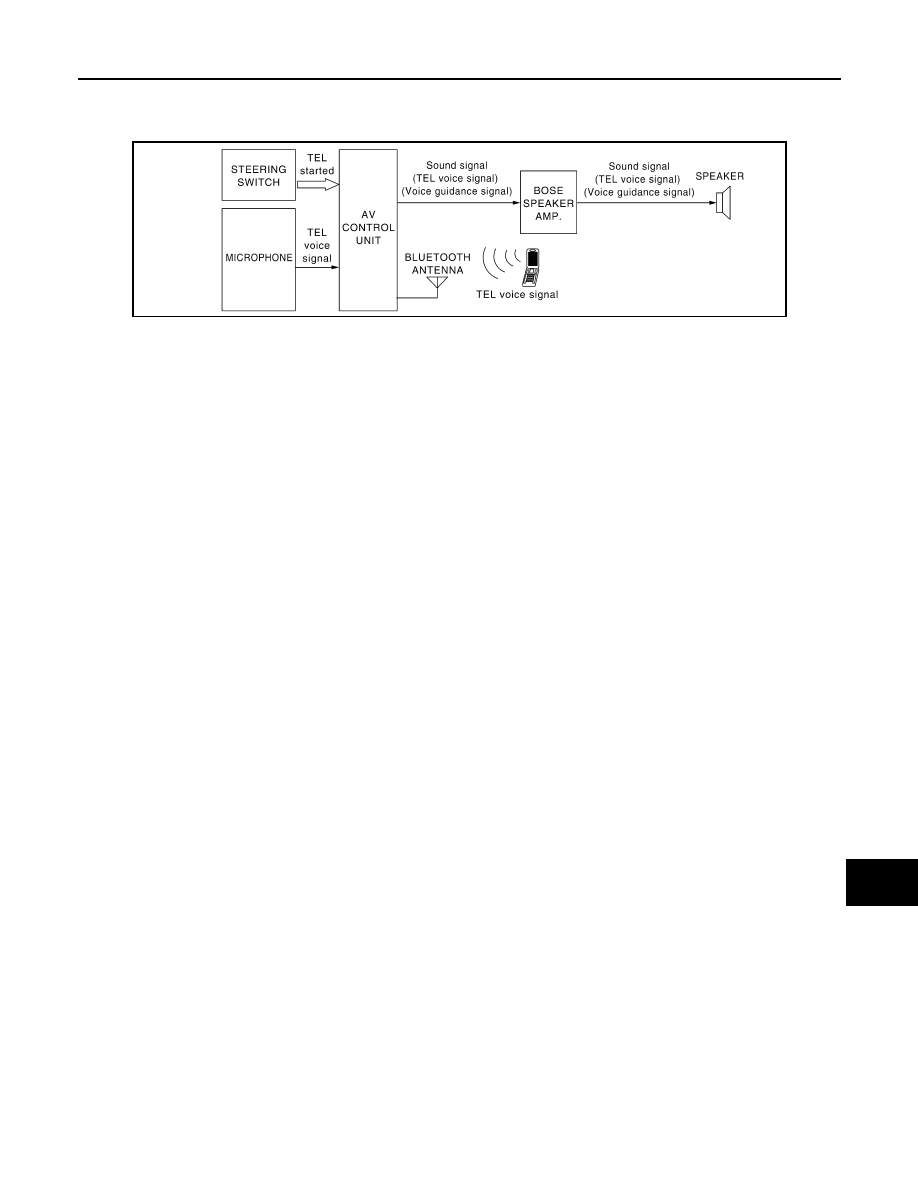

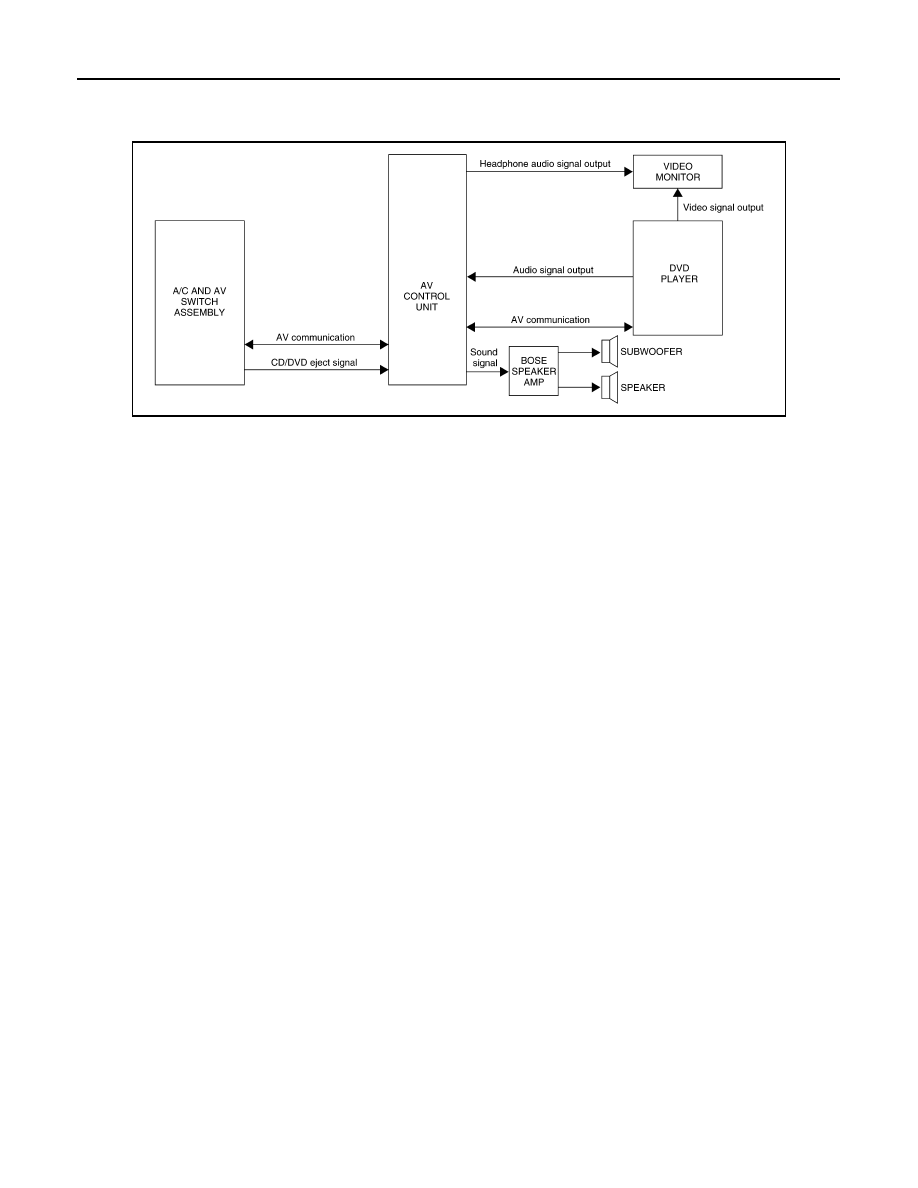

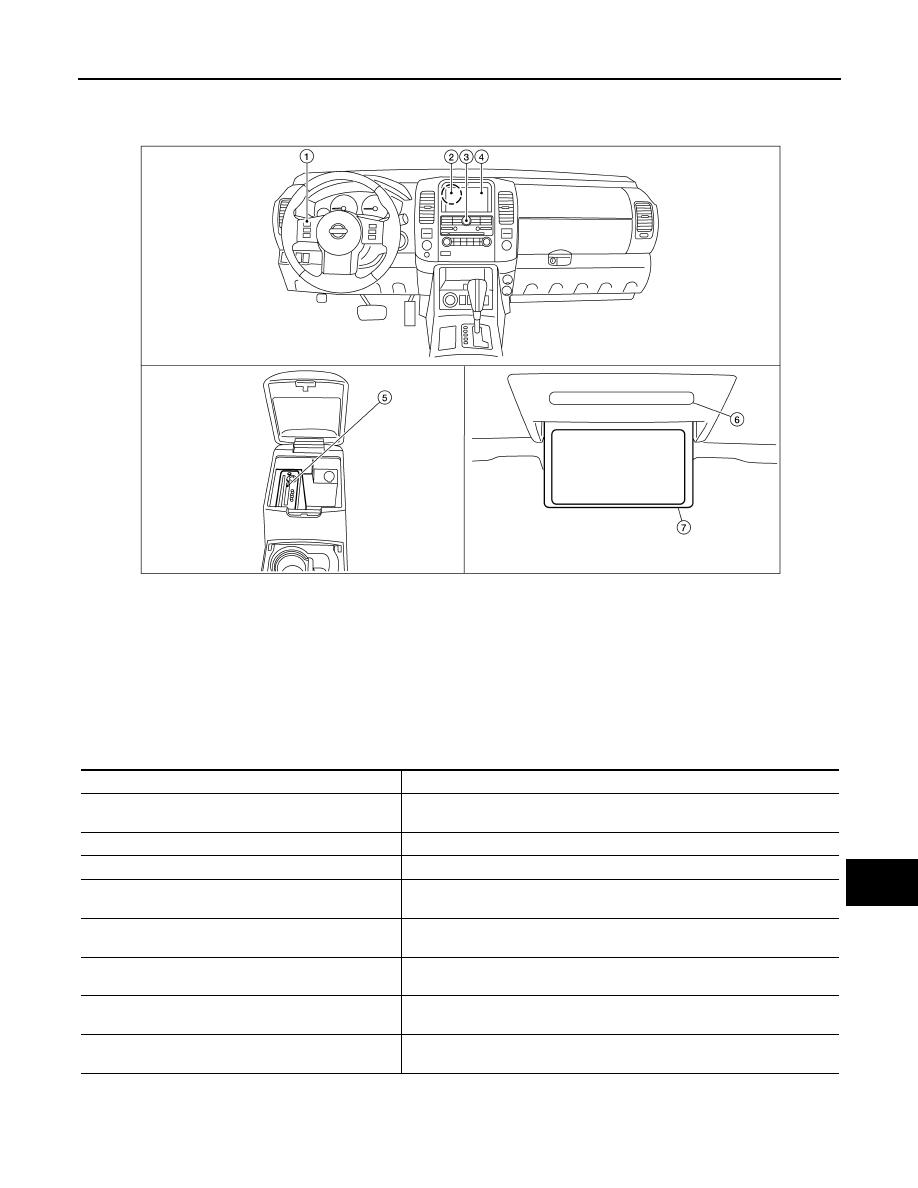

AV-316 < FUNCTION DIAGNOSIS > [BOSE AUDIO WITH NAVIGATION] NAVIGATION SYSTEM Component Description INFOID:0000000003939160 7. Aux. jack M85 8. Compact Flash insert slot 9. Front door speaker 10. Rear door speaker LH D207 11. Rear tweeter LH D208 12. Subwoofer B72 13. BOSE speaker amp B74, B75 (locat- ed under driver seat) 14. Rear camera control unit B176 (locat- ed behind luggage finisher RHl) 15. Rear view camera D551 16. Microphone R8 Part name Description AV control unit • Controls each operation of the navigation system BOSE speaker amp. Voice guidance signal is input from AV control unit, and it is output to speakers. Tweeter Voice guidance signal from BOSE speaker amp. is output. Steering wheel audio control switches • Each operation of navigation system can be performed Microphone Sends voice signals to AV control unit GPS antenna GPS signal is received and is output to AV control unit. 2009 Pathfinder |
