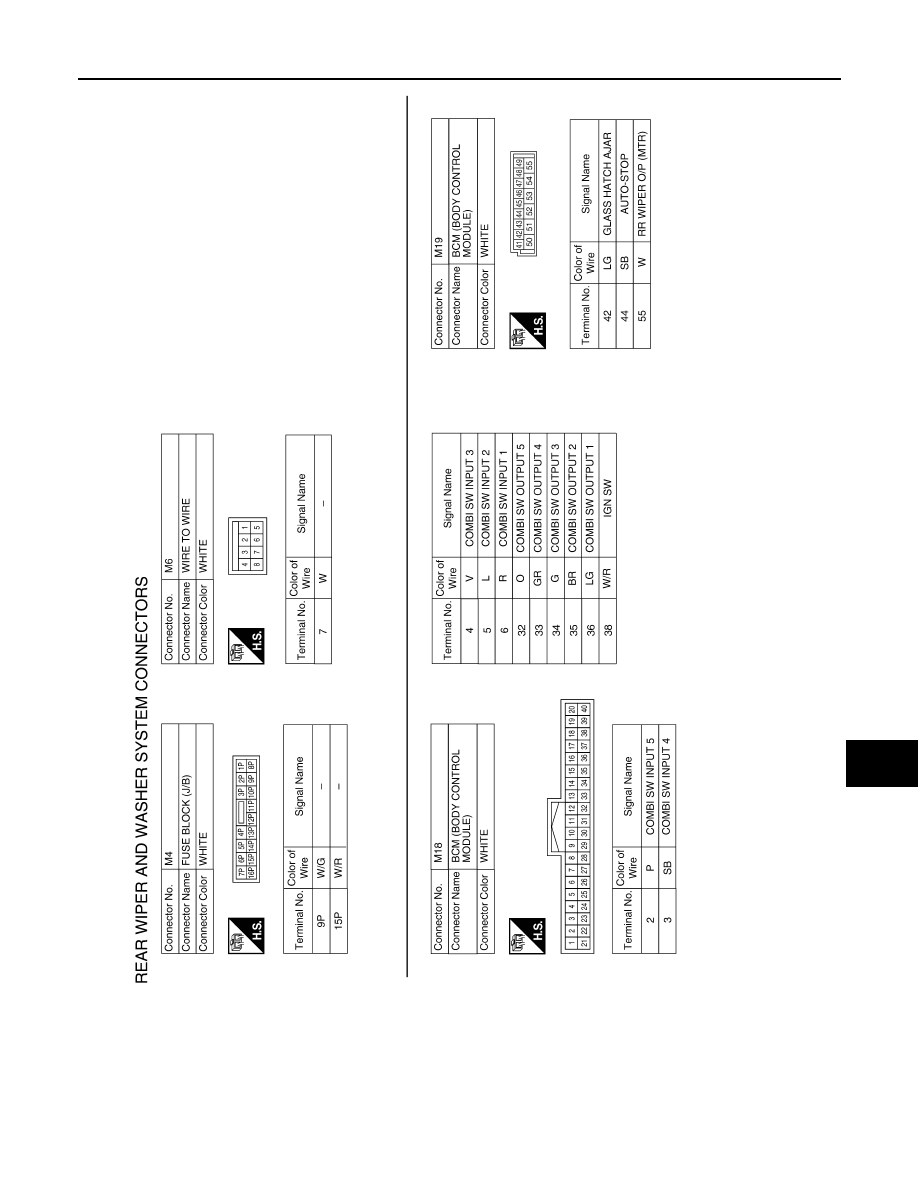

REAR WIPER AND WASHER SYSTEM

WW-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ALLIA0235GB

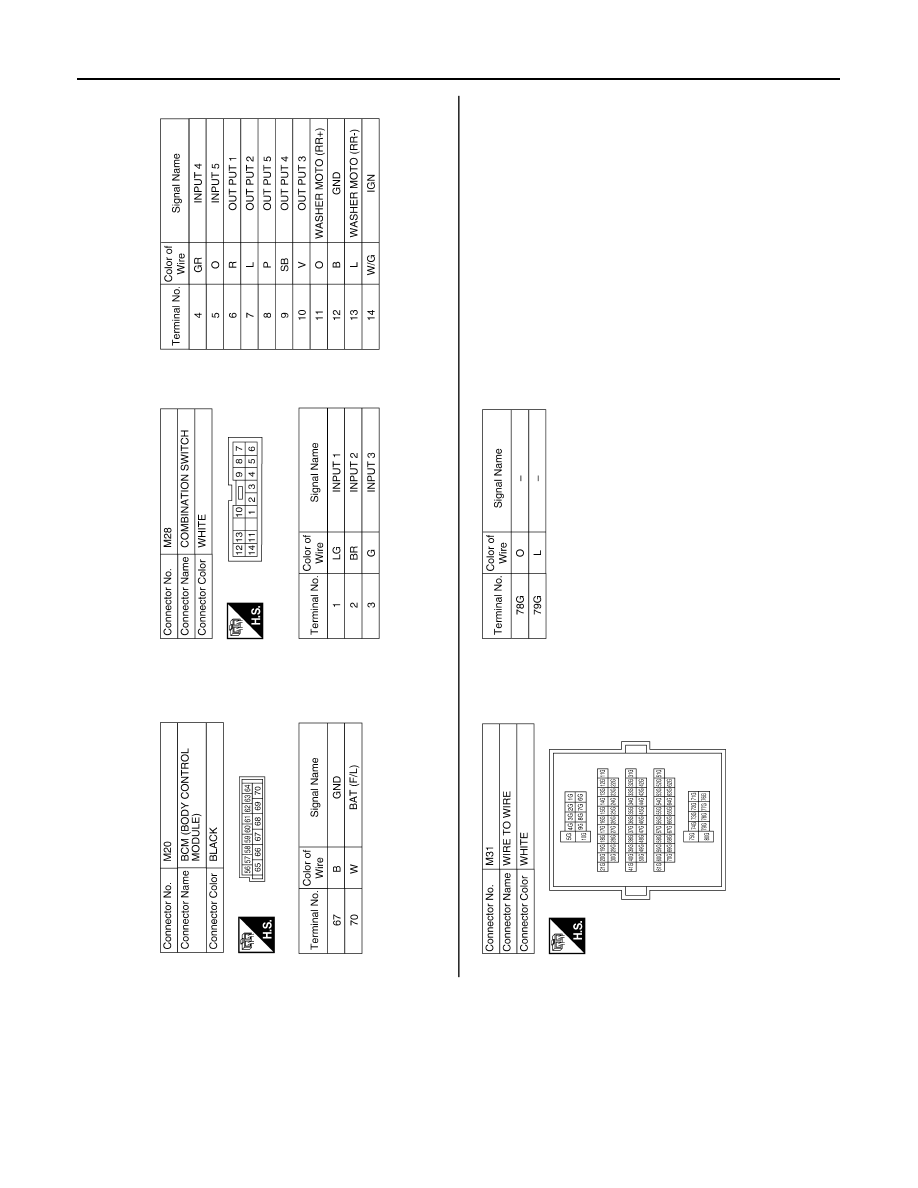

WW-34

< COMPONENT DIAGNOSIS >

REAR WIPER AND WASHER SYSTEM

ALLIA0309GB

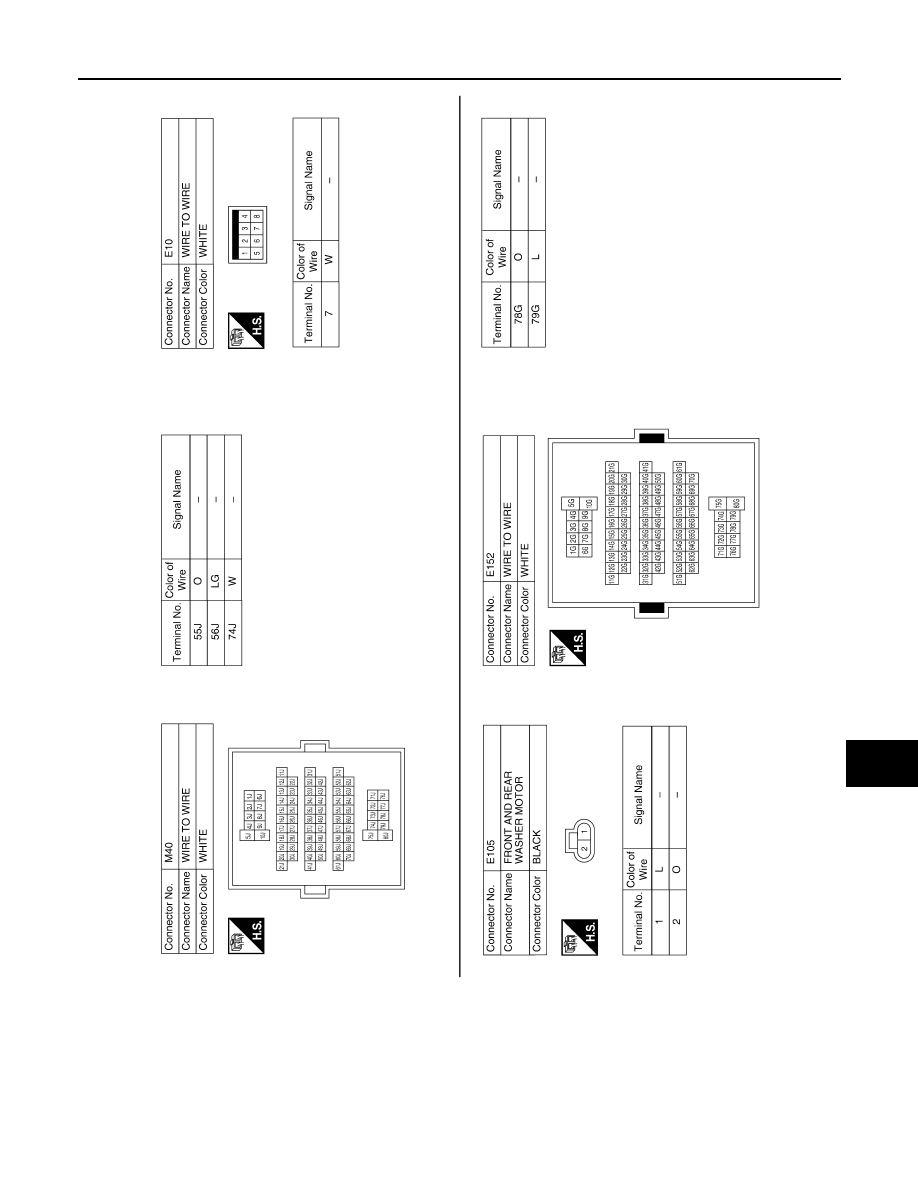

REAR WIPER AND WASHER SYSTEM

WW-35

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ALLIA0310GB

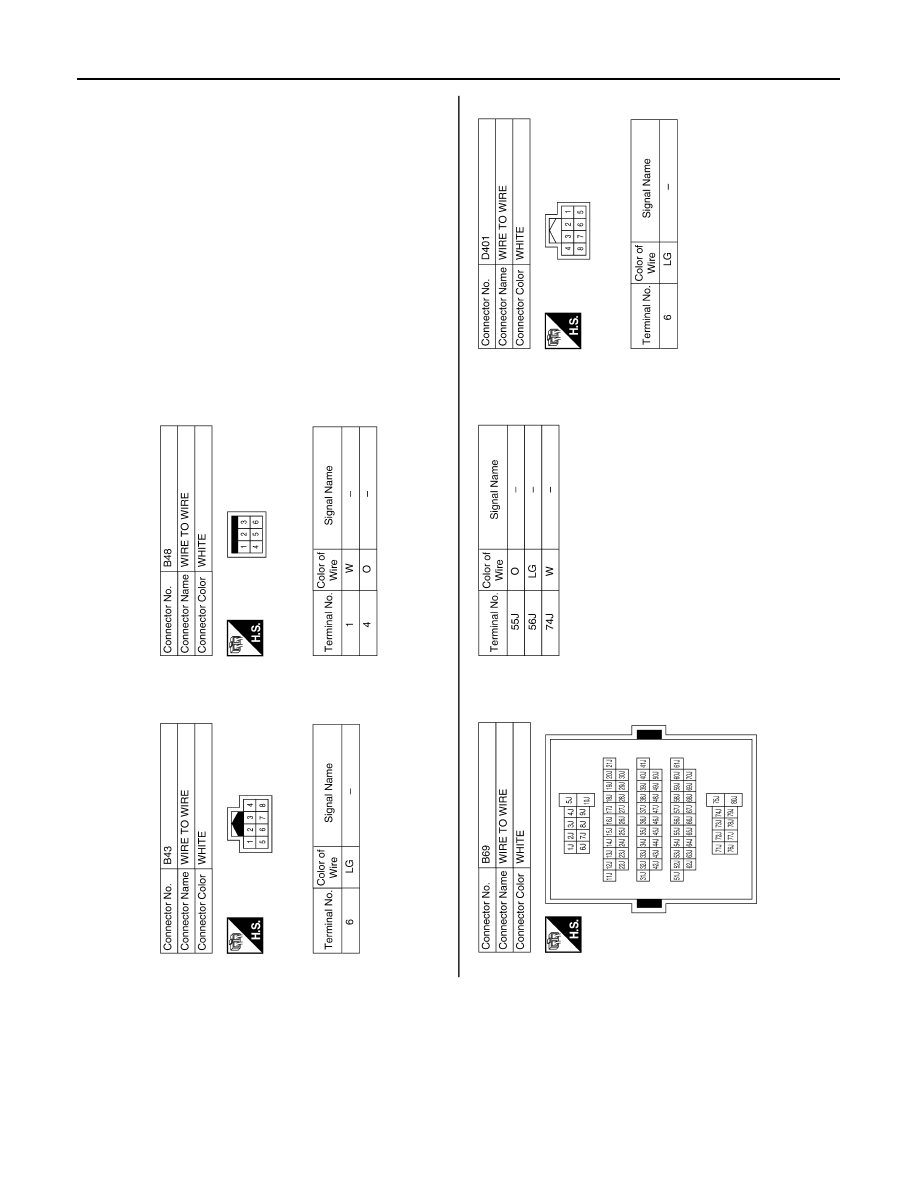

WW-36

< COMPONENT DIAGNOSIS >

REAR WIPER AND WASHER SYSTEM

ALLIA0311GB

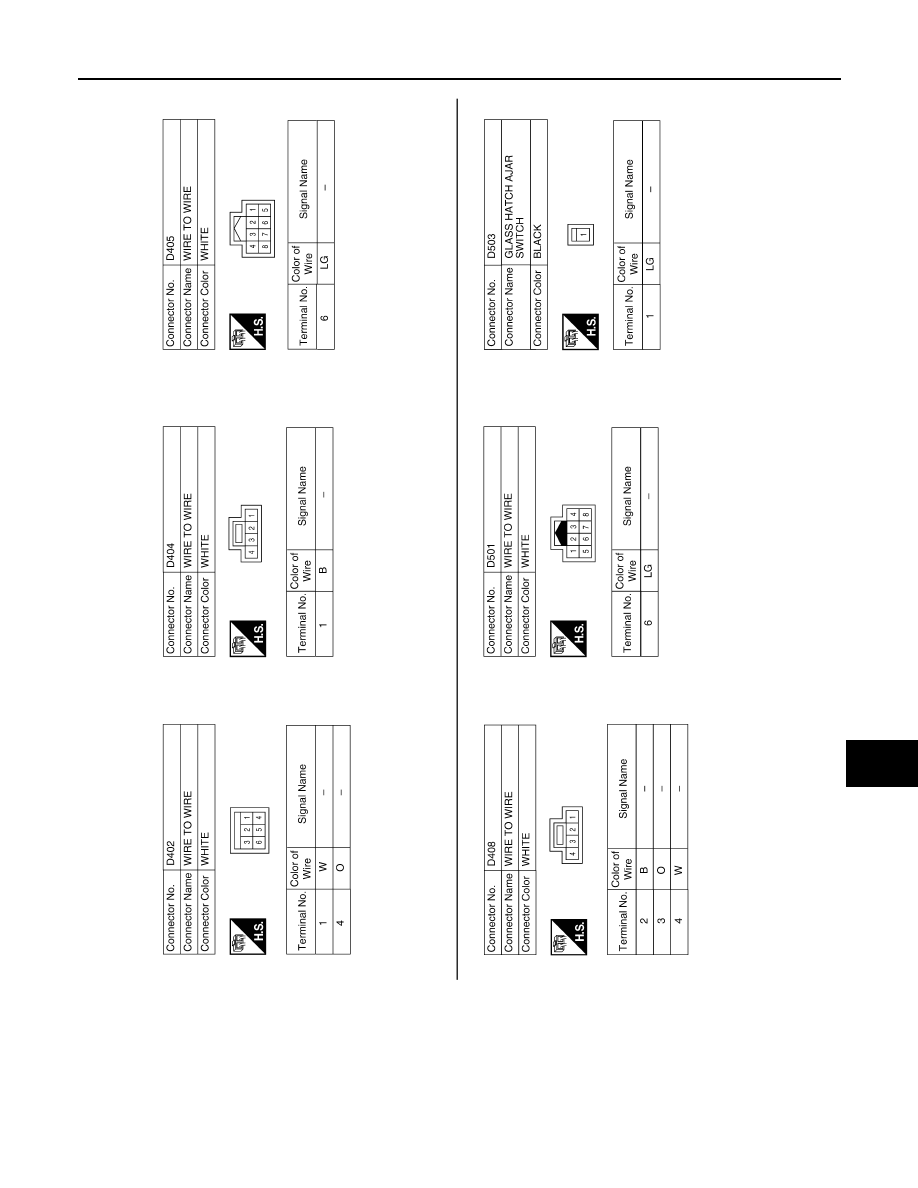

REAR WIPER AND WASHER SYSTEM

WW-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ALLIA0312GB

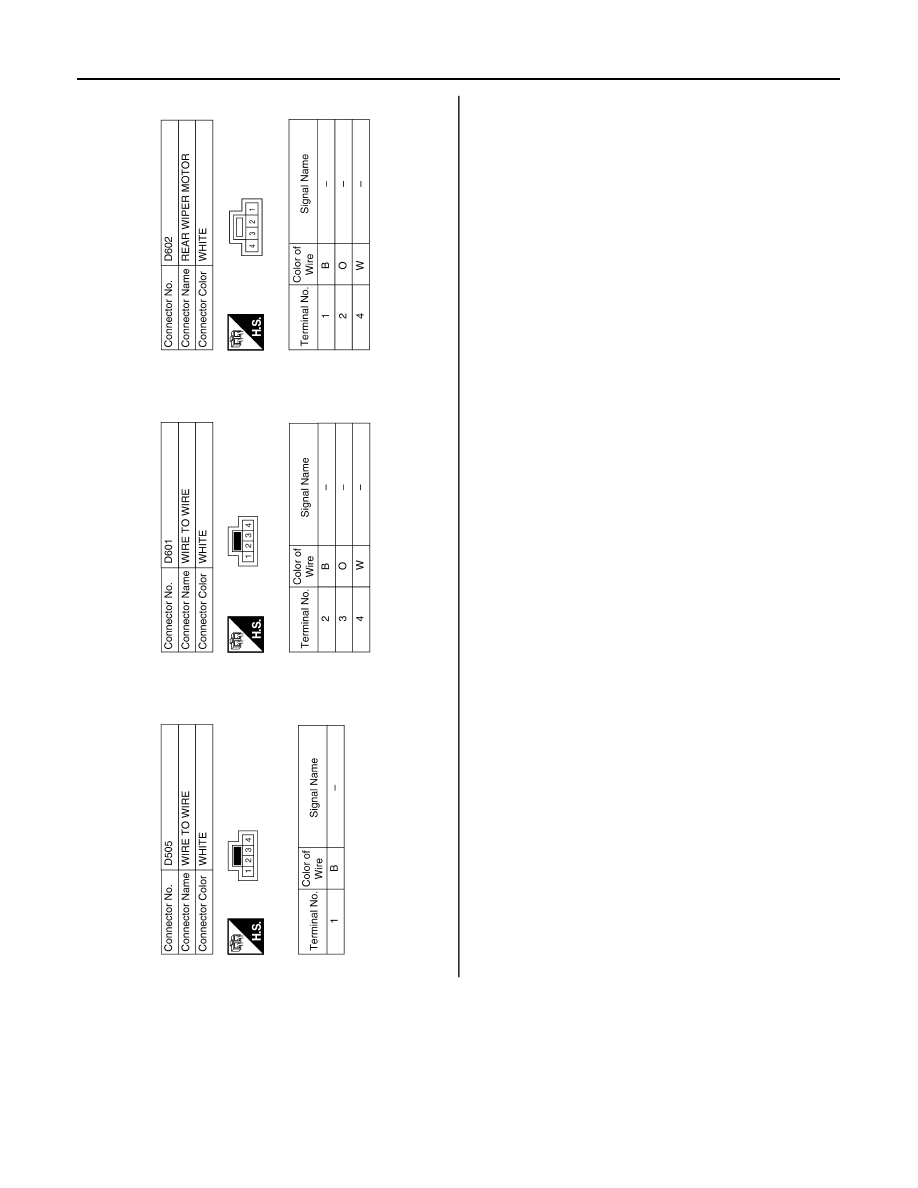

WW-38

< COMPONENT DIAGNOSIS >

REAR WIPER AND WASHER SYSTEM

ALLIA0331GB

BCM (BODY CONTROL MODULE)

WW-39

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000001712171

VALUES ON THE DIAGNOSIS TOOL

TERMINAL LAYOUT

Refer to

BCS-41, "Terminal Layout"

.

PHYSICAL VALUES

Refer to

BCS-41, "Physical Values"

.

Monitor Item

Condition

Value/Status

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

FR WIPER LOW

Front wiper switch OFF

OFF

Front wiper switch LO

ON

FR WIPER HI

Front wiper switch OFF

OFF

Front wiper switch HI

ON

FR WIPER INT

Front wiper switch OFF

OFF

Front wiper switch INT

ON

FR WIPER STOP

Any position other than front wiper stop position

OFF

Front wiper stop position

ON

IGN ON SW

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

IGN SW CAN

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

RR WASHER SW

Rear washer switch OFF

OFF

Rear washer switch ON

ON

RR WIPER INT

Rear wiper switch OFF

OFF

Rear wiper switch INT

ON

RR WIPER ON

Rear wiper switch OFF

OFF

Rear wiper switch ON

ON

RR WIPER STOP

Rear wiper stop position

OFF

Other than rear wiper stop position

ON

VEHICLE SPEED

While driving

Equivalent to speedometer reading

WW-40

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000001712172

VALUES ON THE DIAGNOSIS TOOL

TERMINAL LAYOUT

Refer to

PCS-19, "Terminal Layout"

.

PHYSICAL VALUES

Refer to

PCS-19, "Physical Values"

.

Fail Safe

INFOID:0000000001712173

CAN communication control

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If no CAN communication is available with BCM

Front wiper control

IPDM E/R detects the front wiper stop position with the front wiper auto stop signal.
When the front wiper auto stop signal is in the conditions listed below, IPDM E/R repeats a front wiper 10 sec-
onds operation and 20 seconds stop five times.

NOTE:

Monitor Item

Condition

Value/Status

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

STOP

Front wiper switch INT

1LOW

Front wiper switch LO

Low

Front wiper switch HI

Hi

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

Off

Front wiper stops at fail-safe oper-
ation

BLOCK

IGN RLY

Ignition switch OFF or ACC

Off

Ignition switch ON

On

IGN ON SW

Ignition switch OFF or ACC

Off

Ignition switch ON

On

Control part

Fail-safe in operation

Front wiper

• The status just before activation of fail-safe control is maintained until the ignition

switch is turned OFF while the front wiper is operating at LO or HI speed.

• The front wiper is operated at LO speed until the ignition switch is turned OFF if the

fail-safe control is activated while the front wiper is set in the INT mode and the front
wiper motor is operating.

Ignition switch

Front wiper switch

Front wiper auto stop signal

ON

OFF

The front wiper auto stop signal (stop posi-
tion) cannot be input for 10 seconds.

ON

The front wiper auto stop signal does not
change for 10 seconds.
