REAR WIPER AND WASHER SYSTEM

WW-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

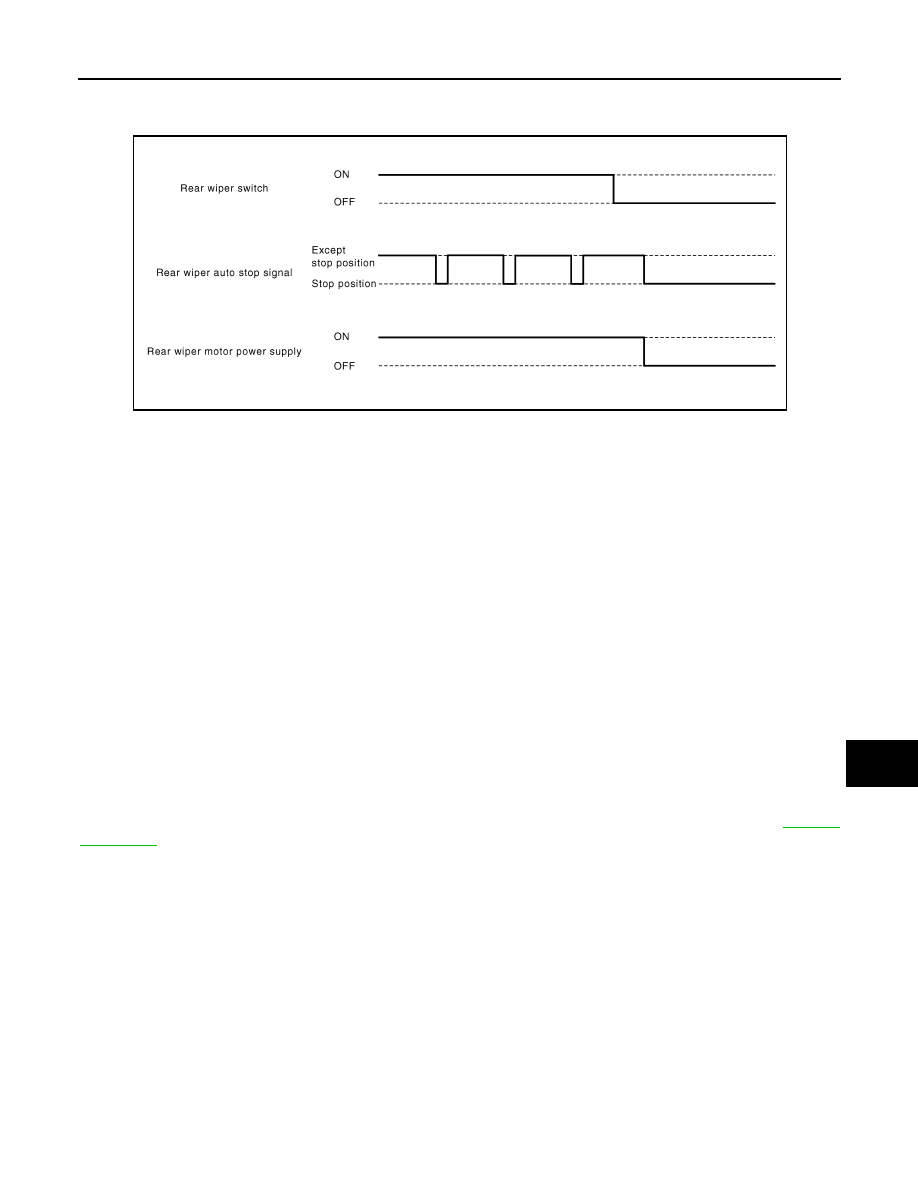

• BCM reads an auto stop signal from the rear wiper motor to detect a rear wiper motor position.
• When the rear wiper motor is at other than the stopping position, BCM continues to supply power to the rear

wiper motor until it returns to the stopping position.

NOTE:
BCM stops supplying power to the rear wiper motor when the ignition switch is turned OFF.

REAR WIPER OPERATION LINKED WITH WASHER

• BCM supplies power to the rear wiper motor according to the washer linked operating condition of rear

wiper. When the rear washer switch is turned OFF, BCM controls rear wiper to operate approximately three
times.

Washer linked operating condition of rear wiper

- Ignition switch ON
- Rear washer switch ON (0.4 second or more)
• Front and rear washer motor becomes grounded through the combination switch when the rear washer

switch is turned ON.

REAR WIPER DROP WIPE OPERATION

• BCM controls the rear wiper to operate once according to the rear wiper drop wipe operating condition.

Rear wiper drop wipe operating condition

- Ignition switch ON
- Rear wiper switch OFF
- Rear washer switch OFF
• BCM controls the rear wiper so that it operates once time approximately three seconds later after the washer

interlocking operation of the rear wiper.

REAR WIPER FAIL

SAFE OPERATION

BCM performs the fail-safe function when the rear wiper auto stop circuit is malfunctioning. Refer to

WW-40,

"Fail Safe"

.

JPLIA0166GB

WW-10

< FUNCTION DIAGNOSIS >

REAR WIPER AND WASHER SYSTEM

Component Parts Location

INFOID:0000000001712147

Component Description

INFOID:0000000001712148

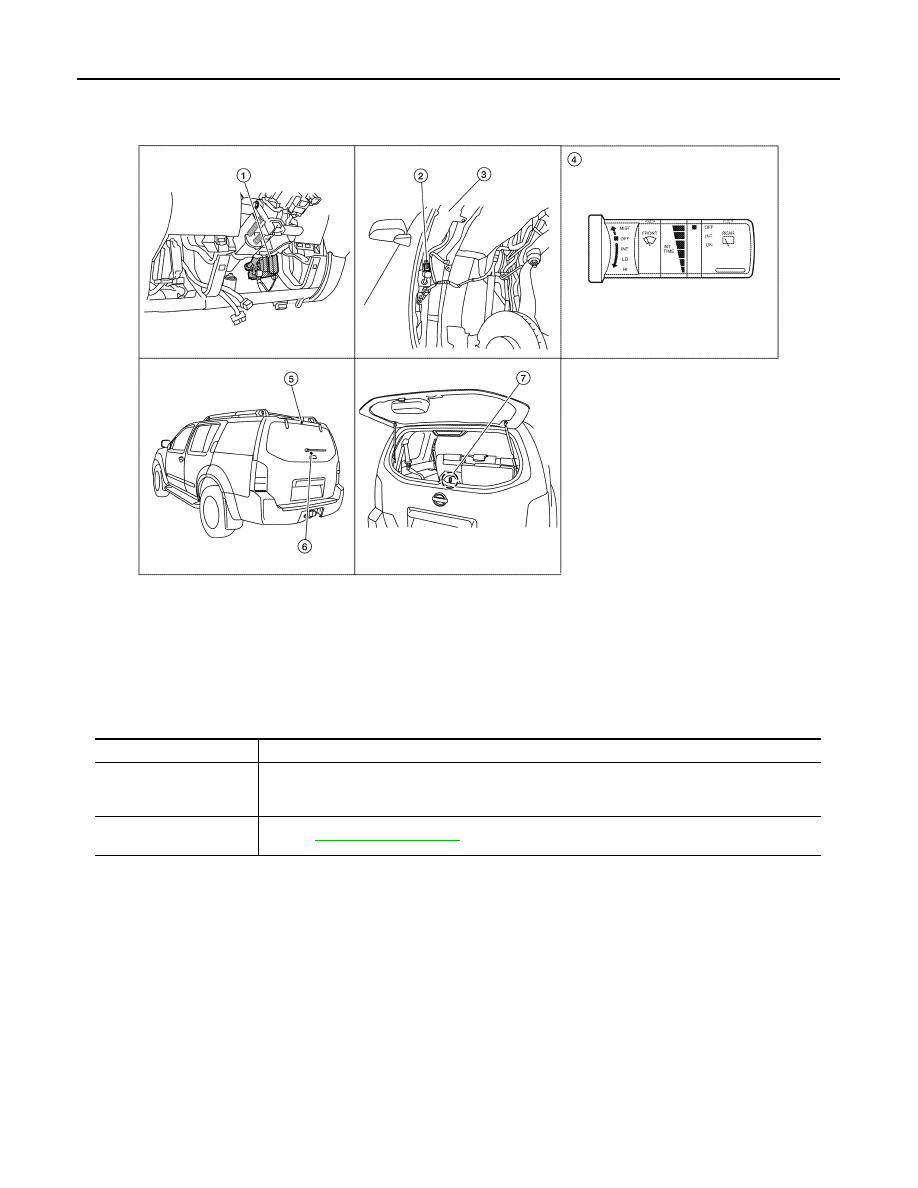

1.

BCM M18, M19, M20 (view with instru-
ment lower panel LH removed)

2.

Front and rear washer motor con-
nector E105

3.

Washer fluid reservoir

4.

Combination switch M28

5.

Rear washer nozzle

6.

Rear wiper motor D602

7.

Glass hatch ajar switch D503

ALLIA0618ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.

Combination switch
(Wiper and washer switch)

Refer to

WW-4, "System Diagram"

.

DIAGNOSIS SYSTEM (BCM)

WW-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001712149

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

WIPER

WIPER : CONSULT-III Function (BCM - WIPER)

INFOID:0000000001712150

WORK SUPPORT

*:Factory setting

DATA MONITOR

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-51, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Combination switch

COMB SW

×

Glass hatch ajar switch

TRUNK

×

×

Service item

Setting

item

Description

WIPER SPEED
SETTING

ON*

With vehicle speed
(Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)

OFF

Without vehicle speed
(Front wiper intermittent time linked with the wiper intermittent dial position)

Monitor Item

[Unit]

Description

IGN ON SW

Ignition switch ON status judged from ignition power supply.

IGN SW CAN

Ignition switch ON status received from IPDM E/R with CAN communication.

WW-12

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

FR WIPER HI
[OFF/ON]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER LOW
[OFF/ON]

FR WIPER INT
[OFF/ON]

FR WASHER SW
[OFF/ON]

INT VOLUME
[1

 7]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER STOP
[OFF/ON]

Front wiper motor (stop position) status received from IPDM E/R with CAN communica-
tion.

VEHICLE SPEED
[km/h]

The value of the vehicle speed signal received from combination meter with CAN com-
munication.

RR WIPER ON
[OFF/ON]

Each switch status that BCM judges from the combination switch reading function.

RR WIPER INT
[OFF/ON]

RR WASHER SW
[OFF/ON]

RR WIPER STOP
[OFF/ON]

Rear wiper motor (stop position) status input from the rear wiper motor.

Monitor Item

[Unit]

Description

Test item

Operation

Description

FR WIPER

HI

Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to op-
erate the front wiper HI operation.

LO

Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to
operate the front wiper LO operation.

INT

Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to
operate the front wiper INT operation.

OFF

Stops transmitting the front wiper request signal to stop the front wiper operation.

RR WIPER

ON

Outputs the voltage to operate the rear wiper motor.

OFF

Stops the voltage to stop rear wiper motor operation.

DIAGNOSIS SYSTEM (IPDM E/R)

WW-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000001712151

AUTO ACTIVE TEST

Refer to PCS IPDM E/R AUTO ACTIVE TEST.

CONSULT - III Function (IPDM E/R)

INFOID:0000000001712152

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC

Refer to

PCS-28, "DTC Index"

.

DATA MONITOR

Monitor item

ACTIVE TEST

Test item

Diagnosis mode

Description

ECU Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Monitor Item

[Unit]

MAIN

SIGNALS

Description

FR WIP REQ
[Stop/1LOW/Low/Hi]

×

Displays the status of the front wiper request signal received from BCM via CAN com-
munication.

WIP AUTO STOP
[STOP P/ACT P]

×

Displays the status of the front wiper auto stop signal judged by IPDM E/R.

WIP PROT
[Off/BLOCK]

×

Displays the status of the front wiper fail-safe operation judged by IPDM E/R.

IGN RLY
[Off/On]

×

Displays the status of the ignition relay judged by IPDM E/R.

IGN ON SW
[Off/On]

Displays the status of the ignition switch judged by IPDM E/R.

Test item

Operation

Description

FRONT WIPER

Off

OFF

Lo

Operates the front wiper relay.

Hi

Operates the front wiper relay and front wiper high relay.

WW-14

< COMPONENT DIAGNOSIS >

WIPER AND WASHER FUSE

COMPONENT DIAGNOSIS

WIPER AND WASHER FUSE

Description

INFOID:0000000001712154

Fuse list

Diagnosis Procedure

INFOID:0000000001712155

1.

 CHECK FUSES

Check that the following fuses are not blown.

Is the fuse blown?

YES

>> Replace the fuse after repairing the applicable circuit.

NO

>> The fuse is normal.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

Front and rear washer motor

Fuse block (J/B)

9

10 A

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

Front and rear washer motor

Fuse block (J/B)

9

10 A

FRONT WIPER MOTOR LO CIRCUIT

WW-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER MOTOR LO CIRCUIT

Component Function Check

INFOID:0000000001712156

1.

 CHECK FRONT WIPER LO OPERATION

IPDM E/R AUTO ACTIVE TEST

1.

Start IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

2.

Check that the front wiper operates at the LO operation.

CONSULT-III ACTIVE TEST

1.

Select "FRONT WIPER" of IPDM E/R active test item.

2.

While operating the test item, check front wiper operation.

Is front wiper (LO) operation normal?

YES

>> Front wiper motor LO circuit is normal.

NO

>> Refer to

WW-15, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001712157

1.

 CHECK FRONT WIPER MOTOR FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuse is not blown.

Is the fuse blown?

YES

>> GO TO 2

NO

>> GO TO 3

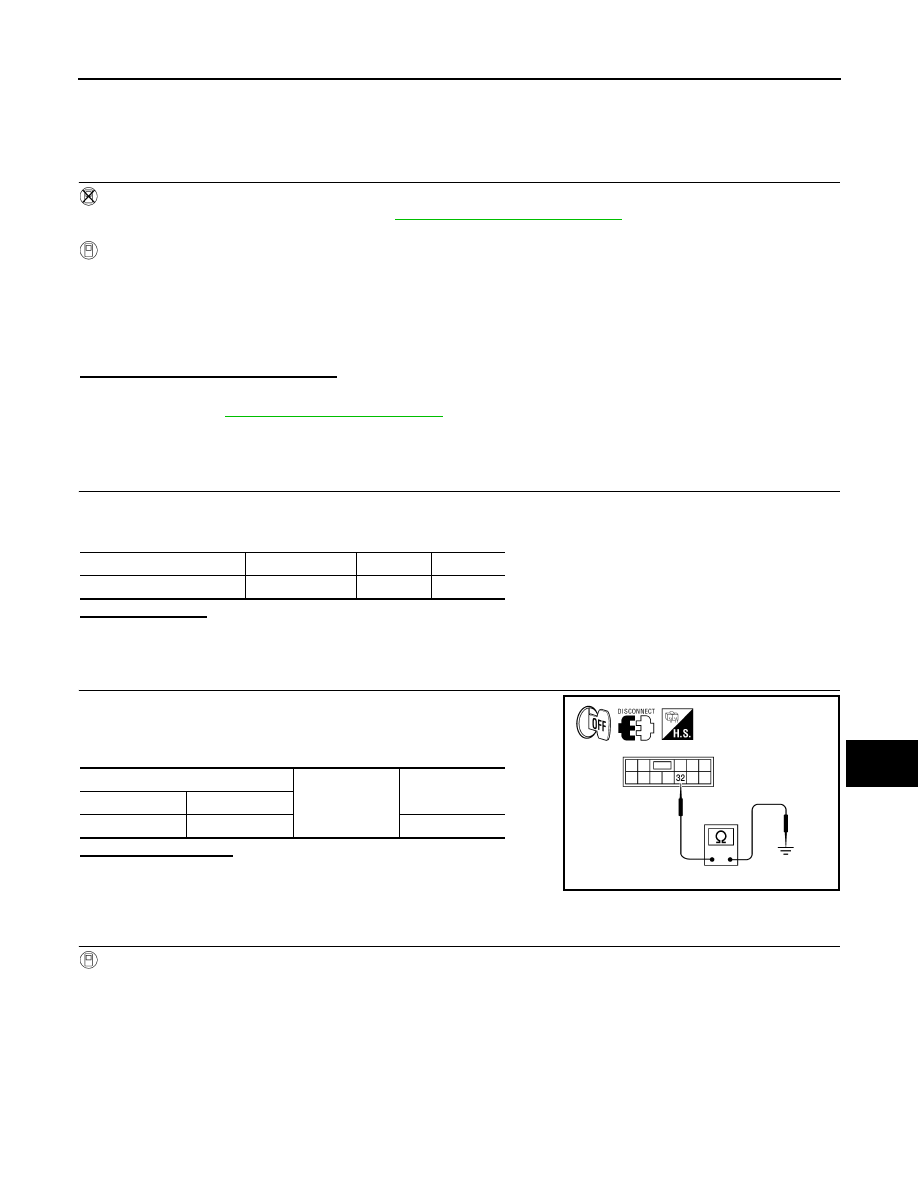

2.

 CHECK FRONT WIPER MOTOR (LO) SHORT CIRCUIT

1.

Disconnect IPDM E/R and front wiper motor.

2.

Check continuity between IPDM E/R harness connector and
ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> Replace the fuse. (Replace IPDM E/R if the fuse is

blown again.)

3.

 CHECK FRONT WIPER MOTOR (LO) OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

LO

: Front wiper (LO) operation

OFF

: Stop the front wiper.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

IPDM E/R

Ground

Continuity

Connector

Terminal

E121

32

No

ALLIA0447ZZ

WW-16

< COMPONENT DIAGNOSIS >

FRONT WIPER MOTOR LO CIRCUIT

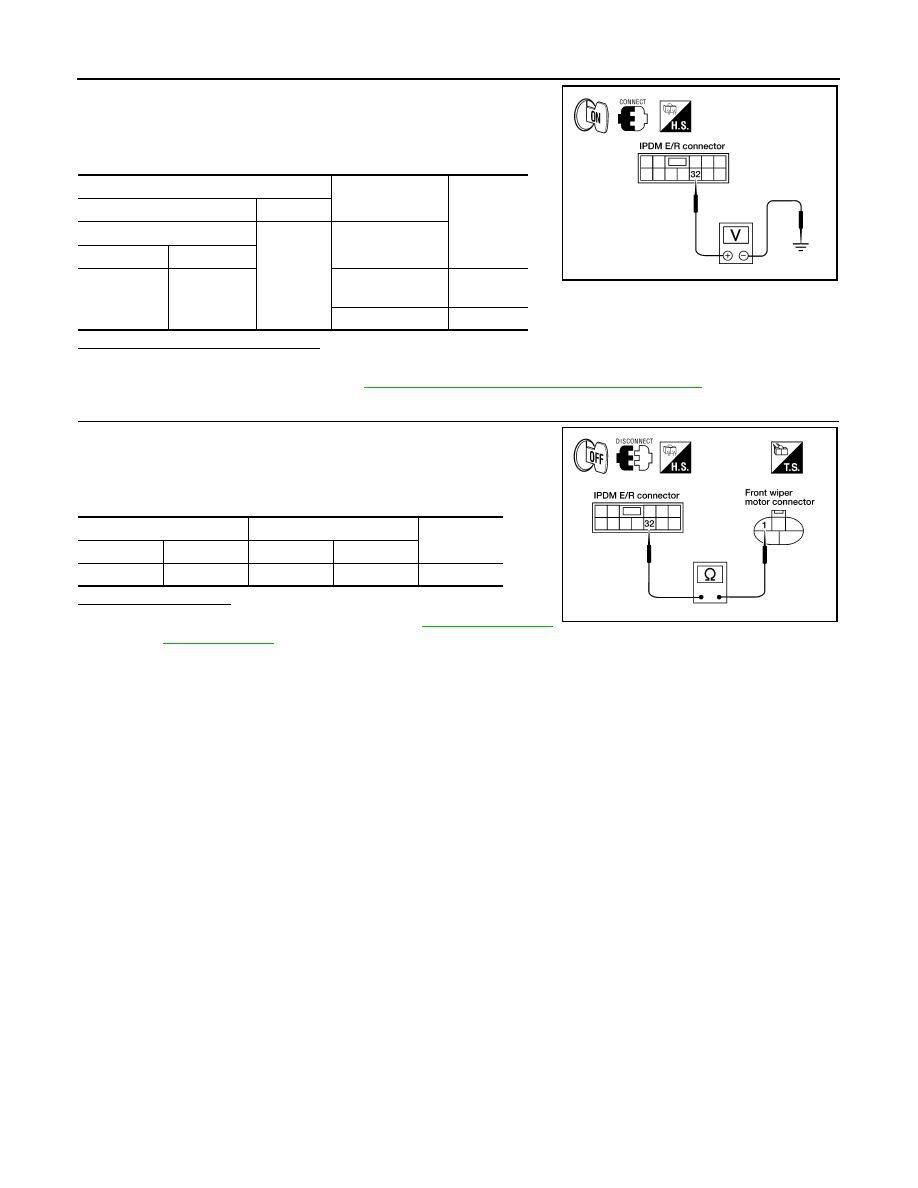

1.

Turn the ignition switch ON.

2.

Select "FRONT WIPER" of IPDM E/R active test item.

3.

While operating the test item, check voltage between IPDM E/R
harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 4

NO

>> Replace IPDM E/R. Refer to

PCS-30, "Removal and Installation of IPDM E/R"

.

4.

 CHECK FRONT WIPER MOTOR (LO) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R and front wiper motor.

3.

Check continuity between IPDM E/R harness connector and
front wiper motor harness connector.

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-49, "Removal

and Installation"

.

NO

>> Repair or replace harness.

Terminals

Test item

Voltage

(Approx.)

(+)

(-)

IPDM E/R

Ground

FRONT WIPER

Connector

Terminal

E121

32

LO

Battery
voltage

OFF

0V

WKIA3759E

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E121

32

E23

1

Yes

WKIA3197E
