LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

WT-25

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is Turned
On

INFOID:0000000001277819

DIAGNOSTIC PROCEDURE

1.

SELF-DIAGNOSTIC RESULT CHECK

Using CONSULT-III, check display contents of BCM in SELF-DIAGNOSIS.

Is CAN COMM CIRCUIT displayed in the self-diagnosis display items?

YES

>>  Malfunction in CAN communication system.

NO

>> GO TO 2

2.

CHECK COMBINATION METER

Check combination meter operation.  Refer to

MWI-24, "CONSULT-III Function (METER/M&A)"

.

Inspection results OK?

YES

>> GO TO 3

NO

>> Replace combination meter. Refer to

MWI-94, "Removal and Installation"

.

3.

CHECK LOW TIRE PRESSURE WARNING LAMP

Disconnect BCM harness connector.

Does the low tire pressure warning lamp activate?

YES

>> Replace BCM. Refer to

BCS-54, "Removal and Installation"

.

NO

>> Check combination meter operation.

WT-26

< SYMPTOM DIAGNOSIS >

LOW TIRE PRESSURE WARNING LAMP STAYS ON

LOW TIRE PRESSURE WARNING LAMP STAYS ON

Low Tire Pressure Warning Lamp Stays On When Ignition Switch Is Turned On

INFOID:0000000001277820

DIAGNOSTIC PROCEDURE

1.

BCM CONNECTORS

1.

Turn ignition switch OFF.

2.

Disconnect BCM harness connectors.

3.

Check terminals for damage or loose connections.

Are any of the BCM connectors loose or damaged?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 2

2.

BCM POWER SUPPLY AND GROUND CIRCUITS

Check BCM power supply and ground circuits.  Refer to

BCS-32, "Diagnosis Procedure"

.

Are the BCM power supply and ground circuits OK?

YES

>> Replace BCM. Refer to

BCS-54, "Removal and Installation"

.

NO

>> Repair BCM circuits.

LOW TIRE PRESSURE WARNING LAMP BLINKS

WT-27

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

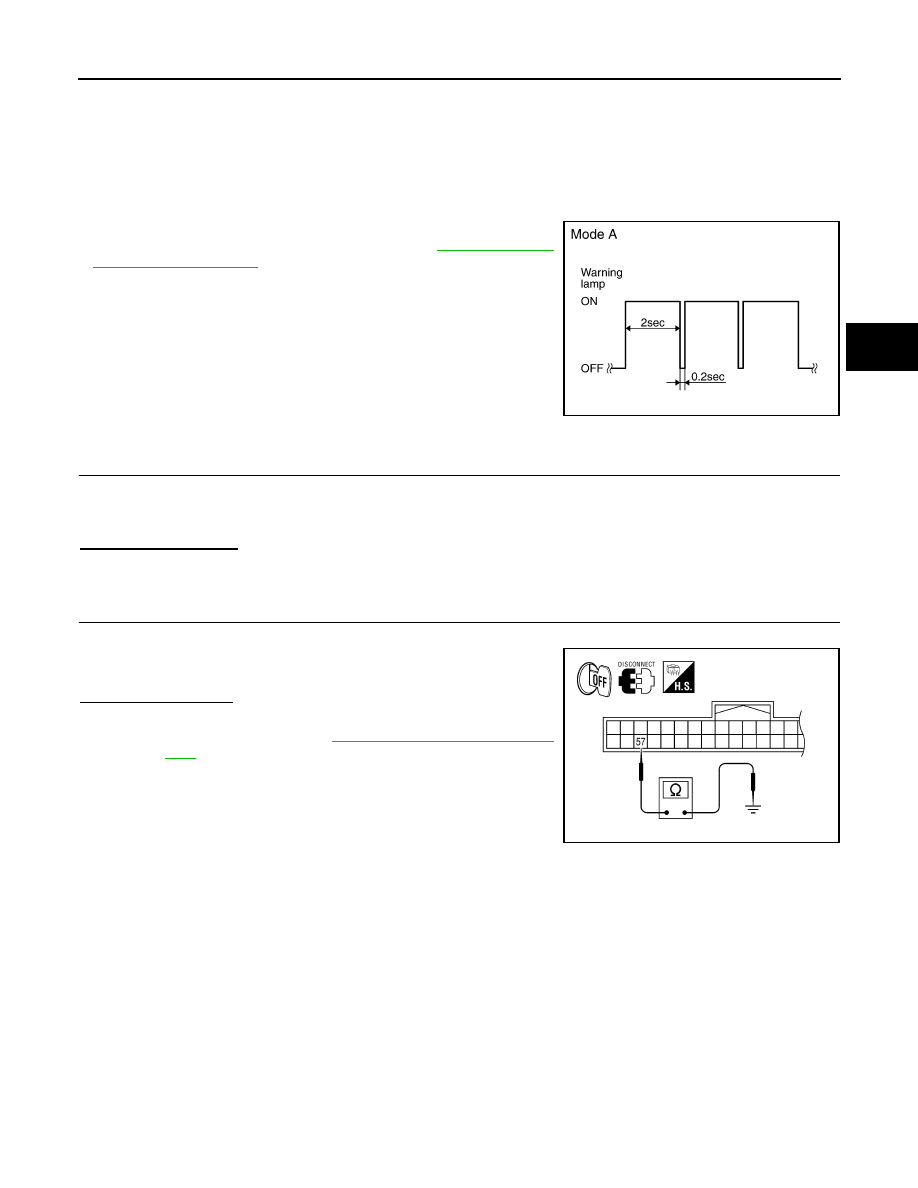

LOW TIRE PRESSURE WARNING LAMP BLINKS

Low Tire Pressure Warning Lamp Flashes When Ignition Switch Is Turned On

INFOID:0000000001277821

NOTE:
If low tire pressure warning lamp flashes as shown, the system is normal.

Flash Mode A

• This mode shows transmitter status is OFF-mode.

Carry out transmitter wake up operation. Refer to

WT-5, "Transmit-

ter Wake Up Operation"

.

DIAGNOSTIC PROCEDURE

1.

CHECK BCM CONNECTORS

1.

Turn ignition switch OFF.

2.

Disconnect BCM harness connectors.

3.

Check terminals for damage or loose connections.

Inspection results OK?

YES

>> GO TO 2

NO

>> Repair or replace damaged parts.

2.

CHECK TIRE PRESSURE WARNING CHECK CONNECTOR CIRCUIT

Check continuity between BCM harness connector M18 terminal 57 and ground.

Does continuity exist?

YES

>> Repair circuit for short to ground.

NO

>> Replace BCM. Refer to

BCS-54, "Removal and Installa-

tion"

.

SEIA0347E

Continuity should not exist.

ALEIA0008ZZ

WT-28

< SYMPTOM DIAGNOSIS >

HAZARD WARNING LAMPS FLASH

HAZARD WARNING LAMPS FLASH

Hazard Warning Lamps Flash When Ignition Switch Is Turned On

INFOID:0000000001277822

DIAGNOSTIC PROCEDURE

1.

CHECK BCM GROUND CIRCUIT

Check BCM ground circuit.  Refer to

BCS-32, "Diagnosis Procedure"

.

Is BCM ground circuit OK?

YES

>> Replace BCM. Refer to

BCS-54, "Removal and Installation"

.

NO

>> Repair BCM ground circuit.

"TIRE PRESSURE" INFORMATION IN DISPLAY UNIT DOES NOT EXIST

WT-29

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

"TIRE PRESSURE" INFORMATION IN DISPLAY UNIT DOES NOT EXIST

"TIRE PRESSURE" Information in Display Unit Does Not Exist

INFOID:0000000001277831

DIAGNOSTIC PROCEDURE

1.

SELF-DIAGNOSTIC RESULT CHECK

Using CONSULT-III, check display contents in self-diagnostic results.

Is CAN COMM CIRCUIT displayed in the self-diagnosis display items?

YES

>>  Malfunction in CAN communication system.

NO

>>  GO TO 2.

2.

CHECK DISPLAY UNIT

Perform AV unit self-diagnosis. Refer to

AV-306, "AV CONTROL UNIT : CONSULT-III Function"

.

Inspection results OK?

OK

>> Replace BCM. Refer to

BCS-54, "Removal and Installation"

.

NG

>> Repair or replace malfunctioning parts.

WT-30

< SYMPTOM DIAGNOSIS >

ID REGISTRATION CANNOT BE COMPLETED

ID REGISTRATION CANNOT BE COMPLETED

ID Registration Cannot Be Completed

INFOID:0000000001277823

DIAGNOSTIC PROCEDURE

1.

PERFORM ID REGISTRATION OF ALL TRANSMITTERS

Carry out ID registration of all transmitters. Refer to

WT-6, "ID Registration Procedure"

.

Can ID registration of all transmitters be completed?

YES

>> Inspection End.

NO

>> GO TO

WT-13, "Data from Transmitter Not Being Received"

.

PRECAUTIONS

WT-31

< PRECAUTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001277825

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for work

INFOID:0000000001277826

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

WT-32

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

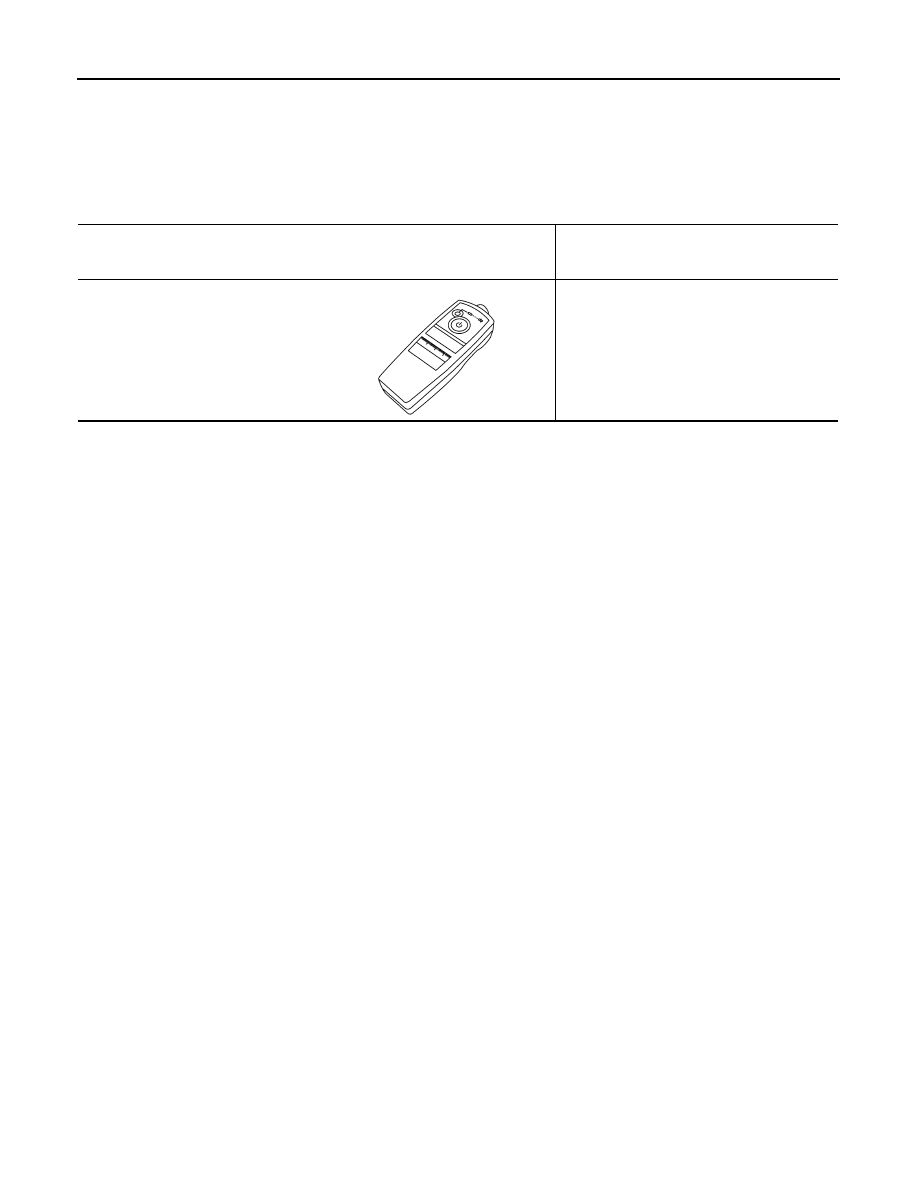

Special Service Tool

INFOID:0000000001277827

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV991B1000
(J-45295)
Transmitter activation tool

• Transmitter wake up operation
• ID registration procedure

WEIA0144E
