STARTER MOTOR

STR-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ON-VEHICLE REPAIR

STARTER MOTOR

Removal and Installation

INFOID:0000000001282715

VQ40DE MODELS

Removal

1.

Disconnect the negative battery terminal.

2.

Remove engine undercover, using power tools.

3.

Remove exhaust manifold cover from exhaust manifold (right bank) to gain access to starter cover bolts.
Refer to

EM-31, "Removal and Installation"

.

4.

Remove starter cover bolts and starter cover.

5.

Disconnect terminal "1" connector and terminal "2" nut.

6.

Remove the two starter bolts, using power tools.

7.

Remove the starter.

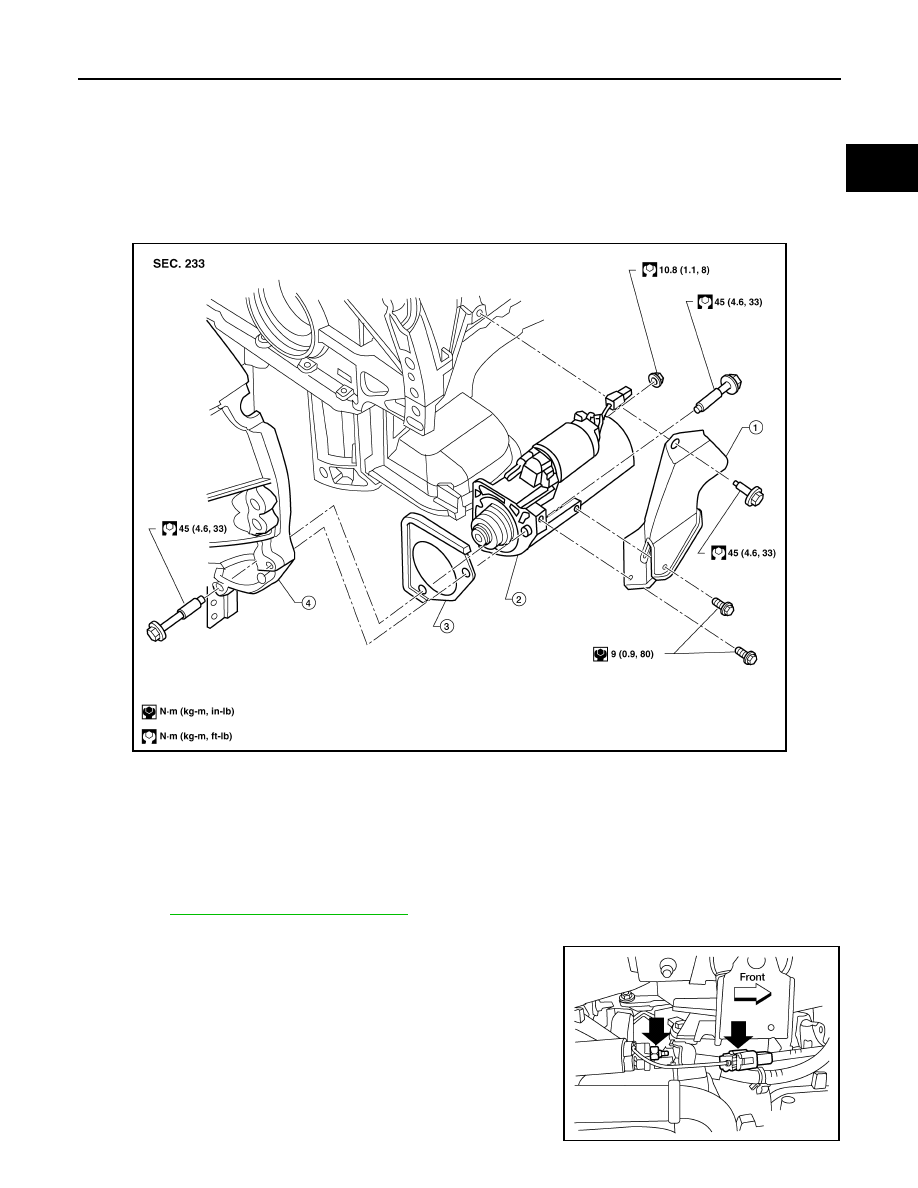

WKIA3190E

1.

Starter cover

2.

Starter motor assembly

3.

Starter cover plate (rear)

4.

Transmission housing

WKIA3189E

STR-18

< ON-VEHICLE REPAIR >

STARTER MOTOR

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten terminal "2" nut carefully.

VK56DE MODELS

Removal

1.

Remove the intake manifold. Refer to

EM-166, "Removal and Installation"

.

2.

Disconnect terminal "1" connector and terminal "2" nut.

3.

Remove the two starter bolts, using power tools.

4.

Remove the starter.

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten terminal "2" nut carefully.

Terminal "2" nut

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

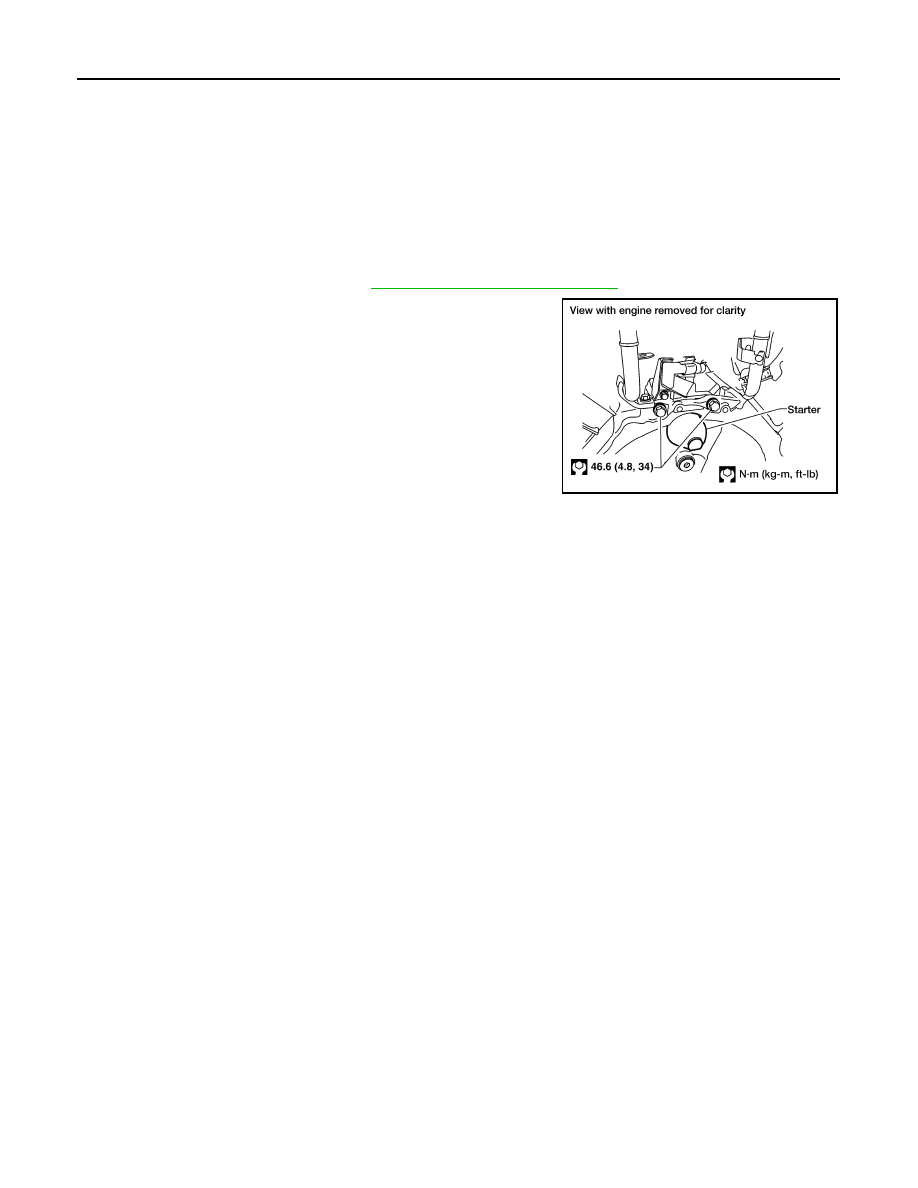

WKIA1388E

Terminal "2" nut

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

STARTER MOTOR

STR-19

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

STARTER MOTOR

Starter

INFOID:0000000001283042

Application

VQ40DE

VK56DE

Manufacturer

Mitsubishi

M002T85571ZCKD

Type

Reduction gear type

System voltage

12V

No-load

Terminal voltage

11V

Current

Less than 120A

Less than 145A

Revolution

More than 3,100 rpm

More than 3,300 rpm
