SRC-18

< COMPONENT DIAGNOSIS >

B1049 – B1052, B1054 – B1057 DRIVER AIRBAG MODULE

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

CONSULT-III

Select "DIAG MODE".

>> GO TO 3

3.

DTC

If DTC is detected. Refer to

SRC-18, "Diagnosis Procedure (Component diagnosis)"

.

>> END

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5.

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6.

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT-III"

.

>> END

Diagnosis Procedure (Component diagnosis)

INFOID:0000000001277729

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?

B1049 – B1052, B1054 – B1057 DRIVER AIRBAG MODULE

SRC-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

DRIVER AIR BAG MODULE

Replace the driver air bag module.  Refer to

SR-4, "Removal and Installation"

.

>> GO TO 4

4.

SPIRAL CABLE

Replace the spiral cable.  Refer to

SR-6, "Removal and Installation"

.

>> GO TO 5

5.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-15, "Removal and Installation"

.

>> GO TO 6

6.

RELATED HARNESS

Replace the related harness.

>> END

SRC-20

< COMPONENT DIAGNOSIS >

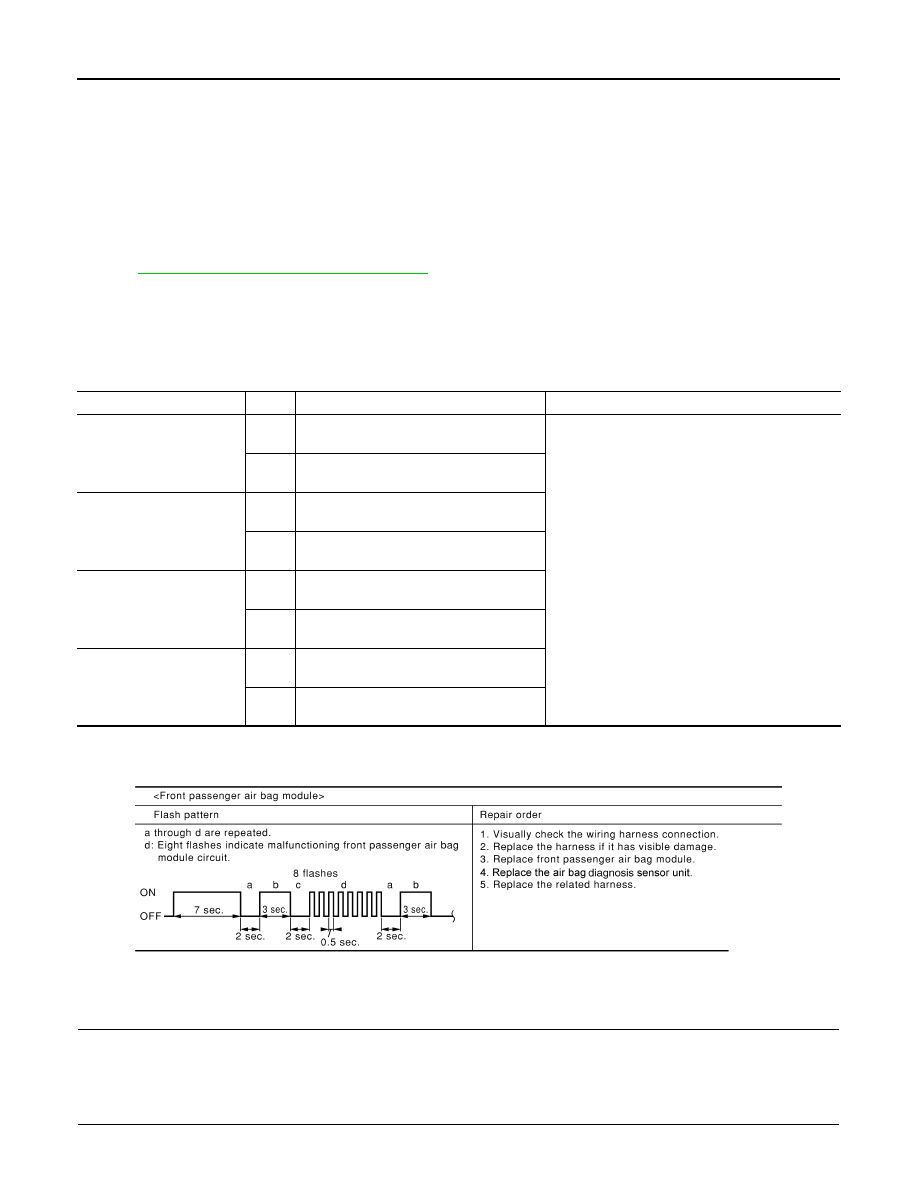

B1065 – B1068, B1070 – B1073 PASSENGER AIRBAG MODULE

B1065 – B1068, B1070 – B1073 PASSENGER AIRBAG MODULE

Description

INFOID:0000000001277730

DTC B1065 – B1068, B1070 – B1073 PASSENGER AIR BAG MODULE

The passenger air bag module is dual stage and wired to the air bag diagnosis sensor unit.  The air bag diag-
nosis sensor unit will monitor for opens and shorts in detected lines to the passenger air bag module.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000001277731

DTC DETECTION LOGIC

With CONSULT-lll

Without CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

CONSULT-III

Select "DIAG MODE".

CONSULT-III name

DTC

DTC detecting condition

Repair order

ASSIST A/B MODULE

[OPEN]

B1065

Front passenger air bag module circuit
(AS1) is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front passenger air bag module.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

B1070

Front passenger air bag module circuit
(AS2) is open.

ASSIST A/B MODULE

[VB-SHORT]

B1066

Front passenger air bag module circuit
(AS1) is shorted to a power supply circuit.

B1071

Front passenger air bag module circuit
(AS2) is shorted to a power supply circuit.

ASSIST A/B MODULE

[GND-SHORT]

B1067

Front passenger air bag module circuit
(AS1) is shorted to ground.

B1072

Front passenger air bag module circuit
(AS2) is shorted to ground.

ASSIST A/B MODULE

[SHORT]

B1068

Front passenger air bag module circuits
(AS1) are shorted to each other.

B1073

Front passenger air bag module circuits
(AS2) are shorted to each other.

WHIA0261E

B1065 – B1068, B1070 – B1073 PASSENGER AIRBAG MODULE

SRC-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

>> GO TO 3

3.

DTC

If DTC is detected. Refer to

SRC-21, "Diagnosis Procedure (Component diagnosis)"

.

>> END

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT-III"

.

>> END

Diagnosis Procedure (Component diagnosis)

INFOID:0000000001277732

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?

YES or NO

YES

>> Replace the harness.

SRC-22

< COMPONENT DIAGNOSIS >

B1065 – B1068, B1070 – B1073 PASSENGER AIRBAG MODULE

NO

>> GO TO 3

3.

FRONT PASSENGER AIR BAG MODULE

Replace the front passenger air bag module.  Refer to

SR-8, "Removal and Installation"

.

>> GO TO 4

4.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-15, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

Replace the related harness.

>> END

B1134 – B1137 SIDE AIRBAG MODULE LH

SRC-23

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

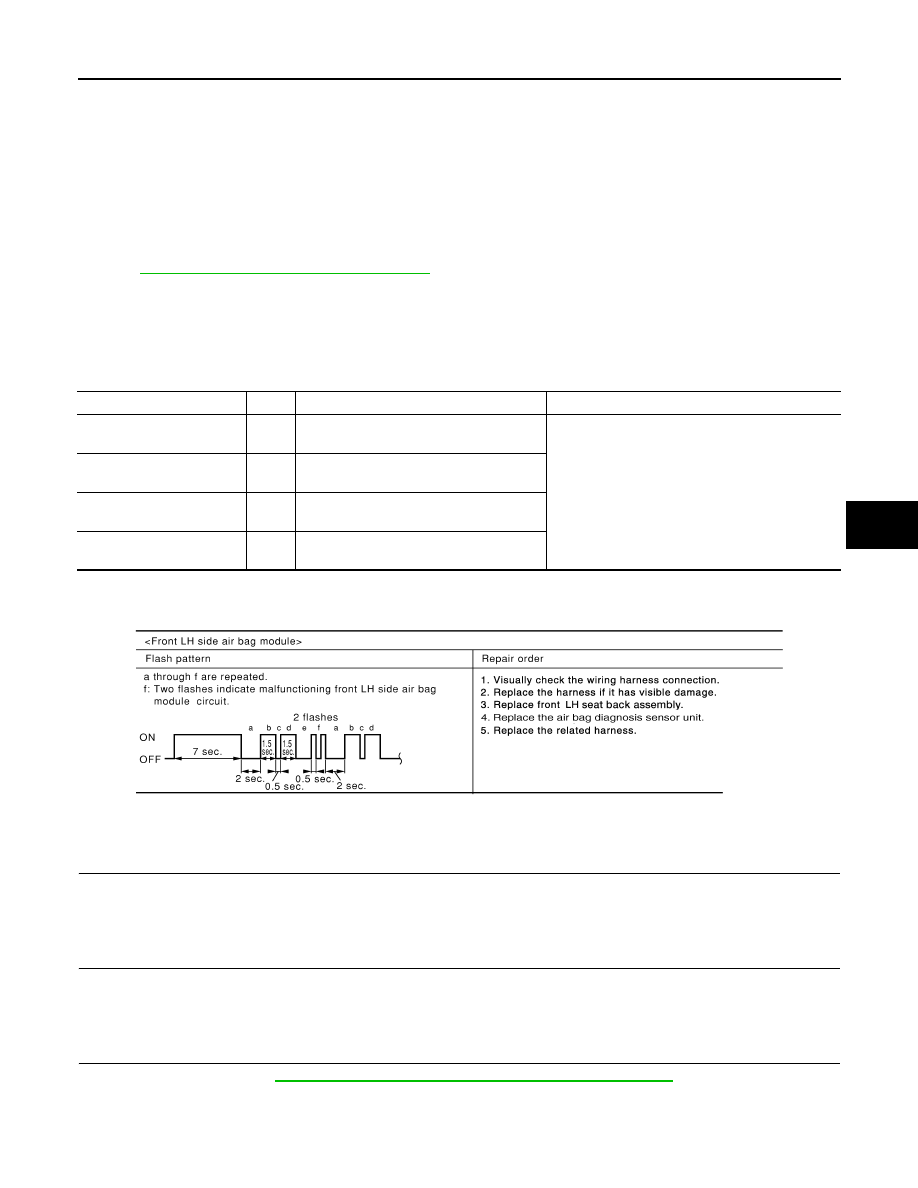

B1134 – B1137 SIDE AIRBAG MODULE LH

Description

INFOID:0000000001277733

DTC B1134 – B1137 FRONT LH SIDE AIR BAG MODULE

The front LH side air bag module is wired to the air bag diagnosis sensor unit.  The air bag diagnosis sensor
unit will monitor for opens and shorts in detected lines to the front LH side air bag module.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000001277734

DTC DETECTION LOGIC

With CONSULT-lll

Without CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

CONSULT-III

Select "DIAG MODE".

>> GO TO 3

3.

DTC

If DTC is detected. Refer to

SRC-24, "Diagnosis Procedure (Component diagnosis)"

.

>> END

CONSULT-III name

DTC

DTC detecting condition

Repair order

SIDE MODULE LH

[OPEN]

B1134

Front LH side air bag module circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front LH seat back assembly.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

SIDE MODULE LH

[VB-SHORT]

B1135

Front LH side air bag module circuit is
shorted to a power supply circuit.

SIDE MODULE LH

[GND-SHORT]

B1136

Front LH side air bag module circuit is
shorted to ground.

SIDE MODULE LH

[SHORT]

B1137

Front LH side air bag module circuits are
shorted to each other.

WHIA0265E

SRC-24

< COMPONENT DIAGNOSIS >

B1134 – B1137 SIDE AIRBAG MODULE LH

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT-III"

.

>> END

Diagnosis Procedure (Component diagnosis)

INFOID:0000000001277735

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?

YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

FRONT LH SIDE AIR BAG MODULE

Replace the front LH seat back assembly.  Refer to

SE-29, "Removal and Installation"

.

>> GO TO 4

4.

AIR BAG DIAGNOSIS SENSOR UNIT

B1134 – B1137 SIDE AIRBAG MODULE LH

SRC-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Replace the air bag diagnosis sensor unit.  Refer to

SR-15, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

Replace the related harness.

>> END
