VEHICLE SECURITY INDICATOR

SEC-49

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

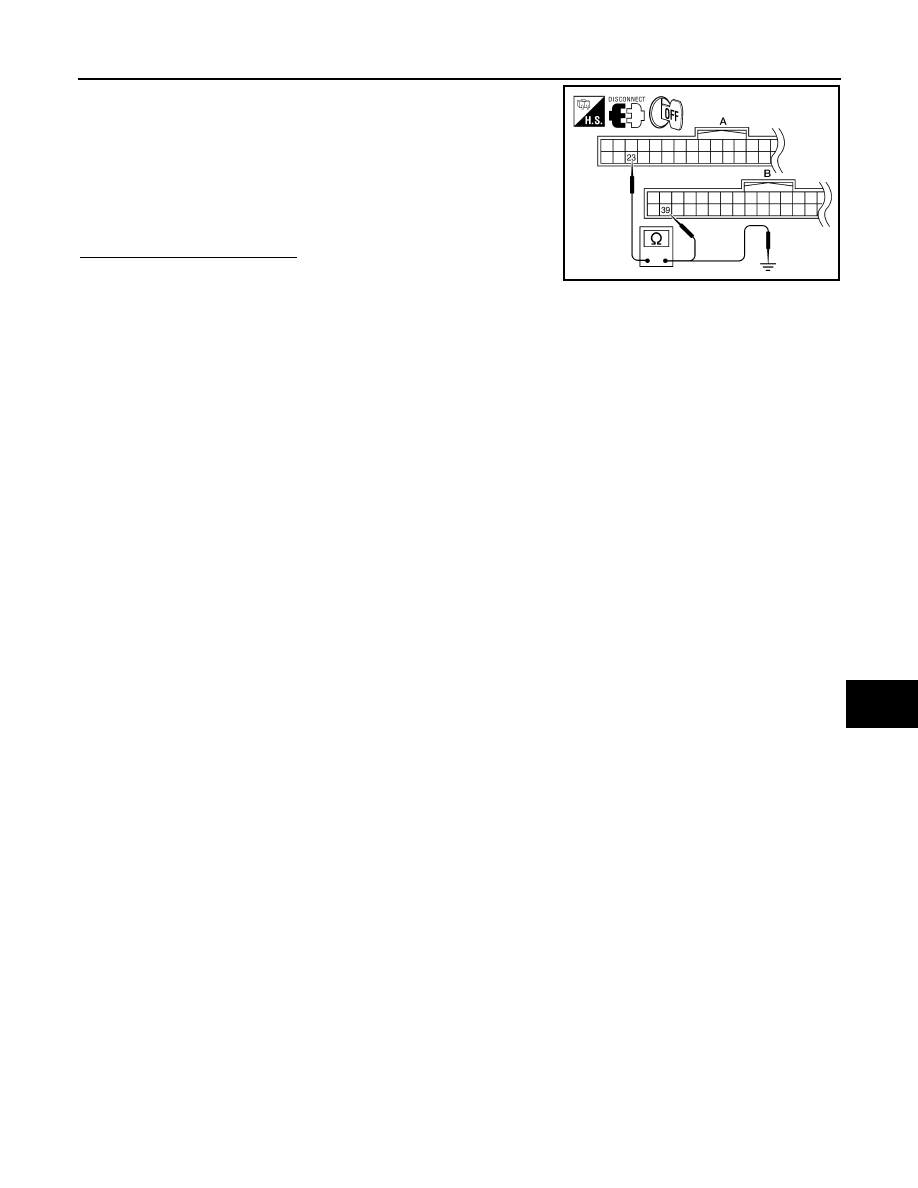

3.

Check continuity between BCM connector (A) M18 terminal 23
and combination meter connector (B) M24 terminal 39.

4.

Check continuity between BCM connector (A) M18 terminal 23
and ground.

Is the inspection result normal?

YES

>>

Check the following:

• 10A fuse [No. 19, located in fuse block (J/B)]
• Harness for open or short between security indicator lamp and fuse

NO

>> Repair or replace harness.

23 - 39

: Continuity should exist.

23 - Ground

: Continuity should not exist.

ALKIA1273ZZ

SEC-50

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000001689570

VALUES ON THE DIAGNOSIS TOOL

Refer to

BCS-38, "Reference Value"

.

TERMINAL LAYOUT

Refer to

BCS-41, "Terminal Layout"

.

PHYSICAL VALUES

Refer to

BCS-41, "Physical Values"

.

BCM (BODY CONTROL MODULE)

SEC-51

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

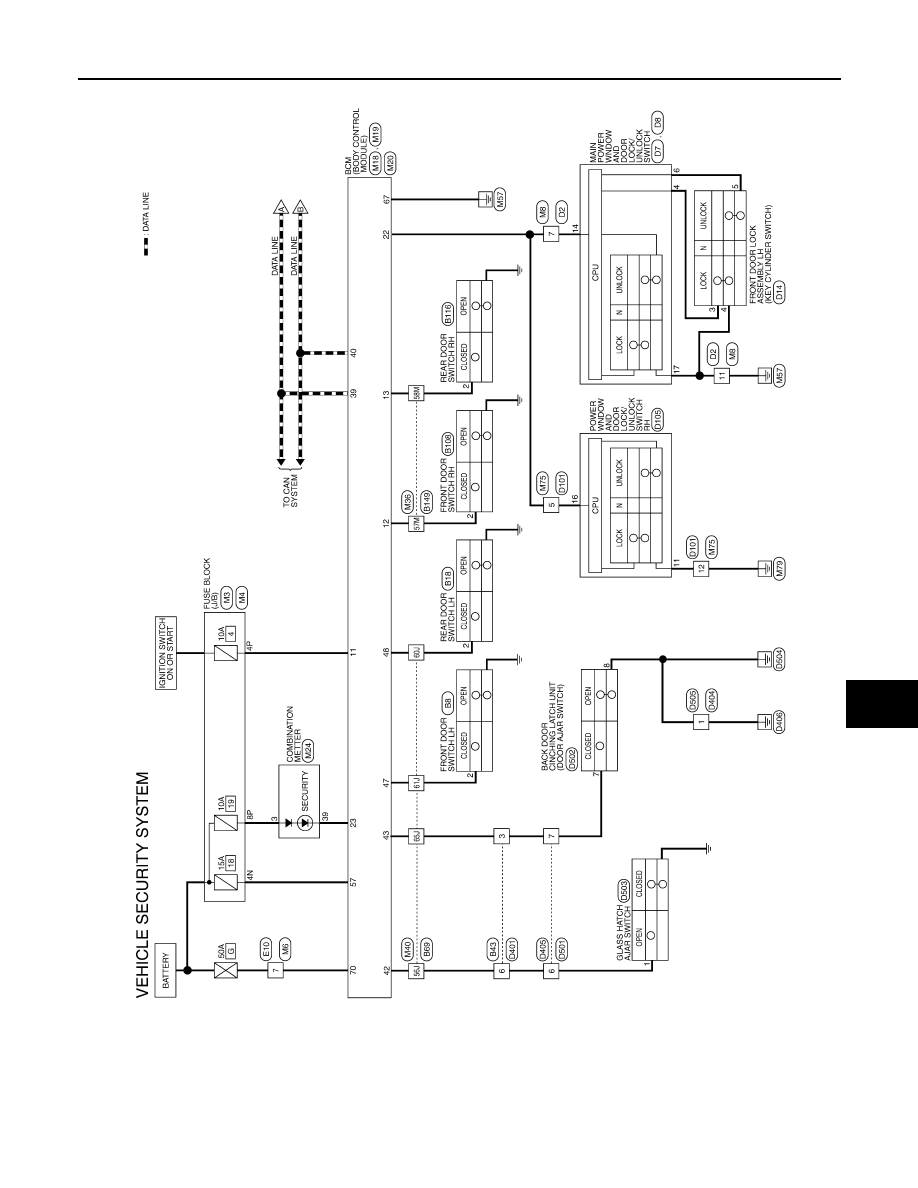

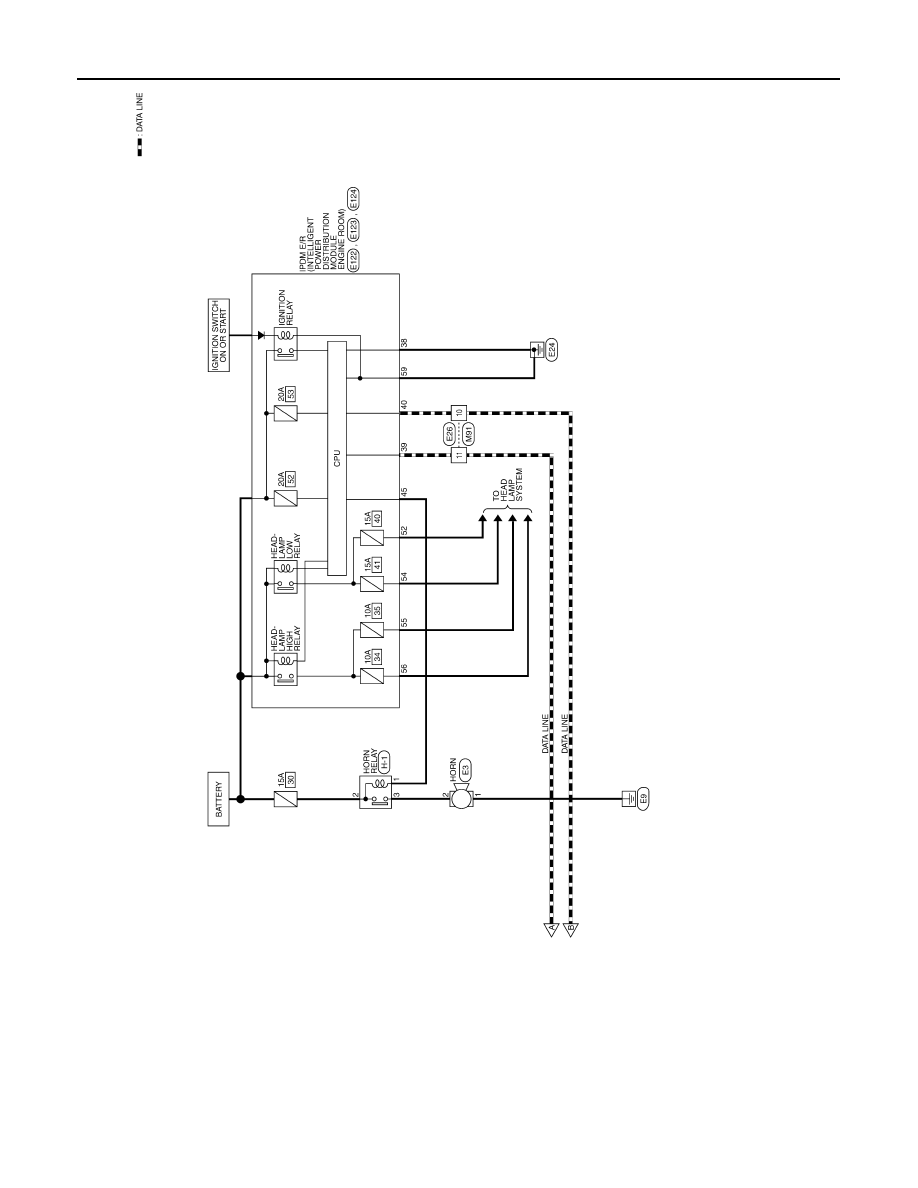

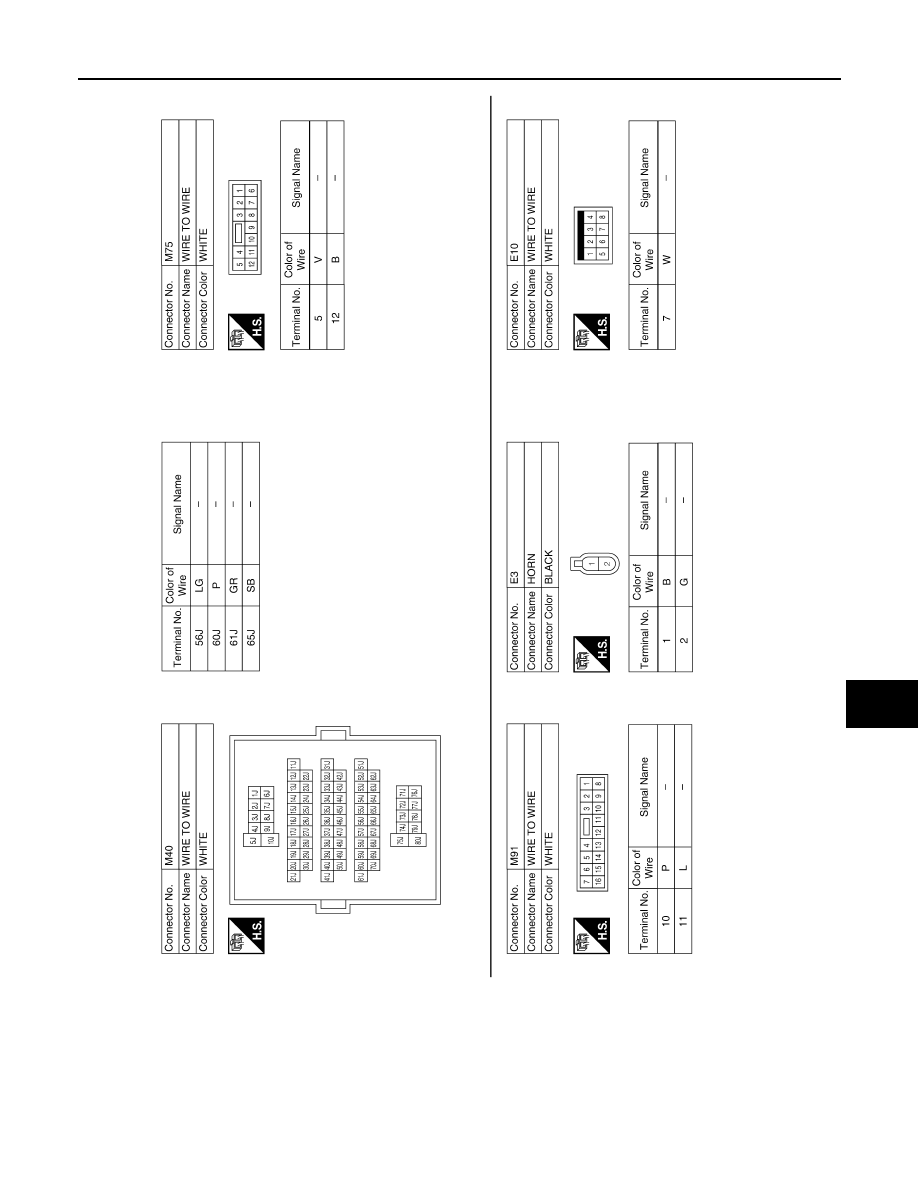

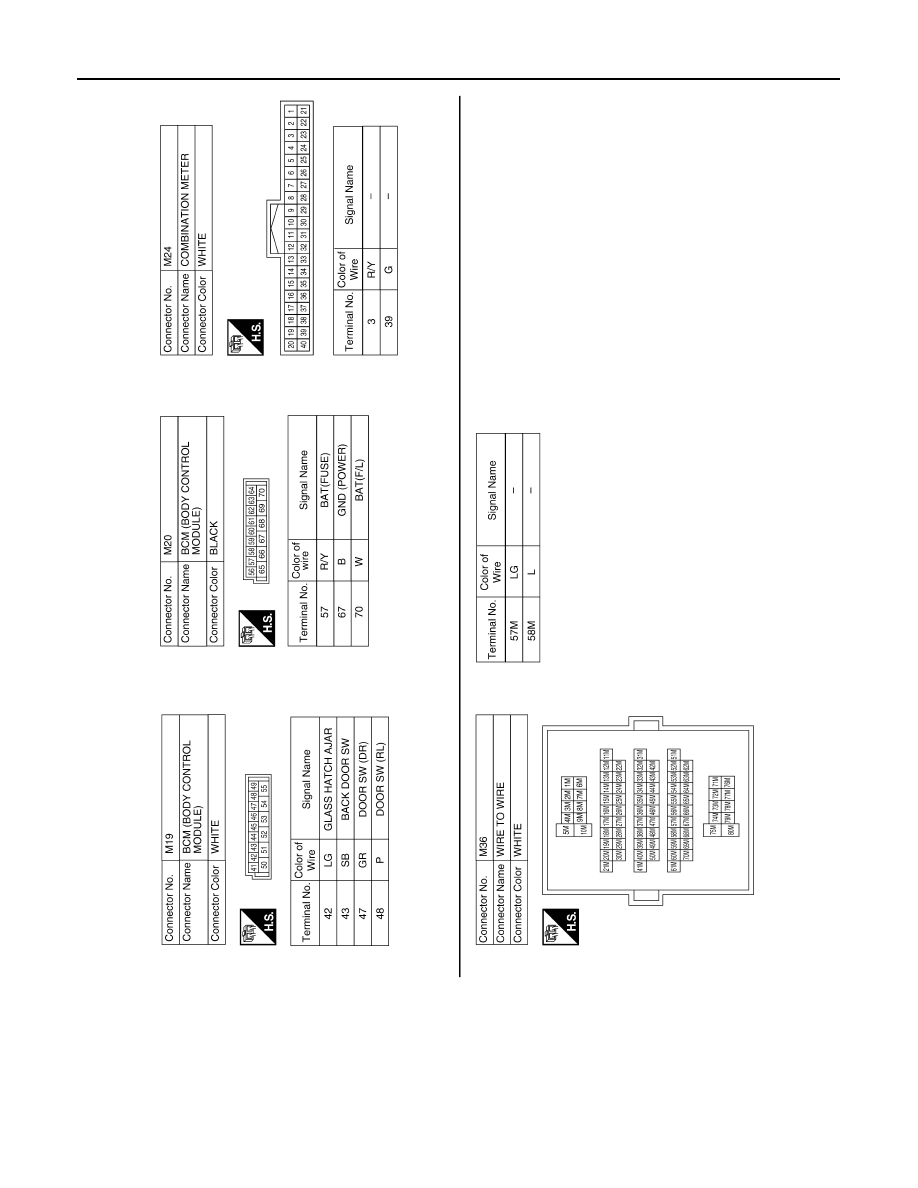

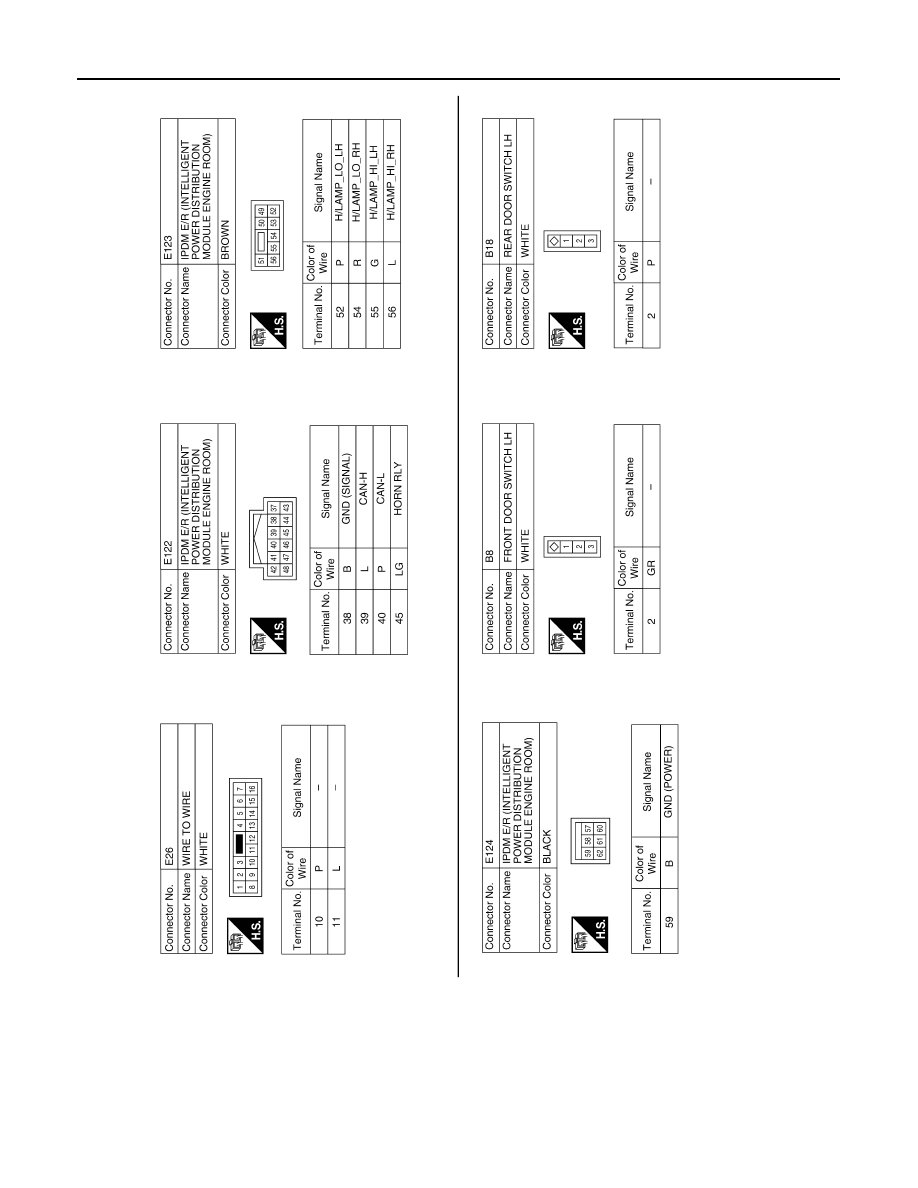

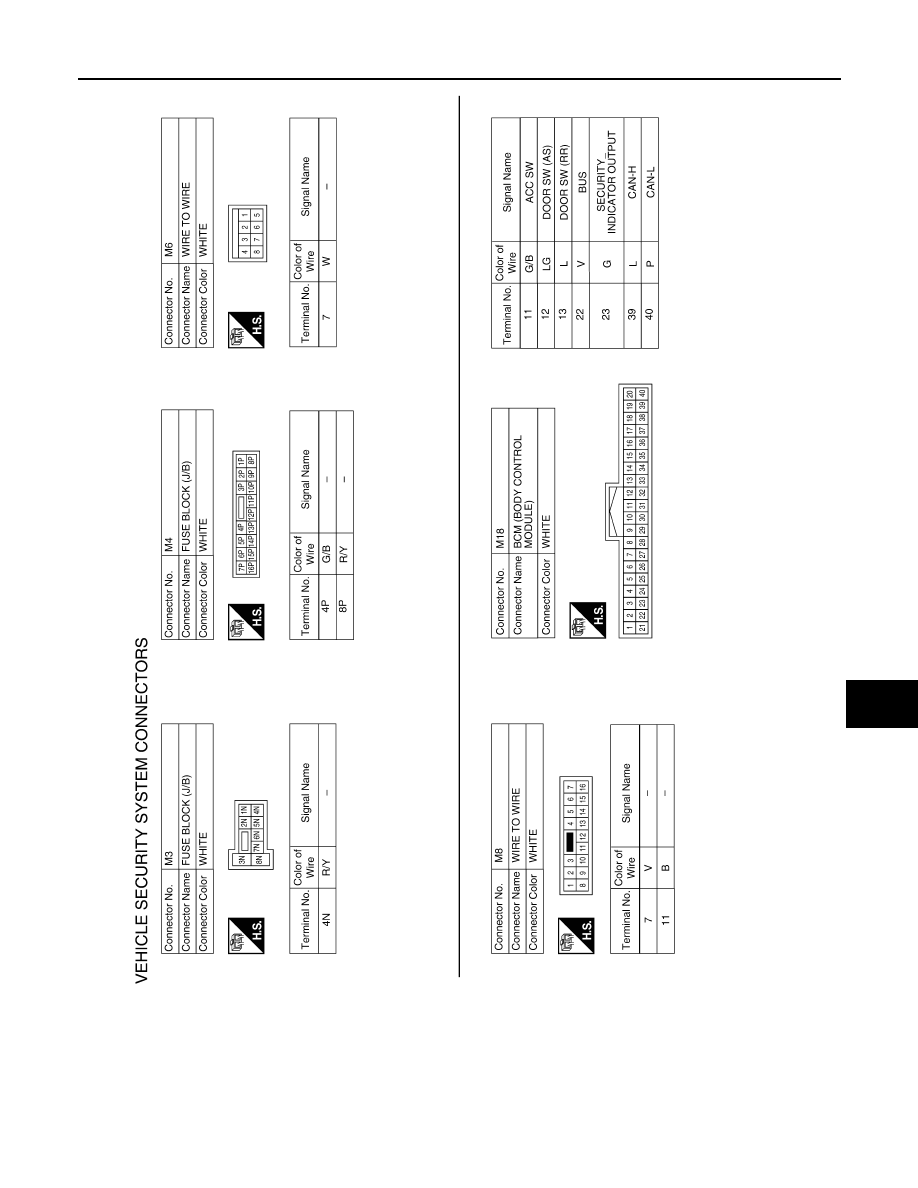

Wiring Diagram - VEHICLE SECURITY SYSTEM

INFOID:0000000001689571

ALKWA0155GB
