FRONT SEAT

SE-37

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

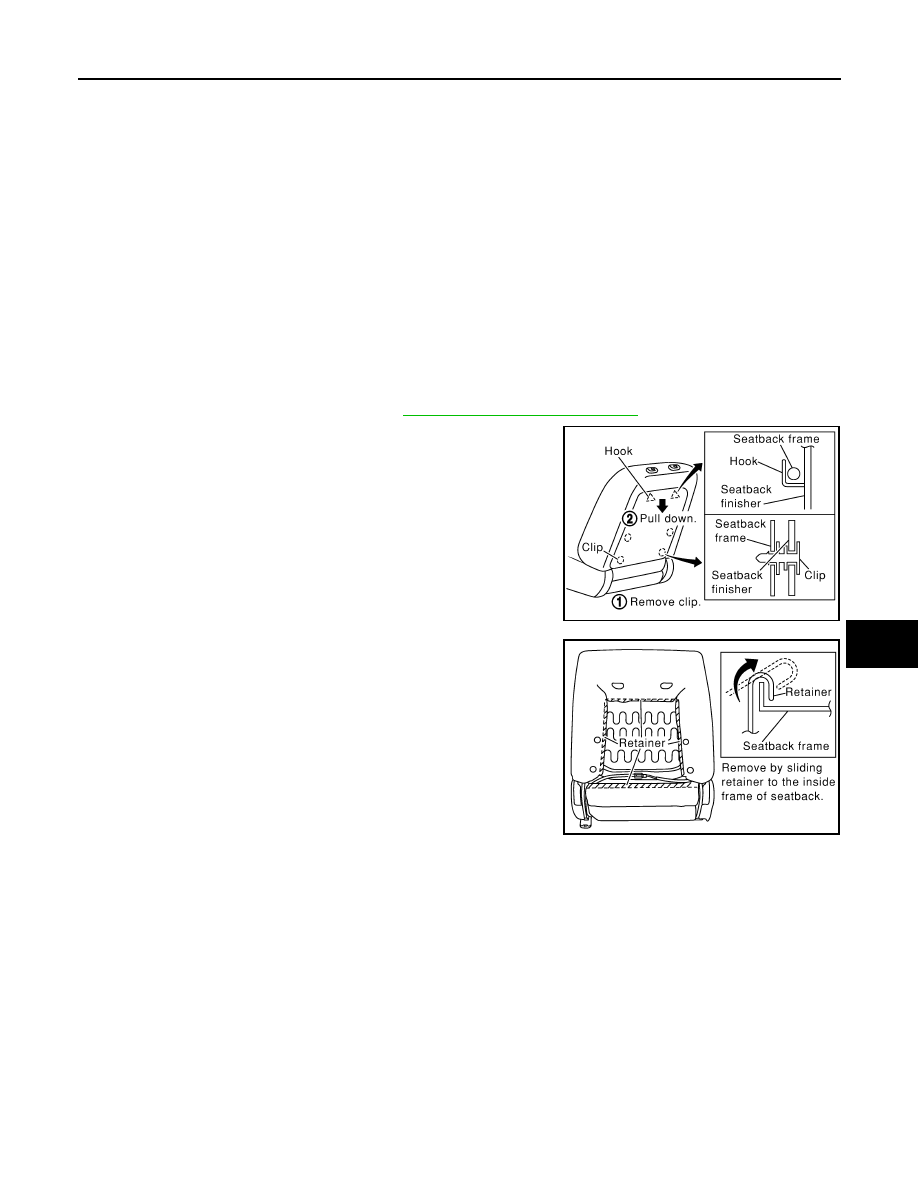

Seatback Assembly

INFOID:0000000001308882

REMOVAL

NOTE:
On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.
1.

Remove the front seat assembly. Refer to

SE-29, "Removal and Installation"

.

2.

Remove the seatback board from the back of the seatback.

3.

Remove the retainer.

4.

Disconnect the seatback heater harness.

5.

Remove the seatback bolts (2 for each side) and seatback assembly.

DISASSEMBLY

NOTE:
On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.
1.

Remove the seatback assembly. Refer to "REMOVAL".

2.

Remove the headrest.

1.

Front seatback lever

2.

Seatback trim without side air bag

3.

Headrest

4.

Seatback assembly with side air bag 5.

Seat cushion assembly

6.

Seat cushion outer finisher

7.

Leg cover

8.

Seat frame assembly

9.

Passenger seat wiring harness

10. Seat cushion inner cover

11. Leg cover

12. Seat belt buckle assembly

13. Inboard reclining arm outer cover

14. Inboard reclining arm inner cover

15. Outboard reclining arm inner cover

16. Outboard reclining arm outer cover

17. Seat cushion rear finisher

18. Seatback board

19. Headrest holder with multi position

lock

20. Headrest holder

21. Seatback pad without side air bag

22. Seat back frame without side air bag 23. Seatback fold flat release lever as-

sembly

24. Damper assembly

PIIA0163E

SIIA0113E

SE-38

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

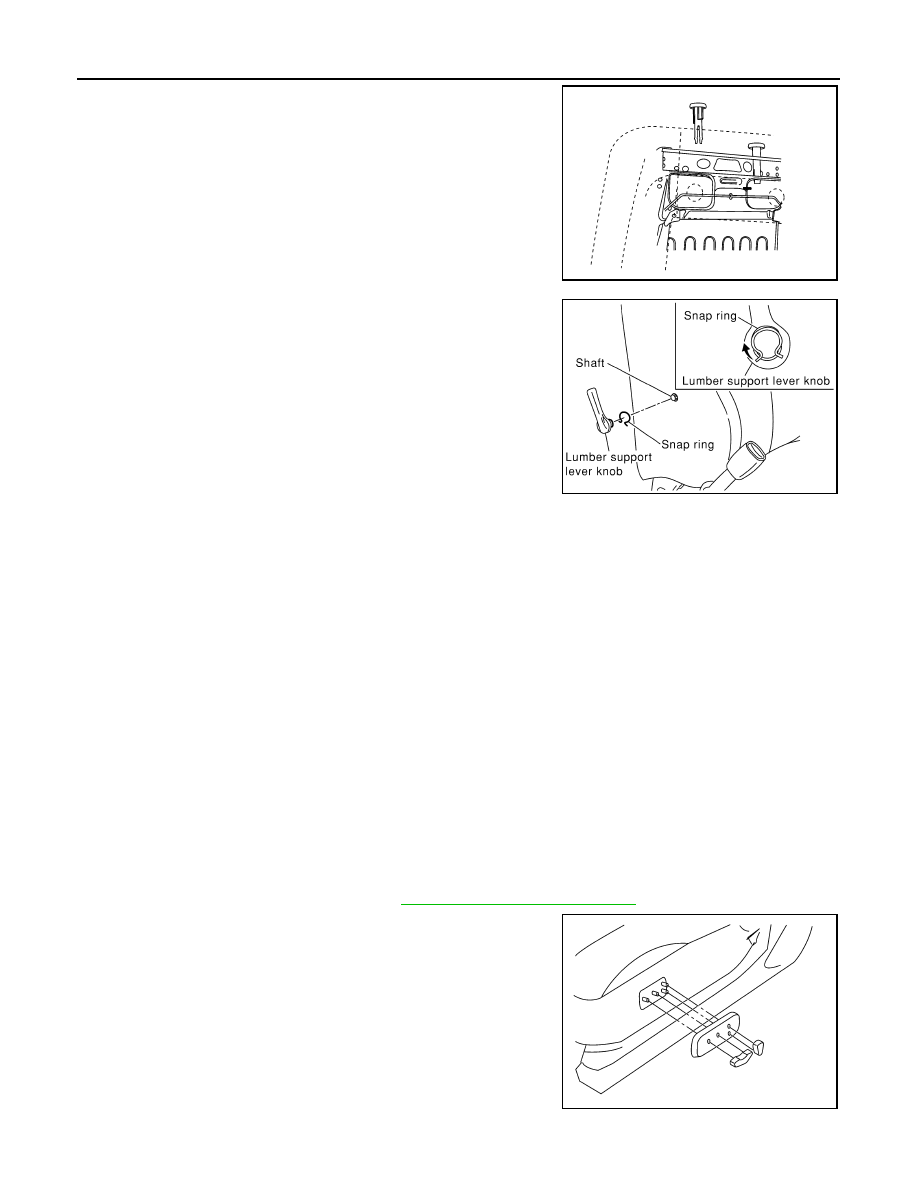

3.

From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and pull up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).

4.

Remove the snap ring and the lumbar support lever knob.

5.

Remove the seatback trim and pad assembly.

6.

Remove the hog ring to separate the seatback trim from the pad and the heating element (if equipped).

ASSEMBLY

Assembly is in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

Seat Cushion Trim and Pad

INFOID:0000000001308883

REMOVAL

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.
• When removed, the passenger seat cushion must always be placed pan side UP to prevent damage.
• During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do

not add additional clips.

• The Occupant Classification System control module can only be replaced as part of the seat cushion

assembly.

1.

Remove the front seat assembly. Refer to

SE-29, "Removal and Installation"

.

2.

Remove the power seat switch knobs and power seat switch
escutcheon (if equipped)(or lift knobs on manual seats)..

LRS023

PIIA1156E

LIIA0681E

FRONT SEAT

SE-39

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

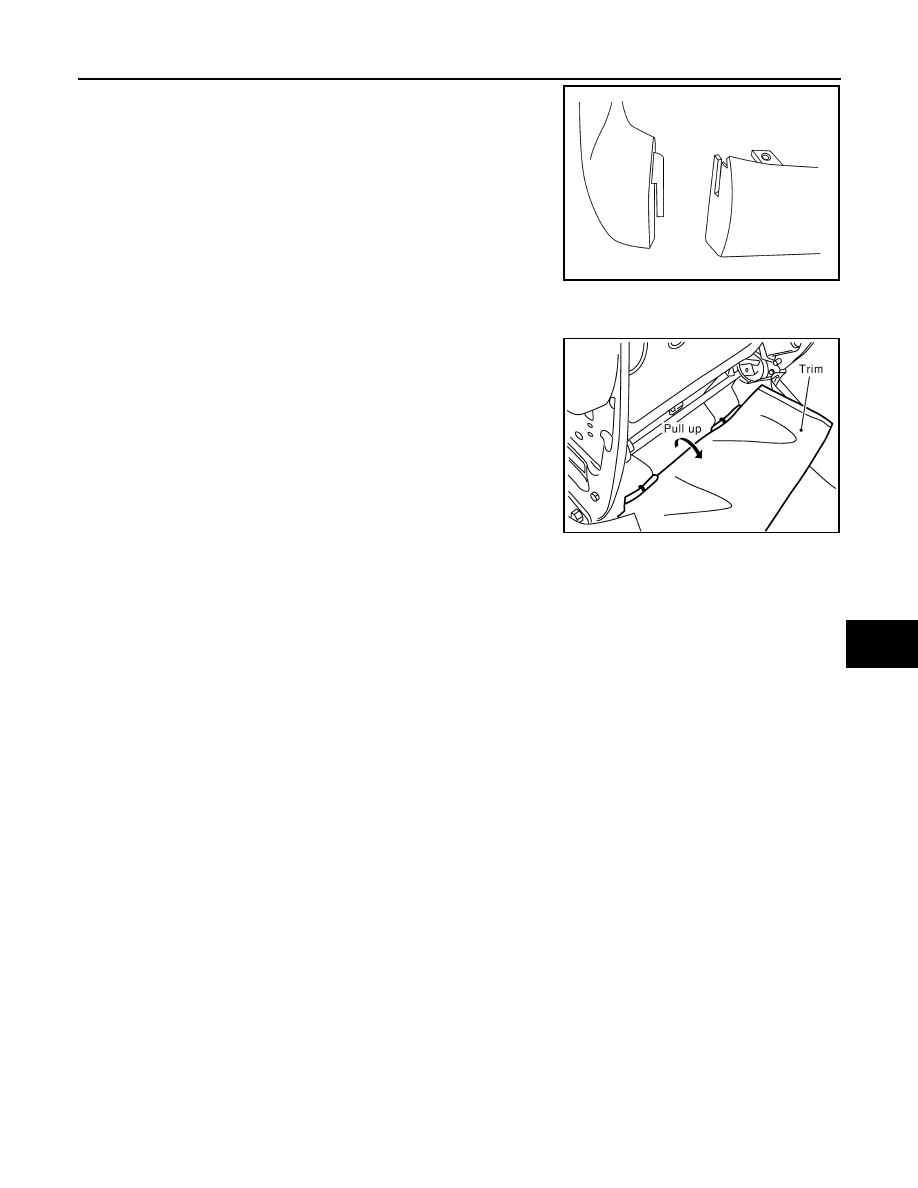

3.

Remove the seat cushion outer finisher.

4.

Remove the power seat switch screws .

5.

Remove four bolts and the seat cushion assembly.
• On the fold flat passenger seat it is necessary to unclip the

rear flap j-clip from the seat pan.

6.

Remove the retainer on the seat cushion frame, then remove the harness connector for the seat cushion
heater (if equipped).

DISASSEMBLY

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.

1.

Remove the seat cushion assembly. Refer to .

2.

On the drivers seat only, remove the hog rings to separate the trim cover from the pad and seat cushion
heater unit.

ASSEMBLY

Assembly is in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

LIIA0285E

SIIA0503E

SE-40

< DISASSEMBLY AND ASSEMBLY >

REAR SEAT

REAR SEAT

Exploded View

INFOID:0000000001308893

Disassembly and Assembly

INFOID:0000000001308879

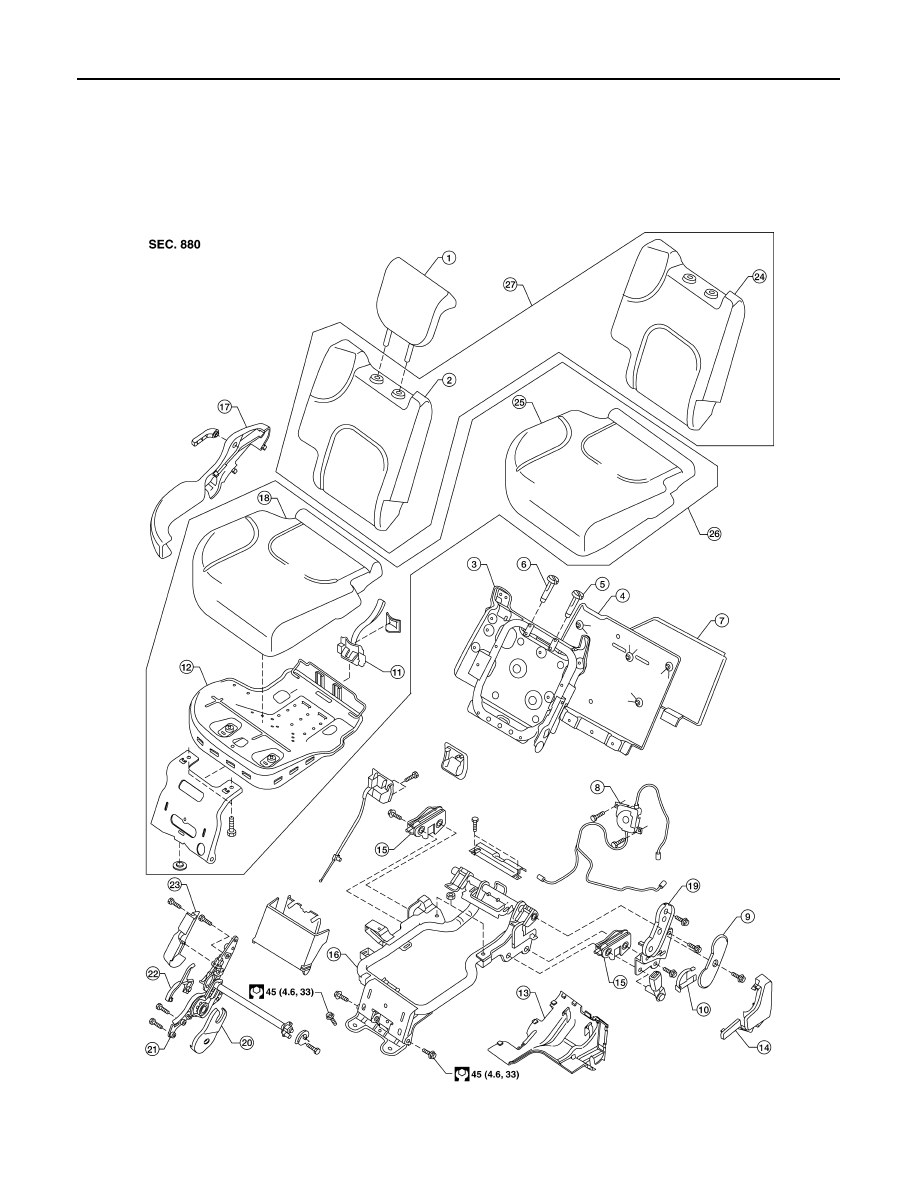

Second Row Outer

ALJIA0227GB

REAR SEAT

SE-41

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Seatback pad

3.

Seatback frame

4.

Seatback panel

5.

LH Headrest guide

6.

RH Headrest guide

7.

Flipper panel

8.

Seat actuator assembly

9.

Reclining device inner cover

10. Reclining device inner mid cover

11.

Latch assembly

12. Seat cushion frame assembly

13. Lower rear seat cover

14.

Lower rear seat cover inner

15. Cushion floor latch

16. Seat cushion support frame assem-

bly

17.

Lower rear seat cover outer

18. Seat cushion pad

19. Inner inboard reclining device cover

20.

Inner outboard reclining device cover  21. Reclining device lever

22. Reclining device outer mid cover

23.

Reclining device outer cover

24. Seatback trim cover

25. Seat cushion trim cover

26.

Seat cushion assembly

27. Seatback assembly

SE-42

< DISASSEMBLY AND ASSEMBLY >

REAR SEAT

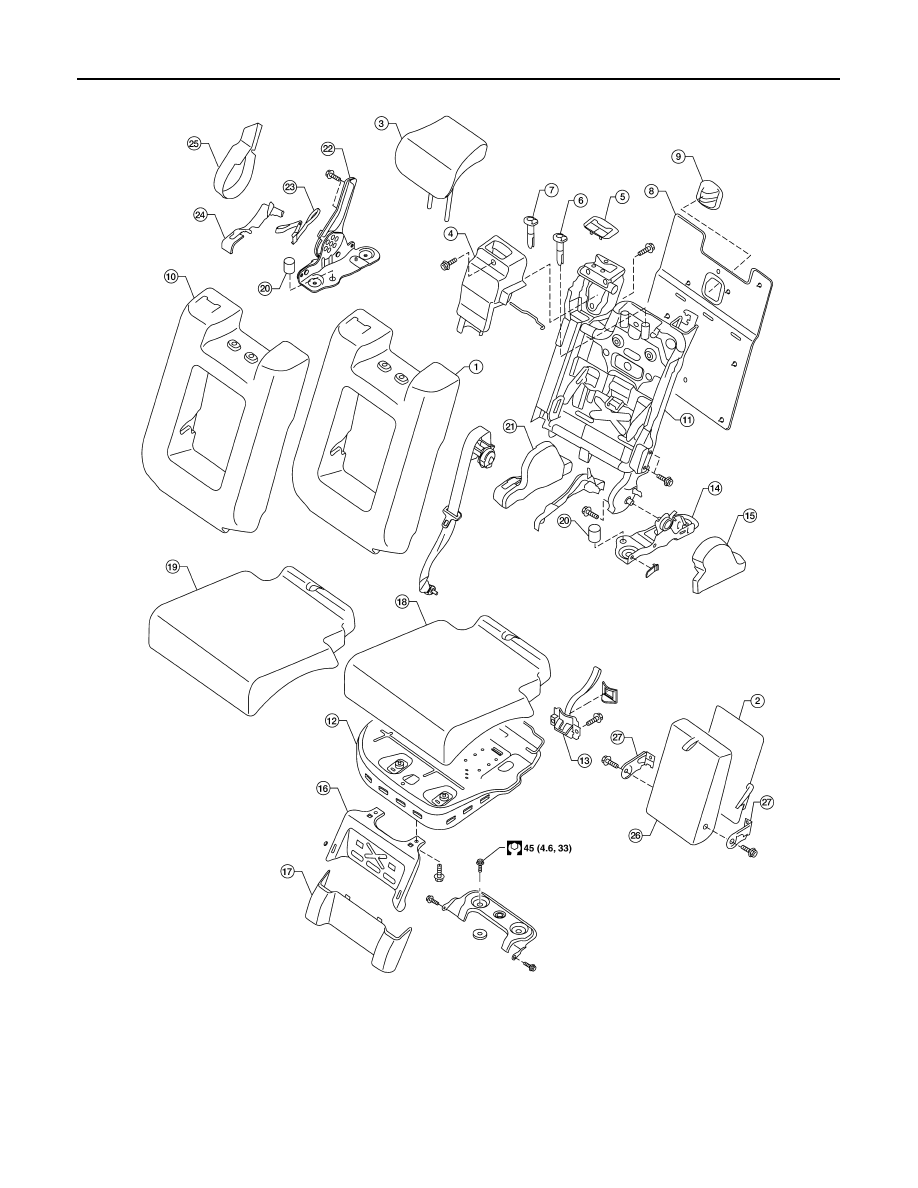

Second row center

BIIA0021E

1.

Seatback pad

2.

Armrest finisher

3.

Headrest

4.

Seat belt retractor cover

5.

Seat belt bezel

6.

LH headrest guide locking

7.

RH headrest guide free

8.

Seatback board

9.

Seat bracket cover

10. Seatback trim cover

11.

Seatback frame

12. Seat cushion frame

13. Latch assembly

14.

Lower rear pivot bracket support

15. Outer hinge cover

16. Center seat base assembly

17.

Link and pivot bracket apron

18. Seat cushion pad

19. Seat cushion trim cover

20.

Cushion stop bumper

21. Inner lever cover

REAR SEAT

SE-43

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

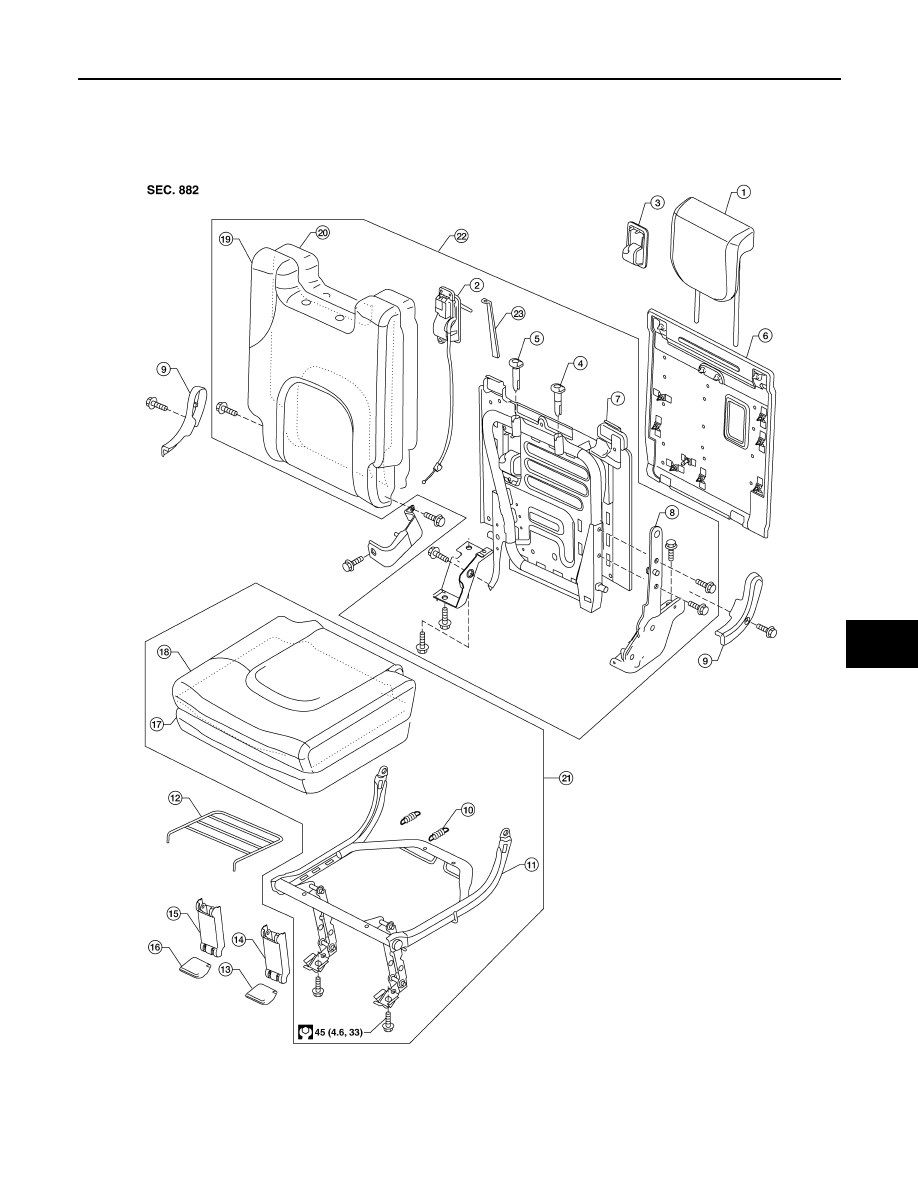

Third row

22. Seatback hinge assembly

23.

Seat lever assembly

24. Outer lever cover

25. Seat lock cover

26

Armrest

27. Armrest bracket

28. Seat cushion assembly

29.

Seatback assembly

ALJIA0233GB

1.

Headrests

2.

Release handle and cable

3.

Release handle cover

4.

Headrest locking guide

5.

Headrest guide free

6.

Seatback panel

7.

Seatback frame

8.

Seatback latch

9.

Side link cover

SE-44

< DISASSEMBLY AND ASSEMBLY >

REAR SEAT

10. Extension spring

11.

Seat cushion frame

12. Flex mat

13. Floor bracket cover LH

14.

Front link cover LH

15. Front link cover RH

16. Floor bracket cover RH

17.

Seat cushion pad

18. Seat cushion trim cover

19. Seatback trim cover

20.

Seatback pad

21. Seat cushion assembly

22. Seatback assembly

23.

Strap
