REAR DRIVE SHAFT

RAX-13

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

8.

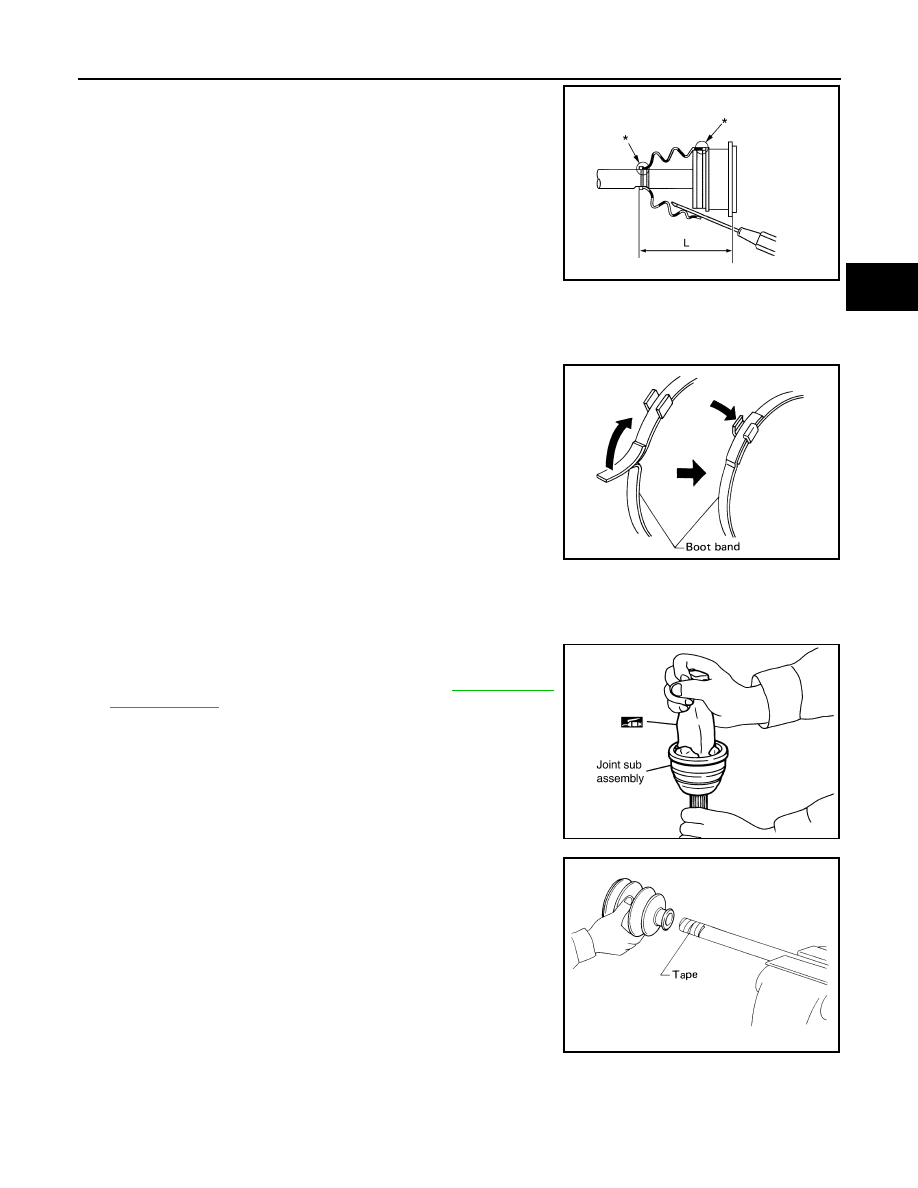

Install the boot securely into the grooves (indicated by * marks)
as shown.

CAUTION:

If there is grease on boot mounting surfaces (indicated by*
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.

9.

Check that the boot installation length “L” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into larger
side of boot. Bleed the air from the boot to prevent any boot
deformation.

CAUTION:

• The boot may break if the boot installation length is less than the specified value.
• Do not to touch the tip of the screwdriver to the inside of the boot.

10. Secure the large and small ends of the boot with the new boot

bands as shown.
NOTE:
Discard the old boot bands and use new ones for assembly.

11. After installing the housing and shaft, rotate the boot to check that the boot is positioned correctly. If the

boot is not positioned correctly, reposition the boot and secure the boot using a new boot band.

Wheel Side

1.

Insert the Genuine NISSAN Grease or equivalent, into the joint
sub-assembly serration hole until the grease begins to ooze
from the ball groove and serration hole. Refer to

MA-10, "Fluids

and Lubricants"

. After inserting the grease, use a shop cloth to

wipe off the grease that has oozed out.

2.

Wind the serrated part of the shaft with tape. Install the boot
band and boot onto the shaft. Do not damage the boot.
NOTE:
Discard the old boot band and boot and use a new one for
assembly.

3.

Remove the protective tape wound around the serrated part of
the shaft.

Boot installation length “L”

: 148.7 mm (5.85 in)

WDIA0287E

SFA395

SDIA1127E

SFA800

RAX-14

< DISASSEMBLY AND ASSEMBLY >

REAR DRIVE SHAFT

4.

Attach the circlip to the shaft. The circlip must fit securely into
the shaft groove. Attach the nut to the joint sub-assembly.
Use a soft hammer to press-fit the circlip.
NOTE:
Discard the old circlip and use a new one for assembly.

5.

Insert the specified quantity of Genuine NISSAN Grease or
equivalent, into the housing from the large end of the boot. Refer
to

MA-10, "Fluids and Lubricants"

.

6.

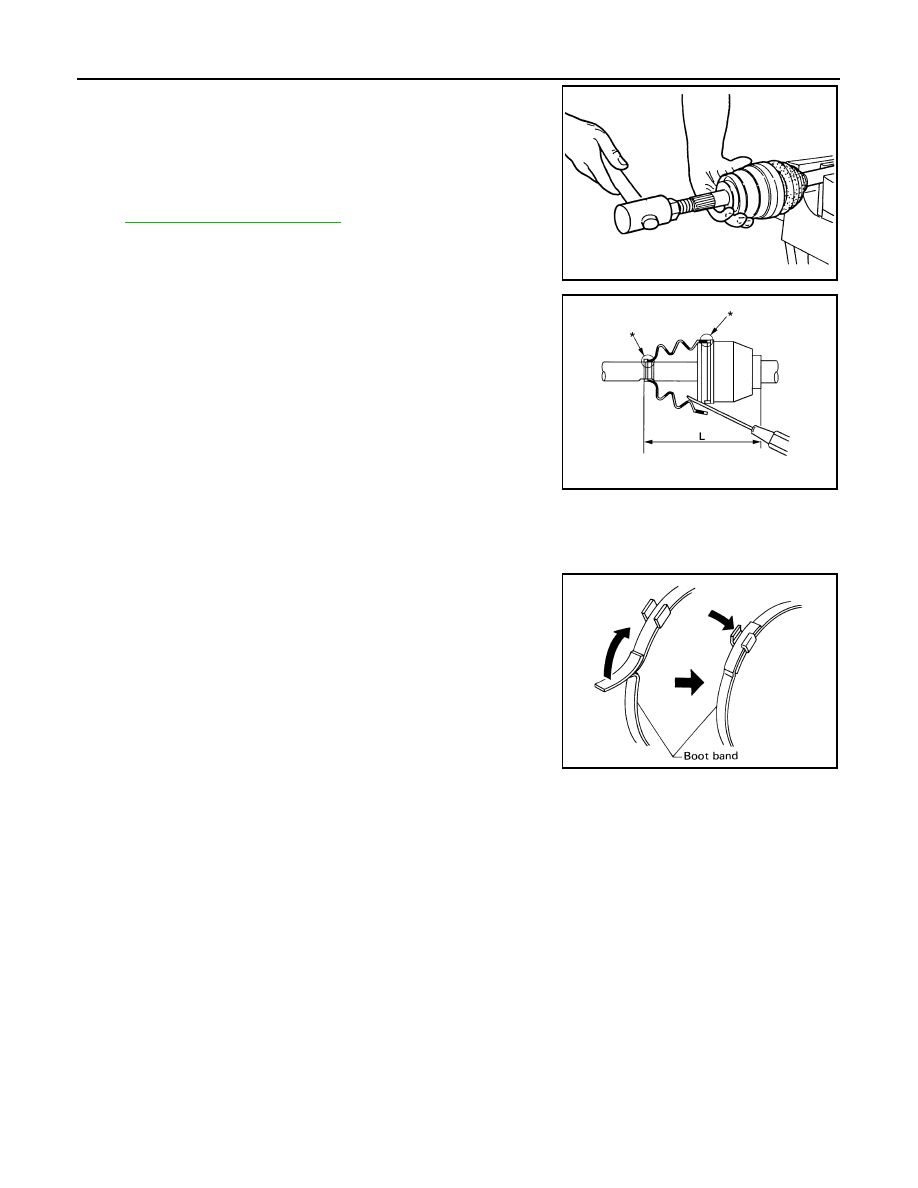

Install the boot securely into the grooves (indicated by the *
marks) as shown.

CAUTION:

If there is grease on the boot mounting surfaces (indicated
by the * marks) of the shaft and housing, the boot may
come off. Remove all grease from the shaft surfaces.

7.

Check that the boot installation length “L” is the specified length.
Insert a flat-bladed screwdriver or similar tool into the larger side
of the boot. Bleed the air from the boot to prevent boot deforma-
tion.

CAUTION:

• The boot may break if the boot installation length is less than the specified length.
• Do not contact inside surface of boot with the tip of the screwdriver.

8.

Secure the large and small ends of the boot using new boot
bands as shown.
NOTE:
Discard the old boot bands and use new ones for assembly.

9.

After installing the joint sub-assembly and shaft, rotate the boot to check that it is positioned correctly. If
the boot is not positioned correctly, reposition the boot and secure the boot using a new boot band.

Grease capacity

: 155

−

 175 g (5.47

−

 6.17 oz)

RAC0049D

Boot installation length “L”

: 143 mm (5.63 in)

WDIA0288E

SFA395

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000001283028

Drive Shaft

INFOID:0000000001283029

Measurement of spring scale

Less than 26.6 N (2.7 kg, 5.95 lb)

Axial end play

0 mm (0 in)

Joint

Wheel side

Final drive side

Grease capacity

155

−

 175 g

(5.47

−

 6.17 oz)

155

−

 175 g

(5.47

−

 6.17 oz)

Boot installed length

143 mm (5.63 in)

148.7 mm (5.85 in)

RF-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

RF

A

B

RF

N

O

P

CONTENTS

ROOF

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

INSPECTION AND ADJUSTMENT .....................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ..........................................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ..................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .......

5

FUNCTION DIAGNOSIS ...............................

6

SUNROOF SYSTEM ...........................................

6

System Diagram .......................................................

6

System Description  ...................................................

6

Component Parts Location ......................................

7

Component Description ............................................

7

DIAGNOSIS SYSTEM (BCM)  .............................

8

COMMON ITEM  ...........................................................

8

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .......................................................

8

RETAINED PWR  .........................................................

8

RETAINED PWR : CONSULT-III Function (BCM -
RETAINED PWR)  .....................................................

8

COMPONENT DIAGNOSIS  ..........................

9

POWER SUPPLY AND GROUND CIRCUIT .......

9

SUNROOF MOTOR ASSEMBLY  ................................

9

SUNROOF MOTOR ASSEMBLY :
Diagnosis Procedure ................................................

9

SUNROOF MOTOR ASSEMBLY : Special Repair
Requirement ............................................................

10

SUNROOF SWITCH CIRCUIT  ...........................

11

Description ...............................................................

11

Component Function Check ..................................

11

Diagnosis Procedure  ...............................................

11

DOOR SWITCH .................................................

13

Description ...............................................................

13

Component Function Check  ....................................

13

Diagnosis Procedure  ...............................................

13

ECU DIAGNOSIS .........................................

15

BCM (BODY CONTROL MODULE)  .................

15

Reference Value ......................................................

15

SUNROOF SYSTEM  .........................................

16

Reference Value ......................................................

16

Wiring Diagram ........................................................

17

SYMPTOM DIAGNOSIS  ..............................

22

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

22

Work Flow ................................................................

22

Generic Squeak and Rattle Troubleshooting ...........

24

Diagnostic Worksheet ..............................................

26

SUNROOF DOES NOT OPERATE PROPER-
LY ......................................................................

28

Diagnosis Procedure  ...............................................

28

AUTO OPERATION DOES NOT OPERATE  ....

29

Diagnosis Procedure  ...............................................

29

DOES NOT STOP FULLY-OPEN OR FULLY-
CLOSED POSITION ..........................................

30

Diagnosis Procedure  ...............................................

30

RETAINED POWER OPERATION DOES NOT
OPERATE PROPERLY .....................................

31

Diagnosis Procedure  ...............................................

31

SUNROOF DOES NOT OPERATE ANTI-
PINCH FUNCTION ............................................

32

DIAGNOSIS AND REPAIR WORKFLOW

RF-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001712619

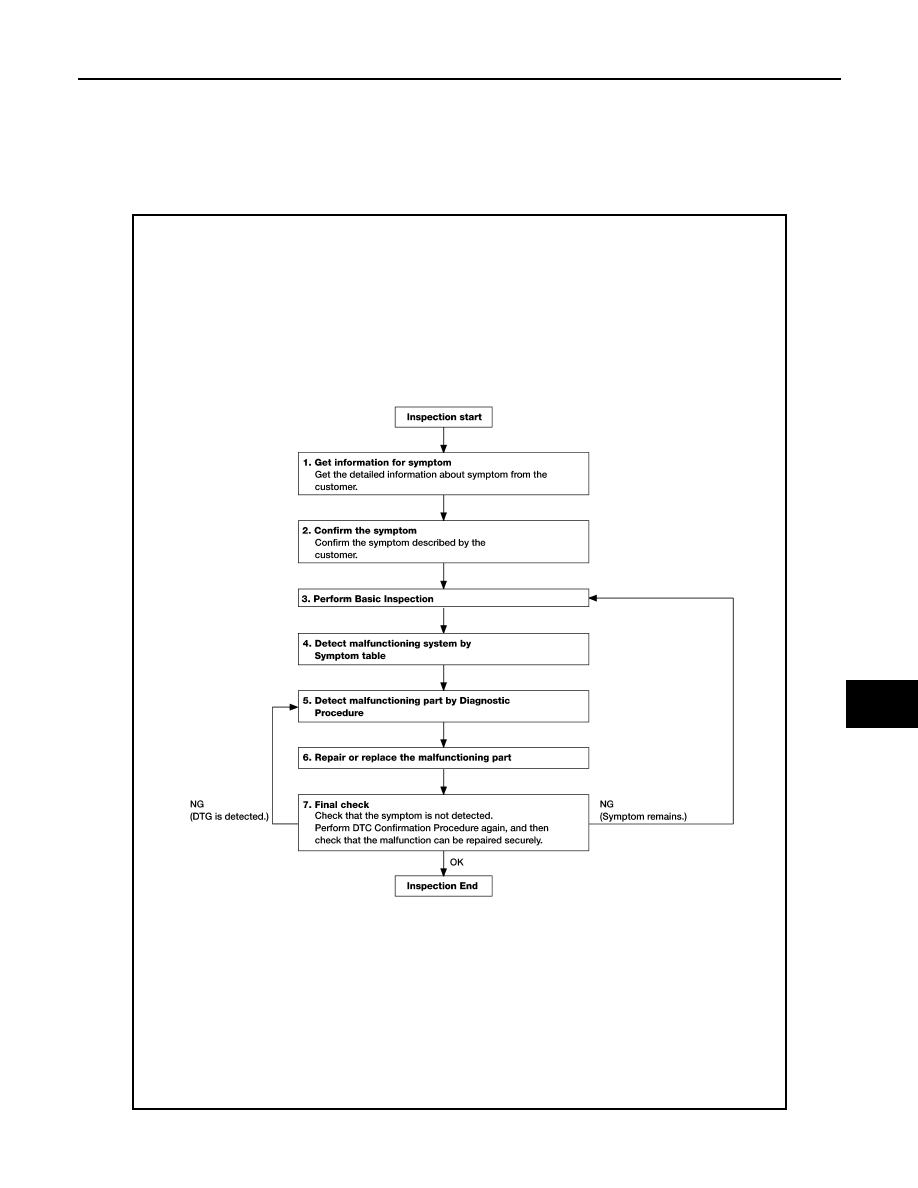

OVERALL SEQUENCE

DETAILED FLOW

ALKIA0859GB

RF-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

1.

 GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).

>> GO TO 2

2.

 CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 3

3.

 PERFORM BASIC INSPECTION

Perform

RF-10, "SUNROOF MOTOR ASSEMBLY : Special Repair Requirement"

.

Inspection End>>GO TO 4

4.

 DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to symptom diagnosis based on the confirmed symptom in step 4,
and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 5

5.

 DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.

Is malfunctioning part detected?

YES

>> GO TO 6

NO

>> Check voltage of related BCM terminals using CONSULT-III.

6.

 REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 7

7.

 FINAL CHECK

When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that
the symptom is not detected.

Does the symptom reappear?

YES

>> GO TO 5

NO

>> Inspection End.

INSPECTION AND ADJUSTMENT

RF-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001712620

MEMORY RESET PROCEDURE

1.

Please observe the following instructions at confirming the sunroof operation.
NOTE:
Do not disconnect the electronic power while the sunroof is operating or within 5 seconds after the sunroof
stops (to wipe-out the memory of lid position and operating friction).

2.

Initialization of system should be conducted after the following conditions.
• When the battery has been disconnected or discharged.
• When the sunroof motor has been disconnected from power.
• When the sunroof motor is changed.
• When the sunroof does not operate normally (Incomplete initialization conditions).

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001712621

INITIALIZATION PROCEDURE

If the sunroof does not close or open automatically, use the following procedure to return sunroof operation to
normal.
1.

Turn ignition switch ON.

2.

Push and hold the sunroof tilt switch in the forward (DOWN) position until the sunroof is fully closed.

3.

After the sunroof has closed all the way, push and hold the tilt switch forward (DOWN) again for more than
2 seconds to re-learn motor position.

4.

Initialization is complete if the sunroof operates normally.















Content      ..     528      529      530      531     ..
