Nissan Pathfinder (2008 year). Manual - part 514

PG

HARNESS

PG-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ENGINE ROOM HARNESS (LH VIEW)

B4

E36

W/2

: To B42

B3

E37

BR/2

: ASCD brake switch

B3

E38

W/4

: Stop lamp switch

B3

E53

B/1

: Park brake switch

C3

E109

GR/2

: Pedal adjusting motor

C3

E110

W/4

: Pedal adjusting motor

F3

E139

W/8

: To B107

F4

E152

SMJ

: To M31

G2

E158

B/1

: Fuse block (J/B)

G3

E159

B/2

: Fuse block (J/B)

G3

E160

W/8

: Fuse block (J/B)

PG-40

< COMPONENT DIAGNOSIS >

HARNESS

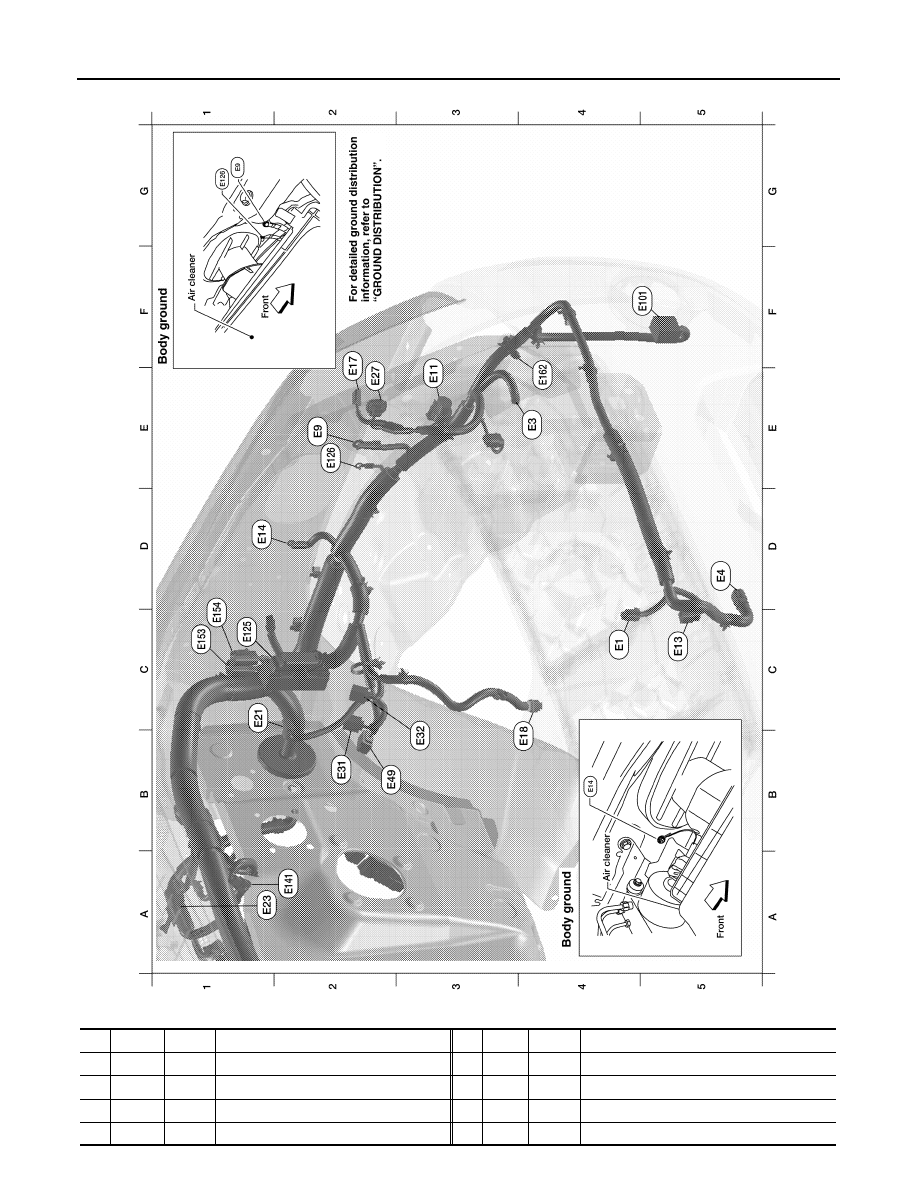

Engine Compartment

Refer to "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness.

WKIA5731E

C4

E1

B/2

: Ambient sensor 1

E4

E3

B/1

: Horn (without dual note horn)

E4

E3

B/2

: Horn (with dual note horn)

D5

E4

Y/2

: Crash zone sensor

E2

E9

—

: Body ground

PG

HARNESS

PG-41

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

E3

E11

B/3

: Front headlamp LH

C5

E13

GR/2

: Ambient sensor 2

D1

E14

—

: Body ground

F2

E17

GR/2

: Front side marker lamp LH

B4

E18

GR/2

: Front wheel sensor LH

C1

E21

GR/2

: Brake fluid level switch

A1

E23

GR/5

: Front wiper motor

E2

E27

GR/3

: Front turn signal/park lamp LH

B2

E31

B/3

: Front pressure sensor

C3

E32

B/3

: Rear pressure sensor

B3

E49

B/6

: Active booster

F5

E101

B/2

: Front fog lamp LH

C1

E125

B/47

: ABS actuator and electric unit (control
   unit)

E2

E126

—

: Body ground

A2

E141

B/2

: Heater pump



C1

E153

W/2

: Transfer motor relay (all-mode 4WD)

C1

E154

W/2

: Transfer motor relay (all-mode 4WD)

E4

E162

B/1

: Horn

PG-42

< COMPONENT DIAGNOSIS >

HARNESS

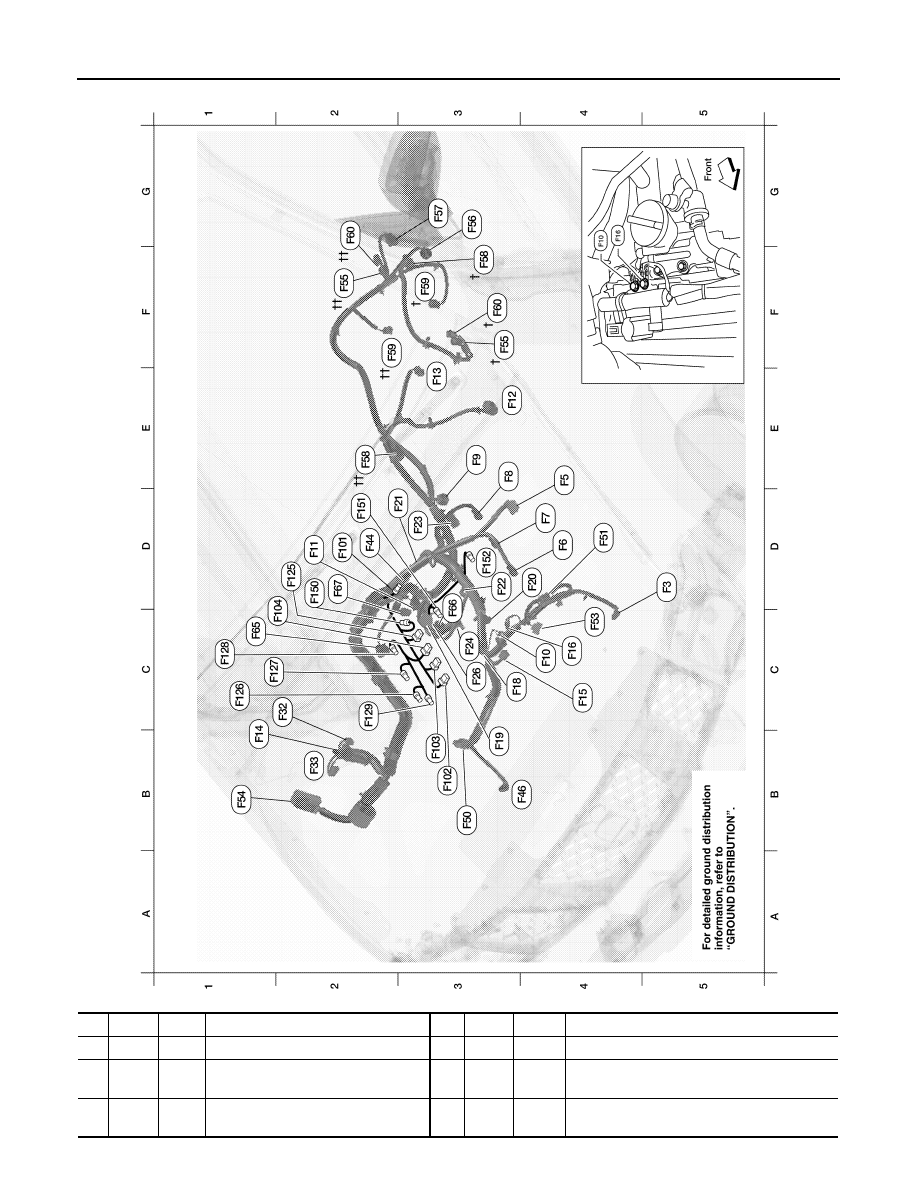

ENGINE CONTROL HARNESS

LKIA0848E

D5

F3

B/1

: A/C Compressor

E2

F58††

GR/6

: Transfer control device (all-mode 4WD)

E4

F5

GR/4

: Air fuel ratio (A/F) sensor 1 (bank 2)

F3

F59†

GR/2

: Wait detection switch (part time 4WD)

D4

F6

GR/3

: Ignition coil No. 2 (with power tran-
  sistor)

F2

F59††

B/2

: Wait detection switch (all mode 4WD)

D4

F7

GR/3

: Ignition coil No. 4 (with power tran-
  sistor)

F3

F60†

GR/2

: 4LO switch (part time 4WD)

PG

HARNESS

PG-43

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

E3

F8

GR/3

: Ignition coil No. 6 (with power tran-
  sistor)

G2

F60††

GR/2

: 4LO switch (all-mode 4WD)

E3

F9

G/10

: A/T assembly

C1

F65

GR/4

: Air fuel ratio (A/F) sensor 1 (bank 1)

C4

F10

—

: Engine ground

D3

F66

GR/3

: Camshaft position sensor (PHASE) (bank 1)

D2

F11

B/3

: Crankshaft position sensor (POS)

D2

F67

L/4

: To F150

E3

F12

G/4

: Heated oxygen sensor 2 (bank 2)

Injector sub-harness

E3

F13

L/4

: Heated oxygen sensor 2 (bank 1)

D2

F101

GR/4

: To F44

B1

F14

W/24

: To E5

B3

F102

GR/2

: Fuel injector No. 1

C4

F15

L/2

: EVAP canister purge volume control
  solenoid valve

B3

F103

GR/2

: Fuel injector No. 3

C4

F16

—

: Engine ground

D2

F104

GR/2

: Fuel injector No. 5

C3

F18

GR/2

: Fuel injector No. 2

Ignition coil sub-harness

B3

F19

B/2

: VIAS control solenoid valve

D2

F125

G/8

: To F26

D4

F20

GR/2

: Fuel injector No. 4

C1

F126

GR/3

: Ignition coil No. 1 (with power transistor)

D2

F21

GR/2

: Condenser-1

C1

F127

GR/3

: Ignition coil No. 3 (with power transistor)

D3

F22

GR/2

: Fuel injector No. 6

C1

F128

GR/3

: Ignition coil No. 5 (with power transistor)

D3

F23

B/3

: Camshaft position sensor (PHASE)
  (bank 1)

C2

F129

G/2

: Intake valve timing control solenoid valve
  (bank 1)

C3

F24

GR/2

: Engine coolant temperature sensor

Knock sensor sub-harness

C3

F26

G/8

: To F125

D2

F150

L/4

: To F67

C2

F32

W/16

: To E2

D2

F151

B/2

: Knock sensor (bank 1)

B2

F33

W/16

: To E19

D3

F152

B/2

: Knock sensor (bank 2)

D2

F44

GR/4

: To F101

B4

F46

B/3

: Power steering pressure sensor

B3

F50

B/6

: Electric throttle control actuator

D4

F51

G/2

: Intake valve timing control solenoid
   valve (bank 2)

C4

F53

B/6

: Mass air flow sensor

B1

F54

B/81

: ECM

F3

F55†

B/2

: ATP switch (all-mode 4WD)

F2

F55††

B/2

: ATP switch (part time 4WD)

G3

F56

B/8

: Terminal cord assembly (all-mode
  4WD)

G3

F57

B/2

: Transfer motor (all-mode 4WD)

F3

F58†

B/8

: Transfer control device (part time
  4WD)

PG-44

< COMPONENT DIAGNOSIS >

HARNESS

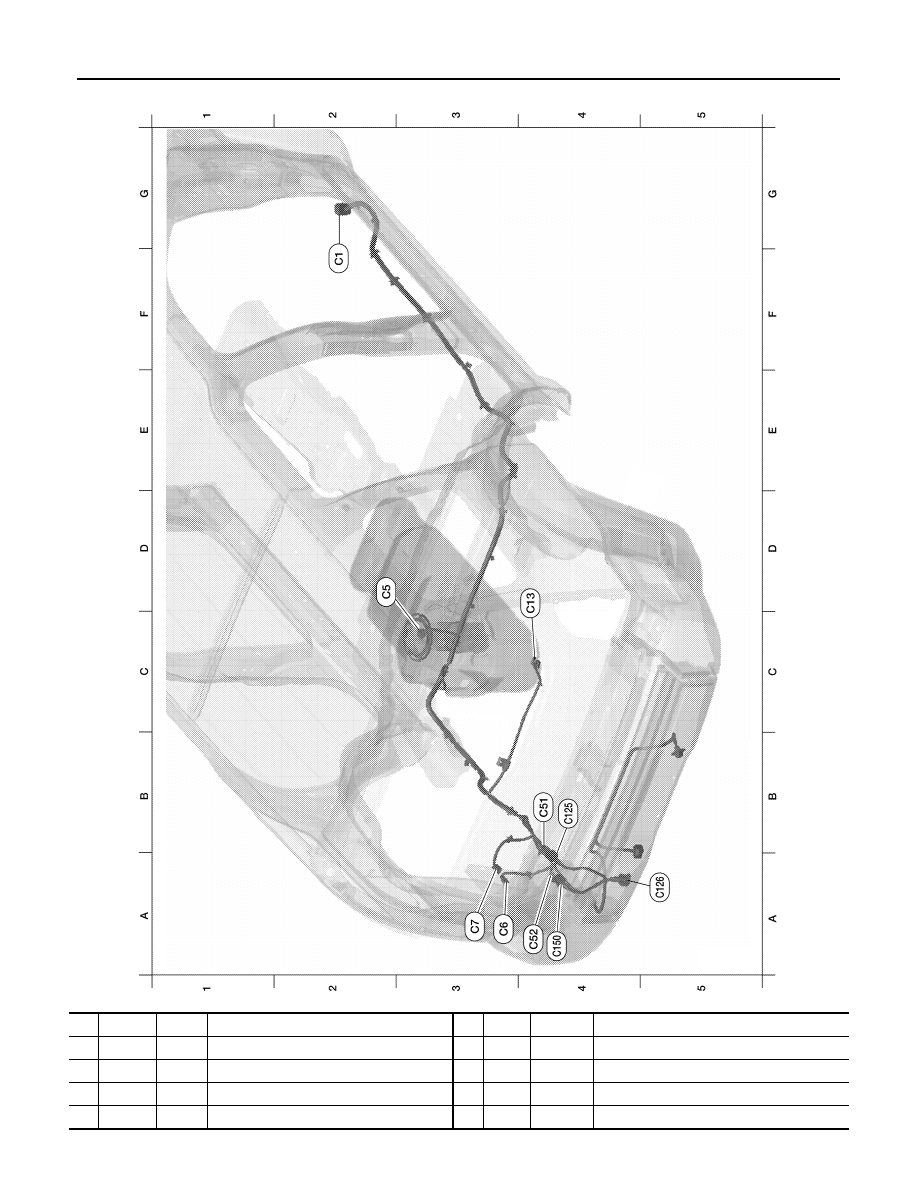

CHASSIS HARNESS

LKIA0847E

F2

C1

SMJ

: To E41

D2

C5

GR/5

: Fuel level sensor unit and fuel pump

A3

C6

B/2

: EVAP canister vent control valve

A3

C7

GR/3

: EVAP control system pressure sensor

C3

C13

GR/4

: Rear wheel sensor assembly

PG

HARNESS

PG-45

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B4

C51

GR/6

: To C125

A4

C52

B/2

: To C150

Trailer sub-harness

B4

C125

GR/6

: To C51

A5

C126

B/7

: Trailer (7-pin)

A5

C126

B/4

: Trailer (4-pin)

A4

C150

B/2

: To C52

PG-46

< COMPONENT DIAGNOSIS >

HARNESS

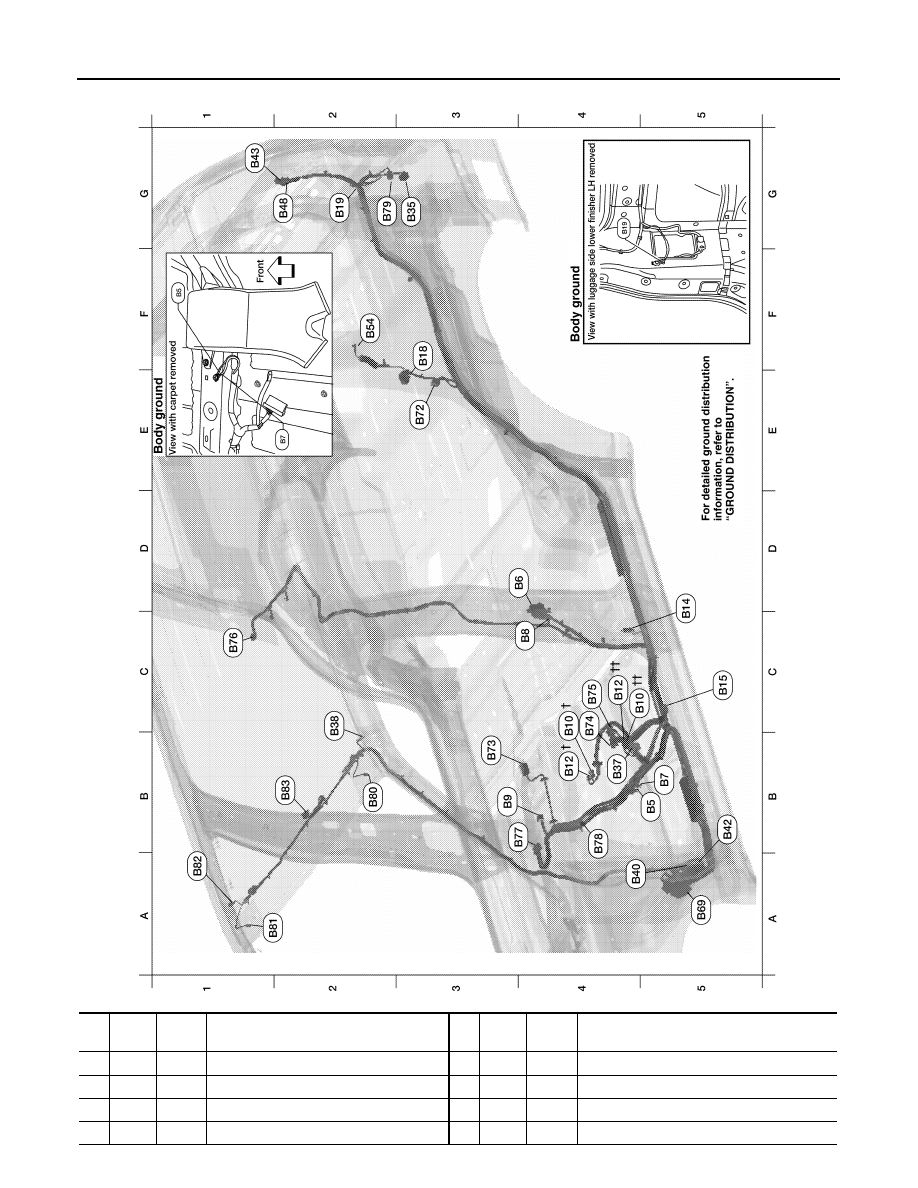

BODY HARNESS

LKIA0849E

B5

B5

—

: LH side air bag satellite sensor (shield
wire)

D4

B6

W/12

: To D201

B5

B7

—

: Body ground

C4

B8

W/3

: Front door switch LH

B3

B9

Y/12

: Air bag diagnosis sensor unit
