Nissan Pathfinder (2008 year). Manual - part 511

PG

POWER SUPPLY ROUTING CIRCUIT

PG-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

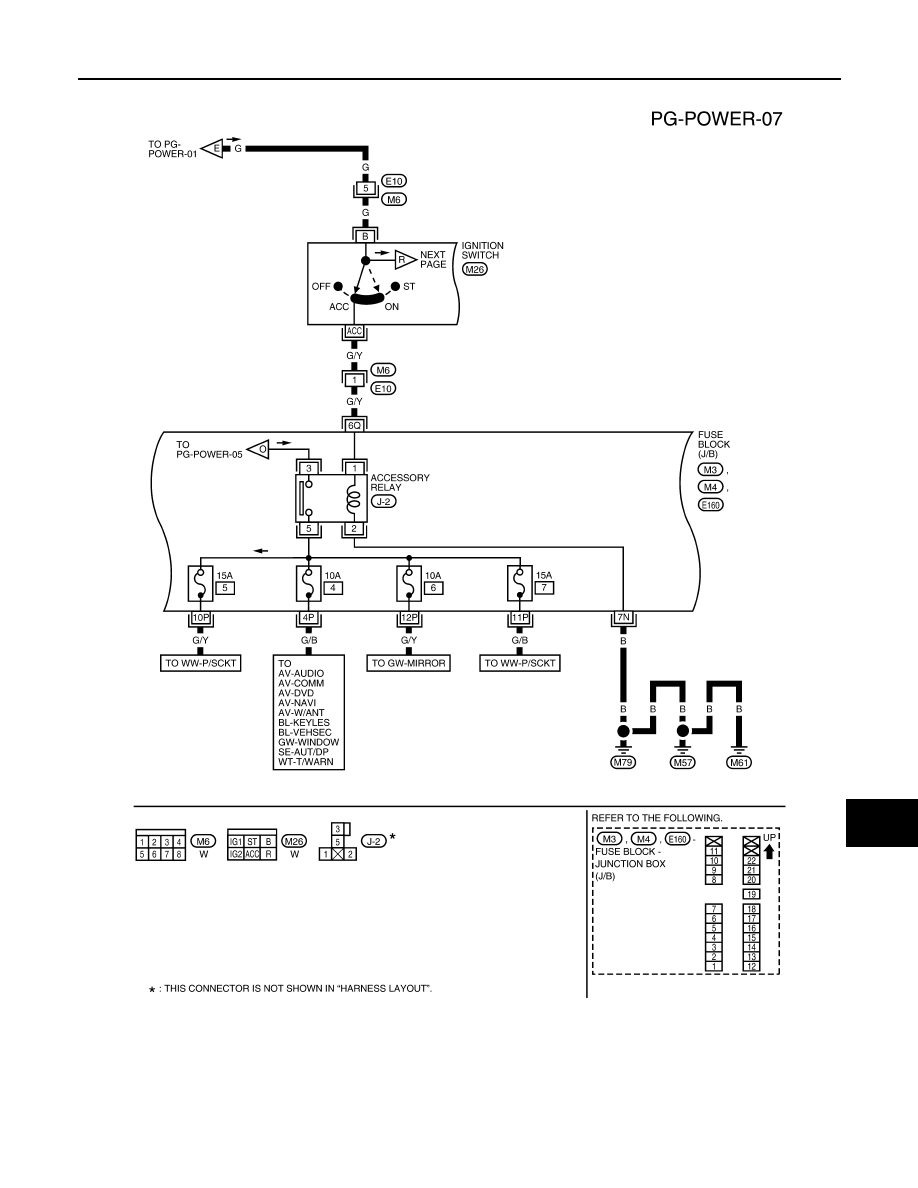

ACCESSORY POWER SUPPLY — IGNITION SW. IN ACC OR ON

WKWA5497E

PG-16

< COMPONENT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

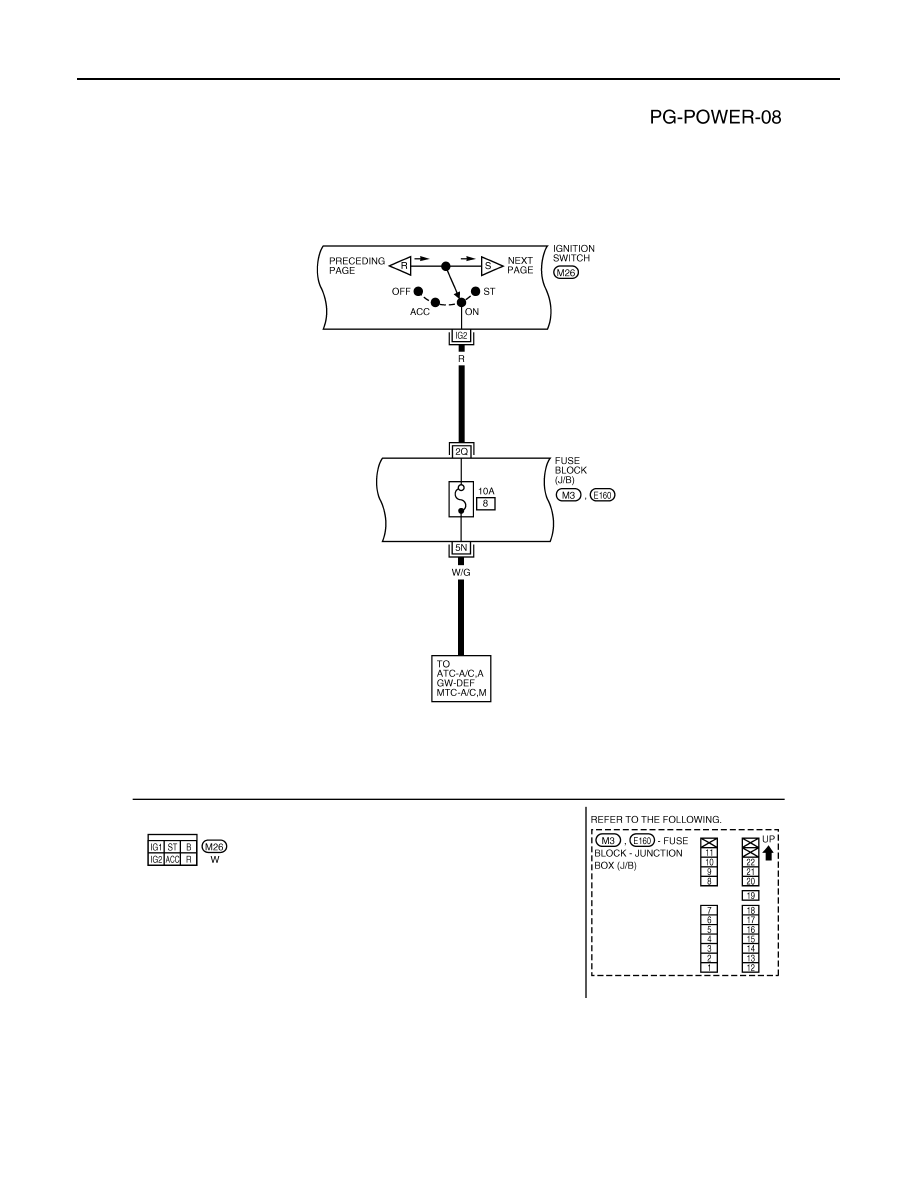

IGNITION POWER SUPPLY — IGNITION SW. IN ON

WKWA4410E

PG

POWER SUPPLY ROUTING CIRCUIT

PG-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

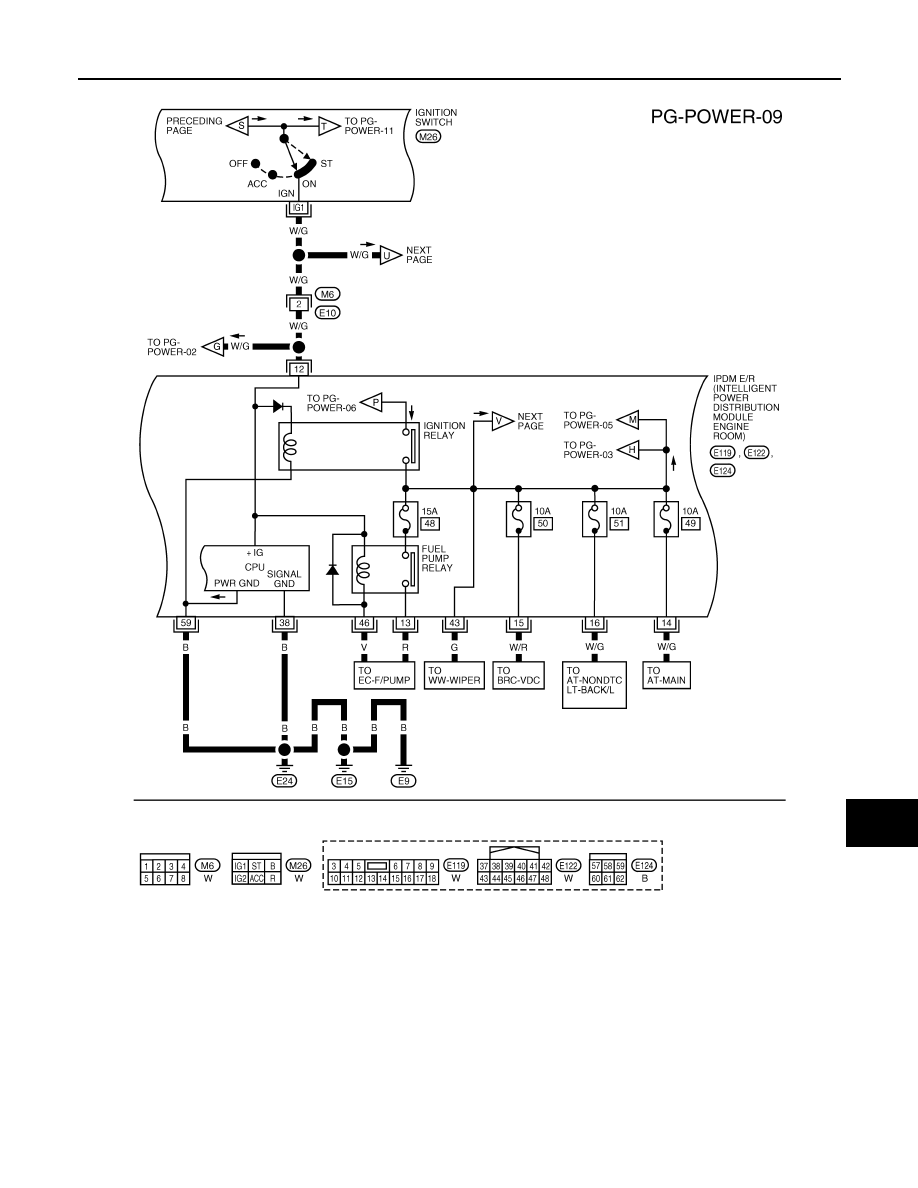

IGNITION POWER SUPPLY — IGNITION SW. IN ON AND/OR START

WKWA4411E

PG-18

< COMPONENT DIAGNOSIS >

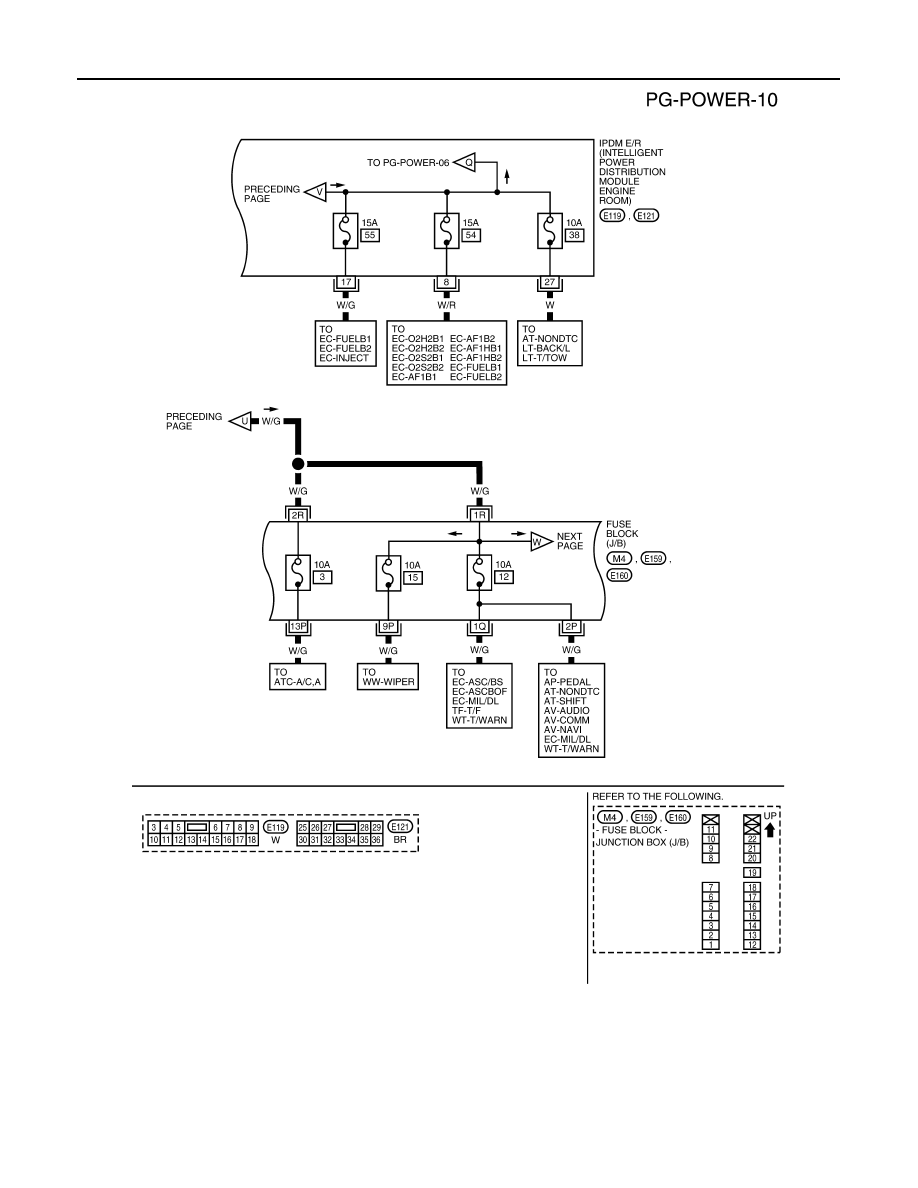

POWER SUPPLY ROUTING CIRCUIT

WKWA5496E

PG

POWER SUPPLY ROUTING CIRCUIT

PG-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

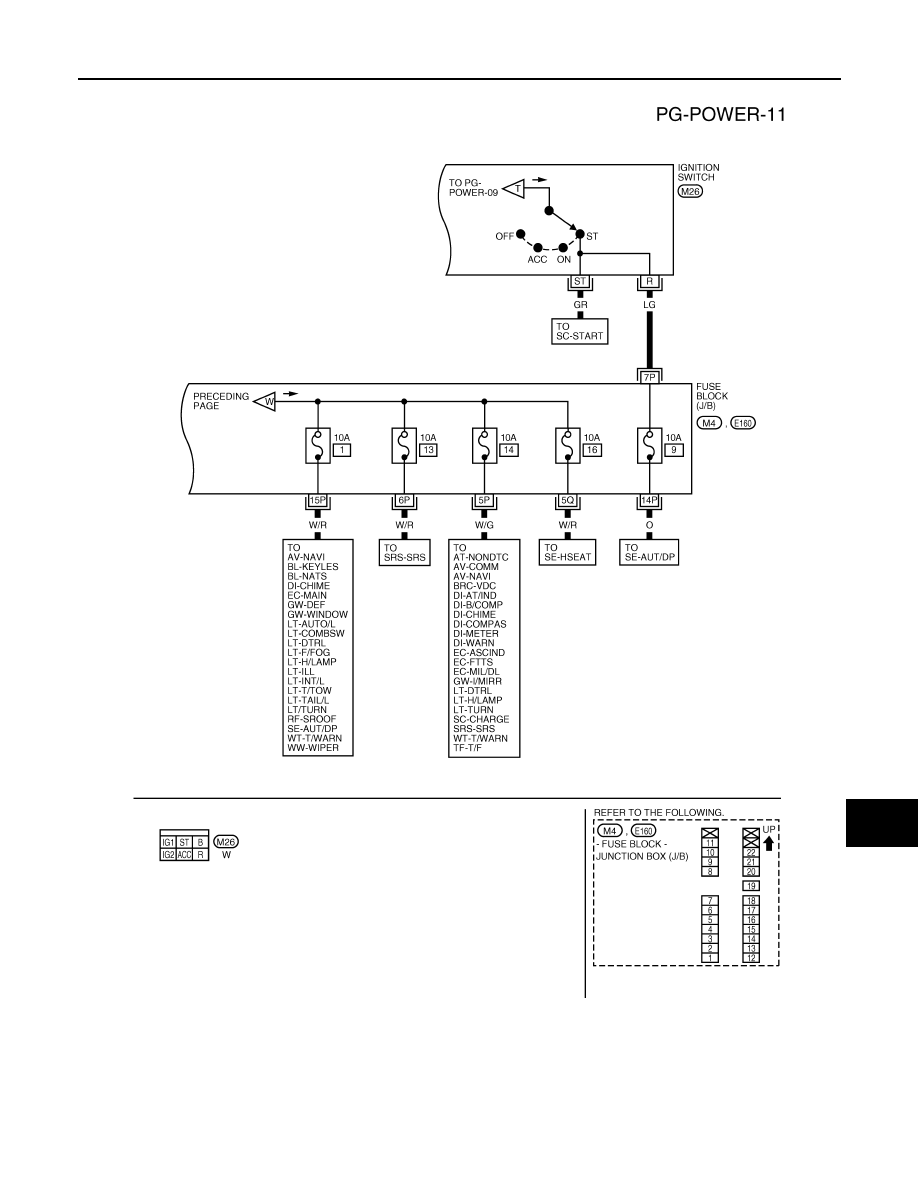

IGNITION POWER SUPPLY — IGNITION SWITCH IN START

WKWA4413E

PG-20

< COMPONENT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

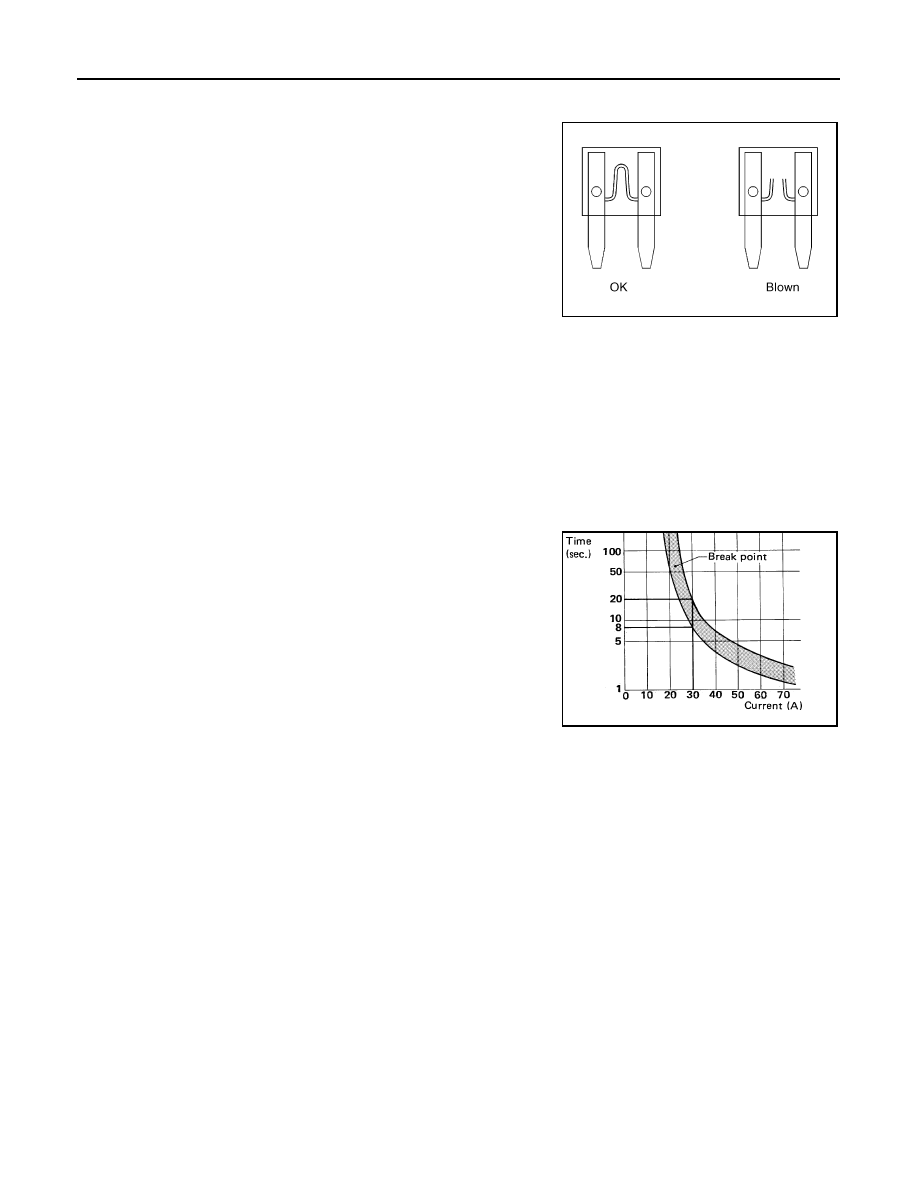

Fuse

INFOID:0000000001731008

• If fuse is blown, be sure to eliminate cause of incident before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

Fusible Link

INFOID:0000000001731009

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is
questionable, use circuit tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit (power supply or large current carrying

circuit) is shorted. In such a case, carefully check and eliminate cause of incident.

• Never wrap outside of fusible link with vinyl tape.
• Never let fusible link touch any other wiring harness, vinyl or rubber parts.

Circuit Breaker (Built Into BCM)

INFOID:0000000001731010

For example, when current is 30A, the circuit is broken within 8 to 20
seconds.
A circuit breaker is used for the following systems:
• Power windows
• Power sunroof

CEL083

SBF284E

PG

GROUND CIRCUIT

PG-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

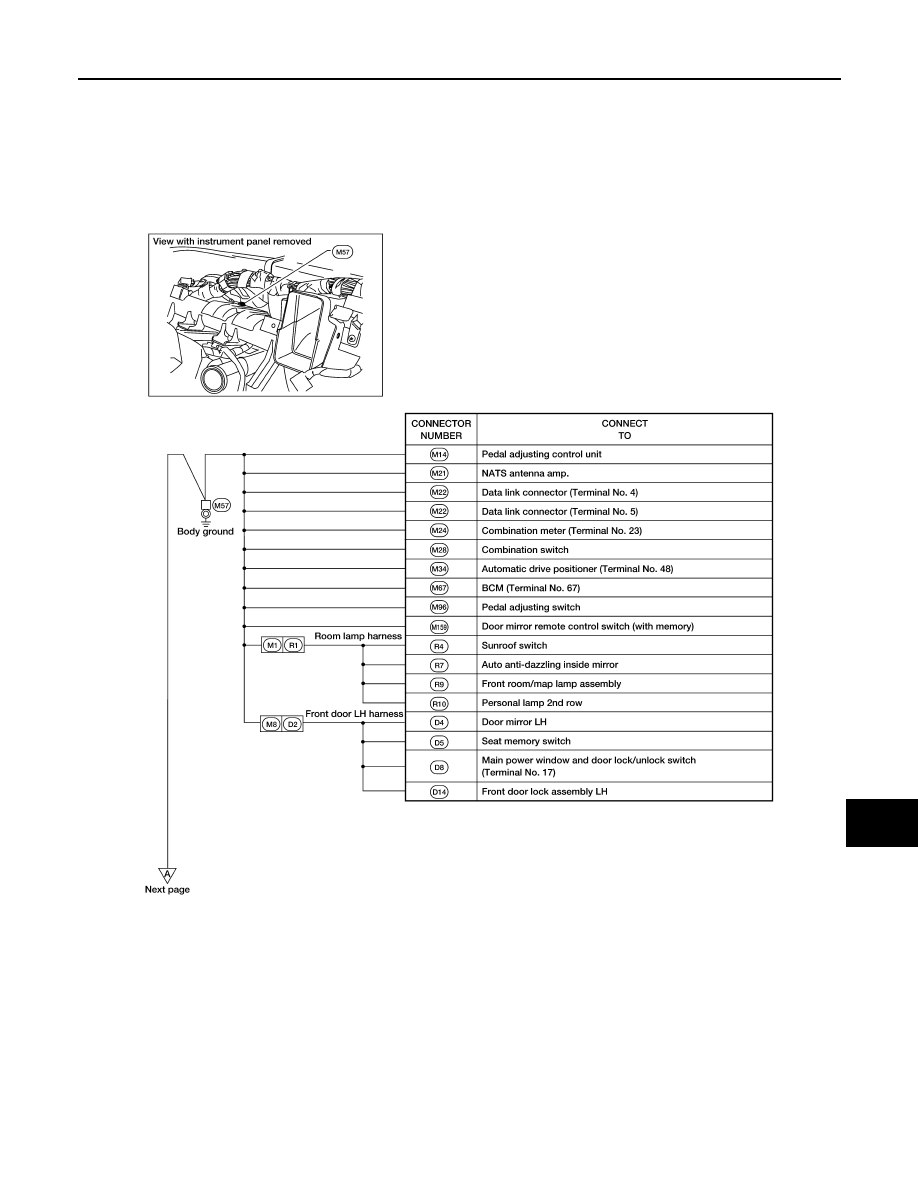

GROUND CIRCUIT

Ground Distribution

INFOID:0000000001731011

Main Harness

WKIA5857E

PG-22

< COMPONENT DIAGNOSIS >

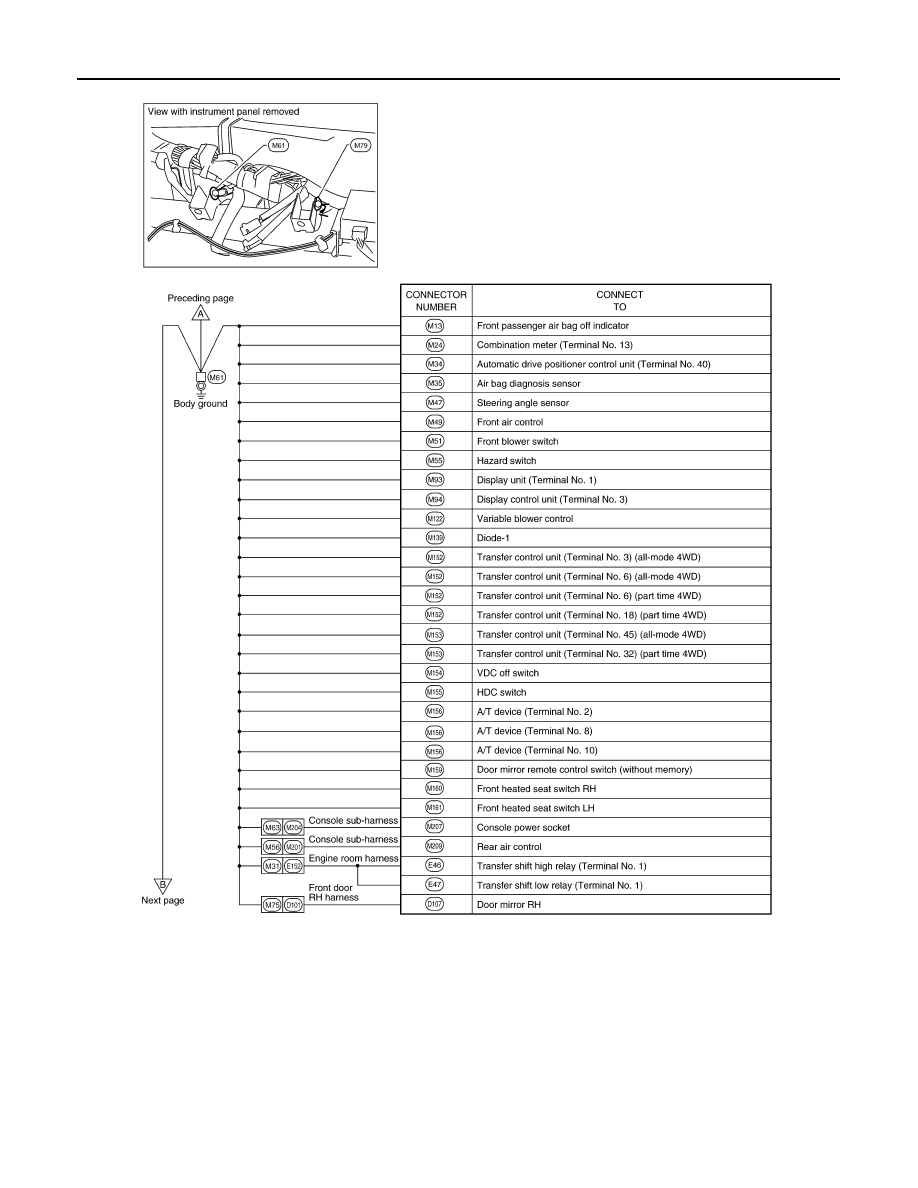

GROUND CIRCUIT

WKIA5858E
