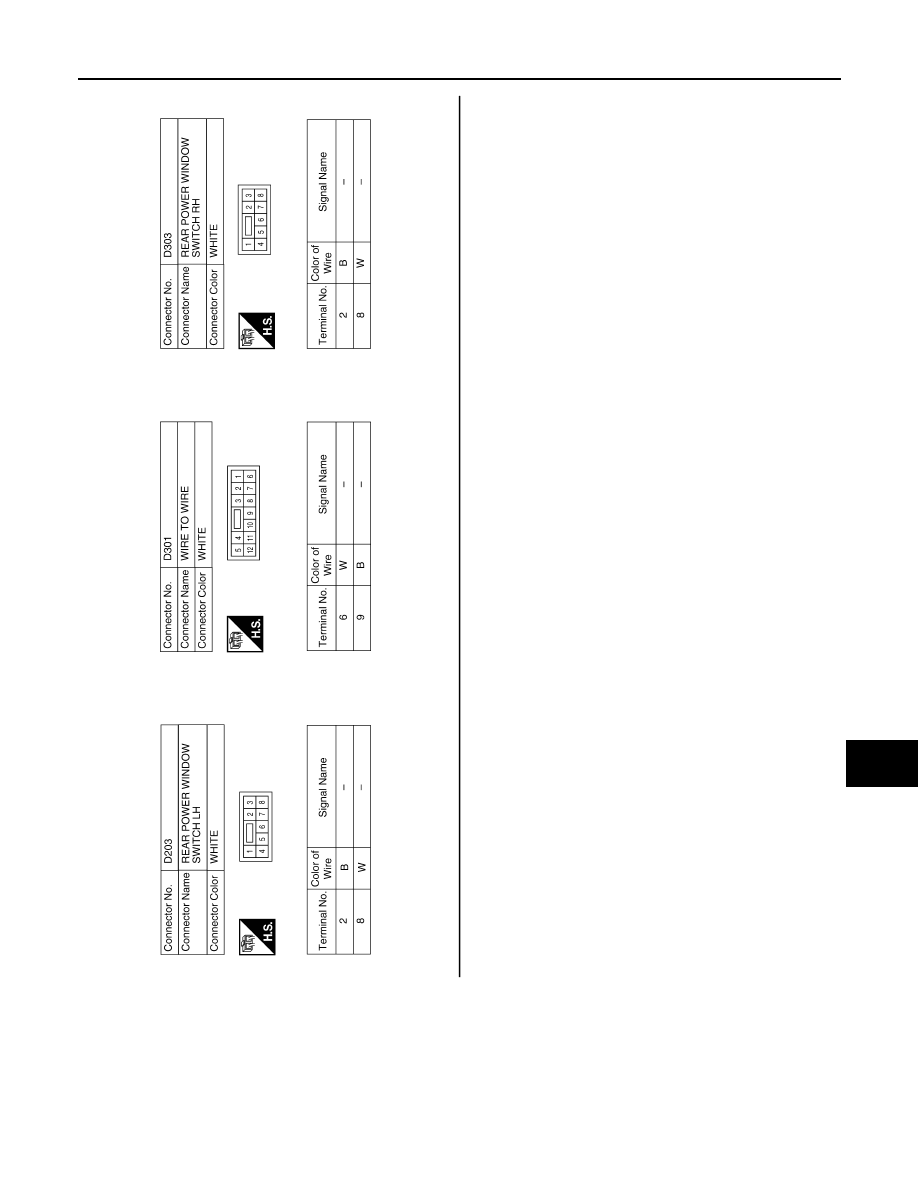

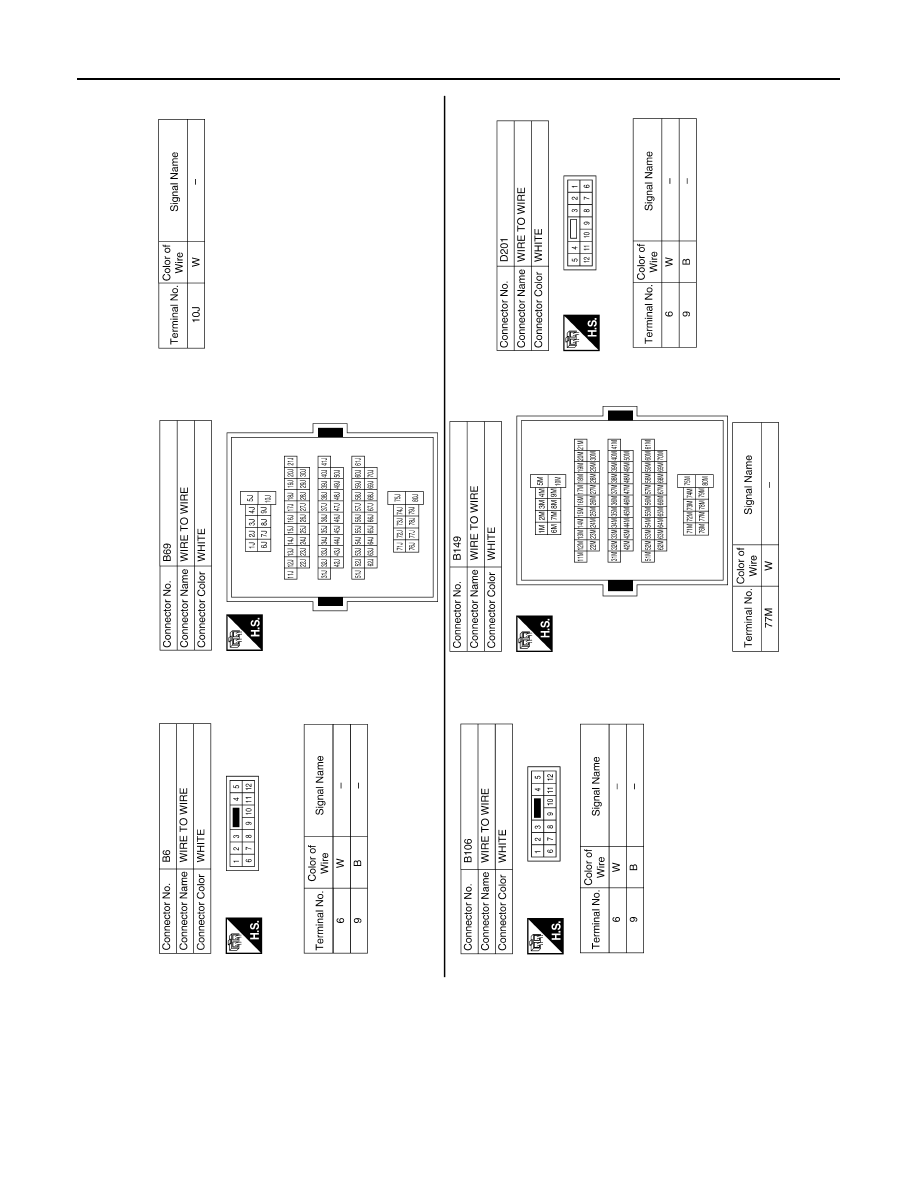

ILLUMINATION

INL-47

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ALLIA0444GB

INL-48

< COMPONENT DIAGNOSIS >

ILLUMINATION

ALLIA0445GB

ILLUMINATION

INL-49

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ALLIA0446GB

INL-50

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Description

INFOID:0000000001712591

REFERENCE VALUES FOR BCM

For BCM reference values, refer to

BCS-38, "Reference Value"

.

TERMINAL LAYOUT FOR BCM

For the terminal layout for the BCM, refer to

BCS-41, "Terminal Layout"

.

PHYSICAL VALUES FOR BCM

For physical values for the BCM, refer to

BCS-41, "Physical Values"

.

WIRING DIAGRAM - BCM

For the BCM wiring diagram, refer to

BCS-47, "Wiring Diagram"

.

DTC INSPECTION PRIORITY CHART - BCM

For the BCM DTC inspection priority chart, refer to

BCS-50, "DTC Inspection Priority Chart"

.

DTC INDEX - BCM

For the BCM DTC index, refer to

BCS-51, "DTC Index"

.

INTERIOR LIGHTING SYSTEM SYMPTOMS

INL-51

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYMPTOM DIAGNOSIS

INTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000001712592

CAUTION:

Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diag-
nosis if any DTC is detected.

Symptom

Possible cause

Inspection item

All of the following lamps do not turn ON
• Front room/map lamp assembly
• Personal lamp 2nd row (with rear map lamps)
• Room lamp 2nd row (without rear map lamps)
• Cargo room lamp
• Vanity mirror lamps (if equipped)
• Ignition keyhole illumination

• Harness between BCM and each

interior room lamp

• Harness between BCM and each

door switch

• BCM

Battery saver output/power supply
circuit
Refer to

INL-16

.

Some or all of the following interior room lamps
do not turn ON/OFF
• Front room/map lamp assembly
• Personal lamp 2nd row (with rear map lamps)
• Room lamp 2nd row (without rear map lamps)

• Harness between BCM and each

interior room lamp

• BCM

Interior room lamp control circuit
Refer to

INL-18

.

Cargo lamp does not turn ON/OFF

• Harness between BCM and cargo

lamp

• BCM

Cargo lamp circuit
Refer to

INL-20

.

Ignition keyhole illumination does not turn ON/
OFF

• Harness between BCM and cargo

lamp

• BCM

Ignition keyhole illumination circuit
Refer to

INL-22

Interior room lamp timer does not activate.
(It turns ON/ OFF when the door opens/closes.)

—

Check the interior room lamp setting.
Refer to

INL-11

.

Interior room lamp battery saver does not acti-
vate.

—

Check the interior room lamp battery
saver setting.
Refer to

INL-11

.

INL-52

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSION-
ER"

INFOID:0000000001702208

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

General precautions for service operations

INFOID:0000000001702209

• When removing or disassembling any part, be careful not to damage or deform it. Protect parts which may

get in the way with cloth.

• When removing parts with a screw driver or other tool, protect parts by wrapping them with vinyl or tape.
• Keep removed parts protected with cloth.
• If an non-reuseable part is removed, replace it with a new one.
• After re-assembly has been completed, make sure each part functions correctly.
• Never work with wet hands.
• Turn the lighting switch OFF before disconnecting and connecting the connector.
• Do not use organic solvent (paint thinner or gasoline) to clean lamps or remove sealant residue.

INTERIOR ROOM LAMP

INL-53

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ON-VEHICLE REPAIR

INTERIOR ROOM LAMP

Removal and Installation

INFOID:0000000001697740

MAP LAMP

Removal

The map lamp is replaced as part of the overhead console assembly.
Refer to

INT-16, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

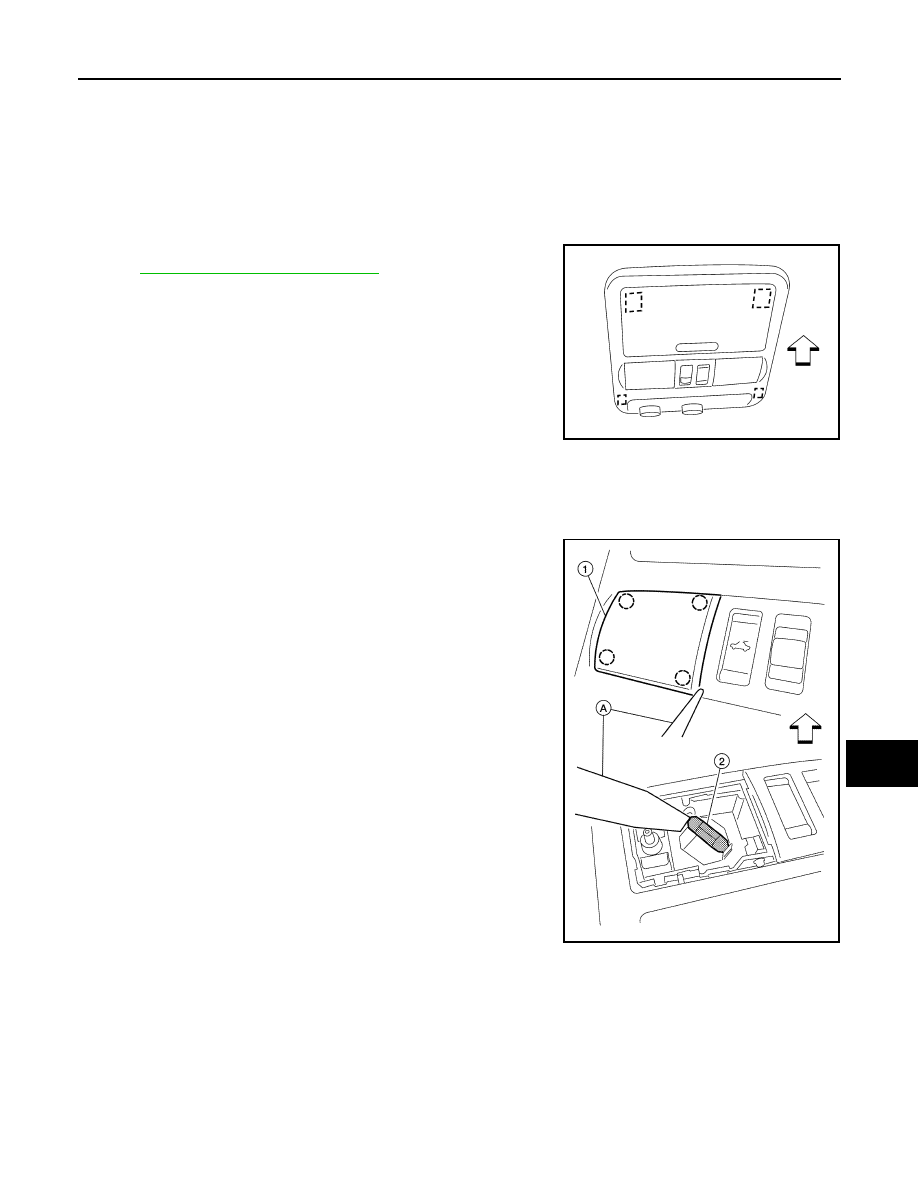

Bulb Replacement

1.

Disconnect the negative battery terminal.

2.

Using a suitable tool (A), remove map lamp lens (1).

⇐

: Vehicle front

CAUTION:

Wrap a cloth around tool to protect the housing and lens.

3.

Release one side of the bulb (2) from the tab, then pull straight
downward to remove.

VANITY MIRROR LAMP

Removal

ALLIA0581ZZ

Map lamp bulb

: 12V - 8W

ALLIA0582ZZ

INL-54

< ON-VEHICLE REPAIR >

INTERIOR ROOM LAMP

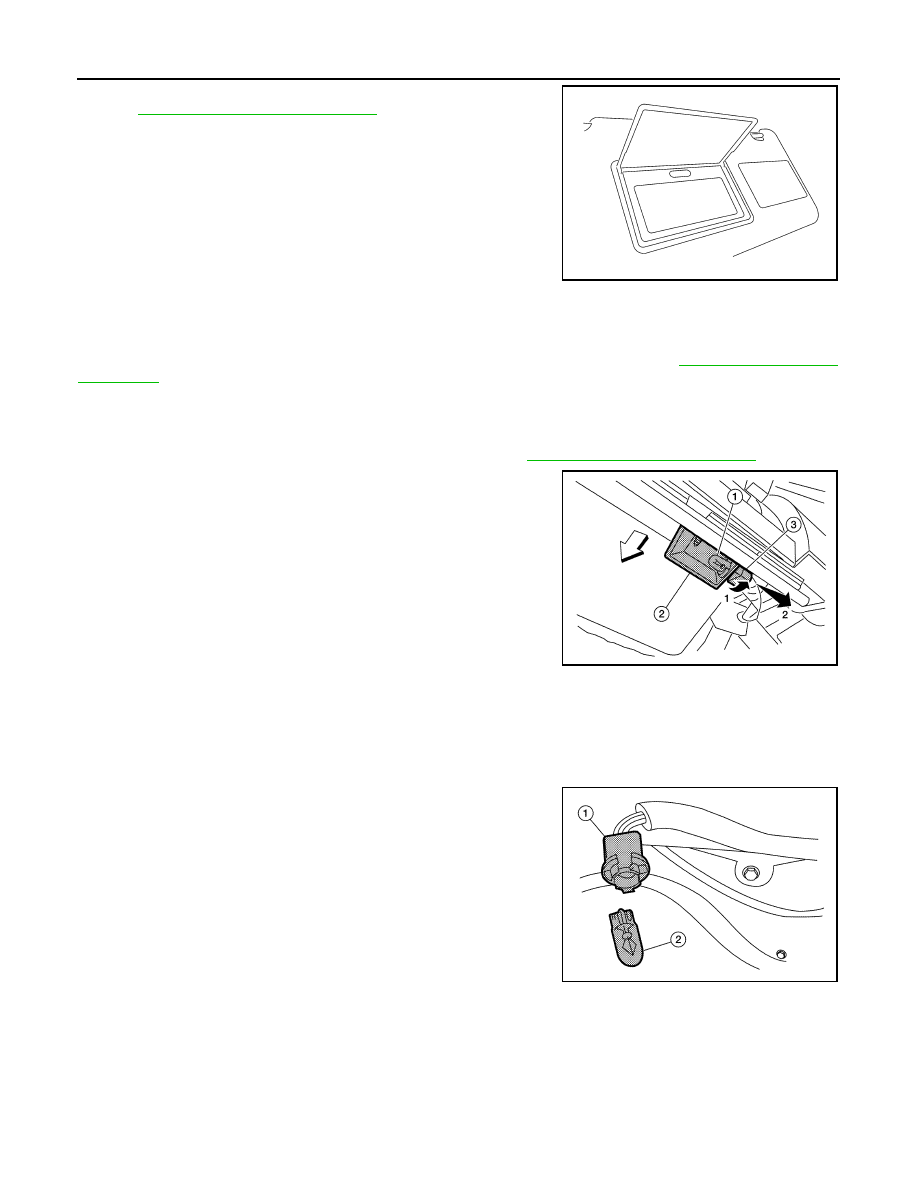

The vanity mirror lamp is replaced as part of the sunvisor assembly.
Refer to

INT-16, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

The vanity mirror lamp bulb is replaced as part of the sunvisor assembly. Refer to

INT-16, "Removal and

Installation"

.

GLOVE BOX LAMP

Removal

1.

Remove lower instrument panel RH and glove box. Refer to

IP-10, "Removal and Installation"

.

2.

Rotate glove box lamp socket (3) with bulb (1) counterclockwise,
then pull away from lamp shield (2) on steering member to
remove.

⇐

: Vehicle front

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Disconnect the negative battery terminal.

2.

Remove glove box lamp.

3.

Pull bulb (2) straight out from glove box lamp socket (1) to
remove.

PERSONAL LAMP

Removal

1.

Disconnect the negative battery terminal.

ALLIA0583ZZ

ALLIA0587ZZ

Glove box lamp bulb

: 12V - 3.4W

ALLIA0321ZZ
