UPPER BALL JOINT AND LOWER BALL JOINT

FSU-17

< REMOVAL AND INSTALLATION >

FSU

UPPER BALL JOINT AND LOWER BALL JOINT

Removal and Installation

INFOID:0000000001672933

The ball joints are part of the upper and lower links. Refer to

FSU-16, "Removal and Installation"

(upper link),

FSU-15, "Removal and Installation"

(lower link).

FSU-18

< REMOVAL AND INSTALLATION >

KNUCKLE

KNUCKLE

Removal and Installation

INFOID:0000000001672936

REMOVAL

Remove wheel and tire from vehicle using power tool.

Without disassembling the hydraulic lines, remove brake caliper using power tool. Reposition it aside with
wire. Refer to

BR-26, "Removal and Installation of Brake Caliper and Disc Rotor"

NOTE:
Avoid depressing brake pedal while brake caliper is removed.

Put alignment marks on disc rotor and wheel hub and bearing
assembly, then remove disc rotor.

Disconnect wheel sensor and remove bracket from steering knuckle.

CAUTION:

Do not pull on wheel sensor harness.

On 4WD models, remove cotter pin, then remove lock nut from drive shaft using power tool. Refer to

FAX-

6, "Removal and Installation"

Remove steering outer socket cotter pin at steering knuckle, then loosen nut using power tool. Refer to

ST-30, "Disassembly and Assembly"

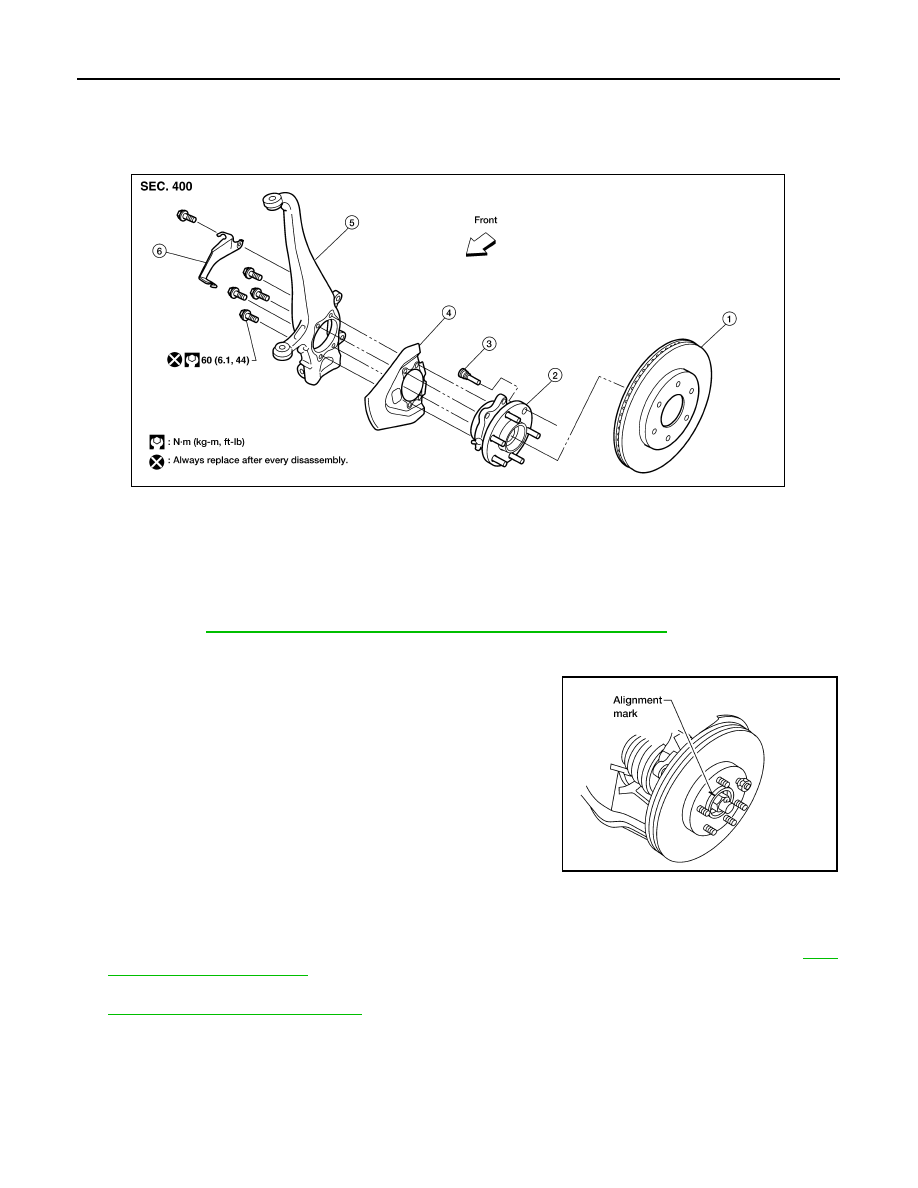

Disc rotor

Wheel hub and bearing assembly

Wheel stud

Splash guard

Steering knuckle

Wheel sensor bracket

WDIA0228E

WDIA0044E

KNUCKLE

FSU-19

< REMOVAL AND INSTALLATION >

FSU

Disconnect steering outer socket from steering knuckle using
Tool. Be careful not to damage outer socket boot.

CAUTION:

To prevent damage to threads and to prevent Tool from
coming off suddenly, temporarily tighten nut.

Remove wheel hub and bearing assembly bolts using power tool.

Remove splash guard and wheel hub and bearing assembly from steering knuckle.

CAUTION:

Do not pull on wheel sensor harness.

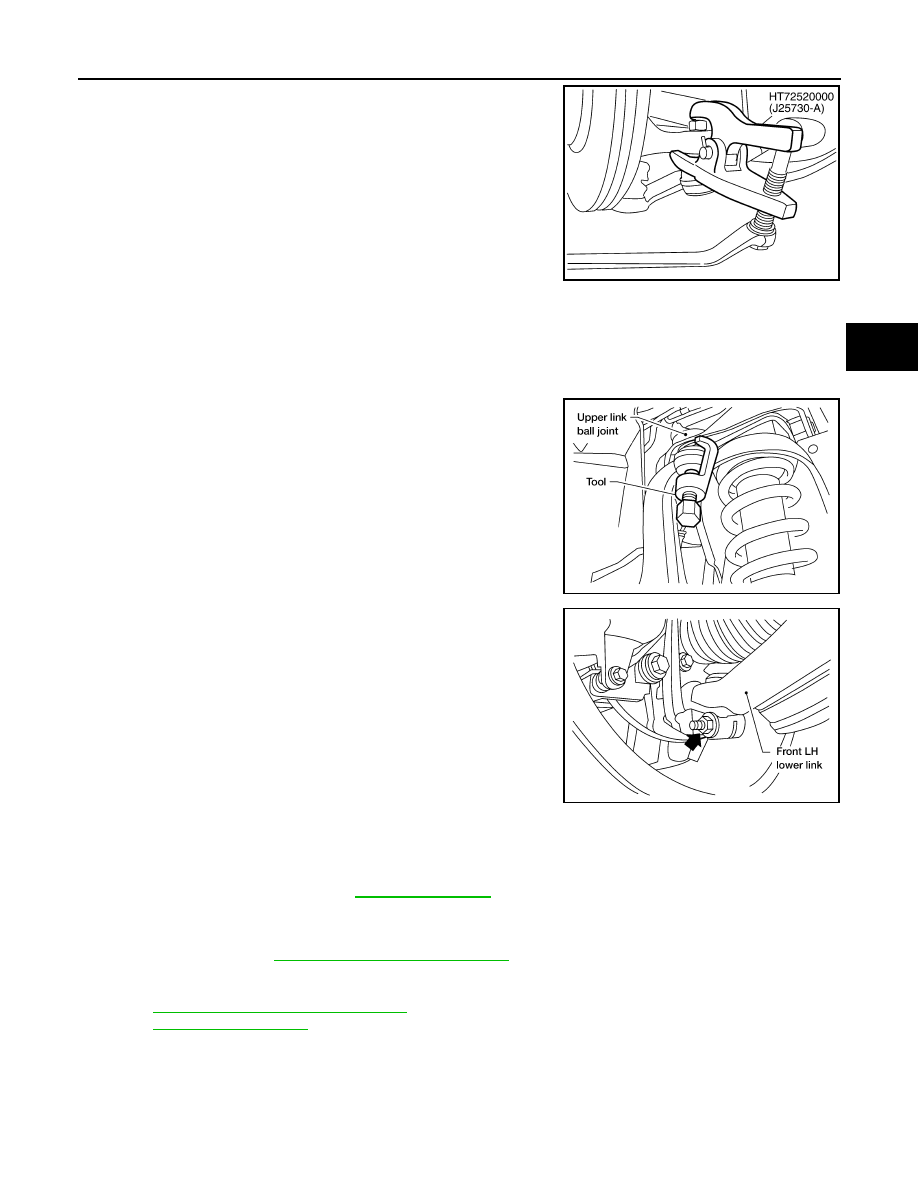

10. Remove cotter pin and nut from upper link ball joint.

11. Separate upper link ball joint from steering knuckle using Tool.

12. Remove pinch bolt from steering knuckle using power tool, then

separate lower link ball joint from steering knuckle.

13. Remove steering knuckle from vehicle.

INSPECTION AFTER REMOVAL

Check for deformity, cracks and damage on each part, replace if necessary.
• Perform ball joint inspection. Refer to

FSU-9, "Inspection"

INSTALLATION

Installation is in the reverse order of removal.
• For 4WD models, refer to

FAX-6, "Removal and Installation"

for drive shaft lock nut tightening torque.

CAUTION:

Always replace drive shaft lock nut and cotter pin.

• Refer to

ST-30, "Disassembly and Assembly"

for outer socket nut tightening torque.

• Refer to

FSU-12, "Component"

for front suspension tightening torques.

Tool number

: HT72520000 (J-25730-A)

SDIA1434E

Tool number

: ST29020001 (J-24319-01)

WEIA0119E

LEIA0097E

FSU-20

< REMOVAL AND INSTALLATION >

KNUCKLE

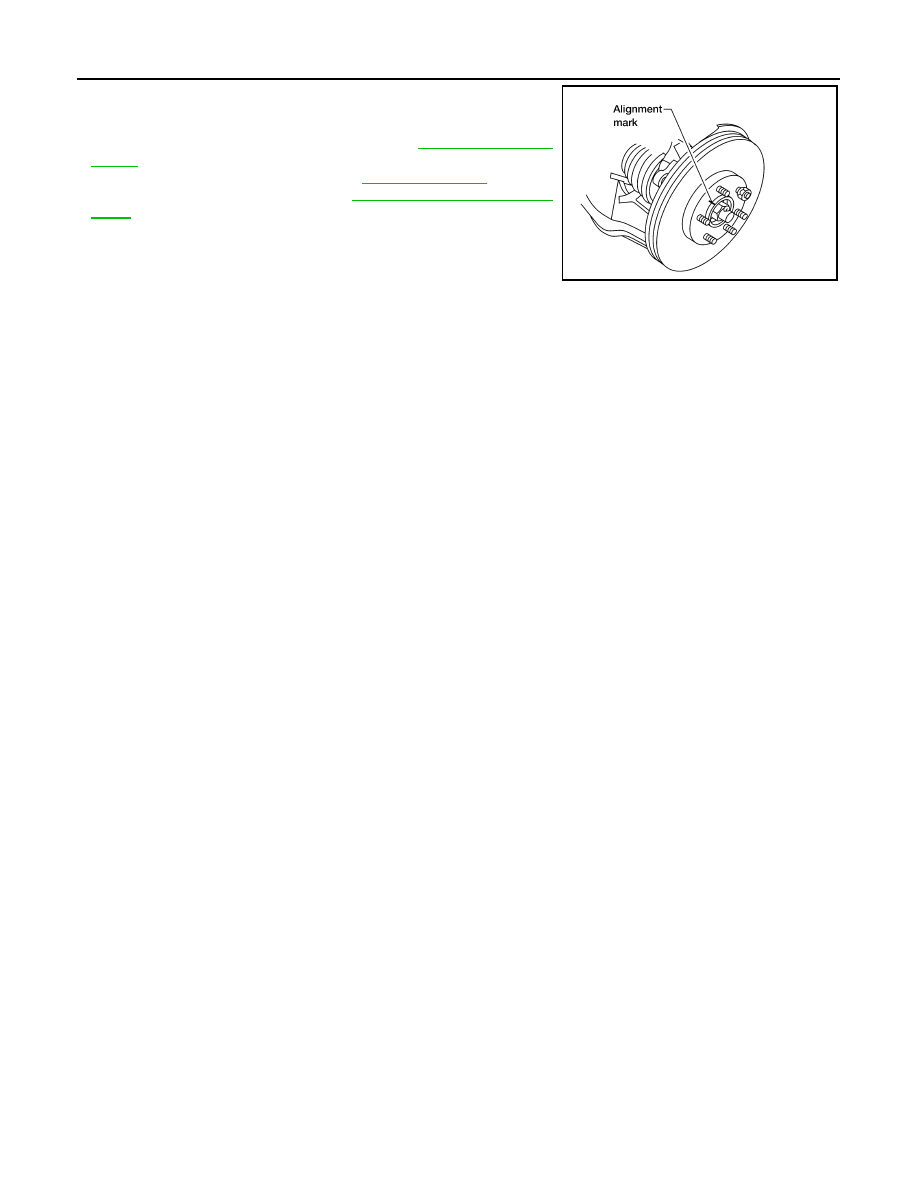

• When installing disc rotor on wheel hub and bearing assembly,

align the marks.
NOTE:
When not using the alignment mark, refer to

BR-41, "Front Disc

Brake"

• When installing wheel and tire, refer to

WT-36, "Rotation"

• Perform wheel alignment. Refer to

FSU-5, "Front Wheel Align-

ment"

WDIA0044E

COIL SPRING AND SHOCK ABSORBER

FSU-21

< DISASSEMBLY AND ASSEMBLY >

FSU

DISASSEMBLY AND ASSEMBLY

COIL SPRING AND SHOCK ABSORBER

Disassembly and Assembly

INFOID:0000000001672938

DISASSEMBLY

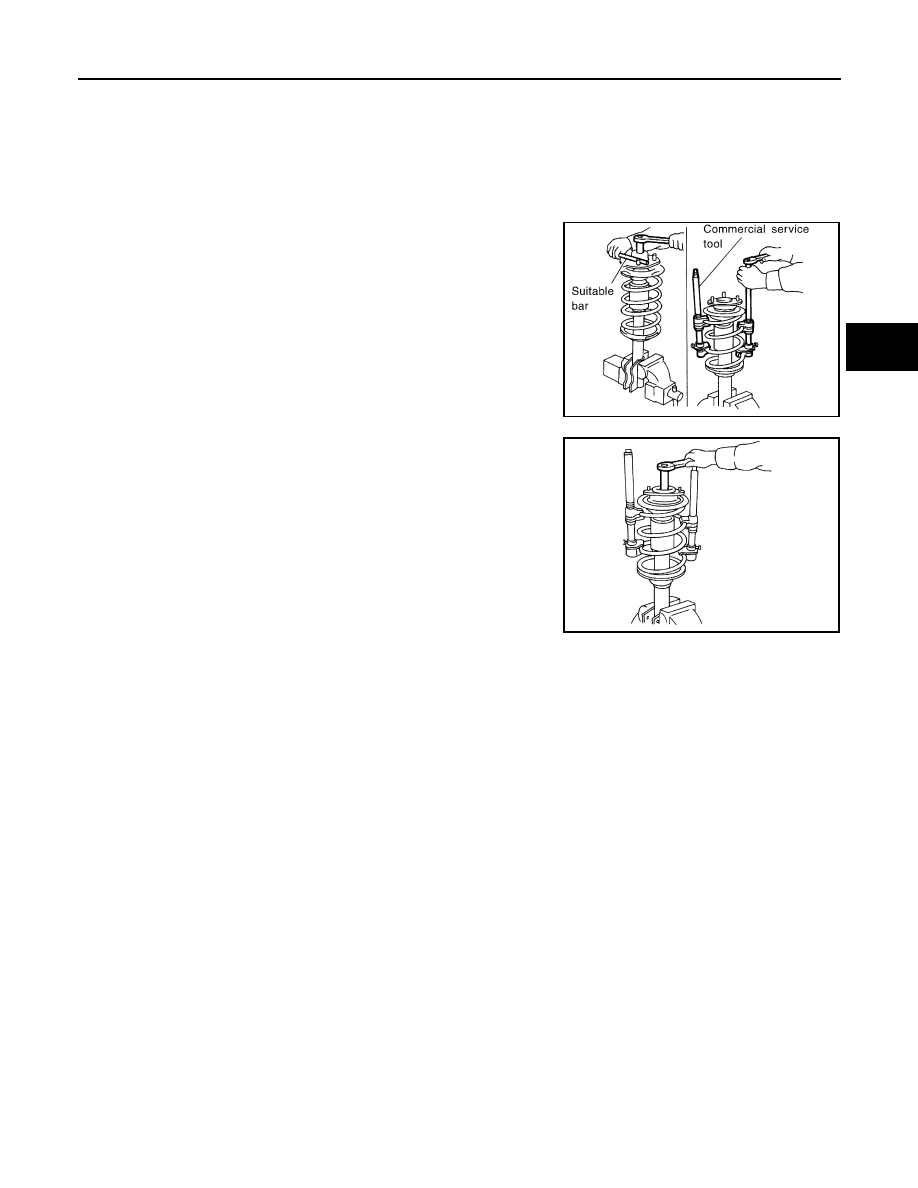

Set the shock absorber in a vise, then loosen (without removing)
the piston rod lock nut as shown.

CAUTION:

Do not remove piston rod lock nut at this time.

Compress the coil spring using commercial service tool until the
shock absorber mounting insulator can be turned by hand.

WARNING:

Make sure that the pawls of the two spring compressors are
firmly hooked on the coil spring. The spring compressors
must be tightened alternately and evenly so as not to tilt the
coil spring.

Remove the piston rod lock nut.
• Discard the piston rod lock nut, use a new nut for assembly.

Remove the components from the shock absorber.
• Keep the coil spring compressed in the commercial service

tool if reusing it for assembly.

INSPECTION AFTER DISASSEMBLY

Shock Absorber Assembly

• Check for smooth operation through a full stroke, both compression and extension.
• Check for oil leakage on welded or gland packing portions.
• Check piston rod for cracks, deformation or other damage and replace if necessary.

Mounting Insulator and Rubber Parts

Check cemented rubber-to-metal portion for separation or cracks. Check rubber parts for deterioration and
replace if necessary.

Coil Spring

• Check for cracks, deformation or other damage and replace if necessary.
• Check the coil spring free height.

ASSEMBLY

SSU002

SSU003

Front coil spring free height

2WD

: 345.4 mm (13.6 in)

4WD

: 356 mm (14.0 in)

FSU-22

< DISASSEMBLY AND ASSEMBLY >

COIL SPRING AND SHOCK ABSORBER

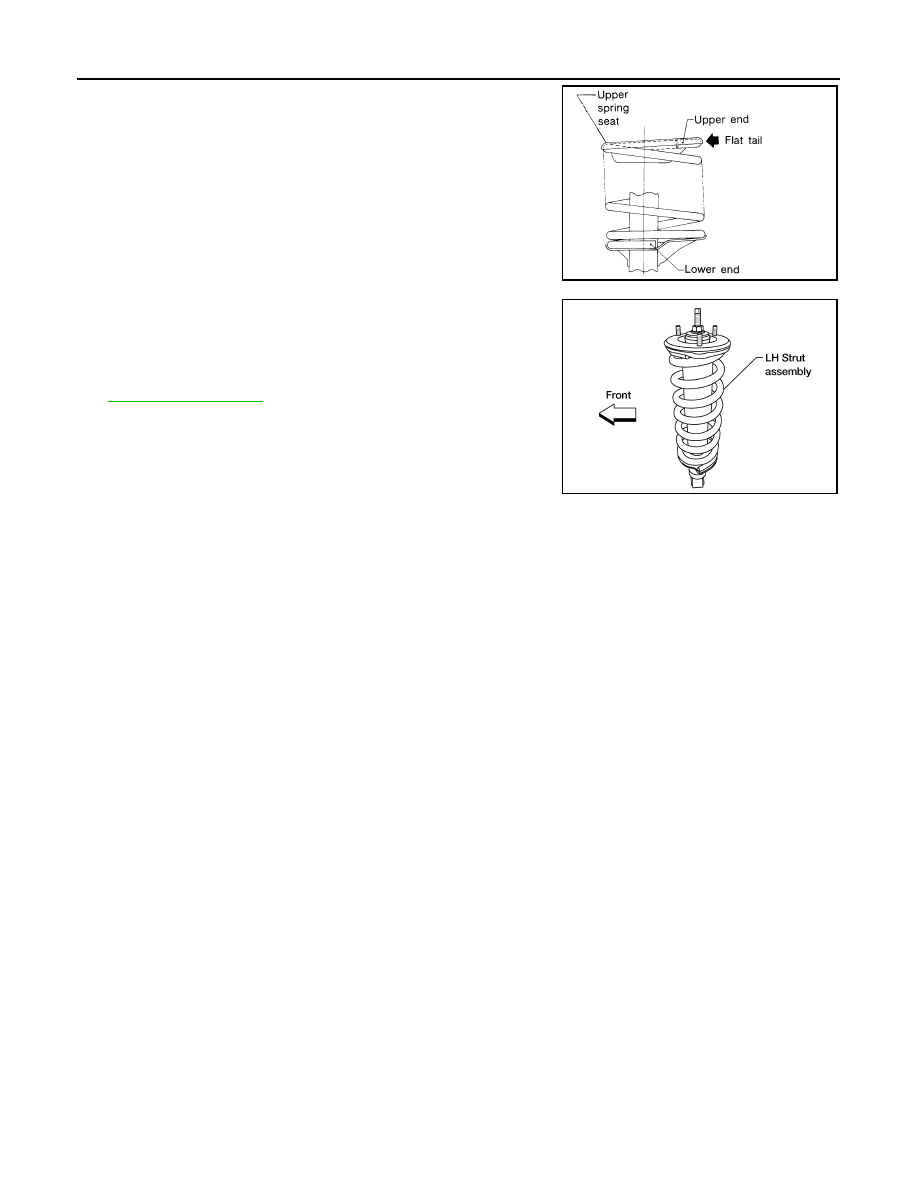

When installing coil spring on strut, it must be positioned as
shown.

Install the shock absorber mounting insulator as shown in line
with lower shock mount and step in lower seat.
• The step in the strut assembly lower seat faces outside of

vehicle.

Tighten the new piston rod lock nut to specification. Refer to

FSU-12, "Component"

• Use a new piston rod lock nut for assembly.

Remove commercial service tool.

SFA508A

WEIA0117E

SERVICE DATA AND SPECIFICATIONS (SDS)

FSU-23

< SERVICE DATA AND SPECIFICATIONS (SDS)

FSU

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification (Front)

INFOID:0000000001672908

Spring Free Height

INFOID:0000000001672909

Unit: mm (in)

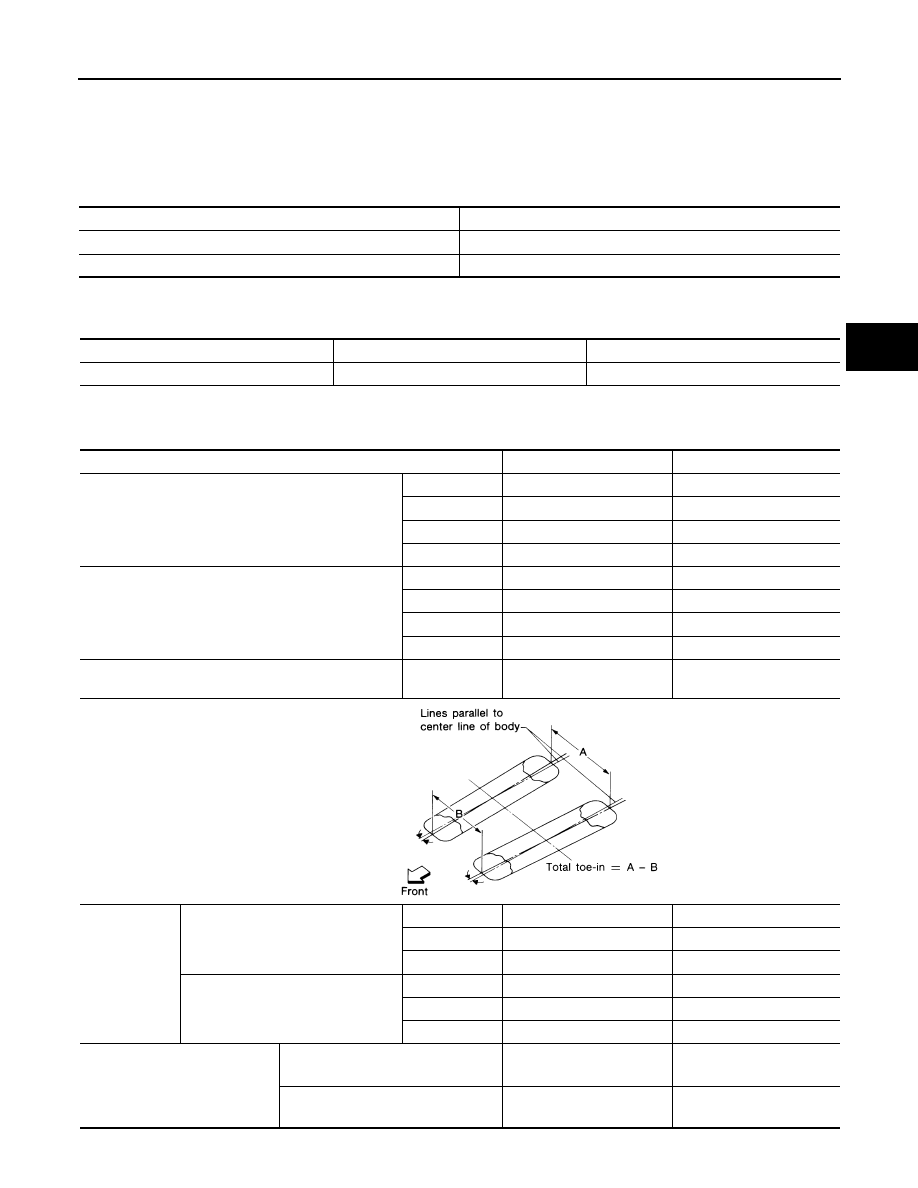

Wheel Alignment (Unladen*1)

INFOID:0000000001672910

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Suspension type

Independent double wishbone coil over shock

Shock absorber type

Double-acting hydraulic

Stabilizer

Standard equipment

Drive type

2WD

4WD

Front spring free height

345.4 (13.6)

356 (14.0)

Drive type

2WD

4WD

Camber
Degree minute (decimal degree)

Minimum

-0

′

(-0.50

)

-0

′

(-0.25

)

Nominal

′

(0.25

)

′

(0.50

)

Maximum

′

(1.00

)

′

(1.25

)

Cross camber

′

(0.75

) or less

′

(0.75

) or less

Caster
Degree minute (decimal degree)

Minimum

′

(2.25

)

′

(2.00

)

Nominal

′

(3.00

)

′

(2.75

)

Maximum

′

(3.75

)

′

(3.50

)

Cross caster

′

(0.75

) or less

′

(0.75

) or less

Kingpin inclination
Degree minute (decimal degree)

Nominal

′

(13.00

)

′

(12.75

)

Total toe-in

Distance (A

−

Minimum

2.1 mm (0.08 in)

Nominal

3.1 mm (0.12 in)

Maximum

4.1 mm (0.16 in)

Angle (left wheel or right wheel)
Degree minute (decimal degree)

Minimum

′

(0.08

)

′

(0.08

)

Nominal

′

(0.12

)

′

(0.12

)

Maximum

′

(0.15

)

′

(0.15

)

Wheel turning angle (full turn)

Inside
Degree minute (Decimal degree)

′

– 35

′

(33.43

– 35.43

)

′

– 35

′

(33.60

– 35.60

)

Outside
Degree minute (Decimal degree)

′

– 31

′

(29.37

– 31.37

)

′

– 31

′

(29.73

– 31.73

)

SFA234AC

FSU-24

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

*2: Target value 35

′

(35.43

)

*3: Target value 31

′

(31.37

)

*4: Target value 35

′

(35.55

)

*5: Target value 31

′

(31.63

)

Ball Joint

INFOID:0000000001672911

Wheelarch Height (Unladen*

)

INFOID:0000000001672912

Unit: mm (in)

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

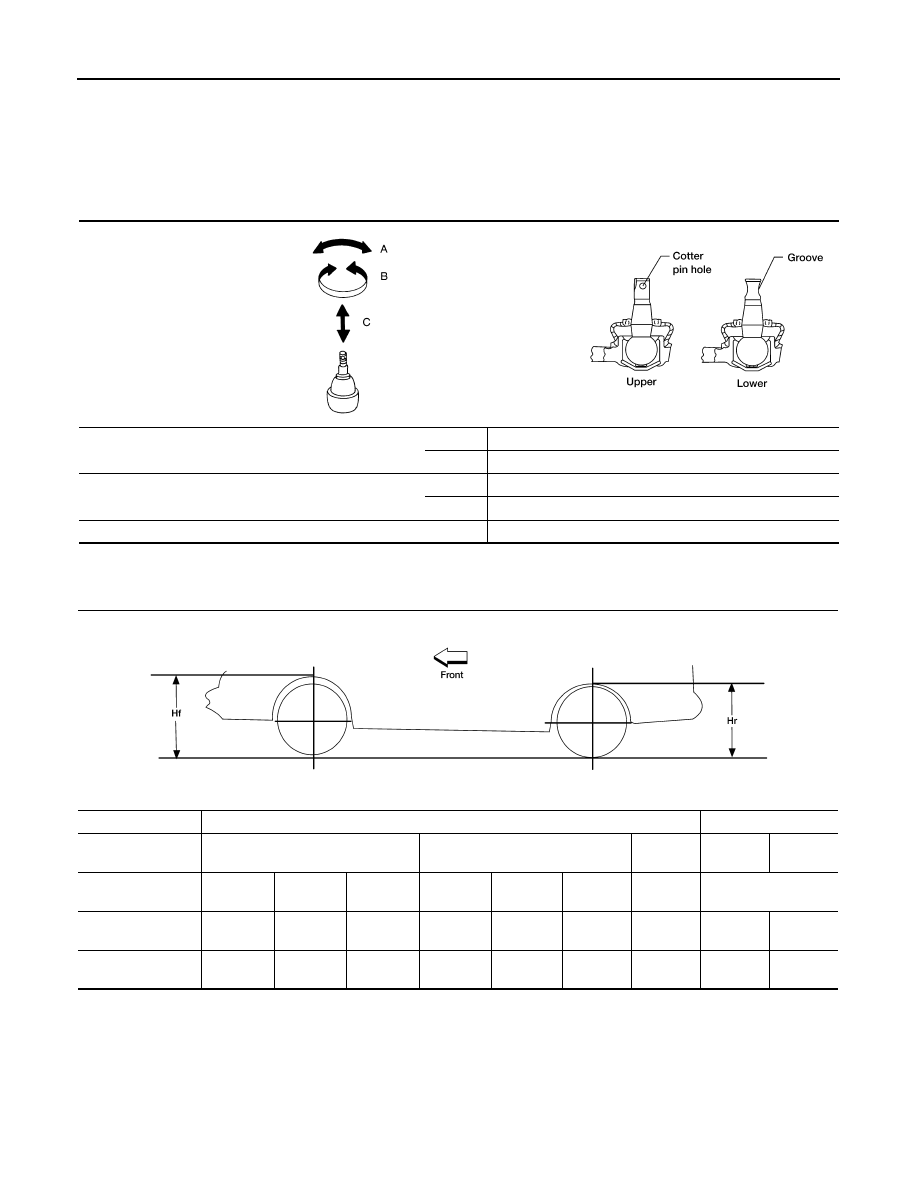

Swinging force “A” (Measurement point at either cotter pin
hole or groove of ball stud.)

Upper

8.1 - 79 N (0.83 - 8.1 kg-f, 1.82 - 17.8 lb-f) at hole

Lower

11.4 - 145.5 N (1.16 - 14.84 kg-f, 2.56 - 32.71 lb-f) at groove

Turning torque “B”

Upper

0.5 - 4.9 N·m (0.05 - 0.49 kg-m, 5 - 43 in-lb)

Lower

0.5 - 6.4 N·m (0.05 - 0.65 kg-m, 5 - 56 in-lb)

Vertical end play “C”

0 mm (0 in)

SFA858A

WEIA0076E

Engine

VQ40DE

VK56DE

Drive type

2WD

Part time 4WD

Full time

4WD

2WD

4WD

Tire size

245/

75R16

265/

70R16

265/

65R17

245/

75R16

265/

70R16

265/

75R16

265/

65R17

265/60R18

Front wheelarch
height (Hf)

867

(34.13)

865

(34.06)

865

(34.06)

875

(34.45)

873

(34.37)

889

(35.00)

874

(34.41)

868

(34.17)

876

(34.49)

Rear wheelarch
height (Hr)

875

(34.45)

873

(34.37)

873

(34.37)

884

(34.80)

882

(34.72)

898

(35.35)

883

(34.76)

876

(34.49)

886

(34.88)

LEIA0085E
