WHEEL HUB

FAX-9

< REMOVAL AND INSTALLATION >

FAX

• Carefully remove wheel sensor and harness through hole in splash guard.

INSPECTION AFTER REMOVAL

Check for deformity, cracks and damage on each part and replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.
• Use new bolts when installing the wheel hub and bearing assembly.

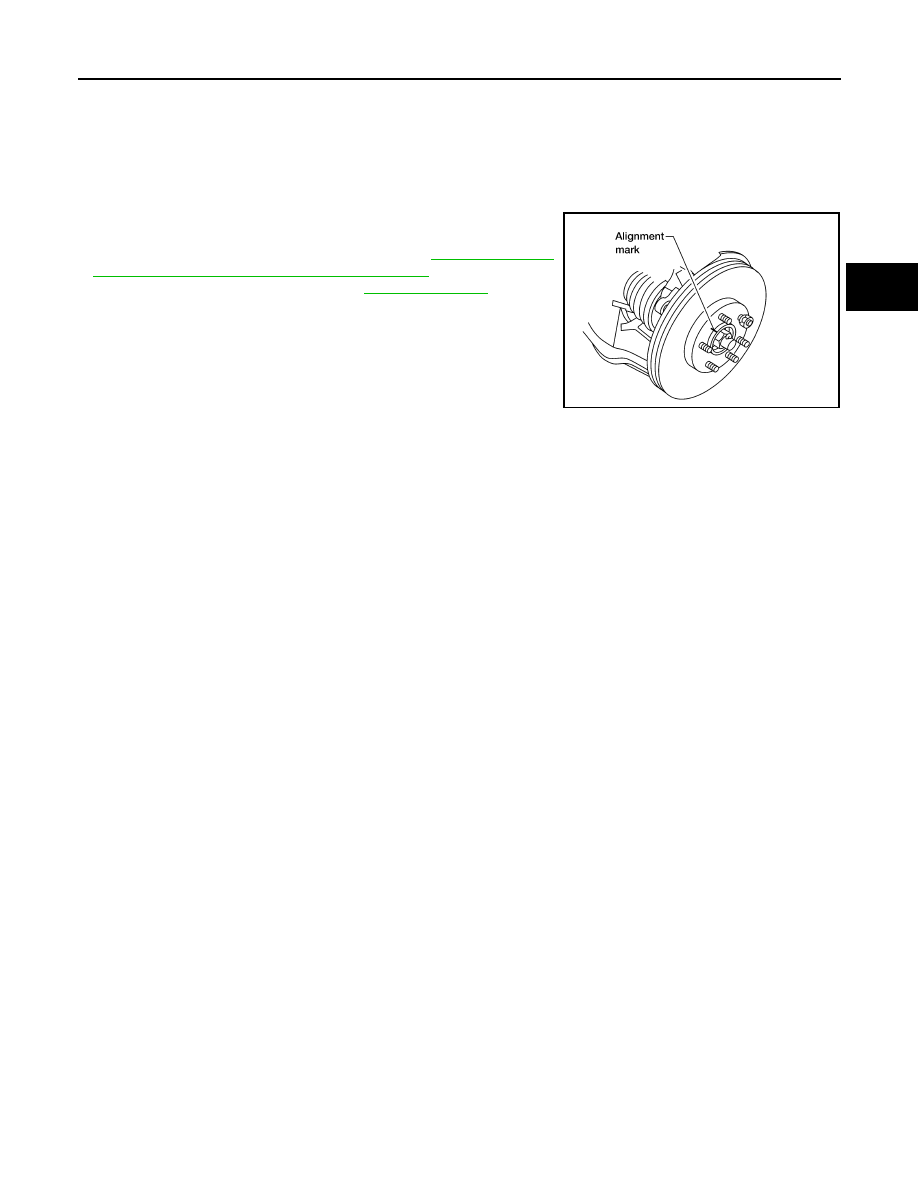

• When installing disc rotor on wheel hub and bearing assembly,

position the disc rotor according to alignment mark.
(When not using the alignment mark, refer to

BR-26, "Removal

and Installation of Brake Caliper and Disc Rotor"

• When installing wheel and tire, refer to

WT-36, "Rotation"

WDIA0044E

FAX-10

< DISASSEMBLY AND ASSEMBLY >

DRIVE SHAFT

DISASSEMBLY AND ASSEMBLY

DRIVE SHAFT

Disassembly and Assembly

INFOID:0000000001283014

DISASSEMBLY

Final Drive Side

Mount the drive shaft in a vise.

CAUTION:

When mounting the drive shaft in a vise, use copper or aluminum plates between the vise and the
drive shaft.

Remove boot bands and slide the boot back.

Put matching marks on housing and shaft before separating joint assembly.

CAUTION:

Use paint or similar substance for matching marks. Do not scratch the surfaces.

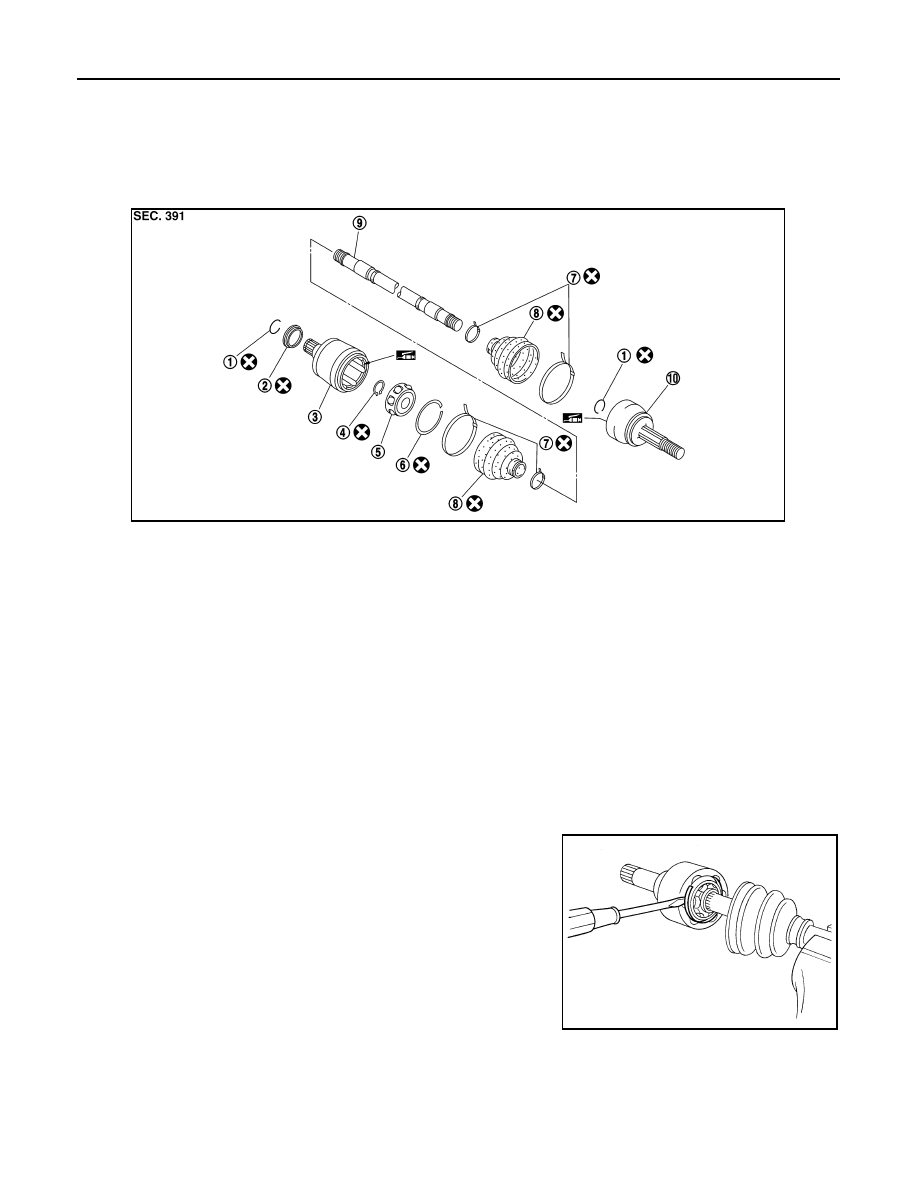

Remove the stopper ring with a flat-bladed screwdriver as
shown, and pull the housing off.

Circlip

Dust cover

Housing

Snap ring

Ball cage, steel ball and inner race assembly

Stopper ring

Boot band

Boot

Shaft

10.

Joint sub-assembly

WDIA0342E

SFA476

DRIVE SHAFT

FAX-11

< DISASSEMBLY AND ASSEMBLY >

FAX

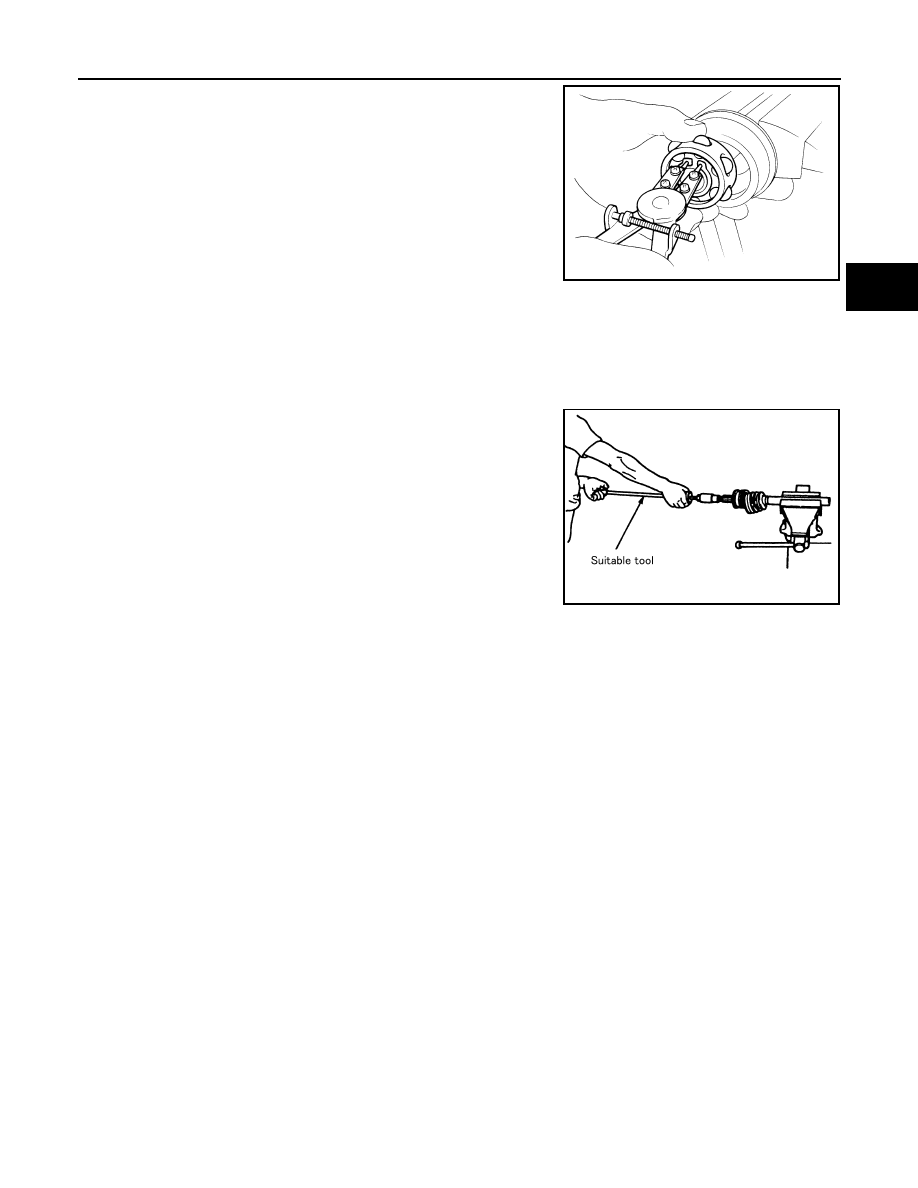

Remove the snap ring, then remove the ball cage, steel ball,
inner race assembly from the shaft.

Remove the boot from the shaft.

Remove circlip and dust cover from housing.

Clean the old grease off of the housing using paper towels.

Wheel Side

Mount the drive shaft in a vise.

CAUTION:

When mounting the drive shaft in a vise, use copper or aluminum plates between the vise and the
drive shaft.

Remove the boot bands and slide the boot back.

Screw a sliding hammer or suitable tool 30 mm (1.18 in) or more
into threaded part of joint sub-assembly. Pull joint sub-assembly
off of shaft as shown.
NOTE:
Align the sliding hammer and shaft and remove the joint sub-
assembly by pulling directly.

CAUTION:

• If the joint sub-assembly cannot be removed after five or

more unsuccessful attempts, replace the entire drive shaft
assembly.

Remove boot from the shaft.

Remove circlip from the shaft.

While rotating the ball cage, clean the old grease off of the joint sub-assembly using paper towels.

INSPECTION AFTER DISASSEMBLY

Shaft

• Replace the shaft if there is any bending, cracking, or other damage.

Joint Sub-assembly

• Check for any rough rotation or unusual axial looseness.
• Clean any foreign material from inside the joint sub-assembly.
• Check for any compression scars, cracks, or fractures.

CAUTION:

If any irregular conditions are found in the joint sub-assembly components, replace the entire joint
sub-assembly.

Housing

NOTE:
Housing, ball cage, steel ball, and inner race are in a set.
• Check for any compression scars, cracks, fractures, or unusual wear on the ball rolling surface.
• Check for any deformation of the boot installation components.

Ball Cage

• Check the sliding surface for any compression scars, cracks, or fractures of sliding surface.

Steel Ball

• Check for any compression scars, cracks, fractures, or unusual wear.

Inner Race

• Check the ball sliding surface for any compression scars, cracks, or fractures.
• Check for any damage to the serrated part.

ASSEMBLY

SFA514A

SDIA0606E

FAX-12

< DISASSEMBLY AND ASSEMBLY >

DRIVE SHAFT

Final Drive Side

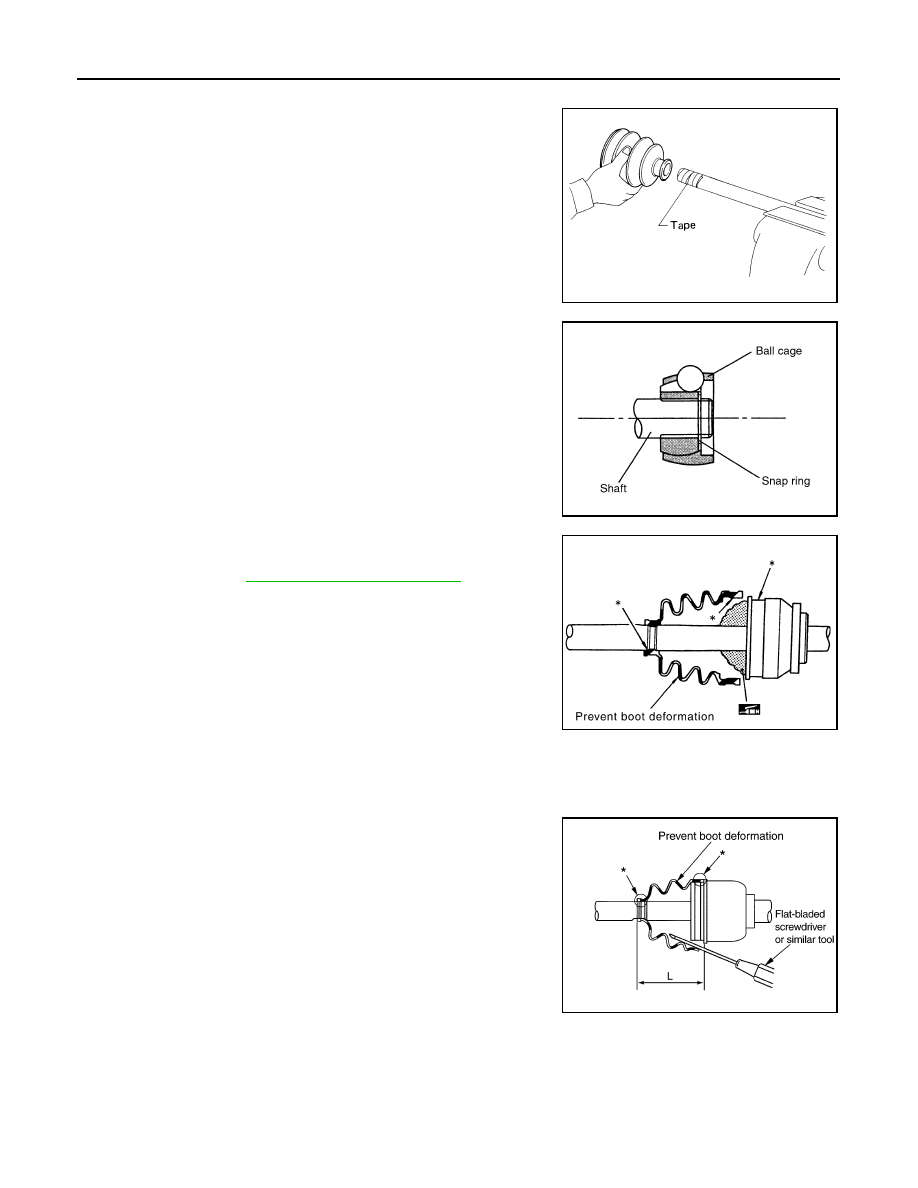

Wrap the serrated part of the shaft with tape. Install the boot
band and boot to shaft.
NOTE:
Discard the old boot band and boot and use a new one for
assembly.

Remove the tape wound around the serrated part of the shaft.

Install the ball cage, steel ball, and inner race assembly on the
shaft, and secure them using the snap ring.
NOTE:
Discard the old snap ring and use a new one for assembly.

Insert the specified quantity of Genuine NISSAN Grease or
equivalent, into the housing (indicated by * marks), and install it
onto shaft. Refer to

MA-10, "Fluids and Lubricants"

Install the stopper ring onto the housing.

CAUTION:

• Do not reuse stopper rings.
• Make sure that housing and stopper ring are fully engaged.

Install the boot securely into the grooves (indicated by * marks)
as shown.

CAUTION:

If there is grease on boot mounting surfaces (indicated by *
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.

Check that the boot installation length “L” is the length indicated
below. Insert a flat-tip screwdriver or similar tool into the large
side of boot. Bleed air from boot to prevent boot deformation.

CAUTION:

• The boot may break if the boot installation length is less than the specified value.
• Do not to touch the tip of the screwdriver to the inside of the boot.

SFA800

SDIA1125E

Grease capacity

: 120

−

140 g (4.23

−

4.94 oz)

SDIA1446E

Boot installation length “L”

: 163.9 - 164.3 mm
(6.45 - 6.47 in)

SDIA2493E

DRIVE SHAFT

FAX-13

< DISASSEMBLY AND ASSEMBLY >

FAX

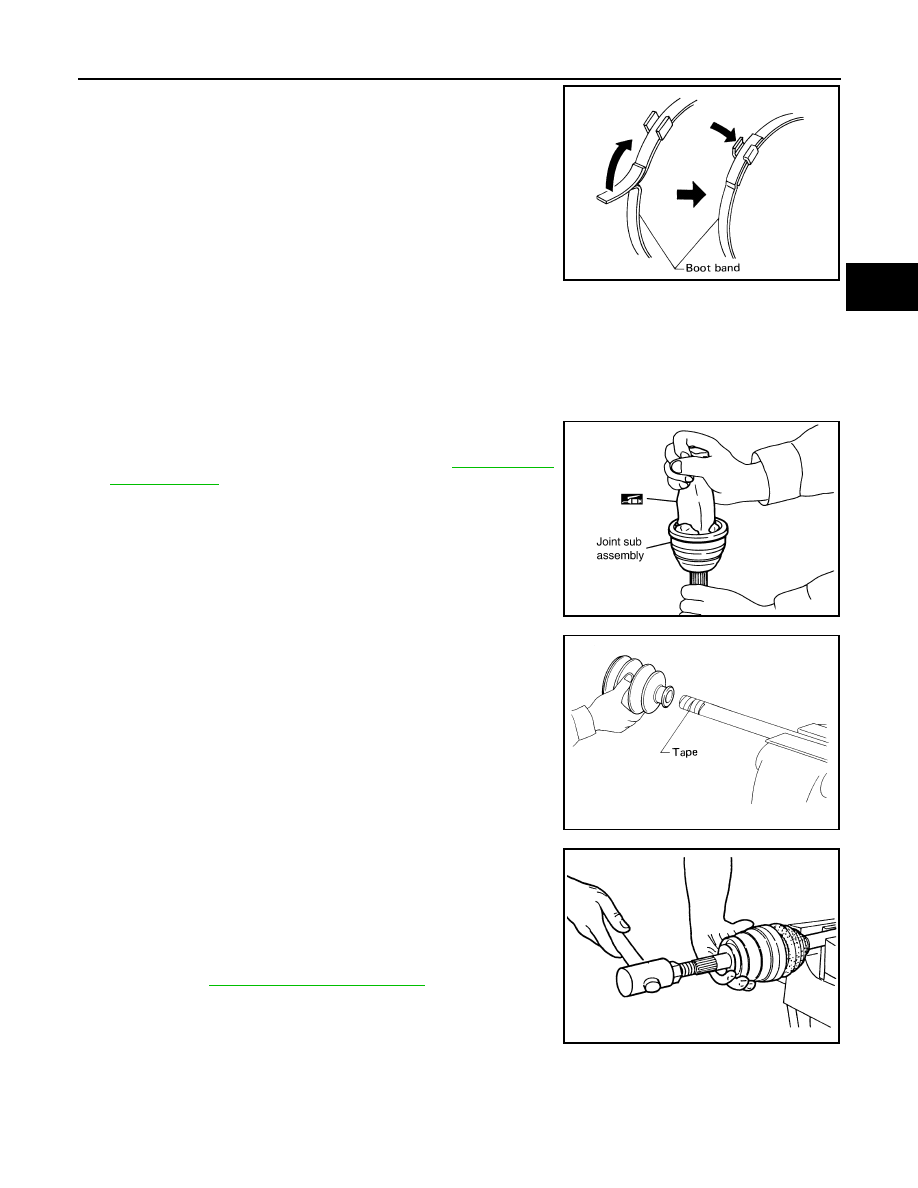

Secure the big and small ends of the boot with the new boot
bands as shown.
NOTE:
Discard not reuse boot bands.

Secure housing and shaft and then make sure that they are in the correct position when rotating boot. Use
a new boot band if the boot band needs to be loosened to reposition the boot.

10. Install circlip and dust cover to housing.

NOTE:
Do not reuse circlip and dust cover.

Wheel Side

Insert the Genuine NISSAN Grease or equivalent, into the joint
sub-assembly serration hole until the grease begins to ooze
from the ball groove and serration hole. Refer to

MA-10, "Fluids

and Lubricants"

. After inserting the grease, use a shop cloth to

wipe off the grease that has oozed out.

Wrap the serrated part of the shaft with tape. Install the boot
band and boot onto the shaft. Do not damage the boot.
NOTE:
Discard the old boot band and boot and use a new one for
assembly.

Remove the protective tape wound around the serrated part of
the shaft.

Attach the circlip to the shaft. The circlip must fit securely into
the shaft groove. Attach the nut to the joint sub-assembly.
Use a soft hammer to press-fit the circlip.
NOTE:
Discard the old circlip and use a new one for assembly.

Insert the specified quantity of Genuine NISSAN Grease or
equivalent, into the joint sub-assembly and the large end of the
boot. Refer to

MA-10, "Fluids and Lubricants"

SFA395

SDIA1127E

SFA800

Grease capacity

: 115

−

135 g (4.01

−

4.76 oz)

RAC0049D

FAX-14

< DISASSEMBLY AND ASSEMBLY >

DRIVE SHAFT

Install the boot securely into the grooves (indicated by the *
marks) as shown.

CAUTION:

If there is grease on the boot mounting surfaces (indicated
by the * marks) of the shaft and joint sub-assembly, the
boot may come off. Remove all grease from the drive shaft
surfaces.

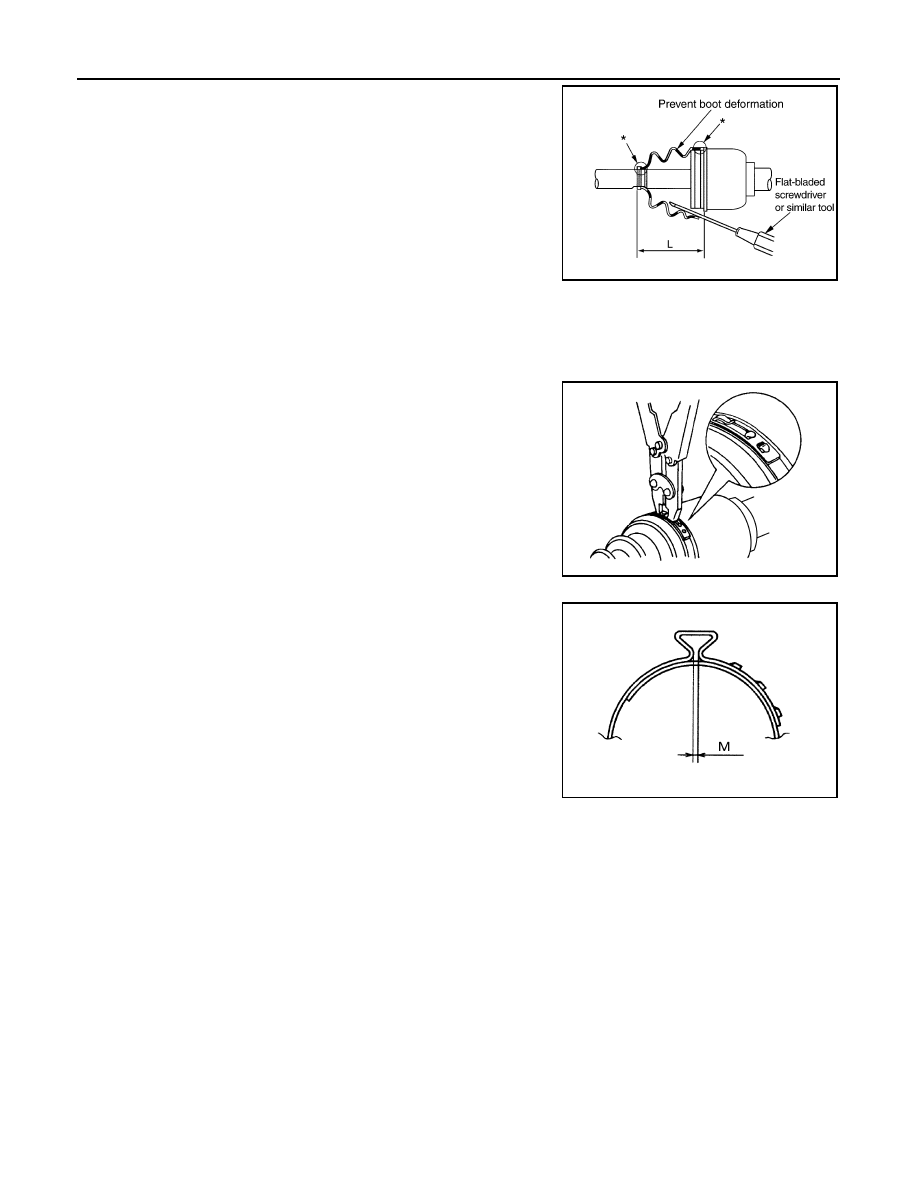

Check that the boot installation length “L” is the specified length.
Insert a flat-tip screwdriver or similar tool into the large side of
the boot. Bleed the air from the boot to prevent boot deforma-
tion.

CAUTION:

• The boot may break if the boot installation length is less than the specified length.
• Do not contact inside surface of boot with the tip of the screwdriver.

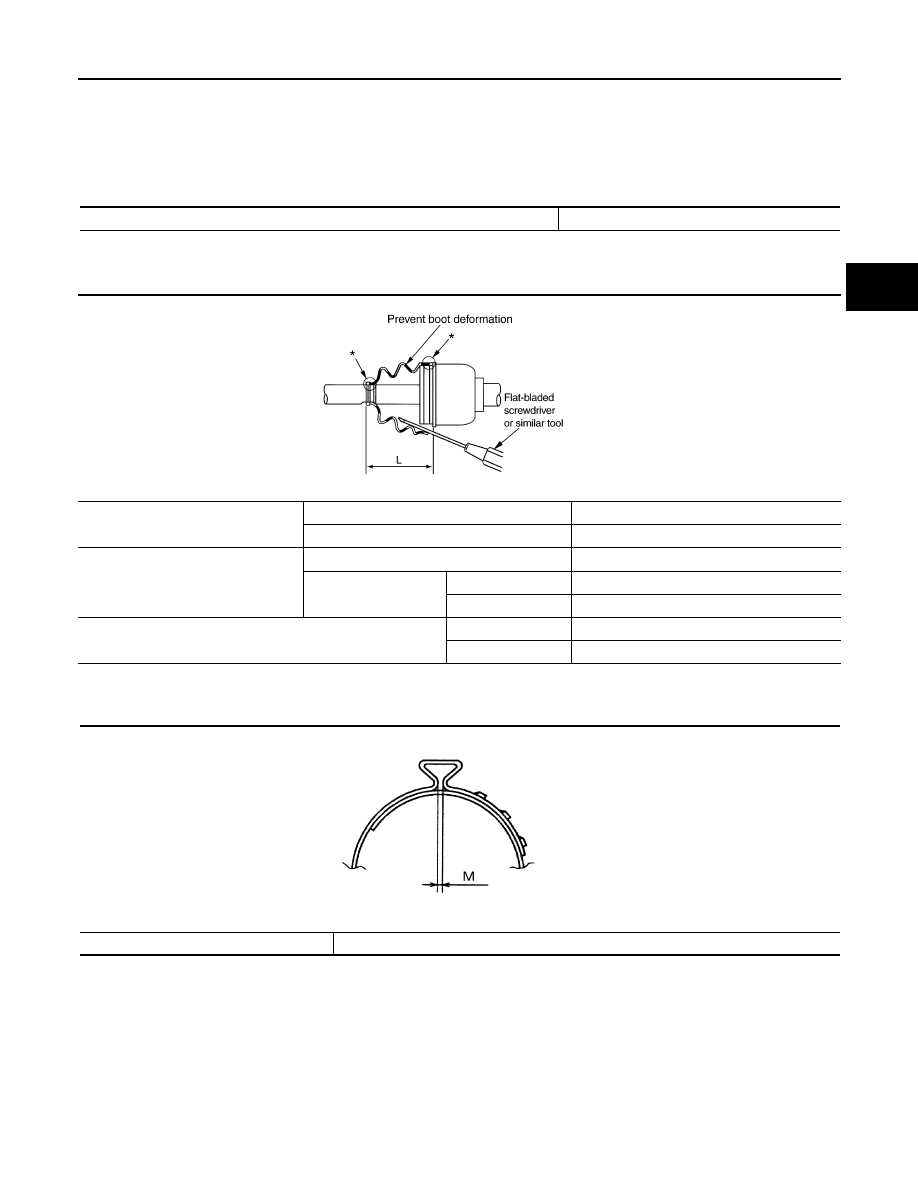

Secure large and small ends of the boot using new boot bands
using a boot band crimping tool as shown.

NOTE:
Do not reuse boot bands.

• Secure boot band so that dimension "M" meets specification

as shown.

After installing the housing to the shaft, rotate the boot to check
that it is positioned correctly. If the boot is not positioned cor-
rectly, remove the old boot bands then reposition the boot and
secure the boot with new boot bands.

Boot installation length “L”

: 135.1 mm (5.32 in)

Tool number

: KV40107300 (

—

)

SDIA2493E

RAC1133D

Dimension "M"

: 1.0 – 4.0 mm (0.039 – 0.157 in)

DSF0047D
