TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-67

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ALLIA0469GB

EXL-68

< COMPONENT DIAGNOSIS >

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

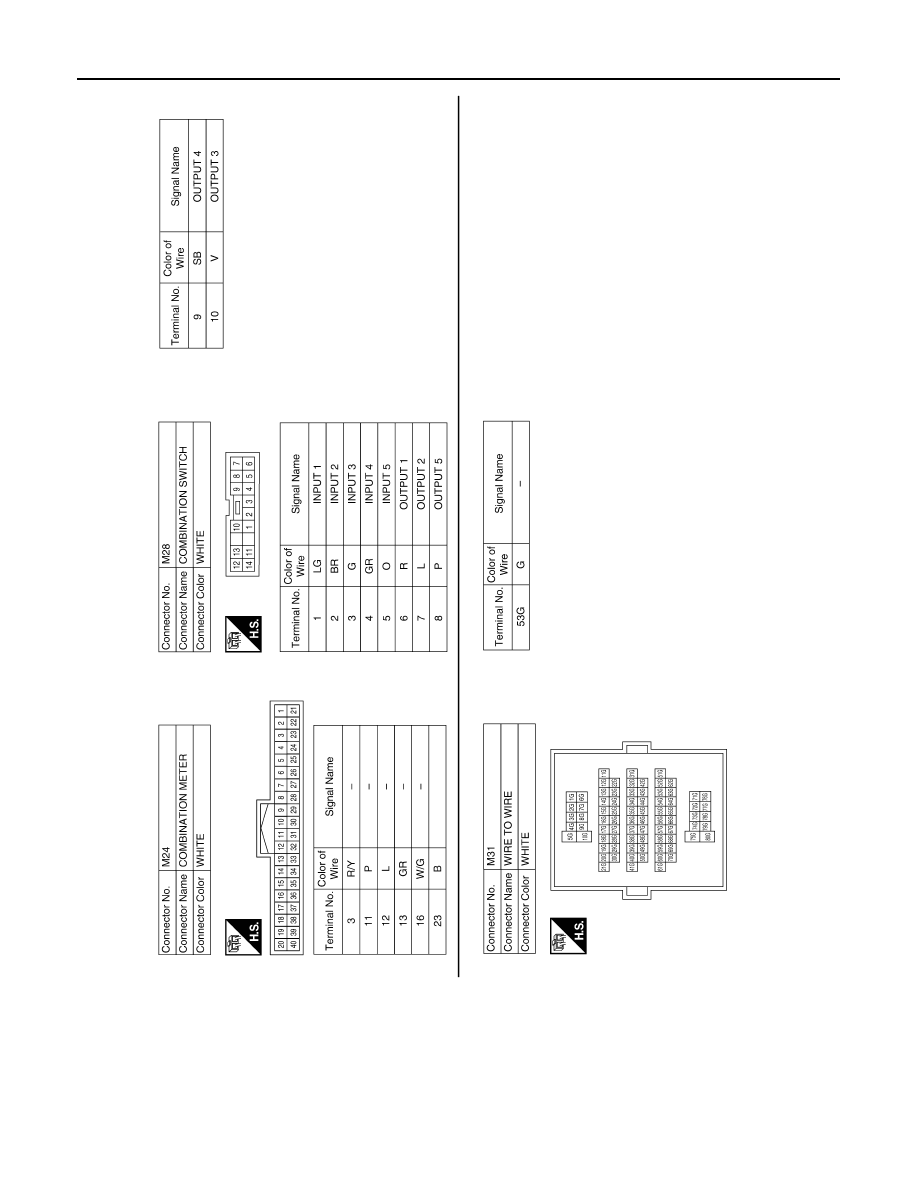

ALLIA0470GB

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-69

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

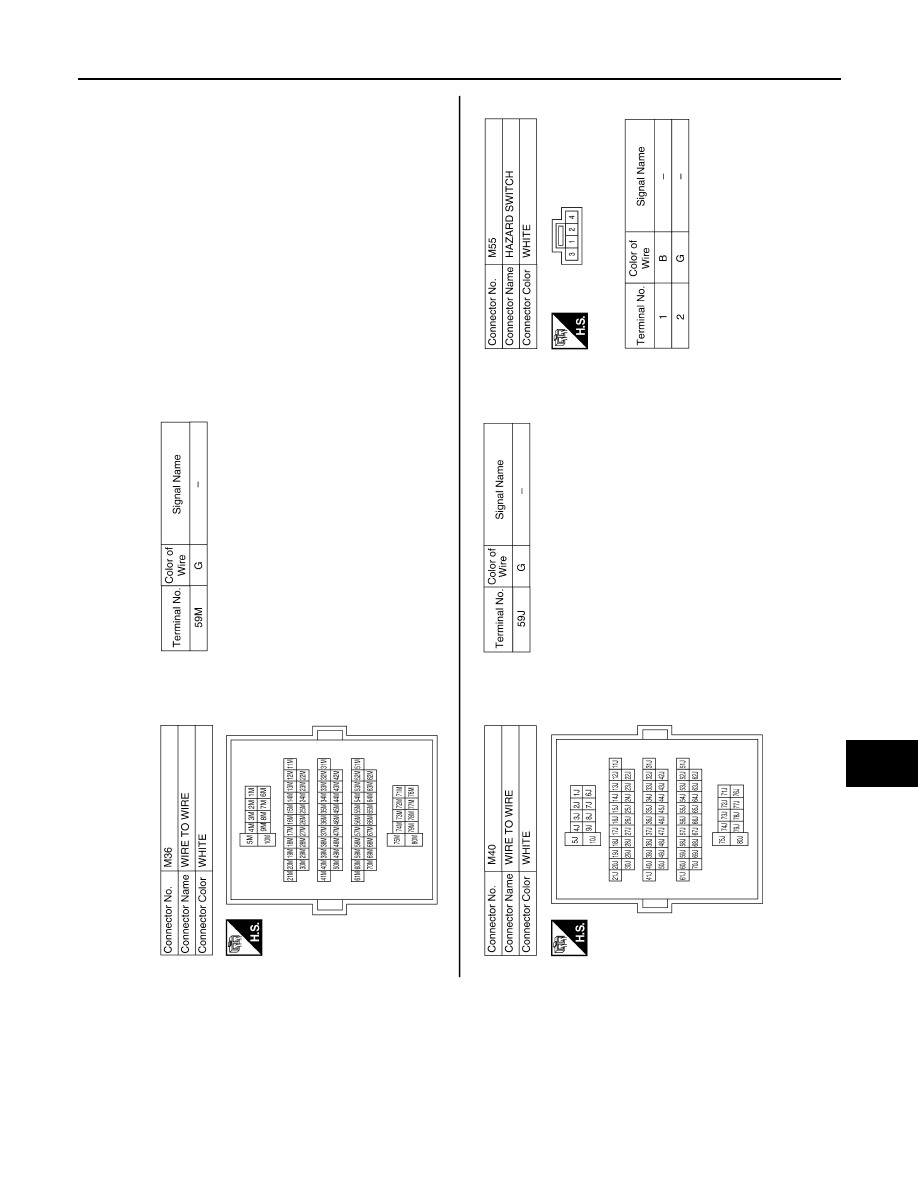

ALLIA0471GB

EXL-70

< COMPONENT DIAGNOSIS >

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

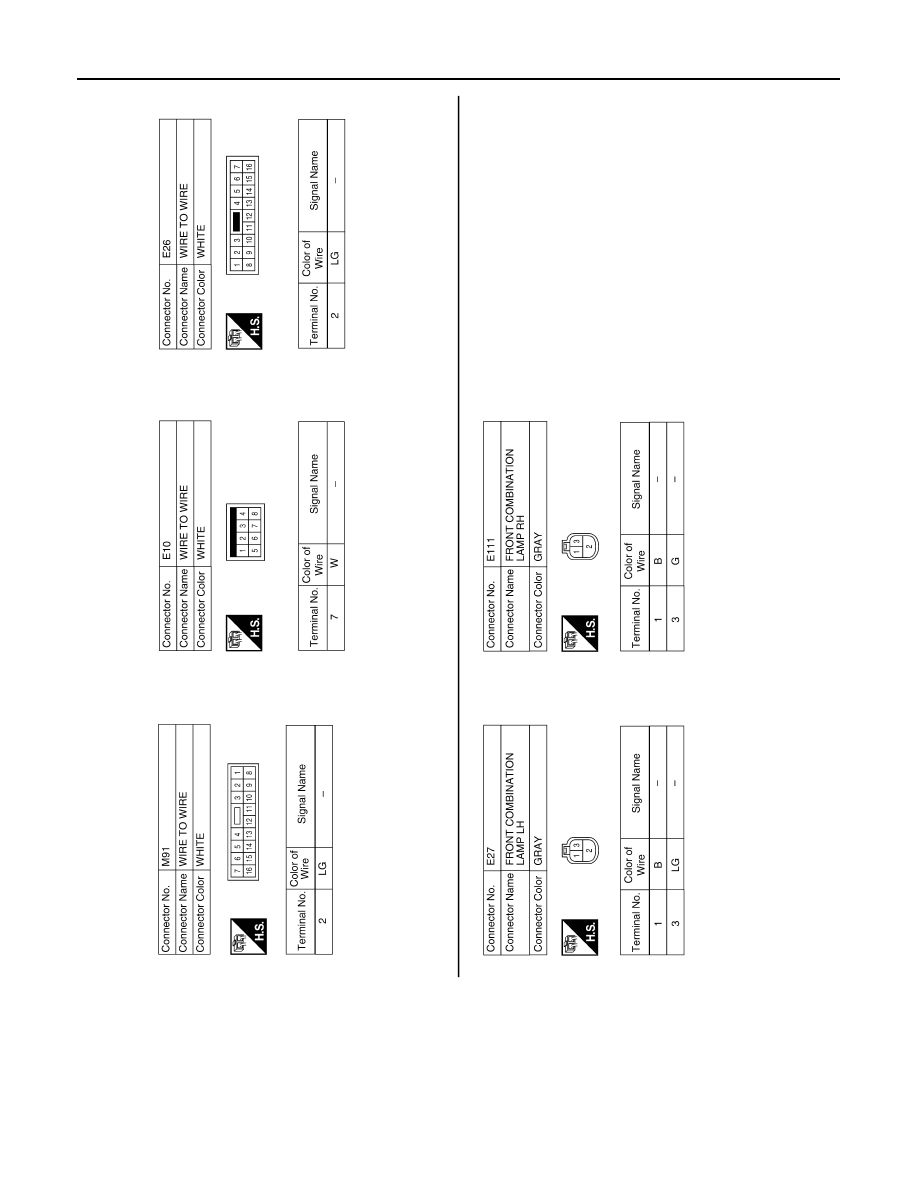

ALLIA0472GB

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-71

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

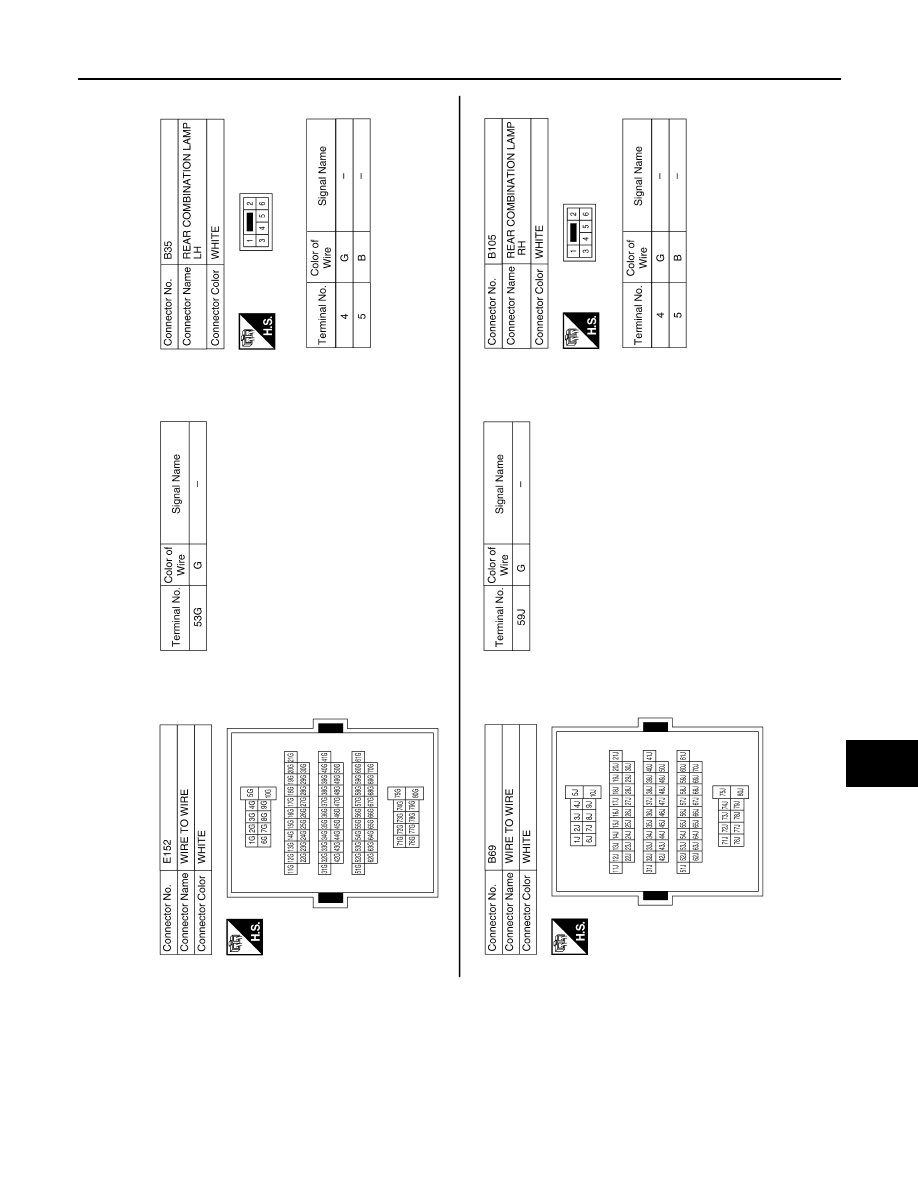

ALLIA0473GB

EXL-72

< COMPONENT DIAGNOSIS >

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

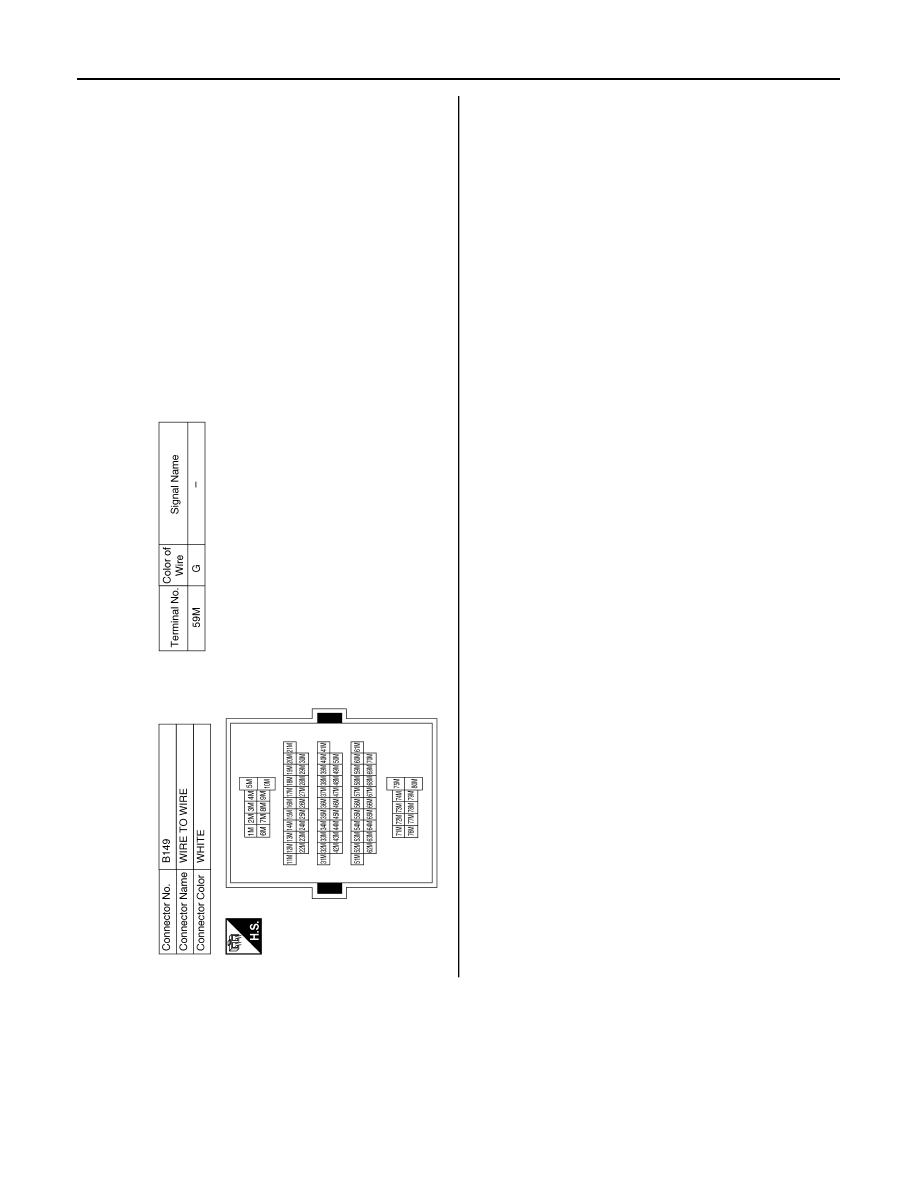

ALLIA0474GB

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-73

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Wiring Diagram

INFOID:0000000001712400

ALLWA0100GB

EXL-74

< COMPONENT DIAGNOSIS >

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

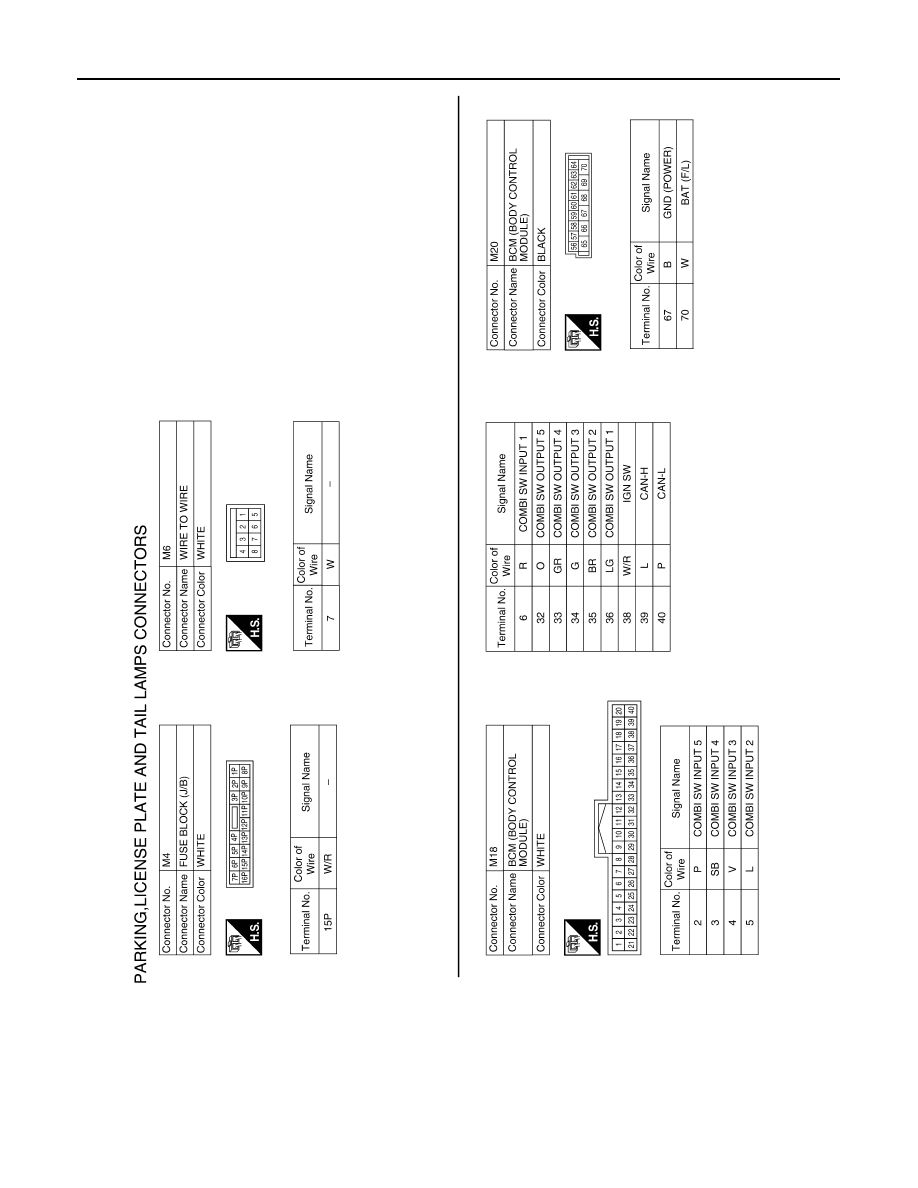

ALLIA0486GB
