Nissan Pathfinder (2008 year). Manual - part 354

FUEL PRESSURE

EC-949

< ON-VEHICLE MAINTENANCE >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

8.

If result is unsatisfactory, go to next step.

9.

Check the following.
• Fuel hoses and fuel tubes for clogging
• Fuel filter for clogging
• Fuel pump
• Fuel pressure regulator for clogging
If OK, replace fuel pressure regulator.
If NG, repair or replace.

10. Before disconnecting Fuel Pressure Gauge and Fuel Pressure Adapter J-44321-6, release fuel pressure

to zero. Refer to "FUEL PRESSURE RELEASE".

At idling:

Approximately 350 kPa (3.57 kg/cm

2

, 51 psi)

EC-950

< ON-VEHICLE MAINTENANCE >

[VK56DE]

EVAP LEAK CHECK

EVAP LEAK CHECK

How to Detect Fuel Vapor Leakage

INFOID:0000000001538029

CAUTION:

• Never use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in EVAP system.

NOTE:
• Do not start engine.
• Improper installation of EVAP service port adapter to the EVAP service port may cause a leak.

 WITH CONSULT-III

1.

Attach the EVAP service port adapter securely to the EVAP service port.

2.

Also attach the pressure pump and hose to the EVAP service port adapter.

3.

Turn ignition switch ON.

4.

Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT MODE” with CONSULT-III.

5.

Touch “START”. A bar graph (Pressure indicating display) will appear on the screen.

6.

Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar
graph.

7.

Remove EVAP service port adapter and hose with pressure pump.

8.

Locate the leak using a leak detector. Refer to

EC-517,

"Description"

.

 WITHOUT CONSULT-III

1.

Attach the EVAP service port adapter securely to the EVAP ser-
vice port (2).

-

EVAP canister purge volume control solenoid valve

-

: Vehicle front

2.

Also attach the pressure pump with pressure gauge to the EVAP
service port adapter.

SEF200U

ALBIA0349ZZ

SEF462UA

EVAP LEAK CHECK

EC-951

< ON-VEHICLE MAINTENANCE >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

3.

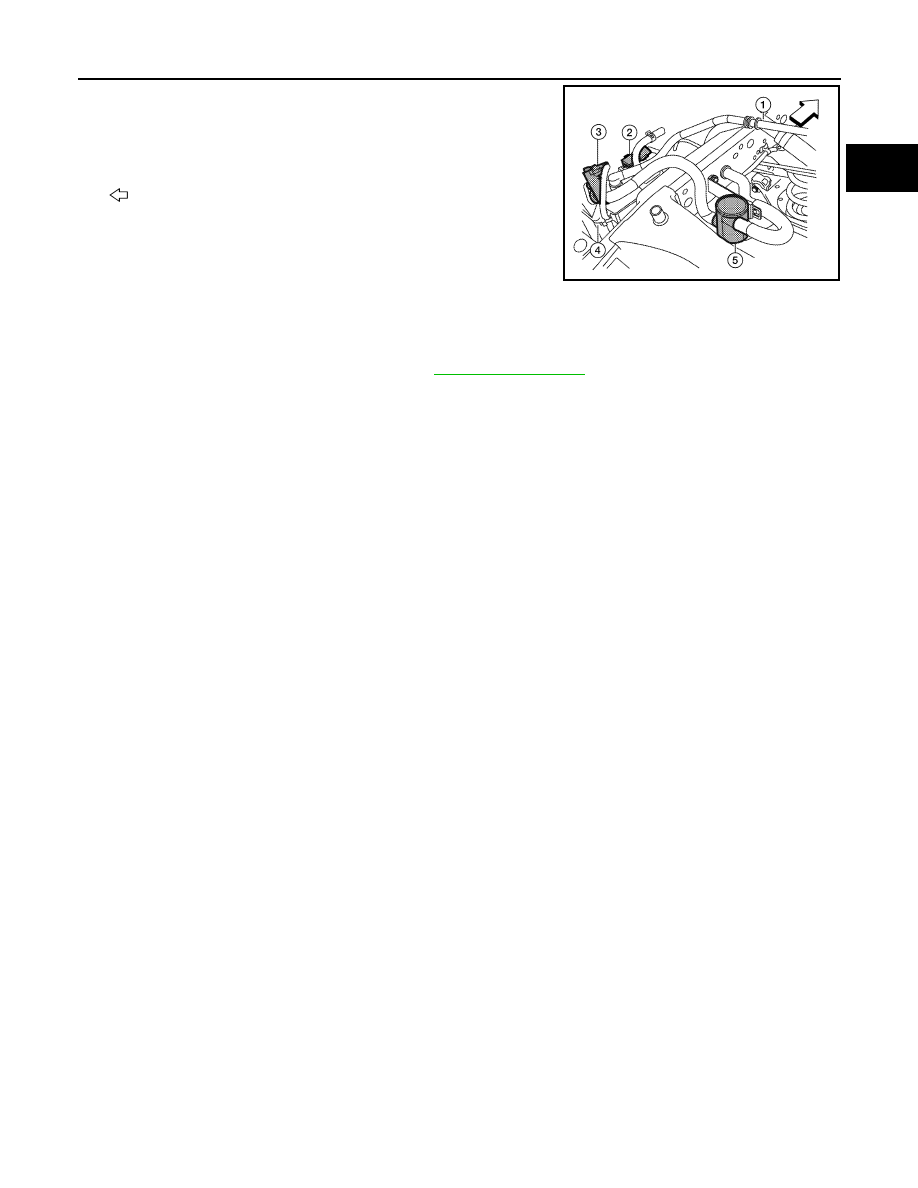

Apply battery voltage between the terminals of EVAP canister
vent control valve (3) to make a closed EVAP system.

-

Fuel filler pipe (top of frame view) (1)

-

EVAP control system pressure sensor (2)

-

EVAP ccanister (4)

-

Drain filter (5)

-

: Vehicle front

4.

To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to
2.76 kPa (0.014 to 0.028 kg/cm

2

, 0.2 to 0.4 psi).

5.

Remove EVAP service port adapter and hose with pressure pump.

6.

Locate the leak using a leak detector. Refer to

EC-517, "Description"

AWBIA0134ZZ

EC-952

< ON-VEHICLE REPAIR >

[VK56DE]

EVAP CANISTER

ON-VEHICLE REPAIR

EVAP CANISTER

Component Inspection

INFOID:0000000001538030

EVAP CANISTER

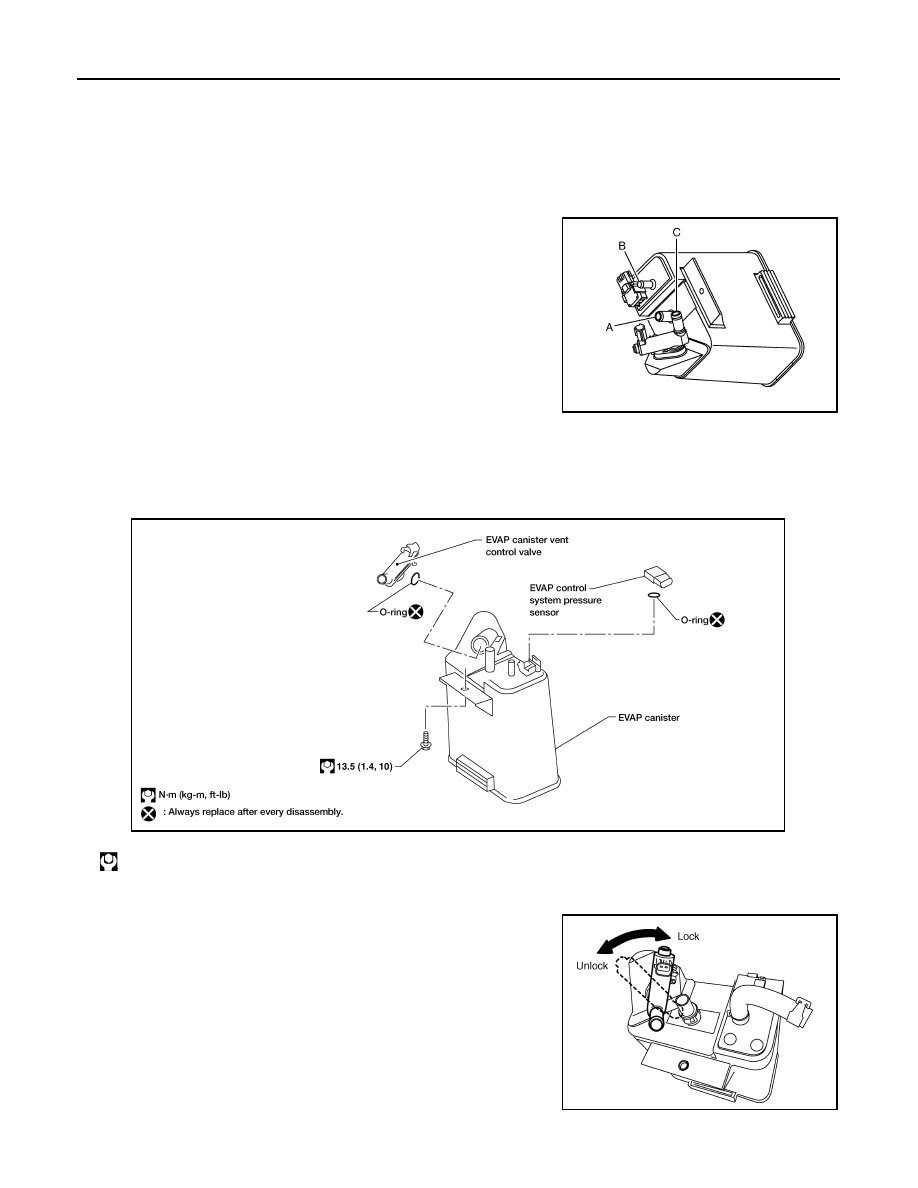

Check EVAP canister as follows:

1.

Block port B.

2.

Blow air into port A and check that it flows freely out of port C.

3.

Release blocked port B.

4.

Apply vacuum pressure to port B and check that vacuum pres-
sure exists at the ports A and C.

5.

Block port A and B.

6.

Apply pressure to port C and check that there is no leakage.

Removal and Installation

INFOID:0000000001538031

EVAP CANISTER

Tighten EVAP canister as shown in the figure.

EVAP CANISTER VENT CONTROL VALVE

1.

Turn EVAP canister vent control valve counterclockwise.

2.

Remove the EVAP canister vent control valve.

Always replace O-ring with a new one.

PBIB2568E

 : N-·m (kg-m, in-lb)

BBIA0566E

BBIA0567E

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-953

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Pressure

INFOID:0000000001538032

Idle Speed and Ignition Timing

INFOID:0000000001538033

*: Under the following conditions:

• Air conditioner switch: OFF

• Electric load: OFF (Lights and heater fan)

• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000001538034

Mass Air Flow Sensor

INFOID:0000000001538035

*: Engine is warmed up to normal operating temperature and running under no load.

Intake Air Temperature Sensor

INFOID:0000000001538036

Engine Coolant Temperature Sensor

INFOID:0000000001538037

A/F Sensor 1 Heater

INFOID:0000000001538038

Fuel pressure at idling kPa (kg/cm

2

, psi)

Approximately 350 (3.57, 51)

Target idle speed

No-load* (in P or N position)

650

±

50 rpm

Air conditioner: ON

In P or N position

700 rpm or more

Ignition timing

In P or N position

15

°



±

 5

°

 BTDC

Condition

Calculated load value % (Using CONSULT-III or GST)

At idle

14.0 - 33.0

At 2,500 rpm

12.0 - 25.0

Supply voltage

Battery voltage (11 - 14V)

Output voltage at idle

1.0 - 1.3V*

Mass air flow (Using CONSULT-III or GST)

3.0 - 9.0 g·m/sec at idle*

9.0 - 28.0 g·m/sec at 2,500 rpm*

Temperature

°

C (

°

F)

Resistance k

Ω

25 (77)

1.800 - 2.200

Temperature

°

C (

°

F)

Resistance k

Ω

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

Resistance [at 25

°

C (77

°

F)]

1.98 - 2.66

Ω

EC-954

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

Heated Oxygen sensor 2 Heater

INFOID:0000000001538039

Crankshaft Position Sensor (POS)

INFOID:0000000001538040

Refer to

EC-683, "Component Inspection"

.

Camshaft Position Sensor (PHASE)

INFOID:0000000001538041

Refer to

EC-687, "Component Inspection"

.

Throttle Control Motor

INFOID:0000000001538042

Fuel Injector

INFOID:0000000001538043

Fuel Pump

INFOID:0000000001538044

Resistance [at 25

°

C (77

°

F)]

8 - 10

Ω

Resistance [at 25

°

C (77

°

F)]

Approximately 1 - 15

Ω

Resistance [at 10 - 60

°

C (50 - 140

°

F)]

11.1 - 14.5

Ω

Resistance [at 25

°

C (77

°

F)]

0.2 - 5.0

Ω
