Nissan Pathfinder (2008 year). Manual - part 231
DLN-432
< SERVICE DATA AND SPECIFICATIONS (SDS)

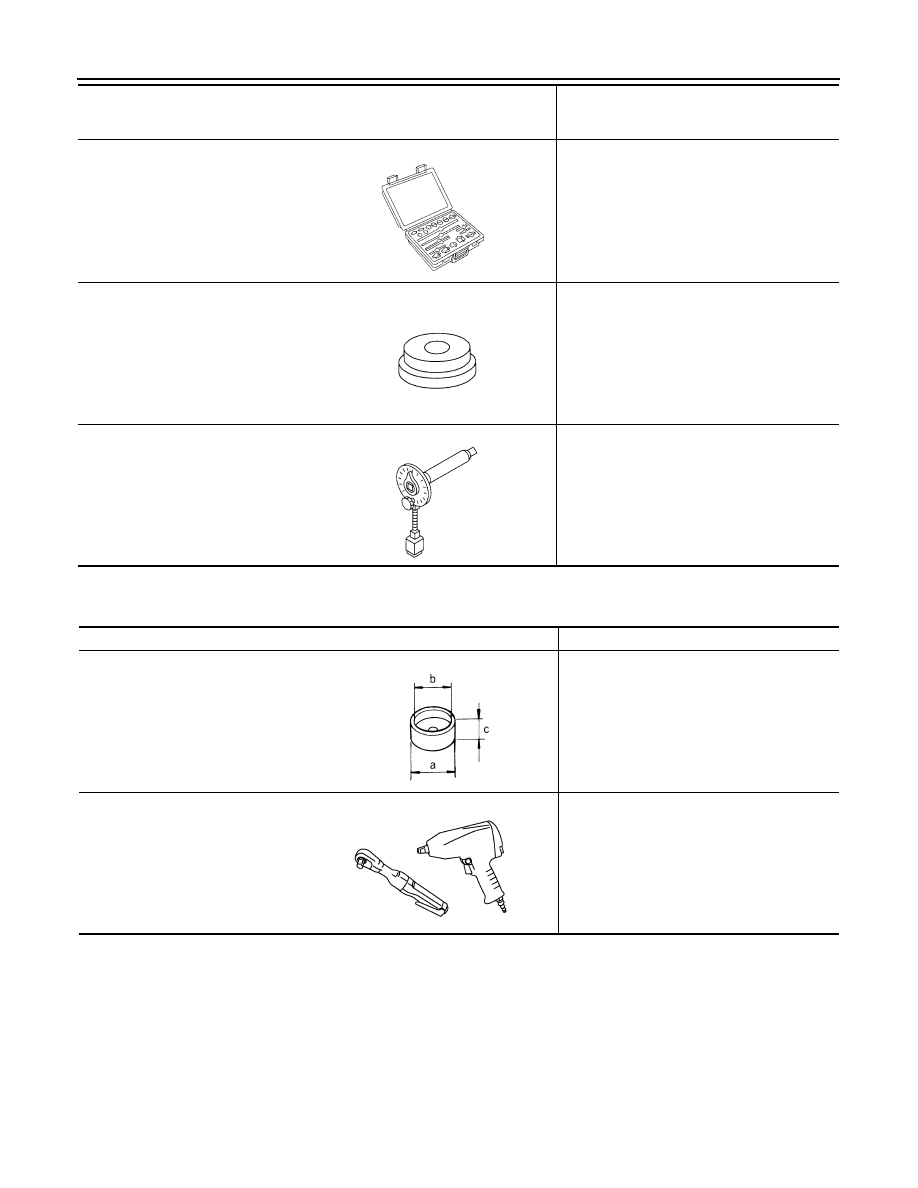

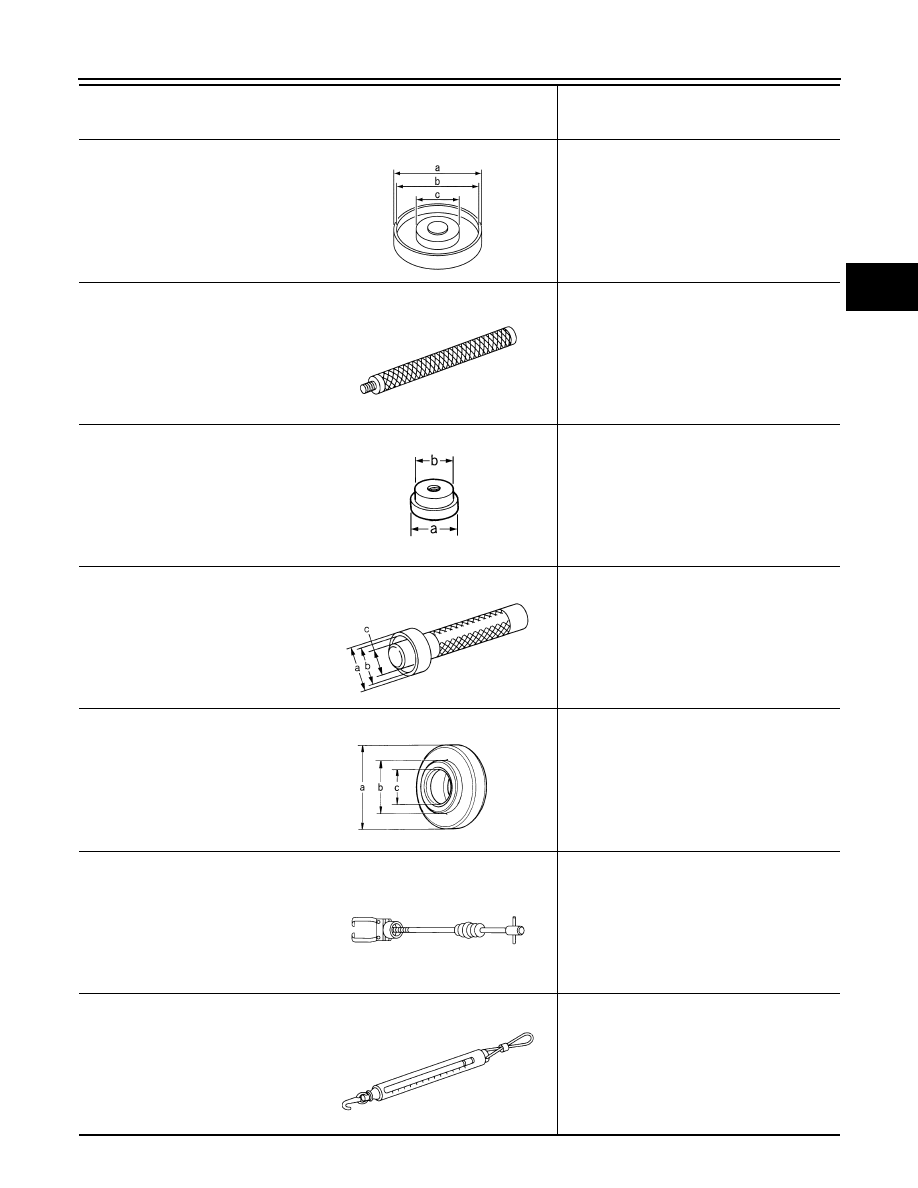

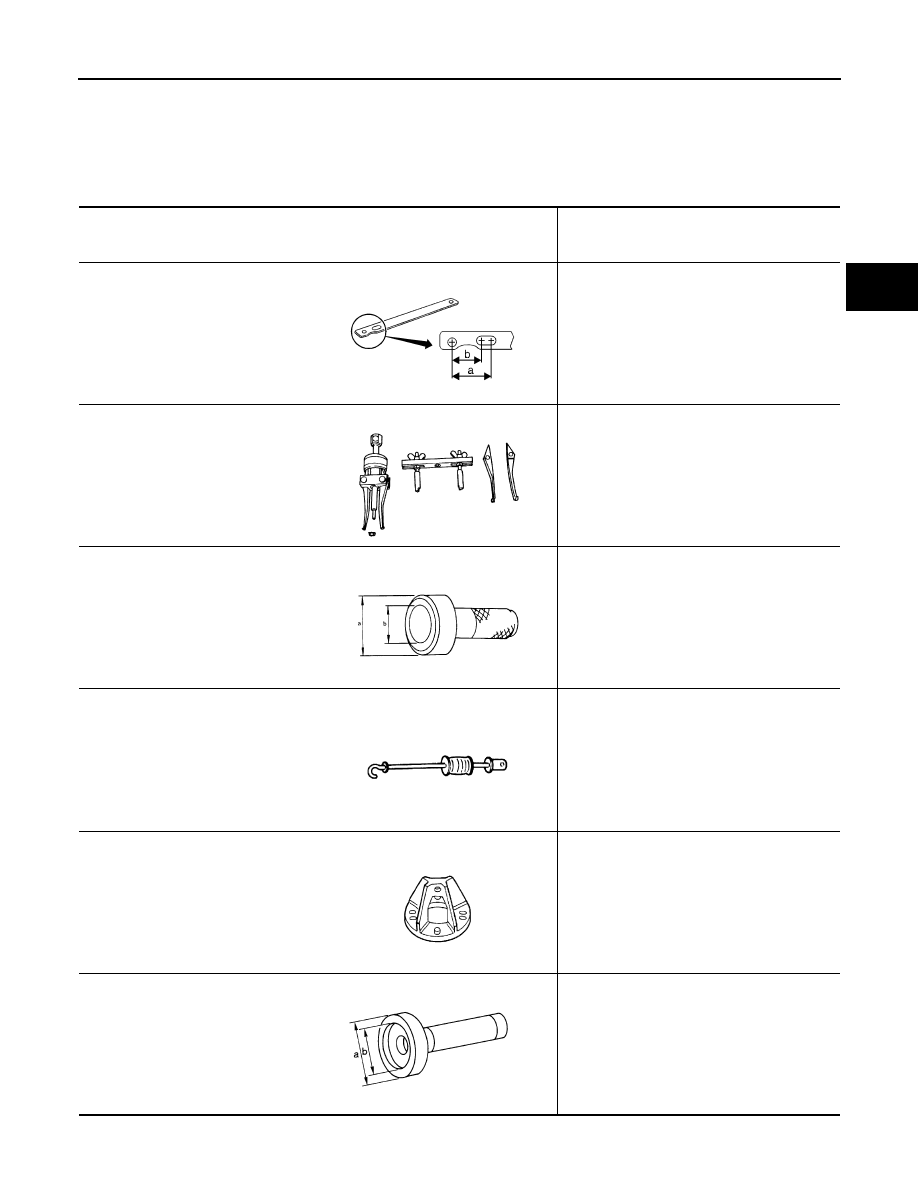

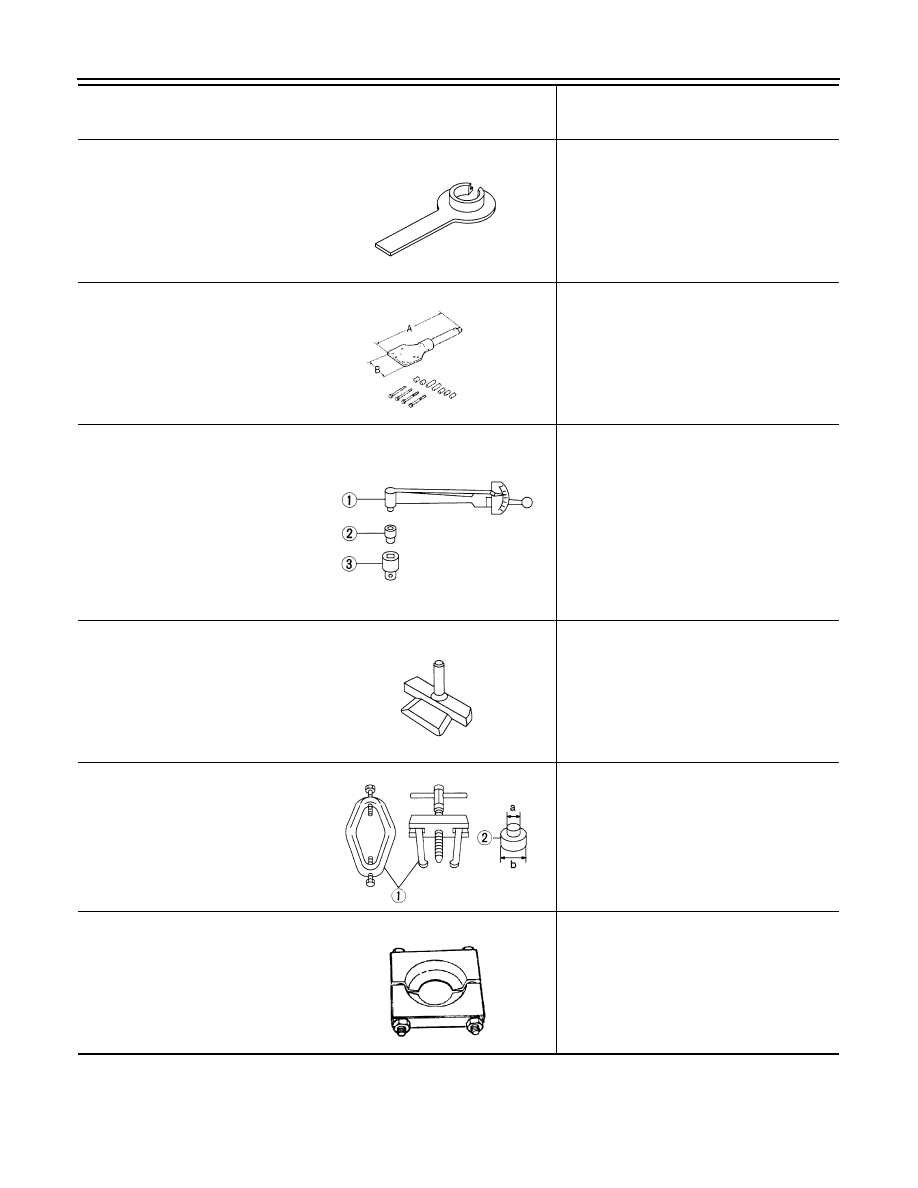

[REAR FINAL DRIVE: R200]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General Specification
INFOID:0000000001297296
Inspection and Adjustment
INFOID:0000000001297297
DRIVE GEAR RUNOUT
Unit: mm (in)
SIDE GEAR CLEARANCE
Unit: mm (in)
PRELOAD TORQUE
BACKLASH
Unit: mm (in)
COMPANION FLANGE RUNOUT
Unit: mm (in)
SELECTIVE PARTS
Side Gear Thrust Washer
Applied model
VQ40DE
2WD
4WD
Final drive model
R200
Gear ratio
3.133
3.357
Number of teeth (Drive gear/Drive pinion)
47/15
47/14
Oil capacity (Approx.)
1.4
(3 US pt, 2-1/2 lmp pt)
Number of pinion gears
2
Drive pinion adjustment spacer type
Collapsible
Item
Runout limit
Drive gear back face
0.05 (0.0020) or less
Item
Specification
Side gear back clearance
(Clearance between side gear and differential case for adjusting
side gear backlash)
0.2 (0.008) or less
(Each gear should rotate smoothly without excessive resistance
during differential motion.)
Item
Specification
Drive pinion bearing preload torque
2.65 - 3.23 N·m (0.27 - 0.32 kg
−
m, 24 - 28 in-lb)
Side bearing preload torque (reference value determined by drive
gear bolt pulling force)
0.20 - 0.52 N·m (0.02 - 0.05 kg
−
m, 2 - 4 in-lb)
Drive gear bolt pulling force (by spring gauge)
34.2
−
39.2 N (3.5
−
4 kg, 7.7
−
8.8 lb)
Total preload torque
(Total preload torque = drive pinion bearing preload torque + Side
bearing preload torque)
2.84 - 3.75 N·m (0.29 - 0.38 kg
−
m, 26 - 33 in-lb)
Item
Specification
Drive gear to drive pinion gear
0.10 - 0.15 (0.0039 - 0.0059)
Item
Runout limit
Outer side of the companion flange
0.08 (0.0031) or less
