Nissan Pathfinder (2008 year). Manual - part 172

BCM (BODY CONTROL MODULE)

DLK-277

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

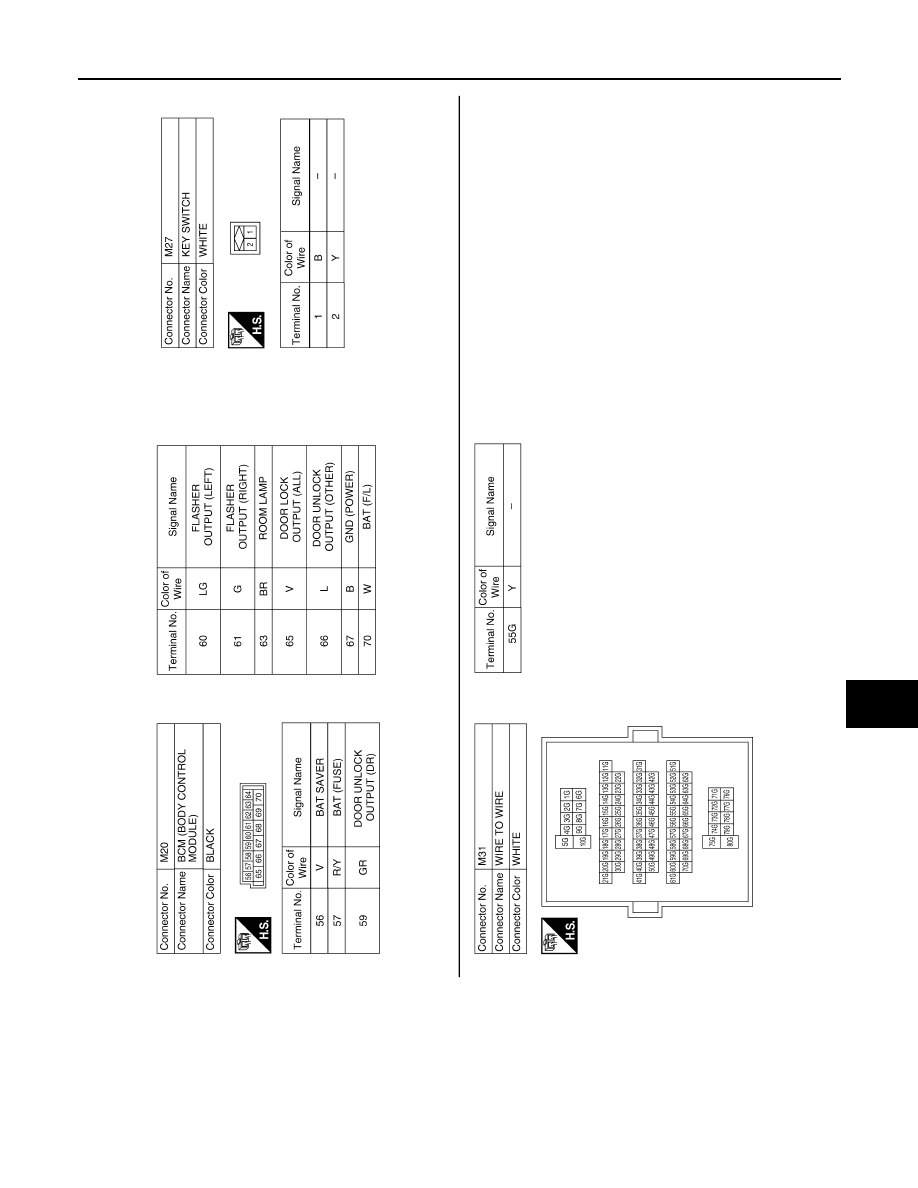

ALKIA0945GB

DLK-278

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

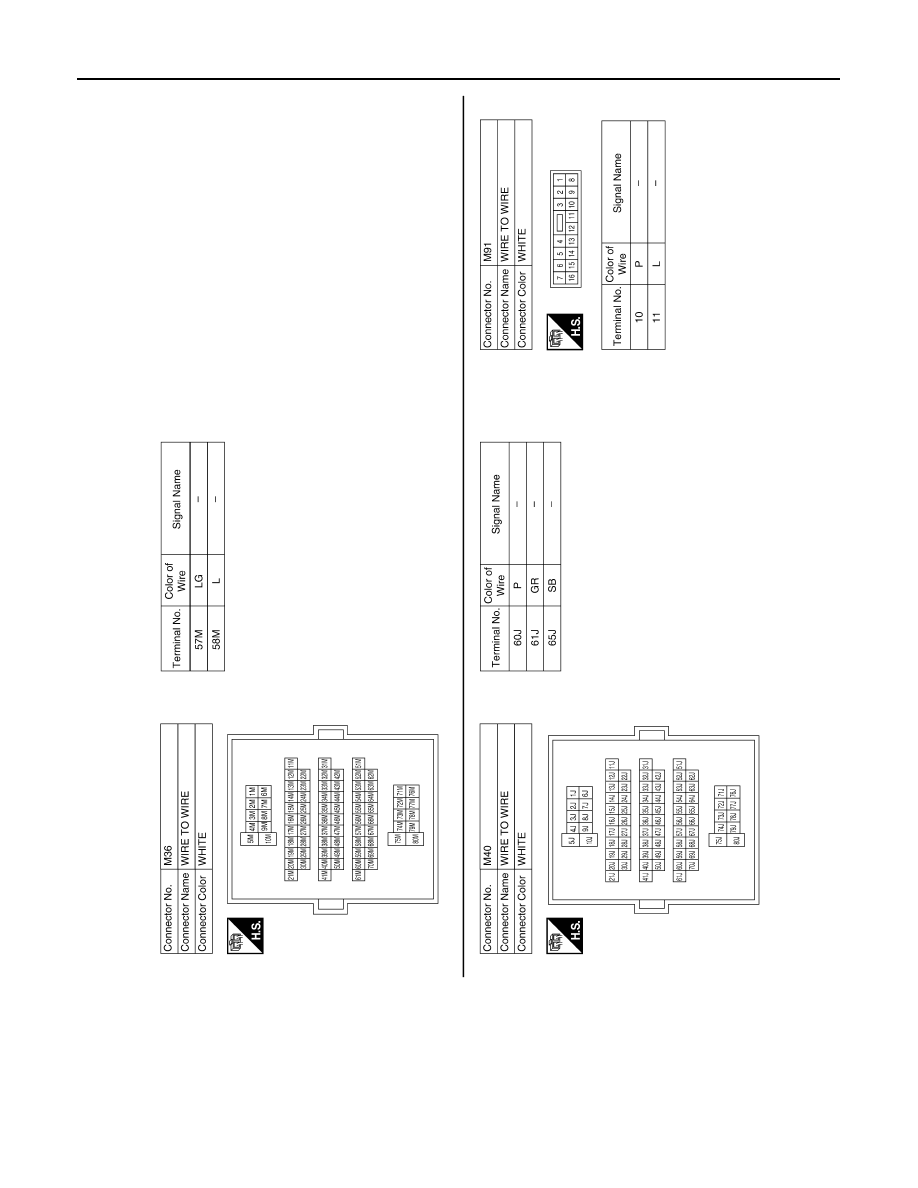

ALKIA0946GB

BCM (BODY CONTROL MODULE)

DLK-279

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

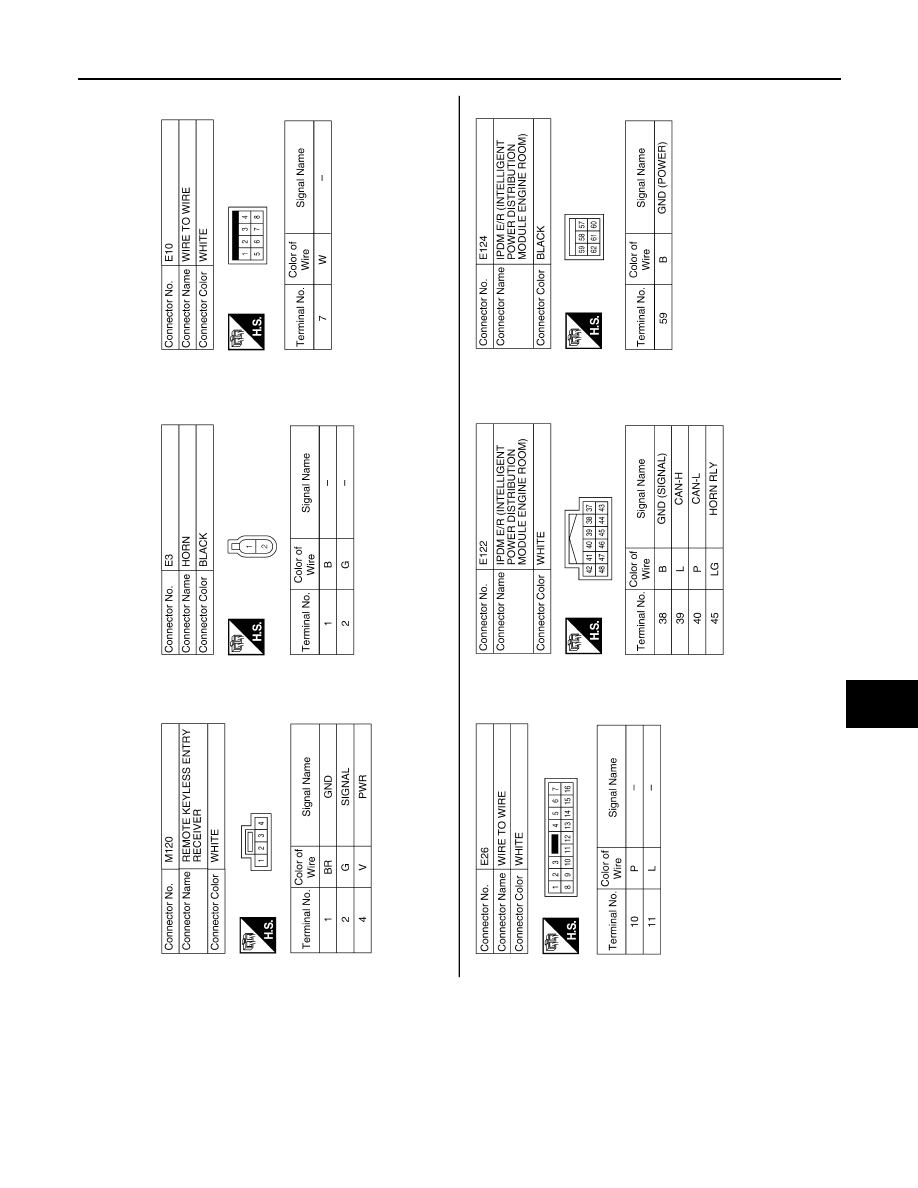

ALKIA0947GB

DLK-280

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

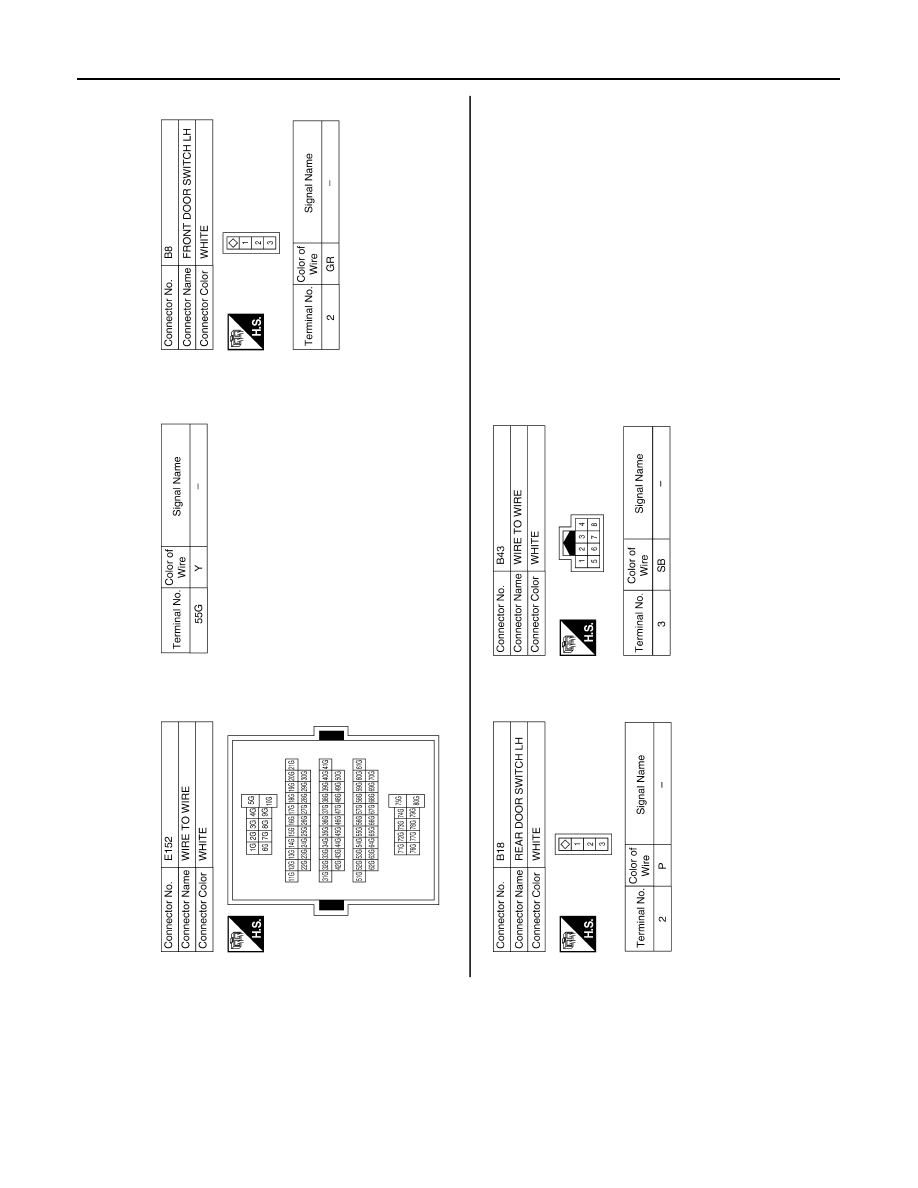

ALKIA0948GB

BCM (BODY CONTROL MODULE)

DLK-281

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

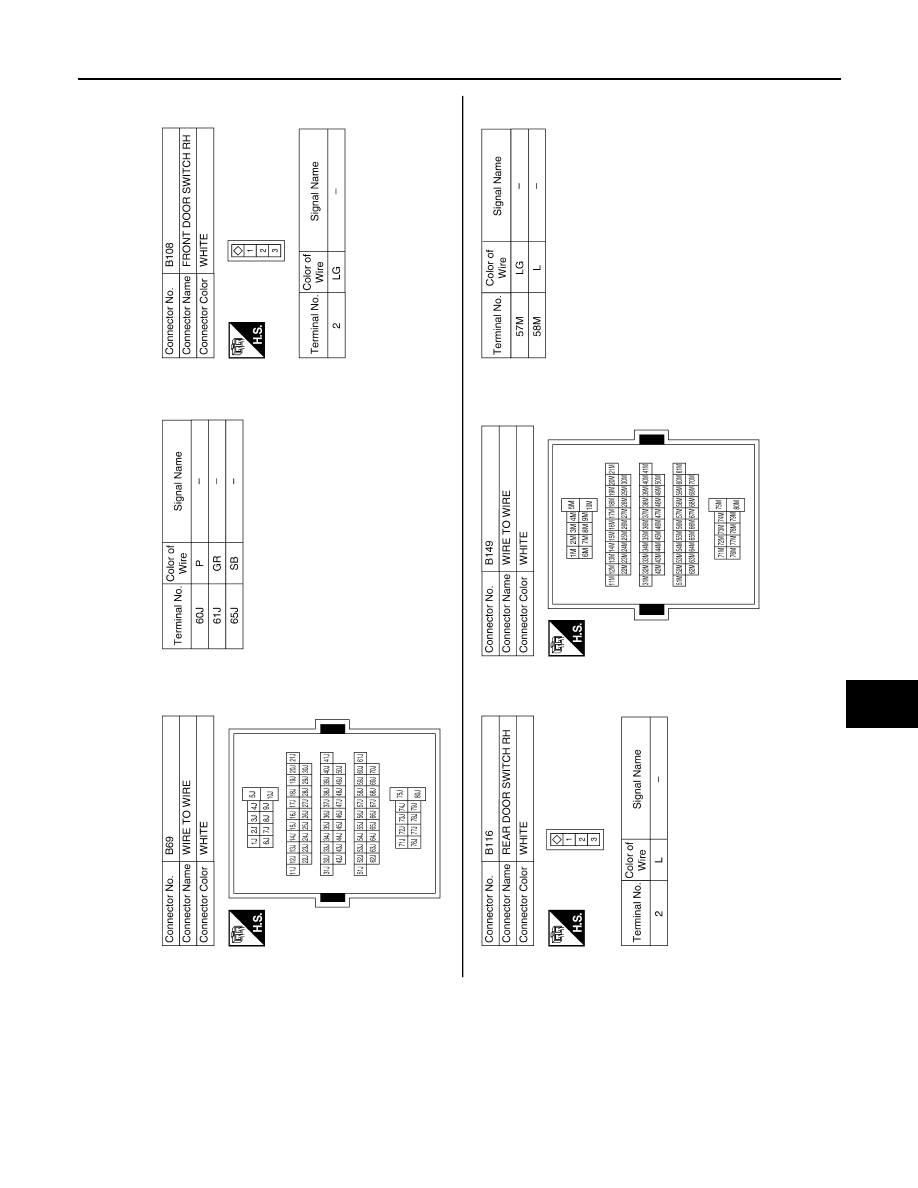

ALKIA0949GB

DLK-282

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

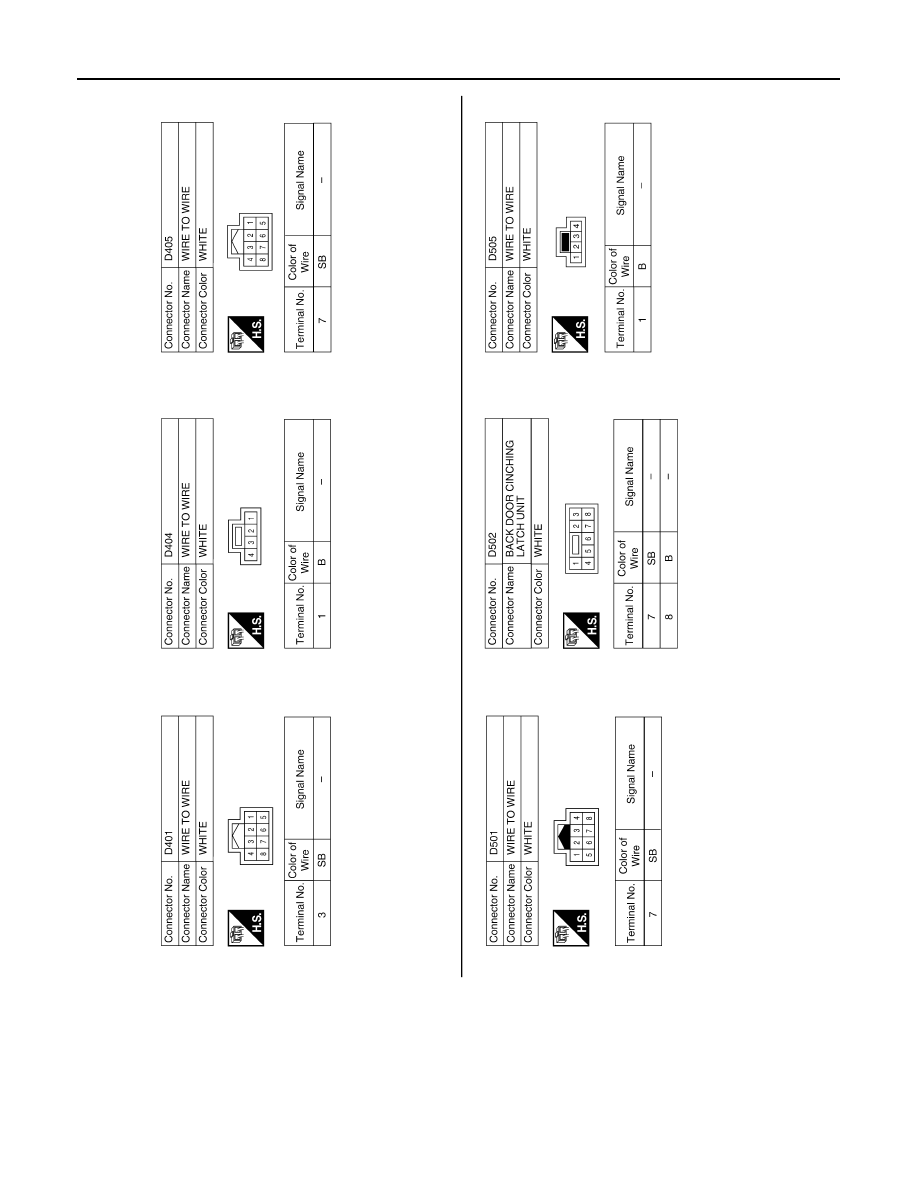

ALKIA0950GB

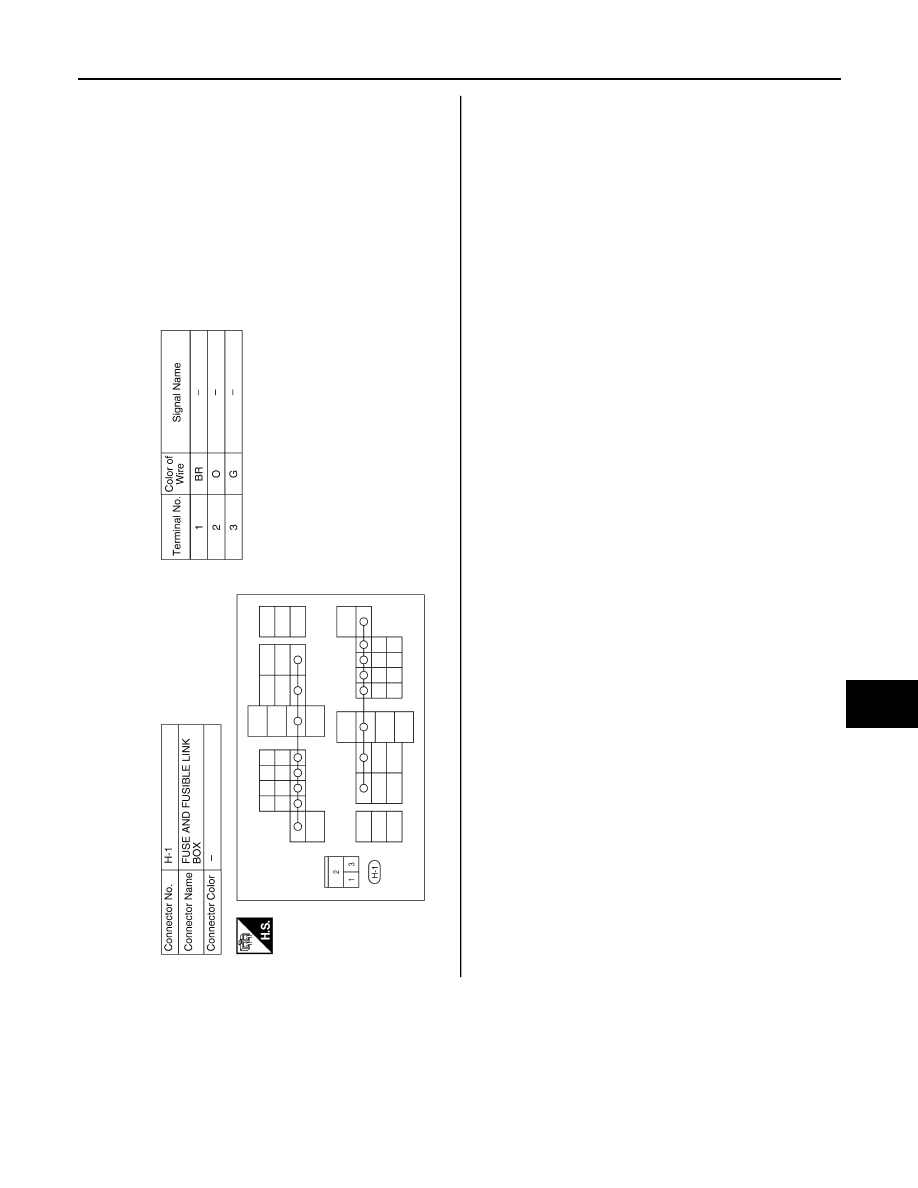

BCM (BODY CONTROL MODULE)

DLK-283

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fail Safe

INFOID:0000000001563750

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

ALKIA0951GB

DLK-284

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

DTC Inspection Priority Chart

INFOID:0000000001563751

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

DTC Index

INFOID:0000000001563752

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→

 ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition whenever ignition switch OFF

→

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

→

 ON after returning to the normal condition if the malfunction is detected again.

Display contents of CONSULT

Fail-safe

Cancellation

U1000: CAN COMM CIRCUIT

Inhibit engine cranking

When the BCM re-establishes communication with the other mod-
ules.

U1010: CONTROL UNIT (CAN)

Inhibit engine cranking

When the BCM re-start communicating with the other modules.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Reference page

No DTC is detected.
further testing
may be required.

—

—

—

U1000: CAN COMM CIRCUIT

—

—

DLK-38

U1010: CONTROL UNIT (CAN)

—

—

DLK-39
