Installation is in the reverse order of removal.
• Align the back door. Refer to

DLK-185, "Fitting Adjustment"

.

DLK-190

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

FRONT DOOR LOCK

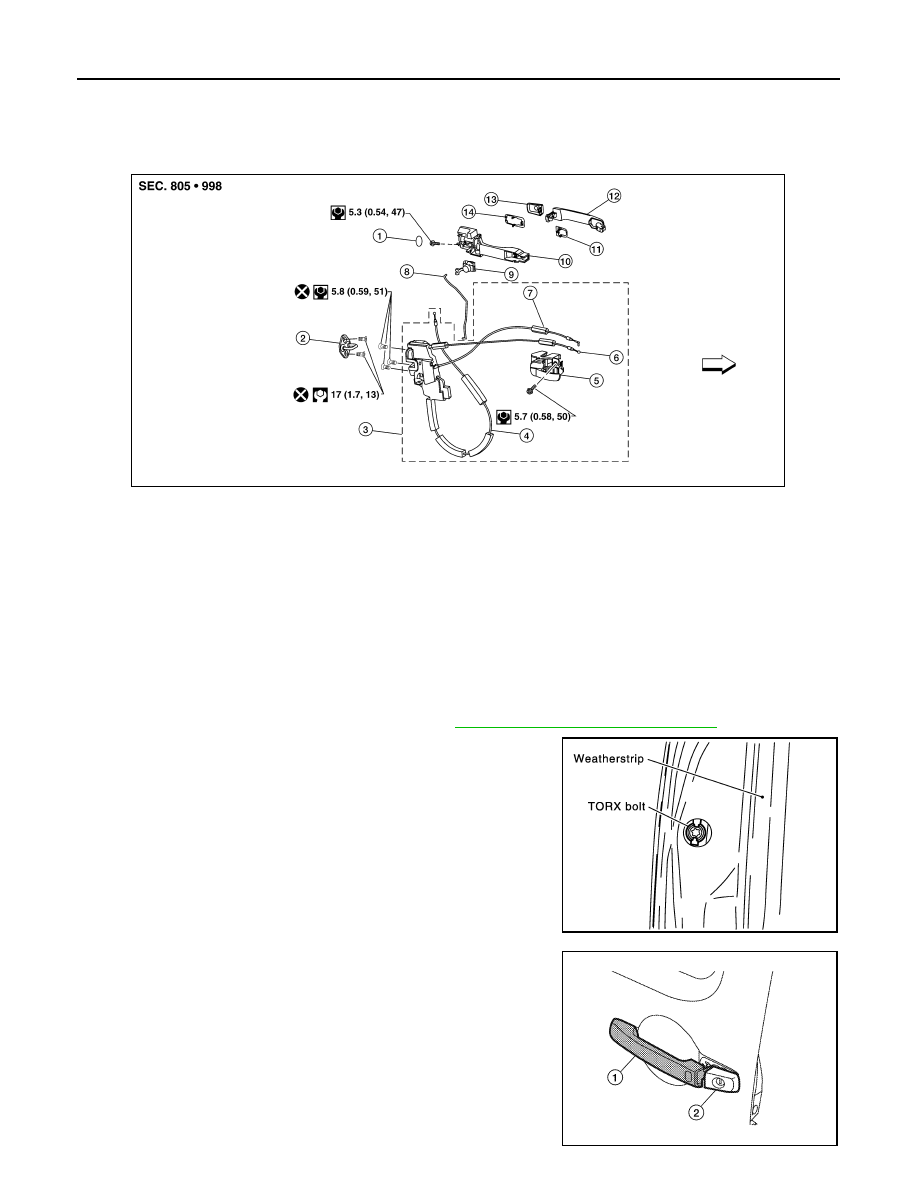

Component Structure

INFOID:0000000001563788

Removal and Installation

INFOID:0000000001563789

REMOVAL

1.

Remove the front door window regulator. Refer to

GW-14, "Front Door Glass Regulator"

.

2.

Remove door side grommet, and remove door key cylinder
assembly (driver side) or outside handle escutcheon (passenger
side) bolts (TORX T30) from grommet hole.

3.

While pulling the outside handle (1), remove door key cylinder
assembly or escutcheon (2).

1.

Grommet

2.

Front door striker

3.

Door lock assembly

4.

Outside handle cable

5.

Inside handle assembly

6.

Inside handle cable

7.

Door lock cable

8.

Key cylinder rod (Driver side only)

9.

Door key cylinder

10. Outside handle bracket

11.

Front gasket

12. Outside handle

13. Door key cylinder assembly (Driver

side) Outside handle escutcheon
(Passenger side)

14. Rear gasket

⇐

Vehicle front

WIIA0736E

PIIA3553E

ALKIA0922ZZ

FRONT DOOR LOCK

DLK-191

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4.

If equipped, separate the door key cylinder rod from the door key cylinder assembly.

5.

Disconnect the intelligent key electrical connectors.

6.

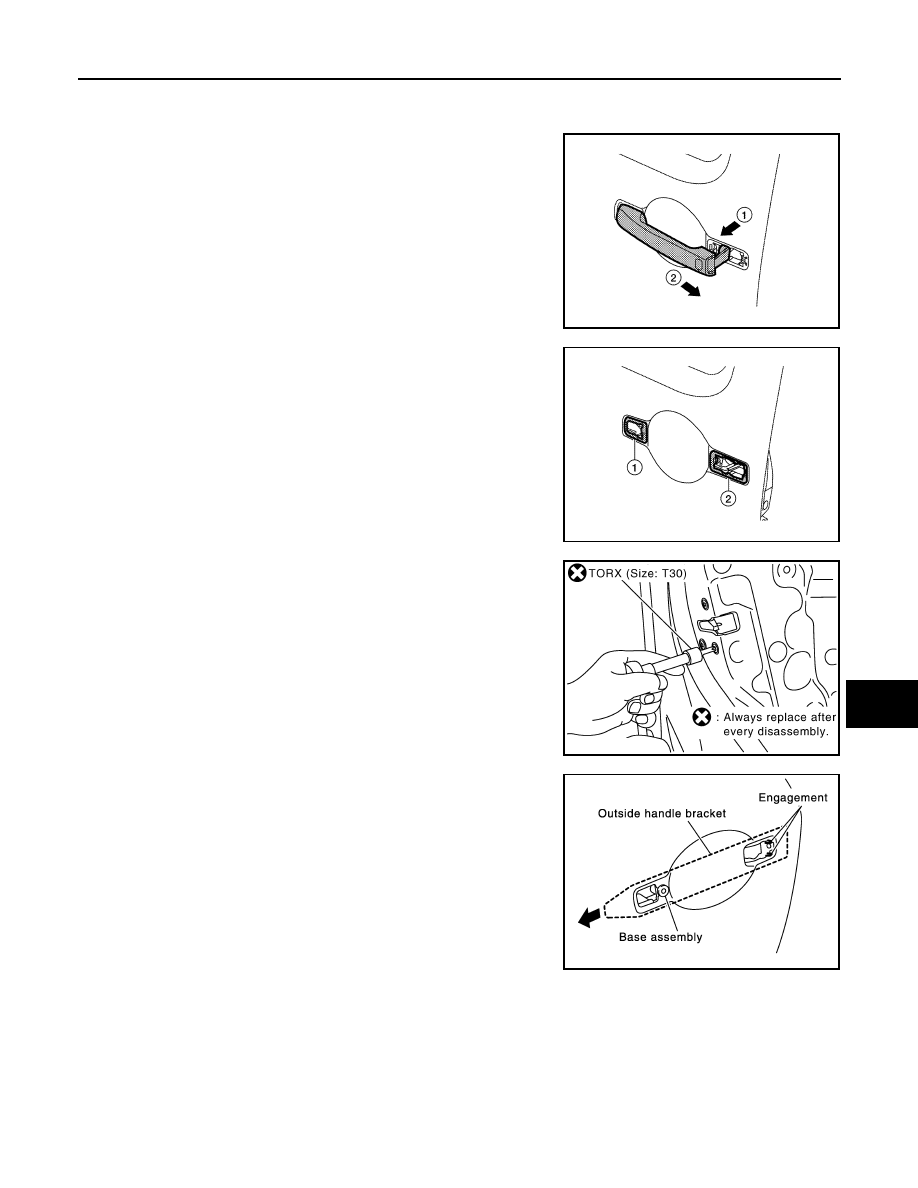

While pulling outside handle (1), slide toward rear of vehicle (2)
to remove outside handle.

7.

Remove the front gasket (1) and rear gasket (2).

8.

Remove the TORX bolts (T30), remove the door lock assembly.

9.

While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket and door lock assembly as
shown.

10. Disconnect the door lock actuator electrical connector.

ALKIA0923ZZ

ALKIA0924ZZ

PIIA1090E

PIIA3558E

DLK-192

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

11. Separate the outside handle cable connection from the outside

handle bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

To install the key cylinder rod, be sure to rotate the key cylinder rod holder until a click is felt.

Disassembly and Assembly

INFOID:0000000001563790

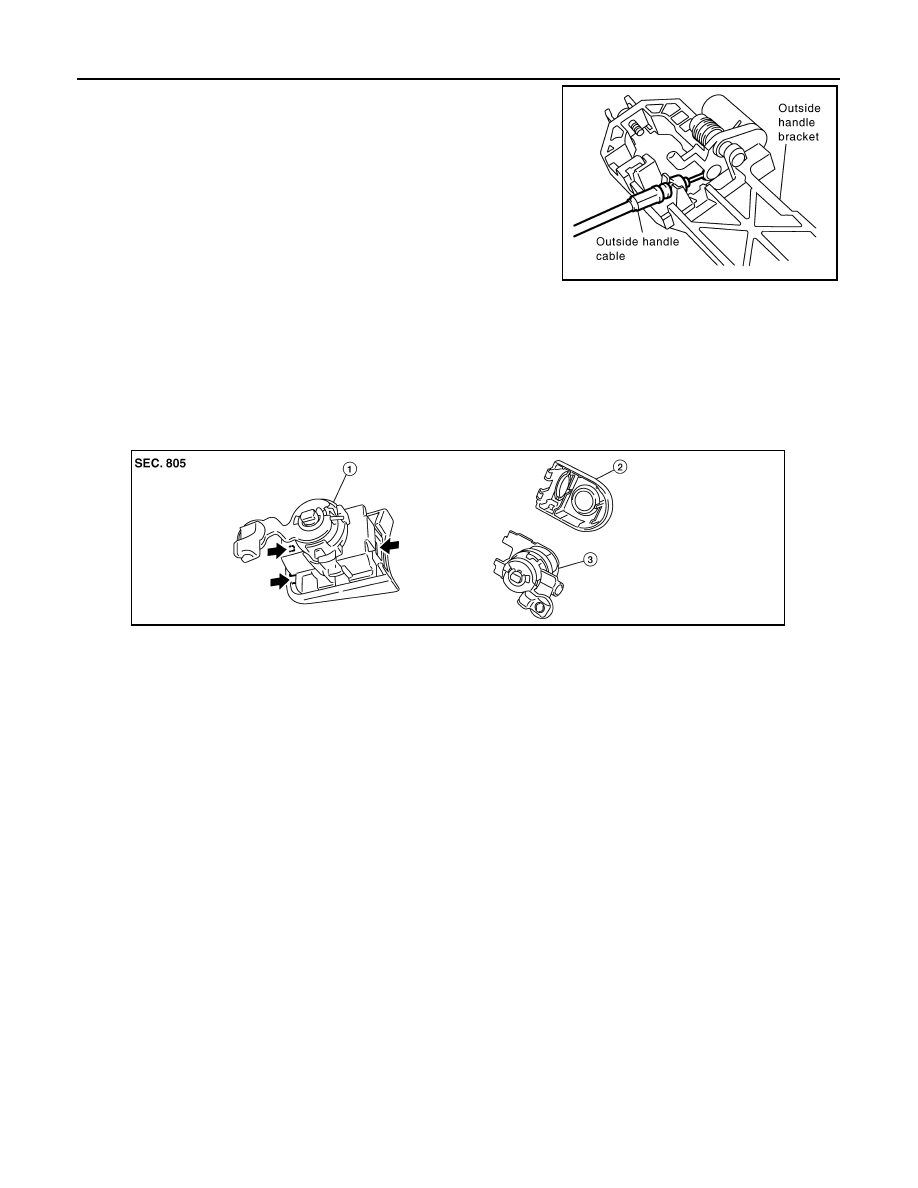

DOOR KEY CYLINDER ASSEMBLY

Release the key cylinder escutcheon pawls to remove the door key cylinder.

PIIA5059E

1.

Door key cylinder assembly

2.

Door key cylinder escutcheon

3.

Door key cylinder

⇐

Pawl

WIIA1057E

REAR DOOR LOCK

DLK-193

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR LOCK

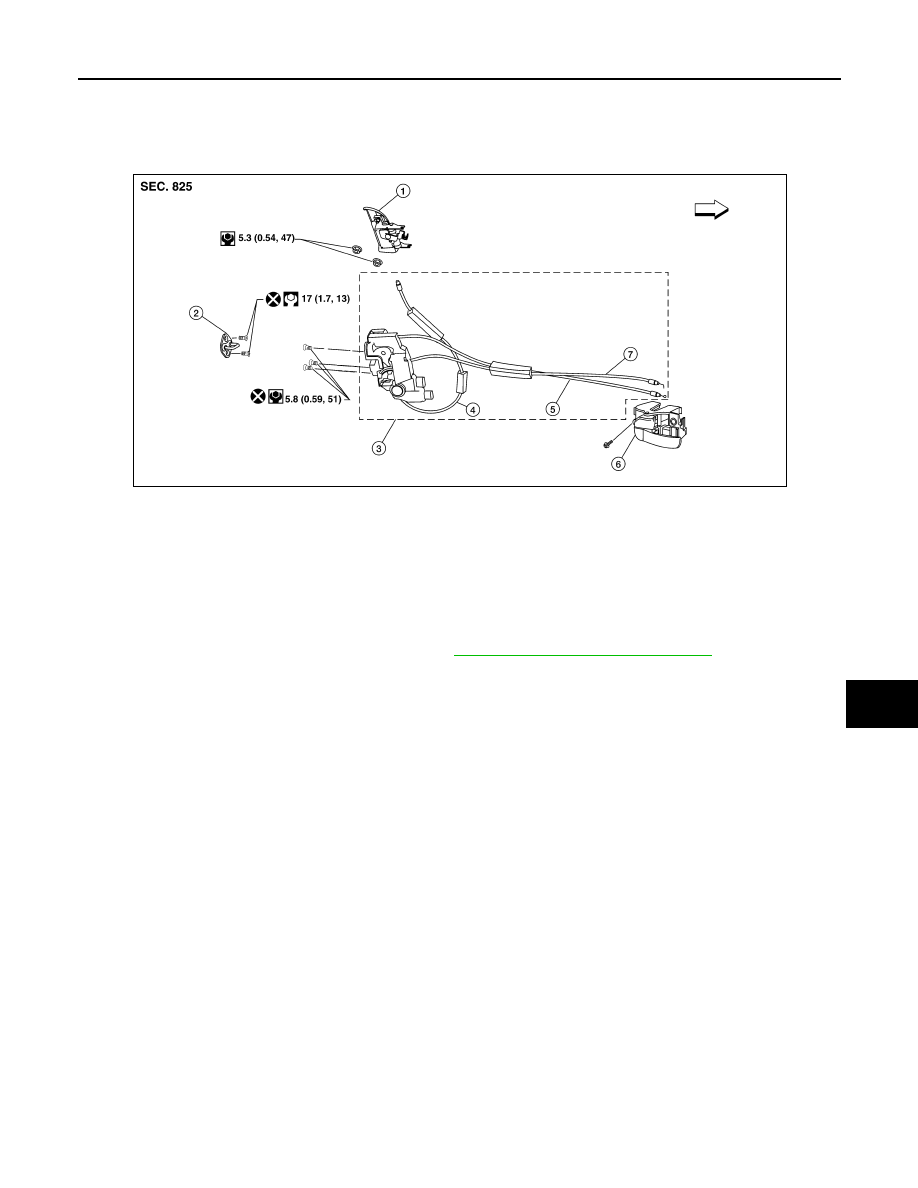

Component Structure

INFOID:0000000001563791

Removal and Installation

INFOID:0000000001563792

REMOVAL

1.

Remove the rear door window regulator. Refer to

GW-18, "Rear Door Glass Regulator"

.

2.

Remove door grommets, and remove outside handle nuts from the hole.

3.

Remove outside handle.

4.

Disconnect the outside handle cable connection.

5.

Remove the inside door handle.

6.

Disconnect the door lock and inside door handle cables from the inside door handle.

7.

Disconnect the door lock actuator connector and remove the assembly.

INSTALLATION

Installation is in the reverse order of removal.

1.

Outside door handle

2.

Rear door striker

3.

Rear door lock assembly

4.

Outside door handle cable

5.

Inside door handle cable

6.

Inside door handle assembly

7.

Door lock cable

⇐

Vehicle front

WIIA0737E

DLK-194

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

BACK DOOR LOCK

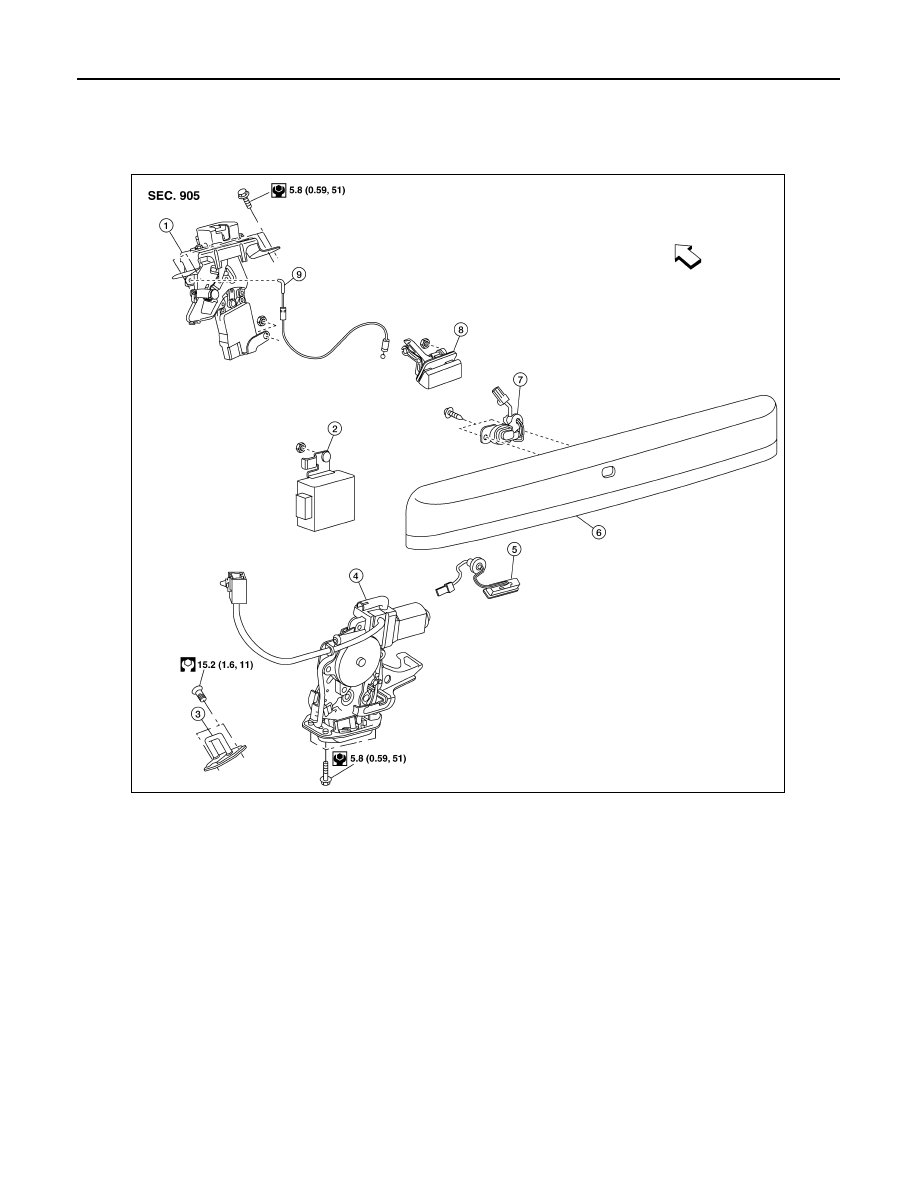

Component Structure

INFOID:0000000001563793

1.

Glass hatch latch assembly

2.

Back door control assembly

3.

Back door striker

4.

Back door latch assembly

5.

Back door release button

6.

Back door finisher

7.

Key button

8.

Glass hatch release handle

9.

Glass hatch release cable

⇐

Vehicle front

ALKIA0954ZZ

DIAGNOSIS AND REPAIR WORKFLOW

DLK-195

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001563655

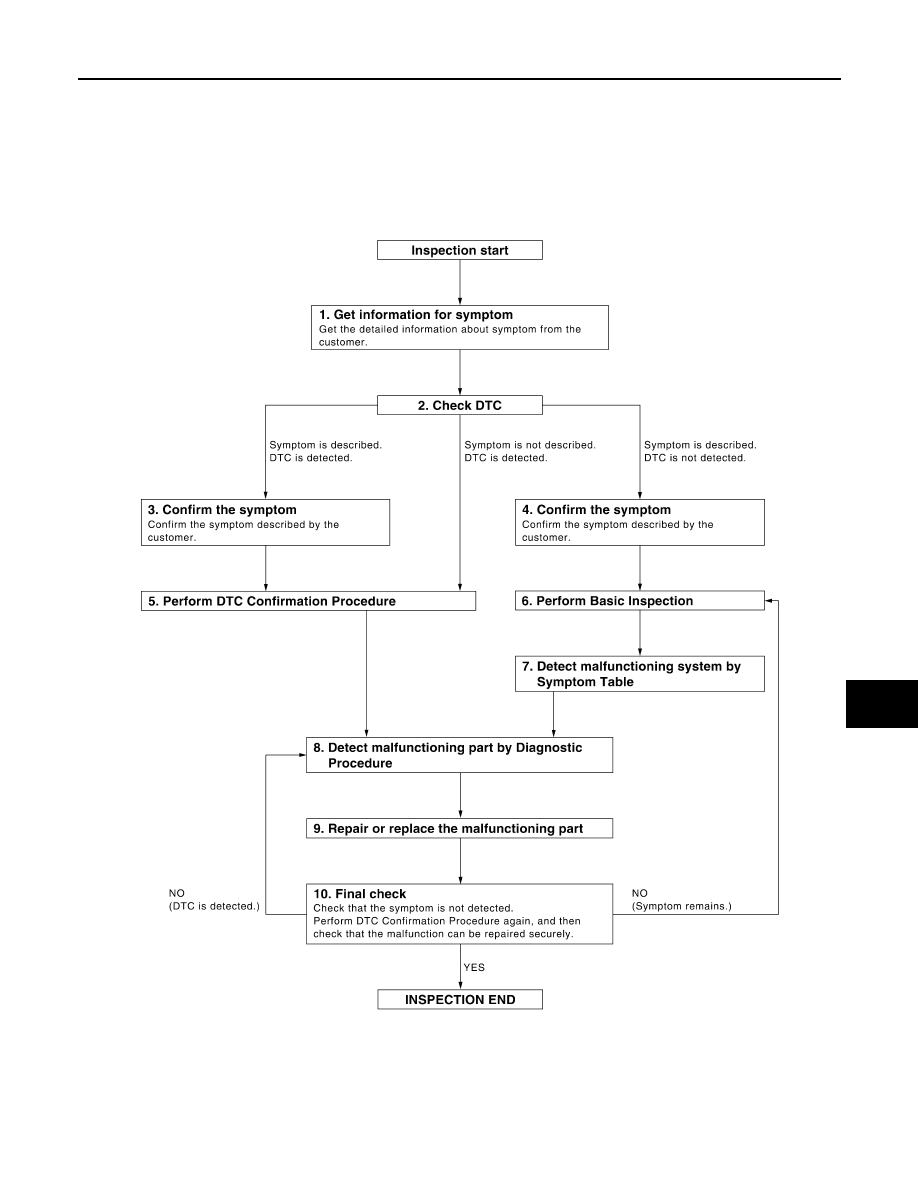

OVERALL SEQUENCE

DETAILED FLOW

ALKIA0246GB

DLK-196

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS AND REPAIR WORKFLOW

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data (Print them out with CONSULT-III.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR ” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.
If two or more DTCs are detected, refer to

DLK-284, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This

simplified check procedure is an effective alternative though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirma-
tion Procedure.

Is DTC detected?

Yes

>> GO TO 8.

No

>> Refer to

GI-51, "Intermittent Incident"

.

6.

PERFORM BASIC INSPECTION

Perform

DLK-195, "Work Flow"

.

Inspection End>>GO TO 7.

7.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

DLK-291, "Symptom Table"

 based on the confirmed symptom in

step 4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 8.
