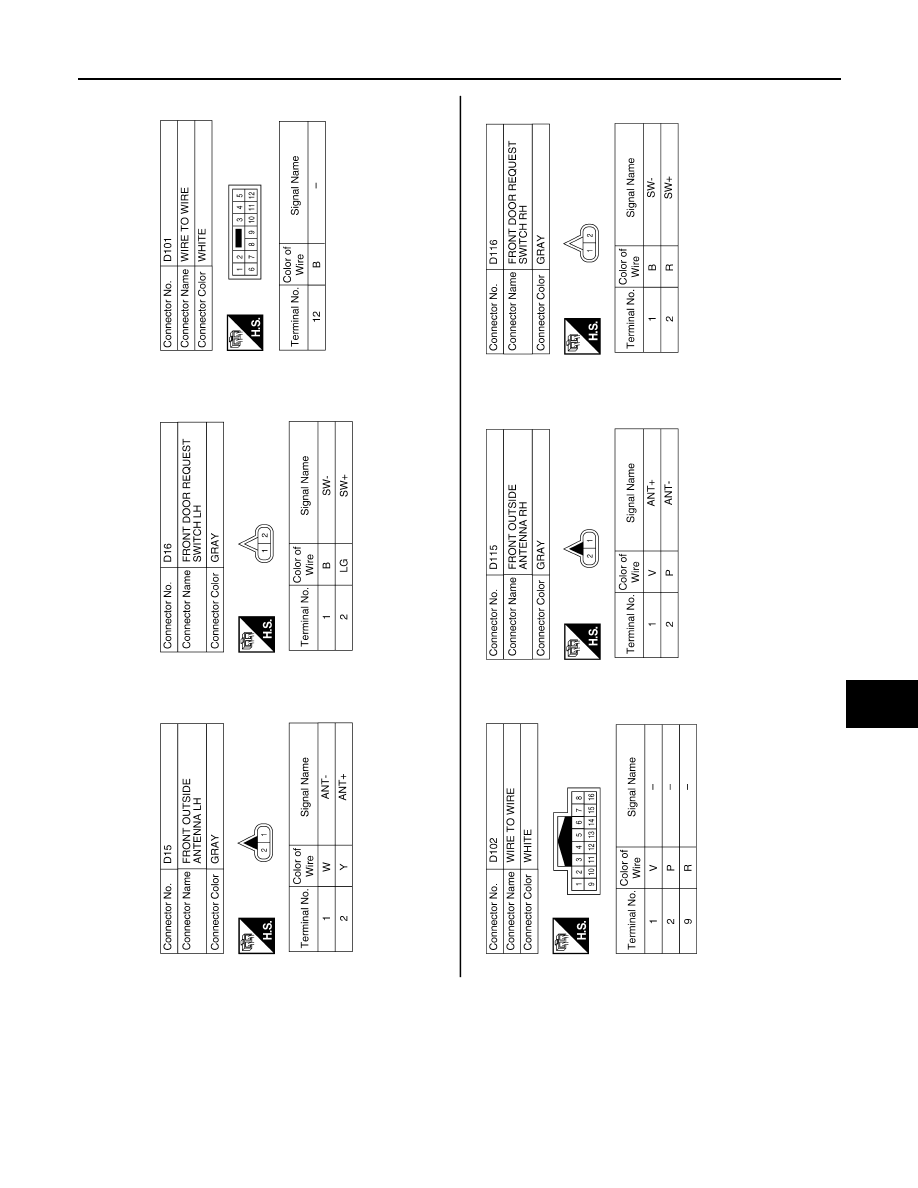

INTELLIGENT KEY UNIT

DLK-149

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ALKIA0979GB

DLK-150

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

ALKIA0980GB

INTELLIGENT KEY UNIT

DLK-151

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ALKIA0981GB

DLK-152

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

Fail Safe

INFOID:0000000001563601

Fail-safe operation

The Intelligent Key system operation will be interrupted if the Intelligent Key unit loses power or communica-
tion with the BCM.

ALKIA1205GB

BACK DOOR CONTROL UNIT

DLK-153

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR CONTROL UNIT

Reference Value

INFOID:0000000001563602

TERMINAL LAYOUT

PHYSICAL VALUES

ALKIA1246ZZ

Terminal

Wire Col-

or

Item

Condition

Voltage (V)

(Approx.)

1

R/B

Battery power supply

—

Battery voltage

2

Y

Back door cinching latch unit
motor

Back door closing

Battery voltage

Back door opening

0

3

L

Back door cinching latch unit
motor

Back door closing

0

Back door opening

Battery voltage

4

B

Ground

—

—

5

GR

Ground

—

—

6

G

Intelligent Key unit output

Back door release switch ON

0

Back door release switch OFF

Battery voltage

7

BR

Half switch signal

Back door open

0

Back door closed or latching

Battery voltage

8

P

Close switch signal

Back door open or closed

Battery voltage

During opening (5 seconds)

0

9

W

Neutral switch signal

Back door open or closed

Battery voltage

During opening (5 seconds)

0

DLK-154

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR CONTROL UNIT

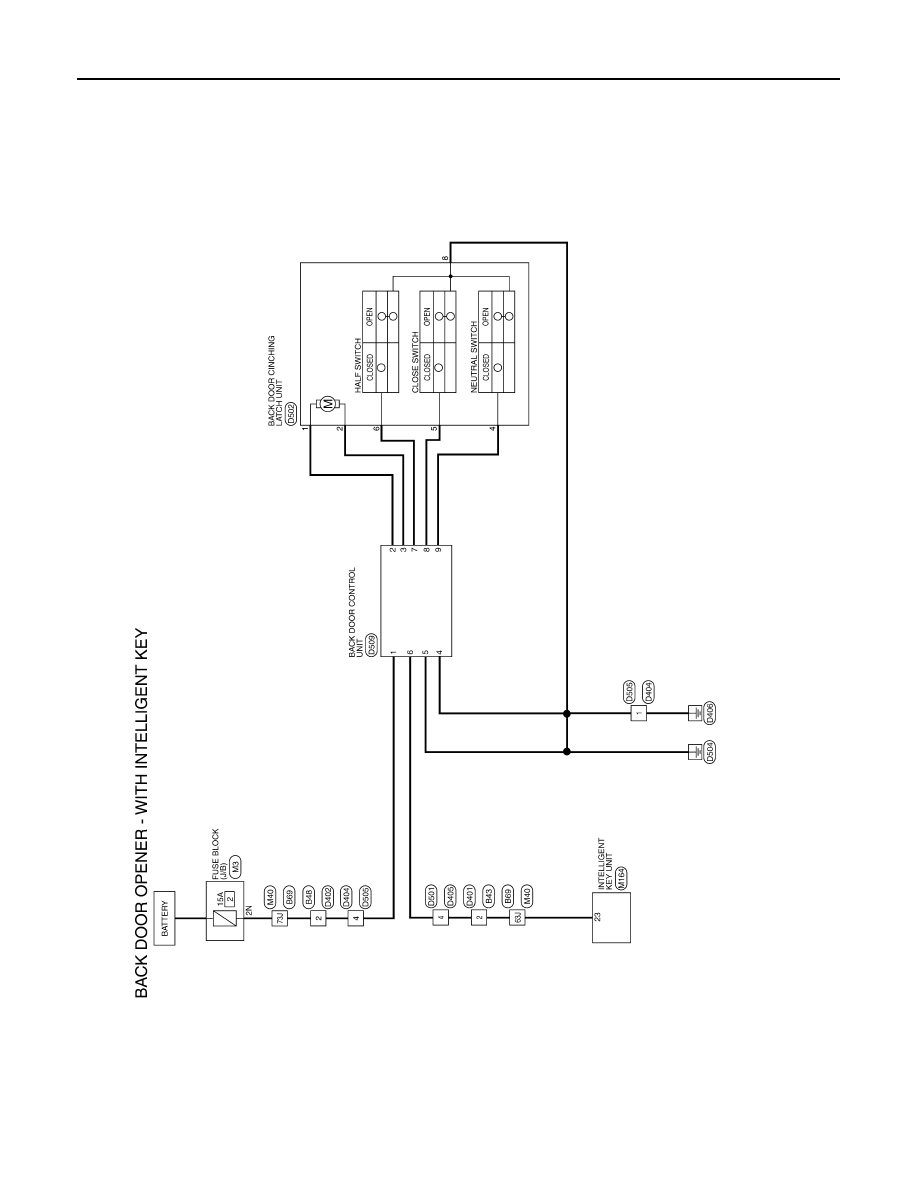

Wiring Diagram—BACK DOOR OPENER—

INFOID:0000000001563603

ALKWA0148GB

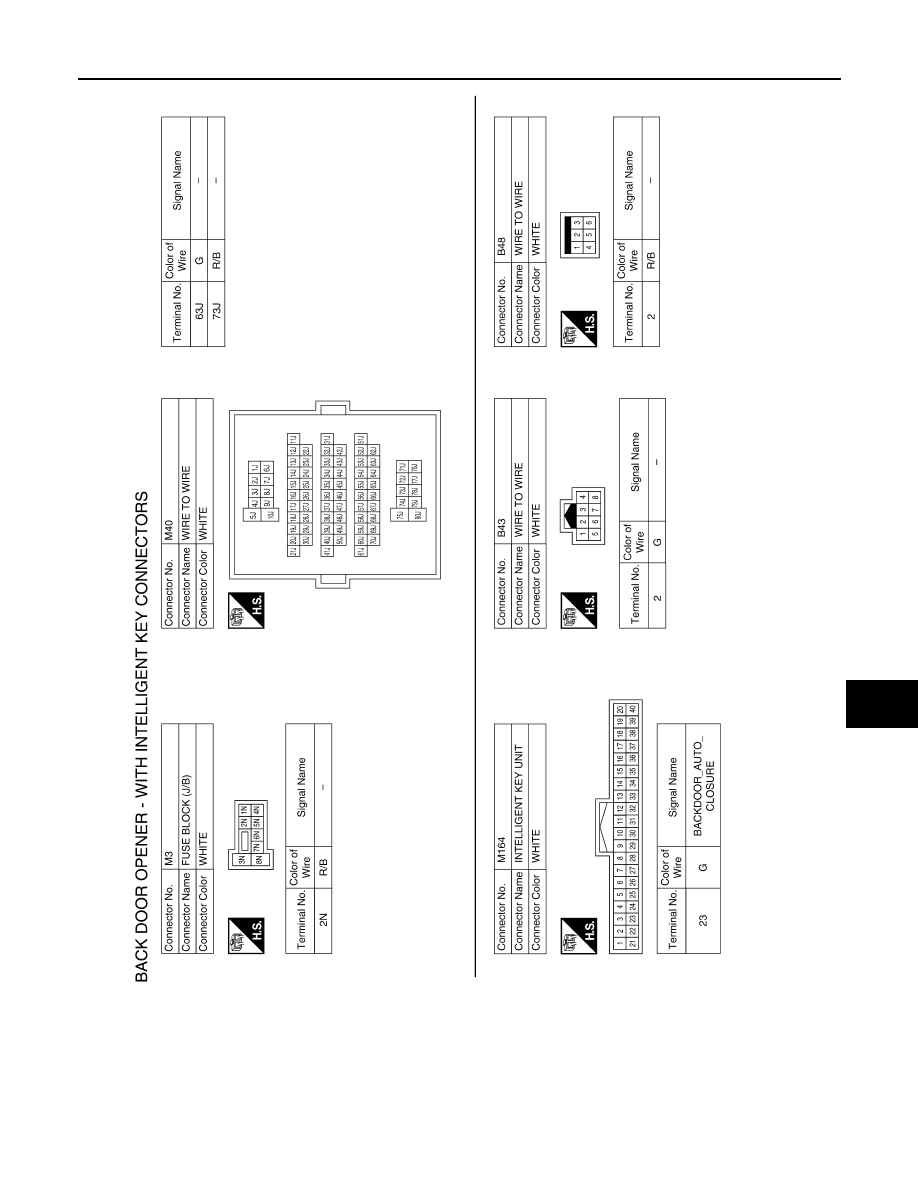

BACK DOOR CONTROL UNIT

DLK-155

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

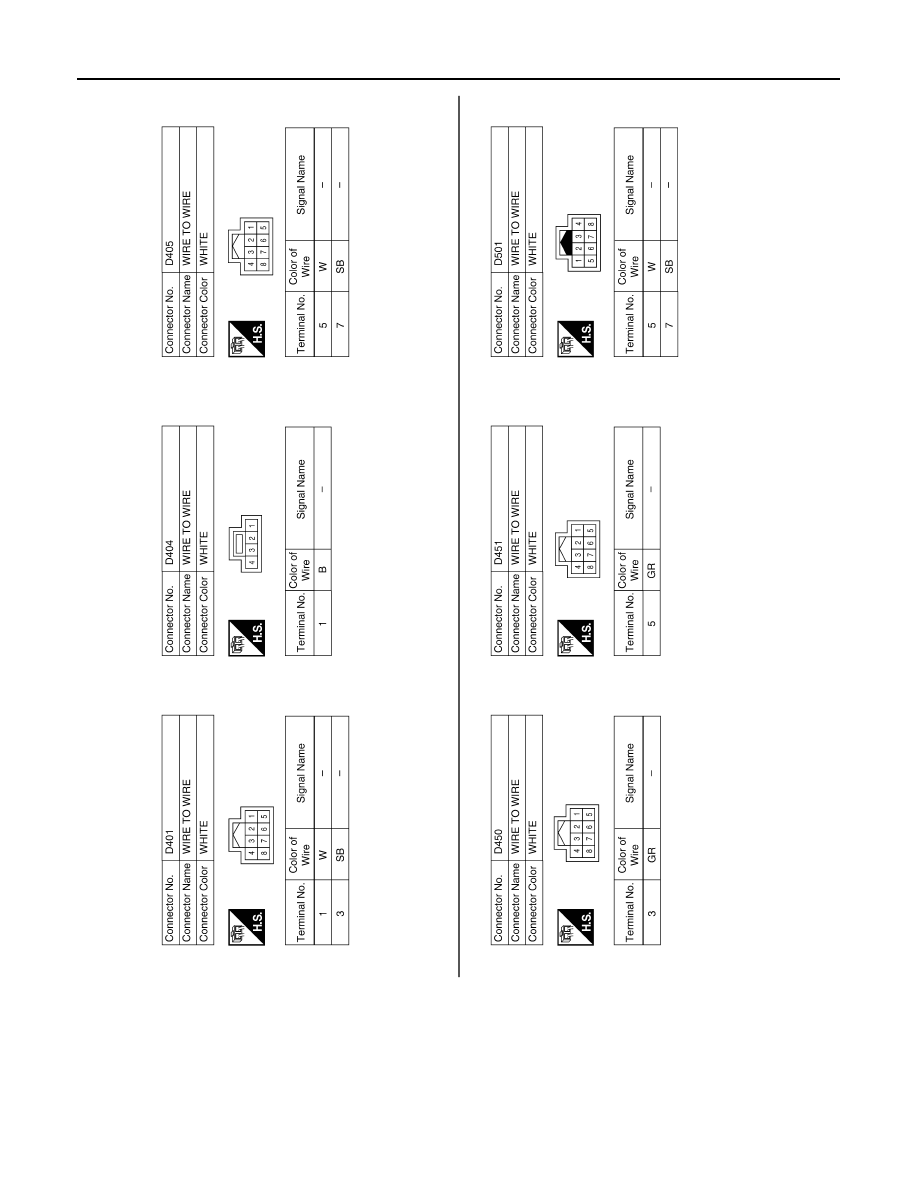

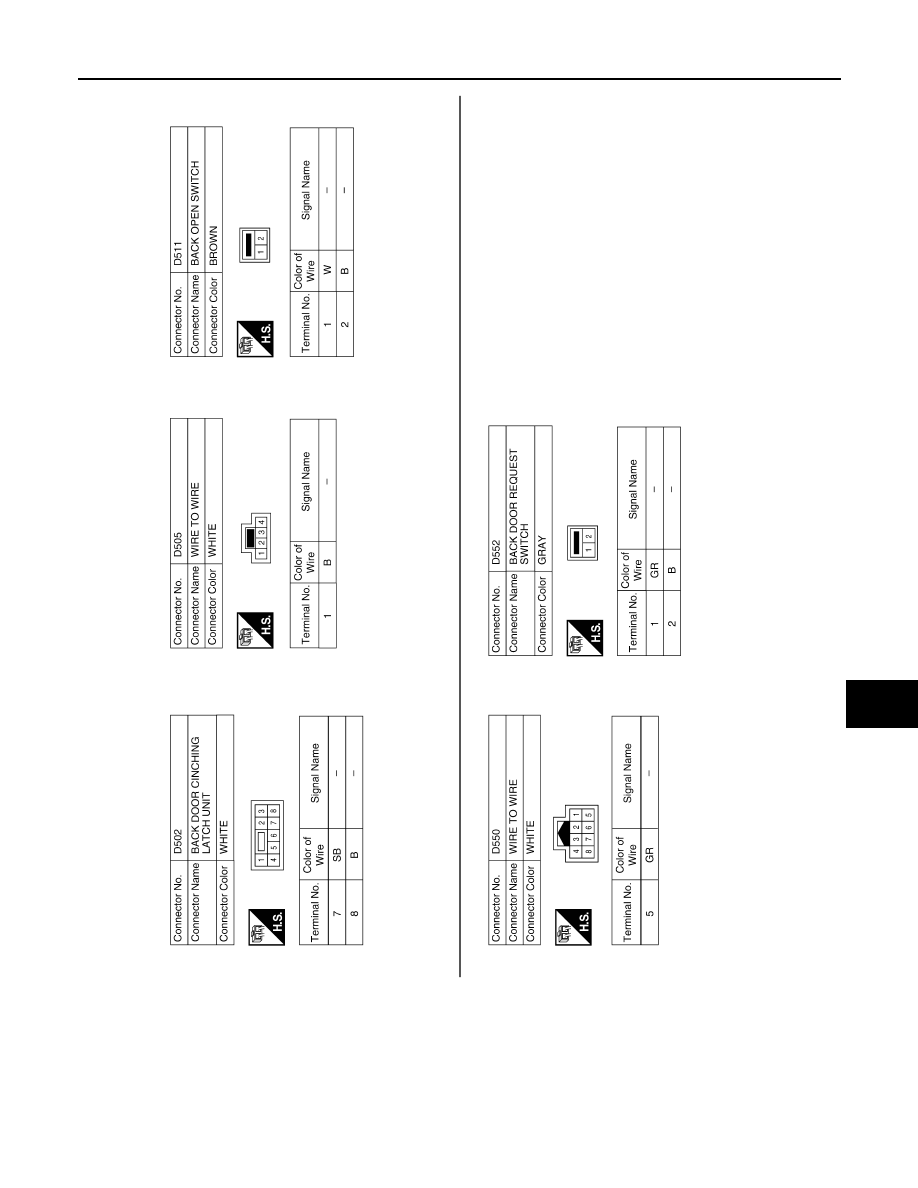

ALKIA0995GB

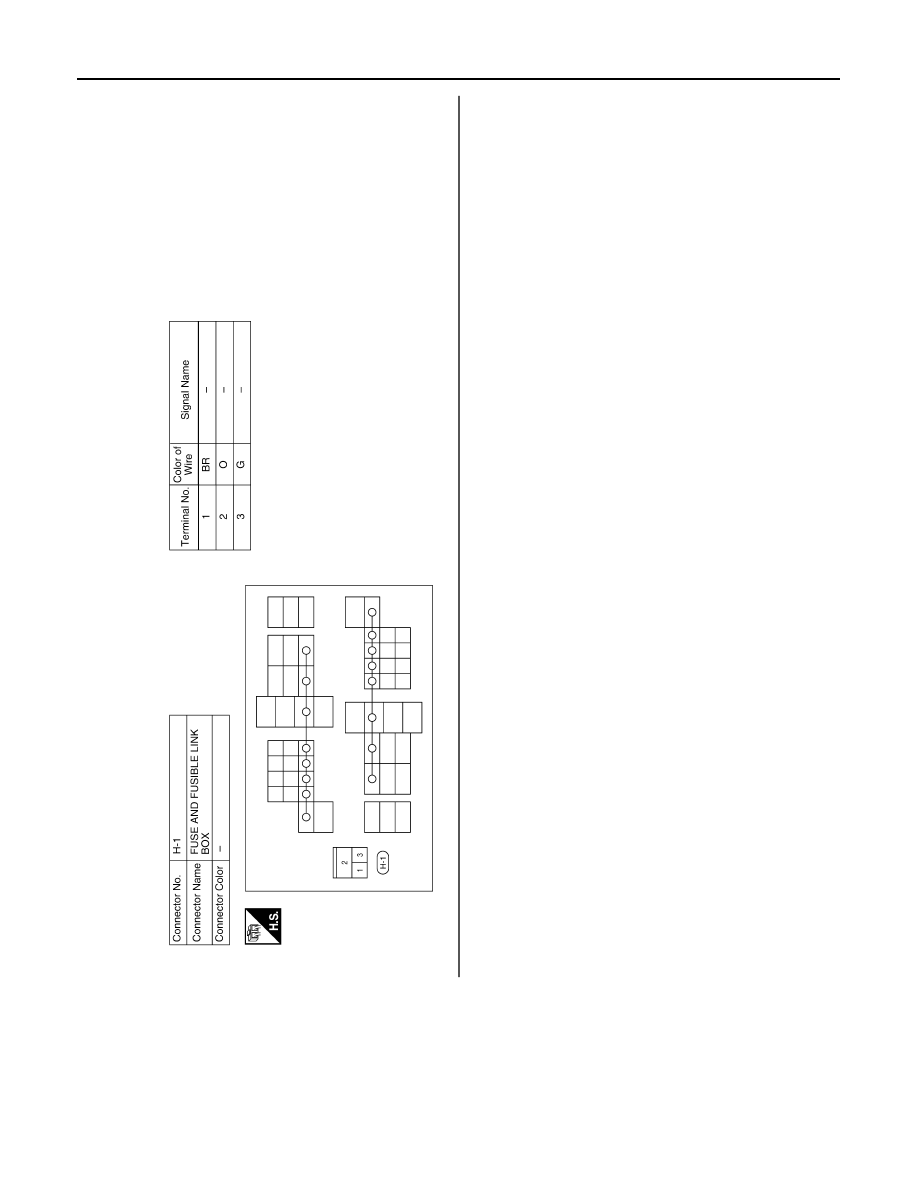

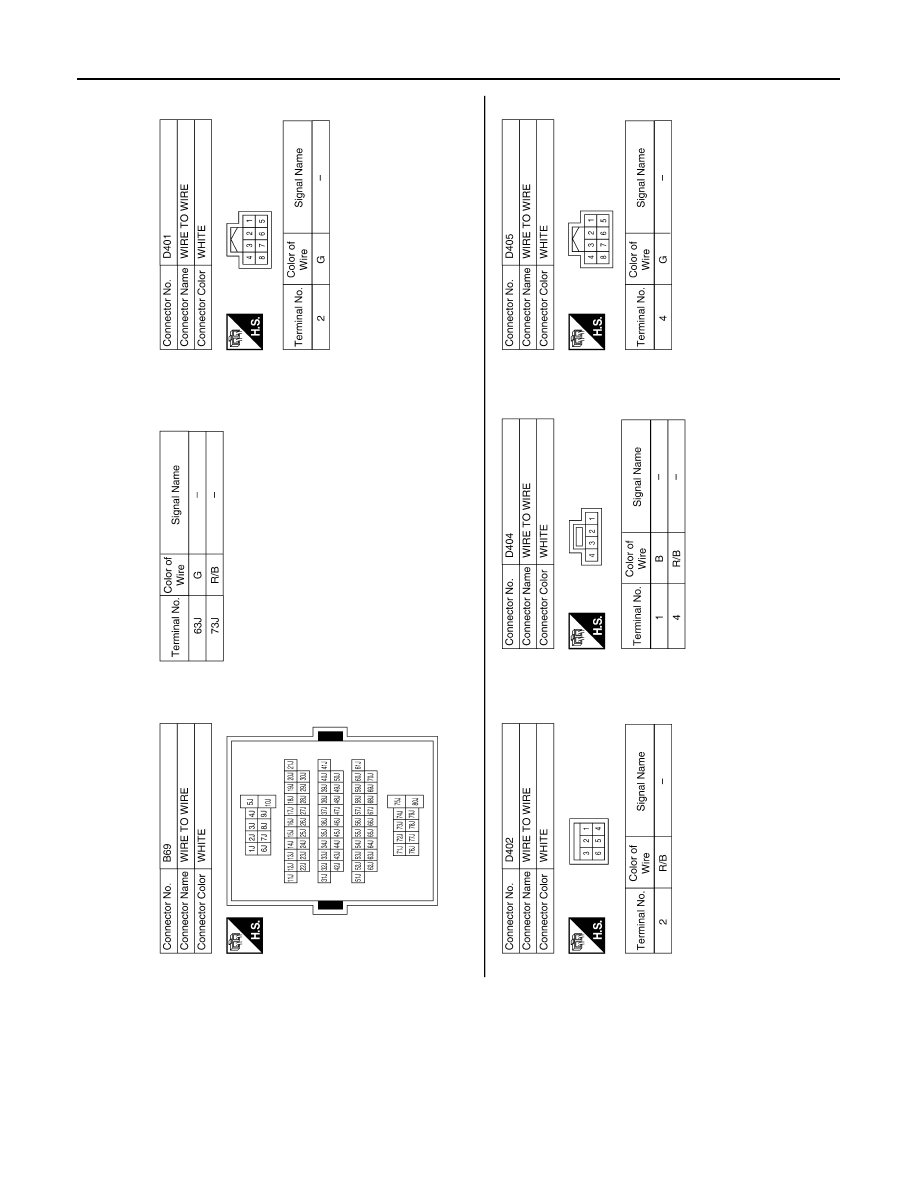

DLK-156

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR CONTROL UNIT

ALKIA0996GB
