< ECU DIAGNOSIS >

[HDC/HSA/VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Wiring Diagram

INFOID:0000000001691081

ALFWA0014GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-211

< ECU DIAGNOSIS >

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ALFWA0015GB

BRC-212

< ECU DIAGNOSIS >

[HDC/HSA/VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

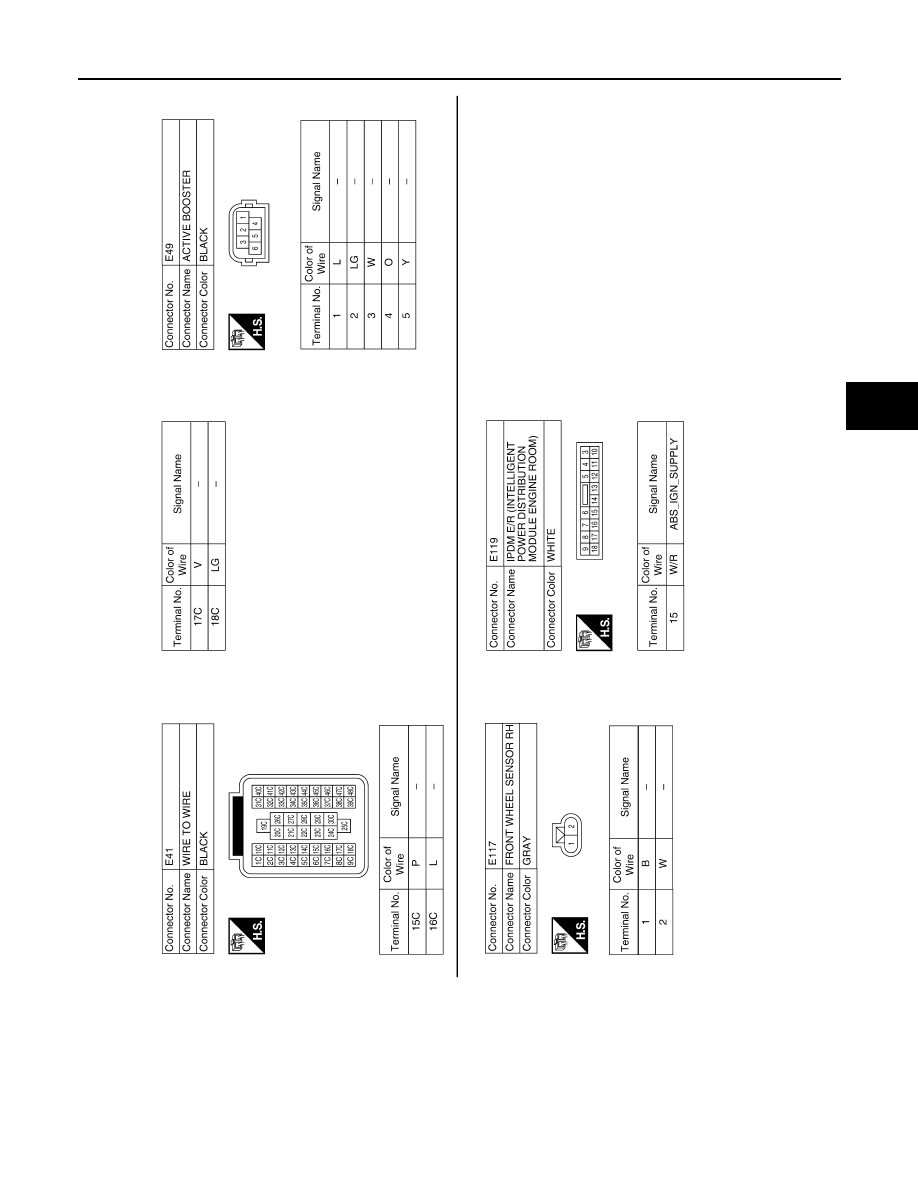

ALFIA0086GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-213

< ECU DIAGNOSIS >

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

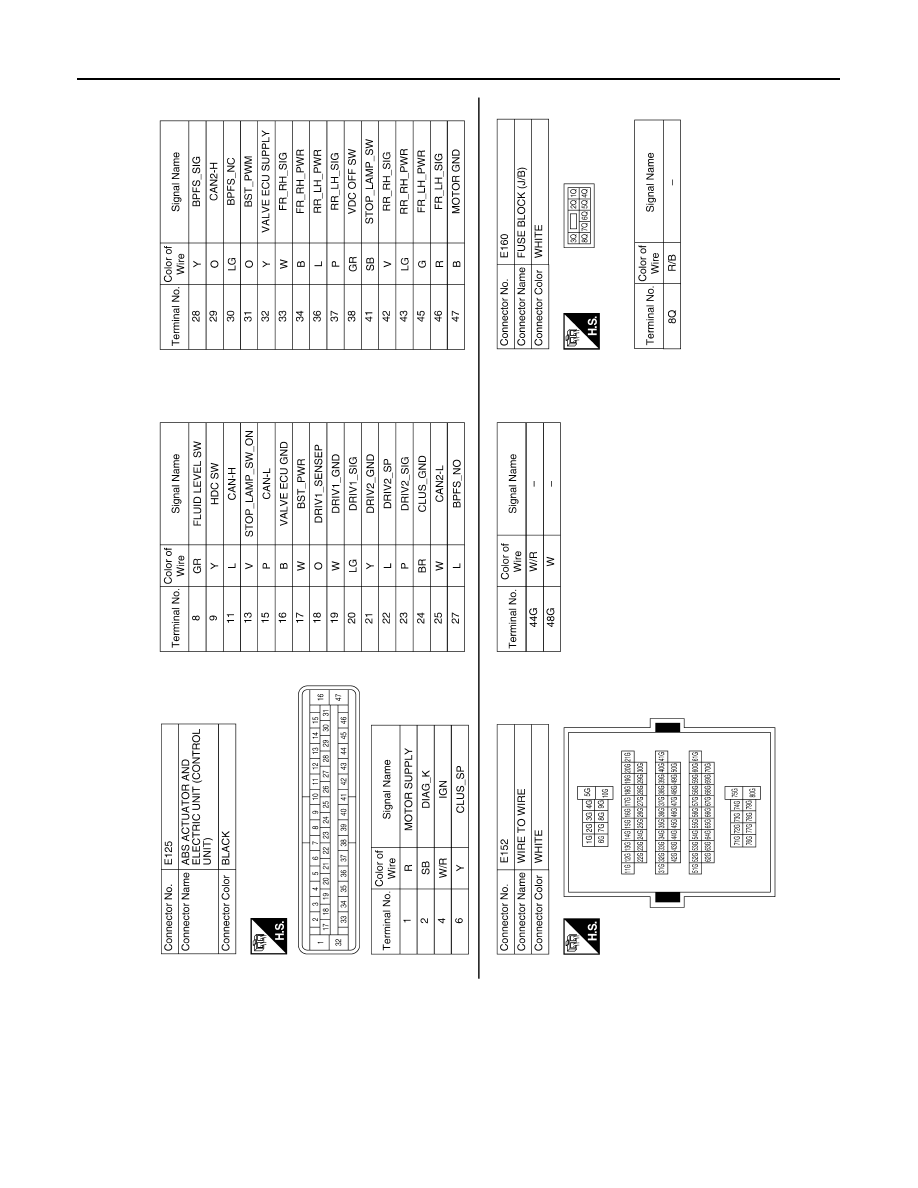

ALFIA0087GB

BRC-214

< ECU DIAGNOSIS >

[HDC/HSA/VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

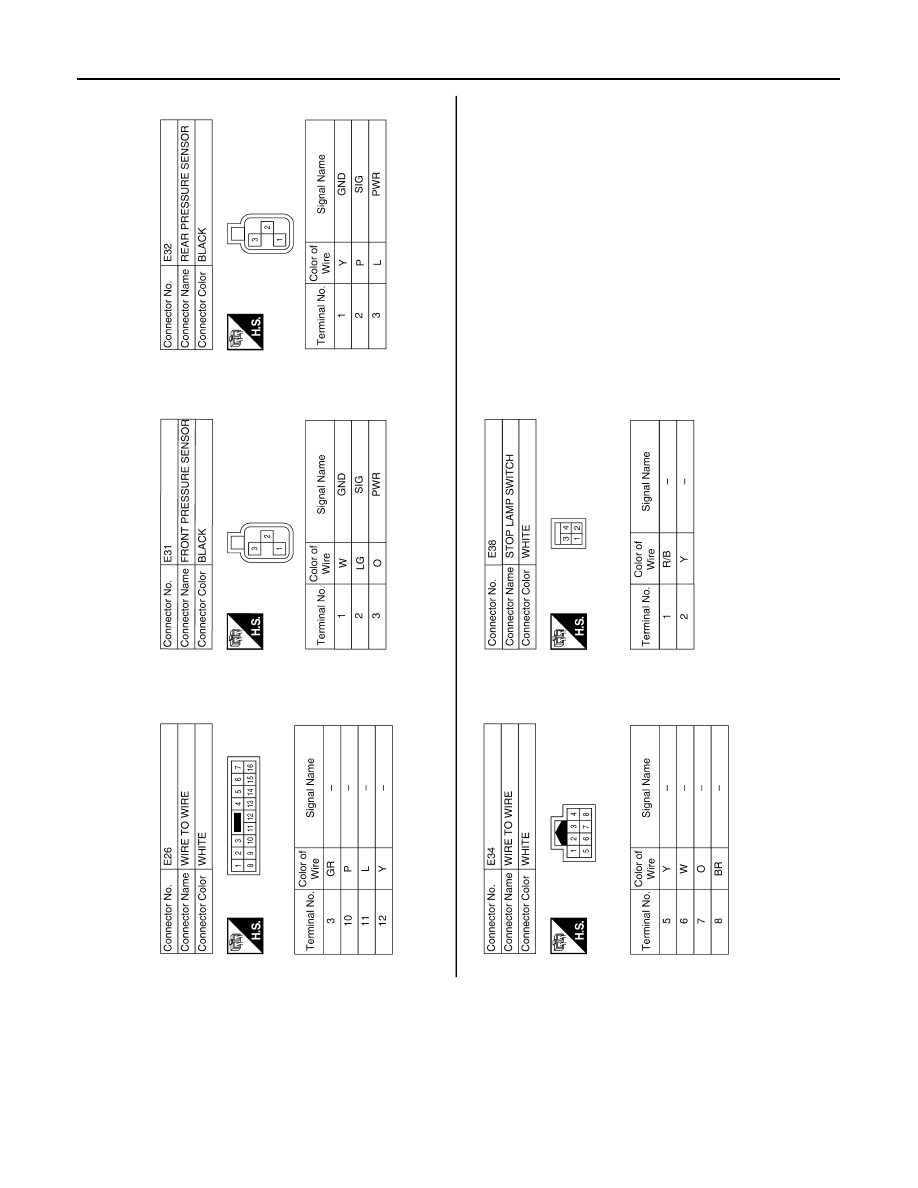

ALFIA0088GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-215

< ECU DIAGNOSIS >

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

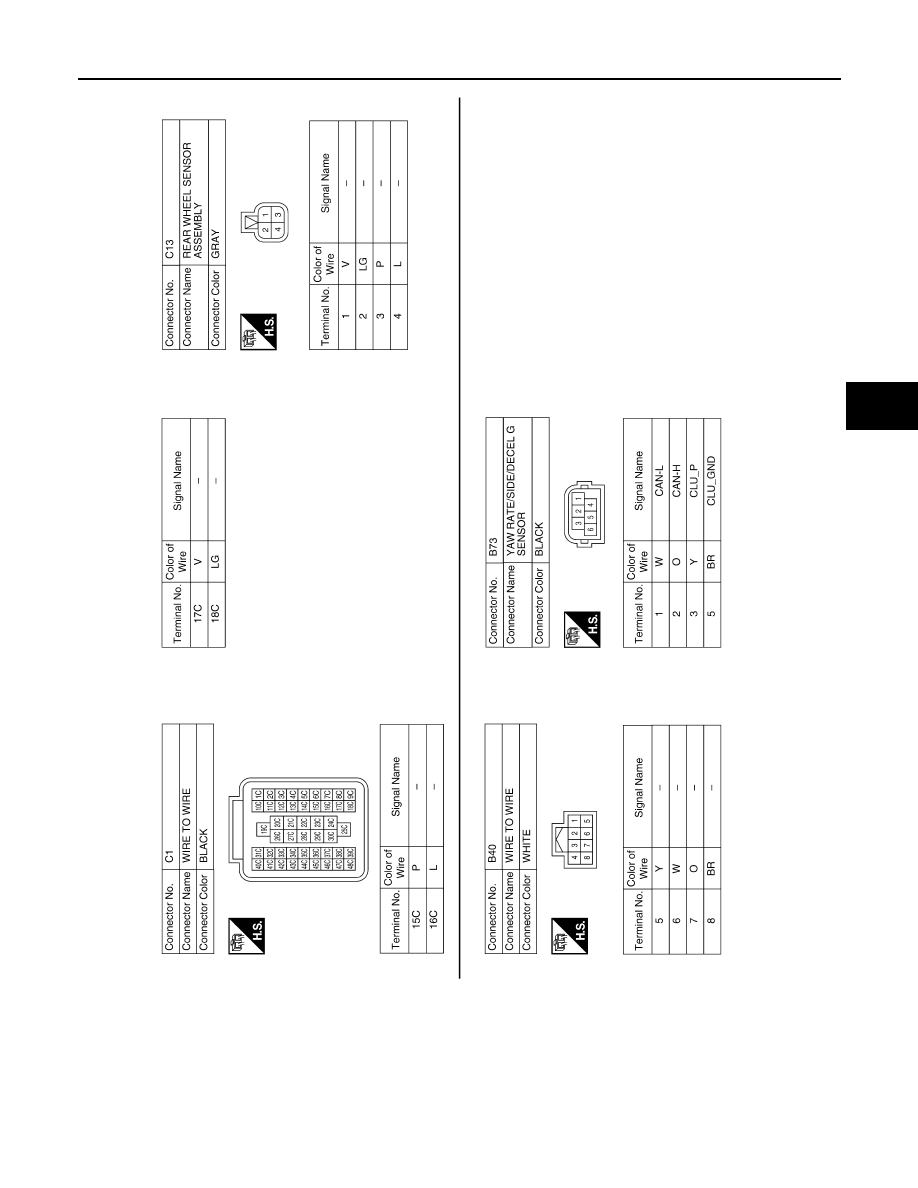

ALFIA0089GB

BRC-216

< ECU DIAGNOSIS >

[HDC/HSA/VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ALFIA0090GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-217

< ECU DIAGNOSIS >

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Fail-Safe

INFOID:0000000001691082

CAUTION:

If the Fail-Safe function is activated, perform Self Diagnosis for ABS/TCS/VDC system.

ABS/EBD SYSTEM

ALFIA0091GB
