AV-352

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Description

INFOID:0000000001469748

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the
audio signals before sending them to the front door speakers using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000001469749

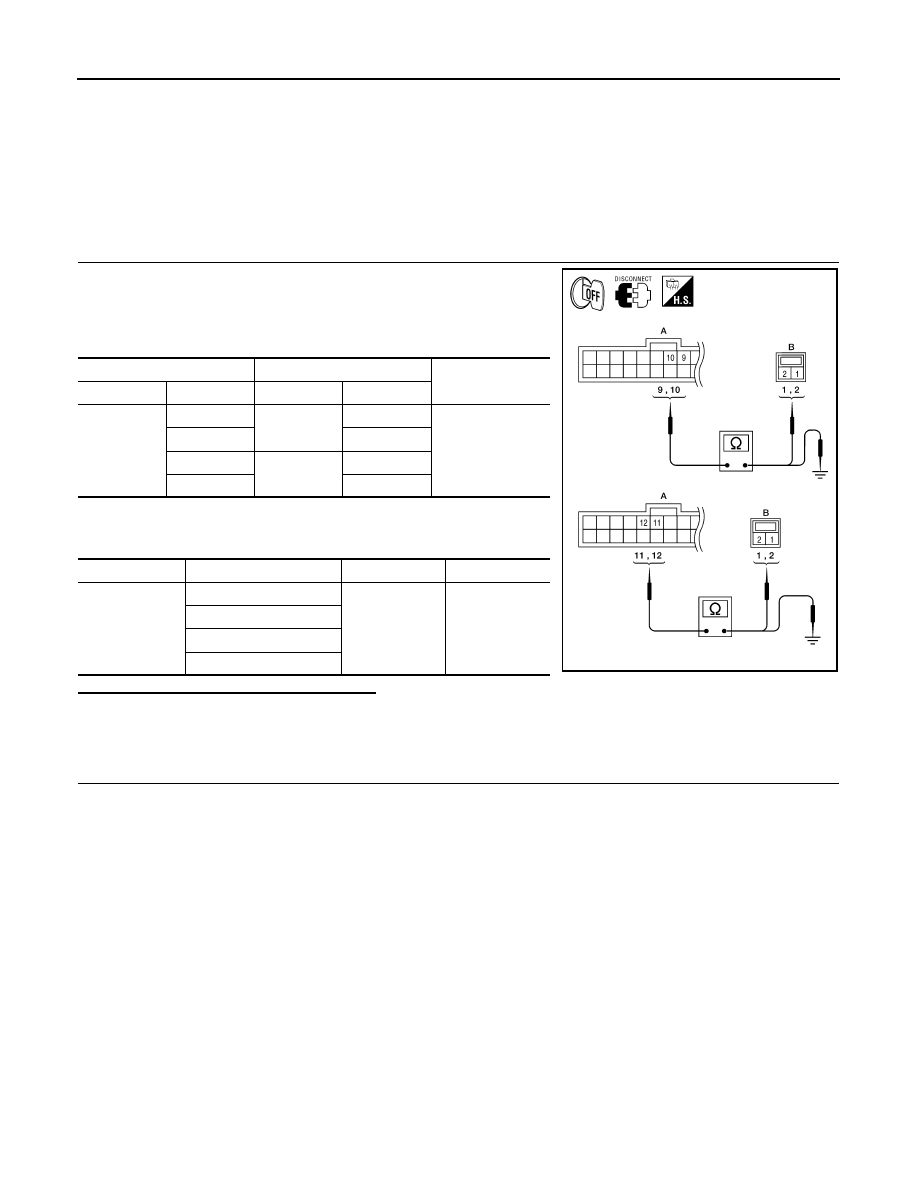

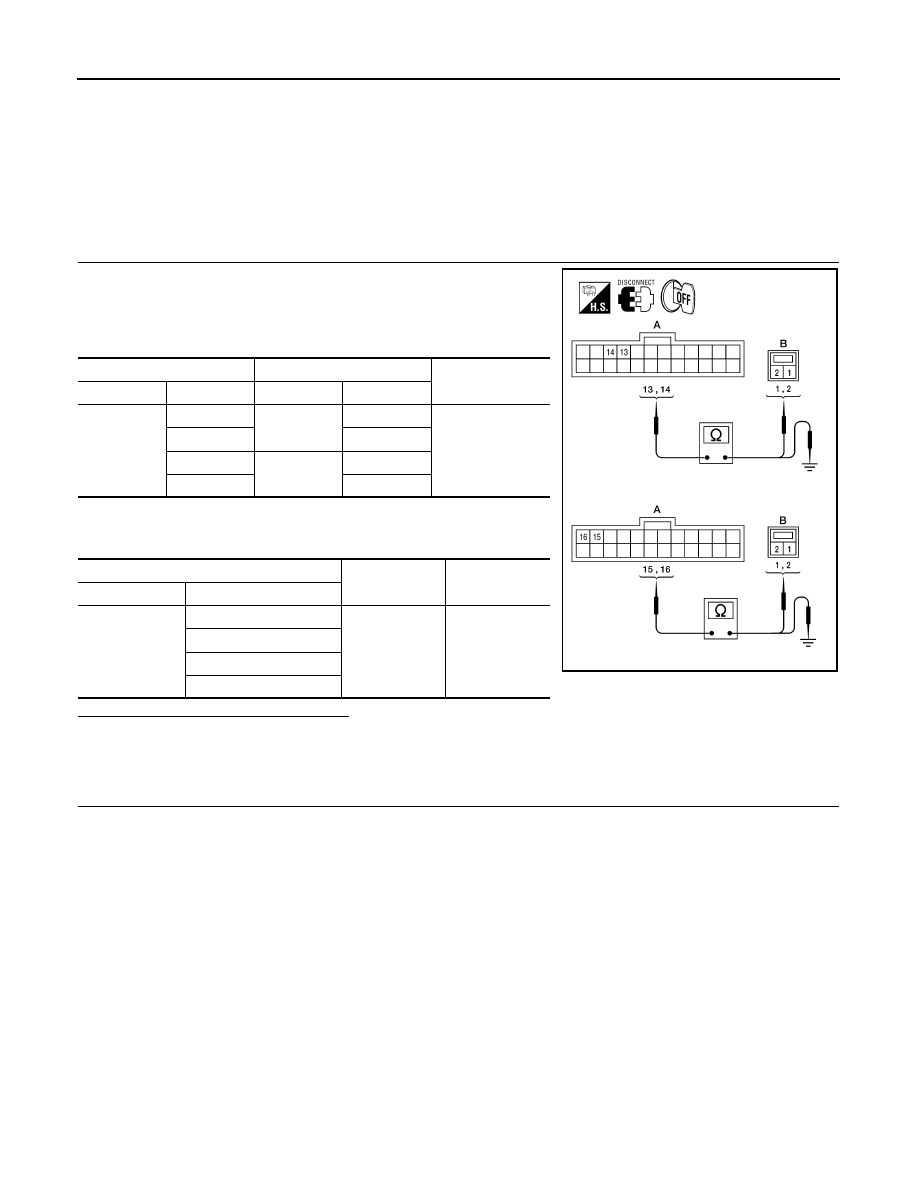

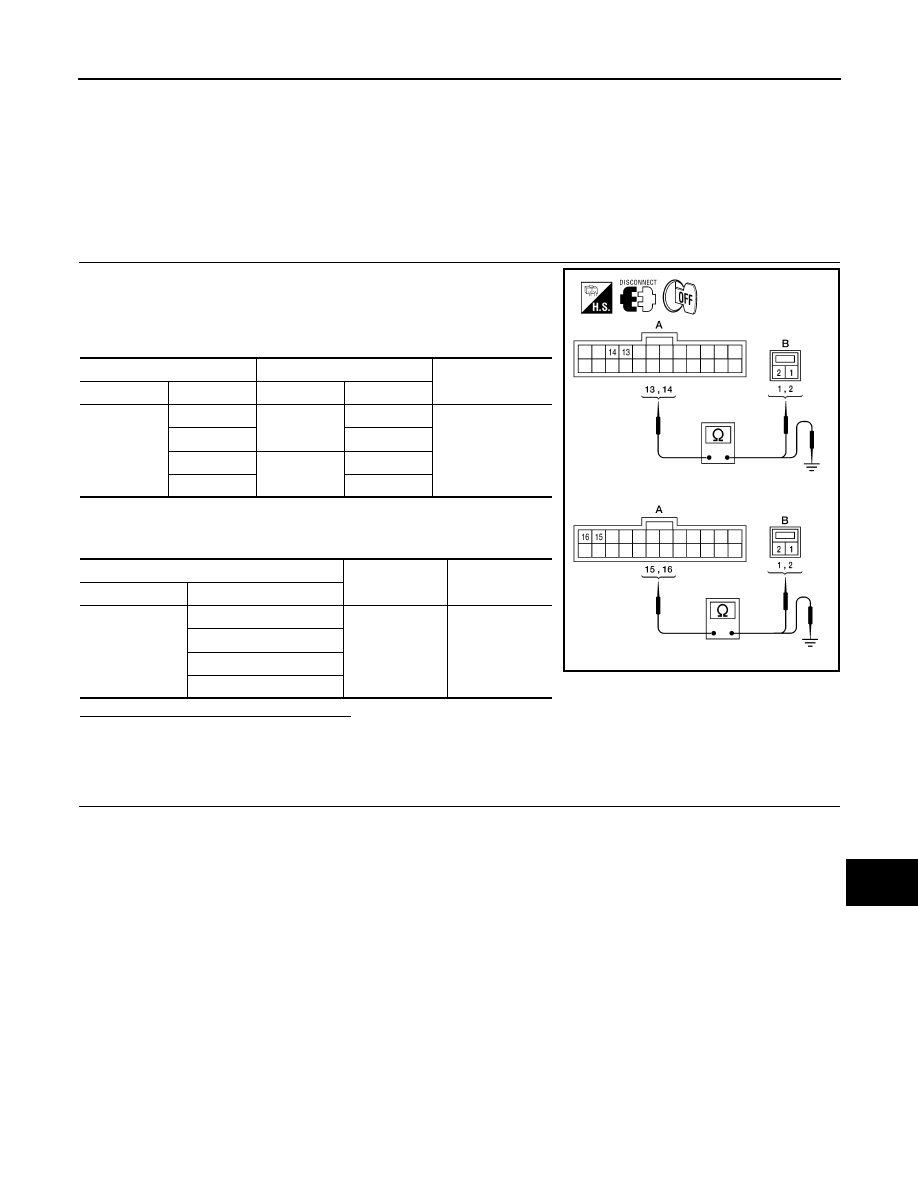

1.

HARNESS CHECK

1.

Disconnect BOSE speaker amp. connector B75 and suspect
speaker connector.

2.

Check continuity between BOSE speaker amp. harness connec-
tor B75 (A) and suspect speaker harness connector (B).

3.

Check continuity between BOSE speaker amp. harness connec-
tor B75 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

FRONT SPEAKER SIGNAL CHECK

A B

Continuity

Connector

Terminal

Connector

Terminal

B75

13

D12

1

Yes

14

2

15

D112

1

16

2

A

—

Continuity

Connector

Terminal

B75

13

Ground

No

14

15

15

ALNIA0530GB

AV

FRONT DOOR SPEAKER

AV-353

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

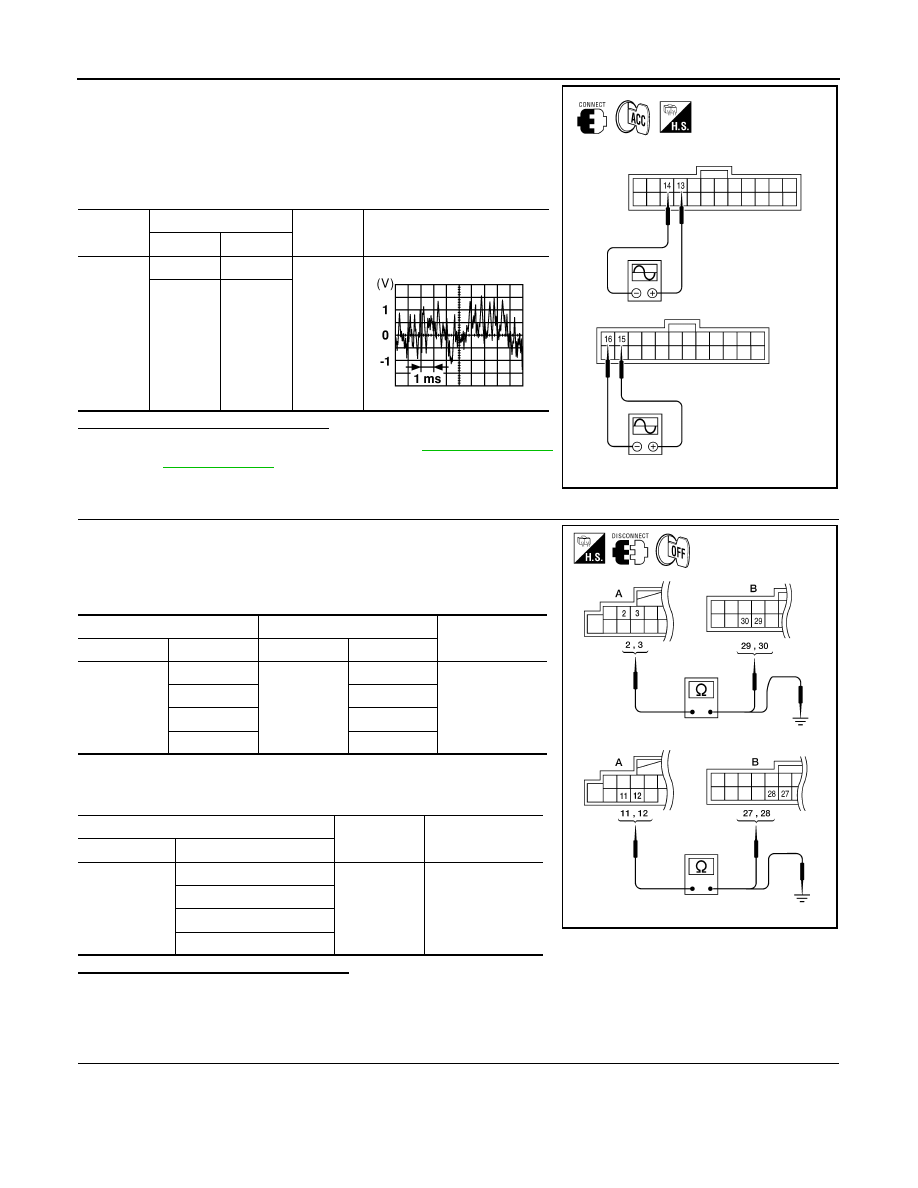

1.

Connect BOSE speaker amp. connector B75 and suspect
speaker connector.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between BOSE speaker amp. harness connec-
tor B75 terminals with CONSULT-III or oscilloscope.

Is audio signal voltage as specified?

YES

>> Replace suspect speaker. Refer to

AV-426, "Removal

and Installation"

.

NO

>> GO TO 3

3.

HARNESS CHECK

1.

Disconnect AV control unit connector M42 and BOSE speaker
amp. connector B75.

2.

Check continuity between AV control unit harness connector
M42 (A) and BOSE speaker amp. harness connector B75 (B).

3.

Check continuity between AV control unit harness connector
M42 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

FRONT SPEAKER SIGNAL CHECK

Connec-

tor

Terminal

Condition

Reference

signal

(+)

(-)

B75

13

14

Receive
audio sig-
nal

15

16

ALNIA0531GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M42

2

B75

30

Yes

3

29

11

28

12

27

A

—

Continuity

Connector

Terminal

M42

2

Ground

No

3

11

12

ALNIA0550GB

AV-354

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

FRONT DOOR SPEAKER

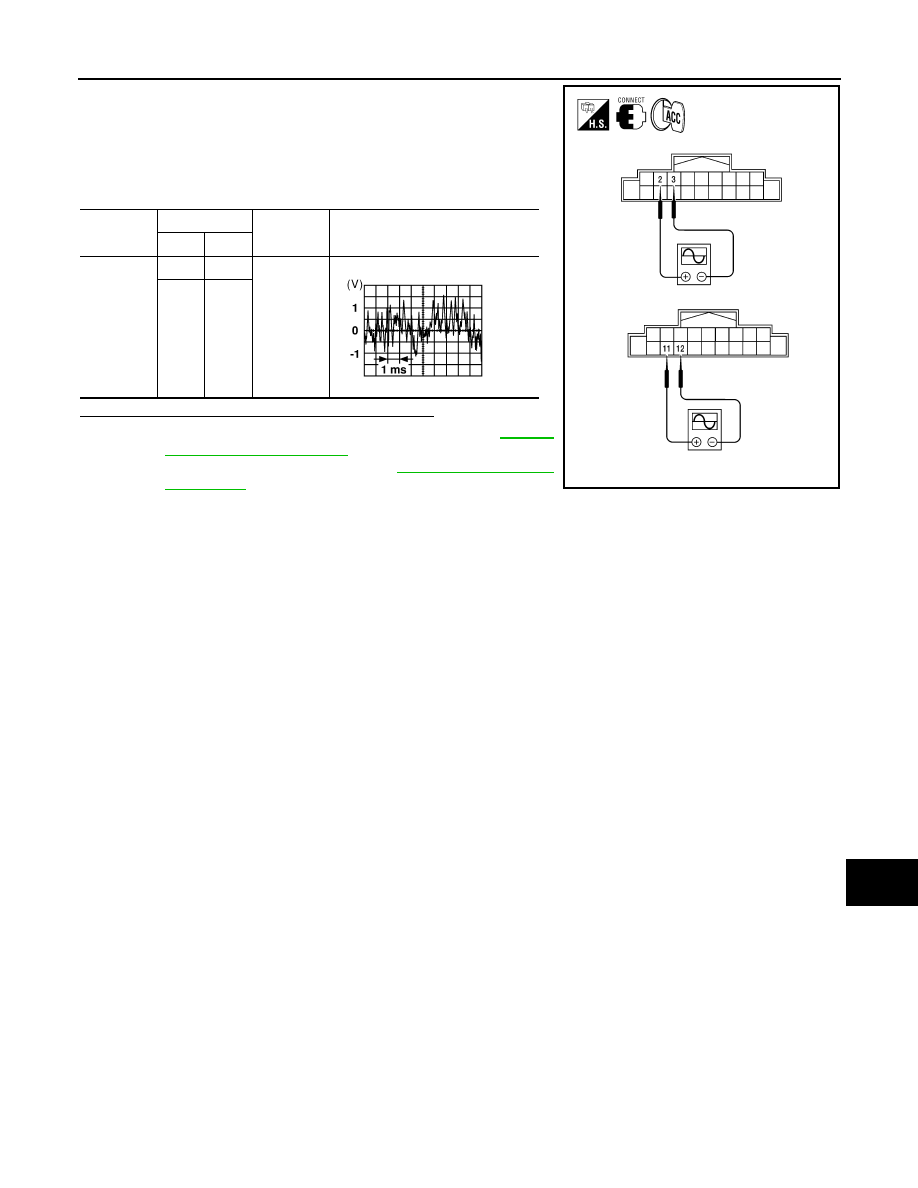

1.

Connect AV control unit connector and BOSE speaker amp.
connector.

2.

Turn ignition switch ACC.

3.

Push “POWER” switch.

4.

Check the signal between AV control unit harness connector
M42 terminals with CONSULT-III or oscilloscope.

Are the audio signal voltage readings as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-428,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-423, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M42

2

3

Receive
audio sig-
nal

11

12

AWNIA0032ZZ

SKIA0177E

AV

FRONT TWEETER

AV-355

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER

Description

INFOID:0000000001469750

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the
audio signals before sending them to the tweeters using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000001469751

1.

HARNESS CHECK

1.

Disconnect BOSE speaker amp. connector B75 and suspect
tweeter connector.

2.

Check continuity between BOSE speaker amp. harness connec-
tor B75 (A) and suspect tweeter harness connector (B).

3.

Check continuity between BOSE speaker amp. harness connec-
tor B75 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

FRONT TWEETER SIGNAL CHECK

A B

Continuity

Connector

Terminal

Connector

Terminal

B75

13

M109

1

Yes

14

2

15

M111

1

16

2

A

—

Continuity

Connector

Terminal

B75

13

Ground

No

14

15

16

ALNIA0530GB

AV-356

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

FRONT TWEETER

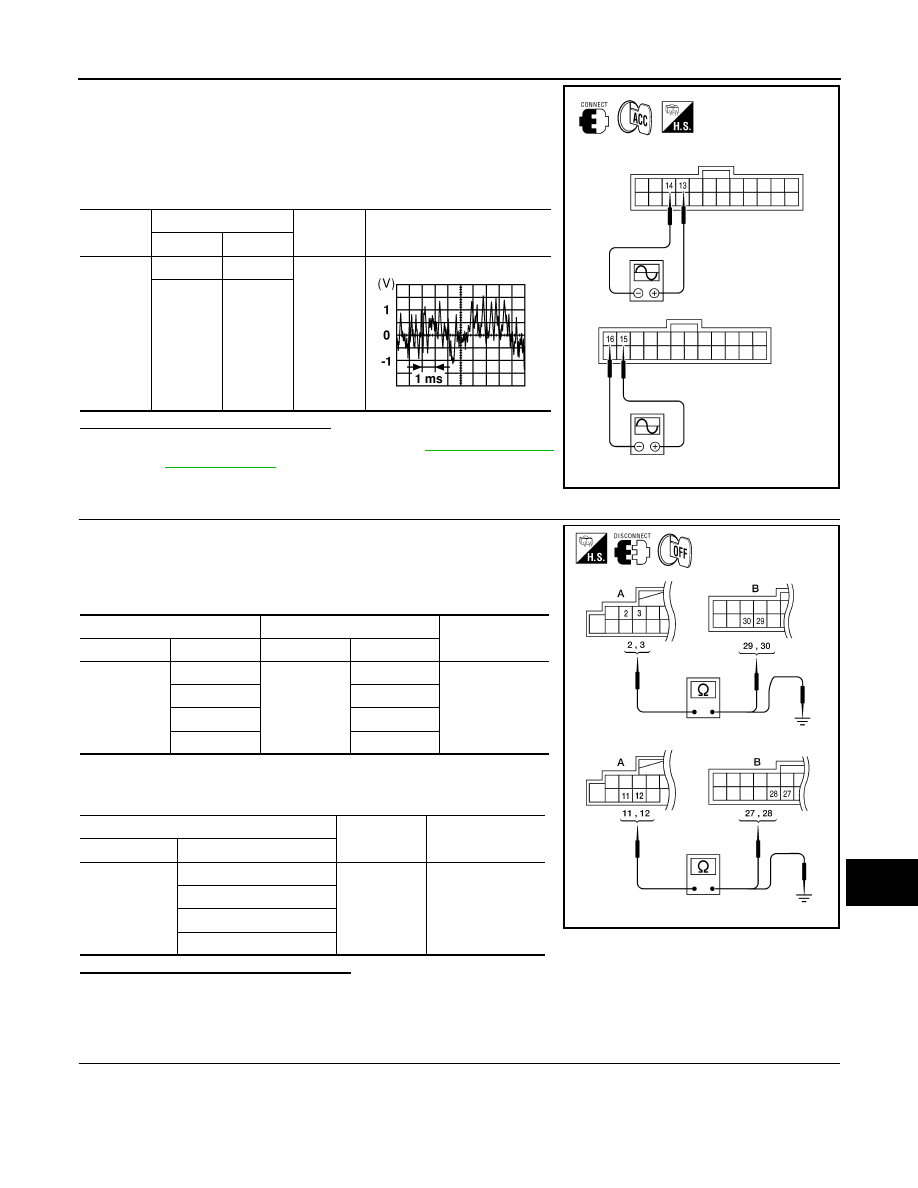

1.

Connect BOSE speaker amp. connector B75 and suspect
tweeter connector.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between BOSE speaker amp. harness connec-
tor B75 terminals with CONSULT-III or oscilloscope.

Is audio signal voltage as specified?

YES

>> Replace suspect tweeter. Refer to

AV-425, "Removal

and Installation"

.

NO

>> GO TO 3

3.

HARNESS CHECK

1.

Disconnect AV control unit connector M42 and BOSE speaker
amp. connector B75.

2.

Check continuity between AV control unit harness connector
M42 (A) and BOSE speaker amp. harness connector B75 (B).

3.

Check continuity between AV control unit harness connector
M42 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

FRONT TWEETER SIGNAL CHECK

Connec-

tor

Terminal

Condition

Reference

signal

(+)

(-)

B75

13

14

Receive
audio sig-
nal

15

16

ALNIA0531GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M42

2

B75

30

Yes

3

29

11

28

12

27

A

—

Continuity

Connector

Terminal

M42

2

Ground

No

3

11

12

ALNIA0550GB

AV

FRONT TWEETER

AV-357

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

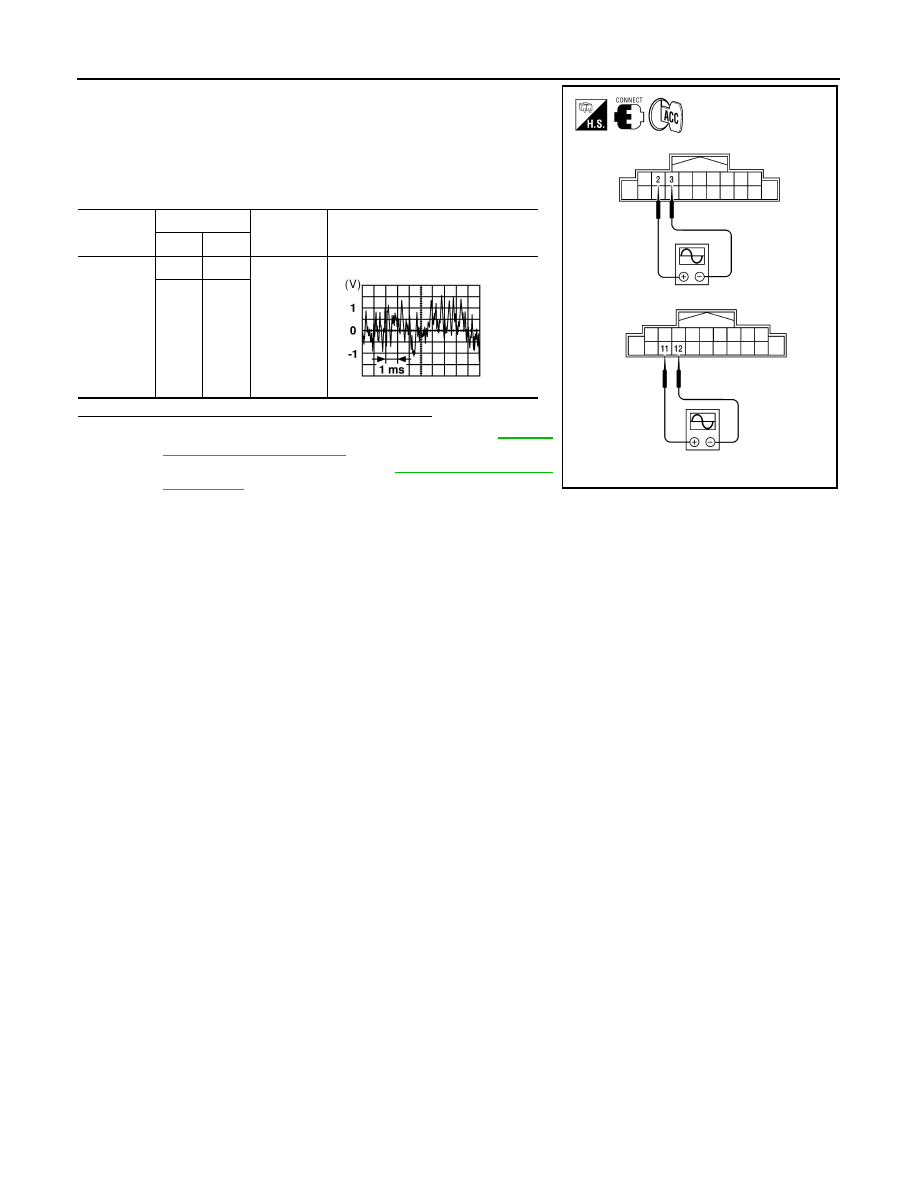

1.

Connect AV control unit connector and BOSE speaker amp.
connector.

2.

Turn ignition switch ACC.

3.

Push “POWER” switch.

4.

Check the signal between AV control unit harness connector
M42 terminals with CONSULT-III or oscilloscope.

Are the audio signal voltage readings as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-428,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-423, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M42

2

3

Receive
audio sig-
nal

11

12

AWNIA0032ZZ

SKIA0177E

AV-358

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Description

INFOID:0000000001469752

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the
audio signals before sending them to the rear door speakers using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000001469753

1.

HARNESS CHECK

1.

Disconnect BOSE speaker amp. connectors B75 and suspect
speaker connector.

2.

Check continuity between BOSE speaker amp. harness connec-
tors B75 (A) and  suspect speaker harness connector (B).

3.

Check continuity between BOSE speaker amp. harness connec-
tors B75 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

REAR DOOR SPEAKER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

B75

9

D207

1

Yes

10

2

11

D307

1

12

2

Connector

Terminal

-

Continuity

B75

9

Ground

No

10

11

12

ALNIA0533GB

AV

REAR DOOR SPEAKER

AV-359

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

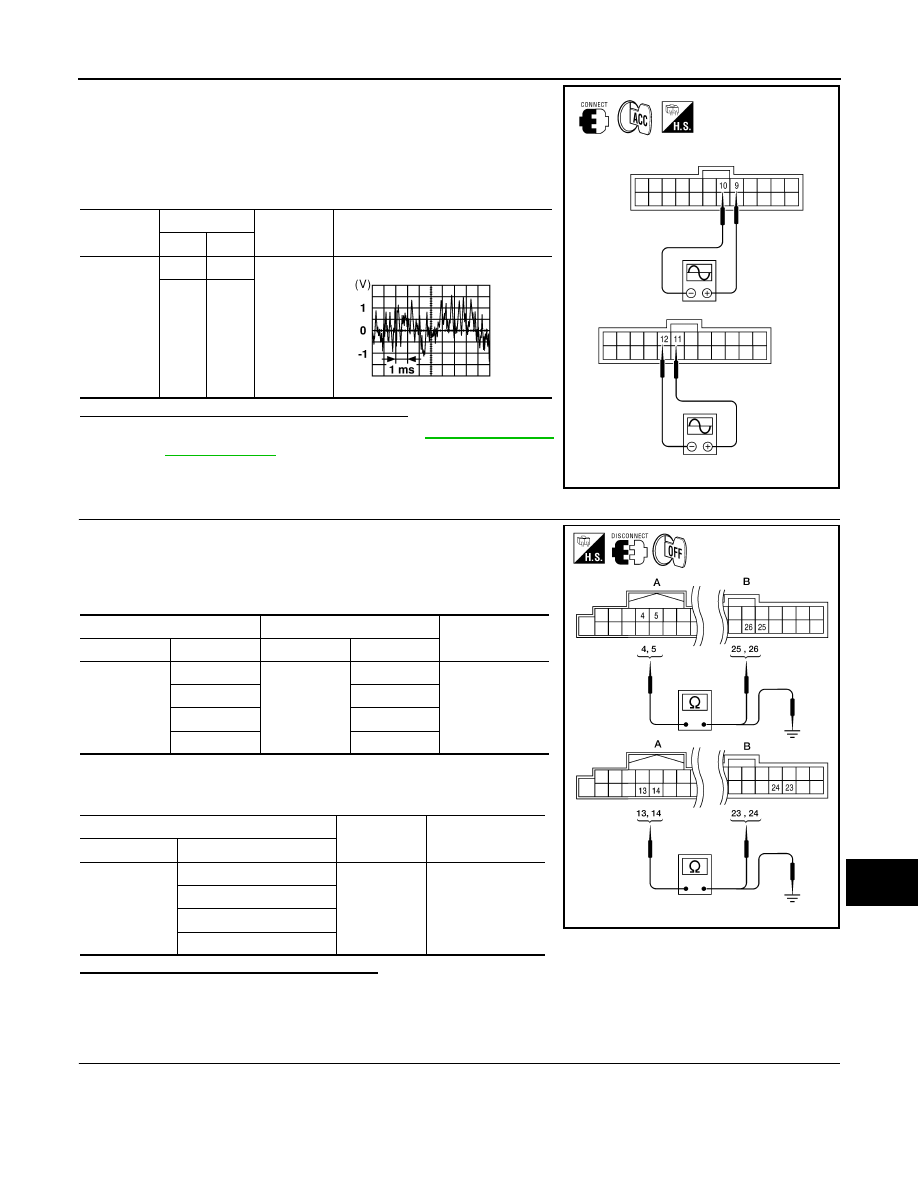

1.

Connect BOSE speaker amp. connectors and suspect speaker
connector.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between BOSE speaker amp. harness connec-
tors B75 terminals with CONSULT-III or oscilloscope.

Are audio signal voltage readings as specified?

YES

>> Replace suspect speaker. Refer to

AV-427, "Removal

and Installation"

.

NO

>> GO TO 3

3.

HARNESS CHECK

1.

Disconnect AV control unit connector M42 and BOSE speaker
amp. connector B75.

2.

Check continuity between AV control unit harness connector
M42 (A) and BOSE speaker amp. harness connector B75 (B).

3.

Check continuity between AV control unit harness connector
M42 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

REAR DOOR SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B75

9

10

Receive
audio sig-
nal

11

12

ALNIA0534GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M42

4

B75

26

Yes

5

25

13

24

14

23

A

—

Continuity

Connector

Terminal

M42

4

Ground

No

5

13

14

ALNIA0551GB
