Nissan Pathfinder (2008 year). Manual - part 54

AV-272

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000001316044

BOSE SPEAKER AMP.

Removal

CAUTION:

Front seat LH removed to show a full view of (bose speaker amp.).
NOTE:
In order to remove the bose speaker amp. bracket, the front seat LH will have to be removed.
1.

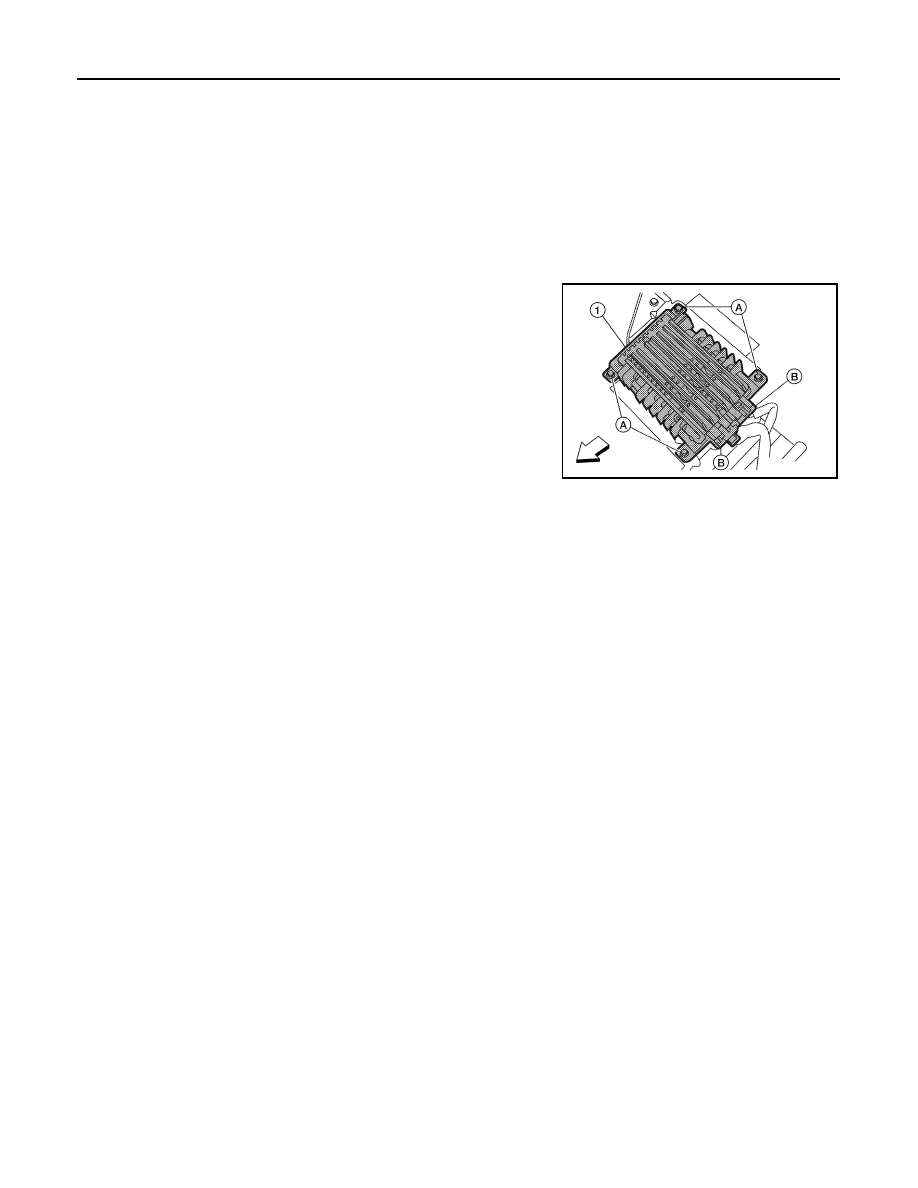

Position the front seat LH all the way forward, remove the bose
speaker amp. screws (A), disconnect the bose speaker amp.
connectors (B).

2.

Position the front seat LH all the way back, remove the bose
speaker amp. screws (A) and remove the bose speaker (amp.).
•

⇒

: Vehicle front

Installation

Installation is in the reverse order of removal.

ALNIA0375ZZ

AV

WOOFER

AV-273

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WOOFER

Removal and Installation

INFOID:0000000001316063

SUBWOOFER (BOSE SYSTEM)

Removal

1.

Disconnect the battery negative terminal.

2.

Remove the luggage side lower finisher LH. Refer to

INT-19, "Removal and Installation"

.

3.

Remove subwoofer bolts and nuts.

4.

Disconnect the subwoofer connector and remove the subwoofer.

Installation

Installation is in the reverse order of removal.

1.

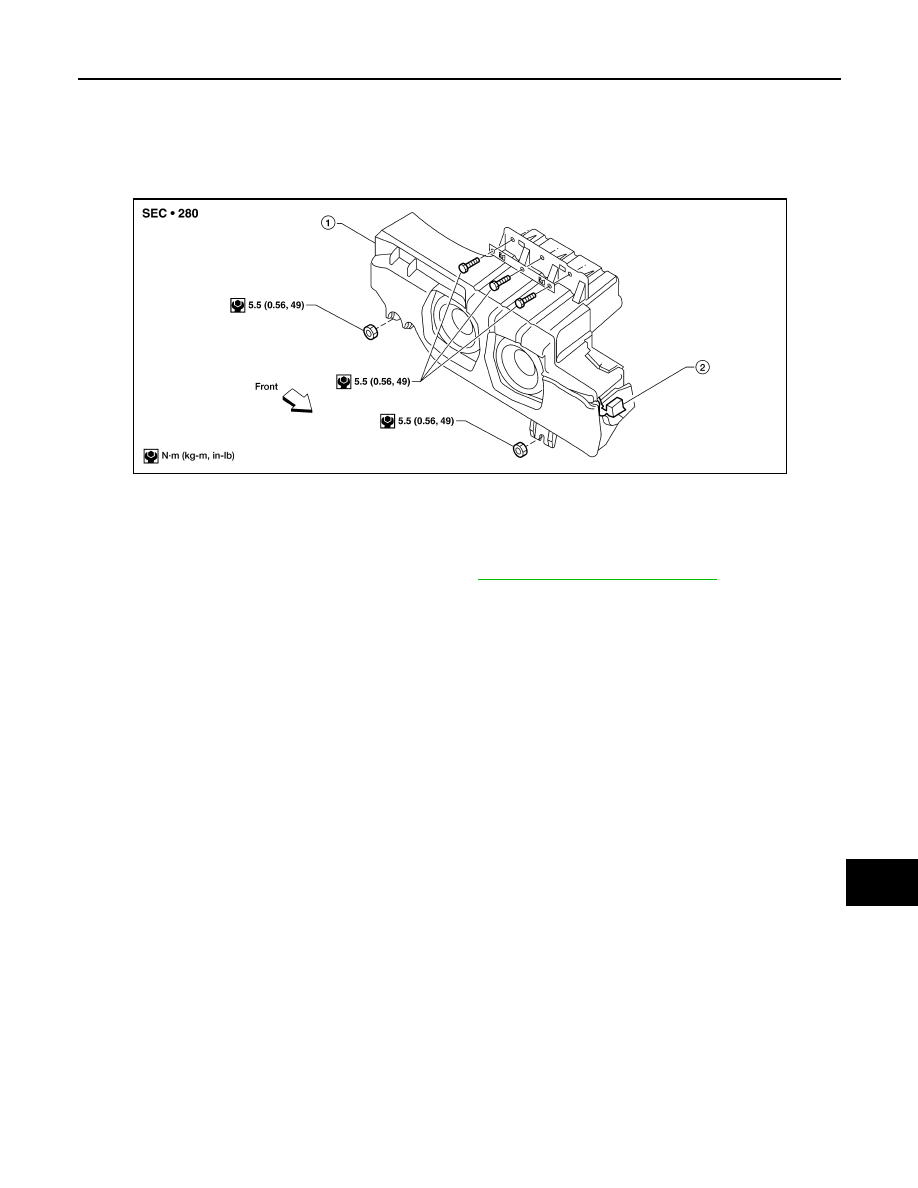

Subwoofer (Bose system)

2.

Subwoofer (Bose system) connector

WKIA3712E

AV-274

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

DVD ENTERTAINMENT SYSTEM

DVD ENTERTAINMENT SYSTEM

Removal and Installation

INFOID:0000000001316080

For removal and installation, refer to

AV-141, "Removal and Installation"

.

AV

AUDIO ANTENNA

AV-275

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA

Location of Antenna

INFOID:0000000001316050

For location of antenna, refer to

AV-142, "Location of Antenna"

.

Window Antenna Repair

INFOID:0000000001316051

For window antenna repair, refer to

AV-142, "Window Antenna Repair"

.

AV-276

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000001316057

For removal and installation, refer to

AV-145, "Removal and Installation"

.

AV

SATELLITE RADIO ANTENNA

AV-277

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000001316054

For removal and installation, refer to

AV-144, "Removal and Installation"

.

AV-278

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000001322706

For removal and installation, refer to

AV-146, "Removal and Installation"

.

AV

REAR VIEW CAMERA CONTROL UNIT

AV-279

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA CONTROL UNIT

Removal and Installation

INFOID:0000000001322707

For removal and installation, refer to

AV-147, "Removal and Installation"

.
