AV-136

< ON-VEHICLE REPAIR >

[MID AUDIO]

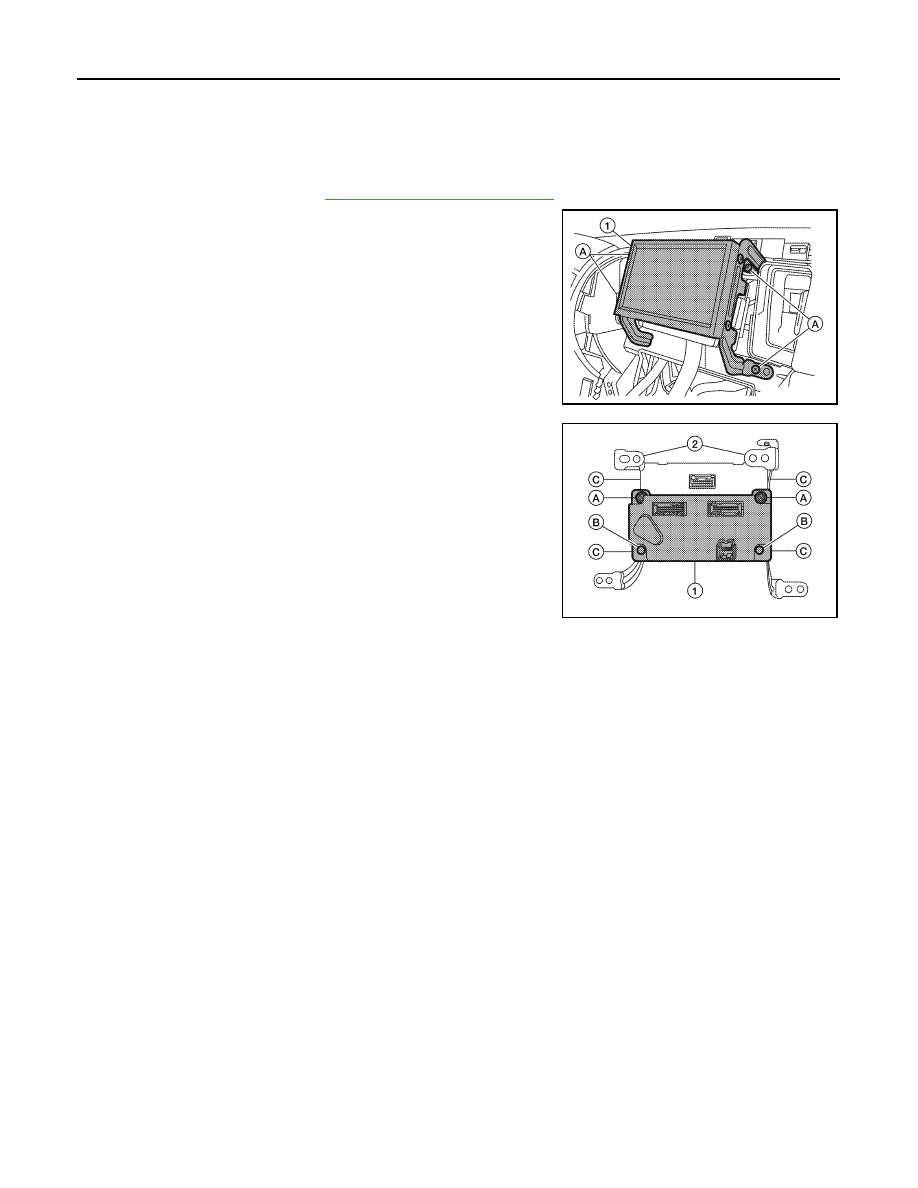

DISPLAY UNIT

DISPLAY UNIT

Removal and Installation

INFOID:0000000001316756

REMOVAL

1.

Remove Cluster lid C. Refer to

IP-10, "Removal and Installation"

.

2.

Remove the display unit screws (A).

3.

Pull out the display unit (1), then disconnect the display unit con-
nectors and remove the display unit (1).

4.

Remove the A/C auto amp.screws (A), remove the (C103) fas-
teners (B) from the display unit assembly brackets and remove
the A/C auto amp. (1).

5.

Remove the display unit bracket unit screws (C) and remove the
display unit brackets (2).

INSTALLATION

Installation is in reverse order of removal.

ALNIA0358ZZ

ALNIA0359ZZ

AV

FRONT TWEETER

AV-137

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER

Removal and Installation

INFOID:0000000001316035

For removal and installation, refer to

AV-33, "Removal and Installation"

.

AV-138

< ON-VEHICLE REPAIR >

[MID AUDIO]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000001316036

For removal and installation, refer to

AV-34, "Removal and Installation"

.

AV

REAR DOOR SPEAKER

AV-139

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000001317835

For removal and installation, refer to

AV-35, "Removal and Installation"

.

AV-140

< ON-VEHICLE REPAIR >

[MID AUDIO]

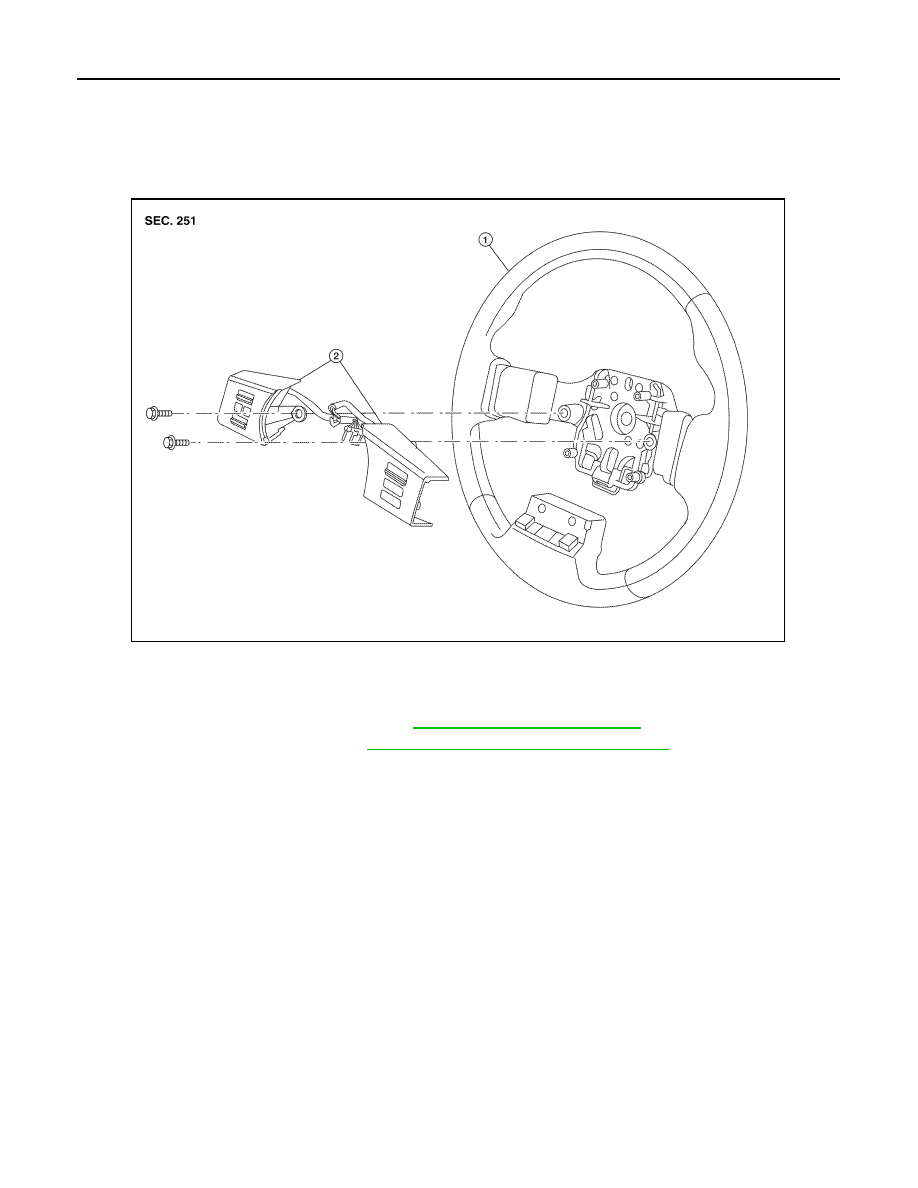

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000001317747

Removal and Installation

REMOVAL

1.

Remove the driver air bag module. Refer to

SR-4, "Removal and Installation"

.

2.

Remove the steering wheel. Refer to

ST-12, "On-Vehicle Inspection and Service"

.

3.

Remove the steering wheel rear cover.

4.

Remove the steering wheel audio control switch assembly screws.

5.

Disconnect the steering wheel audio control switches connector and remove the steering wheel audio
control switches.

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

AV

DVD ENTERTAINMENT SYSTEM

AV-141

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

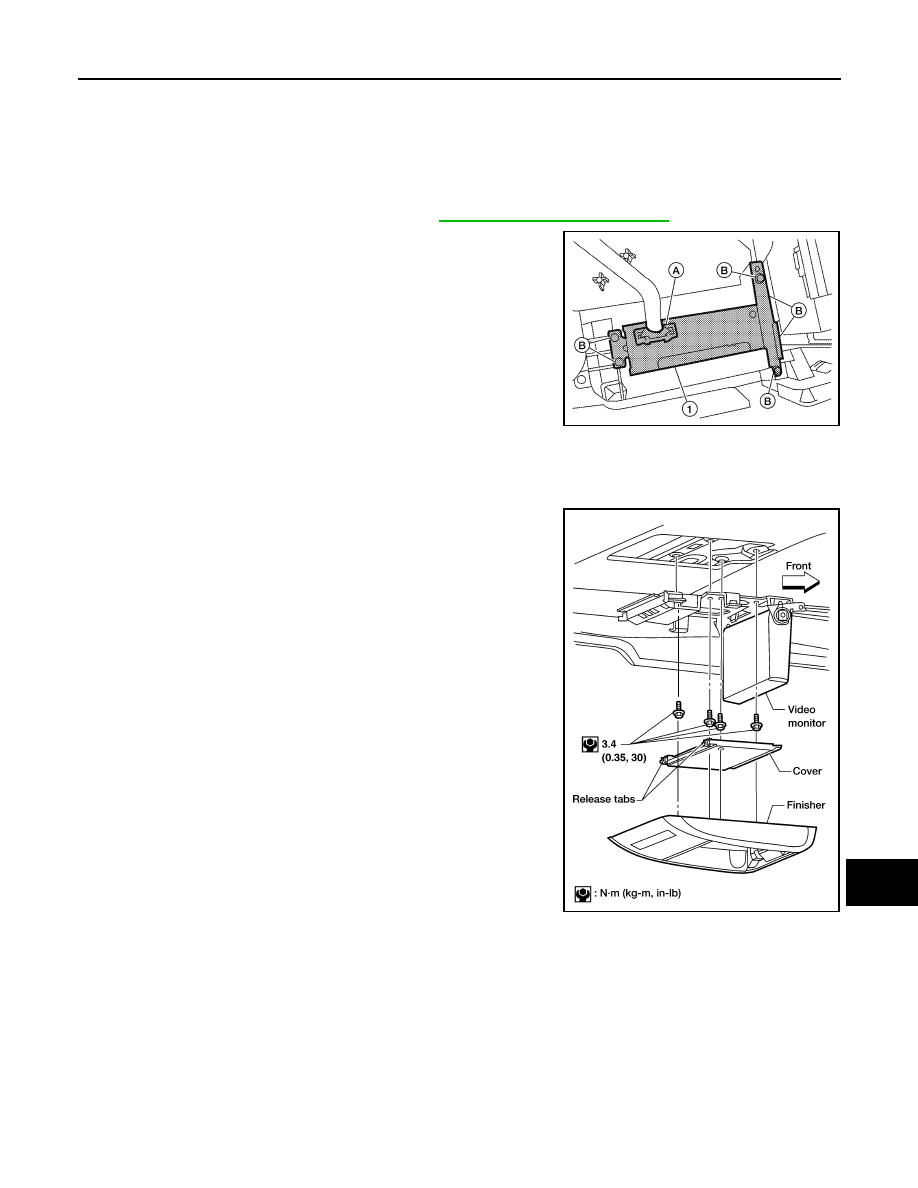

DVD ENTERTAINMENT SYSTEM

Removal and Installation

INFOID:0000000001322705

REMOVAL DVD PLAYER

1.

Disconnect the battery negative terminal.

2.

Remove the center console assembly. Refer to

IP-10, "Removal and Installation"

.

3.

Disconnect the DVD player connector (A).

4.

Remove the DVD player screws (B), then remove the DVD
player.

5.

Remove the DVD player bracket screws and then remove DVD
player brackets.

INSTALLATION

Installation is in reverse order of removal.

REMOVAL

1.

Release the clips and remove the DVD video monitor finisher
from headlining.

2.

Press the release tabs and remove the cover.

3.

Remove the video monitor screws.

4.

Gently lower the assembly and disconnect the connector, then
remove the video monitor from the headlining.

INSTALLATION

Installation is in reverse order of removal.

ALNIA0360ZZ

WKIA3714E

AV-142

< ON-VEHICLE REPAIR >

[MID AUDIO]

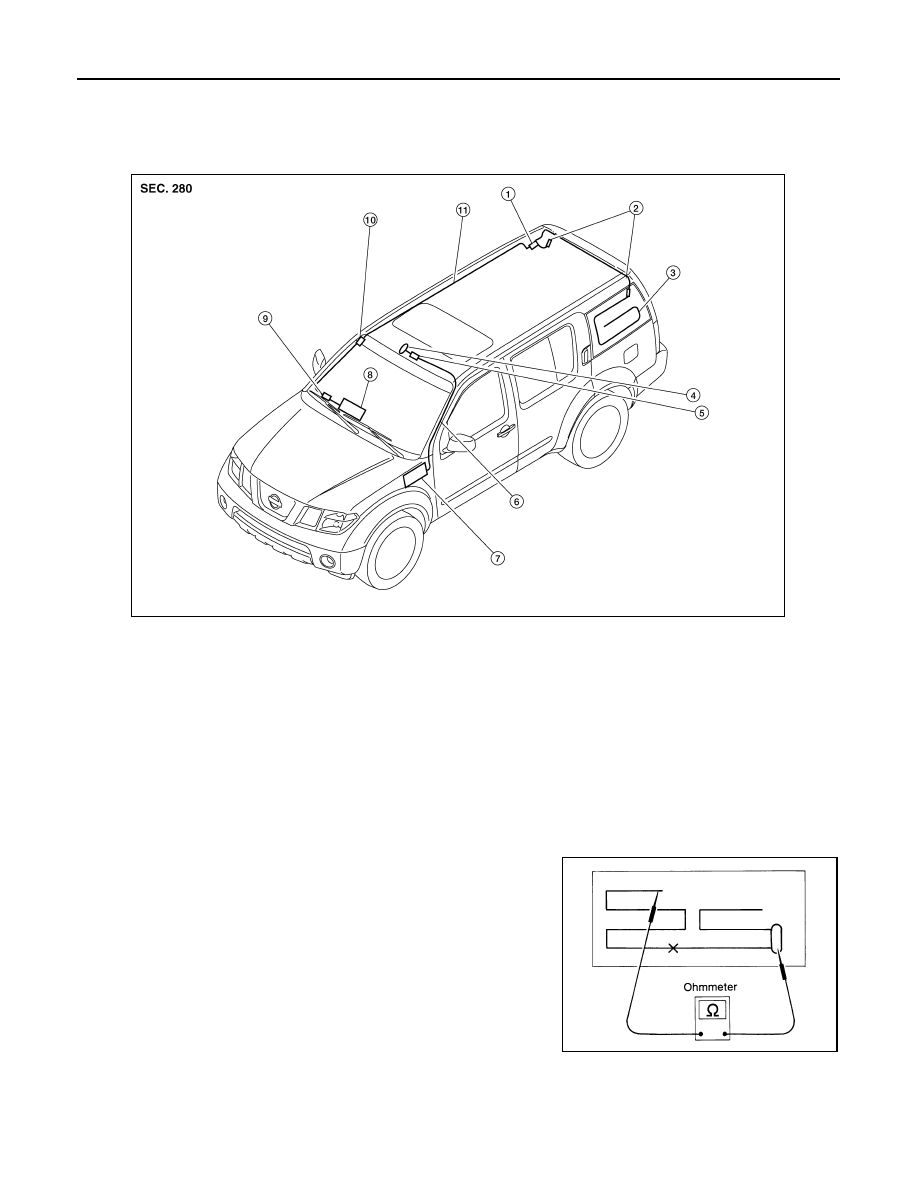

AUDIO ANTENNA

AUDIO ANTENNA

Location of Antenna

INFOID:0000000001317780

Window Antenna Repair

INFOID:0000000001317781

ELEMENT CHECK

1.

Attach probe circuit tester (ohm setting) to antenna terminal on
each side.

1.

Antenna amp.
M602

2.

Window antenna grid connector bracket

3.

Window antenna grid

4.

Satellite antenna
M351

5.

Harness connector
M73, M350

6.

Satellite antenna feeder

7.

Satellite radio tuner
M41, M129

8.

Audio unit M44

9.

Harness connector
M48, M501

10. Harness connector

M502, M601

11.

Antenna feeder

WKIA4984E

SEL250I

AV

AUDIO ANTENNA

AV-143

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

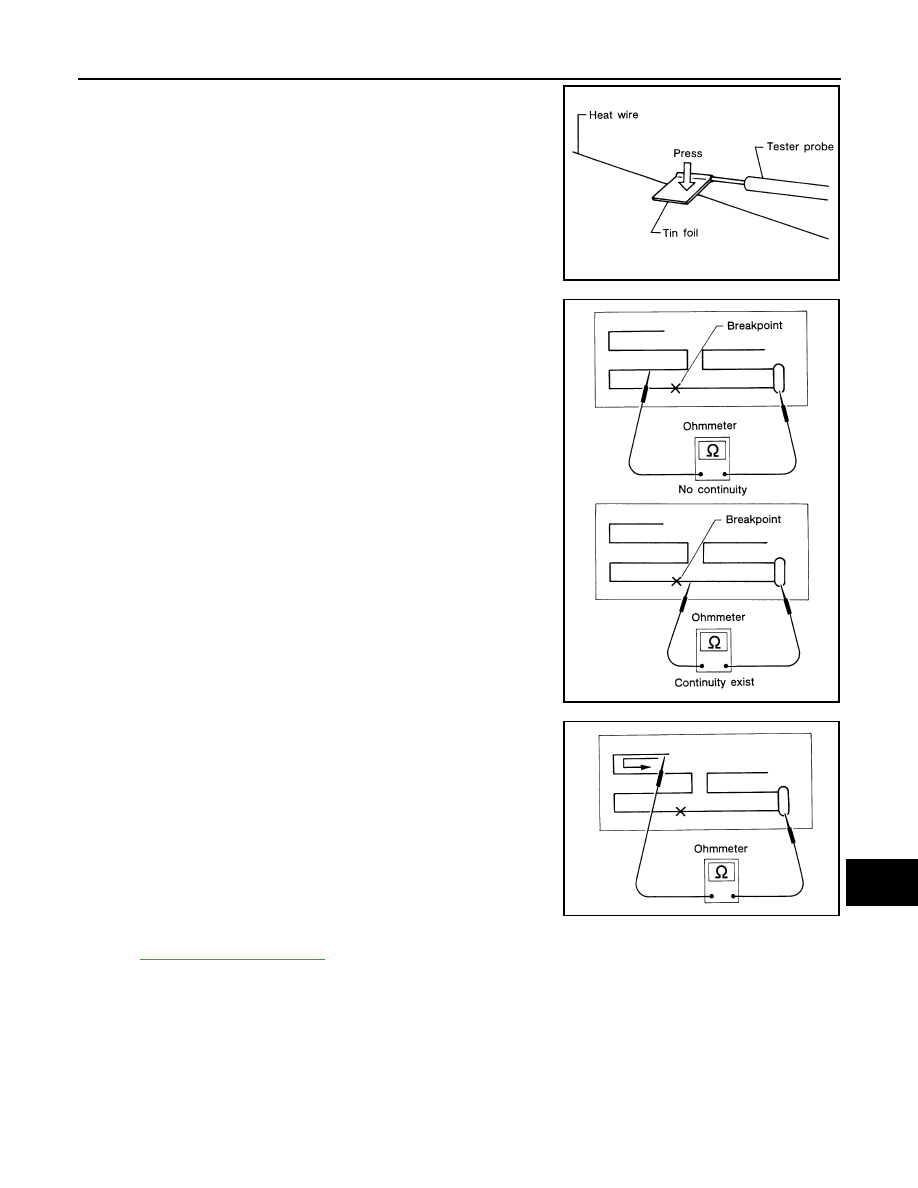

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-
ger.

2.

If an element is broken, no continuity will exist.

3.

To locate a break, move probe along element. Tester indication
will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-34, "Filament Repair"

.

SEL122R

SEL252I
