AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Sensors

OUTPUT PARTS

MANUAL FUNCTION

Pedal adjusting switch

The following switch is installed.
• Pedal forward
• Pedal backward
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Item

Function

Door mirror sensor (LH/RH)

Detect the up/down and left/right position of outside mirror face.

Pedal adjusting sensor

Detect the forward/backward position of pedal assembly.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor (LH/RH)

Move the outside mirror face upward/downward and leftward/rightward.

Pedal adjusting motor

Move the pedal assembly forward/backward.

Lifting motor (front)

Move the seat lifting (front) upward/downward.

Lifting motor (rear)

Move the seat lifting (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat forward/backward.

Seat memory indicator

Illuminates or flashes according to the registration/operation status.

ADP-12

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

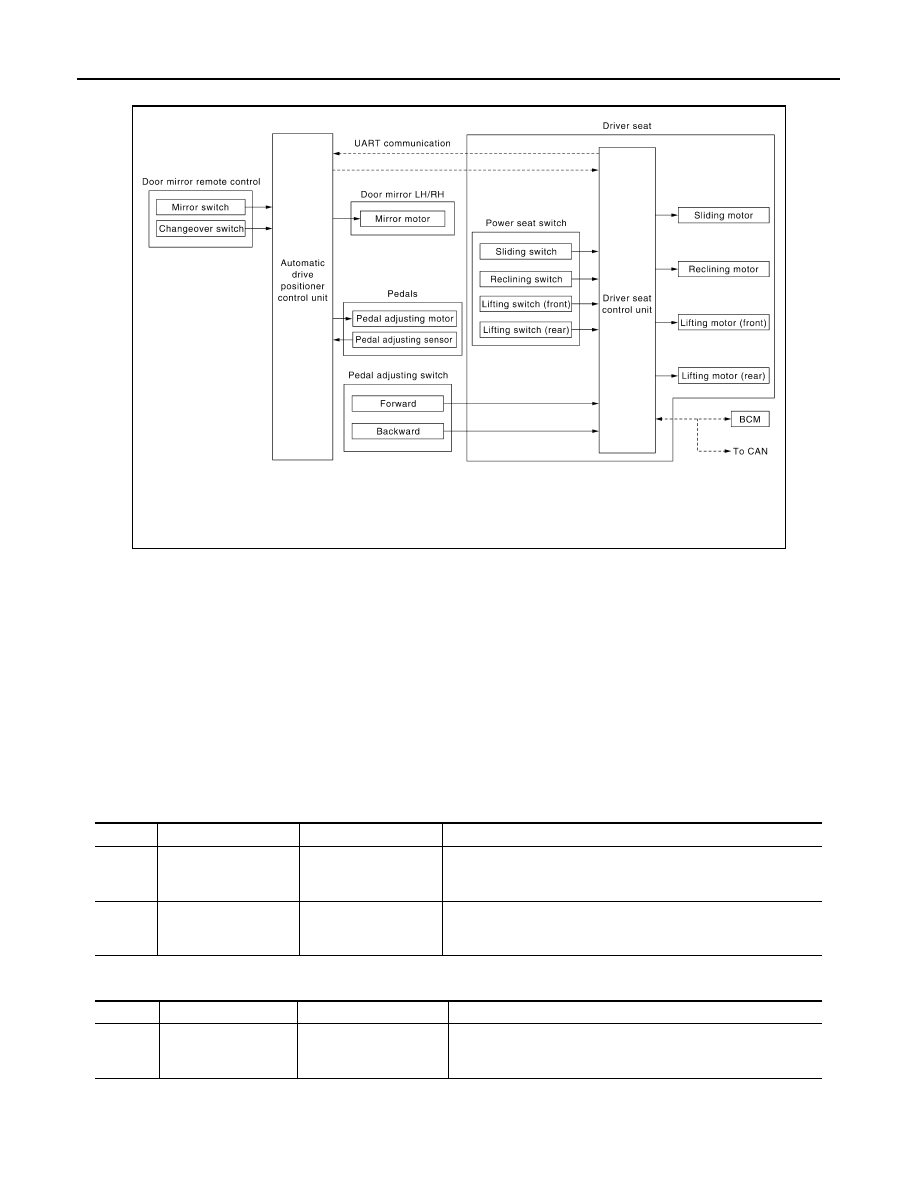

MANUAL FUNCTION : System Diagram

INFOID:0000000001710961

MANUAL FUNCTION : System Description

INFOID:0000000001710962

OUTLINE

The driving position (seat, pedal assembly and door mirror position) can be adjusted manually with power seat
switch, pedal adjusting switch and door mirror remote control switch.

OPERATION PROCEDURE

1.

Turn ignition switch ON.

2.

Operate power seat switch, pedal adjusting switch or door mirror remote control switch.

3.

The driver seat, pedal assembly or door mirror operates according to the operation of each switch.

DETAIL FLOW

Seat

Adjustable pedals

ALJIA0185GB

Order

Input

Output

Control unit condition

1

Power seat switch
(sliding, lifting, reclin-
ing)

—

The power seat switch signal is inputted to the driver seat control
unit when the power seat switch is operated.

2

—

Motors
(sliding, lifting, reclin-
ing)

The driver seat control unit outputs signals to each motor accord-
ing to the power seat switch input signal.

Order

Input

Output

Control unit condition

1

Pedal adjusting switch

—

The pedal adjusting switch signal is input to the automatic drive
positioner control unit when the pedal adjusting switch is operat-
ed.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Door Mirror

NOTE:
The door mirrors can be operated manually when ignition switch is in either ACC or ON position. The ignition
switch signal (ACC/ON) is transmitted from BCM to the driver seat control unit via CAN communication and
from the driver seat control unit to the automatic drive positioner control unit via UART communication.

MANUAL FUNCTION : Component Parts Location

INFOID:0000000001710963

2

—

Motor

The automatic drive positioner control unit actuates the motor ac-
cording to the operation of the pedal adjusting switch signal from
the driver seat control unit.

3

Sensors
(forward, backward)

—

The automatic drive positioner control unit recognizes any oper-
ation limit of each actuator via each sensor and will not operate
the actuator anymore at that time.

Order

Input

Output

Control unit condition

Order

Input

Output

Control unit condition

1

Door mirror remote
control switch

—

The door mirror remote control switch signal is inputted to the au-
tomatic drive positioner control unit when the door mirror remote
control switch is operated.

2

—

Motors
(Door mirror motor)

The automatic drive positioner control unit actuates each motor
according to the operation of the door mirror remote control switch.

LIIA2405E

ADP-14

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

MANUAL FUNCTION : Component Description

INFOID:0000000001710964

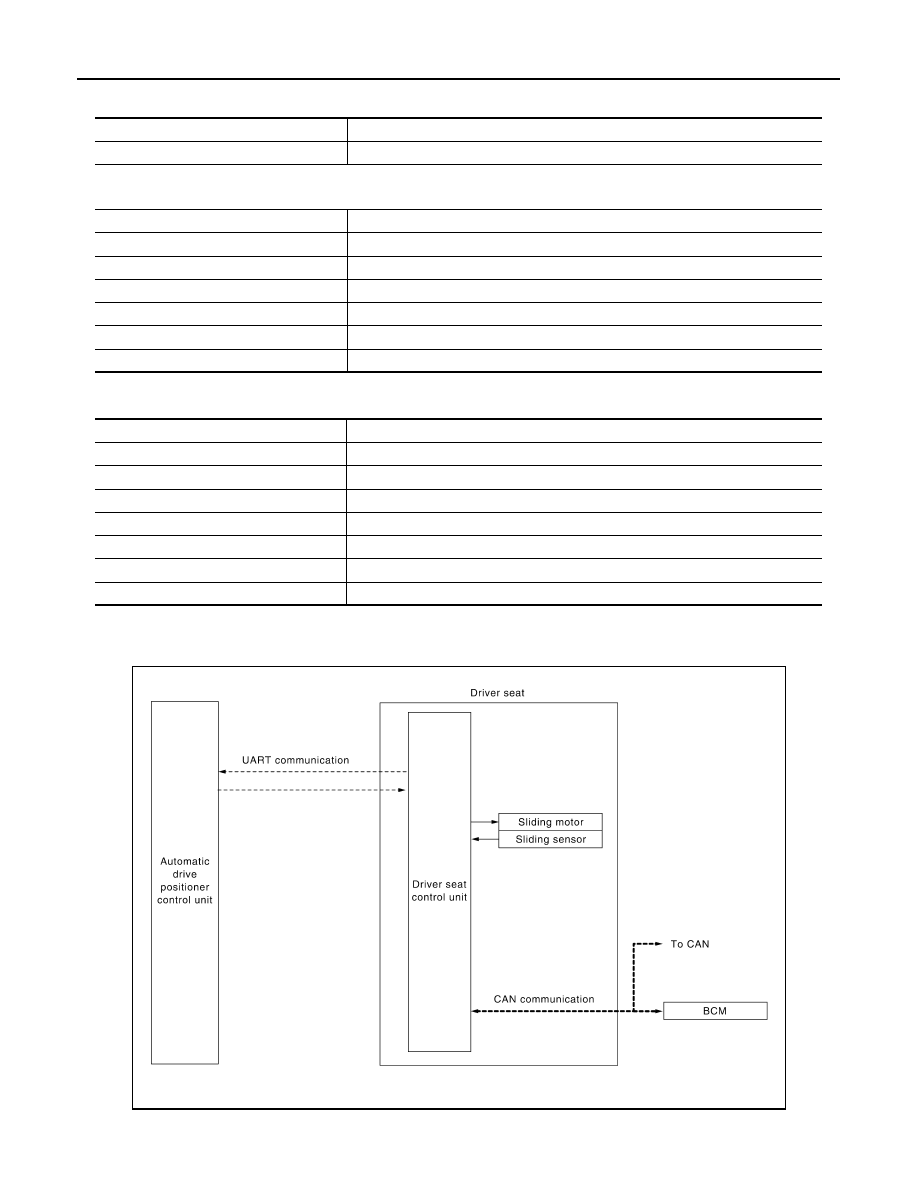

CONTROL UNITS

INPUT PARTS

Switches

Sensors

OUTPUT PARTS

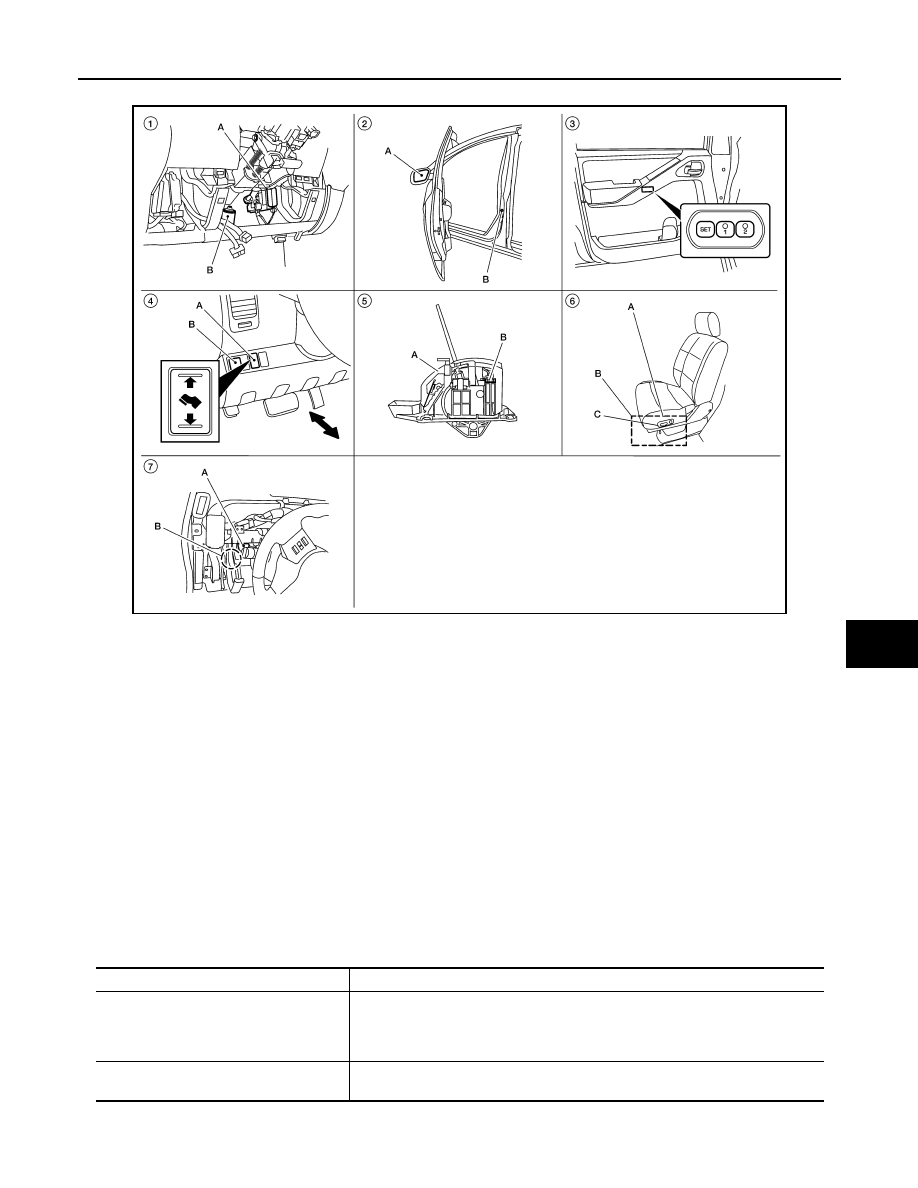

1.

A. BCM M18, M19, M20
B. Pedal adjusting motor E109, E110
(view with lower instrument panel LH
removed)

2.

A. Door mirror LH D4, RH D107
B. Front door switch LH B8

3.

Seat memory switch D5

4.

A. Pedal adjusting switch M96
B. Door mirror remote control switch
M159

5.

A. A/T device
B. A/T device (park position switch)
M156

6.

A. Sliding motor LH B204, reclining
motor LH B205, lifting motor (front)
B206, lifting motor (rear) B207
B. Driver seat control unit B202,
B203
C. Power seat switch LH B208
(front seat LH view)

7.

A. Automatic drive positioner control
unit M33, M34
B. Circuit breaker-2 (view with instru-
ment panel removed)

Item

Function

Driver seat control unit

• Operates the specific seat motor with the signal from the power seat switch.
• Transmits the ignition switch signal (ACC/ON) via UART communication to the

automatic drive positioner control unit.

• Transmits the pedal adjusting switch signal via UART communication to the au-

tomatic drive positioner control unit.

Automatic drive positioner control unit

Operates the specific motor with the signal from driver seat control unit or door mir-
ror remote control switch.

BCM

Recognizes the following status and transmits it to the driver seat control unit via
CAN communication.
• Ignition position: ACC/ON

Item

Function

Power seat switch

The following switch is installed.
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch
The specific parts can be operated with the operation of each switch.

Pedal adjusting switch

The following switch is installed.
• Pedal forward
• Pedal backward
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Pedal adjusting sensor

Detect the forward/backward position of pedal assembly.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

MEMORY FUNCTION

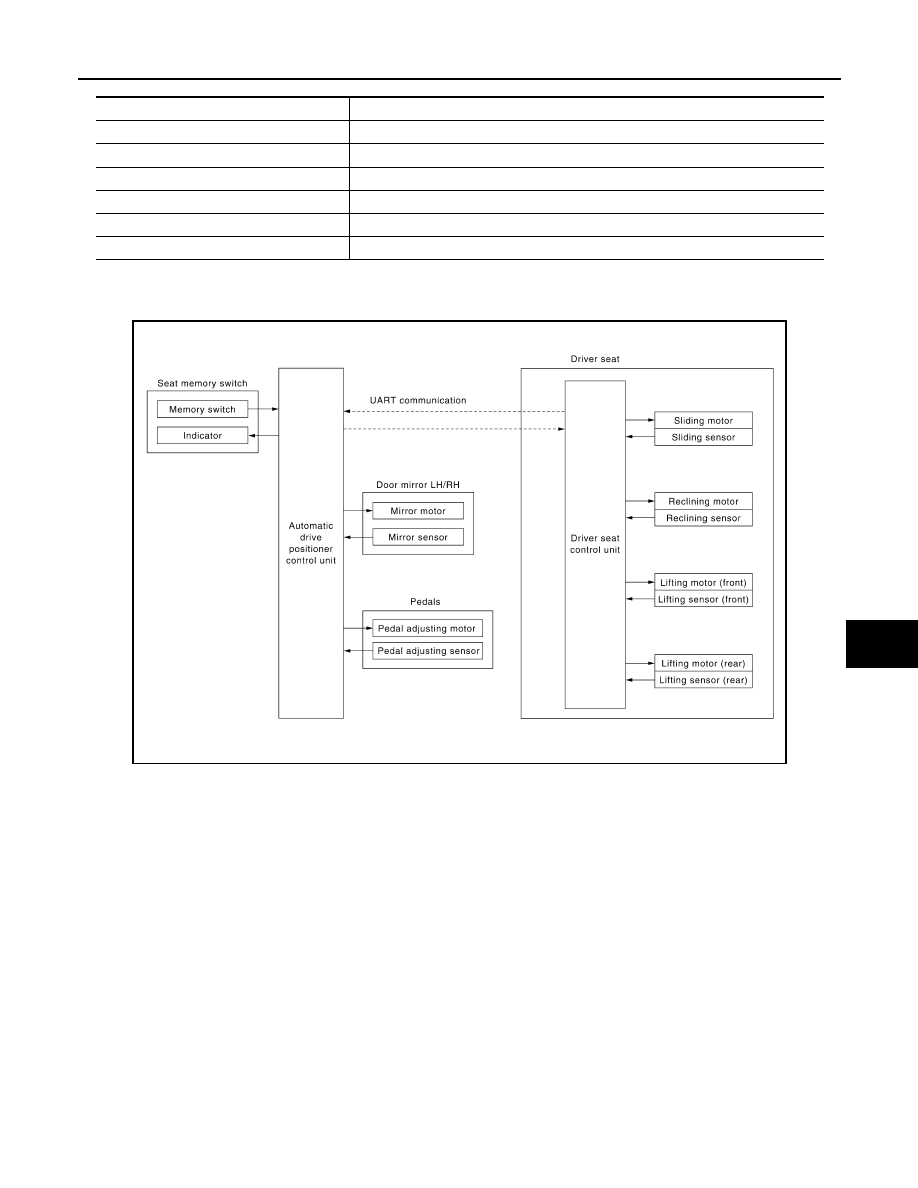

MEMORY FUNCTION : System Diagram

INFOID:0000000001710965

MEMORY FUNCTION : System Description

INFOID:0000000001710966

OUTLINE

The driver seat control unit can store the optimum driving positions (seat, pedal assembly and door mirror
position) for 2 people. If the front seat position is changed, one-touch (pressing desired memory switch for
more than 0.5 second) operation allows changing to the other driving position.
NOTE:
Further information for the memory storage procedure. Refer to Owner’s Manual.

OPERATION PROCEDURE

1.

Turn ignition switch ON

2.

Press desired memory switch for more than 0.5 second.

3.

Front seat LH, pedal assembly and door mirror will move to the memorized position.

OPERATION CONDITION

Satisfy all of the following items. The memory function is not performed if these items are not satisfied.

Item

Function

Door mirror motor (LH/RH)

Move the outside mirror face upward/downward and leftward/rightward.

Pedal adjusting motor

Move the pedal assembly forward/backward.

Lifting motor (front)

Move the seat lifter (front) upward/downward.

Lifting motor (rear)

Move the seat lifter (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat forward/backward.

ALJIA0187GB

ADP-16

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

DETAIL FLOW

Item

Request status

Ignition position

ON

Switch inputs
• Power seat switch
• Pedal adjusting switch
• Door mirror control switch
• Set switch
• Seat memory switch

OFF

(Not operated)

A/T selector lever

P position

Order

Input

Output

Control unit condition

1

Memory switch

—

The memory switch signal is inputted to the automatic drive positioner
control unit when memory switch 1 or 2 is operated.
Memory switch signal is input to driver seat control unit via UART
communication.

2

—

Motors
(seat, pedal adjusting,
door mirror)

Driver seat control unit operates each motor of seat when it recogniz-
es the memory switch pressed for 0.5 second or more and requests
each motor operation to automatic drive positioner control unit via
UART communication. The automatic drive positioner control unit op-
erates each motor.

Memory switch Indica-
tor

Driver seat control unit requests the flashing of memory indicator to
automatic drive positioner control unit via UART communication while
either of the motors is operating. The automatic drive positioner con-
trol unit illuminates the memory indicator.

3

Sensors
(seat, pedal adjust-
ing, door mirror)

—

Driver seat control unit judges the operating seat position with each
seat sensor input. The positions of the adjustable pedals and outside
mirror are monitored with each sensor signal that is input from auto
drive positioner control unit via UART communication. Driver seat
control unit stops the operation of each motor when each part reach-
es the recorded address.

4

—

Memory switch Indica-
tor

Driver seat control unit requests the illumination of memory indicator
to auto drive positioner control unit via UART communication after all
motors stop. The auto driving positioner control unit illuminates the
memory indicator for 5 seconds.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

MEMORY FUNCTION : Component Parts Location

INFOID:0000000001710967

MEMORY FUNCTION : Component Description

INFOID:0000000001710968

CONTROL UNITS

INPUT PARTS

LIIA2405E

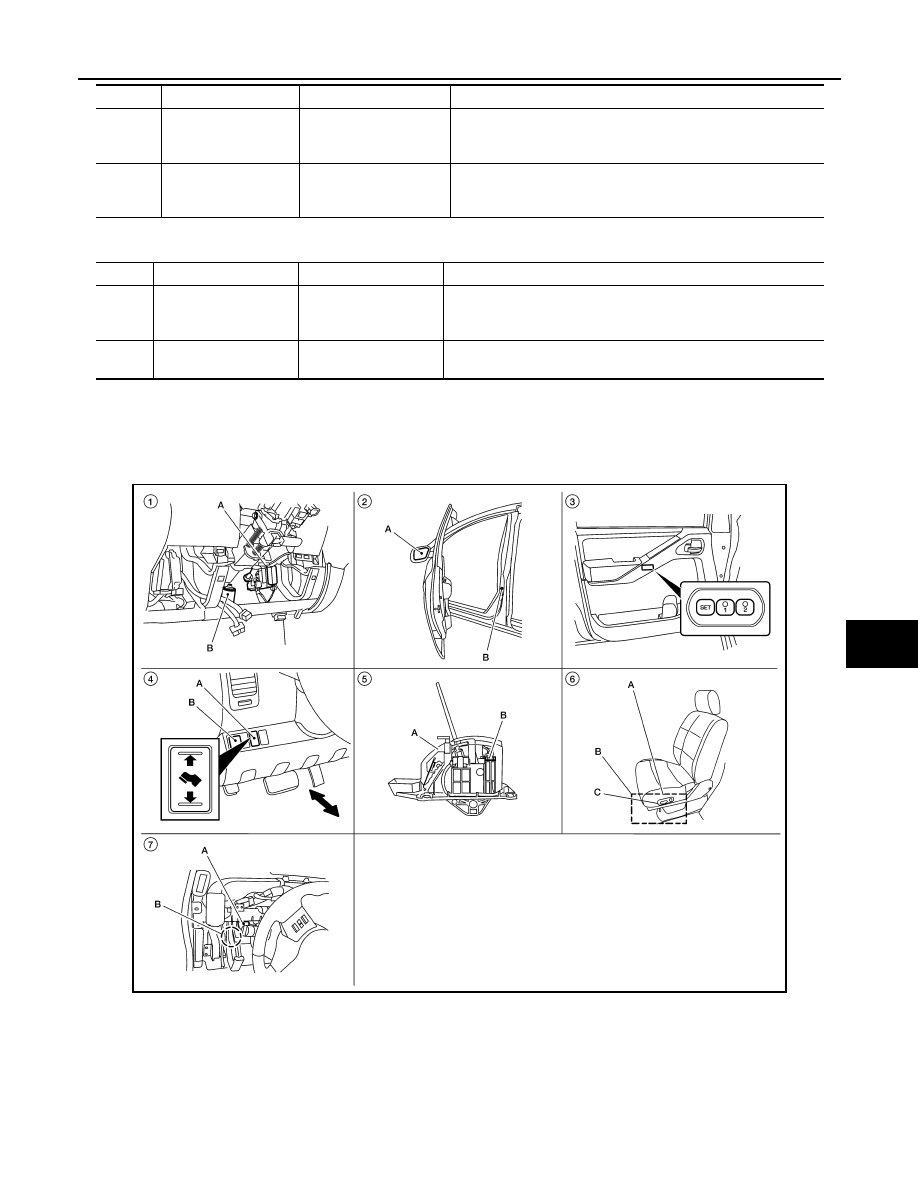

1.

A. BCM M18, M19, M20
B. Pedal adjusting motor E109, E110
(view with lower instrument panel LH
removed)

2.

A. Door mirror LH D4, RH D107
B. Front door switch LH B8

3.

Seat memory switch D5

4.

A. Pedal adjusting switch M96
B. Door mirror remote control switch
M159

5.

A. A/T selector lever
B. A/T device (park position switch)
M156

6.

A. Sliding motor LH B204, reclining
motor LH B205, lifting motor (front)
B206, lifting motor (rear) B207
B. Driver seat control unit B202,
B203
C. Power seat switch LH B208
(front seat LH view)

7.

A. Automatic drive positioner control
unit M33, M34
B. Circuit breaker-2 (view with instru-
ment panel removed)

Item

Function

Driver seat control unit

• The address of each part is recorded.
• Operates each motor of seat to the registered position.
• Requests the operations of pedal assembly and door mirror to automatic drive po-

sitioner control unit

Automatic drive positioner control unit

Operates the pedal adjusting motor and door mirror with the instructions from the
driver seat control.

ADP-18

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

Switches

Sensors

OUTPUT PARTS

EXIT ASSIST FUNCTION

EXIT ASSIST FUNCTION : System Diagram

INFOID:0000000001710969

Item

Function

Memory switch 1/2

The registration and memory function can be performed with its operation.

Item

Function

Door mirror sensor (LH/RH)

Detect the up/down and left/right position of outside mirror face.

Pedal adjusting sensor

Detect the forward/backward position of pedal assembly.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor (LH/RH)

Move the outside mirror face upward/downward and leftward/rightward.

Pedal adjusting motor

Move the pedal assembly forward/backward.

Lifting motor (front)

Move the seat lifter (front) upward/downward.

Lifting motor (rear)

Move the seat lifter (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat forward/backward.

Memory indicator

Illuminates or blinks according to the registration/operation status.

ALJIA0188GB















Content      ..     1      2      3      4      ..
