CHASSIS AND BODY MAINTENANCE

MA-27

C

D

E

F

G

H

I

J

K

M

A

B

MA

2007 Pathfinder

●

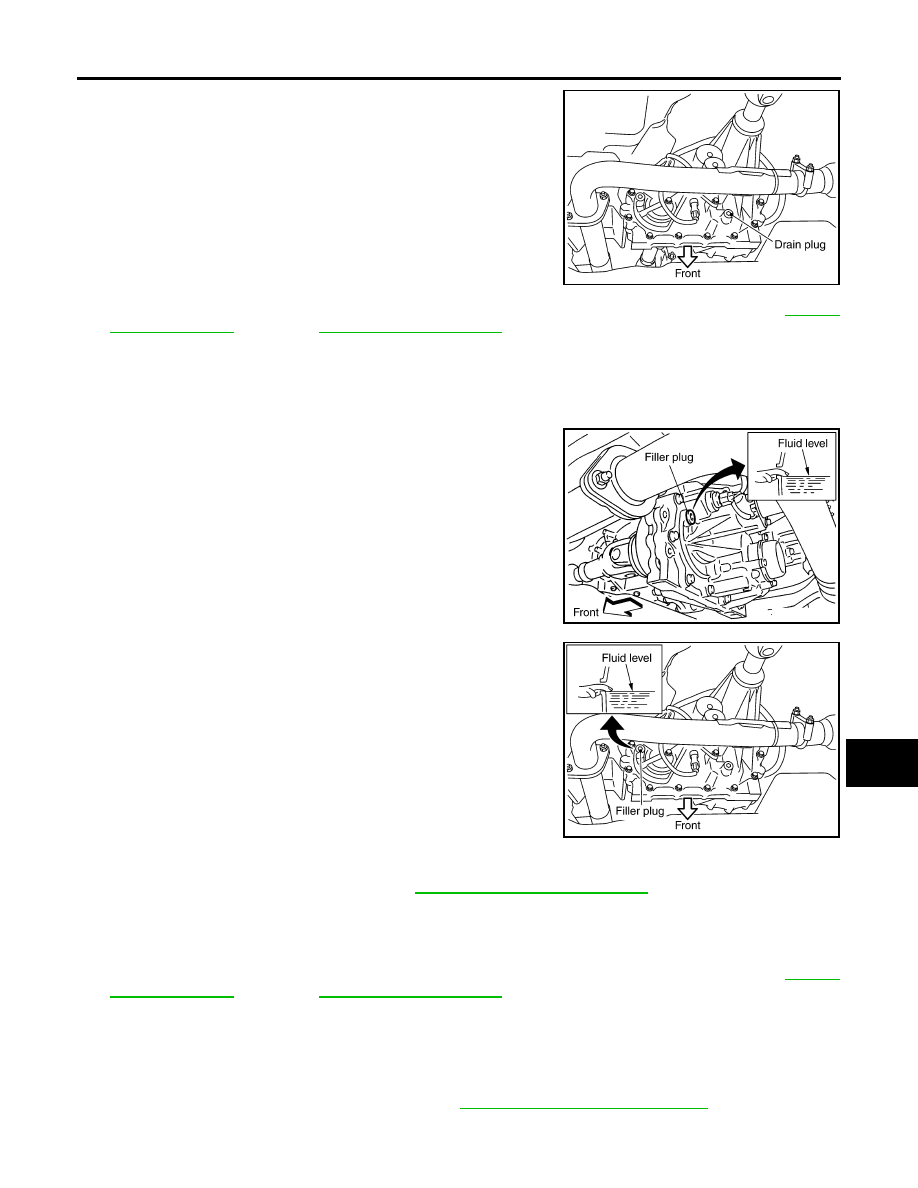

Remove the TX15B drain plug as shown.

3.

Install the drain plug with a new gasket to the transfer. Tighten to the specified torque. Refer to

TF-146,

"COMPONENTS"

  (ATX14B),

TF-278, "COMPONENTS"

  (TX15B).

CAUTION:

Do not reuse gasket.

FILLING

1.

Remove the filler plug and gasket.

●

Check the ATX14B as shown.

●

Check the TX15B as shown.

2.

Fill the transfer with new fluid until the fluid level reaches the specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

3.

Leave the vehicle for 3 minutes, and check fluid level again.

4.

Install the filler plug with a new gasket to the transfer. Tighten to the specified torque. Refer to

TF-146,

"COMPONENTS"

  (ATX14B),

TF-278, "COMPONENTS"

  (TX15B).

CAUTION:

Do not reuse gasket.

Checking Propeller Shaft

ELS001OU

Check the front and rear propeller shafts for damage, dents, and cracks. Check the joints for looseness and
any damage. Repair or replace as necessary. Refer to

PR-3, "NVH Troubleshooting Chart"

 .

SDIA3286E

SDIA3209E

SDIA3287E

Fluid grade and capacity

: Refer to

MA-11, "Fluids and Lubricants"

 .

MA-28

CHASSIS AND BODY MAINTENANCE

2007 Pathfinder

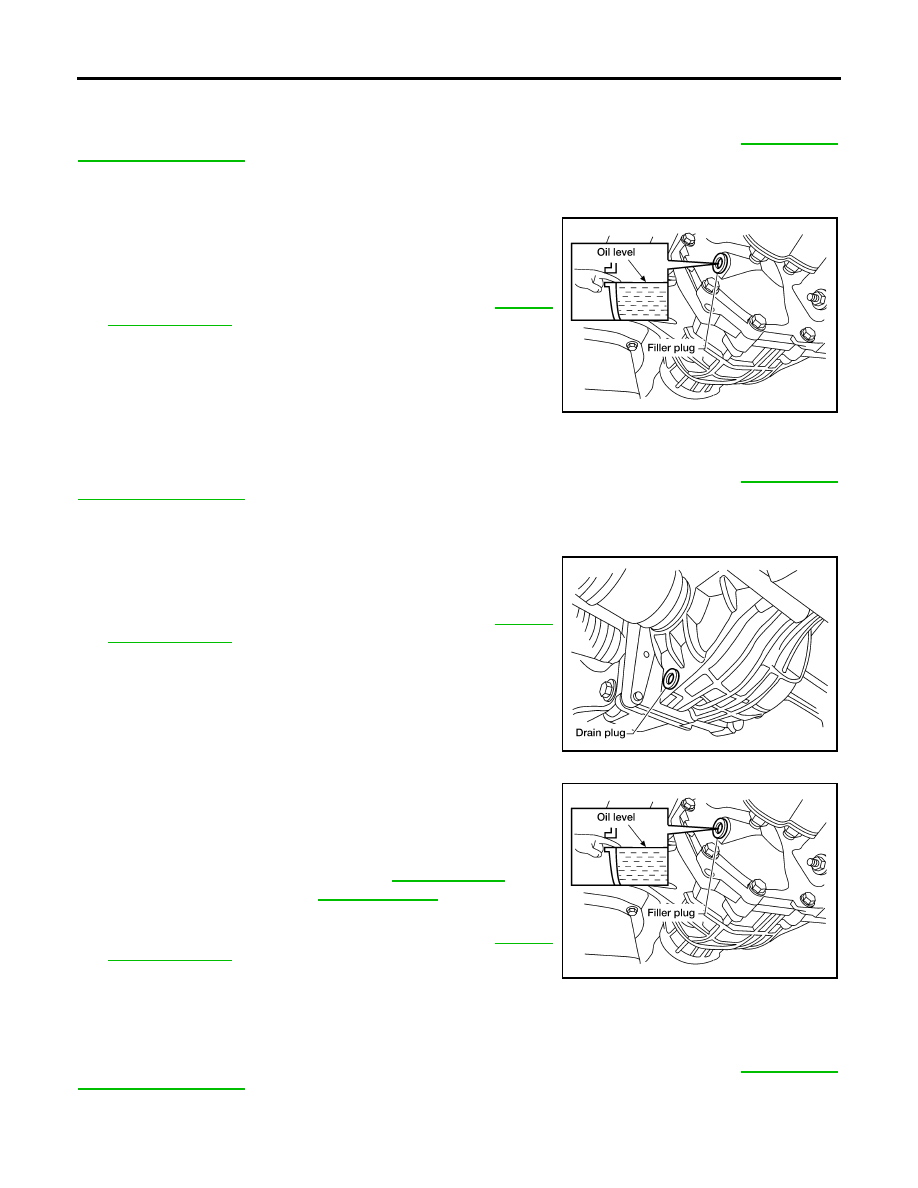

Checking Front Final Drive Oil

ELS001OV

CAUTION:

If using the vehicle for towing, the final drive oil must be replaced as specified. Refer to

MA-7, "PERI-

ODIC MAINTENANCE"

 .

OIL LEAKAGE AND OIL LEVEL

1.

Make sure that oil is not leaking from the final drive assembly or around it.

2.

Check oil level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking oil level.

3.

Install the filler plug with a new gasket on it to the final drive
assembly. Tighten to the specified torque. Refer to

FFD-15,

"COMPONENTS"

 .

CAUTION:

Do not reuse gasket.

Changing Front Final Drive Oil

ELS001OW

CAUTION:

If using the vehicle for towing, the final drive oil must be replaced as specified. Refer to

MA-7, "PERI-

ODIC MAINTENANCE"

 .

DRAINING

1.

Stop the engine.

2.

Remove the drain plug and gasket from the front final drive
assembly to drain the differential gear oil.

3.

Install the drain plug with a new gasket to the front final drive
assembly. Tighten to the specified torque. Refer to

FFD-15,

"COMPONENTS"

  .

CAUTION:

Do not reuse gasket.

FILLING

1.

Remove the filler plug and gasket from the front final drive
assembly.

2.

Fill the front final drive assembly with new differential gear oil
until the level reaches the specified level near the filler plug hole.

3.

Install the filler plug with a new gasket on it to the front final drive
assembly. Tighten to the specified torque. Refer to

FFD-15,

"COMPONENTS"

  .

CAUTION:

Do not reuse gasket.

Checking Rear Final Drive Oil

ELS001OX

CAUTION:

If using the vehicle for towing, the final drive oil must be replaced as specified. Refer to

MA-7, "PERI-

ODIC MAINTENANCE"

 .

OIL LEAKAGE AND OIL LEVEL

1.

Make sure that oil is not leaking from the final drive assembly or around it.

LDIA0176E

LDIA0175E

Differential gear oil
grade and capacity

: Refer to

MA-11, "Fluids

and Lubricants"

  .

LDIA0176E

CHASSIS AND BODY MAINTENANCE

MA-29

C

D

E

F

G

H

I

J

K

M

A

B

MA

2007 Pathfinder

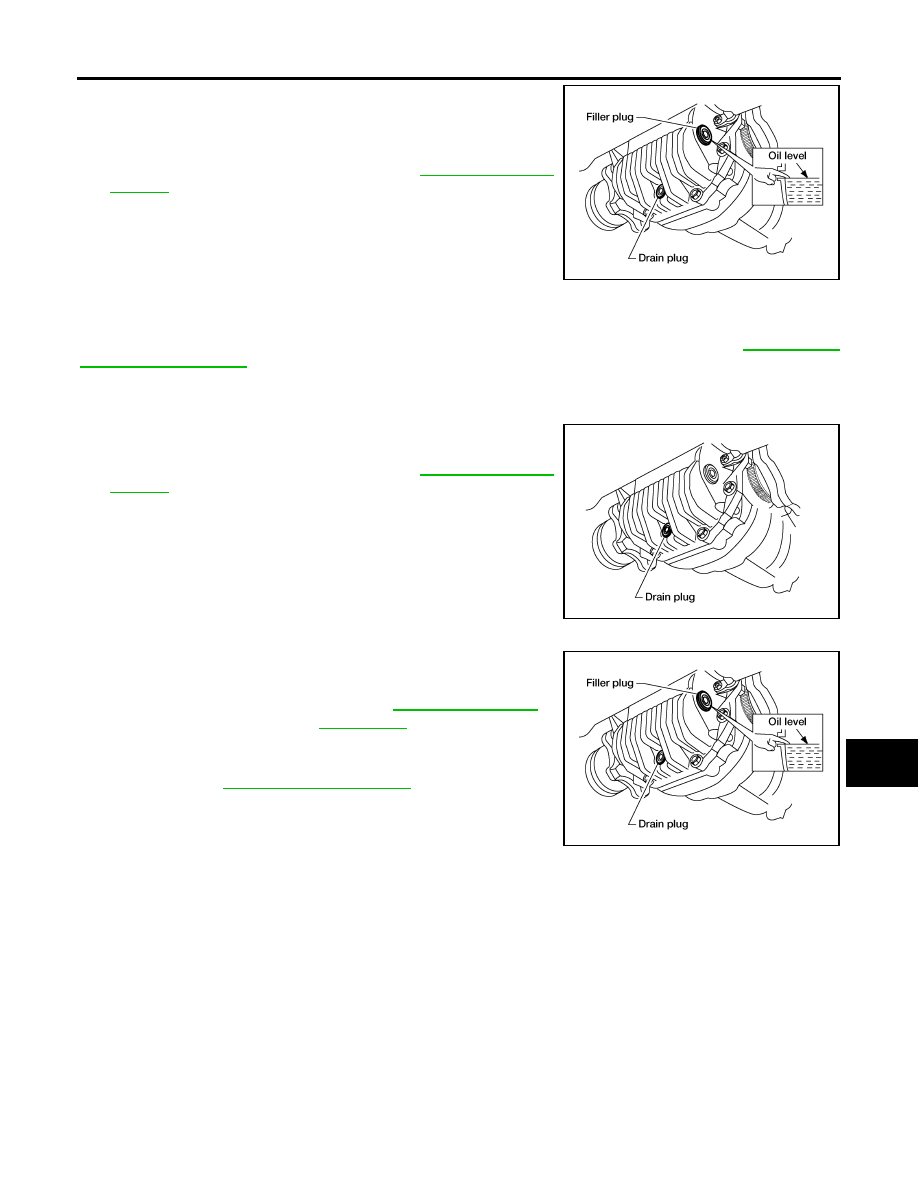

2.

Check the oil level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking oil level.

3.

Install the filler plug with a new gasket to the final drive assem-
bly. Tighten to the specified torque. Refer to

RFD-18, "COMPO-

NENTS"

 .

CAUTION:

Do not reuse gasket.

Changing Rear Final Drive Oil

ELS001OY

CAUTION:

If using the vehicle for towing, the final drive oil must be replaced as specified. Refer to

MA-7, "PERI-

ODIC MAINTENANCE"

 .

DRAINING

1.

Stop the engine.

2.

Remove the drain plug and gasket. Drain the gear oil.

3.

Install the drain plug with a new gasket to the final drive assem-
bly. Tighten to the specified torque. Refer to

RFD-18, "COMPO-

NENTS"

 .

CAUTION:

Do not reuse gasket.

FILLING

1.

Remove the filler plug and gasket. Fill with new gear oil until the
oil level reaches the specified level near the filler plug hole.

2.

After refilling oil, check the oil level. Install the filler plug with a
new gasket to the final drive assembly. Tighten to the specified
torque. Refer to

RFD-18, "COMPONENTS"

 .

CAUTION:

Do not reuse gasket.

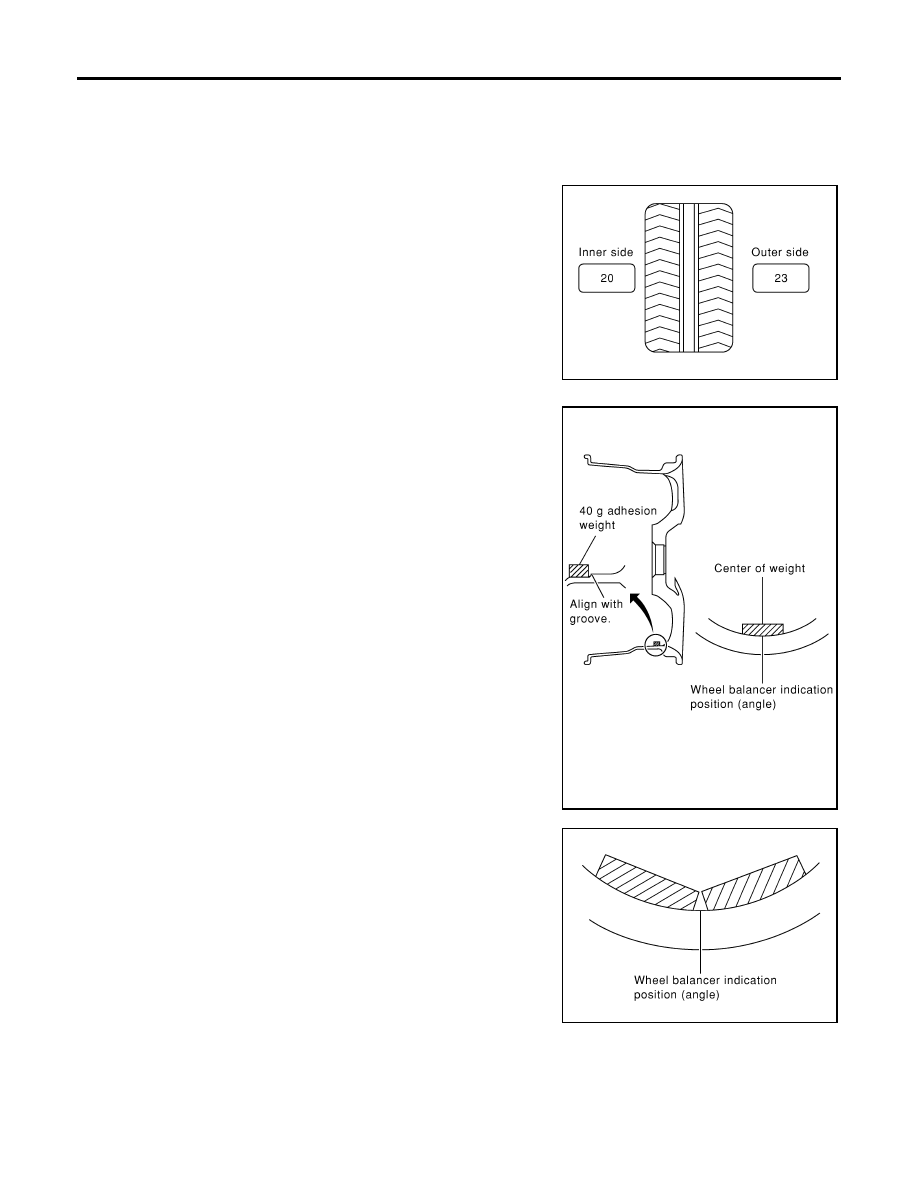

Balancing Wheels

ELS001OZ

WHEEL BALANCE REMOVAL

1.

Remove wheel and tire using power tool.

2.

Using releasing agent, remove double-faced adhesive tape from the wheel.

CAUTION:

●

Be careful not to scratch the wheel during removal.

●

After removing double-faced adhesive tape, wipe clean traces of releasing agent from the
wheel.

WHEEL BALANCE INSTALLATION AND ADJUSTMENT

●

If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting,
select and adjust a drive-in weight mode suitable for wheels.

1.

Set wheel on wheel balancer using the center hole as a guide. Start the tire balance machine.

2.

When inner and outer imbalance values are shown on the wheel balancer indicator, multiply outer imbal-
ance value by 1.6 to determine balance weight that should be used. Select the outer balance weight with

LDIA0163E

LDIA0162E

Oil grade and capacity

: Refer to

MA-11, "Fluids and

Lubricants"

 .

LDIA0163E

MA-30

CHASSIS AND BODY MAINTENANCE

2007 Pathfinder

a value closest to the calculated value and install it to the designated outer position of, or at the desig-
nated angle in relation to the road wheel.

CAUTION:

●

Do not install the inner balance weight before installing the outer balance weight.

●

Before installing the balance weight, be sure to clean the mating surface of the wheel.

Indicated imbalance value

×

 5/3 = balance weight to be installed

Calculation example:
23 g (0.81 oz)

×

 5/3 = 38.33 g (1.35 oz) = 40 g (1.41 oz) balance

weight (closer to calculated balance weight value)
Note that balance weight value must be closer to the calculated
balance weight value.
Example:
37.4 g = 35 g (1.23 oz)
37.5 g = 40 g (1.41 oz)

a.

Install balance weight in the position shown.

b.

When installing balance weight to wheels, set it into the grooved
area on the inner wall of the wheel as shown so that the balance
weight center is aligned with the wheel balancer indication posi-
tion (angle).

CAUTION:

●

Always use Genuine NISSAN adhesion balance weights.

●

Balance weights are not reusable; always replace with
new ones.

●

Do not install more than three sheets of balance weights.

c.

If calculated balance weight value exceeds 50 g (1.76 oz), install
two balance weight sheets in line with each other as shown.

CAUTION:

Do not install one balance weight sheet on top of another.

3.

Start wheel balancer again.

4.

Install drive-in balance weight on inner side of road wheel in the
wheel balancer indication position (angle).

CAUTION:

Do not install more than two balance weights.

5.

Start wheel balancer. Make sure that inner and outer residual
imbalance values are 5 g (0.18 oz) each or below.

●

If either residual imbalance value exceeds 5 g (0.18 oz), repeat installation procedures.

SMA054D

WDIA0060E

SMA056D

CHASSIS AND BODY MAINTENANCE

MA-31

C

D

E

F

G

H

I

J

K

M

A

B

MA

2007 Pathfinder

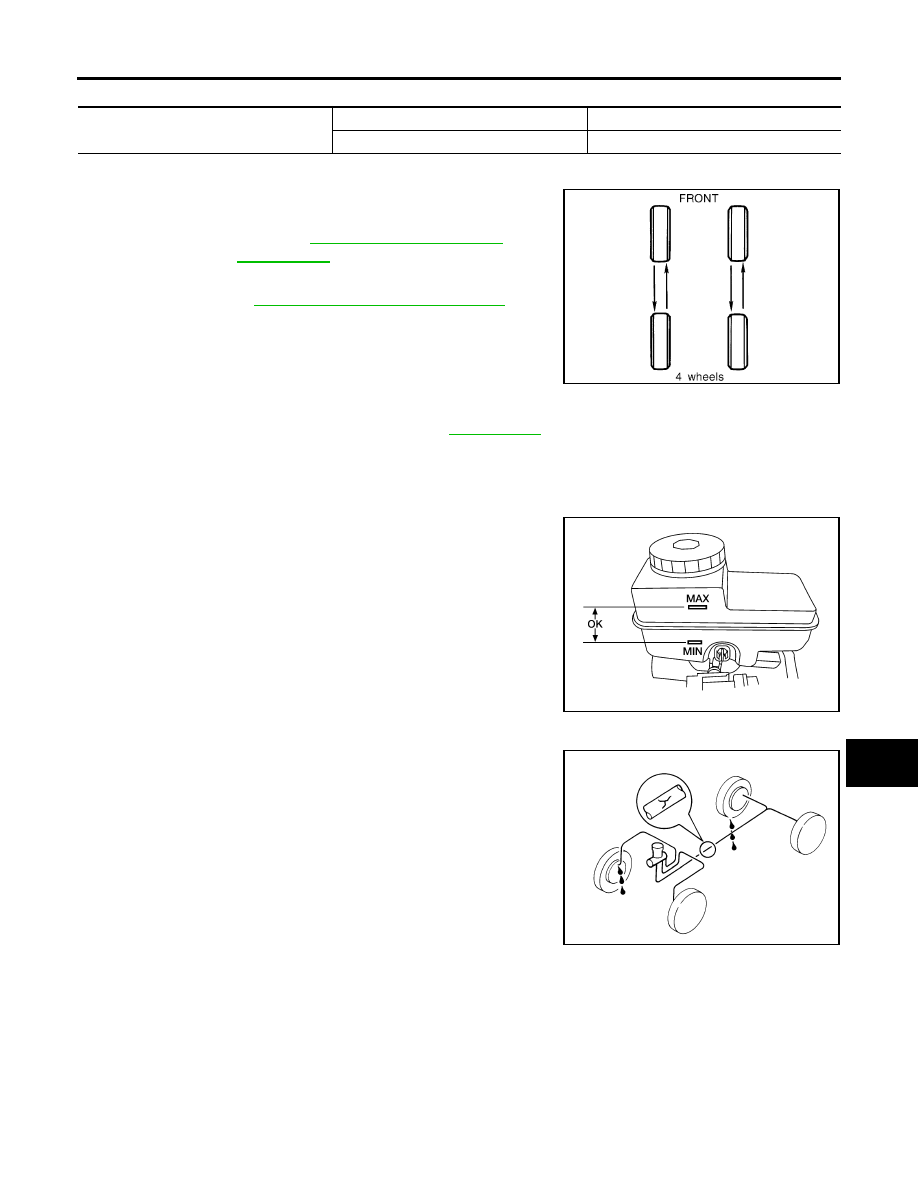

Wheel Balance (Maximum Allowable Imbalance)

Tire Rotation

ELS001P0

1.

Rotate the tires on each side from front to back as shown, using
power tool.

●

Follow the maintenance schedule for tire rotation service
intervals. Refer to

MA-5, "GENERAL MAINTENANCE"

 .

●

Do not include the spare tire when rotating the tires.

CAUTION:

When installing wheels, tighten them diagonally by divid-
ing the work two to three times in order to prevent the
wheels from developing any distortion.

2.

Adjust the tire pressure to specification. Refer to

WT-31, "Tire"

 .

3.

After the tire rotation, retighten the wheel nuts after the vehicle has been driven for 1,000 km (600 miles),
and also after a wheel and tire have been installed such as after repairing a flat tire.

Checking Brake Fluid Level and Leaks

ELS001P1

●

Check the brake fluid level in the reservoir tank. It should be
between the “MAX” and “MIN” lines on the reservoir tank.

●

Visually check around reservoir tank for fluid leaks.

●

If the fluid level is extremely low, check the brake system.

●

If the brake warning lamp comes on when the fluid is at the cor-
rect level, check the brake fluid level switch and the parking
brake switch.

Checking Brake Lines and Cables

ELS001P2

1.

Check the brake lines and hoses for cracks, deterioration, and
other damage. Replace any damaged parts.

CAUTION:

If brake fluid leaks are visible around the brake line joints,
retighten the joint, or replace damaged parts as necessary.

2.

Check for brake fluid leaks by fully depressing brake pedal while
engine is running.

Maximum allowable imbalance

Dynamic (at rim flange)

5 g (0.18 oz) (one side)

Static

10 g (0.35 oz)

Wheel nuts

: Refer to

WT-6, "WHEEL AND TIRE

ASSEMBLY"

 .

SMA829C

LFIA0234E

SBR389C

MA-32

CHASSIS AND BODY MAINTENANCE

2007 Pathfinder

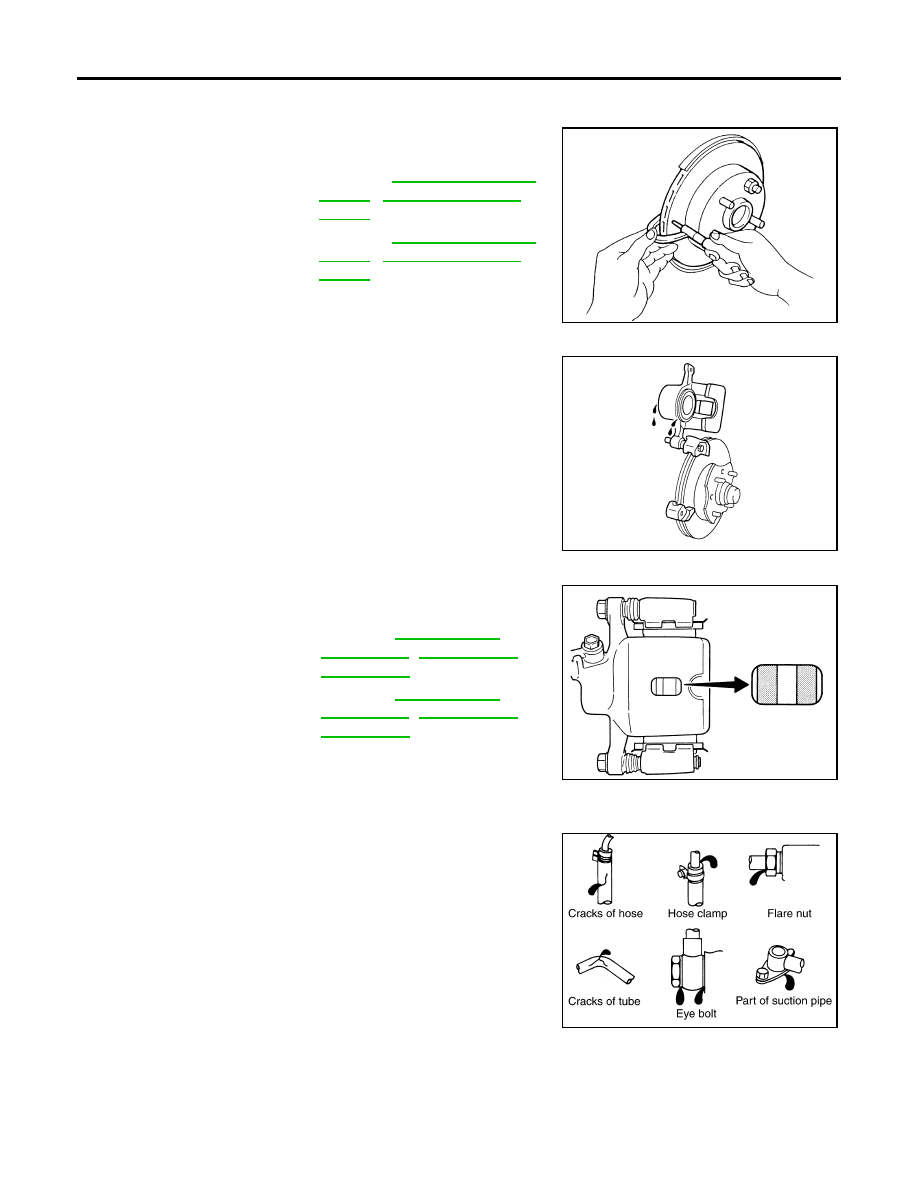

Checking Disc Brake

ELS001P3

ROTOR

Check the condition of the rotor, and for any wear or damage. Repair
or replace as necessary.

CALIPER

Check for any fluid leakage. Repair as necessary.

PAD

Inspect the thickness of pad through cylinder body inspection hole.
Use a scale for inspection if necessary.

Checking Steering Gear and Linkage

ELS001P4

STEERING GEAR

●

Check the steering gear housing for looseness, damage and oil
leakage as shown.

●

Check the steering column connections for looseness.

STEERING LINKAGE

●

Check the ball joint, dust cover and other component parts for looseness, wear, damage and grease leak-
age.

Standard thickness

: Refer to

BR-36, "Front Disc

Brake"

 ,

BR-36, "Rear Disc

Brake"

 .

Repair limit thickness

: Refer to

BR-36, "Front Disc

Brake"

 ,

BR-36, "Rear Disc

Brake"

 .

SBR020B

SMA922A

Standard thickness

: Refer to

BR-36, "Front

Disc Brake"

 ,

BR-36, "Rear

Disc Brake"

 .

Repair limit thickness

: Refer to

BR-36, "Front

Disc Brake"

 ,

BR-36, "Rear

Disc Brake"

 .

BRA0010D

SGIA0506E

CHASSIS AND BODY MAINTENANCE

MA-33

C

D

E

F

G

H

I

J

K

M

A

B

MA

2007 Pathfinder

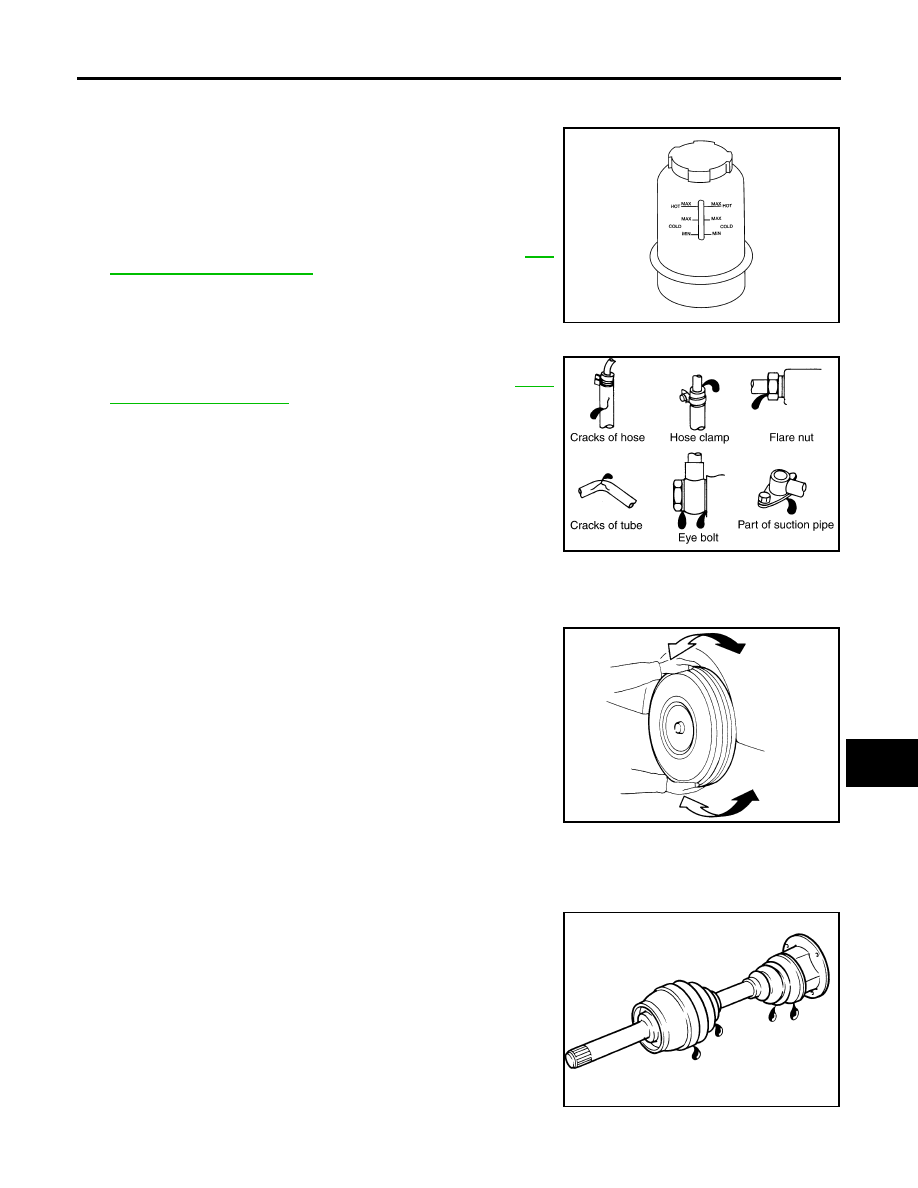

Checking Power Steering Fluid and Lines

ELS001P5

CHECKING FLUID LEVEL

●

Check the power steering fluid level with the engine off.

●

Check fluid level on reservoir. Use “HOT” range at fluid tempera-
tures of 50

°

 to 80

°

C (122

°

 to 176

°

F). Use “COLD” range at fluid

temperatures of 0

°

 to 30

°

C (32

°

 to 86

°

F).

CAUTION:

●

Do not overfill.

●

Fill with the recommended fluid or equivalent. Refer to

MA-

11, "Fluids and Lubricants"

 .

CHECKING LINES

●

Check lines for improper attachment, leaks, cracks, damage,
loose connections, chafing and deterioration. Refer to

PS-6,

"Checking Fluid Leakage"

 .

Checking Axle and Suspension Parts

ELS001P6

FRONT AND REAR AXLE AND SUSPENSION PARTS

Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.

●

Shake each wheel to check for excessive play.

●

Rotate each wheel to check for abnormal noise.

●

Check axle and suspension nuts and bolts for looseness.

●

Check the strut and shock absorber for oil leakage or other damage.

●

Check suspension ball joints for grease leakage and ball joint dust cover for cracks or other damage.

FRONT AND REAR DRIVE SHAFT

Check the boots and drive shaft for cracks, wear, damage, and
grease leakage.

LGIA0021E

SGIA0506E

SMA525A

SFA901

MA-34

CHASSIS AND BODY MAINTENANCE

2007 Pathfinder

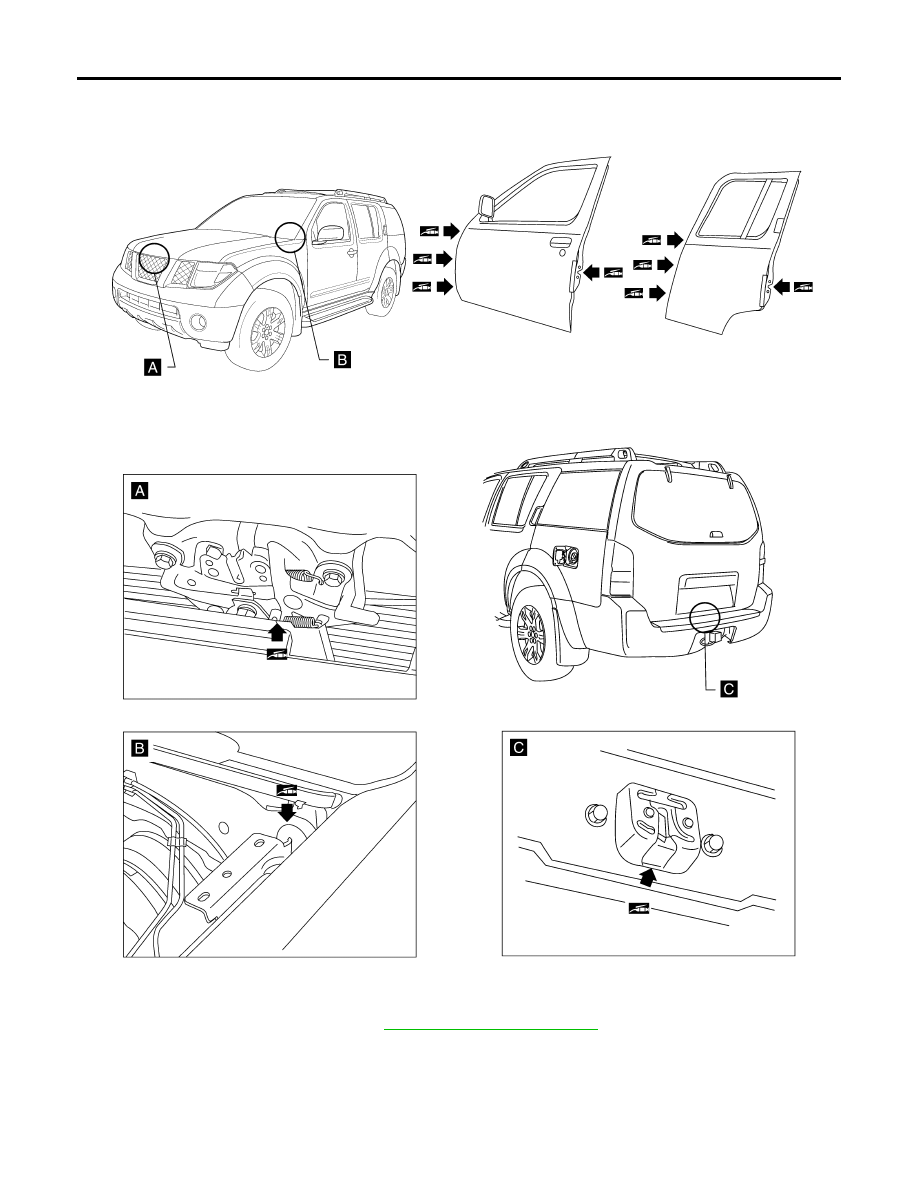

Lubricating Locks, Hinges and Hood Latches

ELS001P7

●

Lubricate the locations shown. Refer to

MA-11, "Fluids and Lubricants"

 .

WLIA0021E
