DTC P2127, P2128 APP SENSOR

EC-587

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

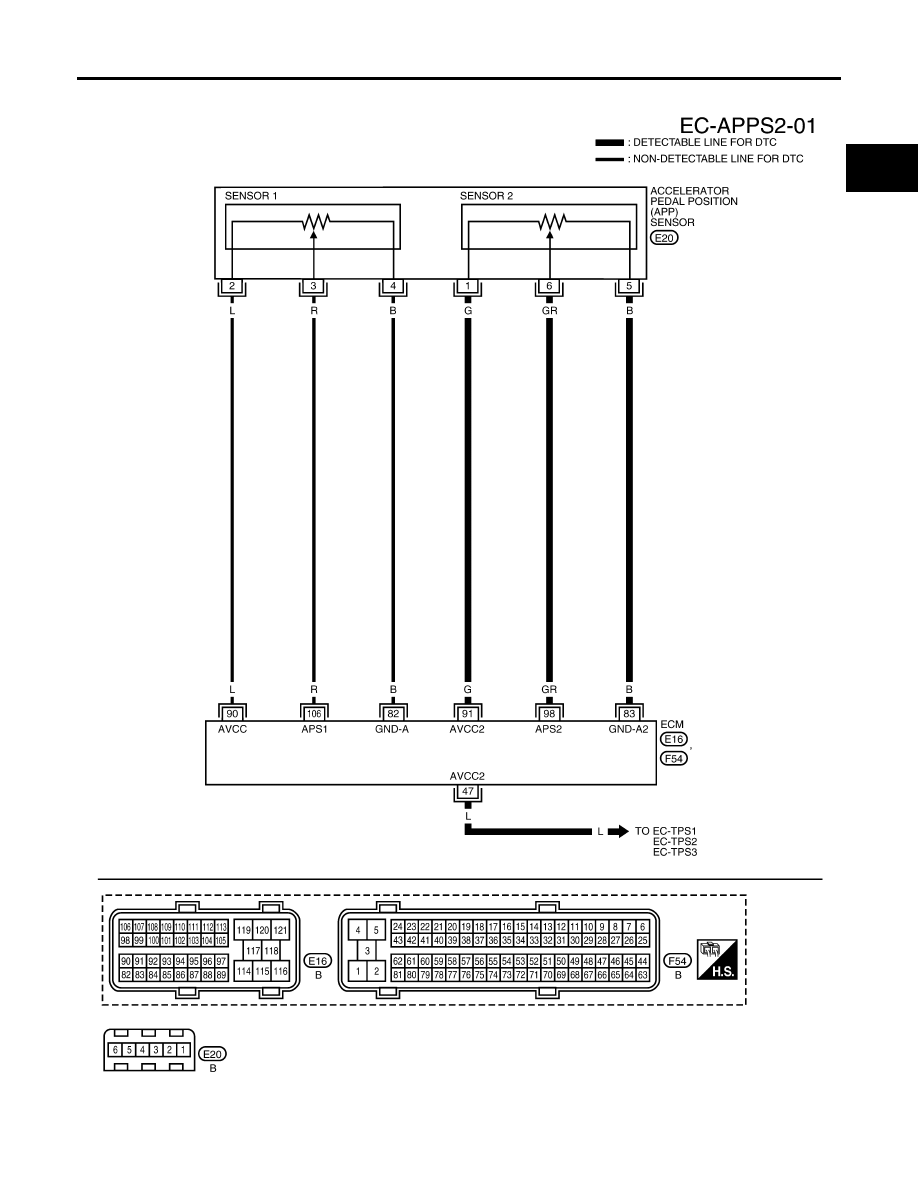

Wiring Diagram

UBS00KHB

BBWA1748E

EC-588

DTC P2127, P2128 APP SENSOR

2007 Pathfinder

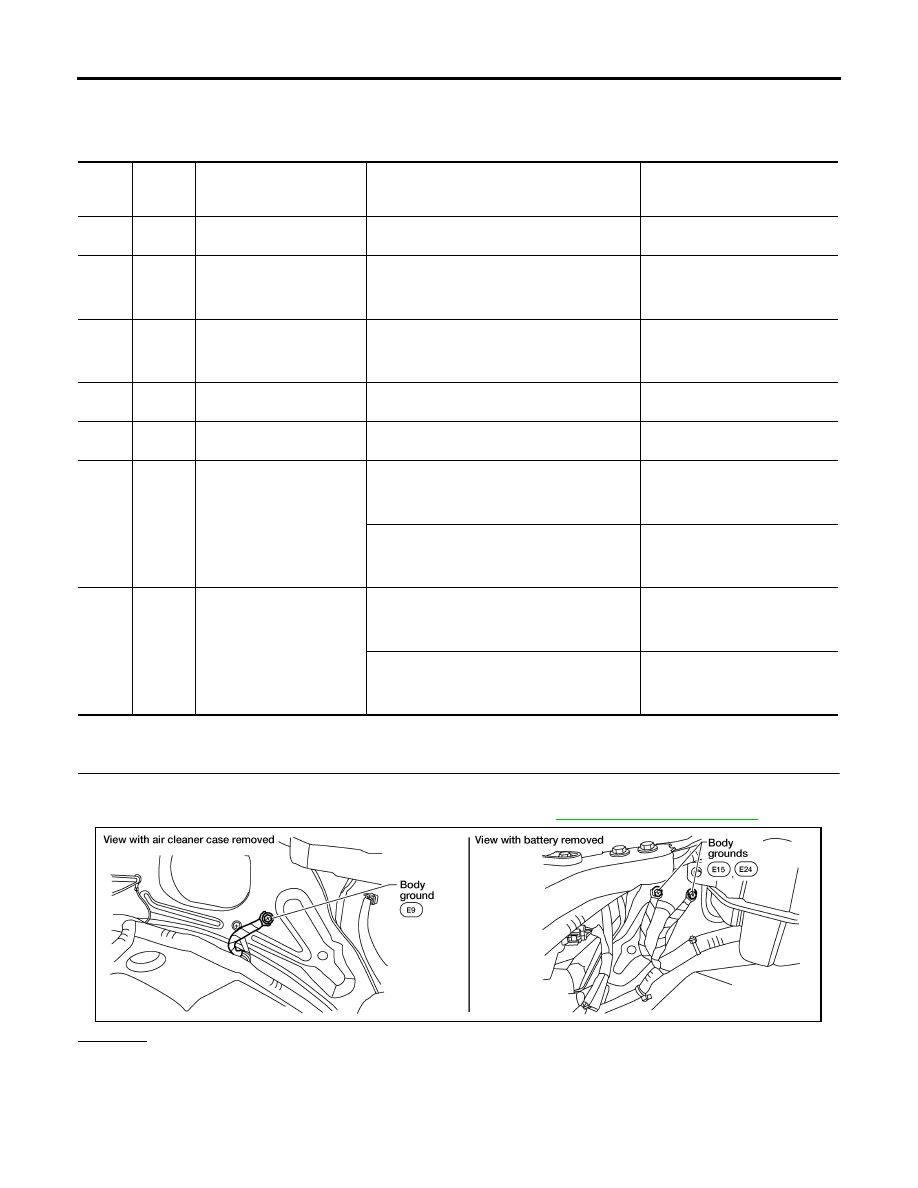

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

UBS00KHC

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body, Refer to

EC-153, "Ground Inspection"

  .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

47

L

Sensor power supply
(Throttle position sensor)

[Ignition switch: ON]

Approximately 5V

82

B

Sensor ground
(APP sensor 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

83

GR

Sensor ground
(APP sensor 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

90

L

Sensor power supply
(APP sensor 1)

[Ignition switch: ON]

Approximately 5V

91

G

Sensor power supply
(APP sensor 2)

[Ignition switch: ON]

Approximately 5V

98

GR

Accelerator pedal position
sensor 2

[Ignition switch: ON]

●

Engine: Stopped

●

Accelerator pedal: Fully released

0.28 - 0.48V

[Ignition switch: ON]

●

Engine: Stopped

●

Accelerator pedal: Fully depressed

More than 2.0V

106

R

Accelerator pedal position
sensor 1

[Ignition switch: ON]

●

Engine: Stopped

●

Accelerator pedal: Fully released

0.65 - 0.87V

[Ignition switch: ON]

●

Engine: Stopped

●

Accelerator pedal: Fully depressed

More than 4.3V

BBIA0539E

DTC P2127, P2128 APP SENSOR

EC-589

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

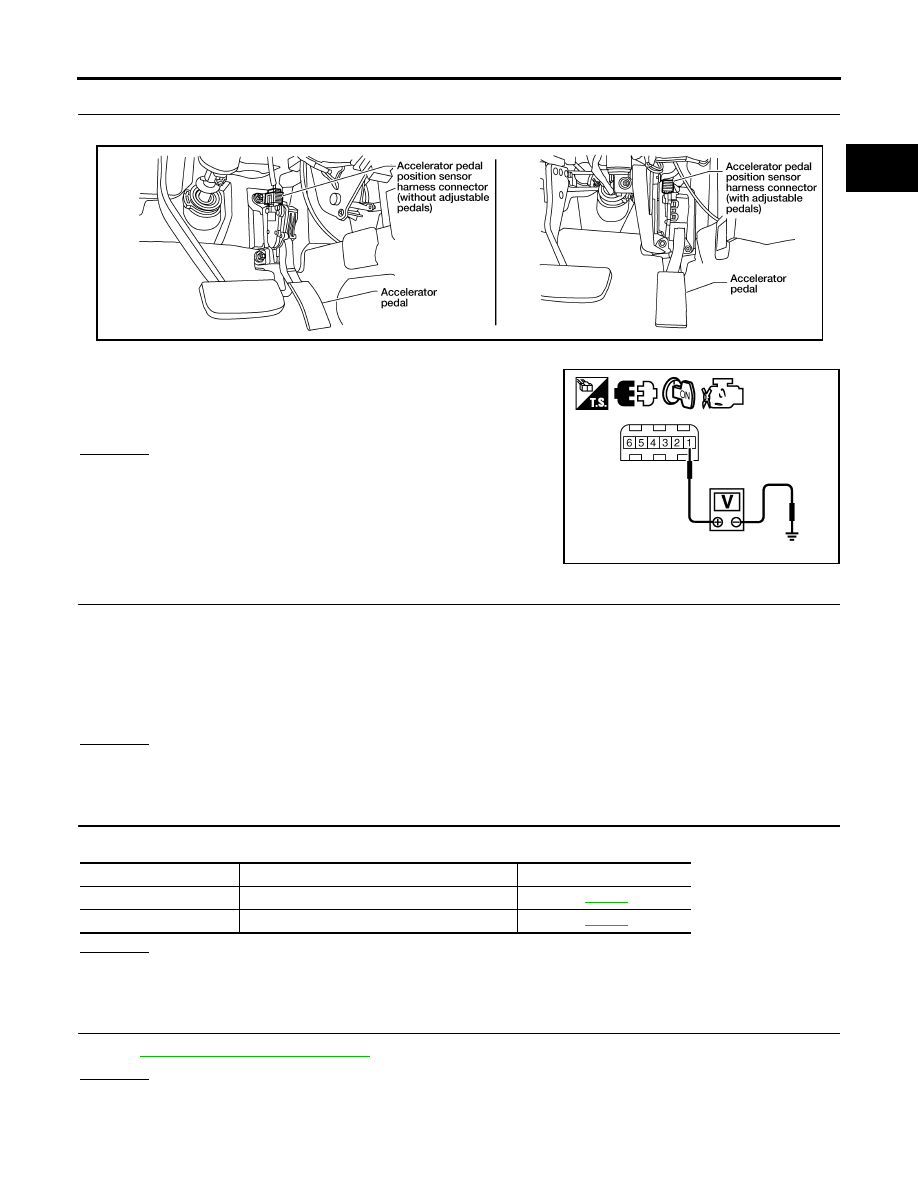

2.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I

1.

Disconnect accelerator pedal position (APP) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between APP sensor terminal 1 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 3.

3.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between APP sensor terminal 1 and ECM terminal 91.
Refer to wiring diagram.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit.

4.

CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III

Check harness for short to power and short to ground, between the following terminals.

OK or NG

OK

>> GO TO 5.

NG

>> Repair short to ground or short to power in harness or connectors.

5.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-341, "Component Inspection"

  .

OK or NG

OK

>> GO TO 11.

NG

>> GO TO 6.

Voltage: Approximately 5V

BBIA0556E

PBIB2611E

Continuity should exist.

ECM terminal

Sensor terminal

Reference Wiring Diagram

91

APP sensor terminal 1

EC-587

47

Electric throttle control actuator terminal 2

EC-337

EC-590

DTC P2127, P2128 APP SENSOR

2007 Pathfinder

6.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Perform

EC-77, "Throttle Valve Closed Position Learning"

  .

3.

Perform

EC-77, "Idle Air Volume Learning"

  .

>> INSPECTION END

7.

CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between APP sensor terminal 5 and ECM terminal 83.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 8.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 98 and APP sensor terminal 6.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK APP SENSOR

Refer to

EC-591, "Component Inspection"

  .

OK or NG

OK

>> GO TO 11.

NG

>> GO TO 10.

10.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1.

Replace accelerator pedal assembly.

2.

Perform

EC-77, "Accelerator Pedal Released Position Learning"

  .

3.

Perform

EC-77, "Throttle Valve Closed Position Learning"

  .

4.

Perform

EC-77, "Idle Air Volume Learning"

  .

>> INSPECTION END

11.

CHECK INTERMITTENT INCIDENT

Refer to

EC-145, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

  .

>> INSPECTION END

Continuity should exist.

Continuity should exist.

DTC P2127, P2128 APP SENSOR

EC-591

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

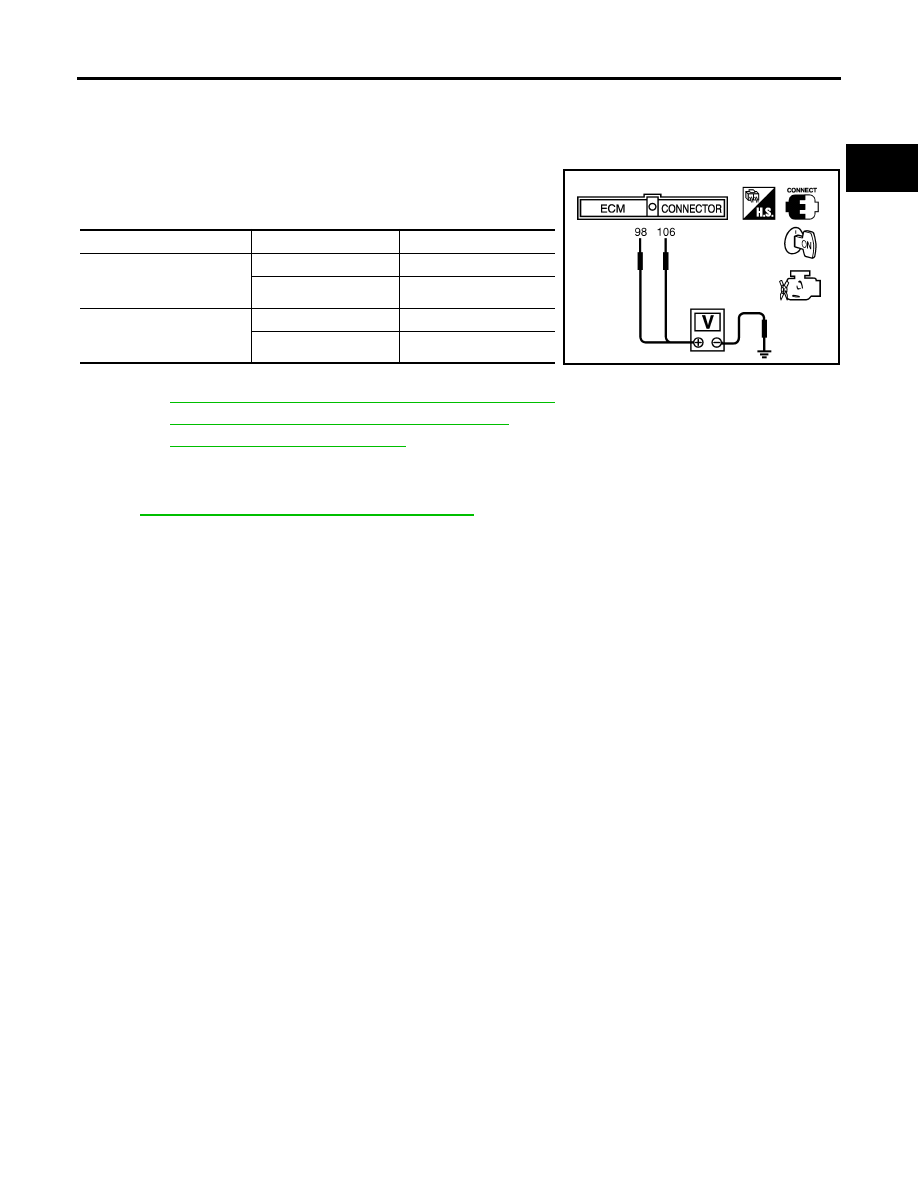

Component Inspection

UBS00KHD

ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.

4.

If NG, replace accelerator pedal assembly and go to next step.

5.

Perform

EC-77, "Accelerator Pedal Released Position Learning"

  .

6.

Perform

EC-77, "Throttle Valve Closed Position Learning"

  .

7.

Perform

EC-77, "Idle Air Volume Learning"

  .

Removal and Installation

UBS00KHE

ACCELERATOR PEDAL

Refer to

ACC-3, "ACCELERATOR CONTROL SYSTEM"

  .

Terminal

Accelerator pedal

Voltage

106
 (Accelerator pedal position
sensor 1)

Fully released

0.65 - 0.87V

Fully depressed

More than 4.3V

98
(Accelerator pedal position
sensor 2)

Fully released

0.28 - 0.48V

Fully depressed

More than 2.0V

MBIB0023E

EC-592

DTC P2135 TP SENSOR

2007 Pathfinder

DTC P2135 TP SENSOR

PFP:16119

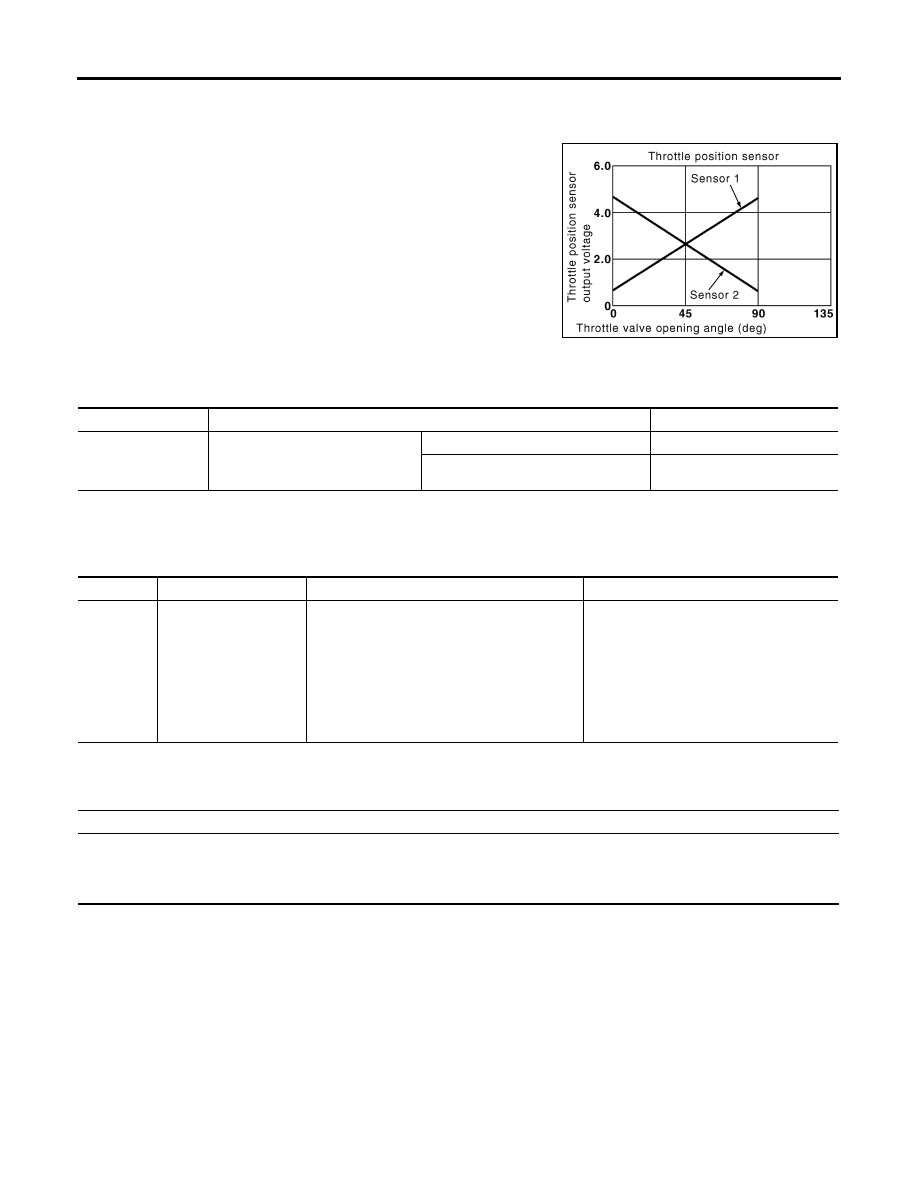

Component Description

UBS00KHF

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.

CONSULT-II Reference Value in Data Monitor Mode

UBS00KHG

Specification data are reference values.

*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

On Board Diagnosis Logic

UBS00KHH

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

PBIB0145E

MONITOR ITEM

CONDITION

SPECIFICATION

THRTL SEN 1
THRTL SEN 2*

●

Ignition switch: ON
(Engine stopped)

●

Shift lever: D

Accelerator pedal: Fully released

More than 0.36V

Accelerator pedal: Fully depressed

Less than 4.75V

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2135
2135

Throttle position sensor
circuit range/perfor-
mance

Rationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.

●

Harness or connector
(The TP sensor 1 and 2 circuit is open or
shorted.)
(The APP sensor 2 circuit is shorted).

●

Electric throttle control actuator
(TP sensor 1 and 2)

●

Accelerator pedal position sensor
(APP sensor 2)

Engine operation condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P2135 TP SENSOR

EC-593

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

DTC Confirmation Procedure

UBS00KHI

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to

EC-595, "Diagnostic Procedure"

  .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

EC-594

DTC P2135 TP SENSOR

2007 Pathfinder

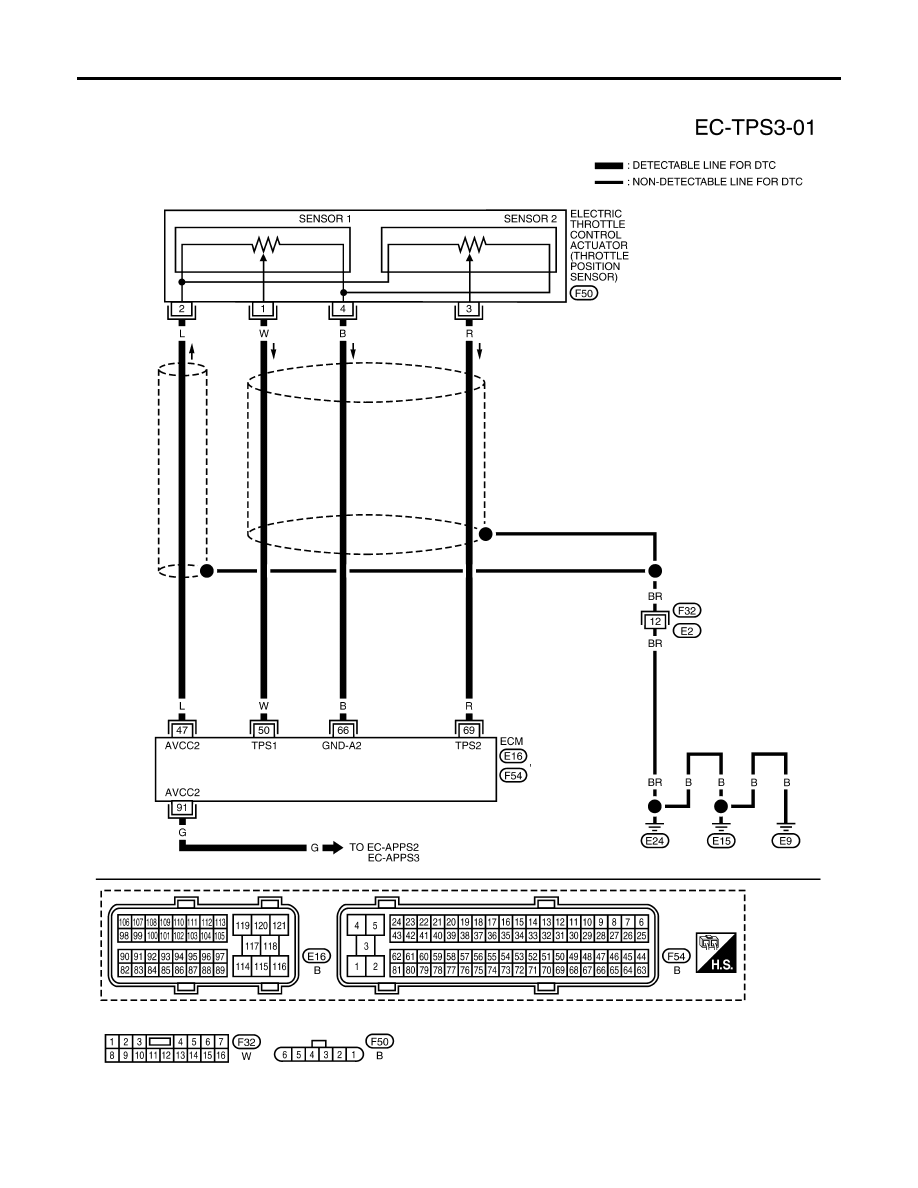

Wiring Diagram

UBS00KHJ

BBWA1746E
