DTC P0139, P0159 HO2S2

EC-291

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

DTC P0139, P0159 HO2S2

PFP:226A0

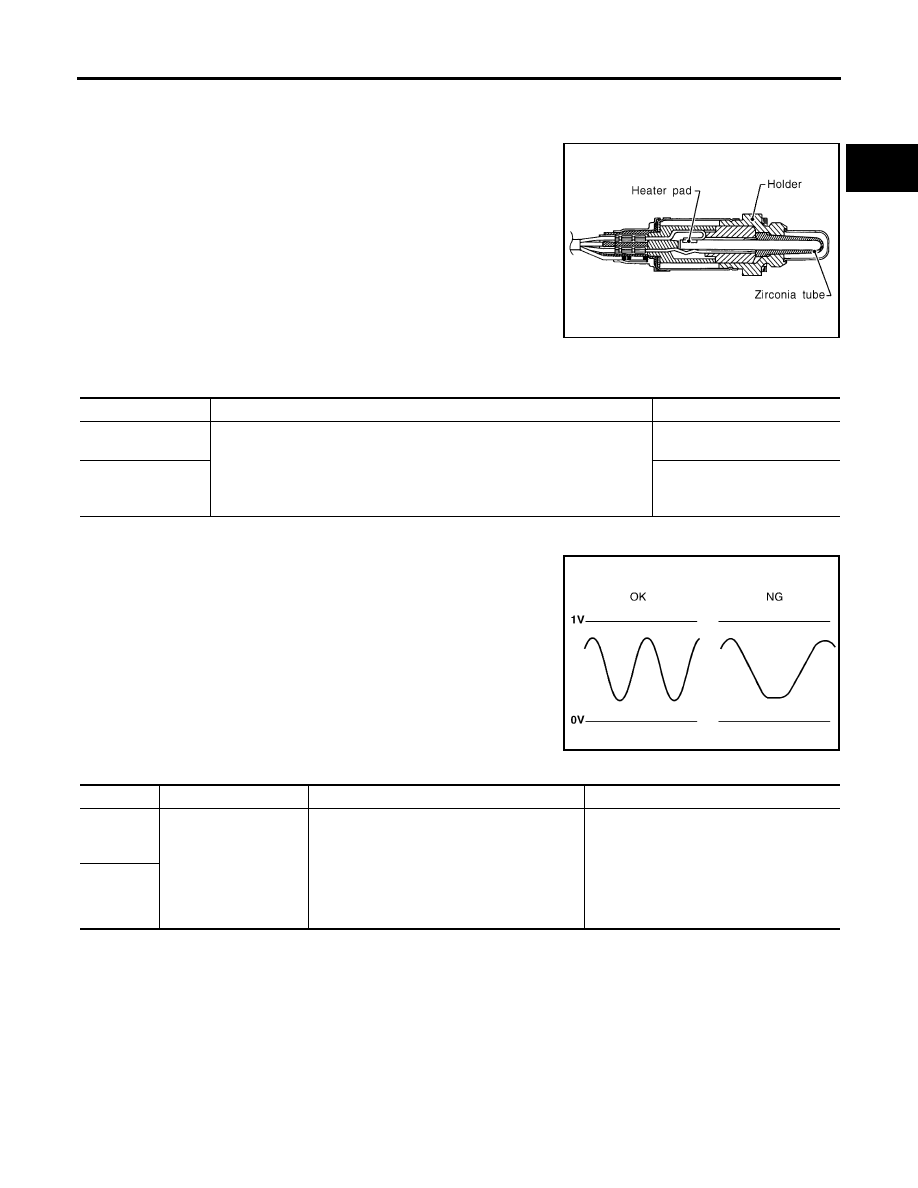

Component Description

UBS00K71

The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas on each bank.
Even if switching characteristics of the air fuel ratio (A/F) sensor 1
are shifted, the air-fuel ratio is controlled to stoichiometric, by the sig-
nal from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.

CONSULT-II Reference Value in Data Monitor Mode

UBS00K72

Specification data are reference values.

On Board Diagnosis Logic

UBS00K73

The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the air fuel ratio (A/F) sensor 1. The oxy-
gen storage capacity before the three way catalyst (manifold) causes
the longer switching time. To judge the malfunctions of heated oxy-
gen sensor 2, ECM monitors whether the switching response of the
sensor's voltage is faster than specified during the various driving
condition such as fuel-cut.

SEF327R

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 (B1)
HO2S2 (B2)

●

Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met

–

Engine: After warming up

–

Keeping engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load.

0 - 0.3V

←→

 Approx. 0.6 -

1.0V

HO2S2 MNTR (B1)
HO2S2 MNTR (B2)

LEAN

←→

 RICH

SEF302U

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0139
0139
(Bank 1)

Heated oxygen sensor
2 circuit slow response

It takes more time for the sensor to respond
between rich and lean than the specified time.

●

Harness or connectors
(The sensor circuit is open or shorted)

●

Heated oxygen sensor 2

●

Fuel pressure

●

Fuel injector

●

Intake air leaks

P0159
0159
(Bank 2)

EC-292

DTC P0139, P0159 HO2S2

2007 Pathfinder

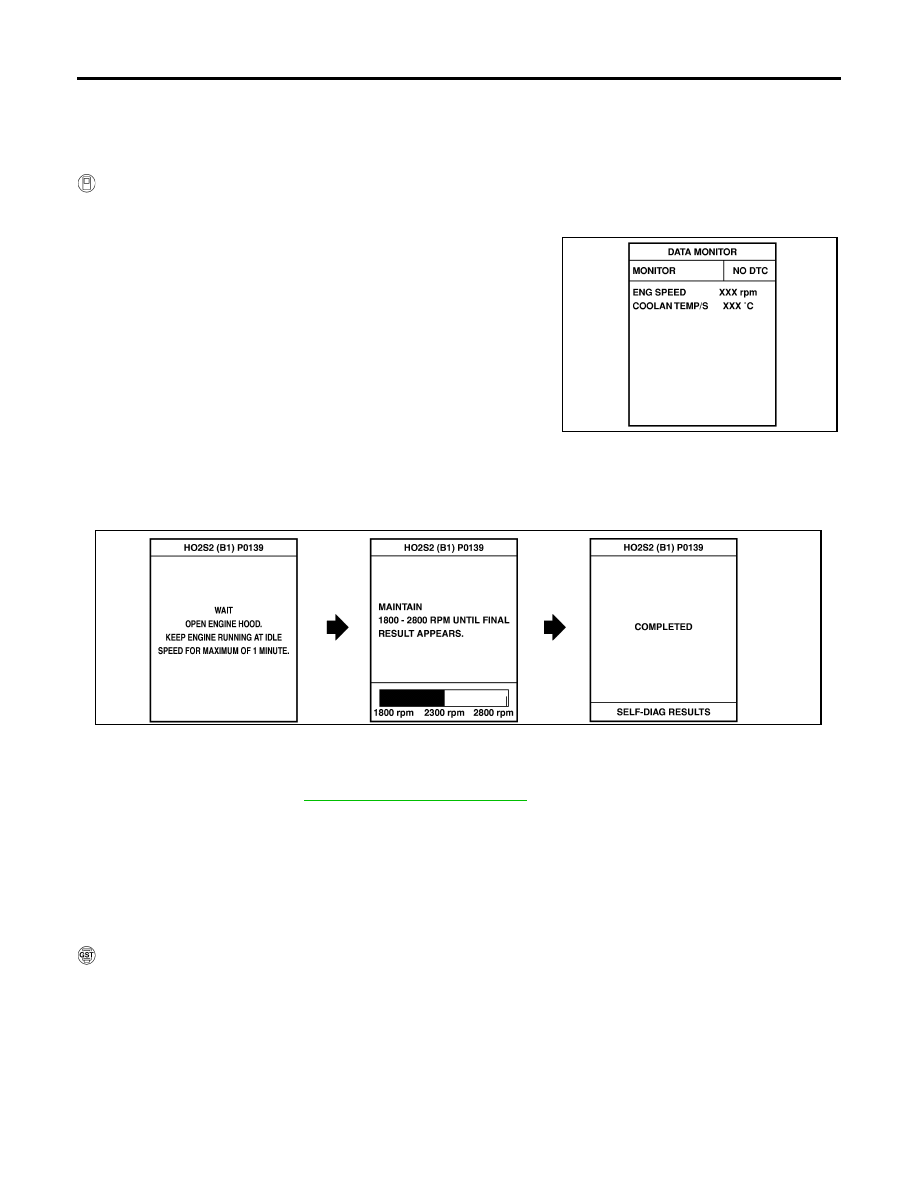

DTC Confirmation Procedure

UBS00K74

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

TESTING CONDITION:
For better results, perform DTC WORK SUPPORT at a temperature of 0 to 30

°

C (32 to 86

°

F).

1.

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine and warm it up to the normal operating tempera-
ture.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.

5.

Let engine idle for 1 minute.

6.

Make sure that “COOLAN TEMP/S” indicates more than 70

°

C

(158

°

F).

If not, warm up engine and go to next step when “COOLAN
TEMP/S” indication reaches to 70

°

C (158

°

F).

7.

Select “HO2S2 (B1) P0139” or “HO2S2 (B2) P0159” of “HO2S2” in “DTC WORK SUPPORT” mode with
CONSULT-II.

8.

Start engine and following the instruction of CONSULT-II.

NOTE:
If will take at most 10 minutes until “COMPLETED” is displayed.

9.

Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”.
If “NG” is displayed, refer to

EC-297, "Diagnostic Procedure"

 .

If “CAN NOT BE DIAGNOSED” is displayed, perform the following.

a.

Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).

b.

Return to step 1.

Overall Function Check

UBS00K75

Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a 1st
trip DTC might not be confirmed.

 WITH GST

1.

Start engine and warm it up to the normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

4.

Let engine idle for 1 minute.

5.

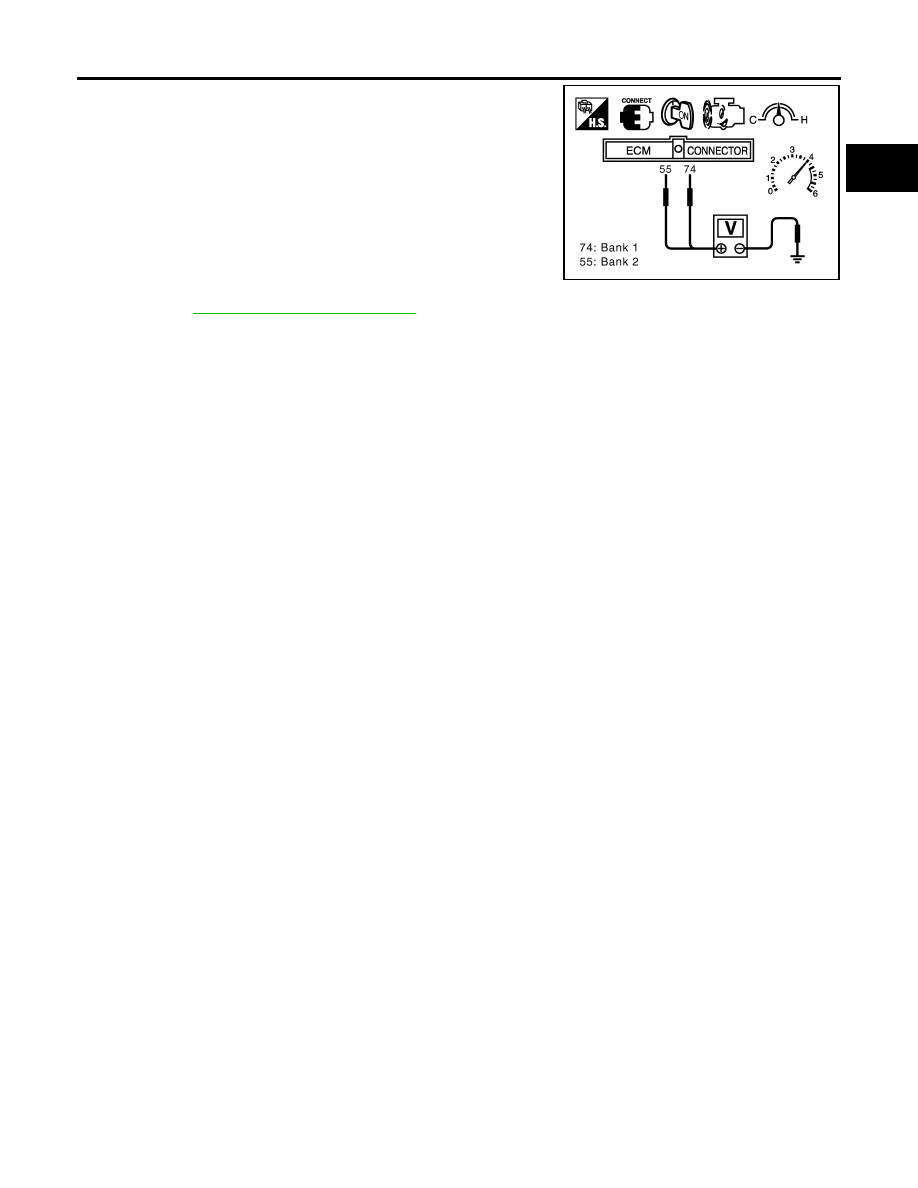

Set voltmeter probes between ECM terminal 74 [HO2S2 (B1) signal] or 55 [HO2S2 (B2) signal] and
ground.

SEF174Y

PBIB2374E

DTC P0139, P0159 HO2S2

EC-293

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

6.

Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
A change of voltage should be more than 0.24V for 1 sec-
ond during this procedure.
If the voltage can be confirmed in step 6, step 7 is not nec-
essary.

7.

Keep vehicle at idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in D
position with “OD” OFF.
A change of voltage should be more than 0.24V for 1 sec-
ond during this procedure.

8.

If NG, go to

EC-297, "Diagnostic Procedure"

 .

PBIB1607E

EC-294

DTC P0139, P0159 HO2S2

2007 Pathfinder

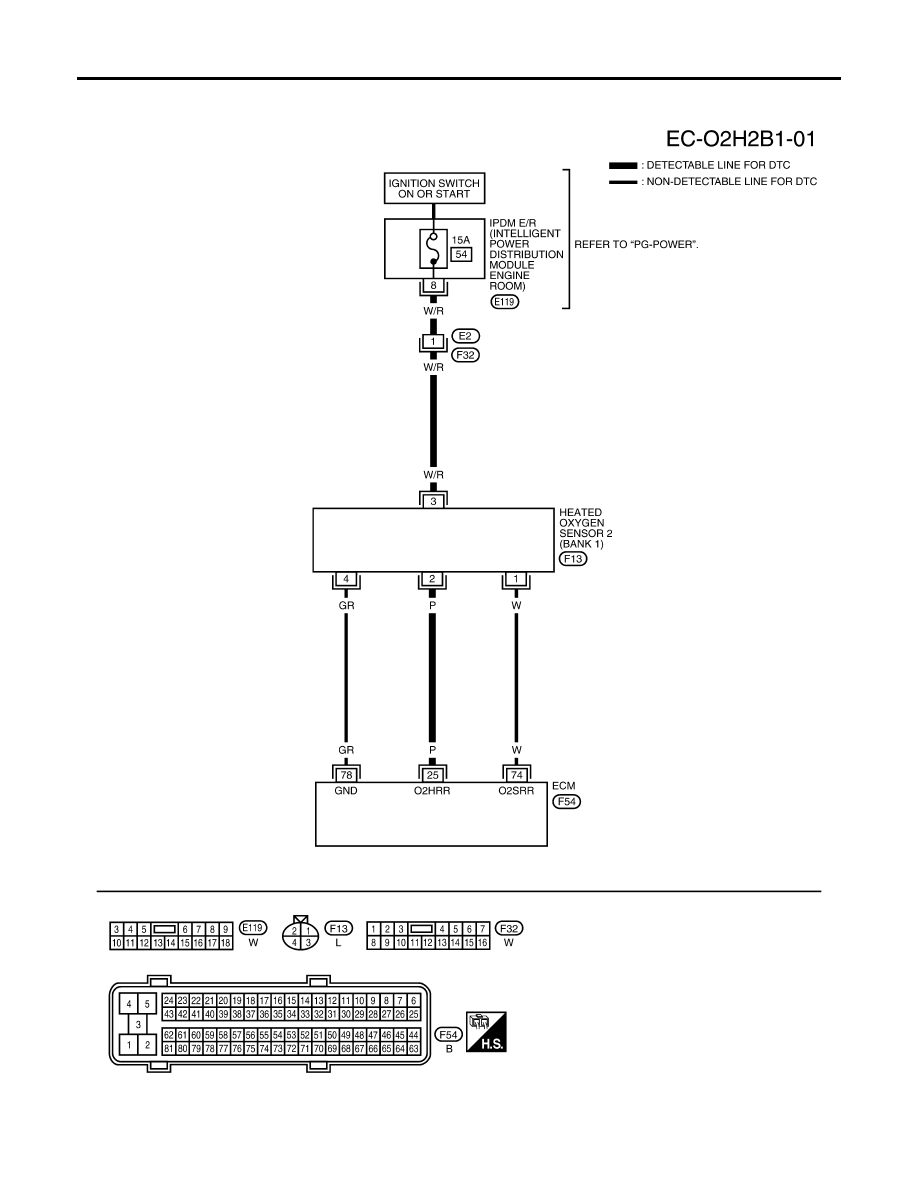

Wiring Diagram

UBS00K76

BANK 1

BBWA2815E

DTC P0139, P0159 HO2S2

EC-295

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

25

P

Heated oxygen sensor 2
heater (Bank 1)

[Engine is running]

●

Engine speed: Below 3,600 rpm after the
following conditions are met

–

Engine: After warming up

–

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

●

Engine: Stopped

[Engine is running]

●

Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

74

W

Heated oxygen sensor 2
(Bank 1)

[Engine is running]

●

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met

–

Engine: After warming up

–

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - Approximately 1.0V

78

GR

Sensor ground
(Heated oxygen sensor 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

EC-296

DTC P0139, P0159 HO2S2

2007 Pathfinder

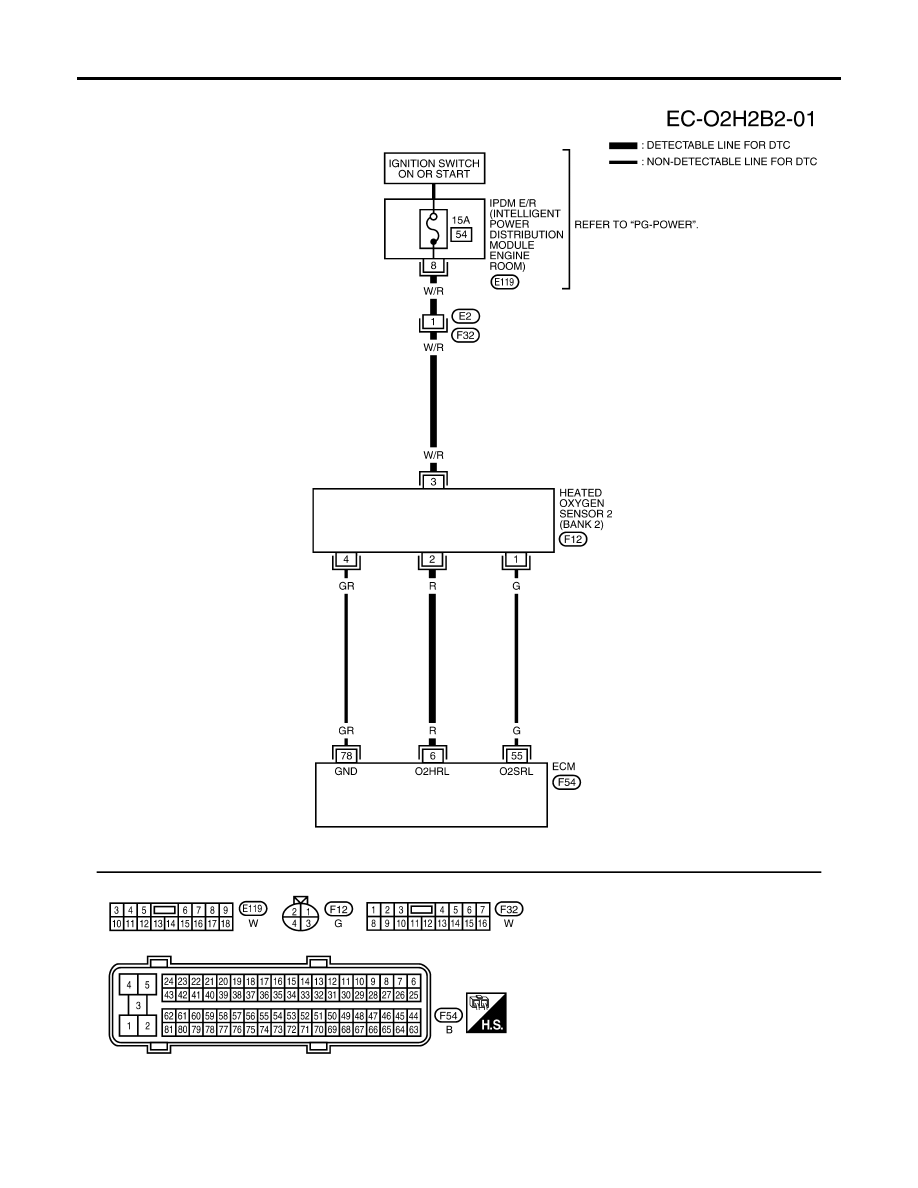

BANK 2

BBWA2816E

DTC P0139, P0159 HO2S2

EC-297

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

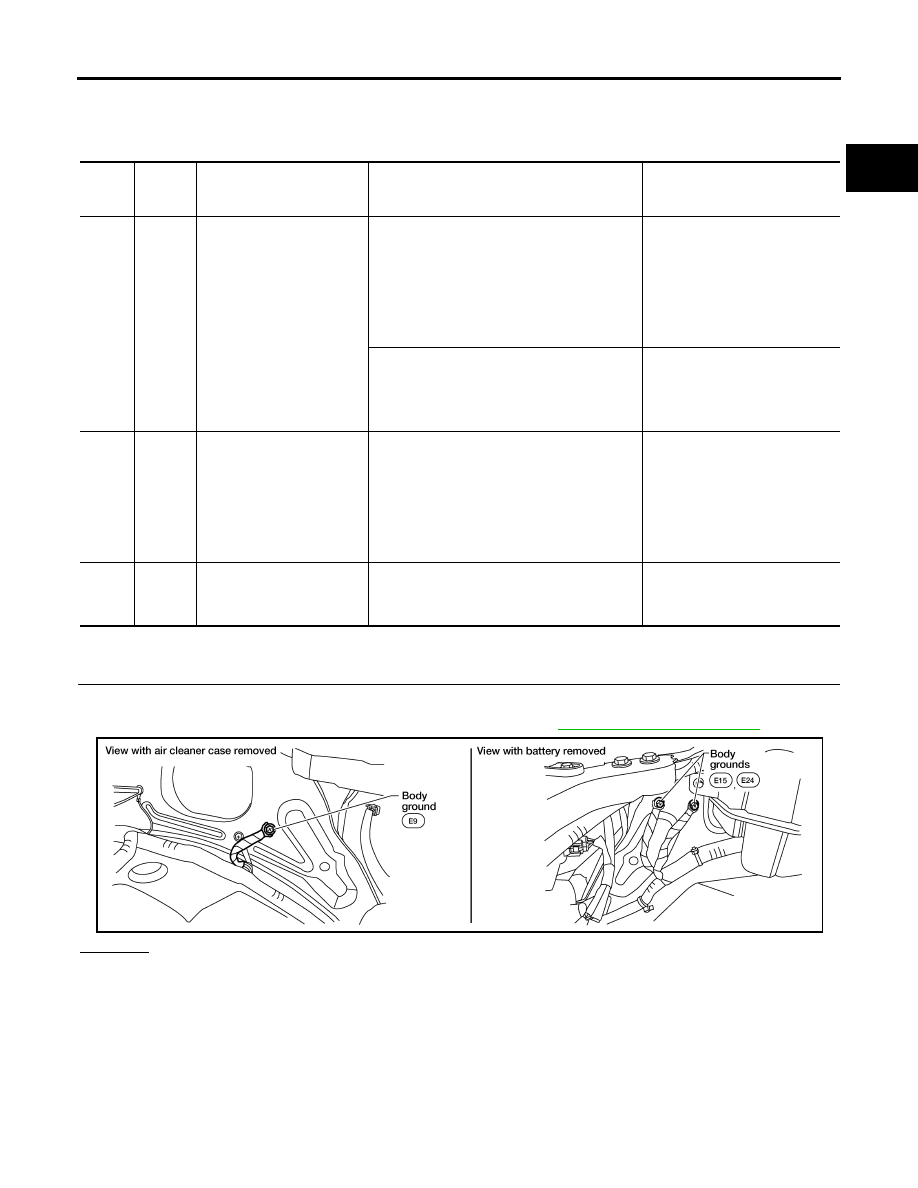

Diagnostic Procedure

UBS00K77

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body. Refer to

EC-153, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

6

R

Heated oxygen sensor 2
heater (Bank 2)

[Engine is running]

●

Engine speed: Below 3,600 rpm after the
following conditions are met

–

Engine: After warming up

–

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

●

Engine: Stopped

[Engine is running]

●

Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

55

G

Heated oxygen sensor 2
(Bank 2)

[Engine is running]

●

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met

–

Engine: After warming up

–

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - Approximately 1.0V

78

GR

Sensor ground
(Heated oxygen sensor 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

BBIA0539E

EC-298

DTC P0139, P0159 HO2S2

2007 Pathfinder

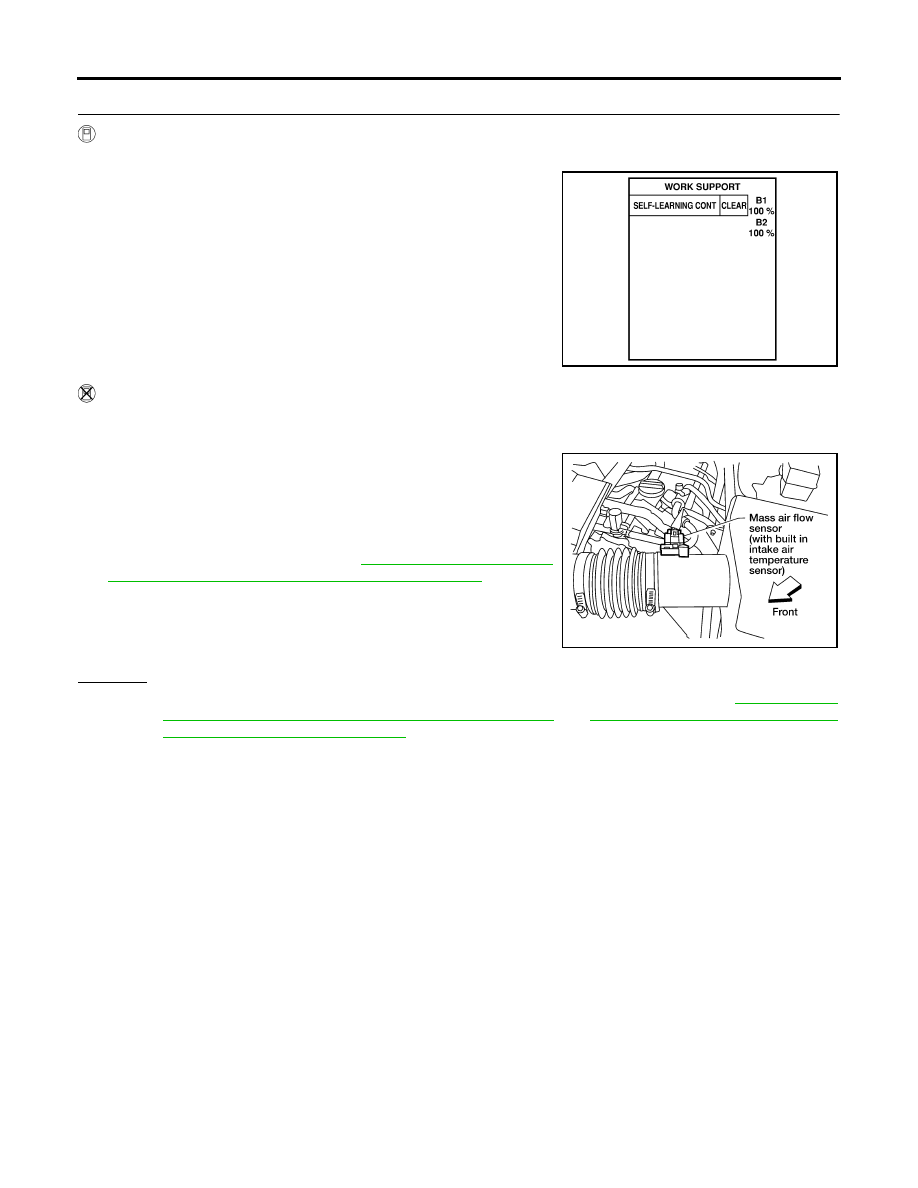

2.

CLEAR THE SELF-LEARNING DATA

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode
with CONSULT-II.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor harness connector, and restart
and run engine for at least 5 seconds at idle speed.

4.

Stop engine and reconnect mass air flow sensor harness con-
nector.

5.

Make sure DTC P0102 is displayed.

6.

Erase the DTC memory. Refer to

EC-60, "HOW TO ERASE

EMISSION-RELATED DIAGNOSTIC INFORMATION"

 .

7.

Make sure DTC P0000 is displayed.

8.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to

EC-303, "DTC

P0171, P0174 FUEL INJECTION SYSTEM FUNCTION"

    or

EC-315, "DTC P0172, P0175 FUEL

INJECTION SYSTEM FUNCTION"

 .

No

>> GO TO 3.
