WATER PUMP

CO-23

C

D

E

F

G

H

I

J

K

L

M

A

CO

2007 Pathfinder

●

Start and warm up engine. Visually check there are no leaks of engine coolant.

CO-24

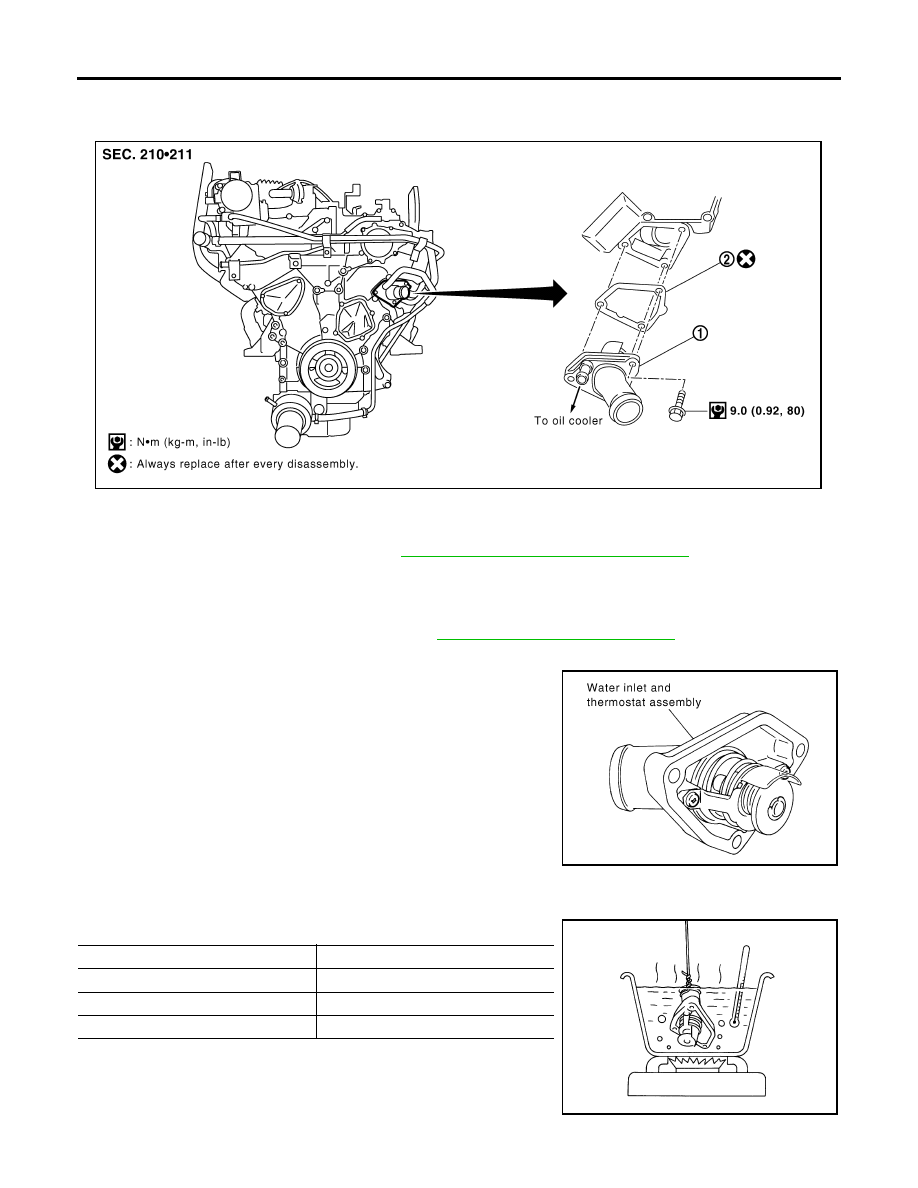

WATER INLET AND THERMOSTAT ASSEMBLY

2007 Pathfinder

WATER INLET AND THERMOSTAT ASSEMBLY

PFP:21200

Removal and Installation

EBS00QD2

REMOVAL

1.

Completely drain engine coolant. Refer to

CO-10, "DRAINING ENGINE COOLANT"

 .

CAUTION:

●

Perform this step when engine is cold.

●

Do not spill engine coolant on drive belts.

2.

Remove air duct and air cleaner case. Refer to

EM-16, "Removal and Installation"

 .

3.

Disconnect radiator hose (lower) and oil cooler hose from water inlet and thermostat assembly.

4.

Remove water inlet and thermostat assembly.

CAUTION:

Do not disassemble water inlet and thermostat assembly.
Replace them as a unit, if necessary.

INSPECTION AFTER REMOVAL

1.

Check valve seating condition at ordinary room temperatures. It should seat tightly.

2.

Check valve operation.

●

If the malfunctioning condition, when valve seating at ordinary
room temperature, or measured values are out of the standard,
replace water inlet and thermostat assembly.

1.

Water inlet and thermostat assembly 2.

Gasket

PBIC2839E

SLC962AB

Thermostat

Standard

Valve opening temperature

80.5 - 83.5

°

C (177 - 182

°

F)

Maximum valve lift

8.6 mm / 95

°

C (0.339 in / 203

°

F)

Valve closing temperature

77

°

C (171

°

F)

SLC949A

WATER INLET AND THERMOSTAT ASSEMBLY

CO-25

C

D

E

F

G

H

I

J

K

L

M

A

CO

2007 Pathfinder

INSTALLATION

Installation is in the reverse order of removal, paying attention to the following.

●

Be careful not to spill engine coolant over engine room. Use rag to absorb engine coolant.

INSPECTION AFTER INSTALLATION

●

Check for leaks of engine coolant using tool. Refer to

CO-9, "CHECKING COOLING SYSTEM FOR

LEAKS"

 .

●

Start and warm up engine. Visually check there are no leaks of engine coolant.

CO-26

WATER OUTLET AND WATER PIPING

2007 Pathfinder

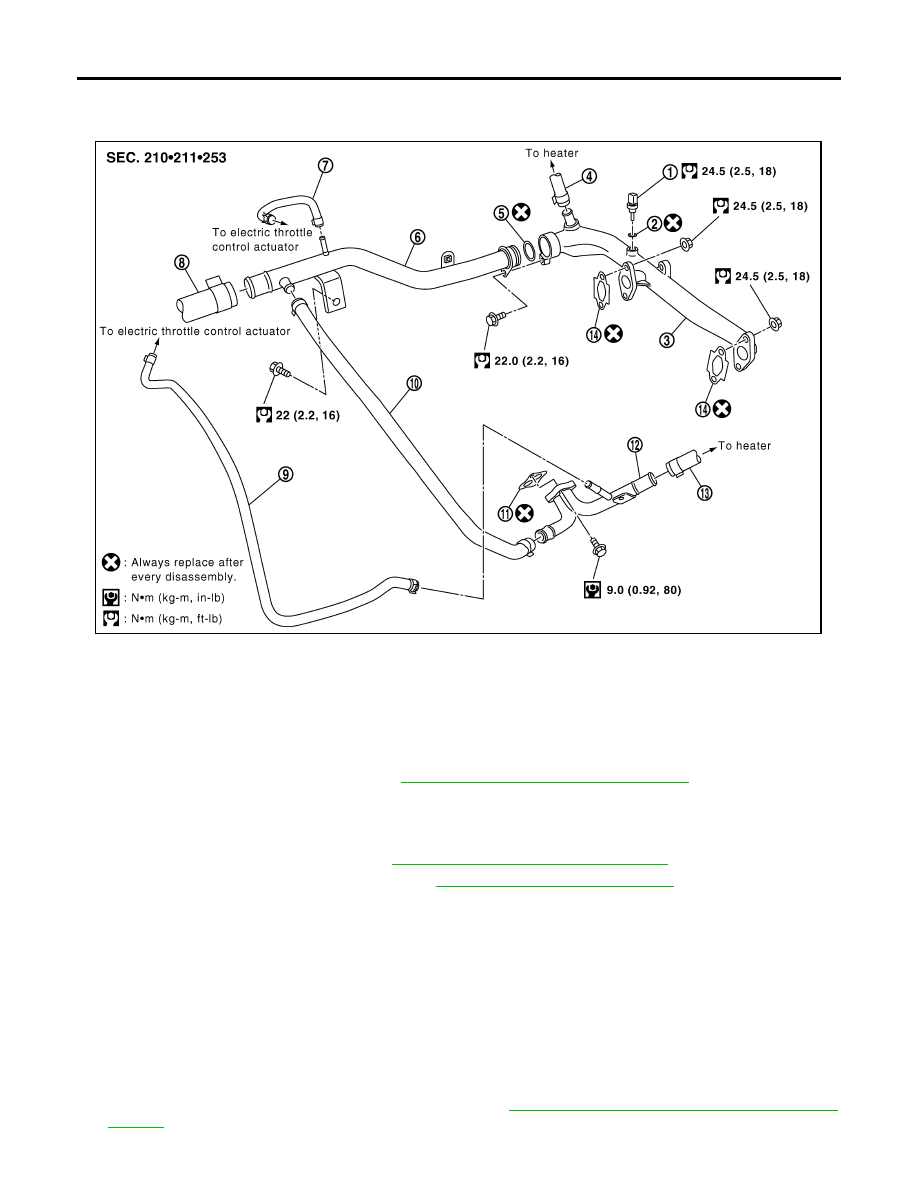

WATER OUTLET AND WATER PIPING

PFP:11060

Removal and Installation

EBS00QD3

REMOVAL

1.

Completely drain engine coolant. Refer to

CO-10, "DRAINING ENGINE COOLANT"

 .

CAUTION:

●

Perform this step when engine is cold.

●

Do not spill engine coolant on drive belts.

2.

Remove A/T fluid charging pipe Refer to

AT-240, "TRANSMISSION ASSEMBLY"

 .

3.

Remove the rocker cover (right bank). Refer to

EM-41, "Removal and Installation"

 .

4.

Remove engine coolant temperature sensor as necessary.

CAUTION:

Be careful not to damage engine coolant temperature sensor.

5.

Remove water outlet, heater pipe, water bypass hoses and water pipe.

INSTALLATION

Installation is in the reverse order of removal, paying attention to the following.

●

Securely insert each hose, and install clamp at a position where it does not interfere with the pipe bulge.

●

When inserting water pipe into water outlet, apply neutral detergent to O-ring.

INSPECTION AFTER INSTALLATION

●

Check for leaks of engine coolant using tool. Refer to

CO-9, "CHECKING COOLING SYSTEM FOR

LEAKS"

 .

1.

Engine coolant temperature sensor

2.

Washer

3.

Water outlet

4.

Heater hose

5.

O-ring

6.

Water pipe

7.

Water hose

8.

Radiator hose (upper)

9.

Water hose

10. Water hose

11.

Gasket

12.

Heater pipe

13. Heater hose

14.

Gasket

WBIA0615E

WATER OUTLET AND WATER PIPING

CO-27

C

D

E

F

G

H

I

J

K

L

M

A

CO

2007 Pathfinder

●

Start and warm up engine. Visually check there are no leaks of engine coolant.

CO-28

SERVICE DATA AND SPECIFICATIONS (SDS)

2007 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00100

Standard and Limit

EBS00QD4

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

 (US gal, Imp gal)

RADIATOR

Unit: kPa (kg/cm

2

 , psi)

THERMOSTAT

Engine coolant capacity (With reservoir tank at
“MAX” level)

Without rear A/C

10.2 (2-3/4, 2-1/4)

With rear A/C

13.4 (3-1/2, 3)

Cap relief pressure

Standard

78 -098 (0.8 - 1.2.0 11 - 14)

Limit

59 (0.6, 9)

Leakage testing pressure

137 (1.4, 20)

Valve opening temperature

80.5 - 83.5

°

C (177 - 182

°

F)

Maximum valve lift

8.6 mm / 95

°

C (0.339 in / 203

°

F)

valve closing temperature

77

°

C (171

°

F)
