Nissan Pathfinder (2007 year). Manual - part 100

BACK DOOR LOCK

BL-93

2007 Pathfinder

BACK DOOR LOCK

PFP:90504

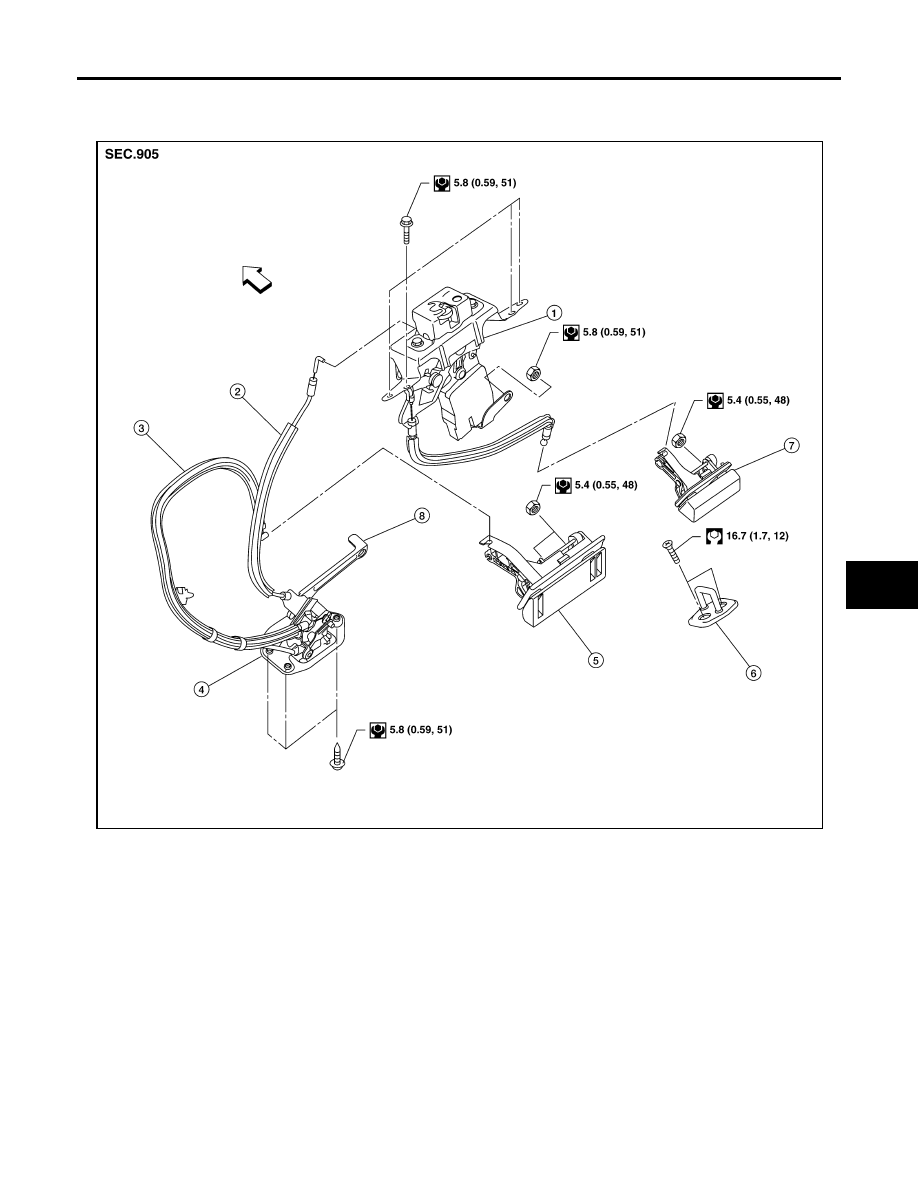

Component Structure

EIS007Q8

Glass hatch latch assembly

Emergency exit handle cable

Back door latch cable

Back door latch

Back door release handle

Back door striker

Glass hatch release handle

Emergency exit handle

⇐

Vehicle front

WIIA0776E

BL-94

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

2007 Pathfinder

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

PFP:28591

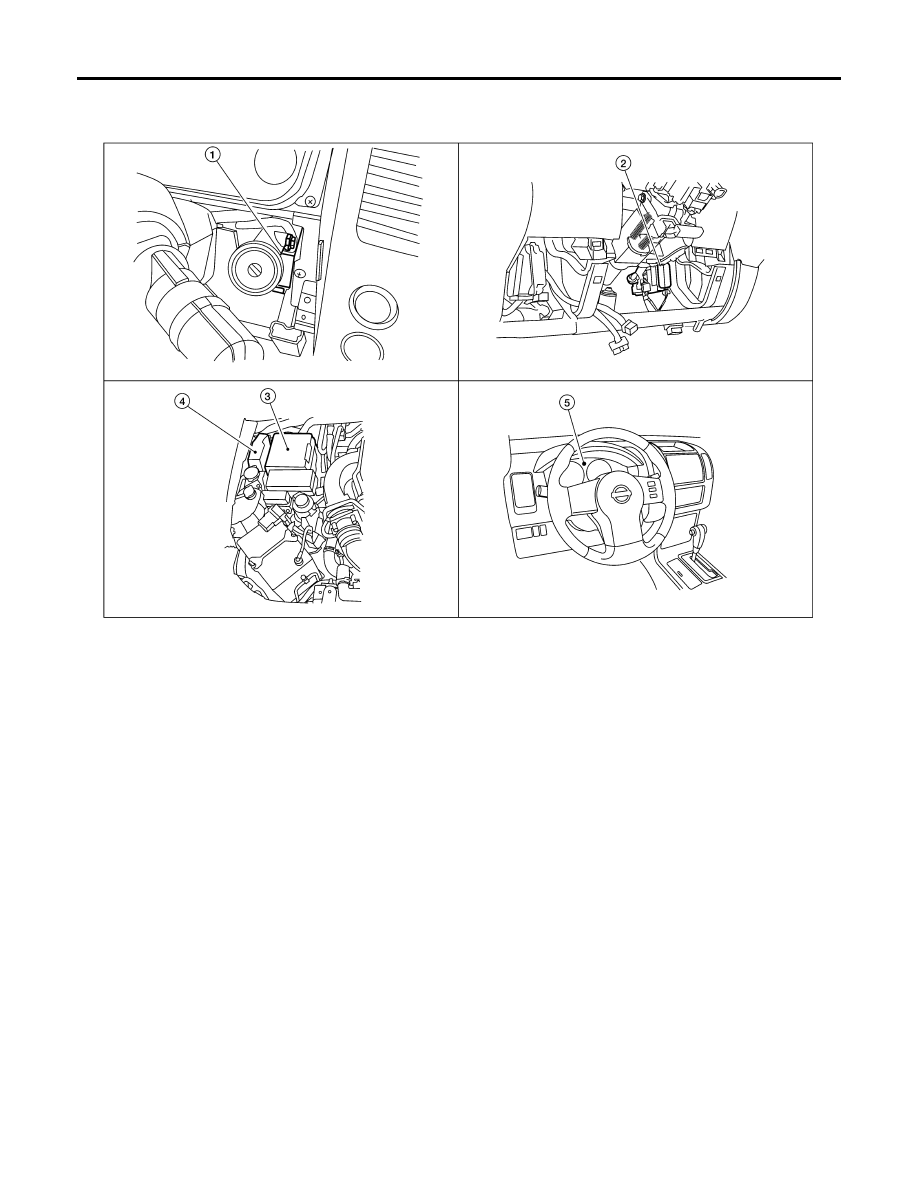

Component Parts and Harness Connector Location

EIS007Q9

LIIA2414E

NATS antenna amplifier M21
(View with cluster lid A removed)

BCM M18, M19, M20
(View with instrument lower panel LH
removed)

IPDM E/R E118, E119, E120, E121,
E122, E123, E124

ECM E16

Combination meter M24

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-95

2007 Pathfinder

System Description

EIS007QA

NVIS (Nissan Vehicle Immobilizer System-NATS) has the following immobilizer functions:

●

Since only NVIS (NATS) ignition keys, whose IDs have been registered into the ECM and BCM, allow the
engine to run, operation of a stolen vehicle without a NVIS (NATS) registered key is prevented by NVIS
(NATS).
NVIS (NATS) will immobilize the engine if someone tries to start it without the registered key of NVIS
(NATS).

●

All of the originally supplied ignition key IDs have been NVIS (NATS) registered.
If requested by the vehicle owner, a maximum of five key IDs can be registered into the NVIS (NATS)
components.

●

The security indicator blinks when the ignition switch is in OFF or ACC position. NVIS (NATS) warns out-
siders that the vehicle is equipped with the anti-theft system.

●

When NVIS (NATS) detects a malfunction, the security indicator lamp lights up while ignition key is in the
ON position.

●

NVIS (NATS) trouble diagnoses, system initialization and additional registration of other NVIS (NATS)
ignition key IDs must be carried out using CONSULT-II hardware and CONSULT-II NVIS (NATS) software.
When NVIS (NATS) initialization has been completed, the ID of the inserted ignition key is automatically
NVIS (NATS) registered. Then, if necessary, additional registration of other NVIS (NATS) ignition key IDs
can be carried out.
Regarding the procedures of NVIS (NATS) initialization and NVIS (NATS) ignition key ID registration, refer
to CONSULT-II Operation Manual NATS-IVIS/NVIS.

●

When servicing a malfunction of the NVIS (NATS) (indicated by lighting up of Security Indicator
Lamp) or registering another NVIS (NATS) ignition key ID, it may be necessary to re-register origi-
nal key identification. Therefore, be sure to receive ALL KEYS from vehicle owner.

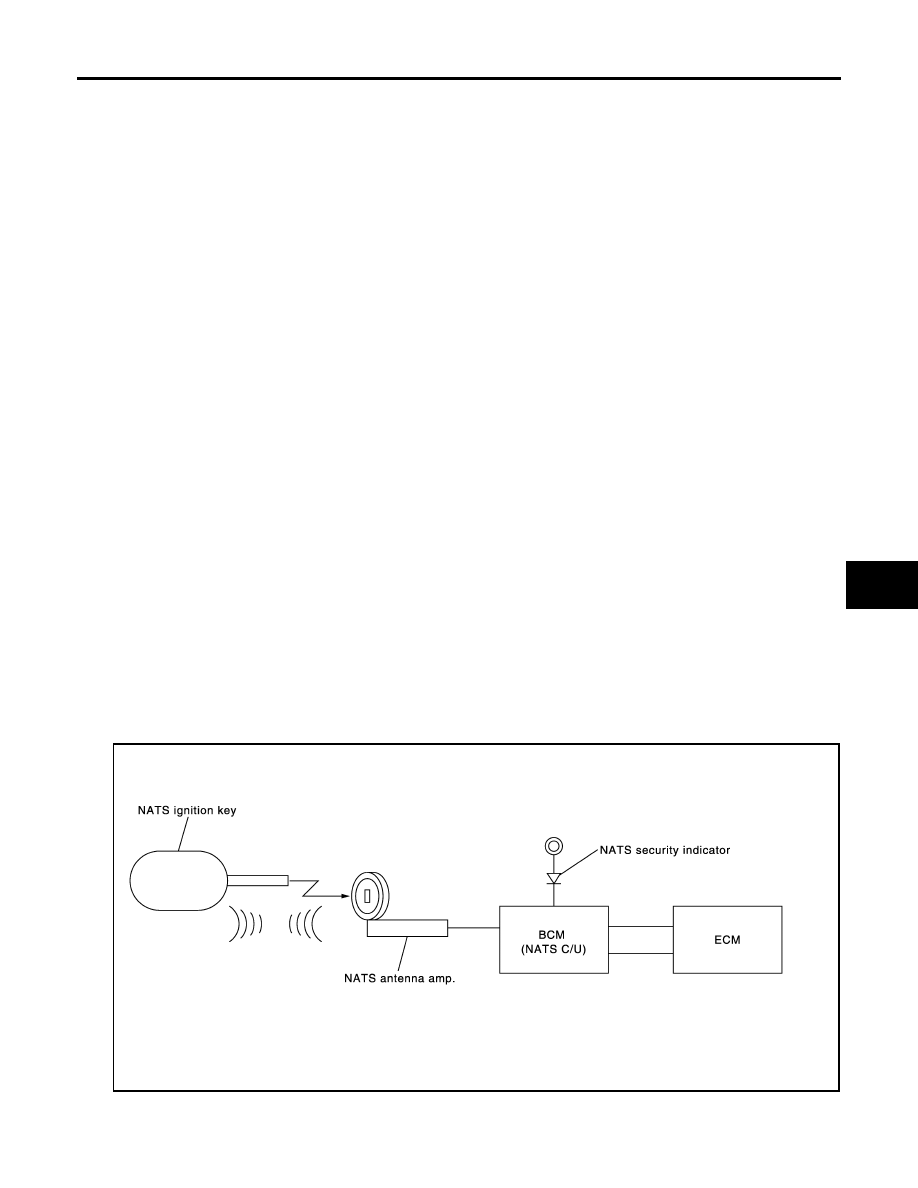

System Composition

EIS007QB

The immobilizer function of the NVIS (NATS) consists of the following:

●

NATS ignition key

●

NATS antenna amp. located in the ignition key cylinder

●

Body control module (BCM)

●

Engine control module (ECM)

●

Security indicator

NOTE:
The communication between ECM and BCM uses the CAN communication system.

PIIA1121E

BL-96

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

2007 Pathfinder

ECM Re-communicating Function

EIS007QC

The following procedure can automatically perform re-communication of ECM and BCM, but only when the
ECM has been replaced with a new one which has never been energized on-board.
(In this step, initialization procedure by CONSULT-II is not necessary)

NOTE:

●

When registering new key IDs or replacing the ECM other than brand new, refer to CONSULT-II
Operation Manual NATS-IVIS/NVIS.

●

If multiple keys are attached to the key holder, separate them before work.

●

Distinguish keys with unregistered key ID from those with registered ID.

Install ECM.

Using a registered key (*1), turn ignition switch to ON.
*1: To perform this step, use the key that has been used before performing ECM replacement.

Maintain ignition switch in ON position for at least 5 seconds.

Turn ignition switch to OFF.

Start engine.
If engine can be started, procedure is completed.
If engine cannot be started, refer to CONSULT-II Operation Manual NATS-IVIS/NVIS and initialize control
unit.

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-97

2007 Pathfinder

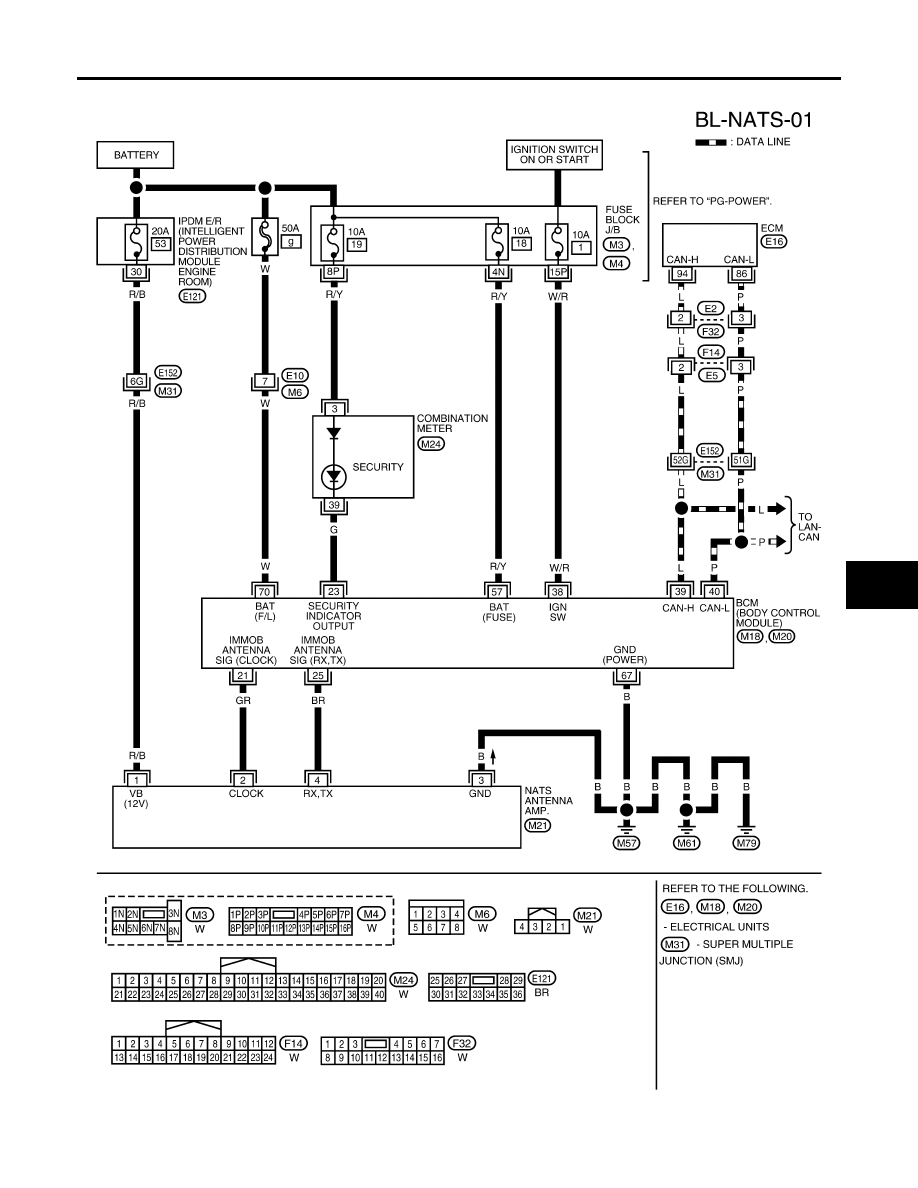

Wiring Diagram — NATS —

EIS007QD

WIWA2140E

BL-98

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

2007 Pathfinder

Terminals and Reference Values for BCM

EIS007QE

Refer to

BCS-12, "Terminals and Reference Values for BCM"

CONSULT-II

EIS007QF

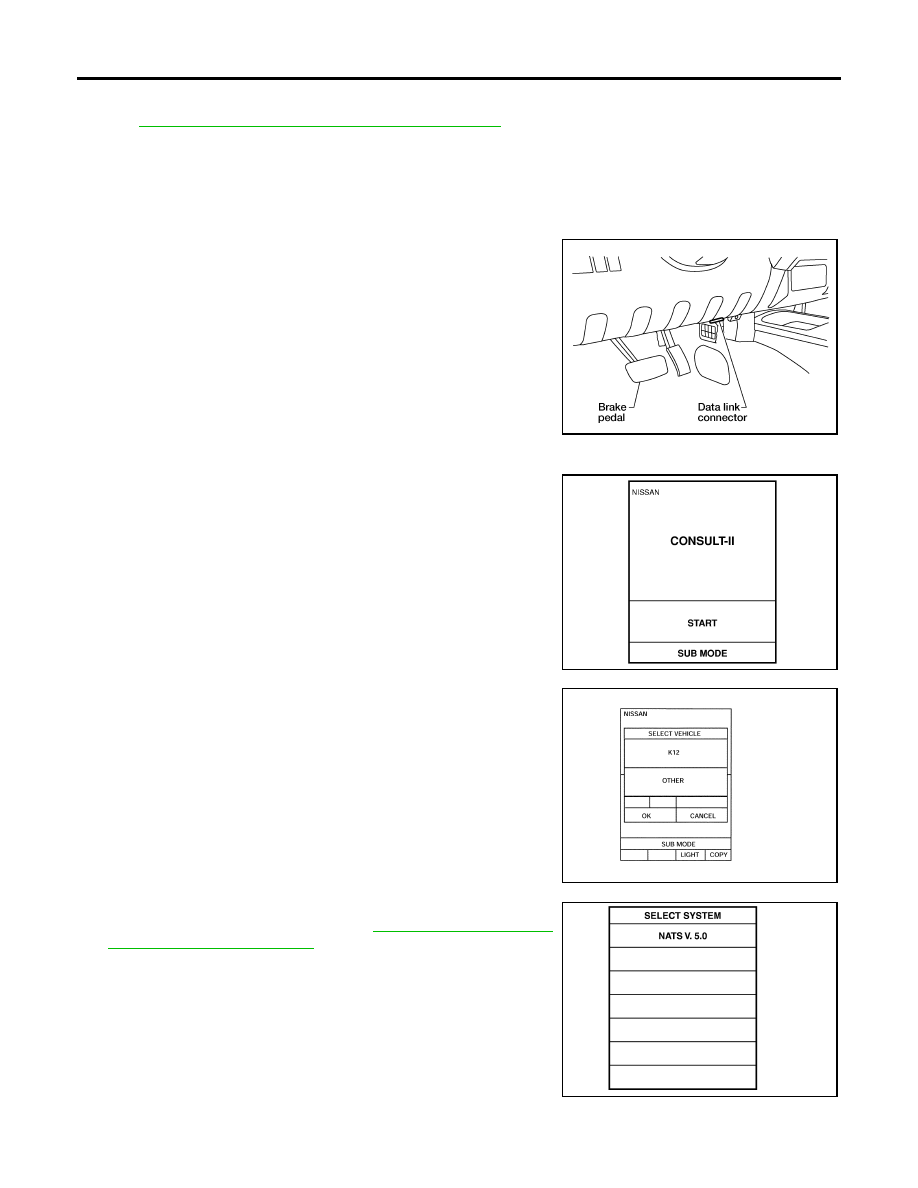

CONSULT-II INSPECTION PROCEDURE

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

Turn ignition switch OFF.

Insert NVIS (NATS) program card into CONSULT-II.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.

Turn ignition switch ON.

Touch “START”.

Touch "OTHER".

Select “NATS V.5.0”.
If “NATS V5.0” is not indicated, go to

GI-40, "CONSULT-II Data

Link Connector (DLC) Circuit"

Program card

: NATS (AEN06B-1) or later

BBIA0538E

PBR455D

LIIA0556E

SEL027X

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-99

2007 Pathfinder

Perform each diagnostic test mode according to each service
procedure.

For further information, see the CONSULT-II Operation Manual
NATS-IVIS/NVIS.

CONSULT-II DIAGNOSTIC TEST MODE FUNCTION

NOTE:

●

When any initialization is performed, all IDs previously registered will be erased and all NATS ignition keys
must be registered again.

●

The engine cannot be started with an unregistered key. In this case, the system will show “DIFFERENCE
OF KEY” or “LOCK MODE” as a self-diagnostic result on the CONSULT-II screen.

●

In rare case, “CHAIN OF ECM-IMMU” might be stored as a self-diagnostic result during key registration
procedure, even if the system is not malfunctioning.

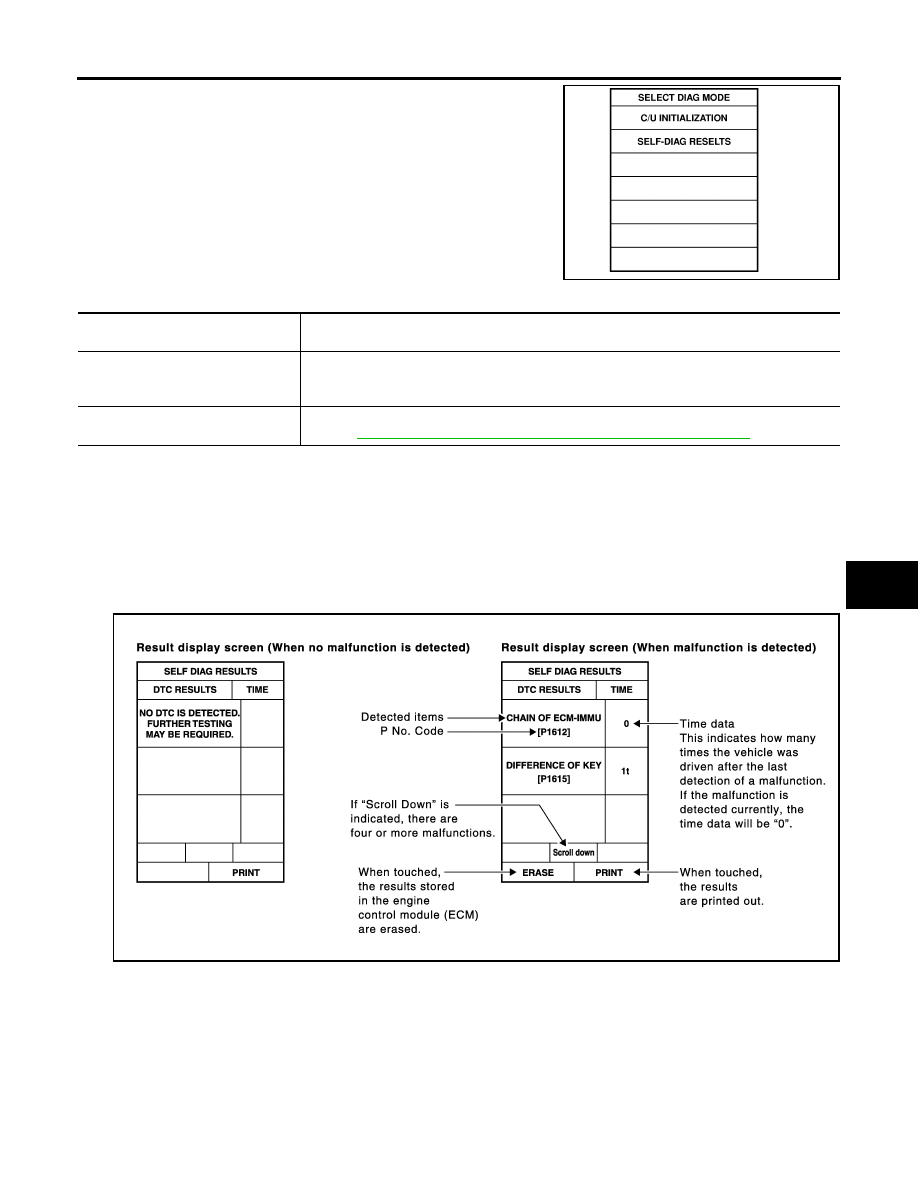

HOW TO READ SELF-DIAGNOSTIC RESULTS

SEL150X

CONSULT-II DIAGNOSTIC TEST

MODE

Description

C/U INITIALIZATION

When replacing any of the following components, C/U initialization and re-registration of all
NATS ignition keys are necessary.
(NATS ignition key/ BCM/ ECM)

SELF-DIAG RESULTS

Detected items (screen terms) are as shown in the chart.
Refer to

BL-100, "NVIS (NATS) SELF-DIAGNOSTIC RESULTS ITEM CHART"

PIIA1124E

BL-100

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

2007 Pathfinder

NVIS (NATS) SELF-DIAGNOSTIC RESULTS ITEM CHART

Detected items

[NVIS (NATS) program card screen

terms]

P No. Code

(Self-diagnostic

result of

“ENGINE”)

Malfunction is detected when.....

Reference

page

CHAIN OF ECM-IMMU
[P1612]

NATS MAL-
FUNCTION
P1612

Communication impossible between ECM and BCM
In rare case, “CHAIN OF ECM-IMMU” might be stored
during key registration procedure, even if the system is
not malfunctioning.

Refer to

BL-104

DIFFERENCE OF KEY
[P1615]

NATS MAL-
FUNCTION
P1615

BCM can receive the key ID signal but the result of ID
verification between key ID and BCM is NG.

Refer to

BL-105

CHAIN OF IMMU-KEY
[P1614]

NATS MAL-
FUNCTION
P1614

BCM cannot receive the key ID signal.

Refer to

BL-108

ID DISCORD, IMM-ECM
[P1611]

NATS MAL-
FUNCTION
P1611

The result of ID verification between BCM and ECM is
NG. System initialization is required.

Refer to

BL-106

LOCK MODE
[P1610]

NATS MAL-
FUNCTION
P1610

When the starting operation is carried out five or more
times consecutively under the following conditions, NVIS
(NATS) will shift the mode to one which prevents the
engine from being started.

●

Unregistered ignition key is used.

●

BCM or ECM malfunctioning.

Refer to

BL-107

DON'T ERASE BEFORE CHECK-
ING ENG DIAG

—

All engine trouble codes except NVIS (NATS) trouble
code has been detected in ECM.

Refer to

BL-101
