Nissan Pathfinder (2007 year). Manual - part 68

AUDIO

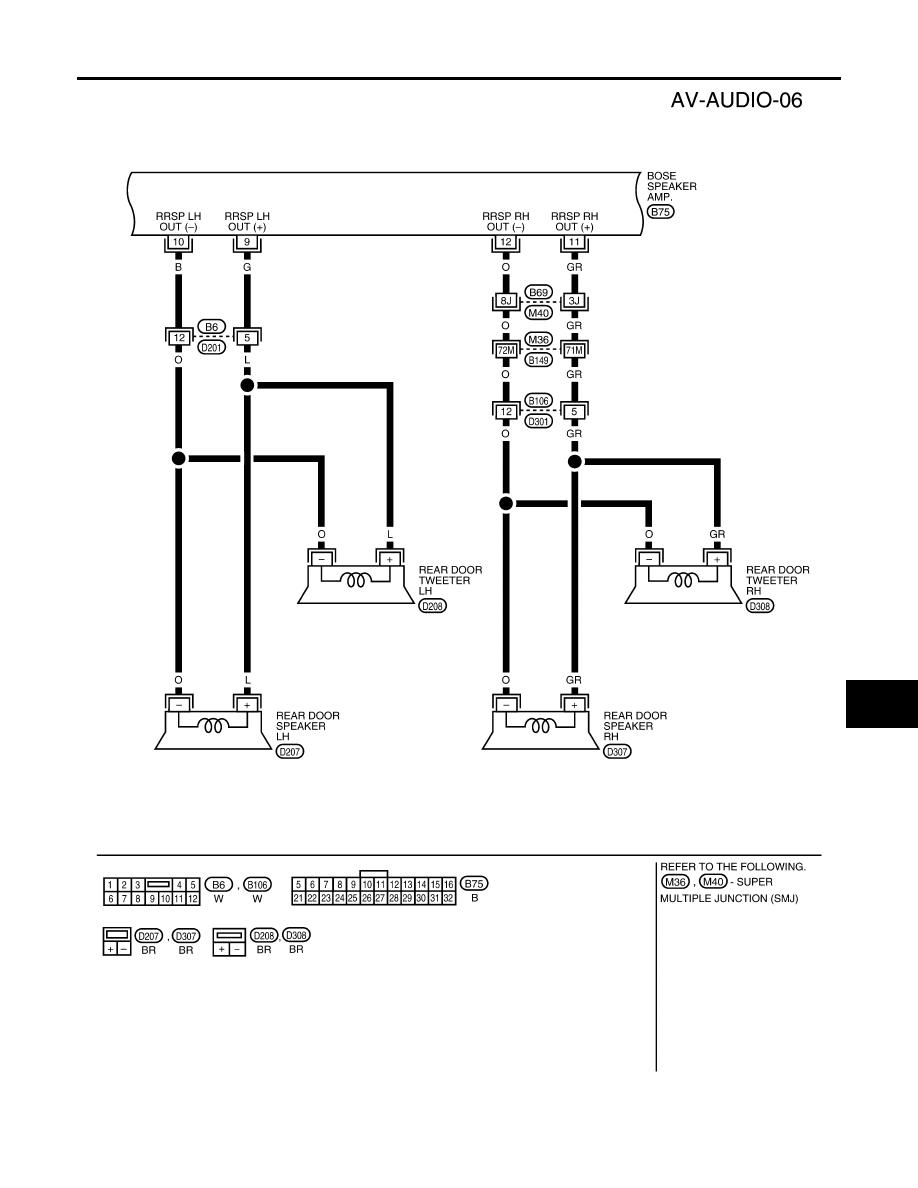

AV-17

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

WKWA3035E

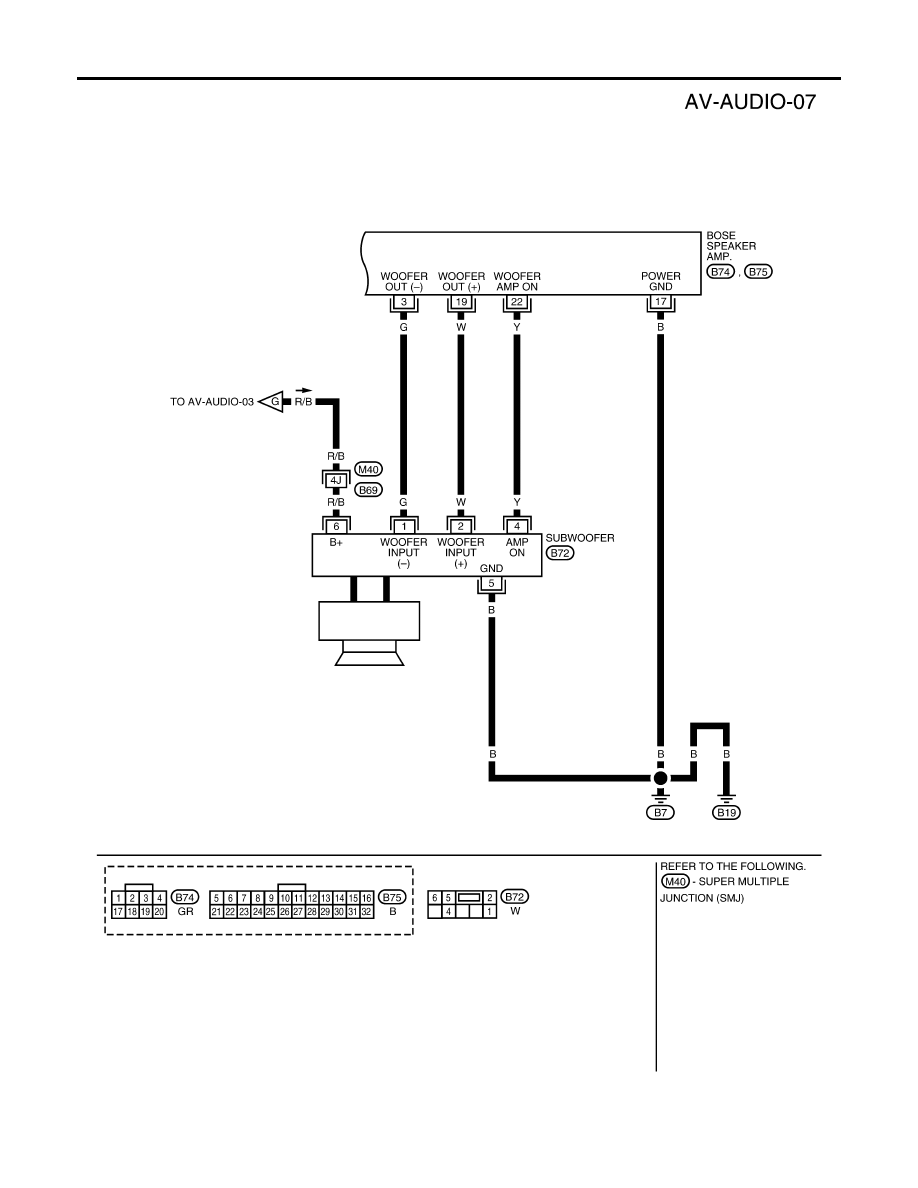

AV-18

AUDIO

2007 Pathfinder

WKWA4203E

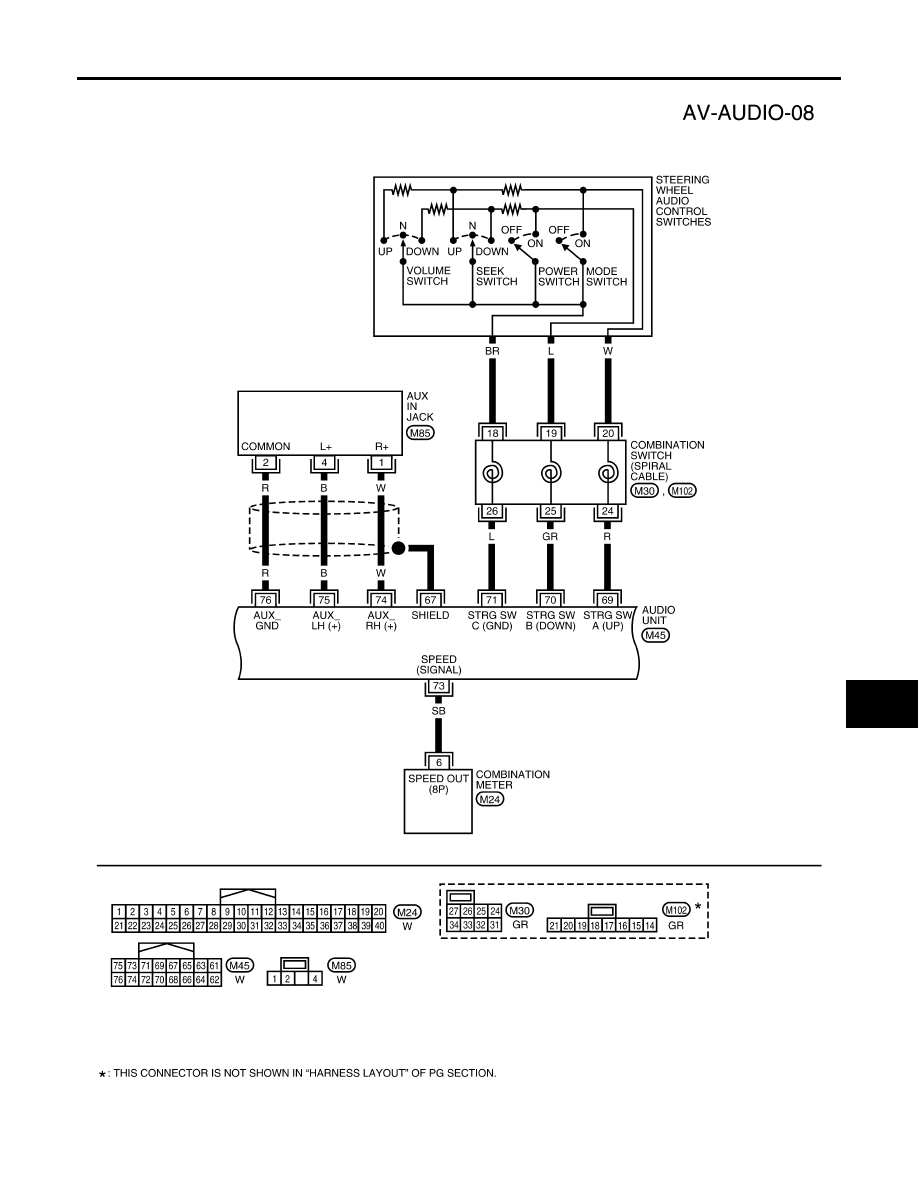

AUDIO

AV-19

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

WITHOUT NAVI

WKWA5381E

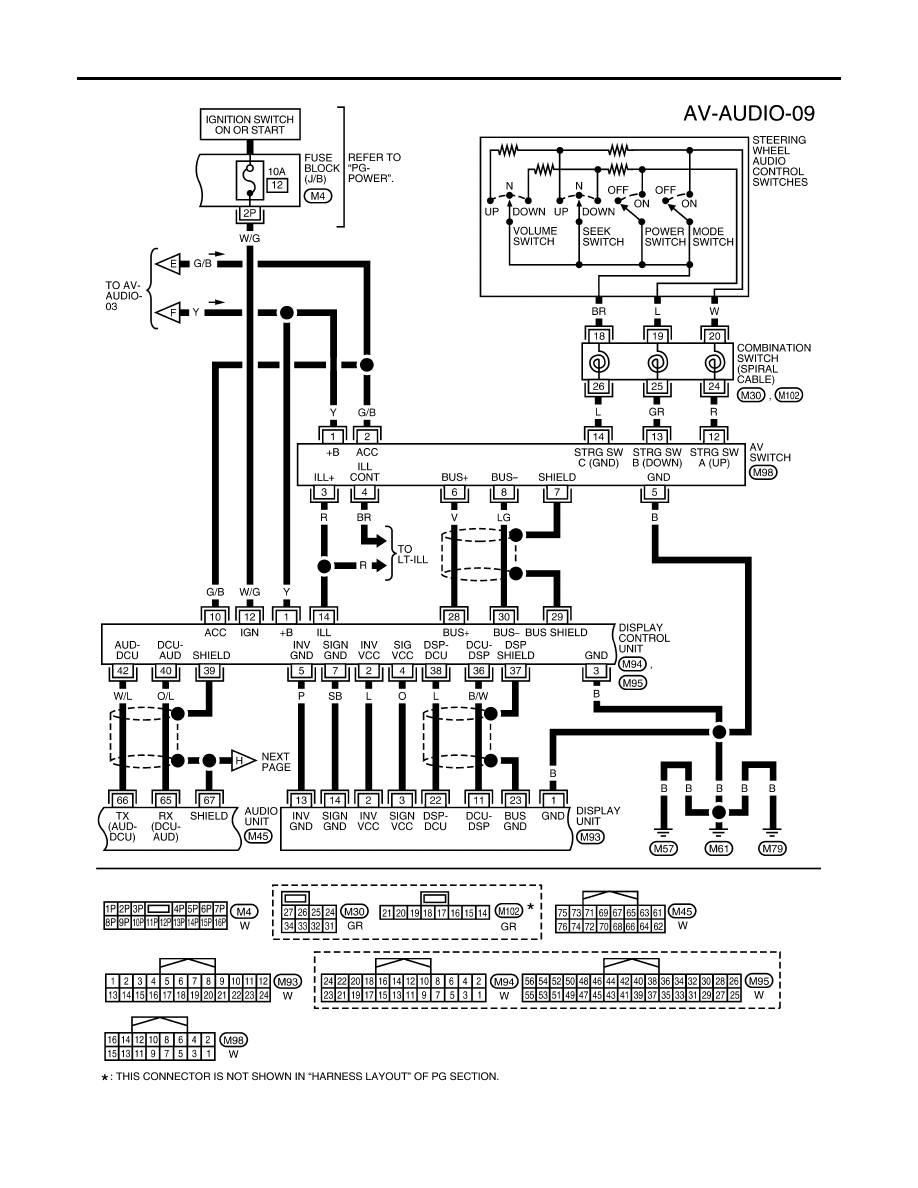

AV-20

AUDIO

2007 Pathfinder

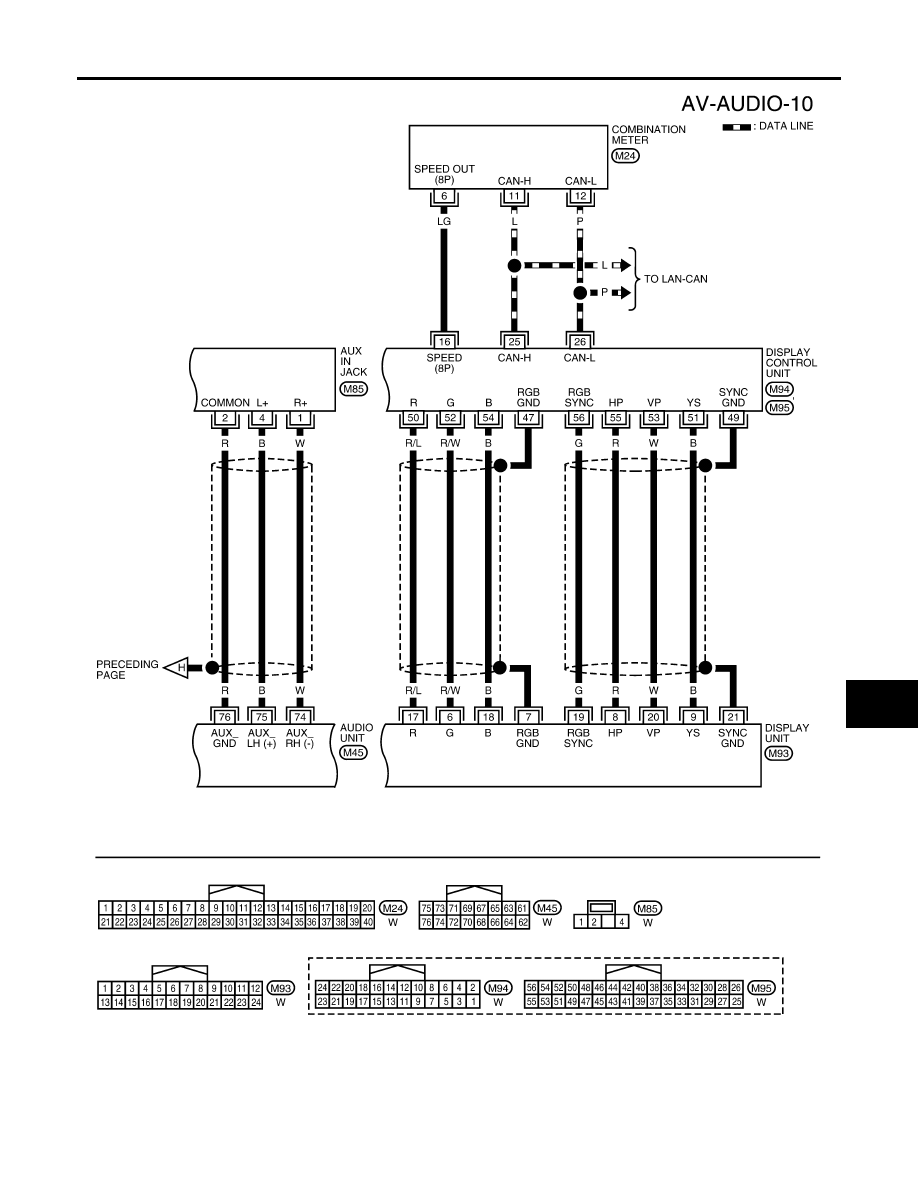

WITH NAVI

WKWA5382E

AUDIO

AV-21

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

WKWA5383E

AV-22

AUDIO

2007 Pathfinder

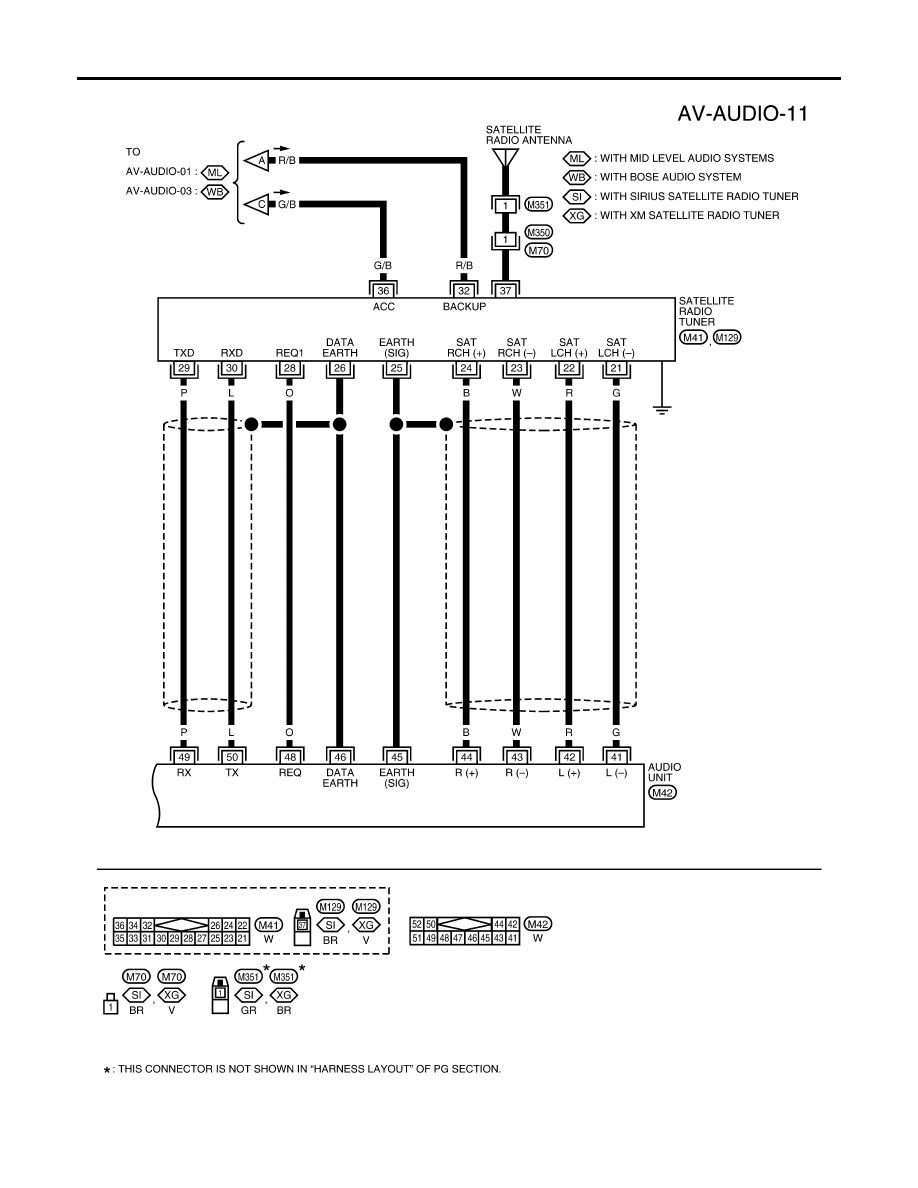

SATELLITE RADIO TUNER (FACTORY INSTALLED)

WKWA4191E

AUDIO

AV-23

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

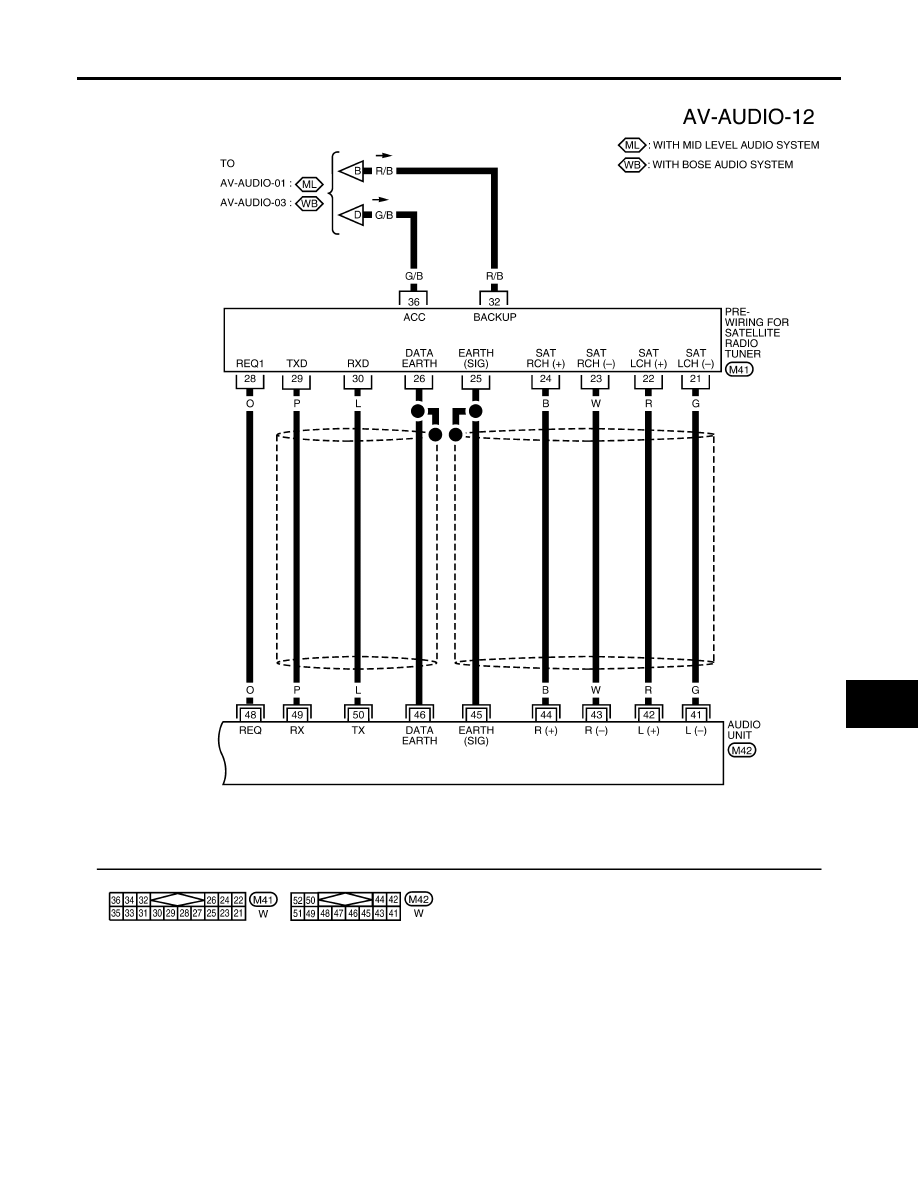

SATELLITE RADIO TUNER (PRE-WIRING)

WKWA4206E

AV-24

AUDIO

2007 Pathfinder

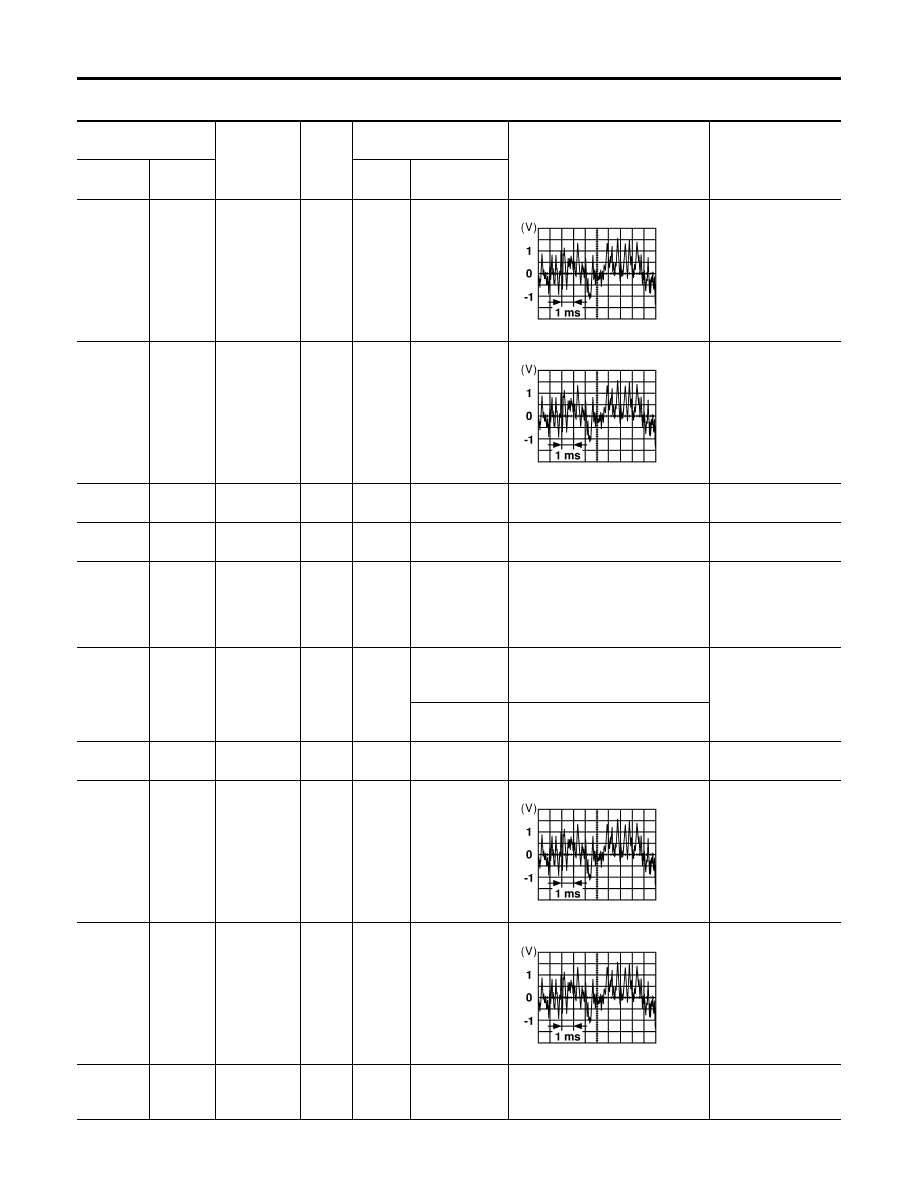

Terminals and Reference Values for Audio Unit (Base and Mid Level System)

EKS00G5F

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

–

Ignition

switch

Operation

2 (BR)

1 (L)

Audio sound
signal front
LH

Output

ON

Receive audio
signal

No sound from front
door speaker LH or
tweeter LH.

4 (LG)

3 (R)

Audio sound
signal front
RH

Output

ON

Receive audio
signal

No sound from front
door speaker RH or
tweeter RH.

5 (G)

Ground

Antenna
signal

Output

ON

–

More than 10V

Poor radio reception.

6 (Y)

Ground

Battery
power

Input

–

–

Battery voltage

System does not
work properly.

7 (GR)

Ground

Illumination
control sig-
nal

Input

ON

Illumination
control switch
is operated by
lighting switch
in 1st position.

Changes between 0 and 12V

Audio unit illumina-
tion cannot be con-
trolled.

8 (R)

Ground

Illumination
signal

Input

OFF

Lighting switch
is in 1st posi-
tion.

Battery voltage

Audio unit illumina-
tion does not come
on when lighting
switch is in 1st posi-
tion.

Lighting switch
is OFF.

3V or less

10 (G/B)

Ground

ACC power

Input

ACC

Ignition switch
ACC or ON

Battery voltage

System does not
work properly.

14 (G)

13 (B)

Audio sound
signal rear
LH

Output

ON

Receive audio
signal

No sound from rear
door speaker LH.

16 (GR)

15 (O)

Audio sound
signal rear
RH

Output

ON

Receive audio
signal

No sound from rear
door speaker RH.

67*

–

Shield

–

ON

–

0V

Interference and dis-
tortion heard from
speakers.

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E
