DTC U1000 CAN COMMUNICATION LINE

AT-99

2007 Pathfinder

TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES

Refer to

AT-85, "TCM Input/Output Signal Reference Values"

Diagnostic Procedure

ECS00EFN

CHECK CAN COMMUNICATION CIRCUIT

With CONSULT-II

Turn ignition switch “ON” and start engine.

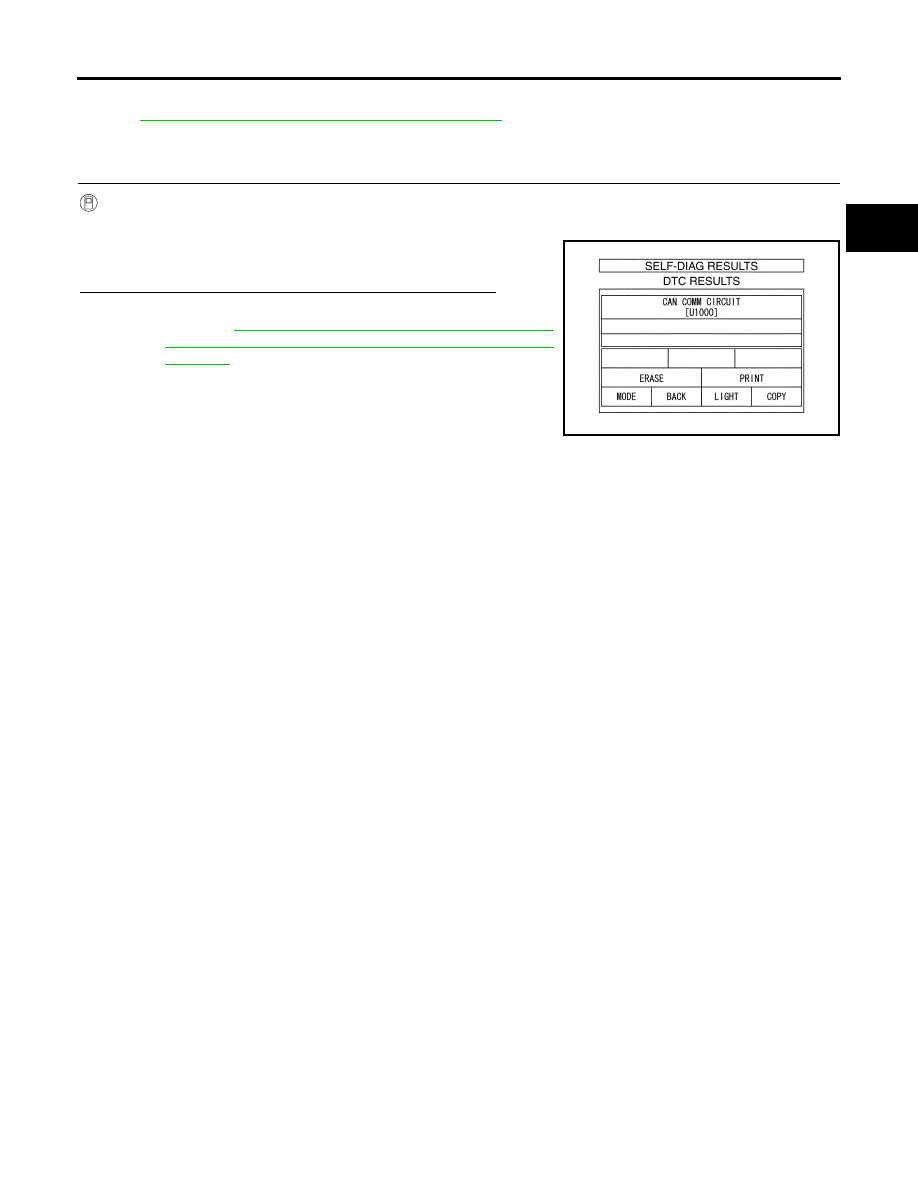

Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.

Is any malfunction of the “CAN COMM CIRCUIT” indicated?

YES

>> Print out CONSULT-II screen, GO TO LAN section.

Refer to

LAN-19, "CHECK OF CAN SYSTEM TYPE

(HOW TO USE CAN SYSTEM TYPE SPECIFICATION
CHART)"

>> INSPECTION END

PCIA0061E

AT-100

DTC P0615 START SIGNAL CIRCUIT

2007 Pathfinder

DTC P0615 START SIGNAL CIRCUIT

PFP:25230

Description

ECS00EFO

●

TCM prohibits cranking other than at “P” or “N” position.

CONSULT-II Reference Value

ECS00EFP

On Board Diagnosis Logic

ECS00EFQ

●

This is not an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P0615 STARTER RELAY/CIRC” with CONSULT-II or 14th judgement flicker
without CONSULT-II is detected when park/neutral (PNP) relay (starter relay) is switched “ON” other than
at “P” or “N” position. (Or when switched “OFF” at “P” or “N” position).

Possible Cause

ECS00EFR

●

Harness or connectors
[The park/neutral position (PNP) relay (starter relay) and TCM circuit is open or shorted.]

●

Park/neutral position (PNP) relay (starter relay)

DTC Confirmation Procedure

ECS00EFS

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

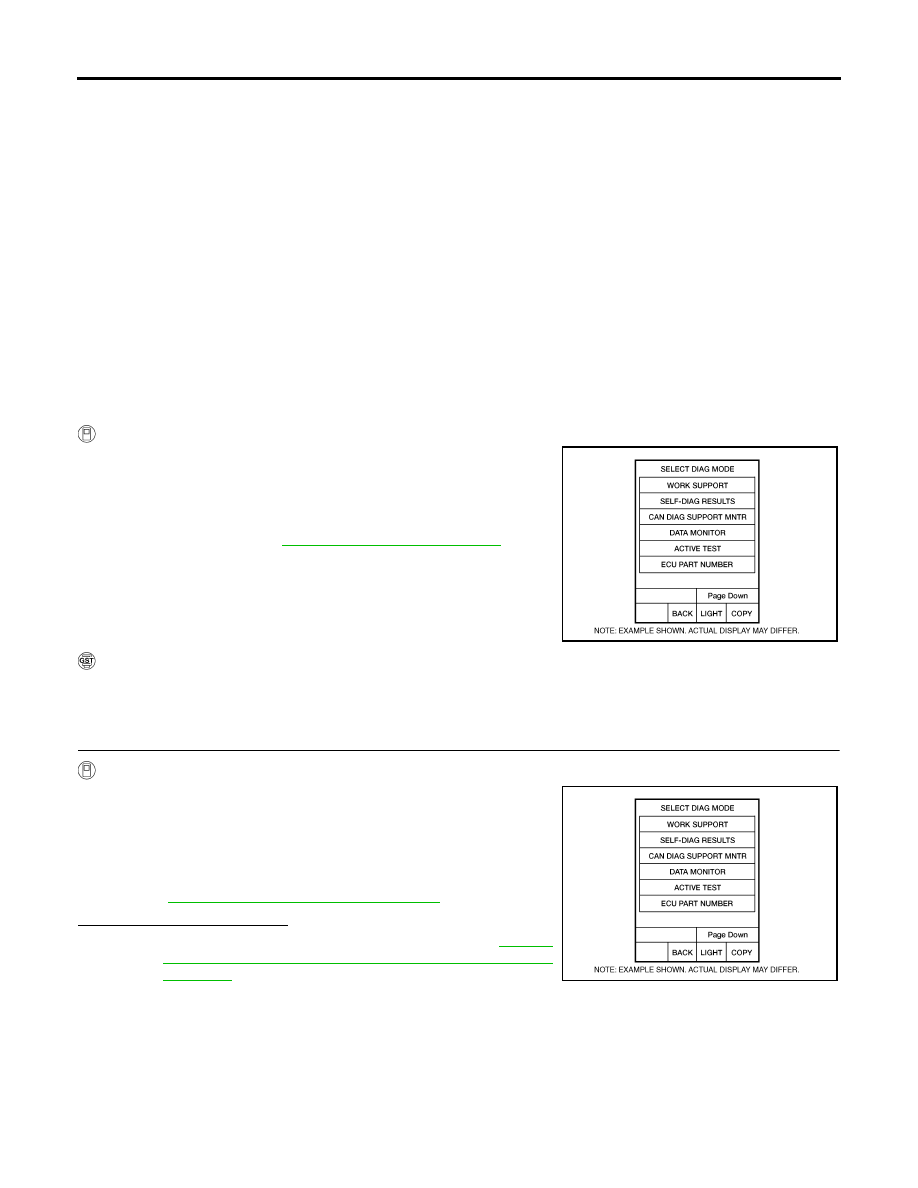

Turn ignition switch “ON”. (Do not start engine.)

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

Start engine.

Drive vehicle for at least 2 consecutive seconds.

If DTC is detected, go to

AT-102, "Diagnostic Procedure"

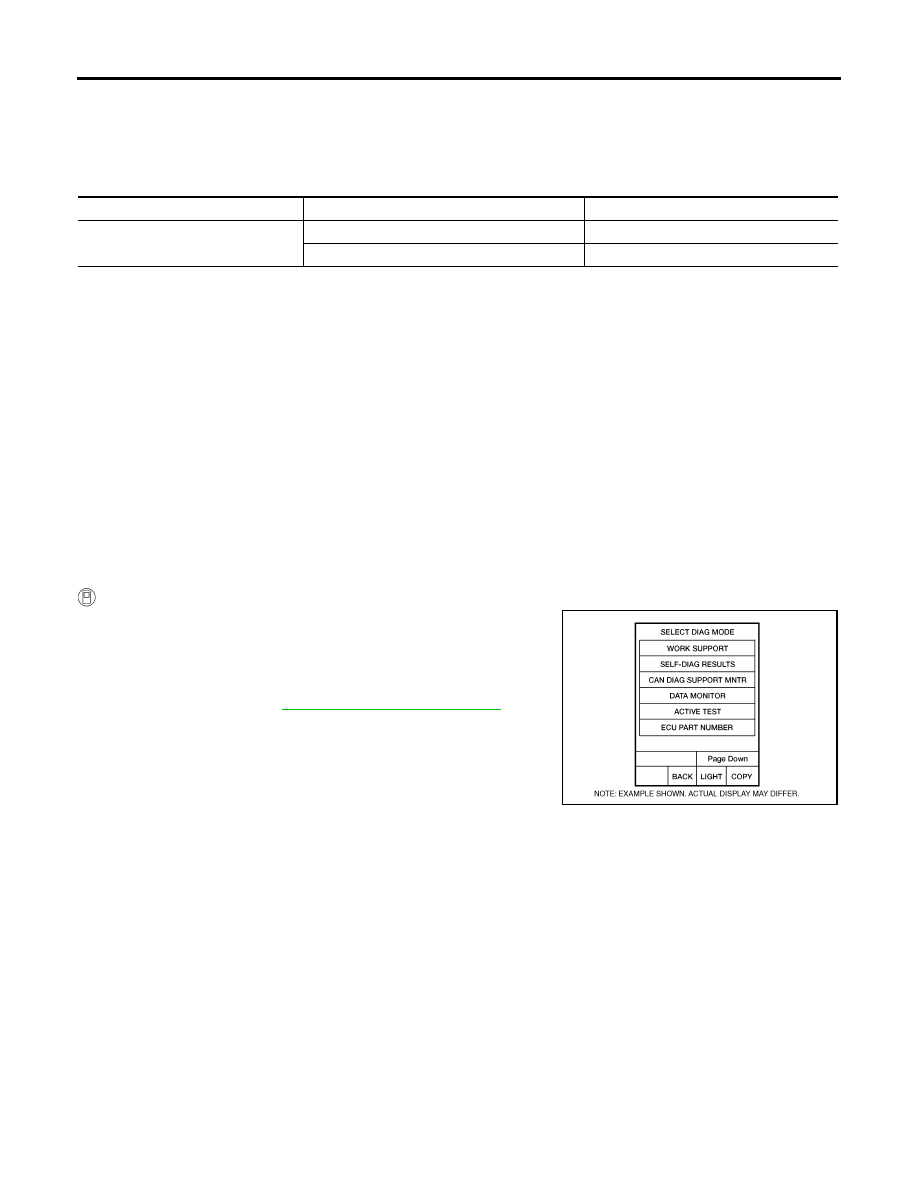

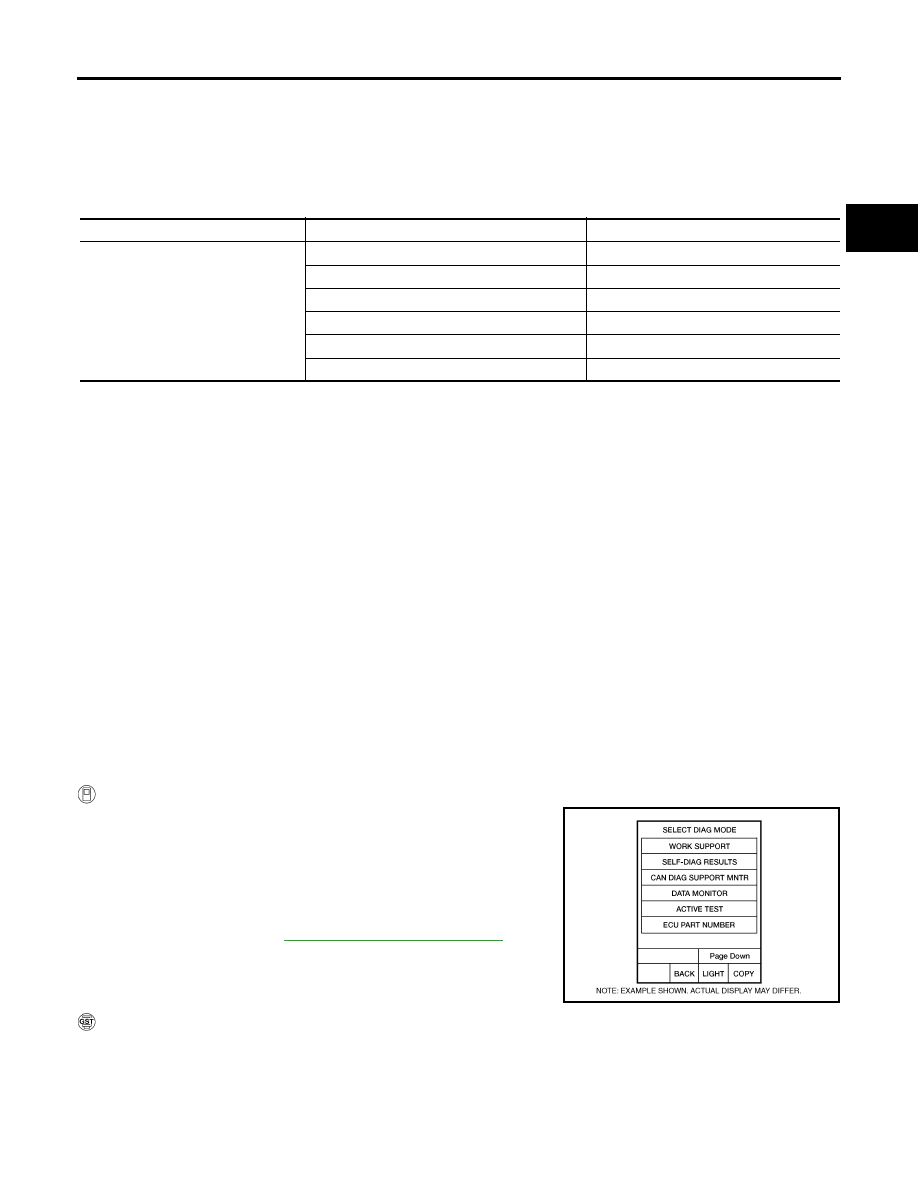

Item name

Condition

Display value

STARTER RELAY

Selector lever in “N”, “P” positions.

Selector lever in other position.

OFF

BCIA0031E

DTC P0615 START SIGNAL CIRCUIT

AT-101

2007 Pathfinder

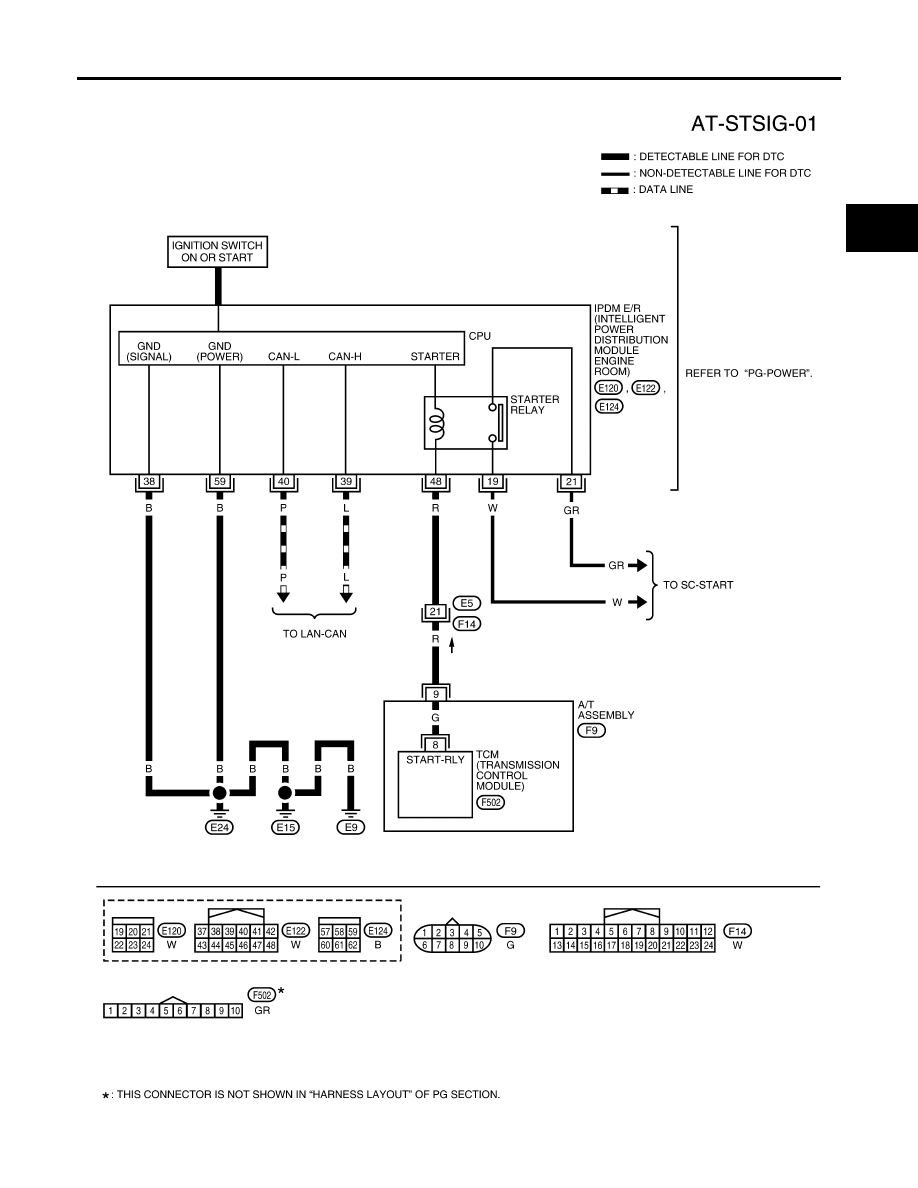

Wiring Diagram — AT — STSIG

ECS00EFT

BCWA0385E

AT-102

DTC P0615 START SIGNAL CIRCUIT

2007 Pathfinder

TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES

Refer to

AT-85, "TCM Input/Output Signal Reference Values"

Diagnostic Procedure

ECS00EFU

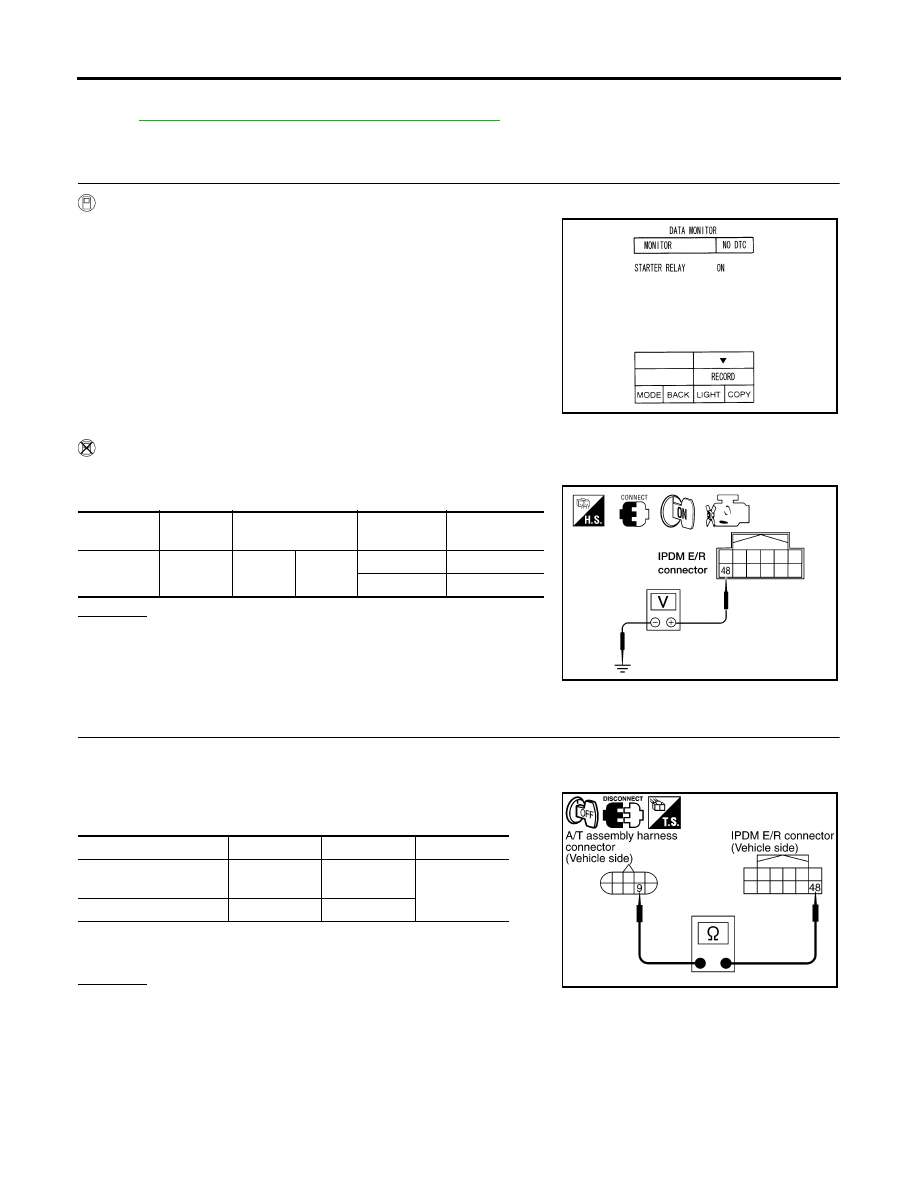

CHECK STARTER RELAY

With CONSULT-II

Turn ignition switch ON. (Do not start engine.)

Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II and check monitor “STARTER
RELAY” ON/OFF.

Without CONSULT-II

Turn ignition switch ON. (Do not start engine.)

Check voltage between the IPDM E/R connector and ground.

OK or NG

>> GO TO 5.

>> GO TO 2.

CHECK HARNESS BETWEEN A/T ASSEMBLY HARNESS CONNECTOR AND IPDM E/R CONNEC-

TOR

Turn ignition switch OFF.

Disconnect A/T assembly harness connector and IPDM E/R connector.

Check continuity between A/T assembly harness connector and
IPDM E/R connector.

If OK, check harness for short to ground and short to power.

Reinstall any part removed.

OK or NG

>> GO TO 3.

>> Repair open circuit or short to ground or short to power in harness or connectors.

PCIA0056E

Item

Connector

Terminal

Shift position

Voltage

(Approx.)

Starter relay

E122

Ground

“N” and “P”

Battery voltage

“R” and “D”

LCIA0320E

Item

Connector

Terminal

Continuity

A/T assembly harness
connector

Yes

IPDM E/R connector

E122

SCIA6254E

DTC P0615 START SIGNAL CIRCUIT

AT-103

2007 Pathfinder

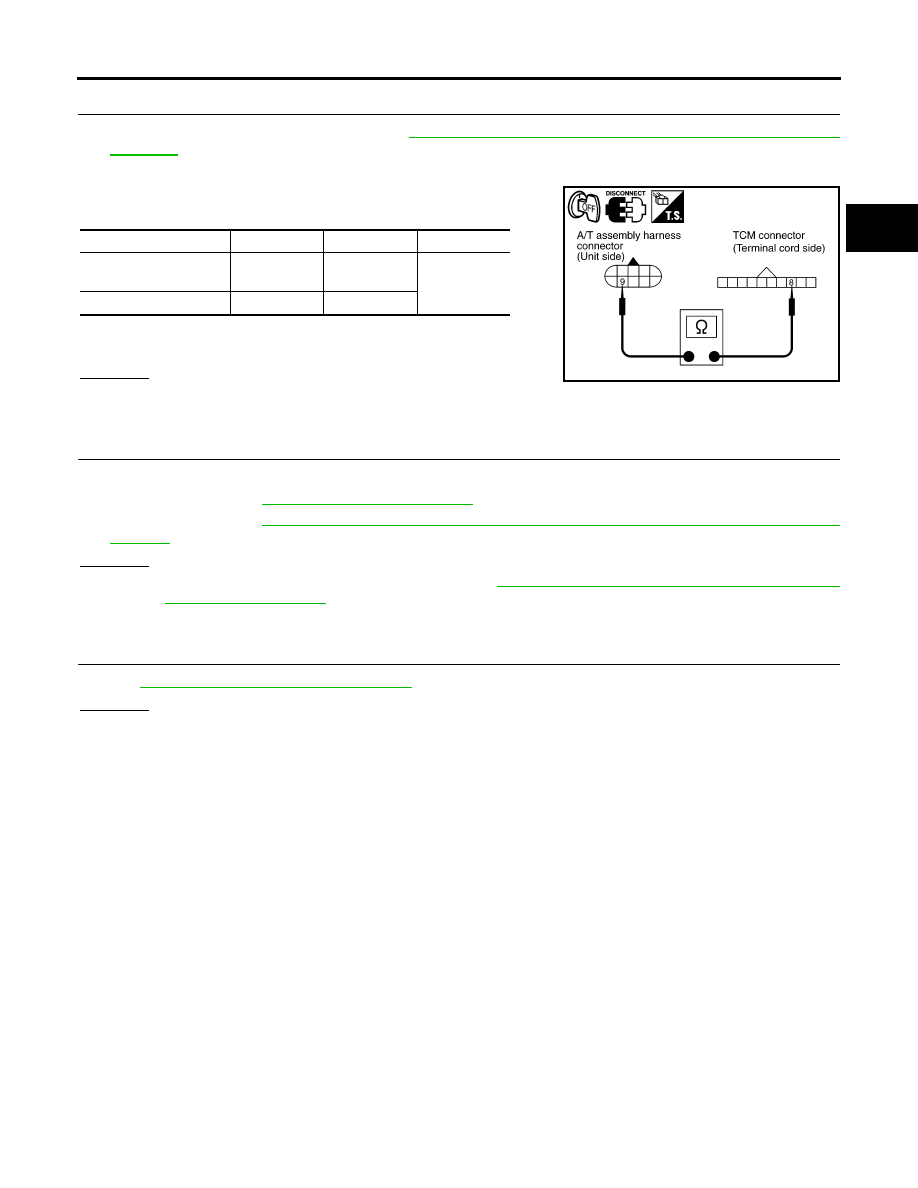

CHECK TERMINAL CORD ASSEMBLY

Remove control valve with TCM. Refer to

AT-227, "Control Valve With TCM and A/T Fluid Temperature

Sensor 2"

Disconnect A/T assembly harness connector and TCM connector.

Check continuity between A/T assembly harness connector ter-
minal and TCM connector terminal.

If OK, check harness for short to ground and short to power.

Reinstall any part removed.

OK or NG

>> GO TO 4.

>> Replace open circuit or short to ground and short to power in harness or connectors.

DETECT MALFUNCTIONING ITEM

Check the following.

●

Starter relay, Refer to

SC-10, "STARTING SYSTEM"

●

IPDM E/R, Refer to

PG-18, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE

ROOM)"

OK or NG

>> Replace the control valve with TCM. Refer to

AT-227, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

>> Repair or replace damaged parts.

CHECK DTC

Perform

AT-100, "DTC Confirmation Procedure"

OK or NG

>> INSPECTION END

>> GO TO 2.

Item

Connector

Terminal

Continuity

A/T assembly harness
connector

Yes

TCM connector

F502

SCIA5440E

AT-104

DTC P0700 TCM

2007 Pathfinder

DTC P0700 TCM

PFP:31036

Description

ECS00EFV

The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The
TCM controls the A/T.

On Board Diagnosis Logic

ECS00EFW

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P0700 TCM” with CONSULT-II is detected when the TCM is malfunctioning.

Possible Cause

ECS00EFX

TCM.

DTC Confirmation Procedure

ECS00EFY

WITH CONSULT-II

Turn ignition switch “ON”. (Do not start engine.)

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

Start engine.

Run engine for at least 2 consecutive seconds at idle speed.

If DTC is detected, go to

AT-104, "Diagnostic Procedure"

WITH GST

Follow the procedure “WITH CONSULT-II”.

Diagnostic Procedure

ECS00EFZ

CHECK DTC

With CONSULT-II

Turn ignition switch “ON”. (Do not start engine.)

Select “SELF DIAG RESULTS” mode for “A/T” with CONSULT-
II.

Touch “ERASE”.

Turn ignition switch “OFF” and wait at least 10 seconds.

Perform

AT-104, "DTC Confirmation Procedure"

Is the “TCM” displayed again?

YES

>> Replace the control valve with TCM. Refer to

AT-227,

"Control Valve With TCM and A/T Fluid Temperature
Sensor 2"

>> INSPECTION END

BCIA0031E

DTC P0705 PARK/NEUTRAL POSITION SWITCH

AT-105

2007 Pathfinder

DTC P0705 PARK/NEUTRAL POSITION SWITCH

PFP:32006

Description

ECS00EG0

●

The park/neutral position (PNP) switch includes a transmission position switch.

●

The transmission range switch detects the selector lever position and sends a signal to the TCM.

CONSULT-II Reference Value

ECS00EG1

On Board Diagnosis Logic

ECS00EG2

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P0705 PNP SW/CIRC” with CONSULT-II or 9th judgement flicker without CON-
SULT-II is detected under the following conditions.

–

When TCM does not receive the correct voltage signal from the PNP switch 1, 2, 3, 4 based on the gear
position.

–

When no other position but “P” position is detected from “N” positions.

Possible Cause

ECS00EG3

●

Harness or connectors
[The park/neutral position (PNP) switch 1, 2, 3, 4 and TCM circuit is open or shorted.]

●

Park/neutral position (PNP) switch 1, 2, 3, 4

DTC Confirmation Procedure

ECS00EG4

CAUTION:

Always drive vehicle at a safe speed.

WITH CONSULT-II

Turn ignition switch “ON”. (Do not start engine.)

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

Start engine.

Drive vehicle and maintain the following conditions for at least 2
consecutive seconds.
ACCELE POSI: More than 1.018V

If DTC is detected, go to

AT-107, "Diagnostic Procedure"

WITH GST

Follow the procedure “WITH CONSULT-II”.

Item name

Condition

Display value

SLCTLVR POSI

Selector lever in “N”,“P” positions.

N/P

Selector lever in “R” position.

Selector lever in “D” position.

Selector lever in “3” position.

Selector lever in “2” position.

Selector lever in “1” position.

BCIA0031E

AT-106

DTC P0705 PARK/NEUTRAL POSITION SWITCH

2007 Pathfinder

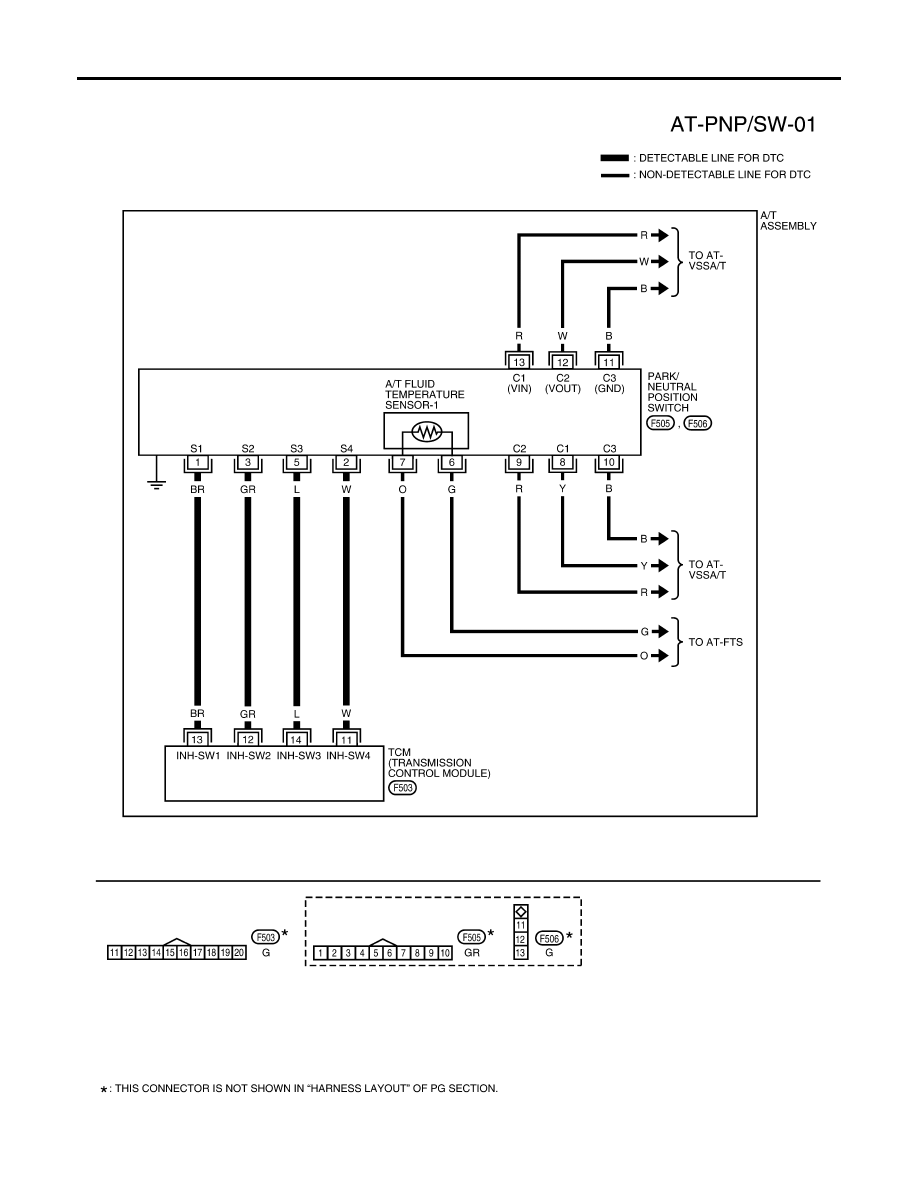

Wiring Diagram — AT — PNP/SW

ECS00EG5

BCWA0576E
