SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-5

2006 Pathfinder

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

●

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

●

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.

CHECK RELATED SERVICE BULLETINS

After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.

LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE

Narrow down the noise to a general area.To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear: J-39565 and mechanic's stethoscope).

Narrow down the noise to a more specific area and identify the cause of the noise by:

●

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fasteners can be bro-
ken or lost during the repair, resulting in the creation of new noise.

●

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

●

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

●

placing a piece of paper between components that you suspect are causing the noise.

●

looking for loose components and contact marks.
Refer to

RF-6, "Generic Squeak and Rattle Troubleshooting"

REPAIR THE CAUSE

●

If the cause is a loose component, tighten the component securely.

●

If the cause is insufficient clearance between components:

–

separate components by repositioning or loosening and retightening the component, if possible.

–

insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A NISSAN Squeak and Rattle Kit (J-43980) is available through your authorized NISSAN
Parts Department.

CAUTION:

Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100

135 mm (3.94

5.31 in)/76884-71L01: 60

85 mm (2.36

3.35 in)/76884-71L02: 15

mm (0.59

0.98 in)

INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50

50 mm (1.97

1.97 in)/73982-50Y00: 10 mm (0.39 in) thick,

50 mm (1.97

1.97 in)

INSULATOR (Light foam block)

RF-6

SQUEAK AND RATTLE TROUBLE DIAGNOSES

2006 Pathfinder

80845-71L00: 30 mm (1.18 in) thick, 30

50 mm (1.18

1.97 in)

FELT CLOTH TAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15

25 mm (0.59

0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll. The following

materials not found in the kit can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used instead of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.

CONFIRM THE REPAIR

Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.

Generic Squeak and Rattle Troubleshooting

EIS007SZ

Refer to Table of Contents for specific component removal and installation information.

INSTRUMENT PANEL

Most incidents are caused by contact and movement between:

The cluster lid A and instrument panel

Acrylic lens and combination meter housing

Instrument panel to front pillar garnish

Instrument panel to windshield

Instrument panel mounting pins

Wiring harnesses behind the combination meter

A/C defroster duct and duct joint

These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicone spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.

CAUTION:

Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.

CENTER CONSOLE

Components to pay attention to include:

Shifter assembly cover to finisher

A/C control unit and cluster lid C

Wiring harnesses behind audio and A/C control unit

The instrument panel repair and isolation procedures also apply to the center console.

DOORS

Pay attention to the:

Finisher and inner panel making a slapping noise

Inside handle escutcheon to door finisher

Wiring harnesses tapping

Door striker out of alignment causing a popping noise on starts and stops

Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J-43980) to repair the noise.

SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-7

2006 Pathfinder

TRUNK

Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:

Trunk lid bumpers out of adjustment

Trunk lid striker out of adjustment

The trunk lid torsion bars knocking together

A loose license plate or bracket

Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.

SUNROOF/HEADLINING

Noises in the sunroof/headlining area can often be traced to one of the following:
1.

Sunroof lid, rail, linkage or seals making a rattle or light knocking noise

Sun visor shaft shaking in the holder

Front or rear windshield touching headliner and squeaking

Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.

OVERHEAD CONSOLE (FRONT AND REAR)

Overhead console noises are often caused by the console panel clips not being engaged correctly. Most of
these incidents are repaired by pushing up on the console at the clip locations until the clips engage.
In addition look for:

Loose harness or harness connectors.

Front console map/reading lamp lens loose.

Loose screws at console attachment points.

SEATS

When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1.

Headrest rods and holder

A squeak between the seat pad cushion and frame

The rear seatback lock and bracket

These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.

UNDERHOOD

Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:

Any component mounted to the engine wall

Components that pass through the engine wall

Engine wall mounts and connectors

Loose radiator mounting pins

Hood bumpers out of adjustment

Hood striker out of adjustment

These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

RF-8

SQUEAK AND RATTLE TROUBLE DIAGNOSES

2006 Pathfinder

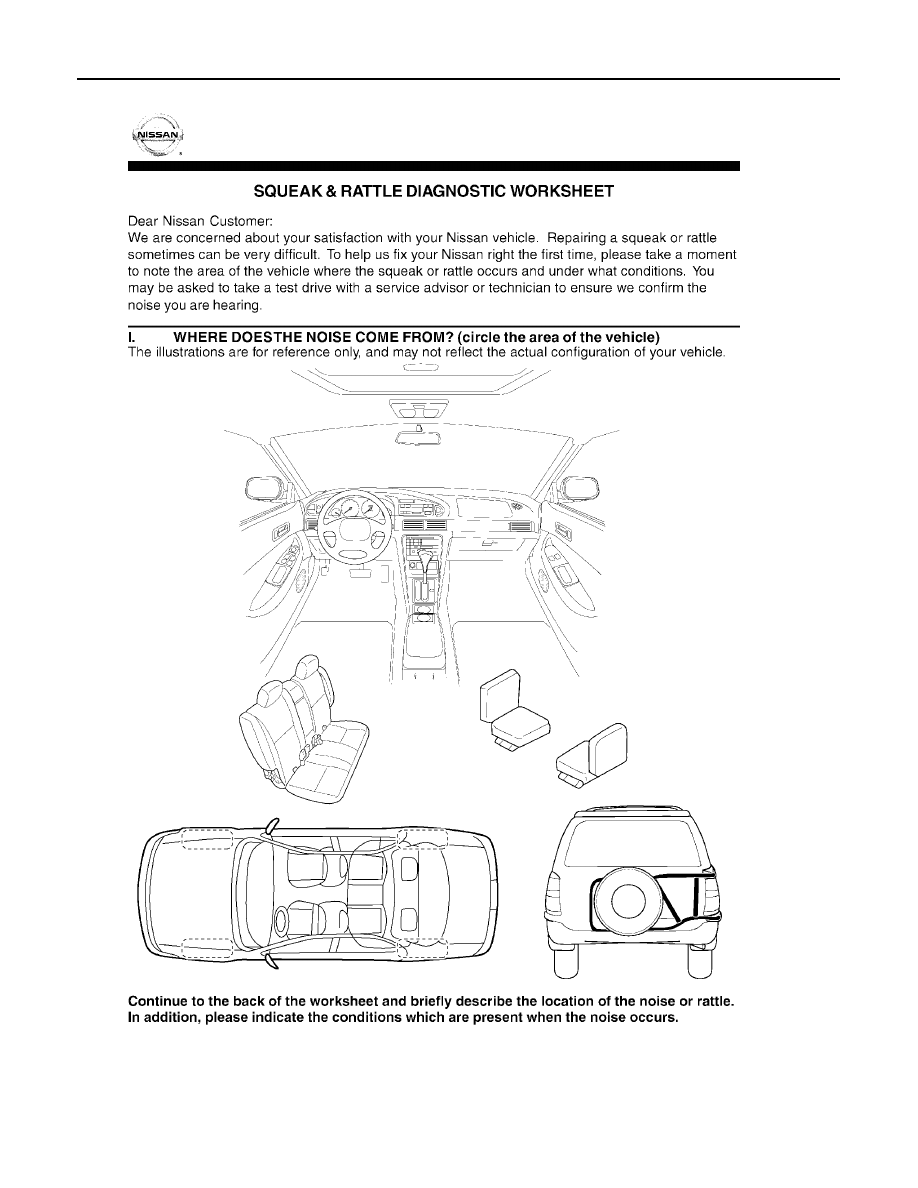

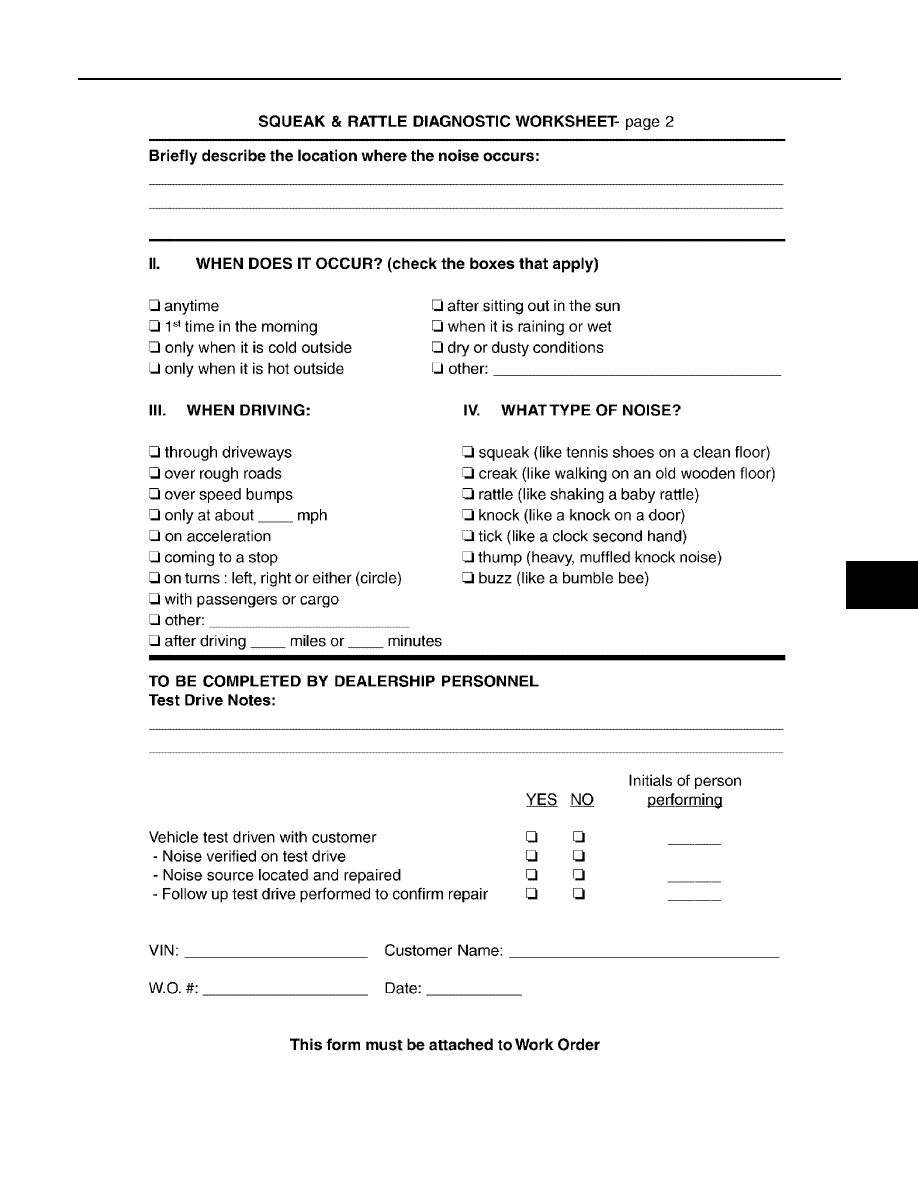

Diagnostic Worksheet

EIS007T0

LIWA0276E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-9

2006 Pathfinder

SBT844

RF-10

SUNROOF

2006 Pathfinder

SUNROOF

PFP:91210

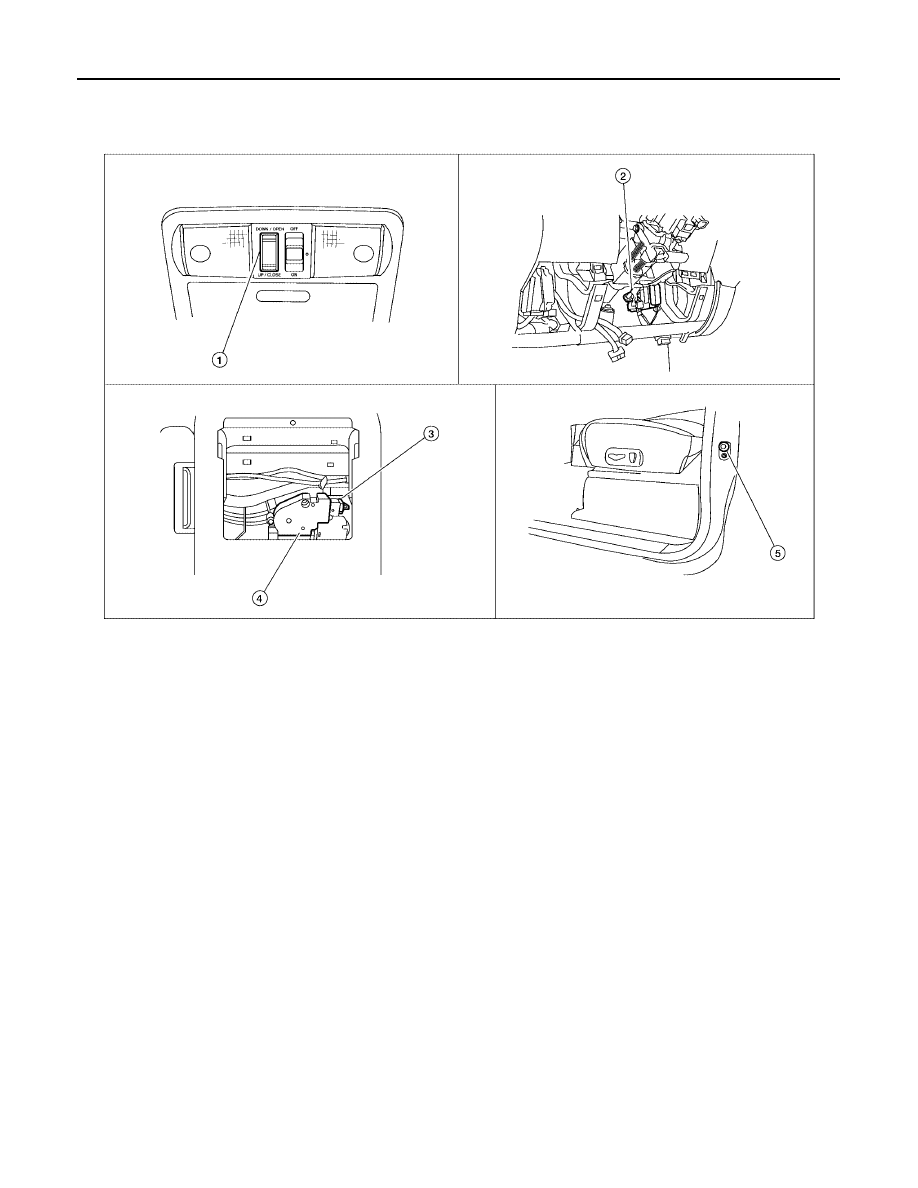

Component Parts and Harness Connector Location

EIS007T1

System Description

EIS007T2

OUTLINE

Electric sunroof system consists of

●

Sunroof switch

●

Sunroof motor assembly

●

BCM (body control module)

BCM supplies power to the sunroof motor. Sunroof operation depends on sunroof switch condition.

OPERATION

Power is supplied at all times

●

through 50A fusible link (letter g , located in the fuse and fusible link box)

●

to BCM terminal 70, and

●

through BCM terminal 69

●

to sunroof motor assembly terminal 7.

When the ignition switch is in the ON or START position, power is supplied

●

through 10A fuse [No.1, located in the fuse block (J/B)]

●

to BCM terminal 38, and

●

through BCM terminal 68

●

to sunroof motor assembly terminal 9.

LIIA2410E

Sunroof switch R4

BCM M18, M19, M20
(view with instrument lower panel LH
removed)

Sunroof motor harness connector B83

Sunroof motor assembly

Front door switch
LH B8
RH B108

SUNROOF

RF-11

2006 Pathfinder

Ground is supplied

●

to BCM terminal 67

●

through grounds M57, M61 and M79.

TILT UP/SLIDE CLOSE OPERATION

When up/close switch is pressed, ground is supplied

●

to sunroof motor assembly terminal 1

●

through sunroof switch terminal 3

●

through sunroof switch terminal 2

●

through grounds M57, M61 and M79.

Then the sunroof will tilt up/slide closed.

TILT DOWN/SLIDE OPEN OPERATION

When down/open switch is pressed, ground is supplied

●

to sunroof motor assembly terminal 5

●

through sunroof switch terminal 1

●

through sunroof switch terminal 2

●

through grounds M57, M61 and M79.

Then the sunroof will tilt down/slide open.

AUTO OPERATION

The power sunroof AUTO feature makes it possible to slide open and slide closed or tilt up and tilt down the
sunroof without holding the sunroof switch in the UP/CLOSE or DOWN/OPEN position.

RETAINED POWER OPERATION

When the ignition switch is turned to OFF position from ON position, power is supplied for 45 seconds

●

through BCM terminal 68

●

to sunroof motor assembly terminal 9.

When power is supplied, the sunroof can be operated.
The retained power operation is canceled when the front door LH or RH is opened.
RAP signal period can be changed by CONSULT-II. Refer to

RF-16, "CONSULT-II Function (BCM)"

ANTI-PINCH FUNCTION

The CPU (central processing unit) of sunroof motor assembly monitors the sunroof motor operation and the
sunroof position (fully-closed or other) by the signals from sunroof motor.
When sunroof motor detects an interruption during the following slide close and tilt down operation, sunroof
switch controls the motor for open and the sunroof will operate until it reaches full up position (during tilt down
operation) or 125 mm (4.92 in) or more in an open direction (during slide close operation).

●

close operation and tilt down when ignition switch is in the ON position.

●

close operation and tilt down during retained power operation.

INITIALIZATION FAILURE CONDITIONS

Initialization and teaching of system should be conducted if the following conditions exist:

●

sunroof will only move in the UP/CLOSE direction, having a step by step motion

●

sunroof does not have any auto operation.

INITIALIZATION PROCEDURE

If the sunroof does not close or open automatically, use the following procedure to return sunroof operation to
normal.

Press the switch to the UP/CLOSE position to tilt the sunroof up fully. When the sunroof reaches the full tilt
up position it will back up a few millimeters and stop.

Release the UP/CLOSE switch.

Within 5 seconds of releasing the UP/CLOSE switch, press and hold the UP/CLOSE switch again. The
sunroof will move to the full open position and back to the closed position.

RF-12

SUNROOF

2006 Pathfinder

NOTE:
If the UP/CLOSE switch is released anytime during this teaching process, all learned profile data will be dis-
carded and the procedure will have to be started over.

Release the UP/CLOSE switch. Do not disconnect power for at least two seconds. The sunroof is now ini-
tialized and taught.

Initializing procedure is complete. Confirm proper operation of the sunroof (slide open, slide closed, tilt up, tilt
down).

RE-TEACHING CONDITIONS

Re-teaching of system should be conducted if any of the following conditions exist:

●

the sunroof is manually operated using the sunroof wrench with the battery discharged or disconnected.

●

the sunroof is manually operated using the sunroof wrench with the key switch in the OFF position and
retained power timed out (after approximately 45 seconds or with a front door open).

●

the sunroof motor assembly is replaced with a new one.

●

the sunroof motor is removed from the sunroof assembly and operated before it is reinstalled.

●

the sunroof motor is removed from the sunroof assembly and the glass panel position is changed.

RE-TEACHING PROCEDURE

Using the UP/CLOSE switch, move the sunroof toward the tilt position until it stops.

Release the UP/CLOSE switch.

Press the UP/CLOSE switch again and continuously hold. The sunroof will begin to move in about 10 sec-
onds.

Continue to hold the UP/CLOSE switch while the sunroof moves in a jogging motion to the full tilt position.
When the sunroof reaches the full tilt position, it will back up a few millimeters and stop.

Release the UP/CLOSE switch.

Within 5 seconds of releasing the UP/CLOSE switch, press and hold the UP/CLOSE switch again. The
sunroof will move to the full open position and back to the closed position.

NOTE:
If the UP/CLOSE switch is released anytime during this teaching process, all learned profile data will be dis-
carded and the procedure will have to be started over.

Release the UP/CLOSE switch. Do not disconnect power for at least two seconds. The sunroof is now re-
taught.

CAN Communication System Description

EIS007T3

Refer to .

LAN-25, "CAN COMMUNICATION"

Content .. 361 362 363 364 ..
