IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-29

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

30

V

Battery power supply
(ECM)

Input

OFF

—

Battery voltage

32

GR

Low speed signal

Output

ON

Wiper switch

OFF

0

LO

Battery voltage

35

L

High speed signal

Output

ON

Wiper switch

OFF

0

HI

Battery voltage

37

Y

Generator

Output

ON

—

38

B

Ground

Input

—

—

0

39

L

CAN-H

—

ON

—

—

40

P

CAN-L

—

ON

—

—

43

G

Wiper auto stop signal

Input

ON

Wiper operating

Battery voltage

Wiper stopped

0

44

R

Daytime light relay 1
signal

Output

ON

Park brake
switch posi-
tion

OFF

0V

ON

Battery voltage

45

LG

Horn relay

Input

When doors locks are operated using
keyfob (OFF

→

 ON)

Battery voltage

→

 0

46

V

Fuel pump relay con-
trol

Input

ON or

START

Ignition switch ON or START

0V

Ignition switch OFF or ACC

Battery voltage

47

O

Throttle control relay
control

Input

ON or

START

Ignition switch ON or START

0V

Ignition switch OFF or ACC

Battery voltage

48

R

Starter relay (inhibit
switch)

Input

ON or

START

Selector lever in "P" or "N"

Battery voltage

Selector lever any other posi-
tion

0V

49

GR

RH front parking and
front side marker lamp

Output

ON

Lighting
switch 1ST
position

OFF

ON

Battery voltage

50

W

Front fog lamp (LH)

Output

ON

Lighting
switch must
be in the 2ND
position or
AUTO posi-
tion (LOW
beam is ON)
and the front
fog lamp
switch must
be ON

OFF

0V

ON

Battery voltage

51

V

Front fog lamp (RH)

Output

ON

Lighting
switch must
be in the 2ND
position or
AUTO posi-
tion (LOW
beam is ON)
and the front
fog lamp
switch must
be ON

OFF

0V

ON

Battery voltage

52

P

Headlamp low (LH)

Output

ON

Lighting
switch 2ND
position

OFF

0V

ON

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value

(Approx.)

Ignition

switch

Operation or condition

PG-30

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

2006 Pathfinder

IPDM E/R Power/Ground Circuit Inspection

EKS00G8L

1.

FUSE AND FUSIBLE LINK INSPECTION

Check that the following fusible links are not blown.

OK or NG

OK

>> GO TO 2.

NG

>> Replace fusible link.

2.

POWER CIRCUIT INSPECTION

1.

Turn ignition switch off.

2.

Disconnect IPDM E/R harness connector E118.

3.

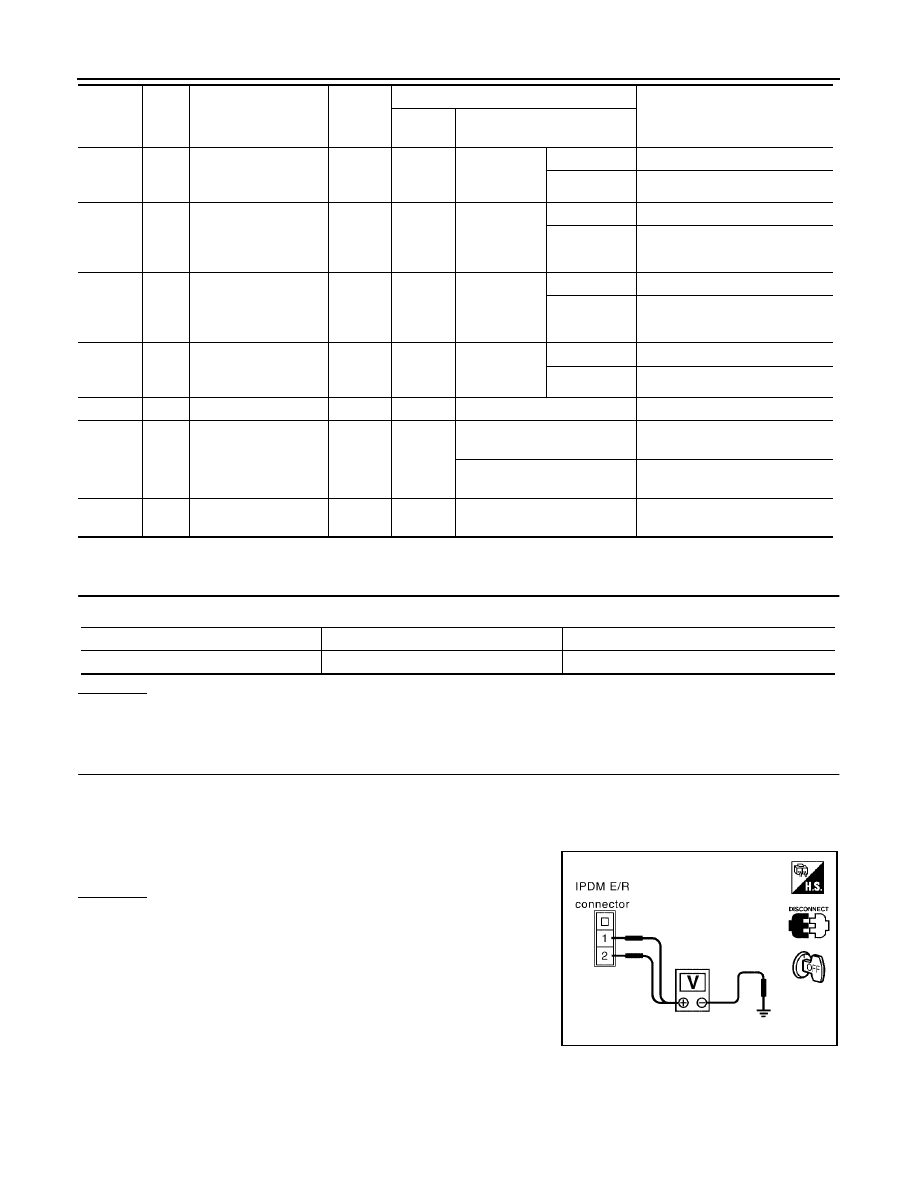

Check voltage between IPDM E/R harness connector E118 terminals 1, 2 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace IPDM E/R power circuit harness.

54 R

Headlamp

low

(RH)

Output

ON

Lighting
switch 2ND
position

OFF

0V

ON

Battery voltage

55

G

Headlamp high (LH)

Output

ON

Lighting
switch HIGH
or PASS posi-
tion

OFF

0V

ON

Battery voltage

56

L

Headlamp high (RH)

Output

ON

Lighting
switch HIGH
or PASS posi-
tion

OFF

0V

ON

Battery voltage

57

GR

Rear parking, license,
and tail lamp

Input

ON

Lighting
switch 1ST
position

OFF

0V

ON

Battery voltage

59

B

Ground

—

—

—

0

60

GR

Rear window defog-
ger relay output signal

Output

ON

When rear window defogger
switch is ON

Battery voltage

When rear window defogger
switch is OFF

0

61

R/B

Battery power supply
(trailer tow relay)

Output

OFF

—

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value

(Approx.)

Ignition

switch

Operation or condition

Terminal No.

Signal name

Fusible link No.

1, 2

Battery power

a, c, d

Battery voltage should exist.

SKIA1987E

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-31

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

3.

GROUND CIRCUIT INSPECTION

1.

Disconnect IPDM E/R harness connectors E122 and E124.

2.

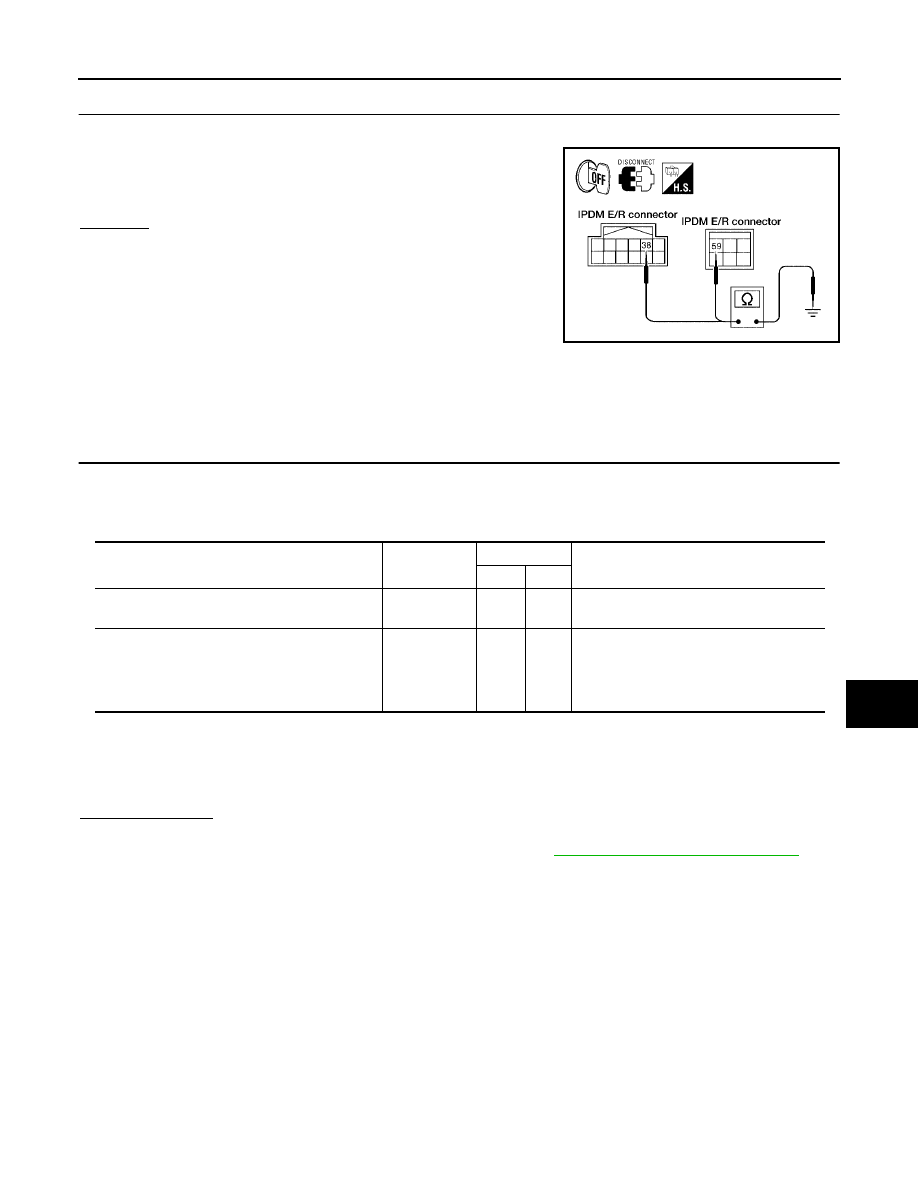

Check continuity between IPDM E/R harness connector E122
terminal 38, and E124 terminal 59 and ground.

OK or NG

OK

>> Inspection End.

NG

>> Repair or replace IPDM E/R ground circuit harness.

Inspection with CONSULT-II (Self-Diagnosis)

EKS00G8M

CAUTION:

If a CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on which control unit(s) carries out CAN communication.

1.

SELF-DIAGNOSIS RESULT CHECK

1.

Connect CONSULT-II and select "IPDM E/R" on the "SELECT SYSTEM".

2.

Select "SELF-DIAG RESULTS" on the "SELECT DIAG MODE" screen.

3.

Check display content in self-diagnosis results.

NOTE:
The Details for Display for the Period are as follows:

●

CRNT: Error currently detected by IPDM E/R.

●

PAST: Error detected in the past and stored in IPDM E/R memory.

Contents displayed

NO DTC DETECTED. FURTHER TESTING MAY BE REQUIRED.>>INSPECTION END.
CAN COMM CIRC>>Print out the self-diagnosis result and refer to

LAN-25, "CAN COMMUNICATION"

 .

Continuity should exist.

WKIA3354E

CONSULT-II Display

CONSULT-II
display code

TIME

Details of diagnosis result

CRNT

PAST

NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED.

—

—

—

No malfunction

CAN COMM CIRC

U1000

X

X

Any of items listed below have errors:

●

TRANSMIT DIAG

●

ECM

●

BCM/SEC

PG-32

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

2006 Pathfinder

Removal and Installation of IPDM E/R

EKS00G8N

REMOVAL

1.

Disconnect negative battery cable.

2.

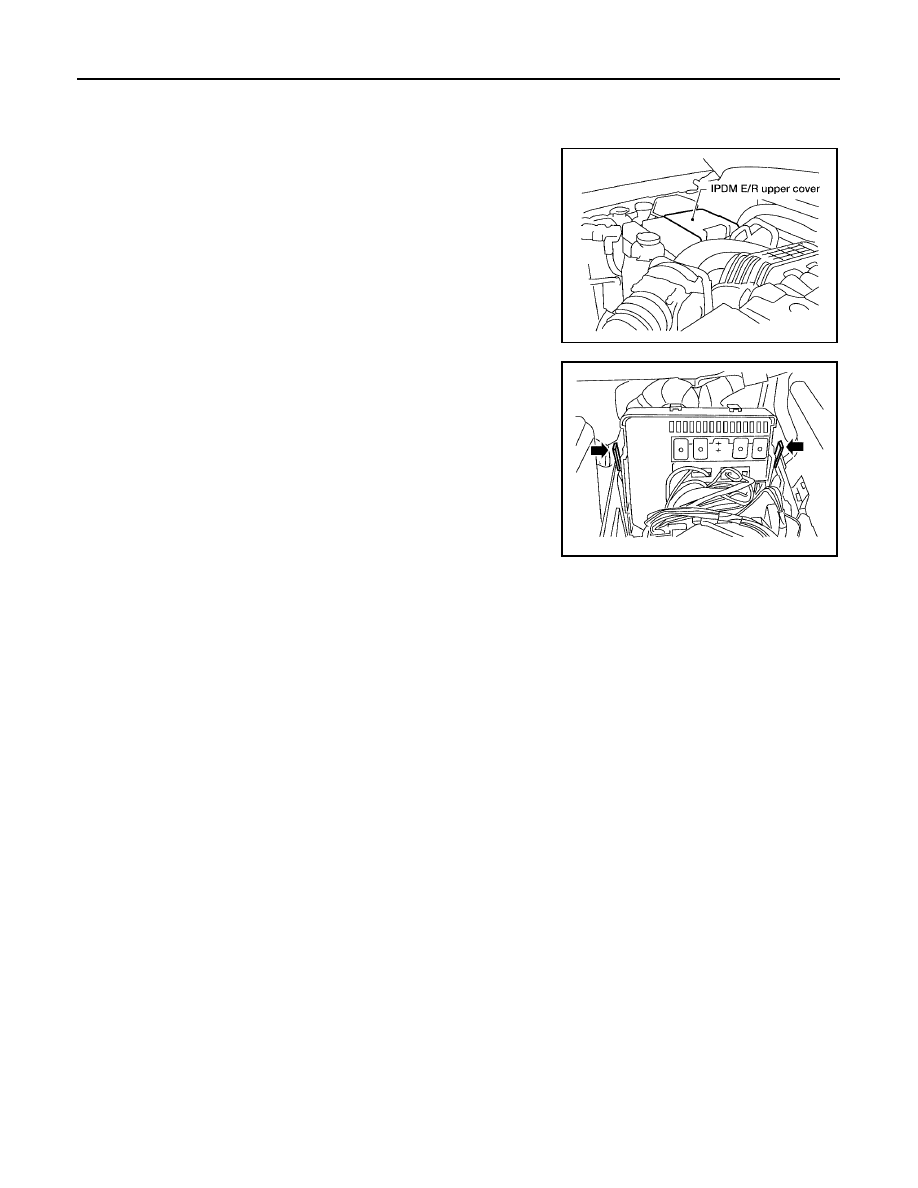

Remove IPDM E/R upper cover.

3.

Release 2 clips and pull IPDM E/R up from case.

4.

Disconnect IPDM E/R connectors and remove the IPDM E/R.

INSTALLATION

Installation is in the reverse order of removal.

WKIA3352E

LKIA0421E

GROUND CIRCUIT

PG-33

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

GROUND CIRCUIT

PFP:24080

Ground Distribution

EKS00G8O

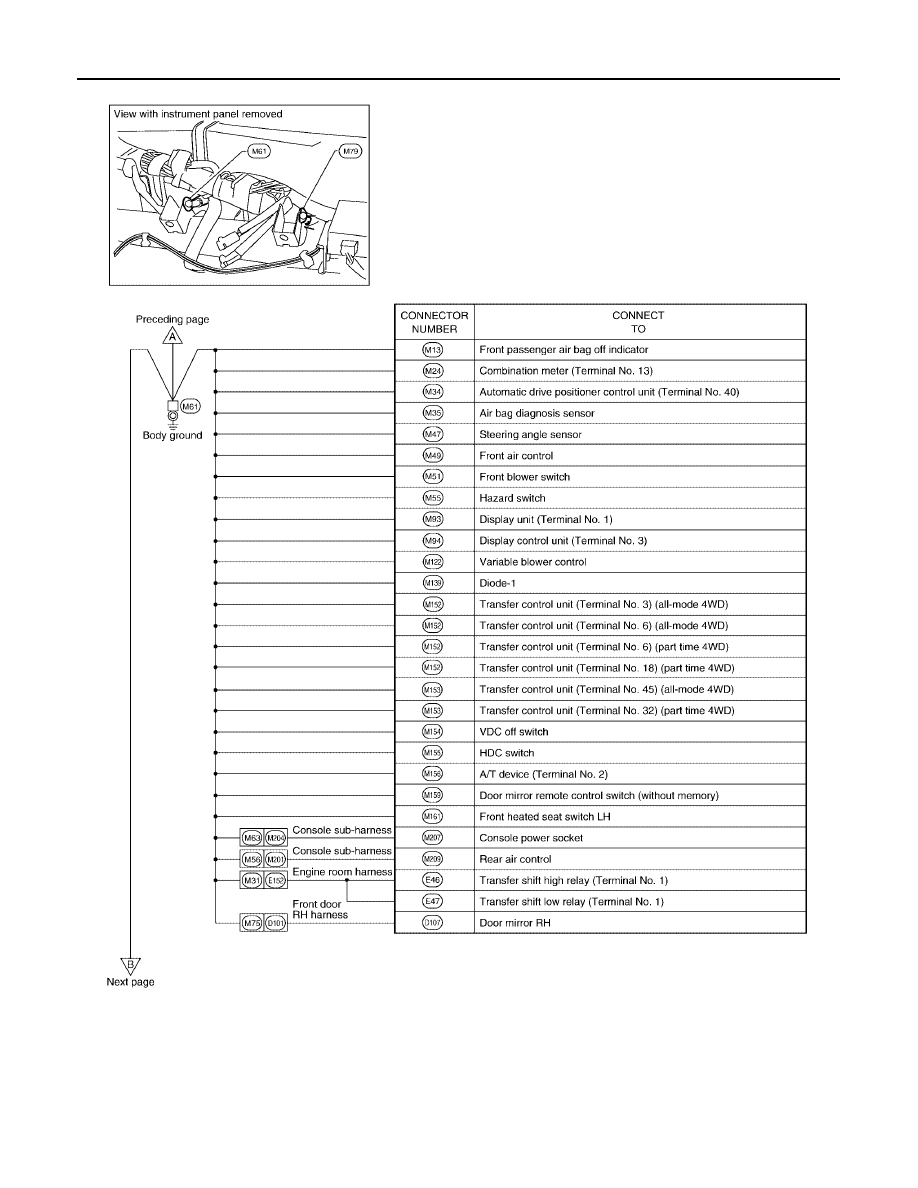

MAIN HARNESS

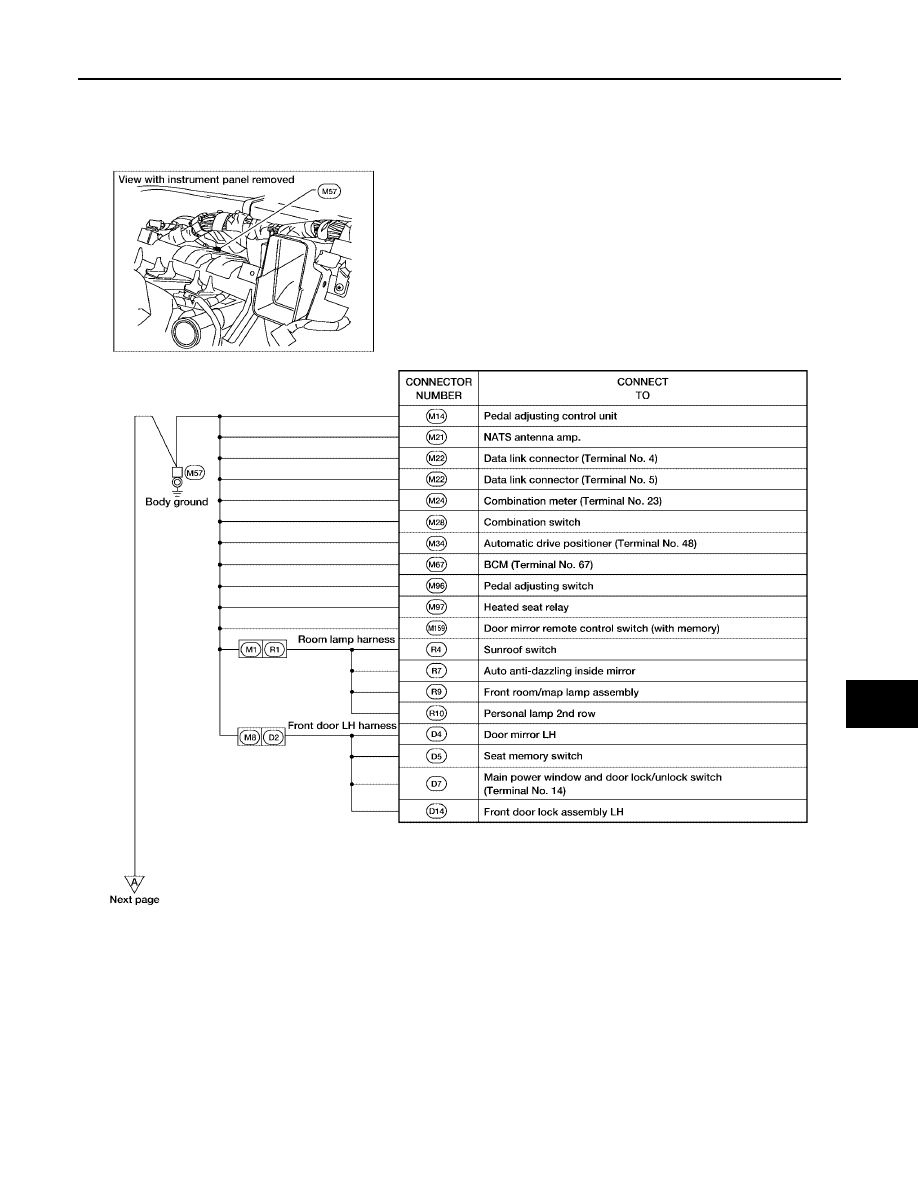

WKIA3566E

PG-34

GROUND CIRCUIT

2006 Pathfinder

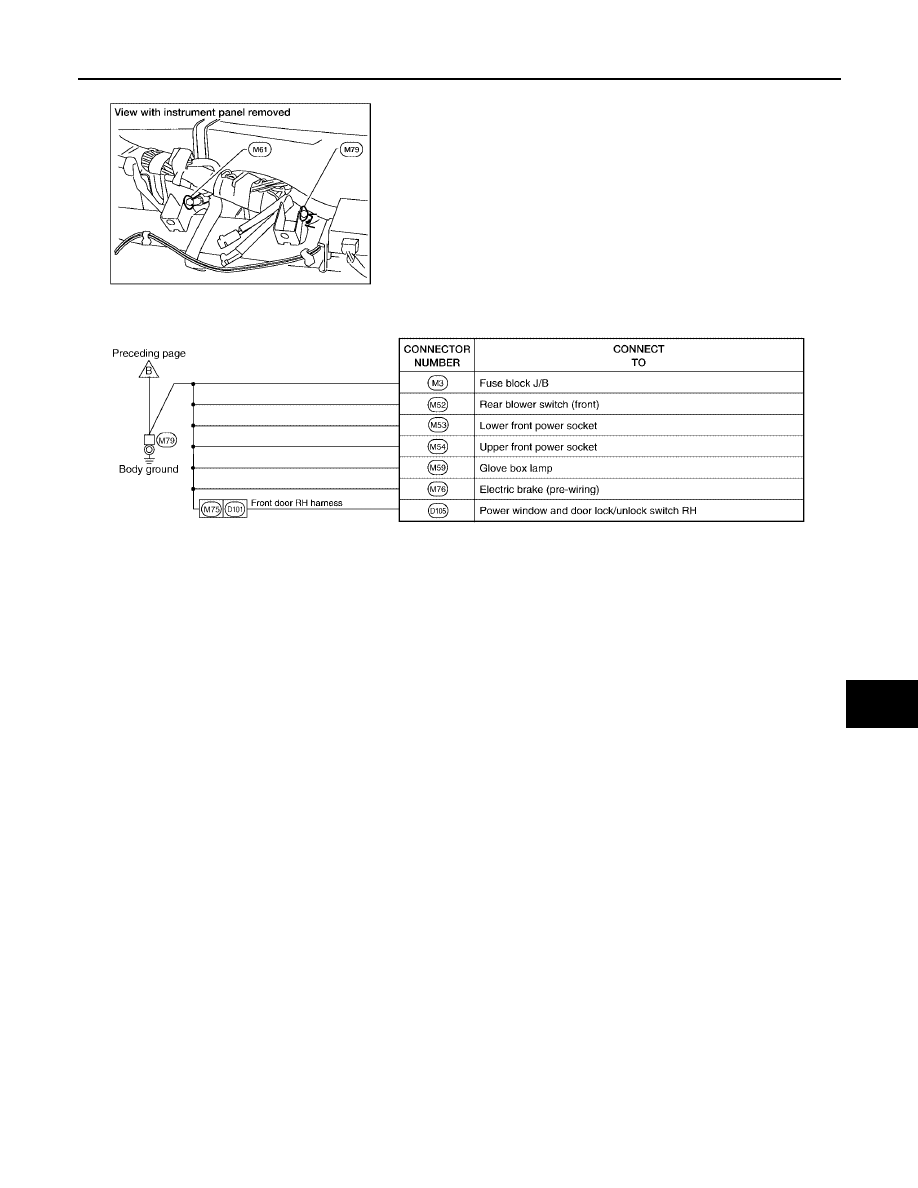

WKIA4994E

GROUND CIRCUIT

PG-35

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

WKIA3568E

PG-36

GROUND CIRCUIT

2006 Pathfinder

ENGINE ROOM HARNESS

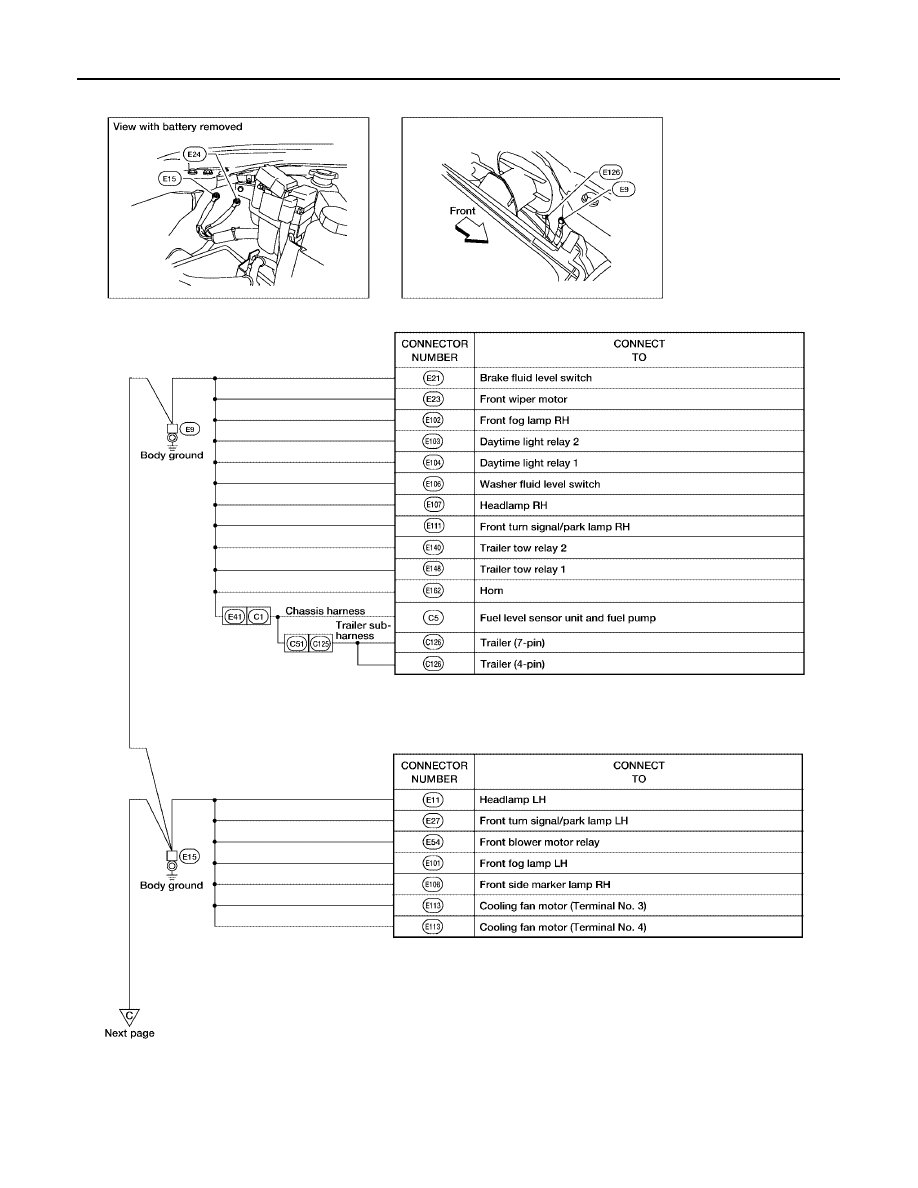

WKIA4172E
