CAN SYSTEM (TYPE 10)

LAN-177

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

CAN SYSTEM (TYPE 10)

PFP:23710

Component Parts and Harness Connector Location

UKS00520

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS00521

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS00522

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

LAN-178

[CAN]

CAN SYSTEM (TYPE 10)

2006 Pathfinder

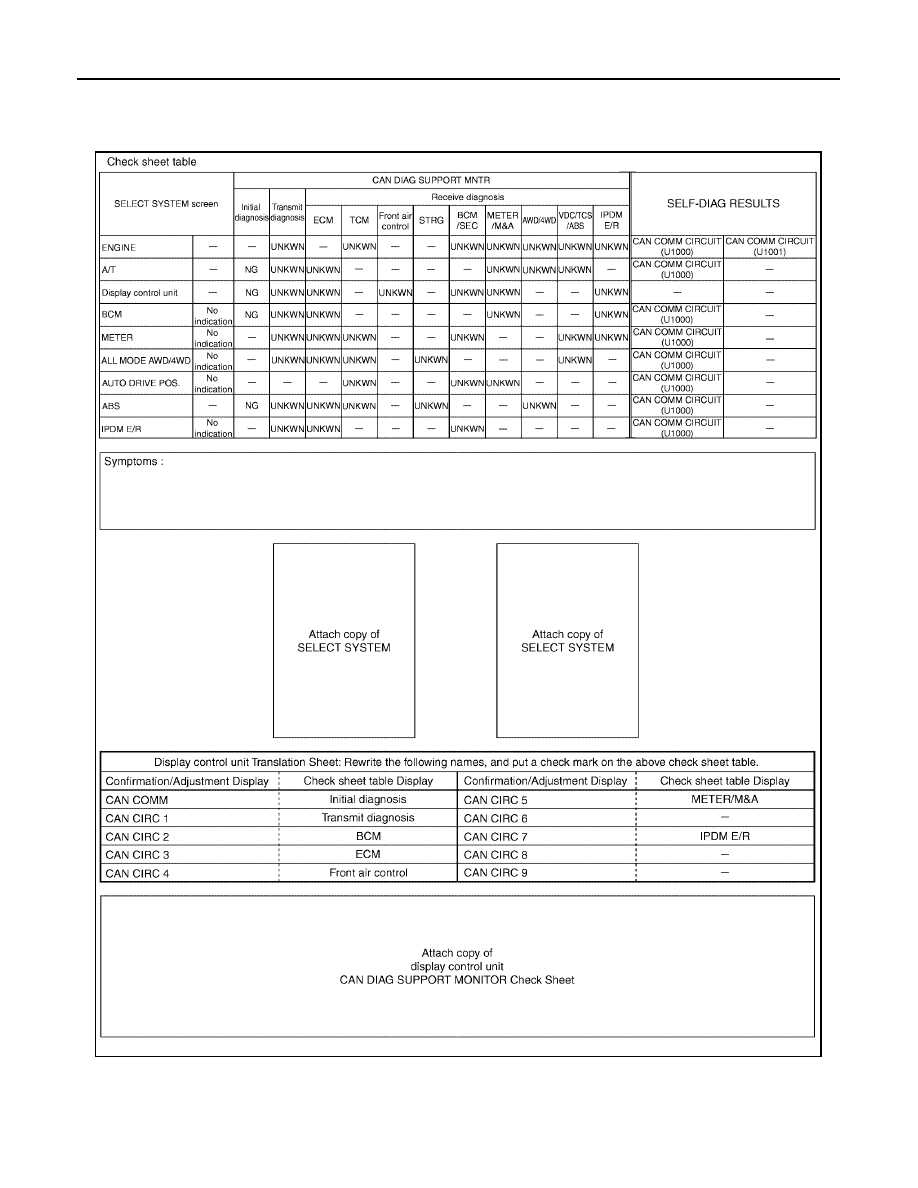

Check Sheet

UKS00523

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIC5720E

CAN SYSTEM (TYPE 10)

LAN-179

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

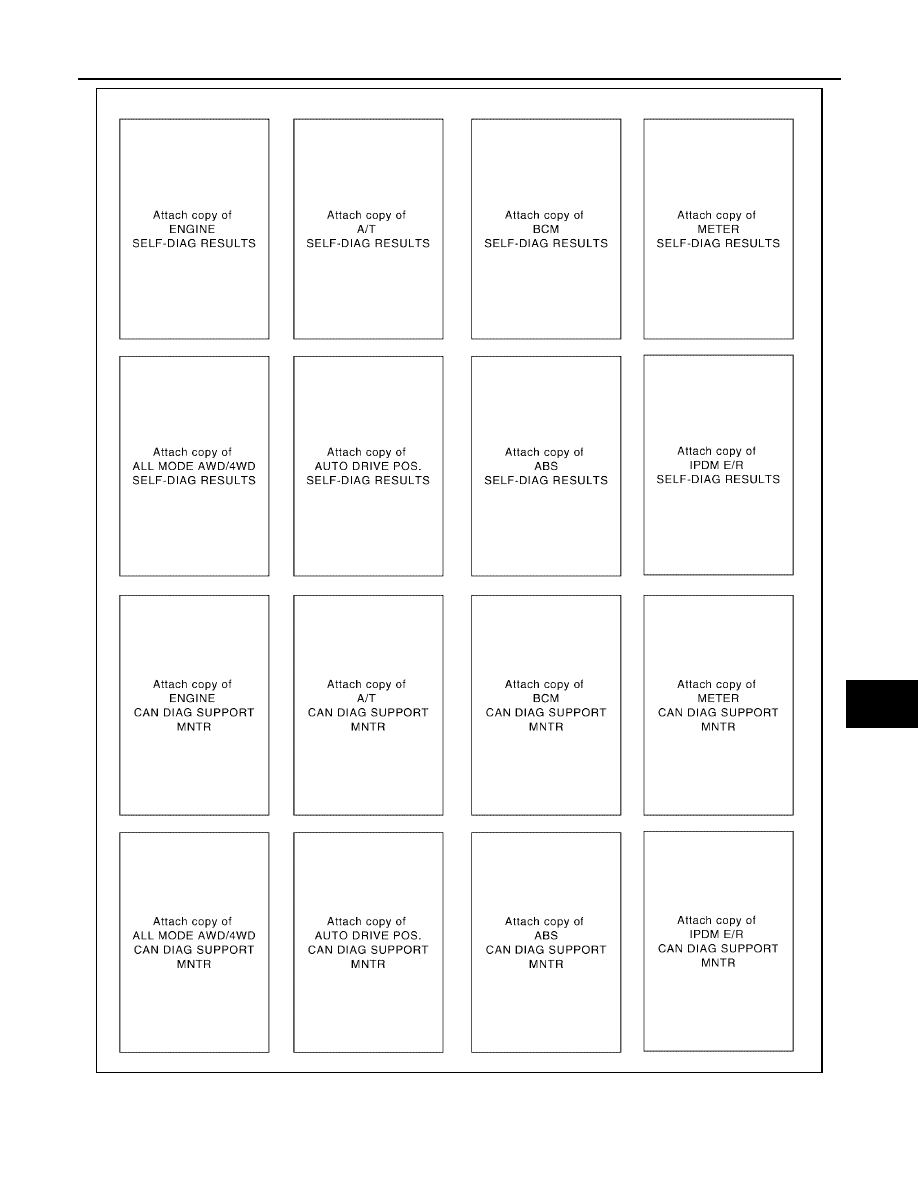

PKIC7067E

LAN-180

[CAN]

CAN SYSTEM (TYPE 10)

2006 Pathfinder

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

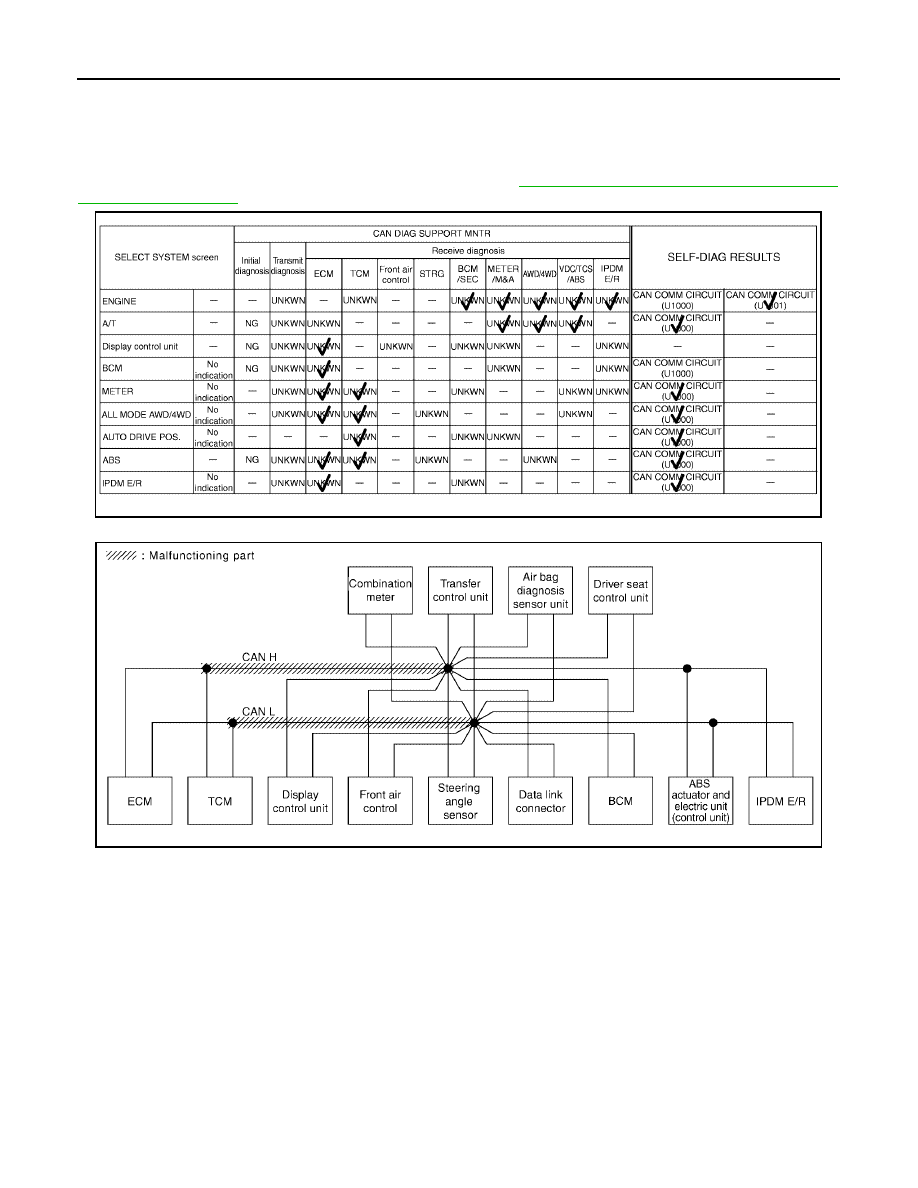

Case 1

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5721E

PKIC5485E

CAN SYSTEM (TYPE 10)

LAN-181

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

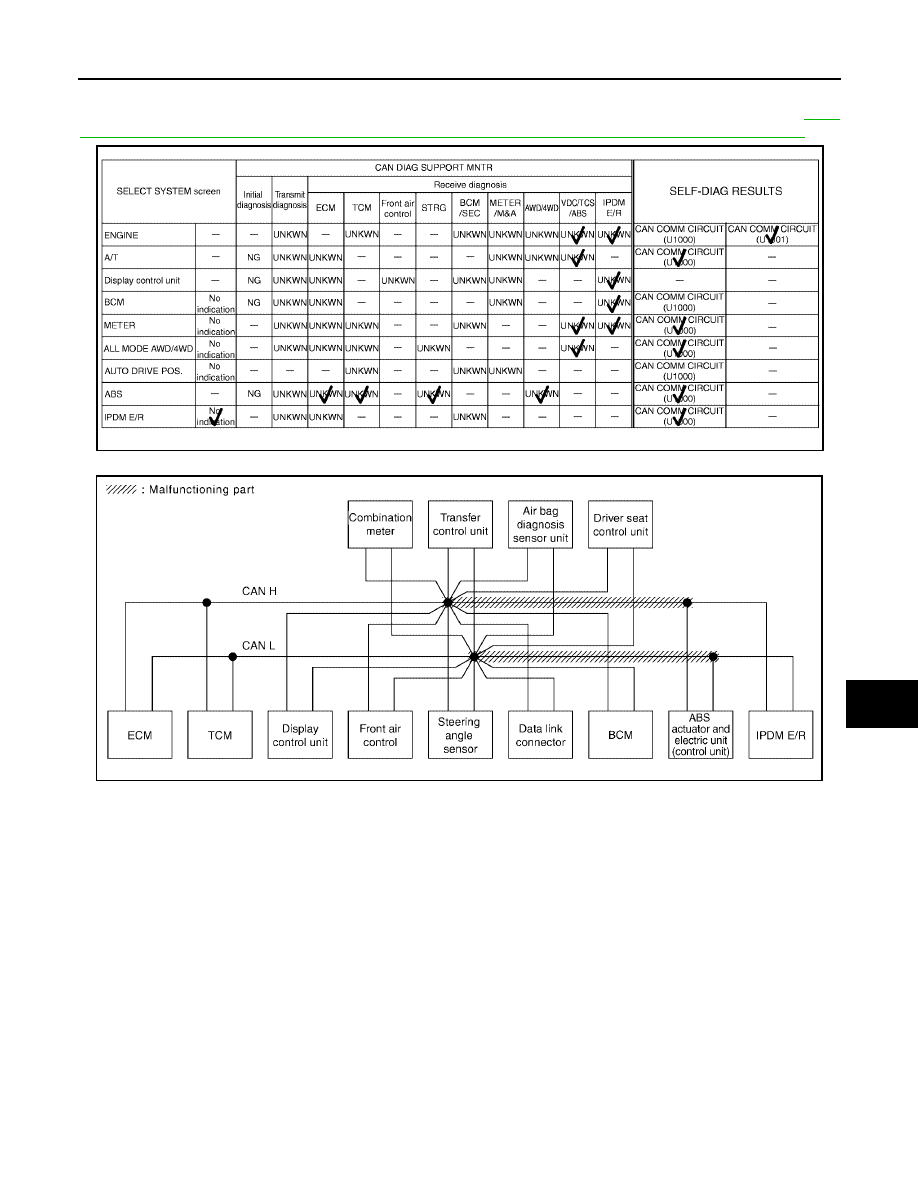

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to

LAN-

196, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

 .

PKIC5723E

PKIC5487E

LAN-182

[CAN]

CAN SYSTEM (TYPE 10)

2006 Pathfinder

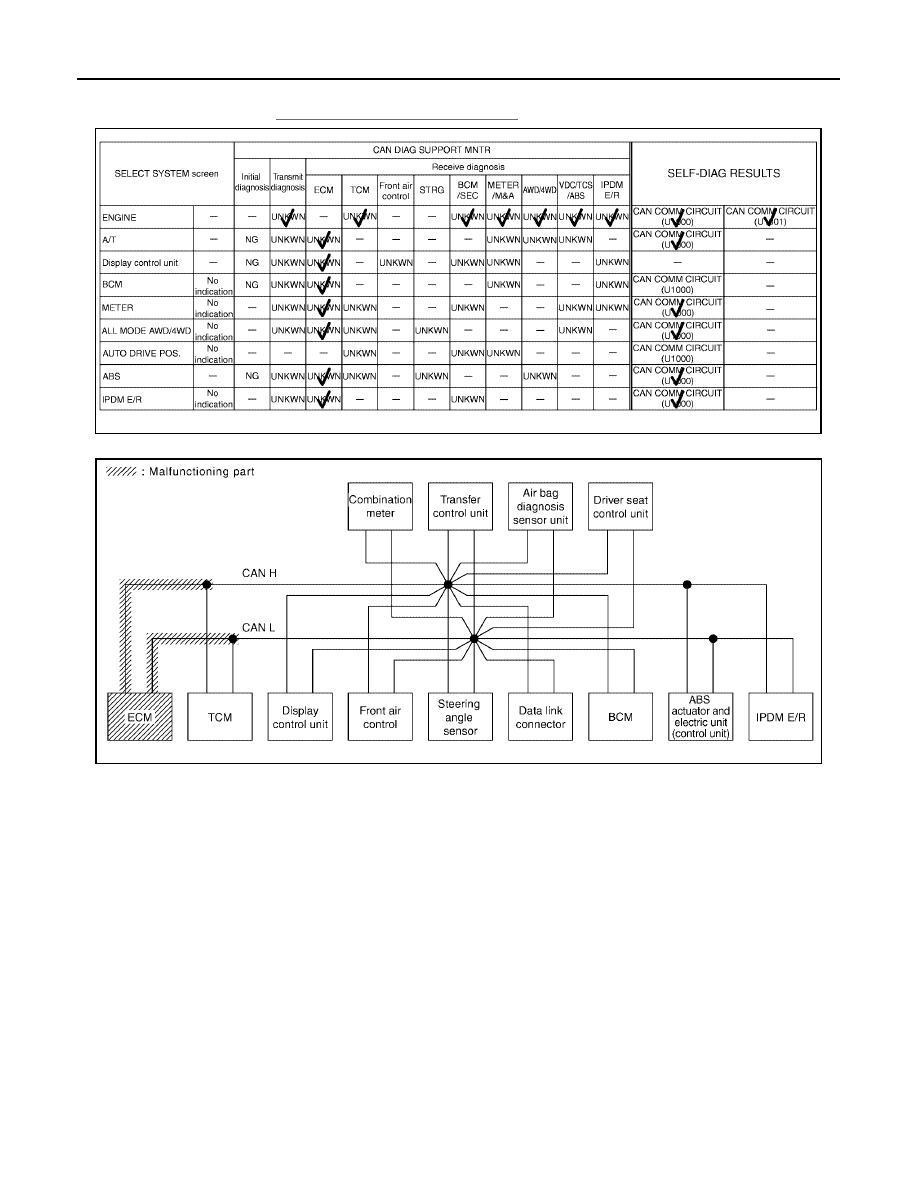

Case 3

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5724E

PKIC5488E

CAN SYSTEM (TYPE 10)

LAN-183

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

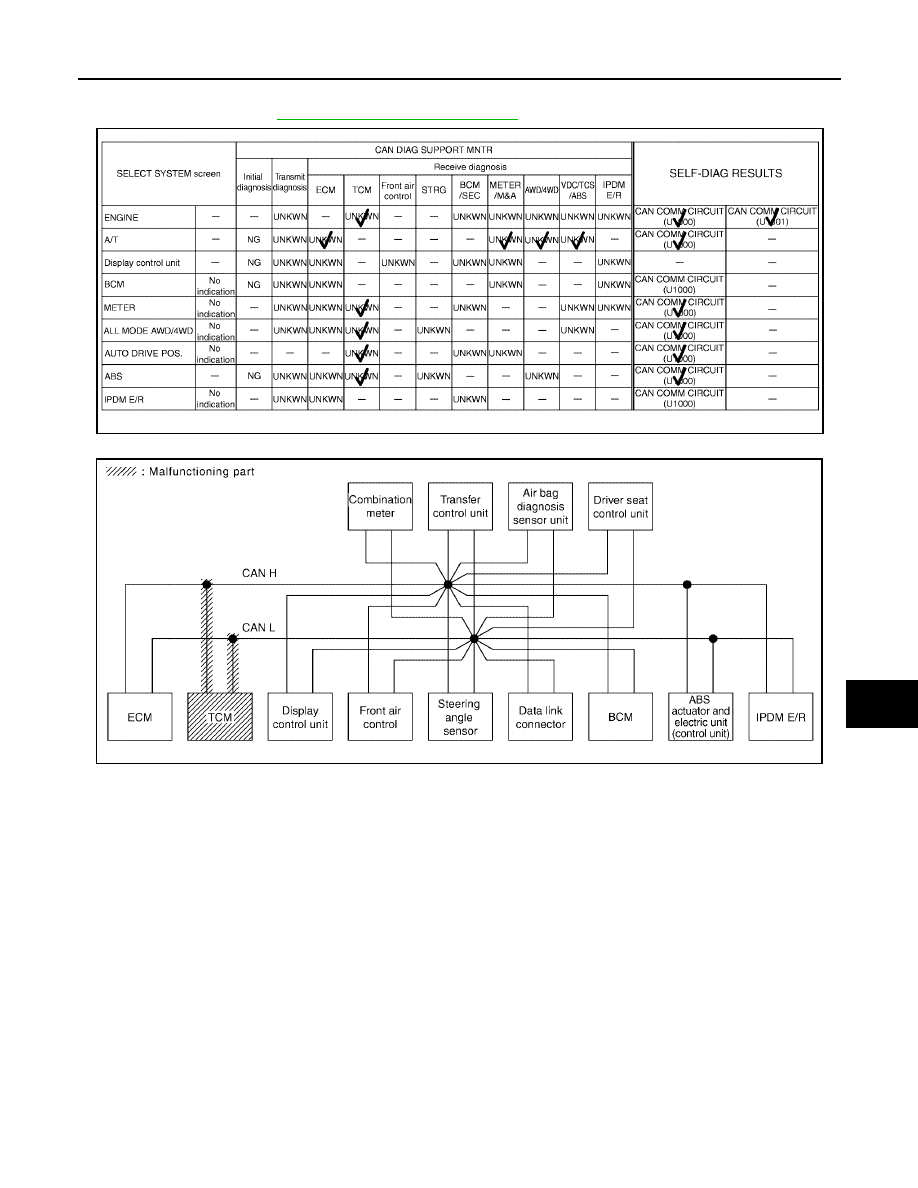

Case 4

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5725E

PKIC5489E

LAN-184

[CAN]

CAN SYSTEM (TYPE 10)

2006 Pathfinder

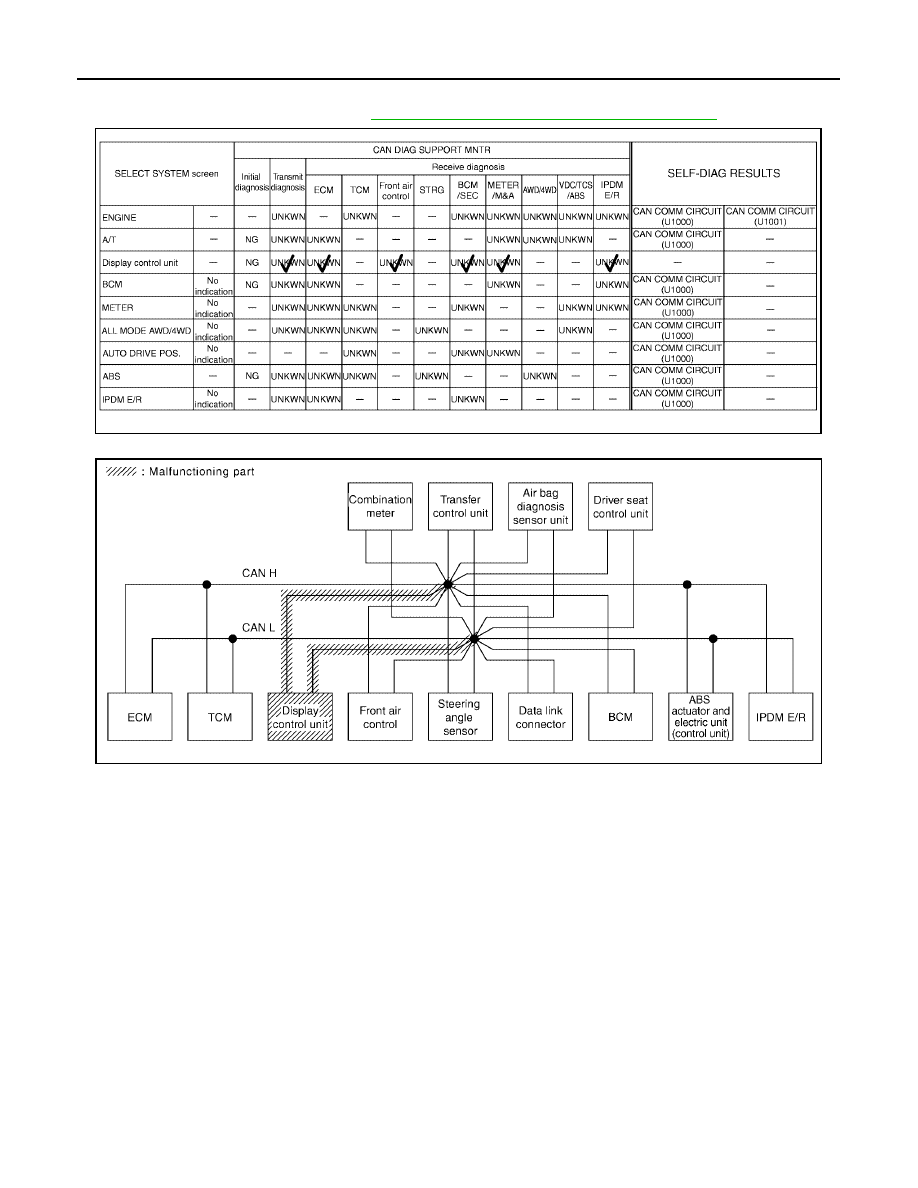

Case 5

Check display control unit circuit. Refer to

LAN-198, "Display Control Unit Circuit Inspection"

 .

PKIC5726E

PKIC5490E
