ALL-MODE 4WD SYSTEM TF-19 [ATX14B] C E F G H I J K L M A B TF

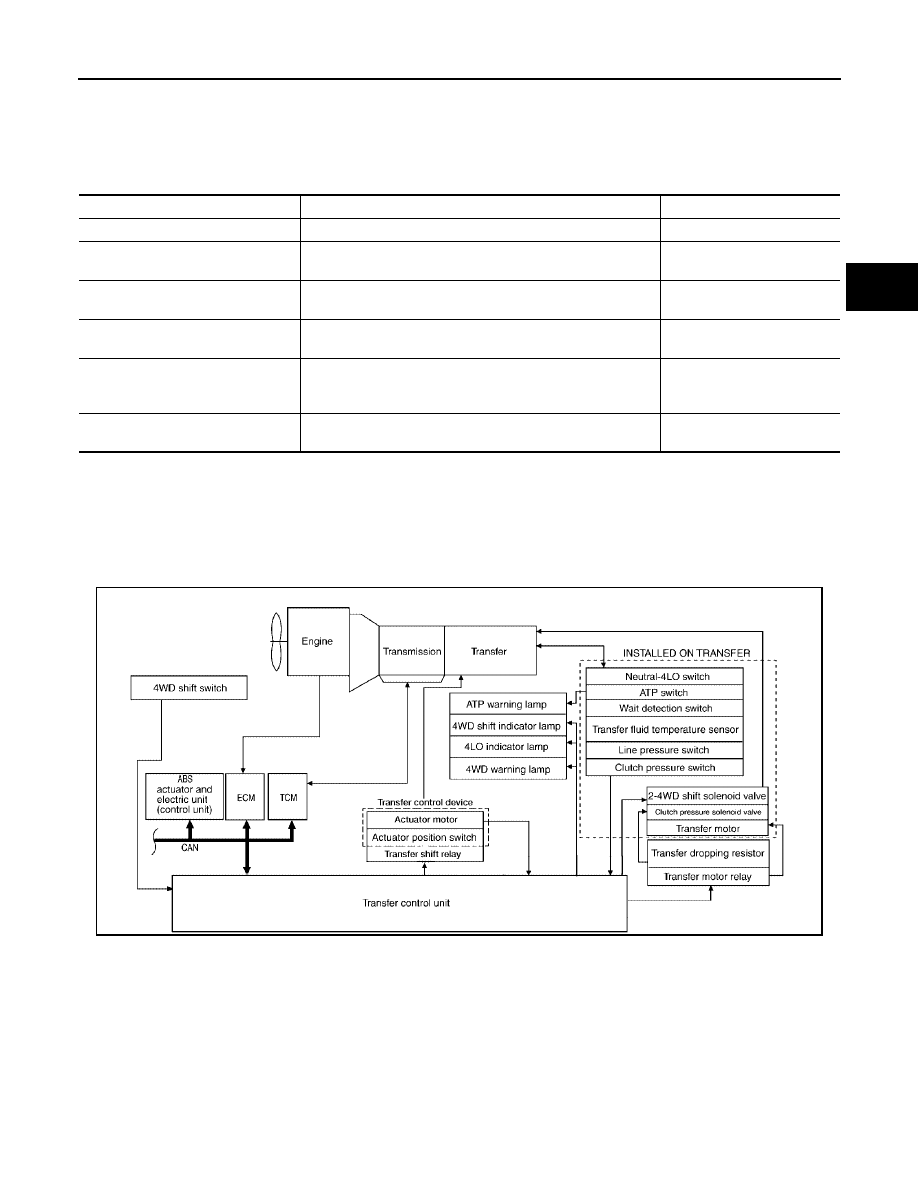

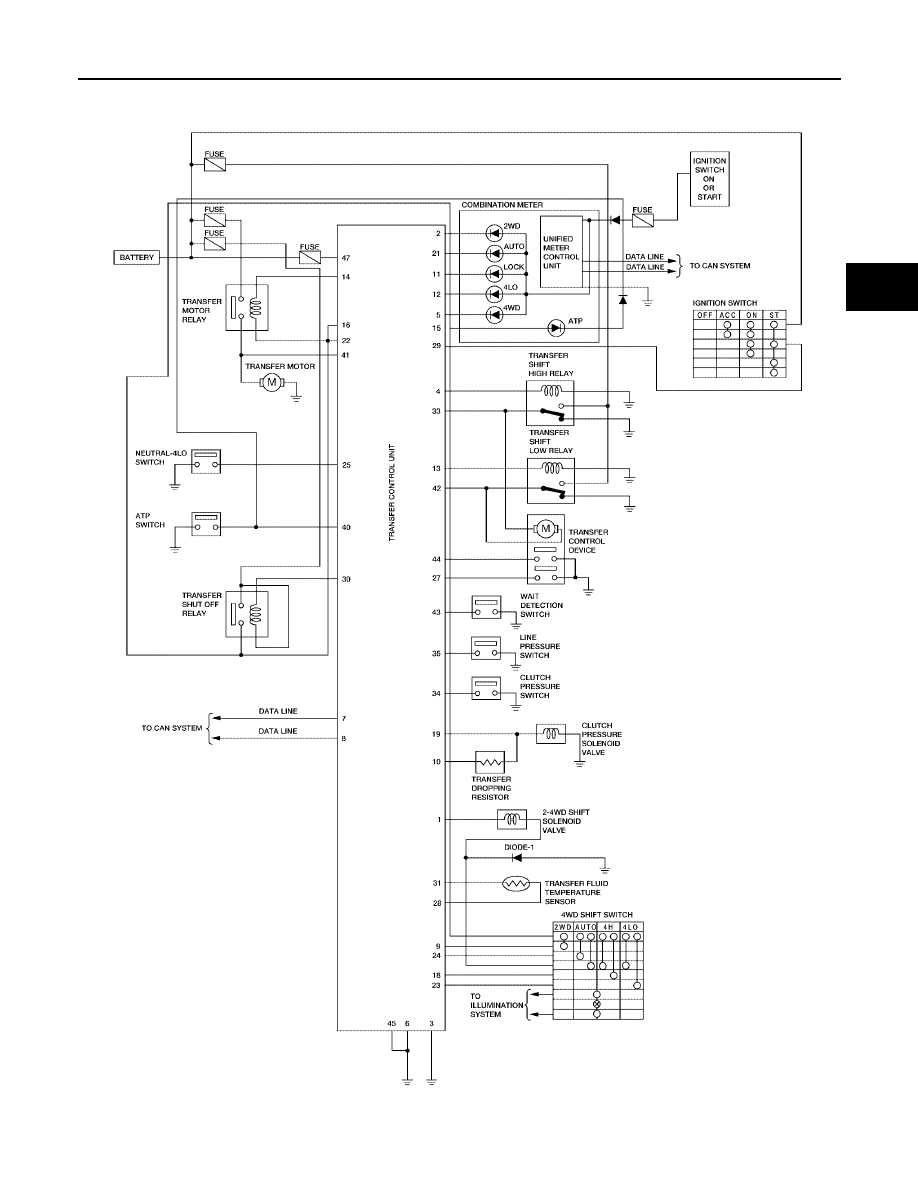

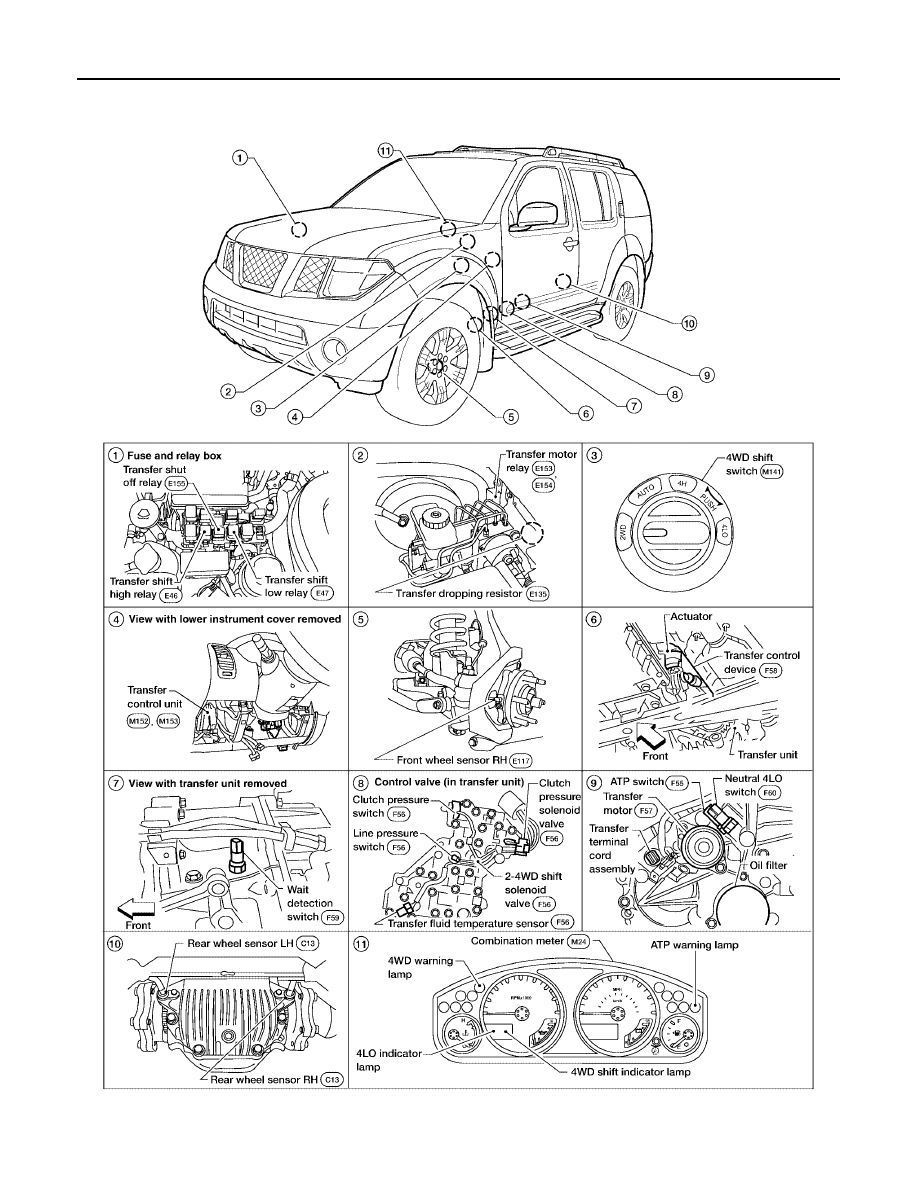

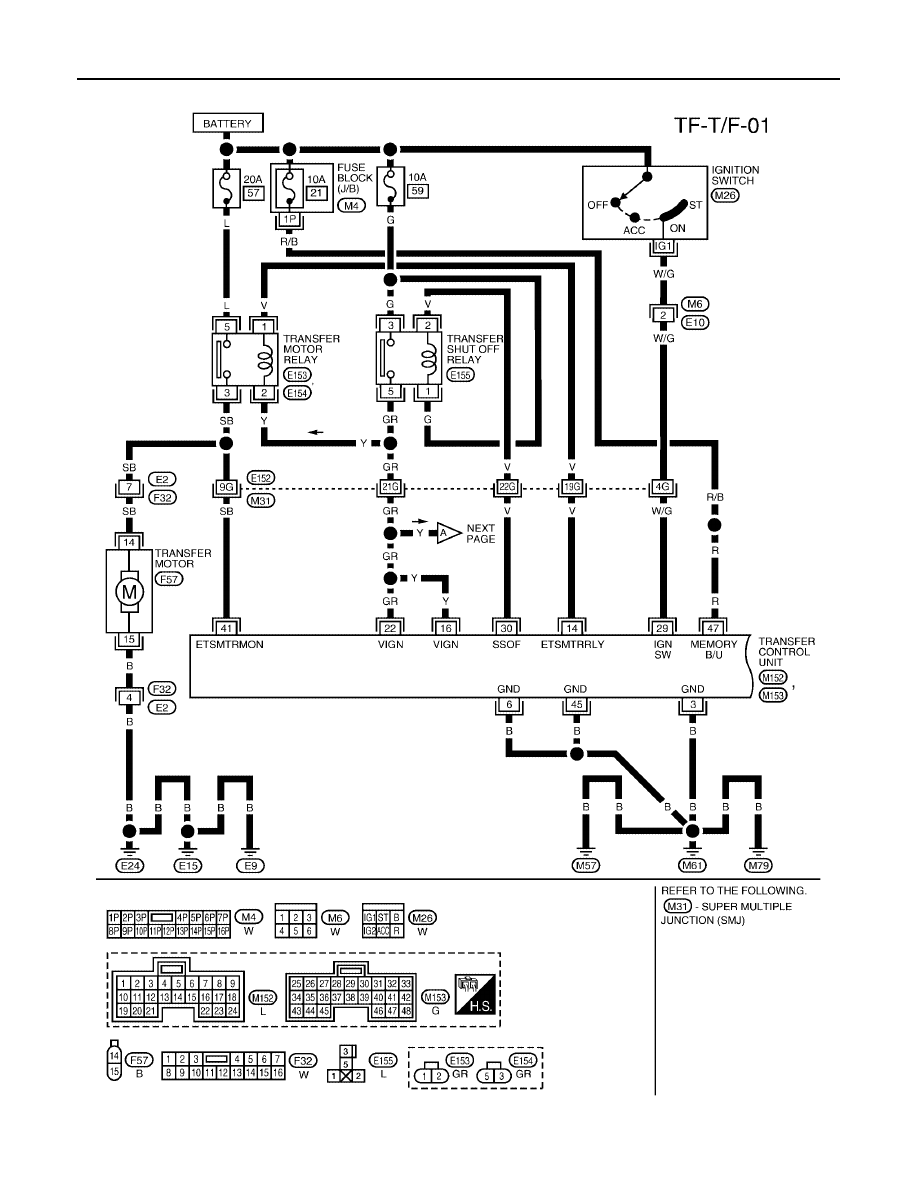

2005 Pathfinder Table 1 Table 2 *: After 2.5 seconds have elapsed. ● 4WD shift switch, PNP switch, Neutral-4LO switch, vehicle speed sensor and throttle position sensor are WAIT DETECTION SWITCH ● The wait detection switch operates when there is “circulating” torque produced in the propeller shaft → H) or when there is a phase difference between 2-4 sleeve and clutch drum (H → L). After the release of the “circulating” torque, the wait detection switch helps provide the 4WD lock gear (clutch drum) shifts. ● The wait detection switch operates as follows. – 4WD lock gear (clutch drum) locked: ON – 4WD lock gear (clutch drum) released: OFF ● The wait detection switch senses an actual drive mode and the 4WD shift indicator lamp indicates the NEUTRAL-4LO SWITCH The neutral-4LO switch detects that transfer gear is in neutral or 4LO (or shifting from neutral to 4LO) condi- ATP SWITCH The ATP switch detects that transfer gear is under neutral condition by L-H shift fork position. 2-4WD SHIFT SOLENOID VALVE The 2-4WD shift solenoid valve operates to apply oil pressure to the wet-multiplate clutch, depending on the CLUTCH PRESSURE SOLENOID VALVE The clutch pressure solenoid valve distributes front and rear torque in AUTO mode. PNP switch “R” position VFF (Vehicle speed) A/T position Motor relay drive command ON — R ON OFF 0 Positions other than the “P” or “N” positions ON — “P” or “N” position (See Table 2.) — 0 < VFF ≤ 50 km/h (31 MPH) — ON 50 km/h (31 MPH) < VFF < 55 km/h (34 MPH) — HOLD 55 km/h (34 MPH) ≤ VFF — OFF A/T position N-4L SW 4WD mode Throttle position 0 - 0.07/8 0.07/8 - 1/8 1/8 - MAX N OFF LOCK (4H) ON ON ON Positions other than the LOCK position (2WD or AUTO) OFF* HOLD ON ON — OFF* HOLD ON P — — OFF* HOLD ON |
