Nissan Pathfinder (2005 year). Manual - part 365





REFRIGERANT LINES

MTC-111

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2005 Pathfinder

Check the refrigerant pressure sensor

Check all around the service valves. Check that the service valve caps are screwed tightly on the ser-
vice valves (to prevent leaks).

NOTE:
After removing manifold gauge set (J-39183-C) from the service valves, wipe any residue from the ser-
vice valves to prevent any false readings by the electronic refrigerant leak detector (J-41995).

Evaporator
With engine OFF, turn blower fan on “High” for at least 15 seconds to dissipate any refrigerant trace in
the heater and cooling unit assembly. Wait a minimum of 10 minutes accumulation time (refer to the
manufacturer's recommended procedure for actual wait time) before inserting the electronic refrigerant
leak detector probe into the heater and cooling unit assembly drain hose.

NOTE:
Keep the probe inserted for at least 10 seconds. Use caution not to contaminate the probe tip with
water or dirt that may be in the drain hose.

5.

If a leak is detected, verify at least once by blowing compressed air into the area of the suspected leak,
then repeat the leak check.

6.

Do not stop when one leak is found. Continue to check for additional leaks at all system components and
connections.

7.

If no leaks are found, perform steps 8 - 11.

8.

Start the engine.

9.

Set the heater A/C controls as follows:

NOTE:
For the automatic system, turn OFF the automatic controls and set the heater A/C controls manually.

a.

A/C switch to ON

b.

Air flow to VENT mode

c.

Intake position to RECIRCULATION mode

d.

Temperature to MAX cold

e.

Blower speed to HIGH

10. Run the engine at 1,500 rpm for at least 2 minutes.

11. Turn the engine OFF and perform the leak check again following

steps 4 through 6 above.

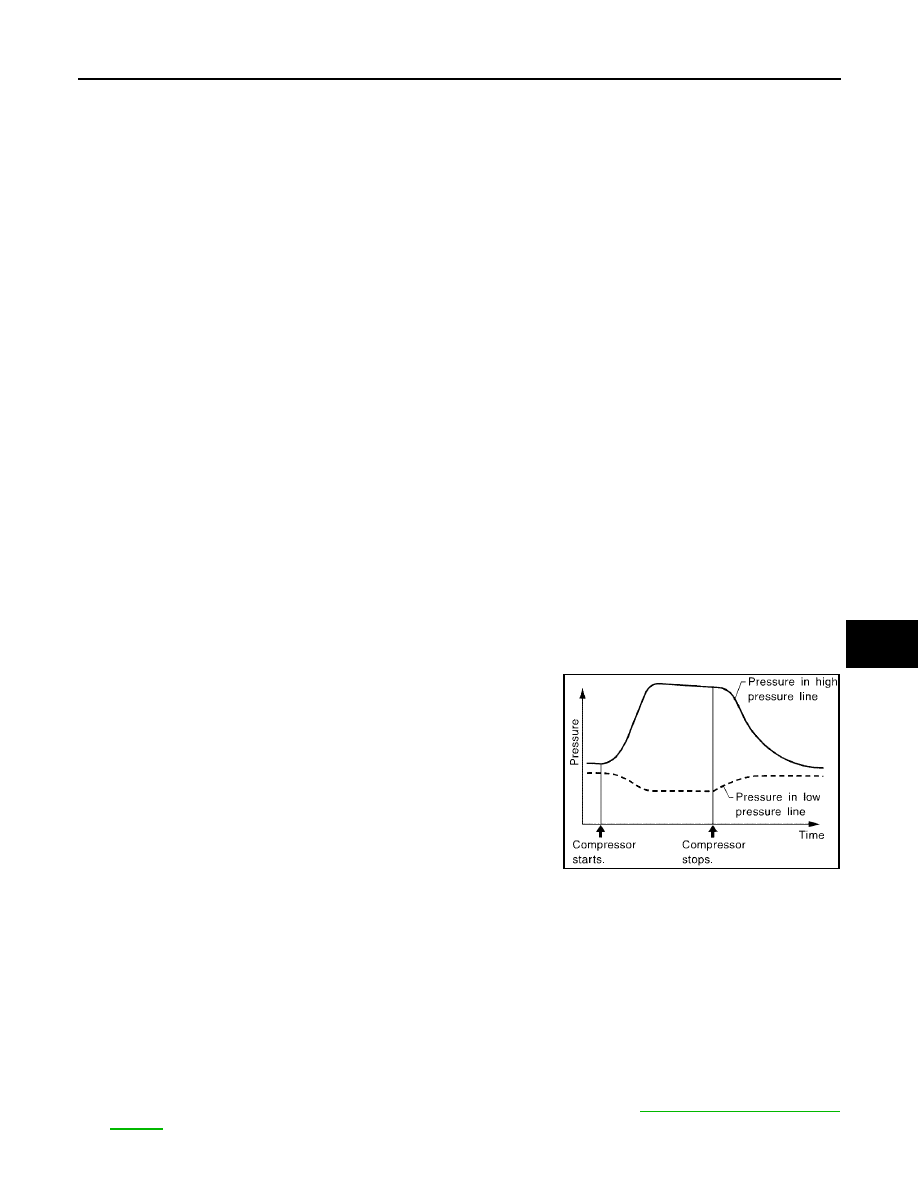

Refrigerant leaks should be checked immediately after turning
the engine OFF. Begin with the leak detector at the compressor.
The pressure on the high pressure side will gradually drop after
the refrigerant circulation stops and pressure on the low pres-
sure side will gradually rise, as shown in the graph. Some leaks
are more easily detected when the pressure is high.

12. Before connecting the recovery/recycling equipment to the vehicle, check the recovery/recycling equip-

ment gauges. No refrigerant pressure should be displayed. If pressure is displayed, recover the refriger-
ant from the equipment lines and then check the refrigerant purity.

13. Confirm refrigerant purity in supply tank using recovery/recycling equipment and refrigerant identifier

equipment (J-41810-NI).

14. Confirm the refrigerant purity in the vehicle's A/C system using recovery/recycling equipment and refriger-

ant identifier equipment (J-41810-NI).

15. Discharge the A/C system using recovery/recycling equipment. Repair the leaking fitting or component as

necessary.

16. Evacuate and recharge the A/C system and perform the leak test to confirm that there are no refrigerant

leaks.

17. Conduct the Operational Check to ensure system works properly. Refer to

ATC-52, "Operational Check

(Front)"

.

SHA839E

MTC-112

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Service Data and Specifications (SDS)

EJS003WL

COMPRESSOR

LUBRICANT

REFRIGERANT

ENGINE IDLING SPEED

Refer to

EC-76, "Idle Speed and Ignition Timing Check"

.

BELT TENSION

Refer to

MA-13, "DRIVE BELT TENSION"

.

Make

CALSONIC KANSEI CO. LTD.

Model

DKS-17D

Type

Swash plate

Displacement

144 cm

3

(8.79 in

3

) / revolution

Relief valve set pressure

3800

±

300 kPa (38.76

±

3.06 kg/cm

2

, 551.0

±

43.5 psi)

Direction of rotation

Clockwise (viewed from drive end)

Drive belt

Poly V ribbed

Description

Genuine NISSAN A/C System Lubricant Type S (DH-PS)

Part number

KLH00-PAGS0

Capacity

180 m

(6.1 US fl oz, 6.3 Imp fl oz)

Type

HFC 134a (R-134a)

Capacity

0.70

±

0.05 kg (1.54

±

0.11 lb)

PB-1

PARKING BRAKE SYSTEM

F BRAKES

CONTENTS

C

D

E

G

H

I

J

K

L

M

SECTION

A

B

PB

2005 Pathfinder

PREPARATION ........................................................... 2

Commercial Service Tools ........................................ 2

PARKING BRAKE SYSTEM ...................................... 3

On-Vehicle Service ................................................... 3

PEDAL STROKE ................................................... 3
INSPECTION ........................................................ 3
ADJUSTMENT ...................................................... 3

PARKING BRAKE CONTROL ................................... 4

Components ............................................................. 4
Removal and Installation .......................................... 4

REMOVAL ............................................................. 4
INSTALLATION ..................................................... 5

PARKING BRAKE SHOE ........................................... 6

Removal and Installation .......................................... 6

COMPONENTS ..................................................... 6
REMOVAL ............................................................. 6
INSPECTION AFTER REMOVAL ......................... 7
INSTALLATION ..................................................... 7

SERVICE DATA AND SPECIFICATIONS (SDS) ........ 9

Parking Drum Brake ................................................. 9
Parking Brake Control .............................................. 9

PB-2

PREPARATION

2005 Pathfinder

PREPARATION

PFP:00002

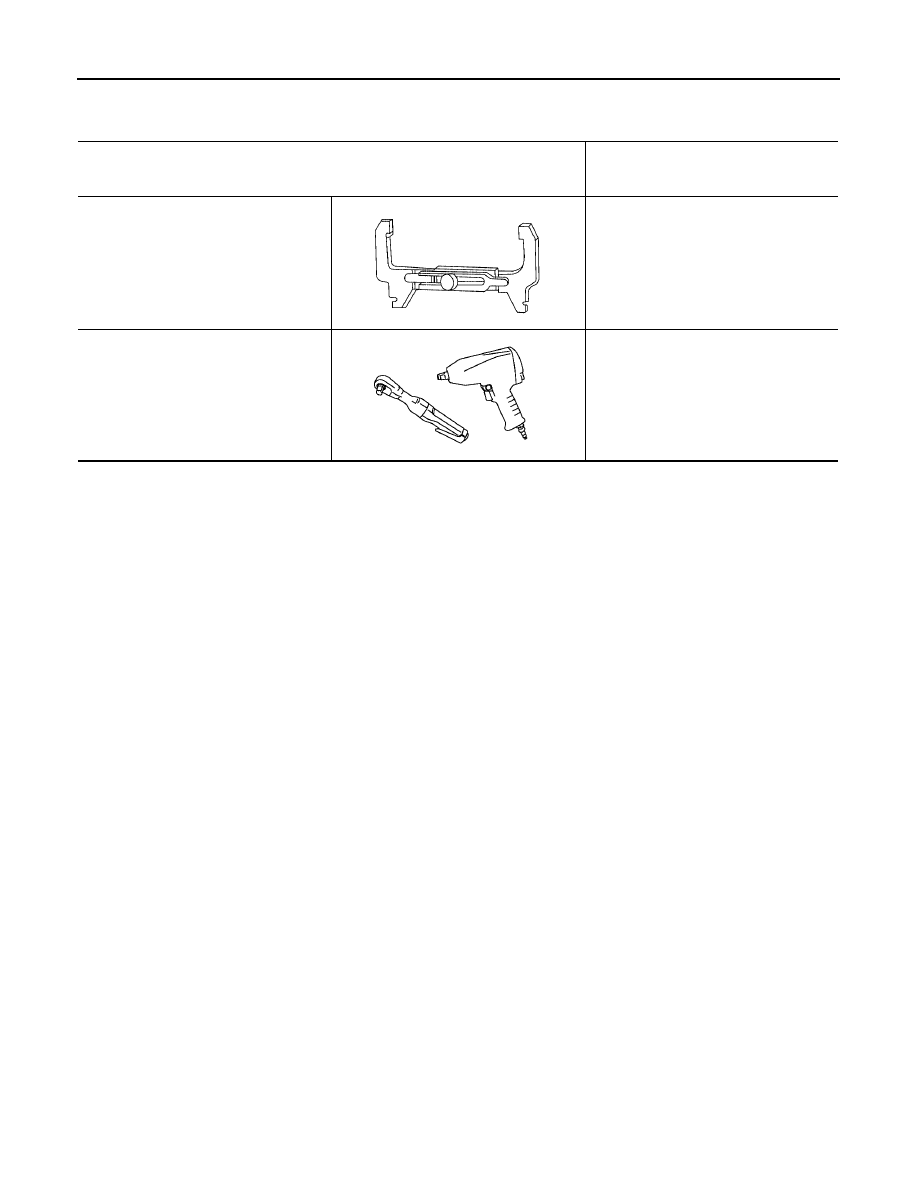

Commercial Service Tools

EFS004IW

Tool number
(Kent-Moore No.)
Tool name

Description

(J-21177-A)
Brake drum clearance gauge

Measuring rear rotor drum to parking
brake shoe clearance

Power tool

Loosening bolts and nuts

WFIA0167E

PBIC0190E

PARKING BRAKE SYSTEM

PB-3

C

D

E

G

H

I

J

K

L

M

A

B

PB

2005 Pathfinder

PARKING BRAKE SYSTEM

PFP:36010

On-Vehicle Service

EFS004IX

PEDAL STROKE

When parking brake pedal is operated with the specified force, make sure the stroke is within the specified
number of notches. Check by listening and counting the ratchet clicks.

INSPECTION

Make sure the components are attached properly, checking for looseness or backlash.

Check parking brake pedal assembly for bends, damage and cracks, and replace if necessary.

Check cable for wear and damage, and replace if necessary.

Check parking brake warning lamp switch for malfunction, and replace if necessary. Refer to

DI-34, "Wir-

ing Diagram — WARN —"

.

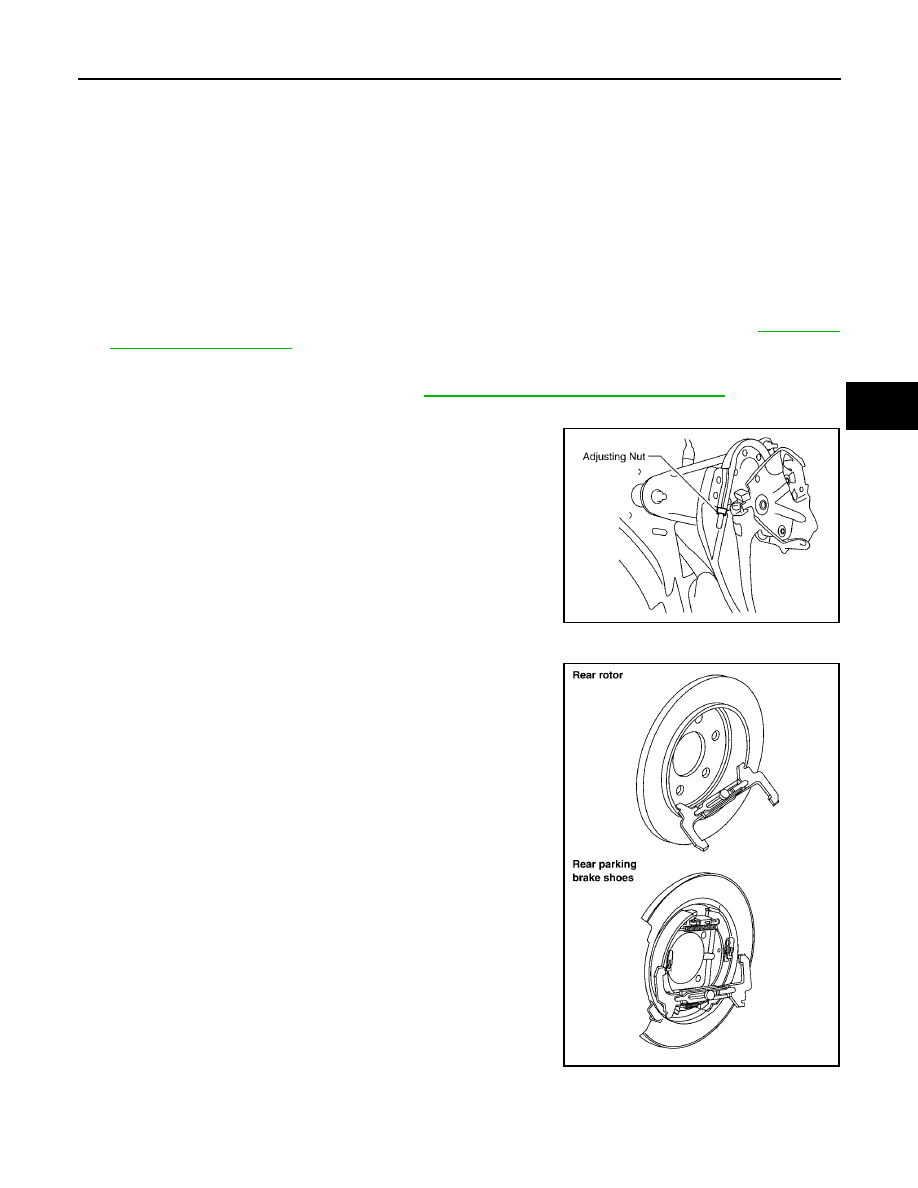

ADJUSTMENT

1.

Remove lower instrument panel LH. Refer to

IP-13, "LOWER INSTRUMENT PANEL LH"

.

2.

Partially engage parking brake pedal to access adjusting nut.

3.

Insert a deep socket wrench to rotate adjusting nut and loosen
cable until tension is sufficiently released. Then, disengage the
parking brake pedal.

4.

Remove the wheel and tire using power tool.

5.

Remove the rotor and measure inner diameter at widest point
using Tool.

6.

Transfer measurement less 0.6 mm to the parking brake shoes
and adjust accordingly.

7.

Using wheel nuts, secure the disc to the hub to prevent it from
tilting.

8.

Rotate disc rotor to make sure there is no drag.

9.

Adjust cable as follows:

a.

Operate pedal 10 or more times with a force of 490 N (50 kg,
110 lb).

b.

Rotate adjusting nut with deep socket to adjust pedal stroke to
specification.

c.

With parking brake pedal completely disengaged, make sure
there is no drag on the parking brake.

Pedal stroke

: 4

5 notches [under force of 196 N (20.0 kg, 44.1 lb)]

WFIA0165E

Tool number

:

(J-21177-A)

Pedal stroke

: 4

5 notches [under force of

196 N (20.0 kg, 44.1 lb)]

WFIA0166E

PB-4

PARKING BRAKE CONTROL

2005 Pathfinder

PARKING BRAKE CONTROL

PFP:36010

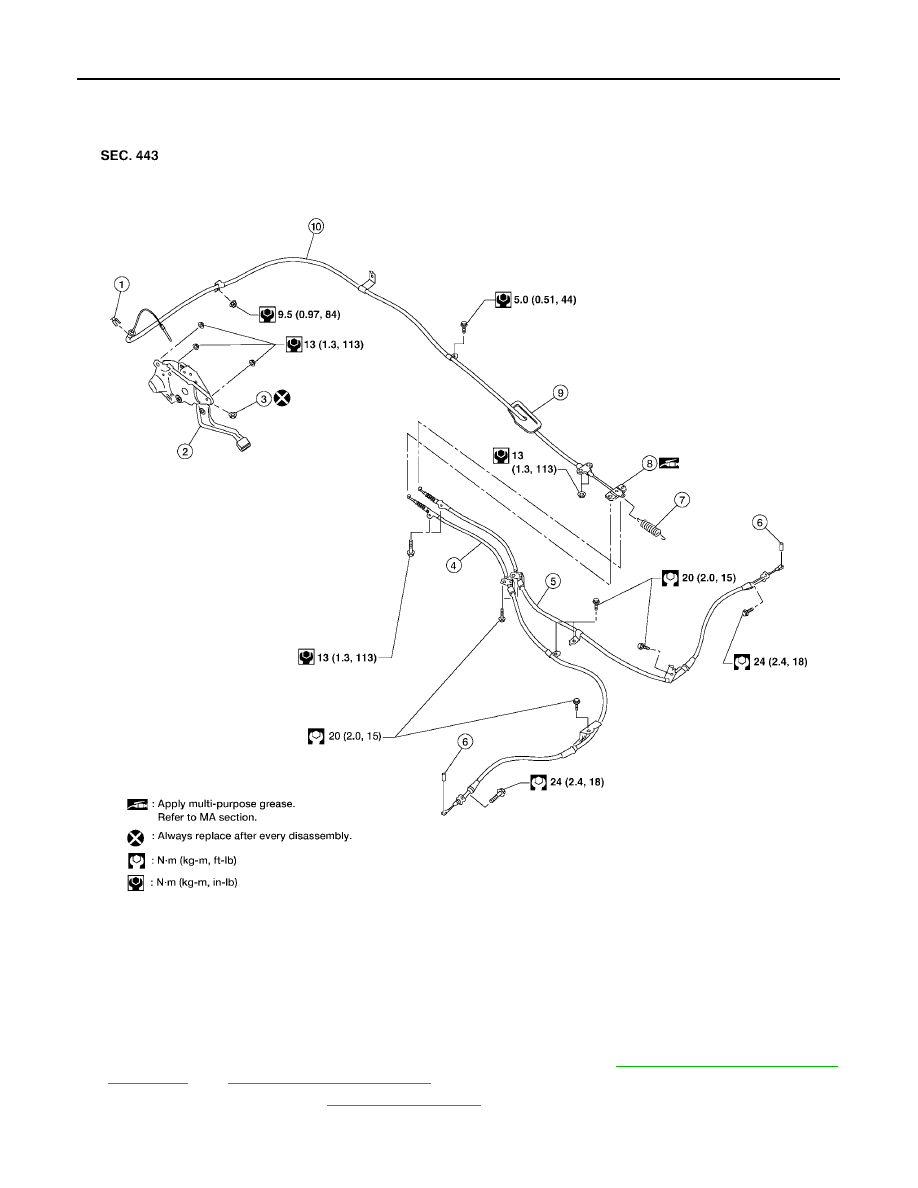

Components

EFS004IY

Removal and Installation

EFS004IZ

REMOVAL

1.

Remove the lower instrument panel LH and center console. Refer to

IP-13, "LOWER INSTRUMENT

PANEL LH"

and

IP-15, "CENTER CONSOLE"

.

2.

Remove the floor trim. Refer to

EI-29, "FLOOR TRIM"

.

3.

Remove the parking brake control adjusting nut.

1.

Lock plate

2.

Pedal assembly

3.

Adjusting nut

4.

Left rear cable

5.

Right rear cable

6.

Pin

7.

Return spring

8.

Equalizer

9.

Front cable grommet

10. Front cable

LFIA0229E

PARKING BRAKE CONTROL

PB-5

C

D

E

G

H

I

J

K

L

M

A

B

PB

2005 Pathfinder

CAUTION:

Do not reuse adjusting nut after removing it.

4.

Remove the lock plate from the front cable.

5.

Remove front parking brake cable bolt and nut.

6.

Disconnect return spring from equalizer.

7.

Disconnect the front parking brake cable from the equalizer and remove front cable.

8.

Remove the rear disc rotors. Refer to

BR-31, "Removal and Installation of Brake Caliper and Disc Rotor"

.

9.

Remove parking brake shoes, and remove rear cable from toggle lever. Refer to

PB-6, "PARKING BRAKE

SHOE"

.

10. Remove equalizer from right and left rear cables.

11. Remove right and left rear cable bolts and nuts, then remove right and left rear cables.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse adjusting nut after removing it.

Adjust parking brake. Refer to

PB-3, "ADJUSTMENT"

.

PB-6

PARKING BRAKE SHOE

2005 Pathfinder

PARKING BRAKE SHOE

PFP:44060

Removal and Installation

EFS004J0

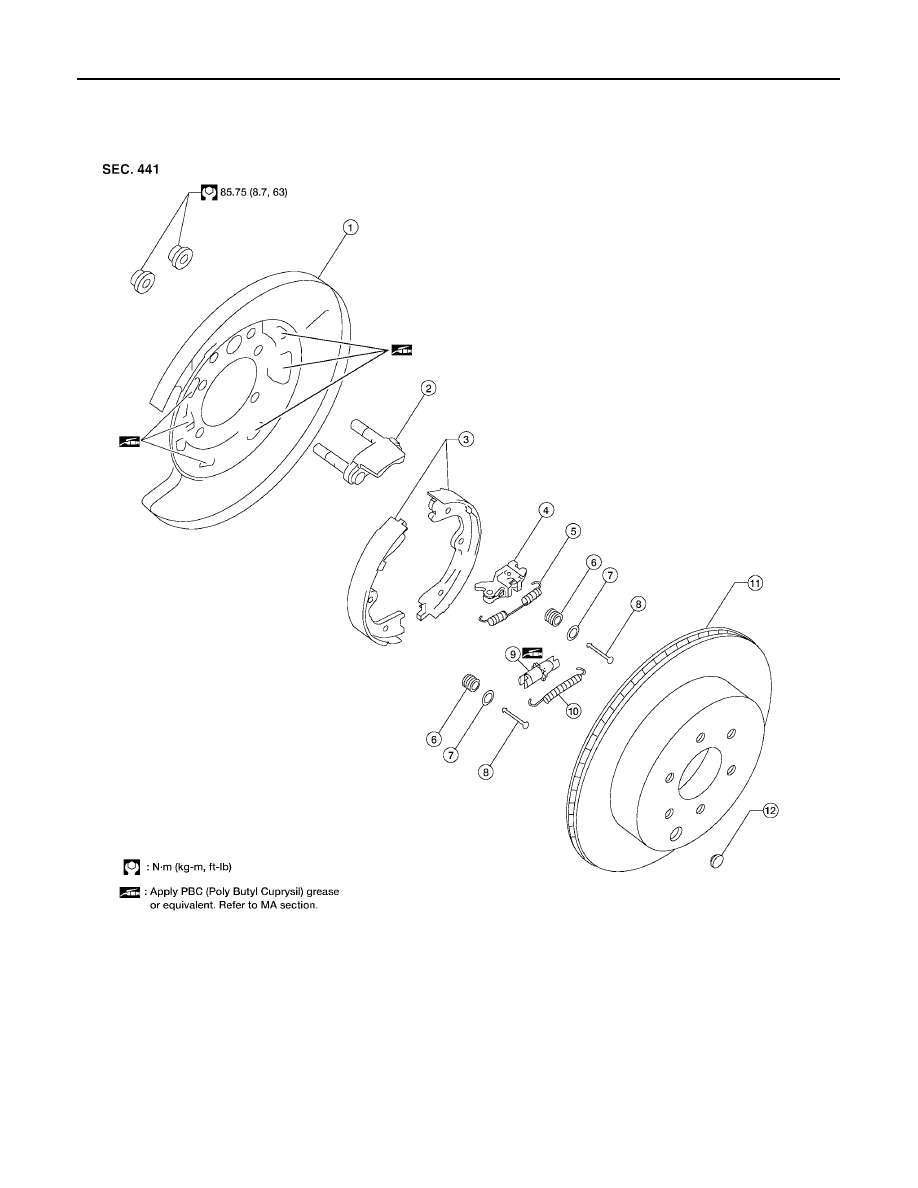

COMPONENTS

REMOVAL

WARNING:

Clean the brakes with a vacuum dust collector to minimize the hazard of airborne particles or other
materials.

NOTE:
Remove the disc rotor only with the parking brake pedal completely disengaged.

1.

Back plate

2.

Anchor

3.

Shoes

4.

Toggle lever

5.

Upper return spring

6.

Shoe hold-down spring

7.

Retainer

8.

Shoe hold-down pin

9.

Adjuster

10. Lower return spring

11.

Disc rotor

12. Adjuster access plug

LFIA0230E
