NO OUTPUT FROM AC 120 V OUTLET

PWO-29

< SYMPTOM DIAGNOSIS >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYMPTOM DIAGNOSIS

NO OUTPUT FROM AC 120 V OUTLET

Diagnosis Procedure

INFOID:0000000009174854

1.

CHECK FAIL-SAFE ACTIVATION

Check if the symptom is caused by a fail-safe operation. Refer to

PWO-15, "Fail-safe"

.

Is fail-safe operating?

YES

>> Repair the part causing fail-safe operation.

NO

>> GO TO 2.

2.

CHECK INVERTER UNIT POWER SUPPLY CIRCUIT

Check inverter unit power supply circuit. Refer to

PWO-22, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK AC 120V OUTLET MAIN SWITCH POWER SUPPLY CIRCUIT

Check AC 120V outlet main switch power supply circuit. Refer to

PWO-23, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CHECK AC 120V OUTLET MAIN SWITCH INPUT SIGNAL CIRCUIT

Check AC 120V outlet main switch input signal circuit. Refer to

PWO-24, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace the malfunctioning parts.

5.

CHECK INVERTER UNIT POWER OUTPUT CIRCUIT

Check inverter unit power output circuit. Refer to

PWO-26, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

PWO-30

< SYMPTOM DIAGNOSIS >

[AC 120 V OUTLET]

AC 120 V OUTLET MAIN SWITCH INDICATOR DOES NOT TURN ON

AC 120 V OUTLET MAIN SWITCH INDICATOR DOES NOT TURN ON

Diagnosis Procedure

INFOID:0000000009174855

1.

CHECK FAIL-SAFE ACTIVATION

Check if the symptom is caused by a fail-safe operation. Refer to

PWO-15, "Fail-safe"

.

Is fail-safe operating?

YES

>> Repair the part causing fail-safe operation.

NO

>> GO TO 2.

2.

CHECK INVERTER UNIT POWER SUPPLY CIRCUIT

Check inverter unit power supply circuit. Refer to

PWO-22, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK AC 120V OUTLET MAIN SWITCH POWER SUPPLY CIRCUIT

Check AC 120V outlet main switch power supply circuit. Refer to

PWO-23, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CHECK AC 120V OUTLET MAIN SWITCH INPUT SIGNAL CIRCUIT

Check AC 120V outlet main switch input signal circuit. Refer to

PWO-24, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace the malfunctioning parts.

5.

CHECK AC 120V OUTLET MAIN SWITCH INDICATOR CIRCUIT

Check AC 120V outlet main switch indicator circuit. Refer to

PWO-28, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

PWO

NORMAL OPERATING CONDITION

PWO-31

< SYMPTOM DIAGNOSIS >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NORMAL OPERATING CONDITION

Description

INFOID:0000000009174856

Because of modified sine wave output, the AC 120V outlet may not operate normally for electric appliance of

which electric power consumption is 150W or less.

• Electric appliances requiring a large amount of electric power consumption at startup (e.g., CRT-based TV,

power tool)

• Measuring instruments for data requiring accuracy (e.g., medical equipment, measuring instrument)

• Microprocessor-controlled appliances (e.g., microprocessor-controlled blanket)

Noise may be caused in radio or TV, depending on an electric appliance.

PWO-32

< REMOVAL AND INSTALLATION >

[AC 120 V OUTLET]

INVERTER UNIT

REMOVAL AND INSTALLATION

INVERTER UNIT

Removal and Installation

INFOID:0000000009174857

REMOVAL

1. Remove inverter unit fuse.
2. Remove luggage side lower finisher LH. Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

NOTE:

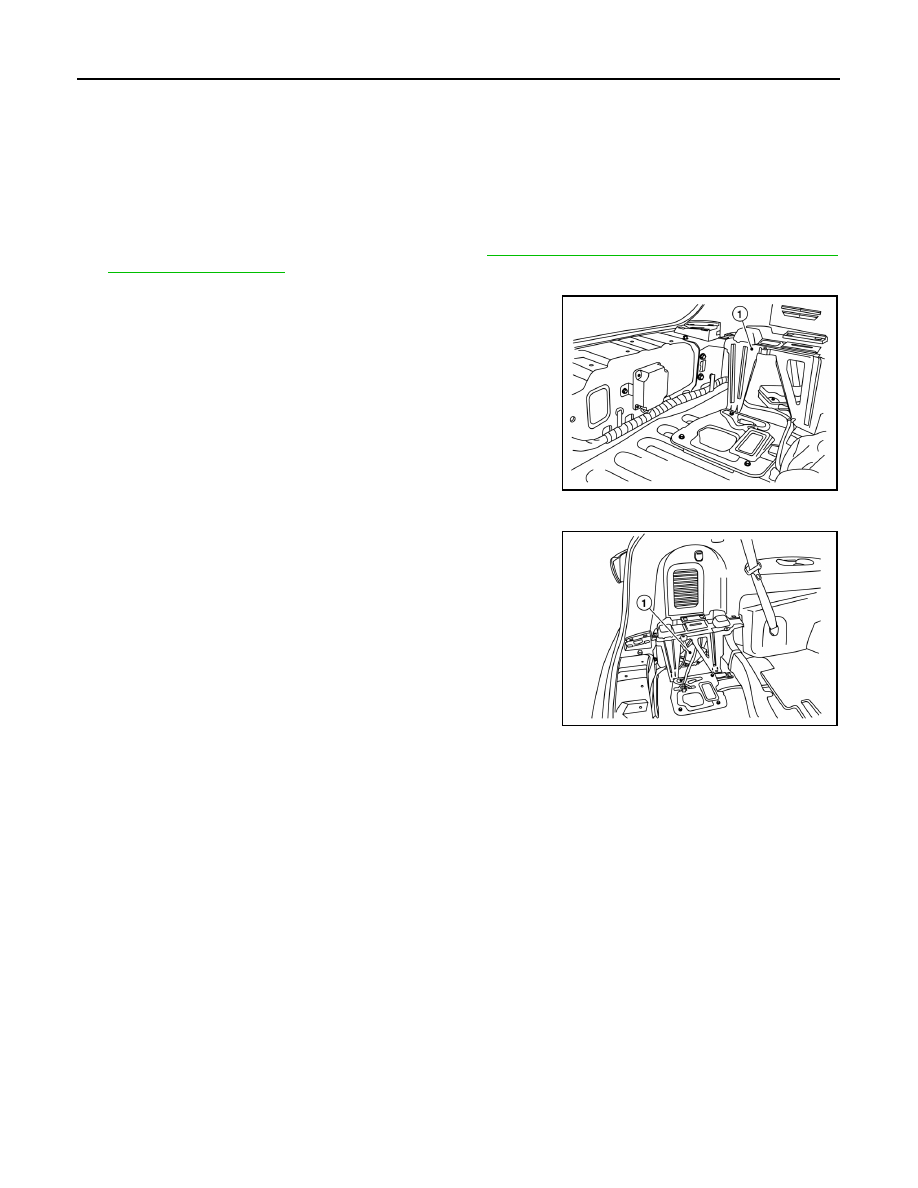

The inverter unit is located under the storage box bracket (LH)

(1).

3. Remove the inverter unit bolts.
4. Disconnect the harness connector from the inverter unit (1).
5. Remove the inverter unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALMIA0555ZZ

ALMIA0557ZZ
