Nissan Pathfinder. Manual - part 914

PG

GROUND

PG-47

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

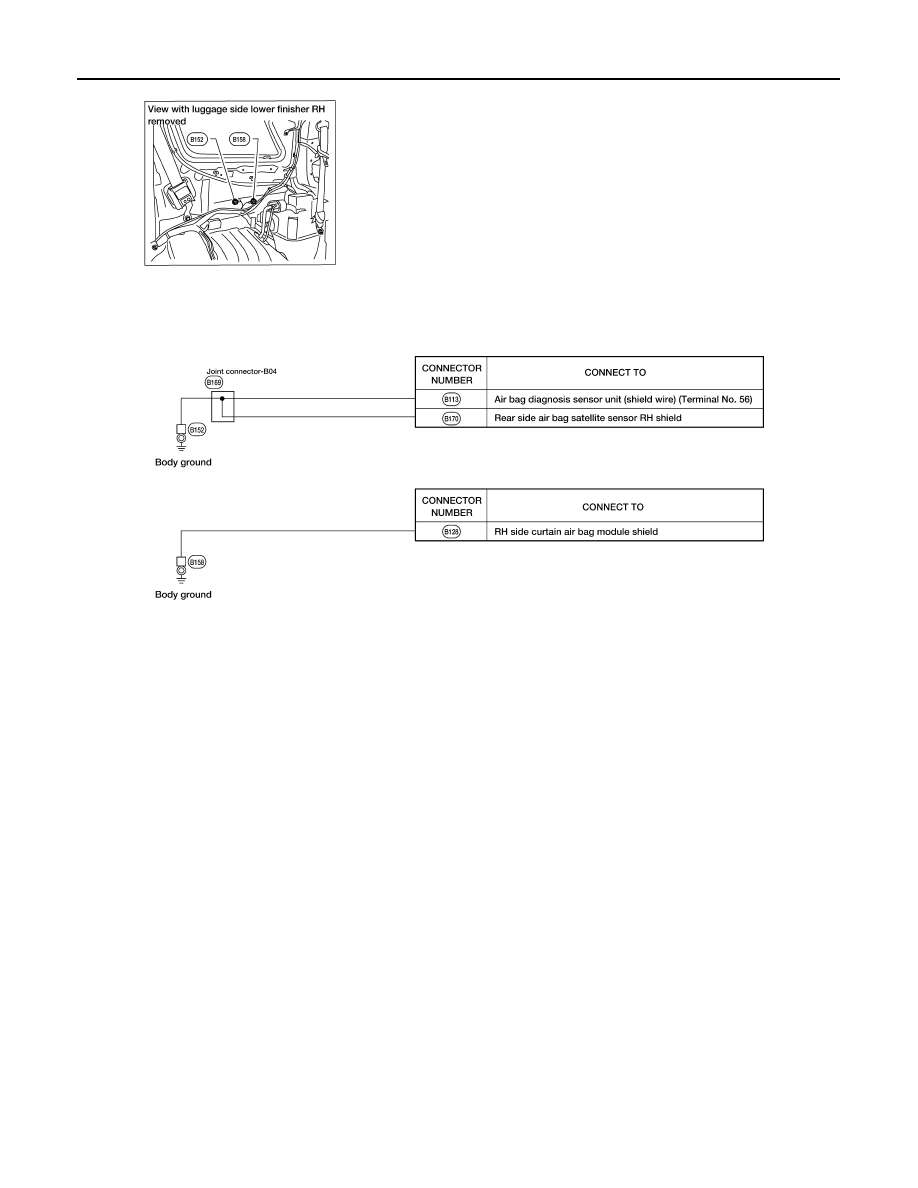

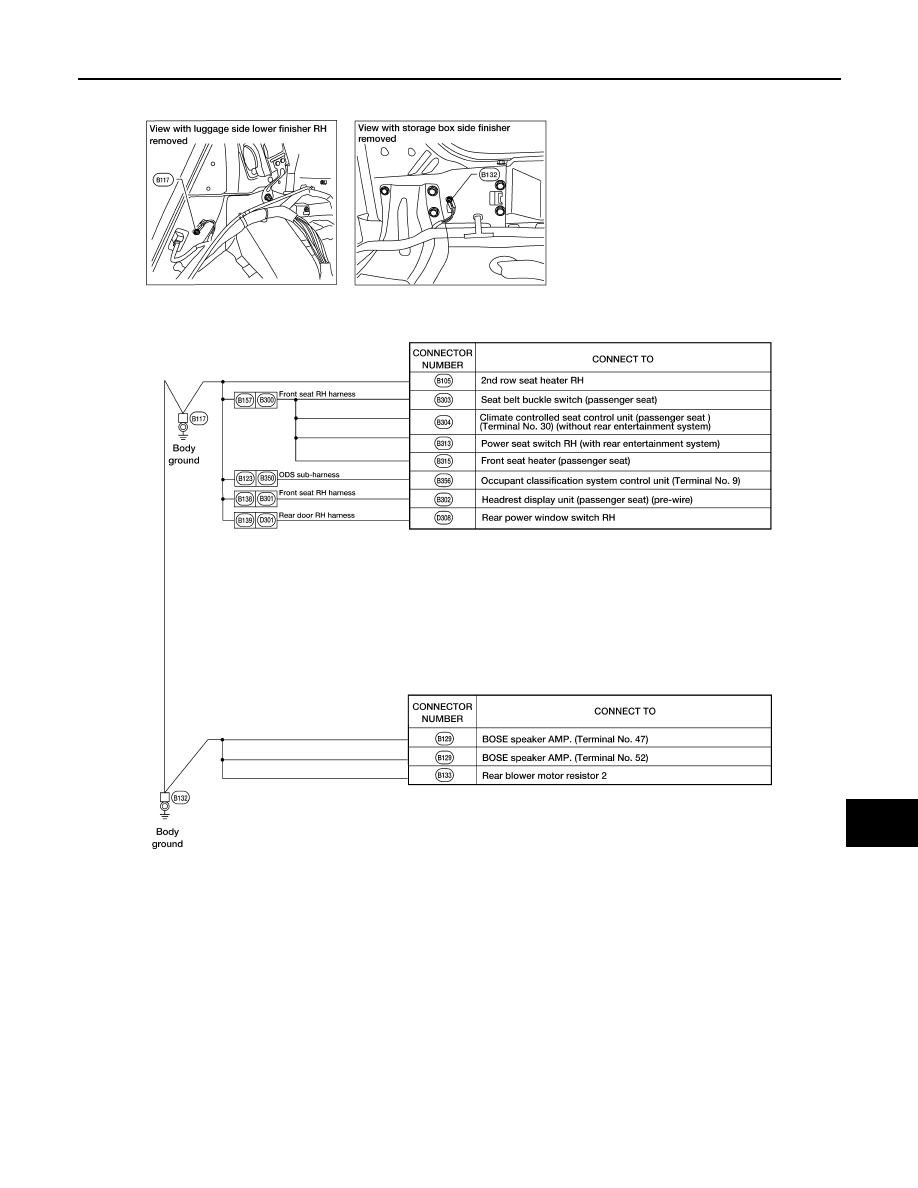

BODY NO. 2 HARNESS

ABMIA4900GB

PG-48

< WIRING DIAGRAM >

GROUND

ABMIA4920GB

PG

GROUND

PG-49

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

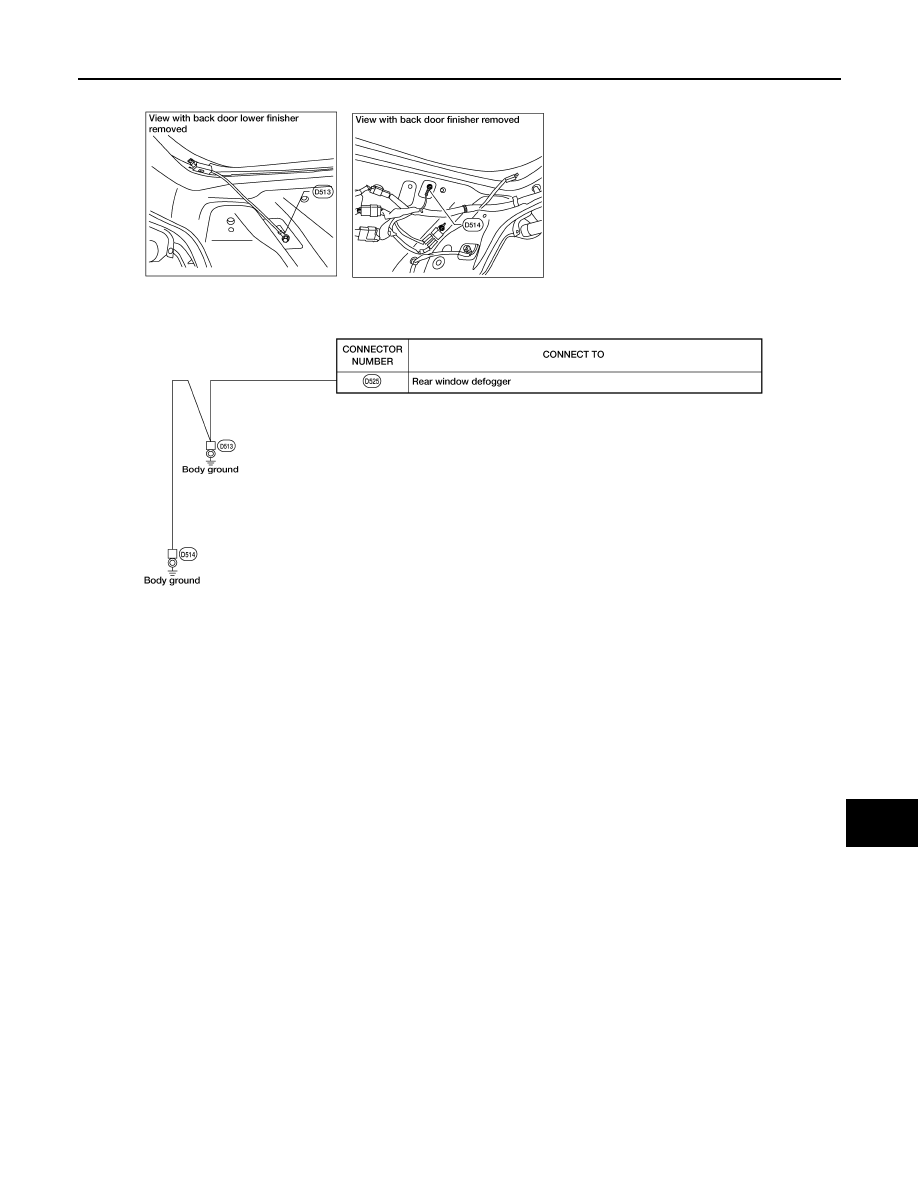

BACK DOOR HARNESS

AAMIA1340GB

PG-50

< WIRING DIAGRAM >

HARNESS

HARNESS

Harness Layout

INFOID:0000000009175294

HOW TO READ HARNESS LAYOUT

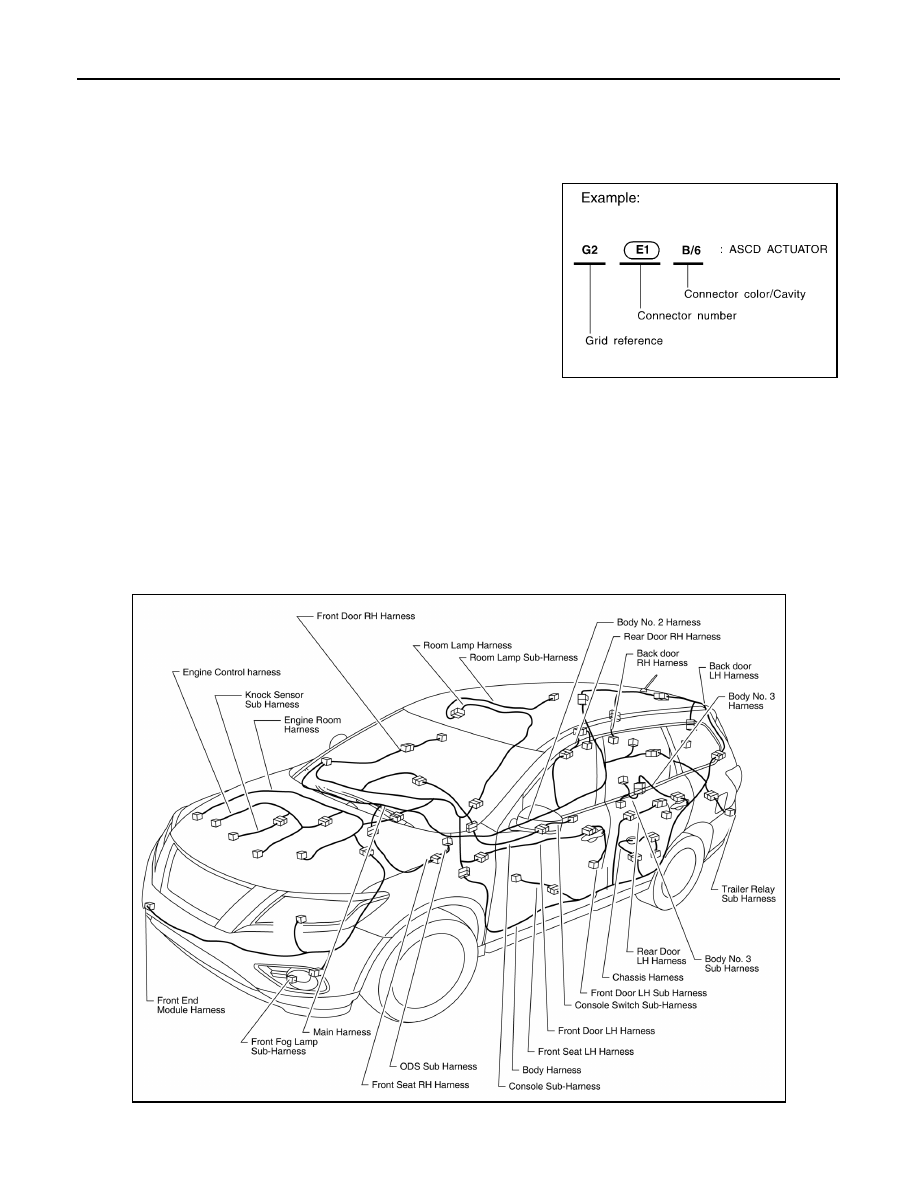

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness 1, Main Harness 2, Console Sub-harness and Con-

sole Switch Sub-harness

• Engine Room Harness

• Engine Room Harness (Passenger Compartment)

• Front End Module Harness and Front Fog Lamp Sub-harness

• Engine Control Harness, Knock Sensor Sub-harness

• Body Harness, Front Seat LH Harness, Body No.3 Harness, Body

No.3 Sub-harness, Trailer Relay Sub Harness and Chassis Har-

ness

• Body No. 2 Harness and Front Seat RH Harness and ODS sub

harness

• Room Lamp Harness and Room Lamp Sub-harness

• Back Door LH Harness and Back Door RH Harness

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE

SEL252V

ABMIA4913GB
