MWI-80

< SYMPTOM DIAGNOSIS >

THE STEERING SWITCHES ARE INOPERATIVE

THE STEERING SWITCHES ARE INOPERATIVE

Description

INFOID:0000000009174299

One or more of the steering switches to control the information display are inoperative.

Diagnosis Procedure

INFOID:0000000009174300

1.

CHECK STEERING SWITCH CIRCUIT

Check steering switch circuit. Refer to

MWI-70, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK STEERING SWITCH RESISTANCE

Check steering switch resistance. Refer to

MWI-70, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace steering switch. Refer to

AV-48, "Removal and Installation"

.

3.

CHECK SPIRAL CABLE

Check spiral cable for continuity. Refer to

MWI-70, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-82, "Removal and Installation"

.

NO

>> Replace spiral cable. Refer to

SR-15, "Removal and Installation"

.

MWI

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

MWI-81

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

Description

INFOID:0000000009174301

• The displayed ambient air temperature is higher than the actual temperature.

• The displayed ambient air temperature is lower than the actual temperature.

Diagnosis Procedure

INFOID:0000000009174302

1.

CHECK COMBINATION METER INPUT SIGNAL

1. Select METER/M&A on CONSULT.

2. Check OUTSIDE TEMP of DATA MONITOR.
Does the ambient temperature approximately match the CONSULT display?

YES

>> Replace combination meter. Refer to

MWI-82, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK AMBIENT SENSOR SIGNAL CIRCUIT

Check the ambient sensor signal circuit. Refer to

HAC-86, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK AMBIENT SENSOR

Check the ambient sensor. Refer to

HAC-87, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-82, "Removal and Installation"

.

NO

>> Replace ambient sensor. Refer to

HAC-158, "Removal and Installation"

.

MWI-82

< REMOVAL AND INSTALLATION >

COMBINATION METER

REMOVAL AND INSTALLATION

COMBINATION METER

Removal and Installation

INFOID:0000000009174303

REMOVAL

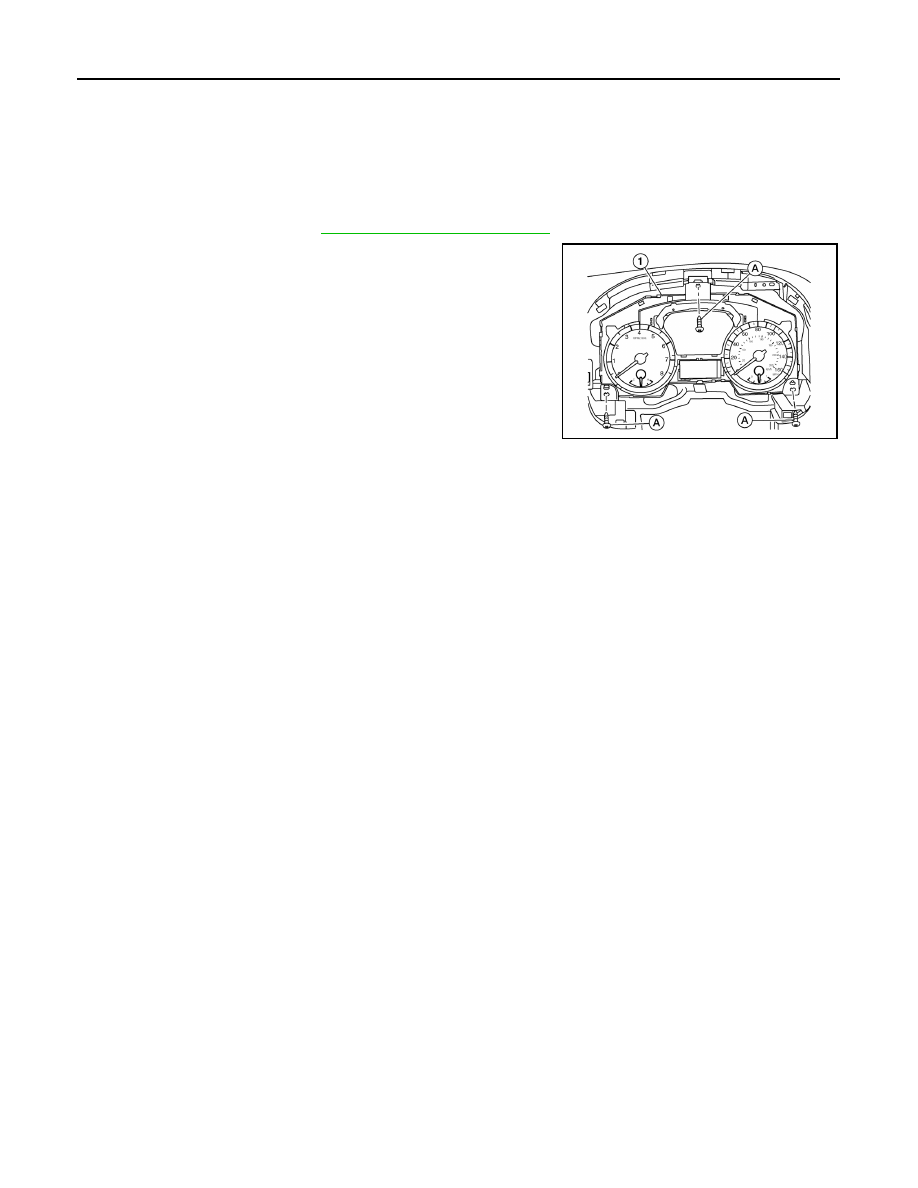

1. Remove cluster lid A. Refer to

IP-21, "Removal and Installation"

.

2. Remove the combination meter screws (A).
3. Disconnect the harness connector from the combination meter

(1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1435ZZ

MWI

TRIP RESET AND ILLUMINATION CONTROL SWITCH

MWI-83

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TRIP RESET AND ILLUMINATION CONTROL SWITCH

Removal and Installation

INFOID:0000000009174304

ILLUMINATION CONTROL SWITCH

Removal

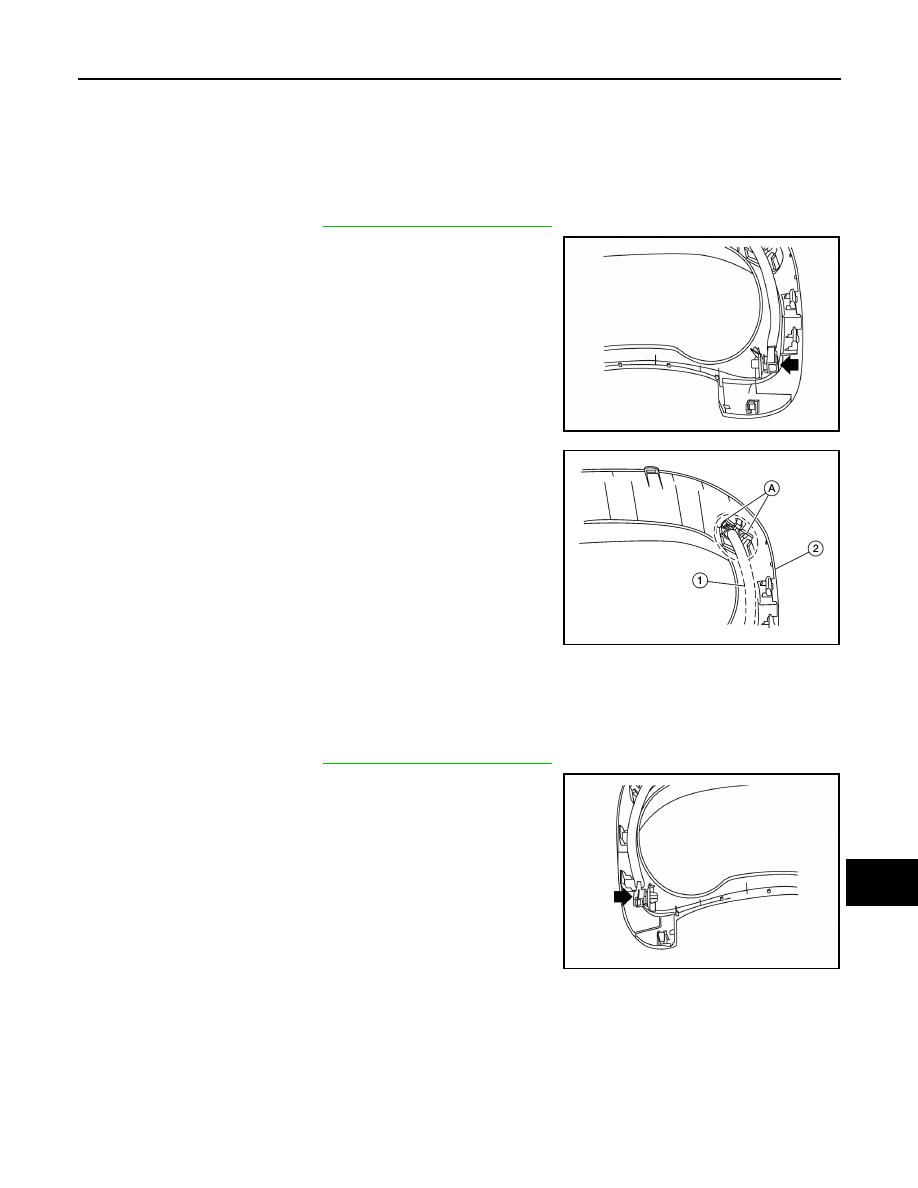

1. Remove cluster lid A. Refer to

IP-21, "Removal and Installation"

.

2. Release the harness connector from cluster lid A.

3. Release the clips (A) and remove illumination control switch (1)

through the front of cluster lid A (2).

Installation

Installation is in the reverse order of removal.

TRIP RESET SWITCH

Removal

1. Remove cluster lid A. Refer to

IP-21, "Removal and Installation"

.

2. Release the harness connector from cluster lid A.

ALNIA1437ZZ

ALNIA1438ZZ

ALNIA1439ZZ
