CAN SYSTEM (WITH AROUND VIEW MONITOR SYSTEM)

LAN-57

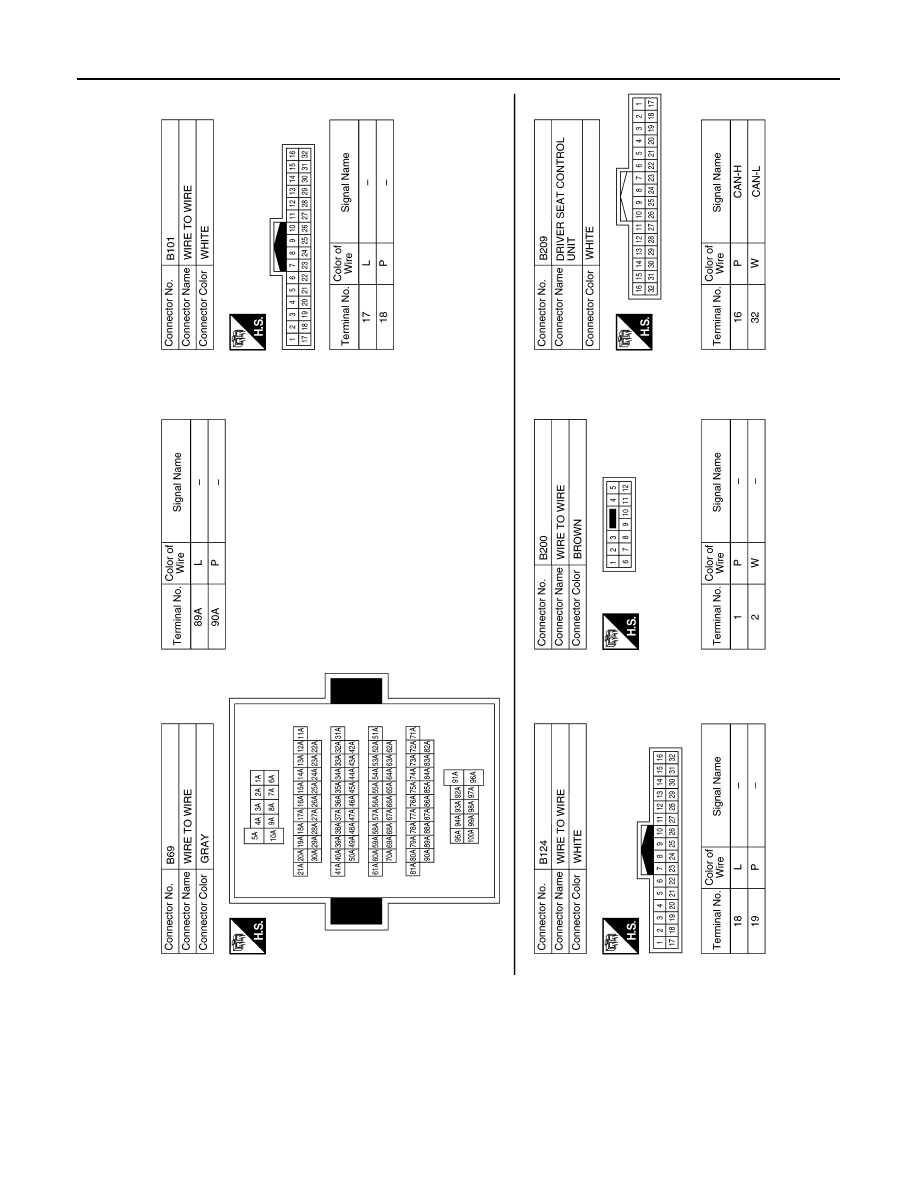

< WIRING DIAGRAM >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA4786GB

LAN-58

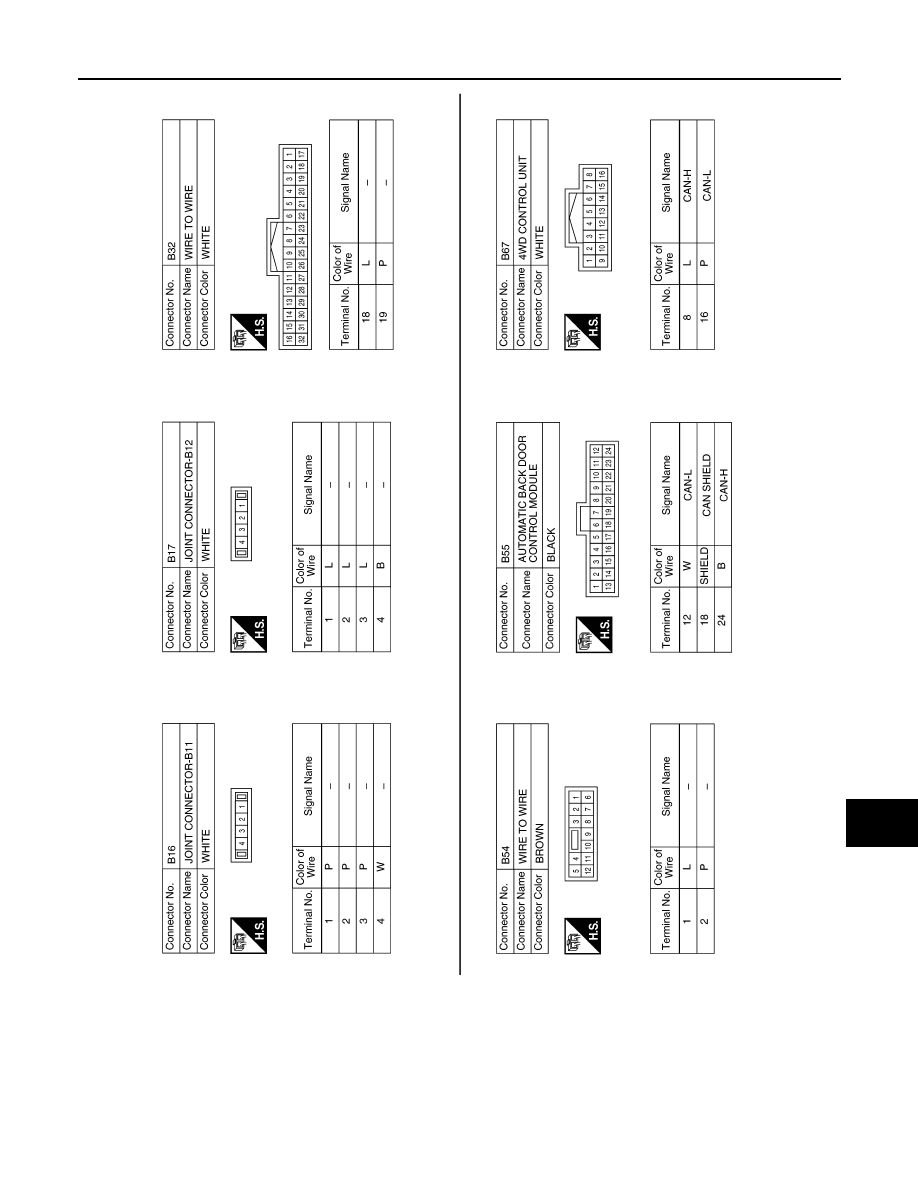

< WIRING DIAGRAM >

[CAN]

CAN SYSTEM (WITH AROUND VIEW MONITOR SYSTEM)

ABMIA4787GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-59

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

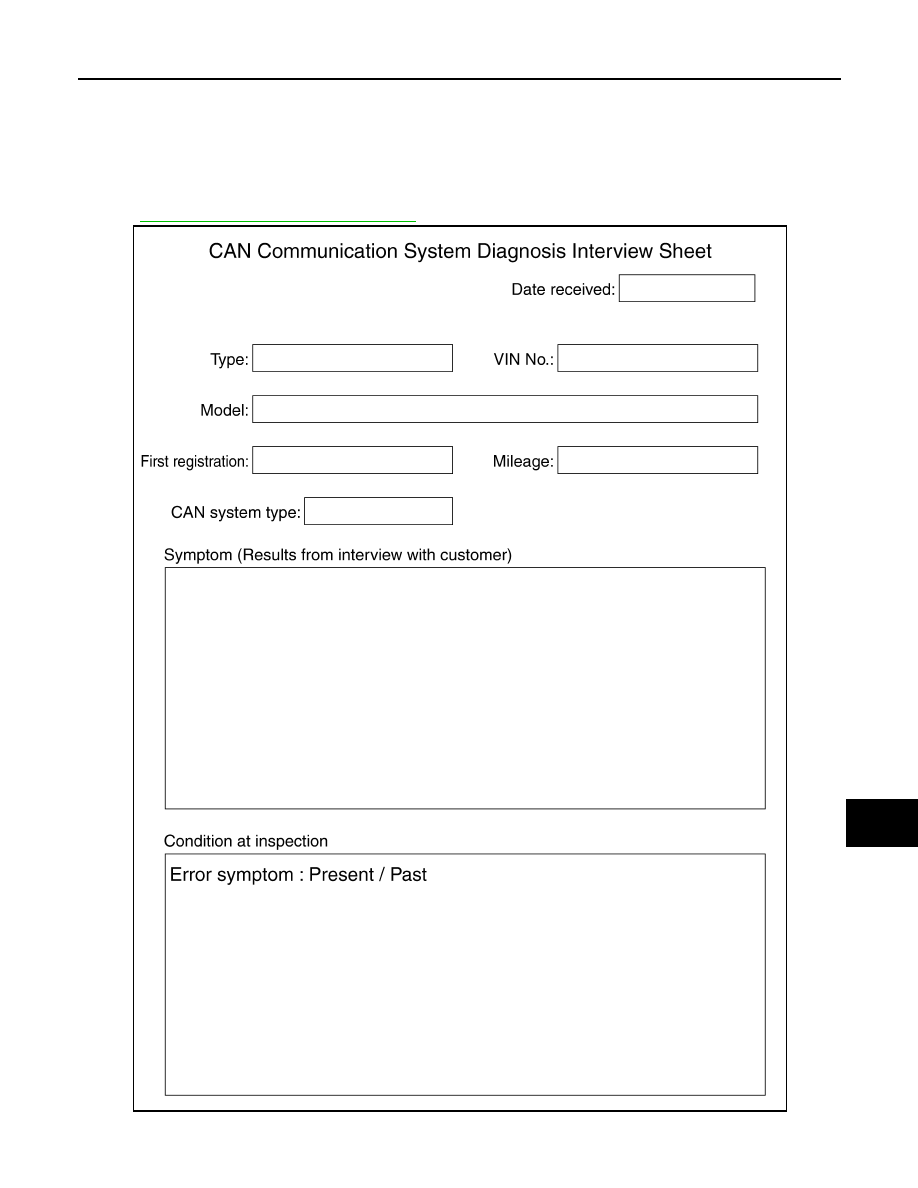

Interview Sheet

INFOID:0000000009174948

NOTE:

Refer to

LAN-20, "Trouble Diagnosis Procedure"

 for how to use interview sheet.

SKIB8898E

LAN-60

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

MALFUNCTION AREA CHART

DTC/CIRCUIT DIAGNOSIS

MALFUNCTION AREA CHART

Main Line

INFOID:0000000009174949

Branch Line

INFOID:0000000009174950

Short Circuit

INFOID:0000000009174951

Malfunction area

Reference

Main line between IPDM E/R and ABS actuator and electric unit
(control unit)

LAN-61, "Diagnosis Procedure"

Main line between ABS actuator and electric unit (control unit) and
data link connector

LAN-62, "Diagnosis Procedure"

Main line between data link connector and 4WD control unit

LAN-63, "Diagnosis Procedure"

Main line between data link connector and driver seat control unit

LAN-64, "Diagnosis Procedure"

Main line between driver seat control unit and automatic back door
control module

LAN-65, "Diagnosis Procedure"

Main line between data link connector and CAN gateway

LAN-66, "Diagnosis Procedure"

Malfunction area

Reference

ECM branch line circuit

LAN-67, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-68, "Diagnosis Procedure"

TCM branch line circuit

LAN-69, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-70, "Diagnosis Procedure"

Power steering control module branch line circuit

LAN-71, "Diagnosis Procedure"

Air bag diagnosis sensor unit branch line circuit

LAN-72, "Diagnosis Procedure"

AV control unit branch line circuit

LAN-73, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-74, "Diagnosis Procedure"

Data link connector branch line circuit (CAN communication circuit 1)

LAN-75, "Diagnosis Procedure"

Data link connector branch line circuit (CAN communication circuit 2)

LAN-76, "Diagnosis Procedure"

A/C auto amp. branch line circuit

LAN-77, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-78, "Diagnosis Procedure"

Sonar control unit branch line circuit

LAN-79, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-80, "Diagnosis Procedure"

Driver seat control unit branch line circuit

LAN-81, "Diagnosis Procedure"

4WD control unit branch line circuit

LAN-82, "Diagnosis Procedure"

Automatic back door control module branch line circuit

LAN-83, "Diagnosis Procedure"

BCM branch line circuit

LAN-84, "Diagnosis Procedure"

CAN gateway branch line circuit (CAN communication circuit 1)

LAN-85, "Diagnosis Procedure"

CAN gateway branch line circuit (CAN communication circuit 2)

LAN-86, "Diagnosis Procedure"

Around view monitor control unit branch line circuit

LAN-87, "Diagnosis Procedure"

Malfunction area

Reference

CAN communication circuit

LAN-88, "Diagnosis Procedure"

CAN communication circuit 1

LAN-90, "Diagnosis Procedure"

CAN communication circuit 2

LAN-92, "Diagnosis Procedure"
