LAN

HOW TO USE THIS SECTION

LAN-25

< HOW TO USE THIS MANUAL >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HOW TO USE THIS MANUAL

HOW TO USE THIS SECTION

Information

INFOID:0000000009174936

• “CAN” of LAN Section describes information peculiar to a vehicle and inspection procedures.

• For trouble diagnosis procedure, refer to

LAN-20, "Trouble Diagnosis Flow Chart"

 of “CAN FUNDAMEN-

TAL”.

Abbreviation List

INFOID:0000000009174937

Unit name abbreviations in CONSULT CAN diagnosis and in this section are as per the following list.

Abbreviation

Unit name

4WD

4WD control unit

A-BAG

Air bag diagnosis sensor unit

ABS

ABS actuator and electric unit (control unit)

ADP

Driver seat control unit

AV

AV control unit

AVM

Around view monitor control unit

BCM

BCM

CGW

CAN gateway

DLC

Data link connector

ECM

ECM

EPS

Power steering control module

HVAC

A/C auto amp.

IPDM-E

IPDM E/R

M&A

Combination meter

PWBD

Automatic back door control module

STRG

Steering angle sensor

SONAR

Sonar control unit

TCM

TCM

LAN-26

< PRECAUTION >

[CAN]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009777266

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precautions for Trouble Diagnosis

INFOID:0000000009174939

CAUTION:

Follow the instructions listed below. Failure to do this may cause damage to parts:

• Never apply 7.0 V or more to the measurement terminal.

• Use a tester with open terminal voltage of 7.0 V or less.

• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

Precautions for Harness Repair

INFOID:0000000009174940

• Solder the repaired area and wrap tape around the soldered area.

NOTE:

A fray of twisted lines must be within 110 mm (4.33 in).

SKIB8766E

LAN

PRECAUTIONS

LAN-27

< PRECAUTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

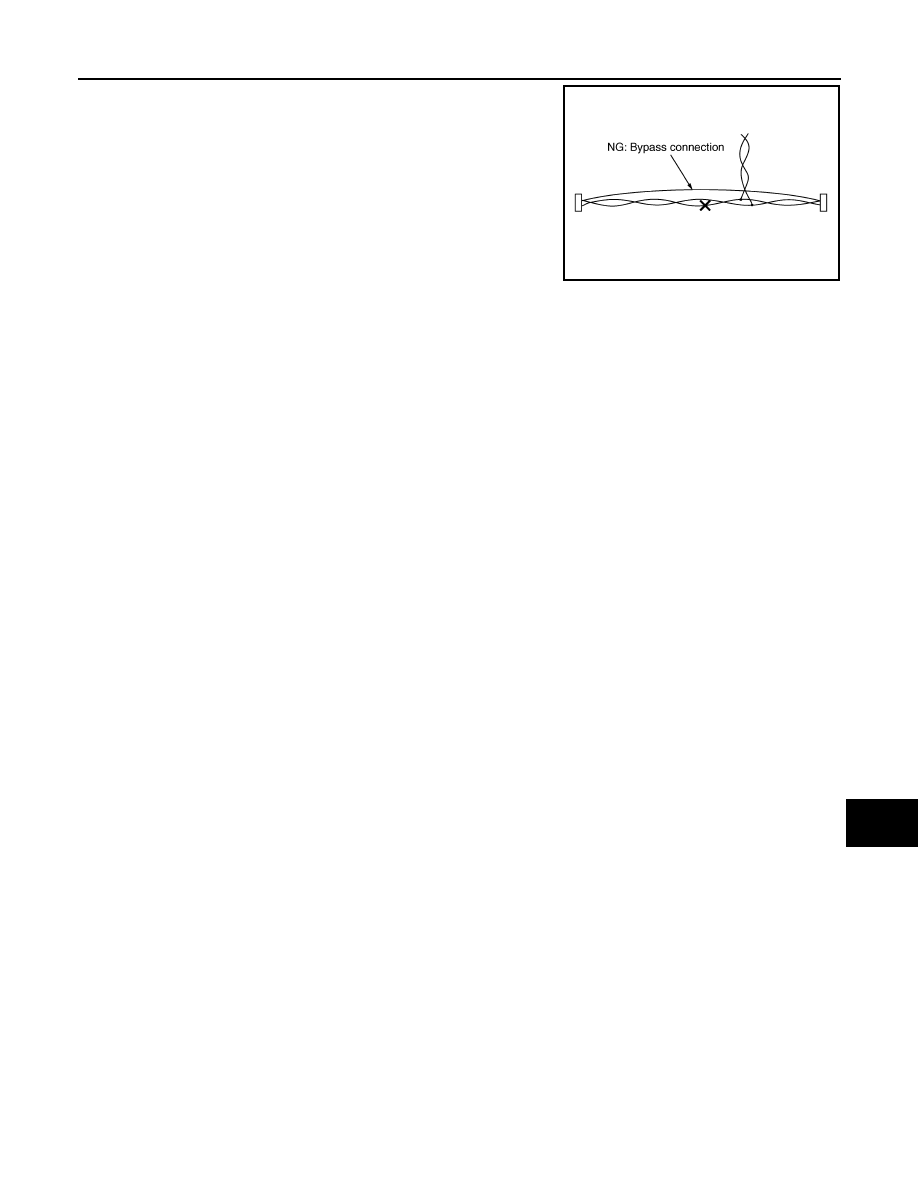

• Bypass connection is never allowed at the repaired area.

NOTE:

Bypass connection may cause CAN communication error. The

spliced wire becomes separated and the characteristics of twisted

line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8767E

LAN-28

< SYSTEM DESCRIPTION >

[CAN]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

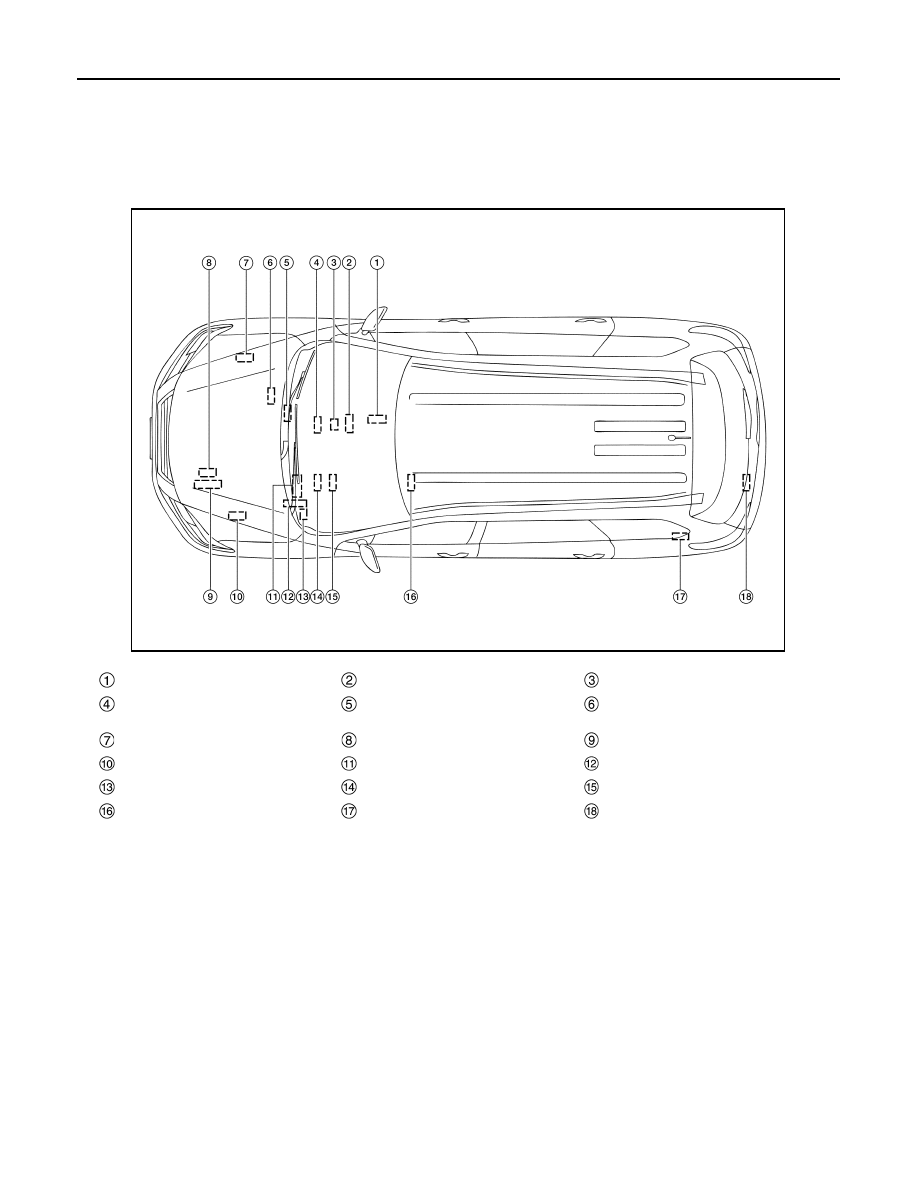

Component Parts Location

INFOID:0000000009174941

Around view monitor control unit

AV control unit

A/C auto amp.

Air bag diagnosis sensor unit

CAN gateway

ABS actuator and electric unit (con-
trol unit)

Power steering control module

TCM

ECM

IPDM E/R

BCM

Sonar control unit

Data link connector

Combination meter

Steering angle sensor

Driver seat control unit

Automatic back door control module

4WD control unit

ALMIA0589ZZ
