FRONT AIR CONTROLLER OPERATION (EXCEPT BASE AUDIO SYSTEM)

A/C Display

• Front air conditioning system state is indicated on the display.

• When “STATUS” on the A/C and AV switch assembly is pressed while front air conditioning system is in the

ON position, the display changes to state indication display of front air conditioning system. When front air

conditioning system is operated while navigation system or audio system is displayed, front air conditioning

system state is indicated in the lower portion of display for several seconds.

• When MODE switch is pressed while front air conditioning system is in the OFF position, state indication dis-

play is indicated for several seconds.

Display Screen

Controller (A/C and AV switch assembly)

Temperature control
switch (Driver side)

Setting temperature is selected using this switch within a range between 18

°C (60°F) and 32°C (90°F)

at a rate of 0.5

°C (1.0°F) per adjustment.

•

 Press: Setting temperature increases

•

 Press: Setting temperature decreases

NOTE:
When air conditioning system is OFF, setting temperature can be selected only while air conditioning
system status screen [only when MODE switch (driver side) is pressed] is indicated on display.

Temperature control
switch (Passenger side)

• The system is set to LH/RH independent status (“DUAL” displays) by operating this switch. Outlet

air flow temperature of passenger side can be changed without changing outlet air flow temperature
of driver side.

• Setting temperature is selected using this switch within a range between 18

°C (60°F) and 32°C

(90

°F) at a rate of 0.5°C (1.0°F) per adjustment.

-

 Press: Setting temperature increases

-

 Press: Setting temperature decreases

NOTE:
• When air conditioning system is OFF, setting temperature can be selected only while air condition-

ing system status screen [only when MODE switch (passenger side) is pressed] is indicated on dis-
play.

• When DEF mode is ON, temperature control switch (passenger side) is inoperative.

JMIIA0821GB

ALIIA0687ZZ

HAC-34

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

OPERATION

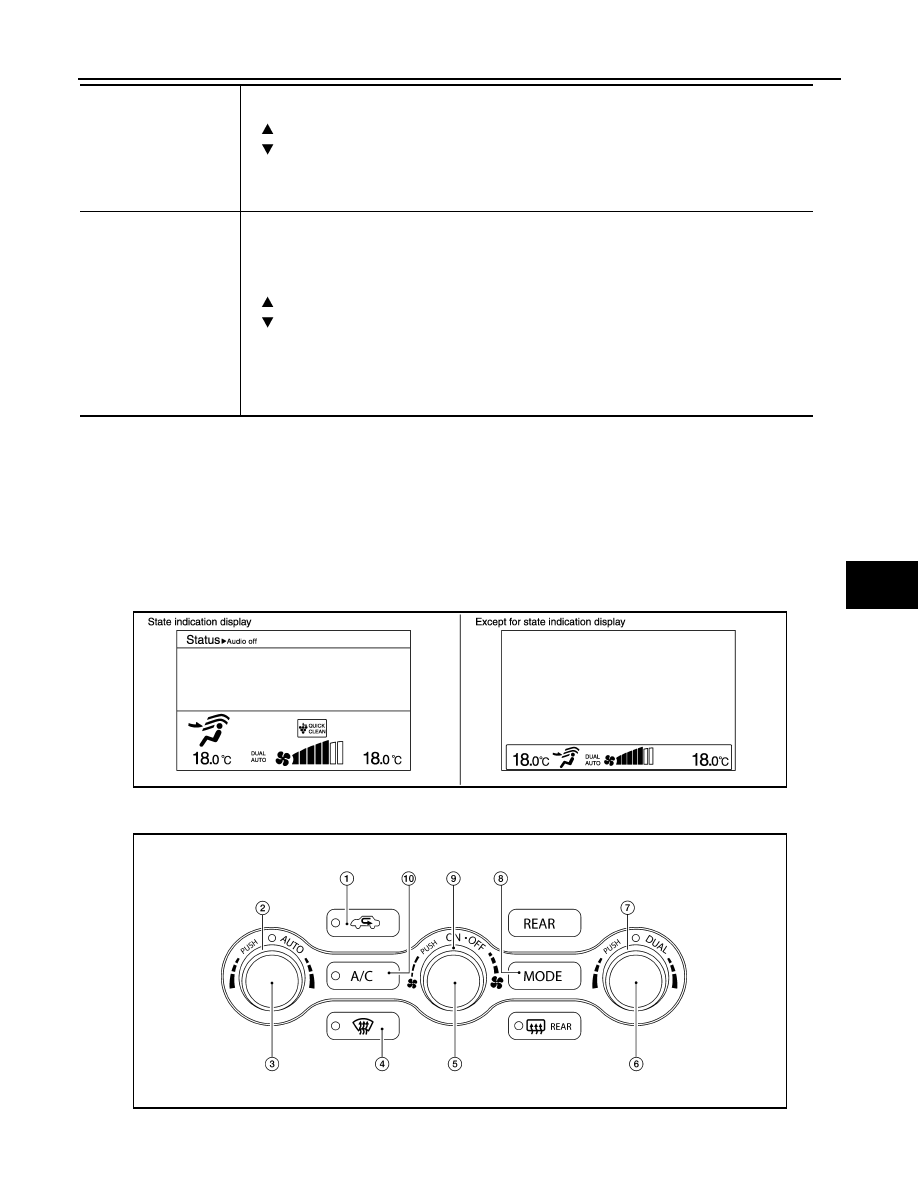

Switch Operation

1.

Intake switch

2.

Temperature control (Driver side)

3.

AUTO switch

4.

DEF switch

5.

ON/OFF switch

6.

DUAL switch

7.

Temperature control dial (passenger
side)

8.

MODE switch

9.

Fan switch

10. A/C switch

A/C switch

Turns the compressor control (switch indicator) between ON

⇔ OFF each time while front blower fan

is activated.
NOTE:
• When front blower fan is OFF, the compressor control cannot be activated.
• When the compressor control (switch indicator) is in the OFF position, air inlet is fresh air intake.

AUTO switch

Turns the switch indicator lamp and "AUTO" indicator on the display ON, and then front air condition-
ing system becomes the following state.
• Air inlet: Automatic control
• Air outlet: Automatic control
• Blower fan: Automatic control
• Compressor: ON

Defroster (DEF) switch

Turns DEF mode (switch indicator) between ON

⇔ OFF each time.

When DEF switch is pressed while front air conditioning system is in the ON position.

• When DEF mode is turned ON, front air conditioning system becomes the following state.
- Air inlet: Fresh air intake
- Air outlet: DEF
- Blower fan: Automatic control (If fan speed other than AUTO is selected before pressing DEF

switch, fan speed is manual control.)

- Compressor: ON
• When DEF mode is turned OFF, front air conditioning system state returns to the previous state

before DEF mode is selected. But, the following state is continued.

- Air inlet: Fresh air intake
- Compressor: ON

When DEF switch is pressed while front air conditioning system is in the OFF position.

• When DEF mode is turned ON, front air conditioning system becomes the following state.
- Air inlet: Fresh air intake
- Air outlet: DEF
- Blower fan: Automatic control
- Compressor: ON
• When DEF mode is turned OFF, entire front air conditioning system is set to auto mode.
NOTE:
When DEF mode turns ON while front air conditioning system is in automatic control (“AUTO” is indi-
cated), automatic control is released (“AUTO” turns OFF).

DUAL switch

• Turns left and right ventilation temperature separately control (switch indicator) between ON

⇔

OFF each time.

• When DUAL switch indicator is ON, the driver side and passenger side temperatures can each be

set independently.

• When DUAL switch indicator is OFF, the driver side outlet and setting temperature is applied to both

sides.

• Left and right ventilation temperature separately control is cancelled by turning the DEF mode ON.
NOTE:
When front air conditioning system is in the OFF position, left and right ventilation temperature sepa-
rately control can be selected only while front air conditioning system state (when MODE switch is
pressed) is indicated on the display.

Fan switch

Blower fan speed is manually controlled with this switch.
NOTE:
• When fan switch is operated while front air conditioning system is in OFF, front air conditioning sys-

tem is activated. (Compressor control state returns to the previous state before front air condition-
ing system OFF.)

• When fan switch is operated while front air conditioning system is in automatic control (“AUTO” is

indicated), automatic control is released (“AUTO” turns OFF).

OPERATION

HAC-35

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REAR AUTOMATIC AIR CONDITIONING SYSTEM
REAR AUTOMATIC AIR CONDITIONING SYSTEM : Switch Name and Function

INFOID:0000000009176799

FRONT CONTROLLER OPERATION (WITH BASE AUDIO SYSTEM)

A/C Display

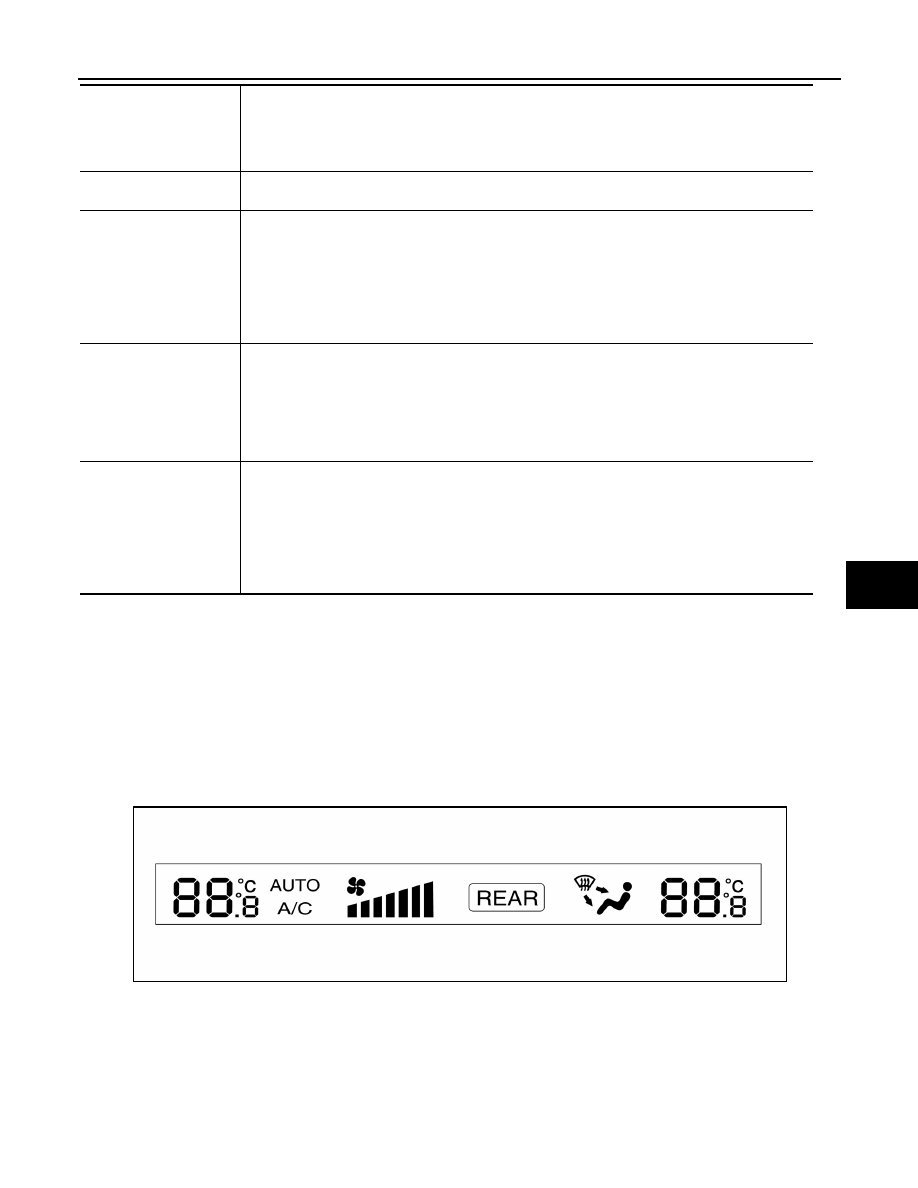

• Rear air conditioning system state is indicated on the display unit.

• When REAR switch is pressed while air conditioning system is in the ON position, the display unit changes

to state indication display (rear control mode) of rear air conditioning system.

Display screen

Controller (A/C switch assembly)

MODE switch

Selects air outlet sequentially from VENT

⇒ B/L ⇒ FOOT ⇒ D/F ⇒ VENT each time.

NOTE:
• When front air conditioning system is in the OFF position, air outlet can be selected.
• When MODE switch is pressed while front air conditioning system is in automatic control (“AUTO”

is indicated), automatic control is released (“AUTO” turns OFF).

ON/OFF switch

• Turns front air conditioning system ON/OFF.
• When front air conditioning system turns OFF, air inlet and air outlet become the automatic control.

Intake switch

Air inlet changes between recirculation (REC)

⇔ fresh air intake (FRE) each time this switch is

pressed.
• Intake switch indicator ON: Recirculation
• Intake switch indicator OFF: Fresh air intake
NOTE:
• When front air conditioning system is in the OFF position, air inlet can be selected.
• When MODE switch and DEF switch is in the D/F or DEF position, air inlet cannot be selected to

recirculation (REC).

Temperature control
switch (Driver side)

• Selects set temperature within a range between 18.0

°C (60°F) – 32.0°C (90°F) at a rate of 0.5°C

(1

°F) each time the dial is rotated.

- Clockwise rotation: Set temperature increases.
- Counterclockwise rotation: Set temperature decreases.
NOTE:
When front air conditioning system is in the OFF position, set temperature can be selected only while
front air conditioning system state (when MODE switch is pressed) is indicated on the display.

Temperature control
switch (Passenger side)

• Selects set temperature within a range between 18.0

°C (60°F) – 32.0°C (90°F) at a rate of 0.5°C

(1

°F) each time the dial is rotated.

- Clockwise rotation: Set temperature increases.
- Counterclockwise rotation: Set temperature decreases.
• When the temperature control dial is turned, DUAL switch indicator turns ON.
NOTE:
When front air conditioning system is in the OFF position, set temperature can be selected only while
front air conditioning system state (when MODE switch is pressed) is indicated on the display.

ALIIA0691ZZ

HAC-36

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

OPERATION

Switch Operation

FRONT CONTROLLER OPERATION (EXCEPT BASE AUDIO SYSTEM)

A/C Display

• Rear air conditioning system state is indicated on the display unit.

• When REAR switch is pressed while air conditioning system is in the ON position, the display unit changes

to state indication display (rear control mode) of rear air conditioning system.

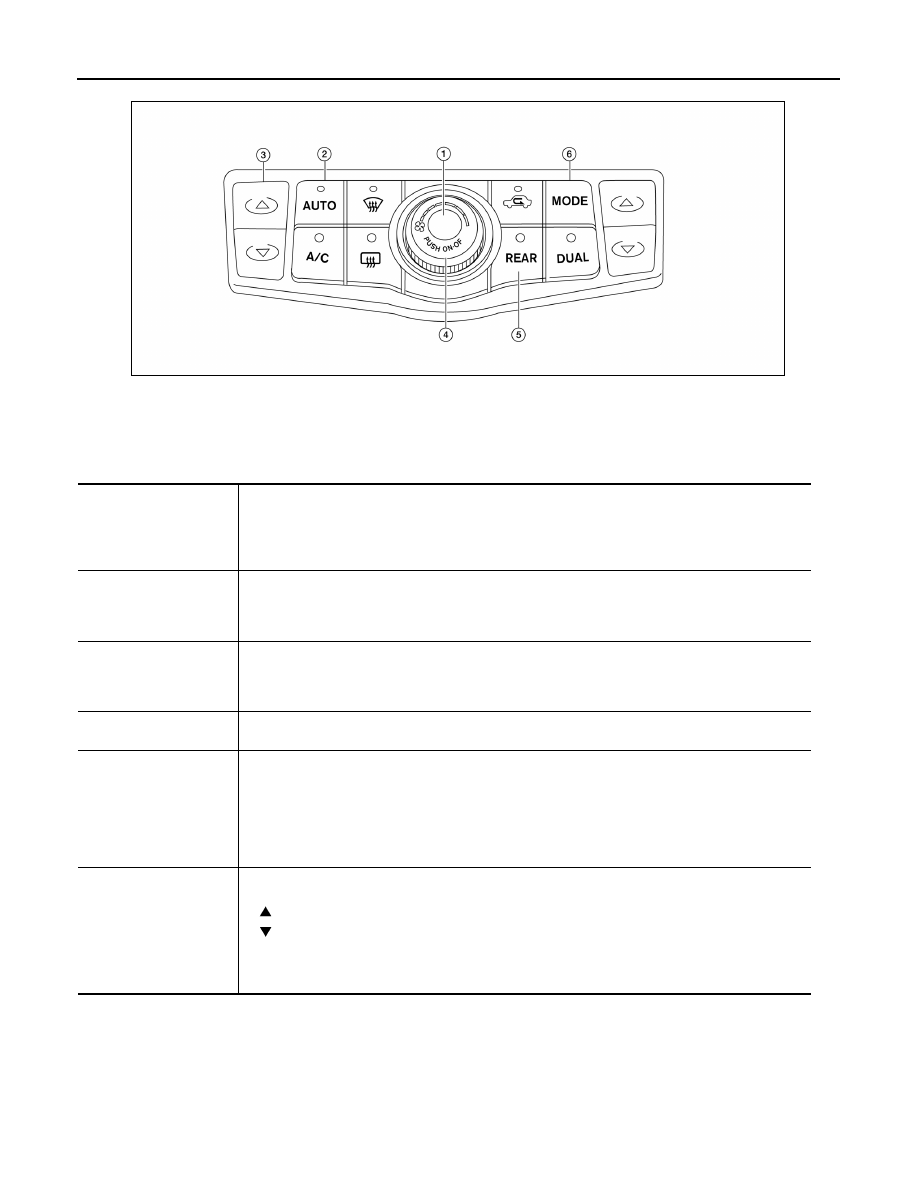

1.

OFF switch

2.

AUTO switch

3.

Temperature control (Driver side)

4.

Fan switch

5.

REAR switch

6.

MODE switch

ALIIA0689ZZ

AUTO switch

Turns the switch indicator lamp and "AUTO" indicator on the display unit ON, and then rear air con-
ditioning system becomes the following state.
• Air outlet: Automatic control
• Blower fan: Automatic control
• Compressor: ON

Fan switch

Blower fan speed is manually controlled with this switch.
NOTE:
When fan switch is operated while air conditioning system is in automatic control (“AUTO” is indicat-
ed), automatic control is released (“AUTO” turns OFF).

MODE switch

Selects air outlet sequentially from VENT

⇒ B/L ⇒ FOOT ⇒ VENT each time.

NOTE:
When MODE switch is pressed while air conditioning system is in automatic control (“AUTO” is indi-
cated), automatic control is released (“AUTO” turns OFF).

ON/OFF switch

• Turns rear air conditioning system ON/OFF. (When rear control mode is ON)
• When rear air conditioning system turns OFF, air outlet become the automatic control.

REAR switch

• Turns the switch indicator lamp and rear control mode on the display unit ON, and then rear air con-

ditioning system becomes the following state.

- Air outlet: Automatic control
- Blower fan: Automatic control
- Compressor: ON
• Rear control mode is released when switch is pressed again (rear air conditioning system operates

continuously).

Temperature control
switch (Driver side)

Setting temperature is selected using this switch within a range between 18

°C (60°F) and 32°C (90°F)

at a rate of 0.5

°C (1.0°F) per adjustment.

•

 Press: Setting temperature increases

•

 Press: Setting temperature decreases

NOTE:
When air conditioning system is OFF, setting temperature can be selected only while air conditioning
system status screen [only when MODE switch (driver side) is pressed] is indicated on display.
