HEATING AND COOLING UNIT ASSEMBLY

HA-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Rear

EXPANSION VALVE : Removal and Installation - Front Expansion Valve

INFOID:0000000009176764

REMOVAL

1. Discharge the refrigerant. Refer to

HA-23, "Recycle Refrigerant"

.

2. Remove the cowl top extension. Refer to

EXT-25, "Removal and Installation"

.

3. Disconnect the high-pressure and low-pressure pipe from the expansion valve.
4. Remove the front expansion valve bolts, then remove the front expansion valve.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-rings.

• Apply A/C oil to the O-rings of the front expansion valve for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

EXPANSION VALVE : Removal and Installation - Rear Expansion Valve

INFOID:0000000009176765

REMOVAL

1. Discharge the refrigerant. Refer to

HA-23, "Recycle Refrigerant"

.

2. Remove the luggage side lower finisher (RH). Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

3. Disconnect the rear underfloor high-pressure and low-pressure pipes from the rear cooling unit assembly.
4. Remove the rear expansion valve bolts, then remove the rear expansion valve.

CAUTION:

1.

Front heating and cooling unit assembly

2.

Front evaporator

3.

Heater case side cover

4.

Air mix door motor (passenger side)

5.

Front blower unit case

6.

Intake door motor

7.

Front blower motor

8.

Upper floor connecting duct (RH)

9.

Air mix door motor (rear)

10. In-cabin microfilter cover

11. In-cabin microfilter

12. Drain hose

13. Expansion valve grommet

14. Front expansion valve

15. Front heater core

16. Air mix door motor (driver side)

17. Aspirator hose

18. Upper floor connecting duct (LH)

19. Front heater core pipe cover

20. Mode door motor (front)

ALIIA0578ZZ

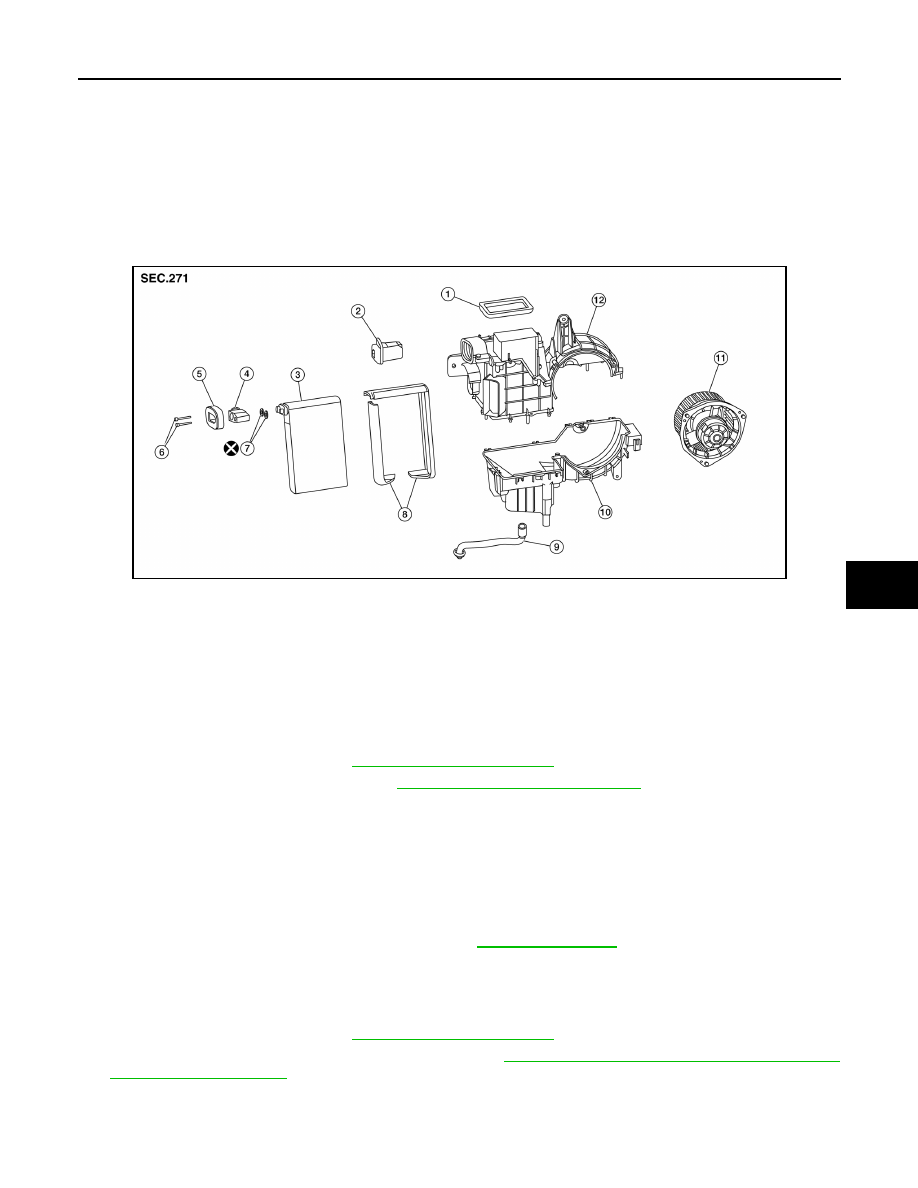

1.

Rear ventilator duct upper seal

2.

Rear blower motor resistor 2

3.

Rear evaporator

4.

Rear expansion valve

5.

Rear expansion valve grommet

6.

Rear expansion valve bolts

7.

O-ring

8.

Rear evaporator seal

9.

Rear drain hose

10. Rear cooling unit lower housing

11. Rear blower motor 2

12. Rear cooling unit upper housing

HA-48

< REMOVAL AND INSTALLATION >

HEATING AND COOLING UNIT ASSEMBLY

Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-rings.

• Apply A/C oil to the O-rings of the rear expansion valve for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

PTC HEATER

HA-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

PTC HEATER

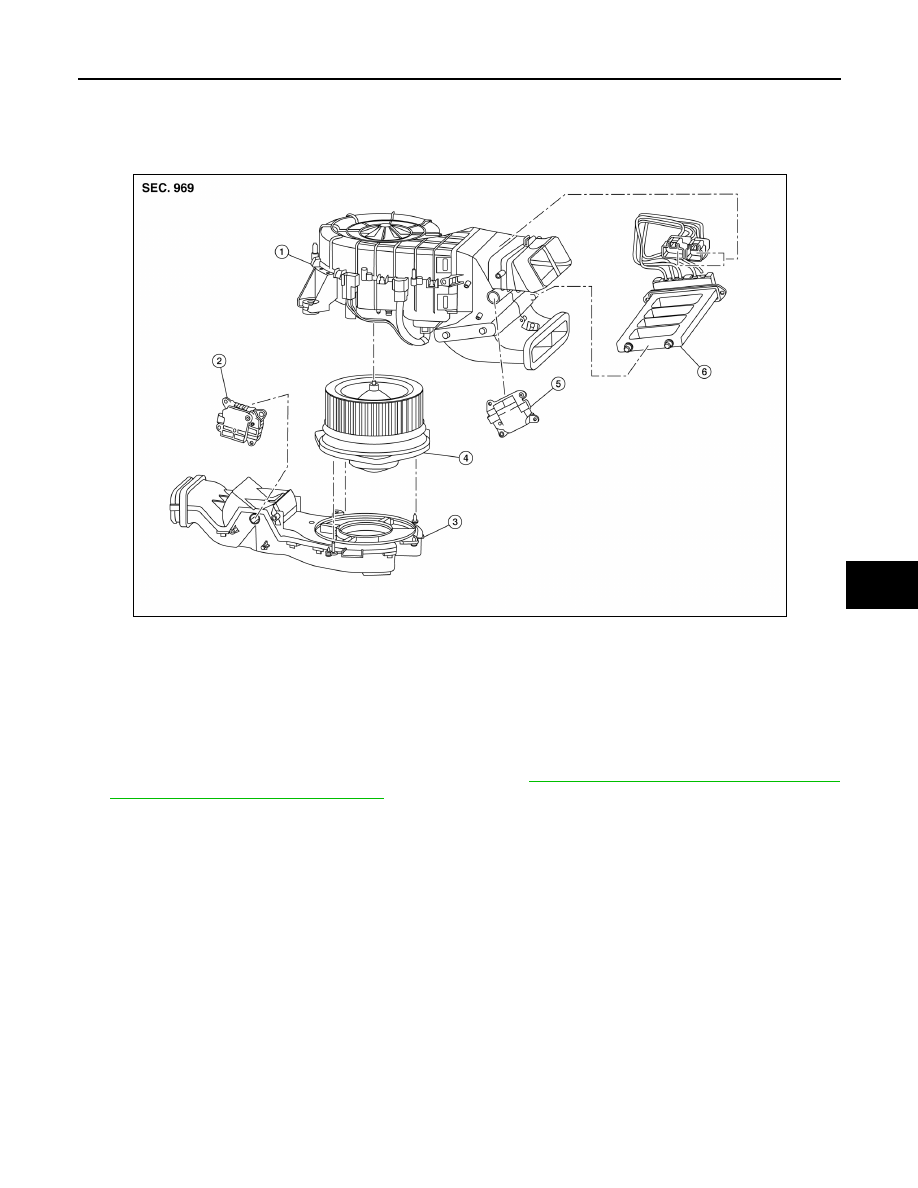

Exploded View

INFOID:0000000009176766

Removal and Installation

INFOID:0000000009176767

REMOVAL

1. Remove the rear blower motor 1 unit assembly. Refer to

VTL-20, "REAR BLOWER MOTOR 1 UNIT

ASSEMBLY : Removal and Installation"

.

2. Disconnect the harness connectors from the PTC heater.
3. Remove the PTC heater screws, then remove the PTC heater.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear blower motor 1 unit assembly up-
per housing

2.

Rear shut-off door motor

3.

Rear blower motor 1 unit assembly lower
housing

4.

Rear blower motor 1

5.

Mode door motor (rear)

6.

PTC heater

ALIIA0531ZZ

HA-50

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Compressor

INFOID:0000000009176768

Oil

INFOID:0000000009176769

Refrigerant

INFOID:0000000009176770

Model

DKS-17DT

Type

Variable displacement swash plate

Displacement

175 cm

3

 (10.7 cu in)/rev

Number of cylinders

10

Cylinder bore diameter

× stroke

mm (in)

30.5 x 24 mm (1.2 x 0.9 in)

Direction of rotation

Clockwise (viewed from clutch)

Drive belt

Poly V 7 grooves

Disc to pulley clearance
mm (in)

Standard

0.3 – 0.6 mm (0.012 – 0.024 in)

Name

A/C System Oil Type S (DH-PS)

Capacity
m  (US fl oz, lmp fl oz)

Total in system

230 (7.8, 8.1)

Compressor (service part) charging
amount

Refer to

HA-26, "Oil Adjusting Procedure for

Compressor Replacement"

.

Type

HFC-134a (R-134a)

Capacity

0.83

± 0.03 kg (1.83 ± 0.07 lb)
