REPAIRING WATER LEAKS FOR WINDSHIELD

• Leaks can be repaired without removing and reinstalling glass.

• If water is leaking between the urethane adhesive material and body or glass, determine the extent of leak.

• This can be done by applying water to the windshield area while pushing glass outward.

• To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

GW-14

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

FRONT DOOR GLASS AND REGULATOR

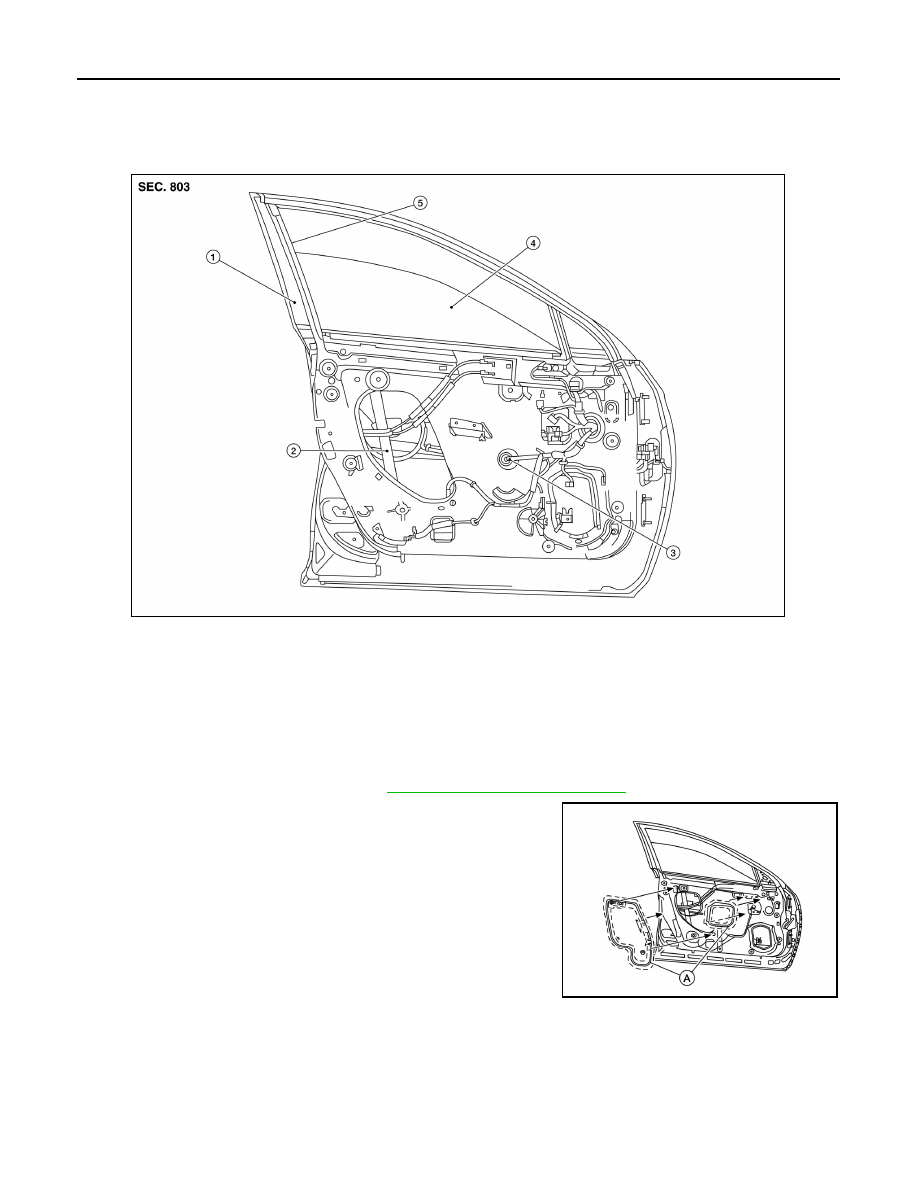

Exploded View

INFOID:0000000009176090

Removal and Installation

INFOID:0000000009176091

FRONT DOOR GLASS

Removal

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Position aside the center vapor barrier (A).

NOTE:

LH front door panel shown; RH similar.

1.

Front door panel

2.

Front door glass regulator

3.

Harness connector

4.

Front door glass

5.

Front door glass rear run channel

ALKIA2355ZZ

ALKIA2356ZZ

FRONT DOOR GLASS AND REGULATOR

GW-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

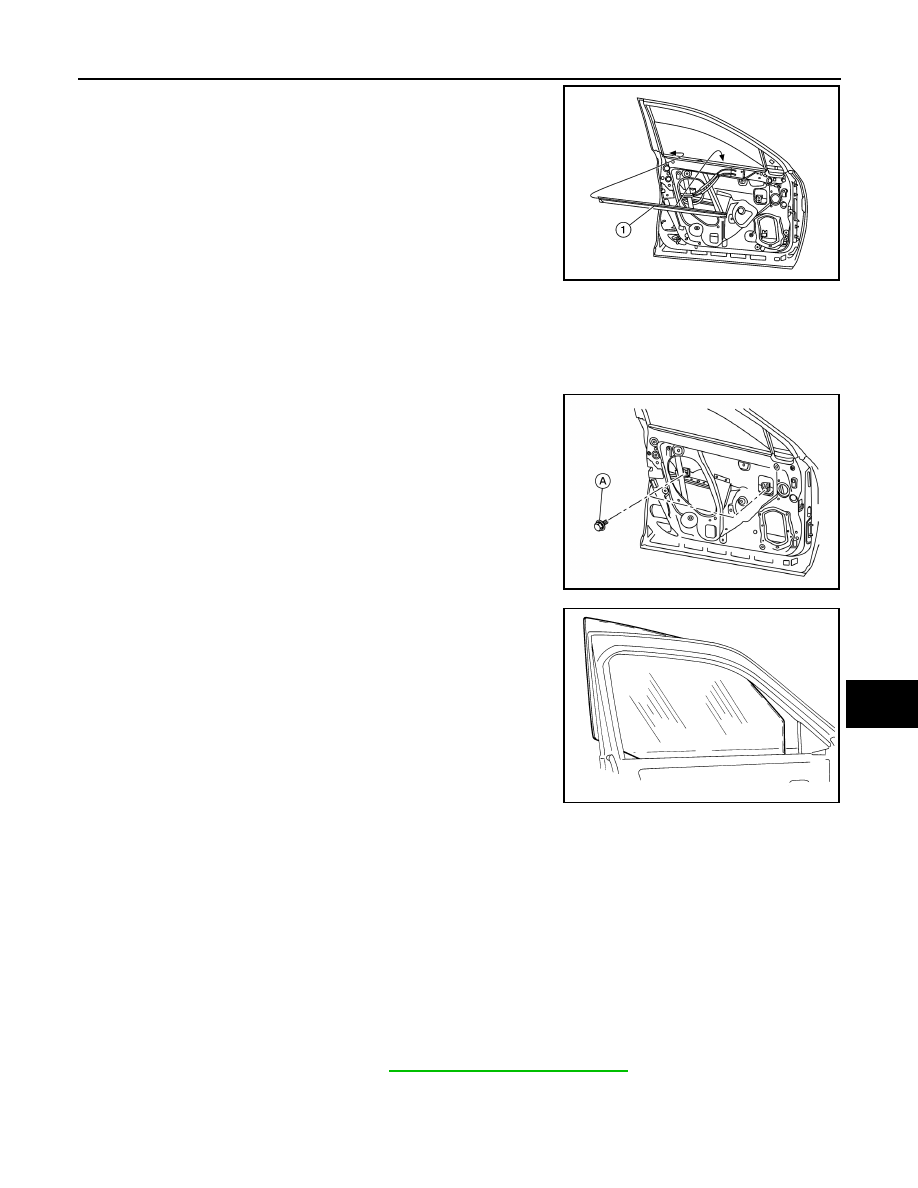

3. Remove the front door inside seal (1).

4. Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window

and door lock/unlock switch RH (RH door).

5. Operate the main power window and door lock/unlock switch (LH door) or power window and door lock/

unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to glass bolts

can be seen.

6. Remove the front door regulator to glass bolts (A).

7. While holding the front door glass, raise it at the rear end and

pull the front door glass out of the sash toward the outside of the

door.

Installation

Installation is in the reverse order of removal.

Fitting Inspection

• Check that the glass is fit securely into the glass run groove.

• Lower the front door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clear-

ance to the sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator

bolts, guide rail bolts, and glass and guide rail bolts to correct the glass position.

FRONT DOOR GLASS REGULATOR

Removal

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

ALKIA2357ZZ

ALKIA2358ZZ

LIIA1687E

Front door regulator to glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

GW-16

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

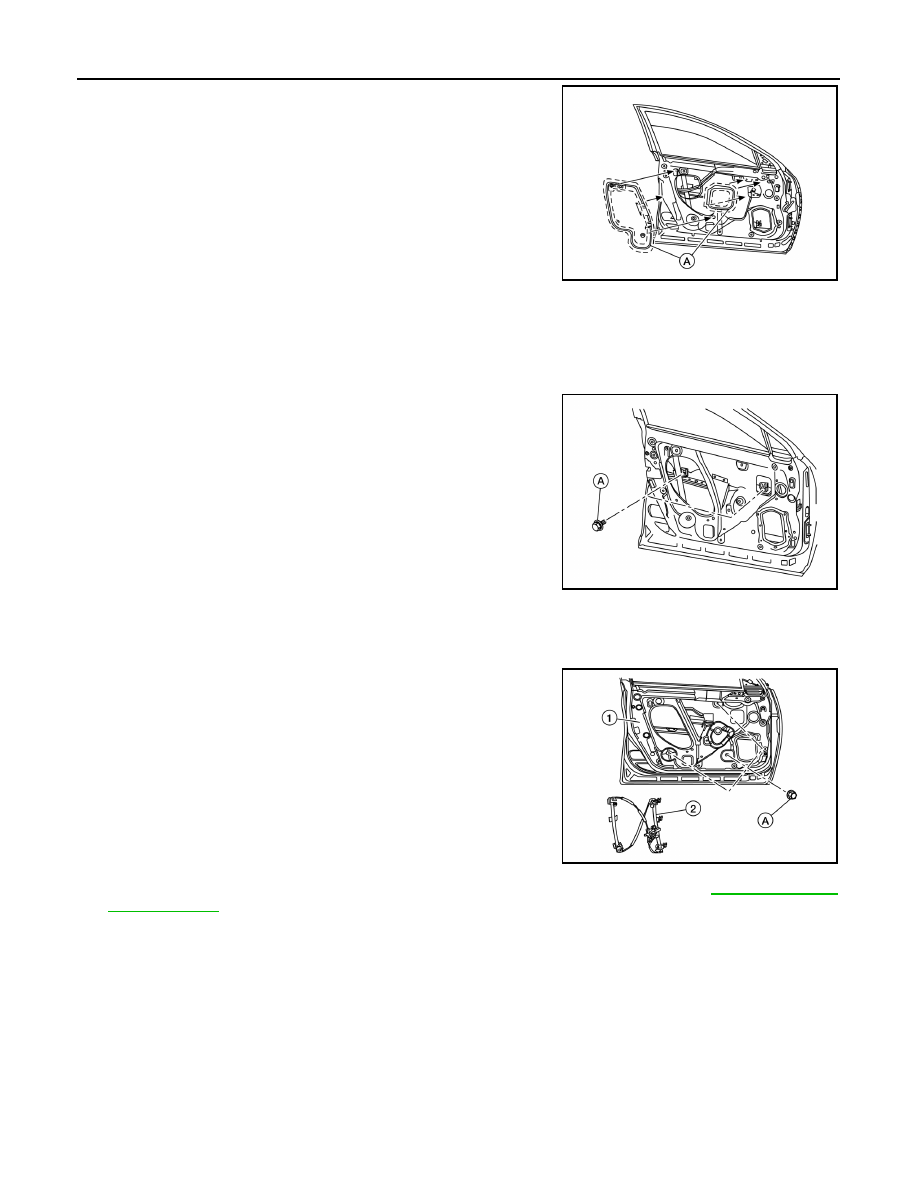

2. Position aside the vapor barriers (A).

3. Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window

and door lock/unlock switch RH (RH door).

4. Operate the main power window and door lock/unlock switch (LH door) or power window and door lock/

unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to glass bolts

can be seen.

5. Remove the front door regulator to glass bolts (A).

6. Raise the front door glass and hold it in place with suitable tool or approximately two inches of masking

tape.

7. Disconnect the harness connector from the front door glass regulator motor.
8. Remove the nuts (A) that retain the front door glass regulator (2)

to the front door panel (1) and remove.

9. Remove power window motor from front door glass regulator (if necessary). Refer to

GW-18, "Removal

and Installation"

.

Inspection After Removal

Check the front door glass regulator for the following items.

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

If a malfunction is detected, replace or grease it.

ALKIA2356ZZ

ALKIA2358ZZ

ALKIA2360ZZ
