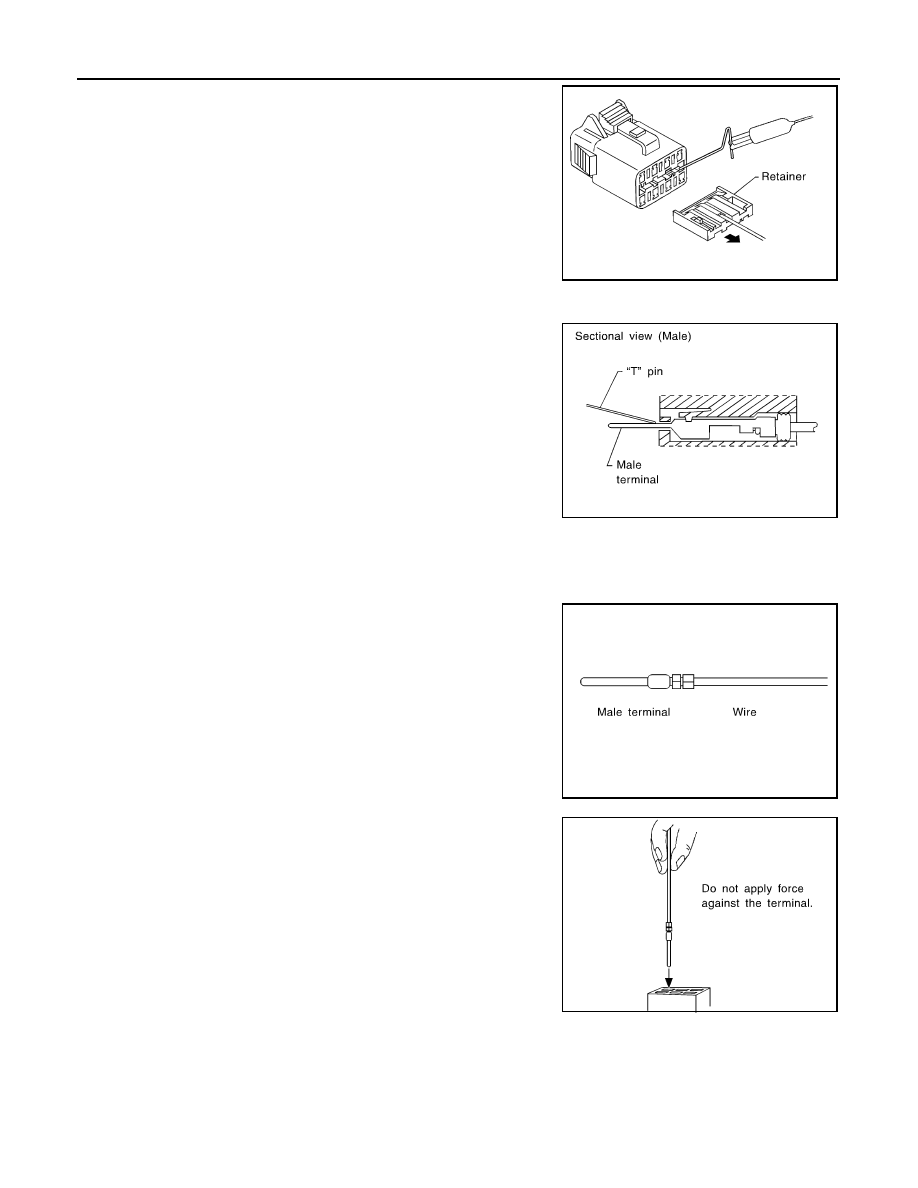

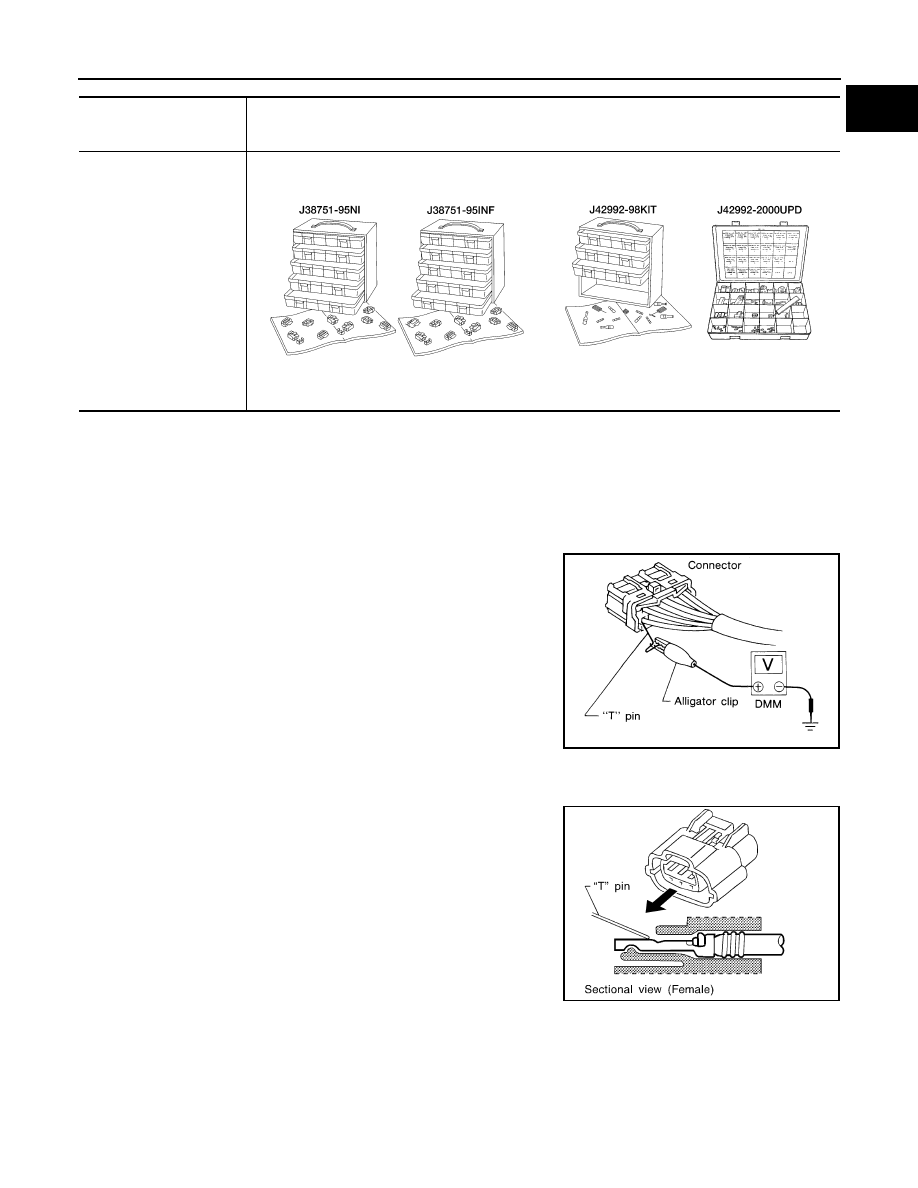

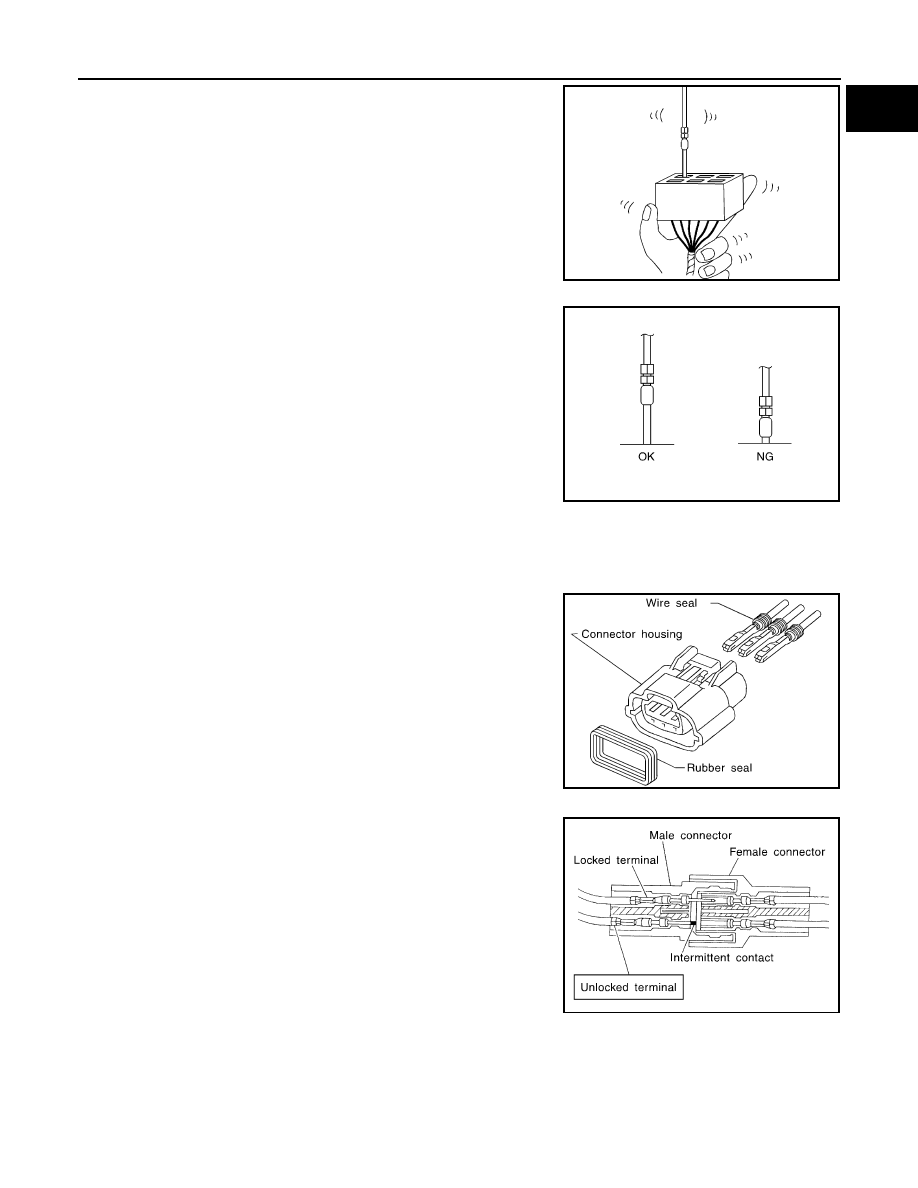

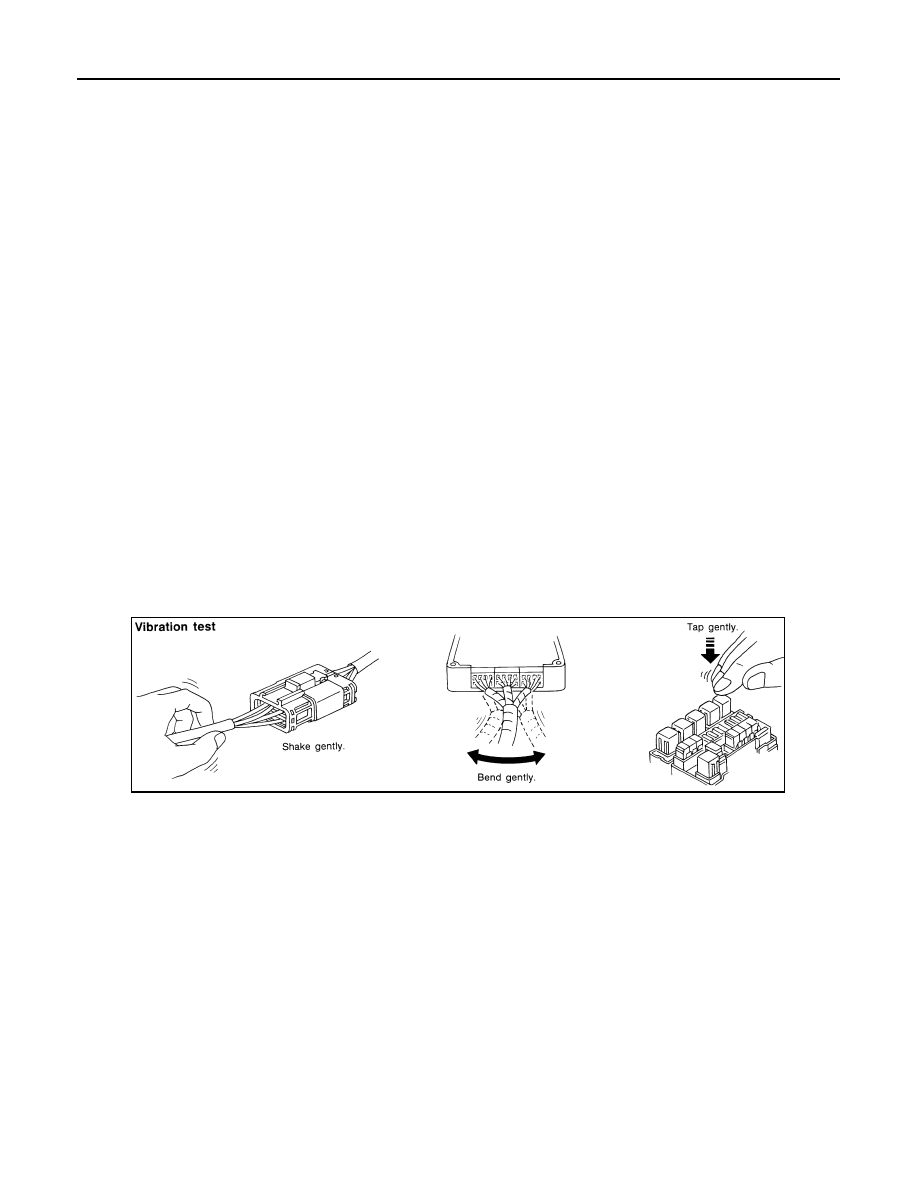

SERVICE INFORMATION FOR ELECTRICAL INCIDENT GI-47 < BASIC INSPECTION > C D E F G H I J K L M B GI N O P HOW TO PROBE CONNECTORS • Connector damage and an intermittent connection can result from improperly probing of the connector dur- ing circuit checks. • The probe of a digital multimeter (DMM) may not correctly fit the connector cavity. To correctly probe the connector, follow the procedures below using a “T” pin. For the best contact grasp the “T” pin using an alliga- tor clip. Probing from Harness Side Standard type (not waterproof type) connector should be probed from harness side with “T” pin. • If the connector has a rear cover such as a ECM connector, remove the rear cover before probing the terminal. • Do not probe waterproof connector from harness side. Damage to the seal between wire and connector may result. Probing from Terminal Side FEMALE TERMINAL • There is a small notch above each female terminal. Probe each terminal with the “T” pin through the notch. Do not insert any object other than the same type male terminal into female terminal. Tool number (Kent-Moore No.) Tool name Description - WAIA0004E WAIA0005E SGI841 SEL265V |
