SIDE GUARD MOLDING

Exploded View

INFOID:0000000009176352

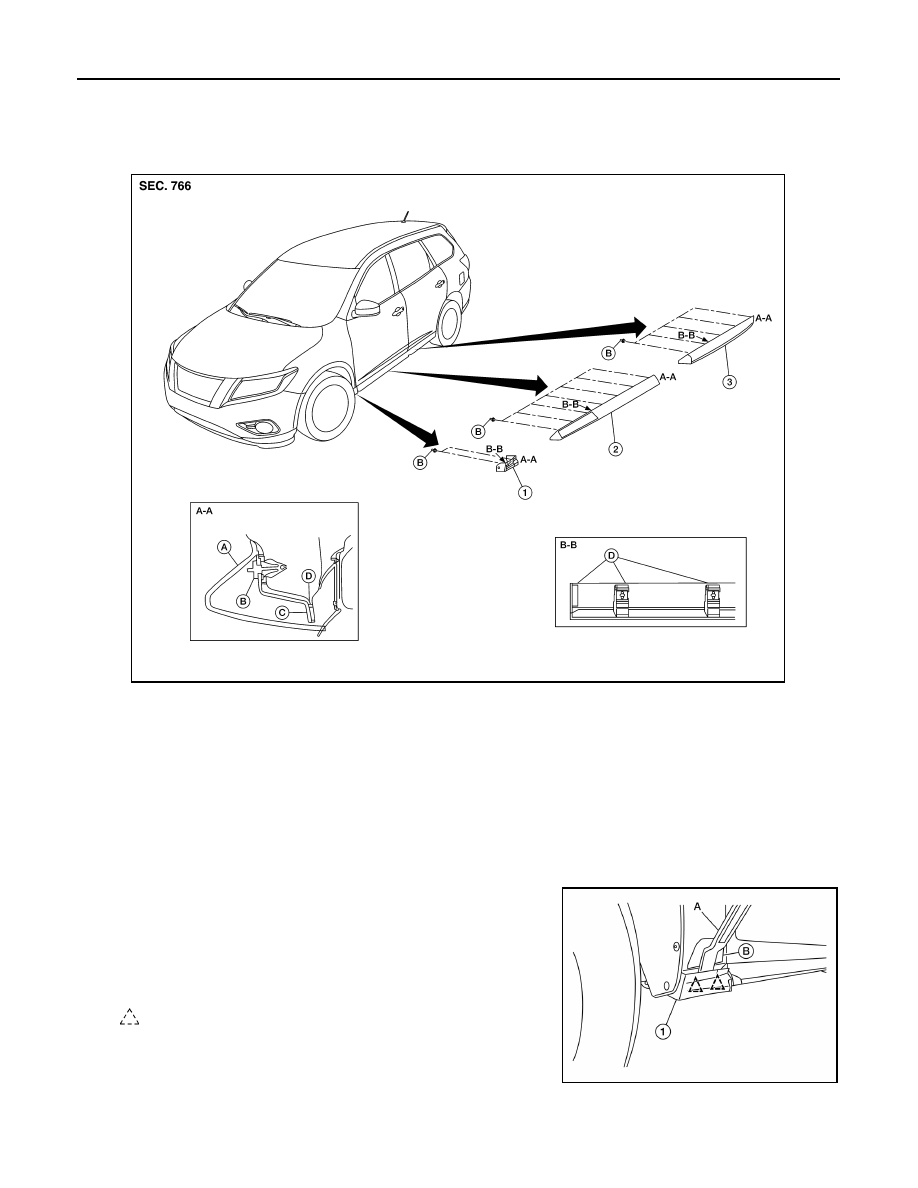

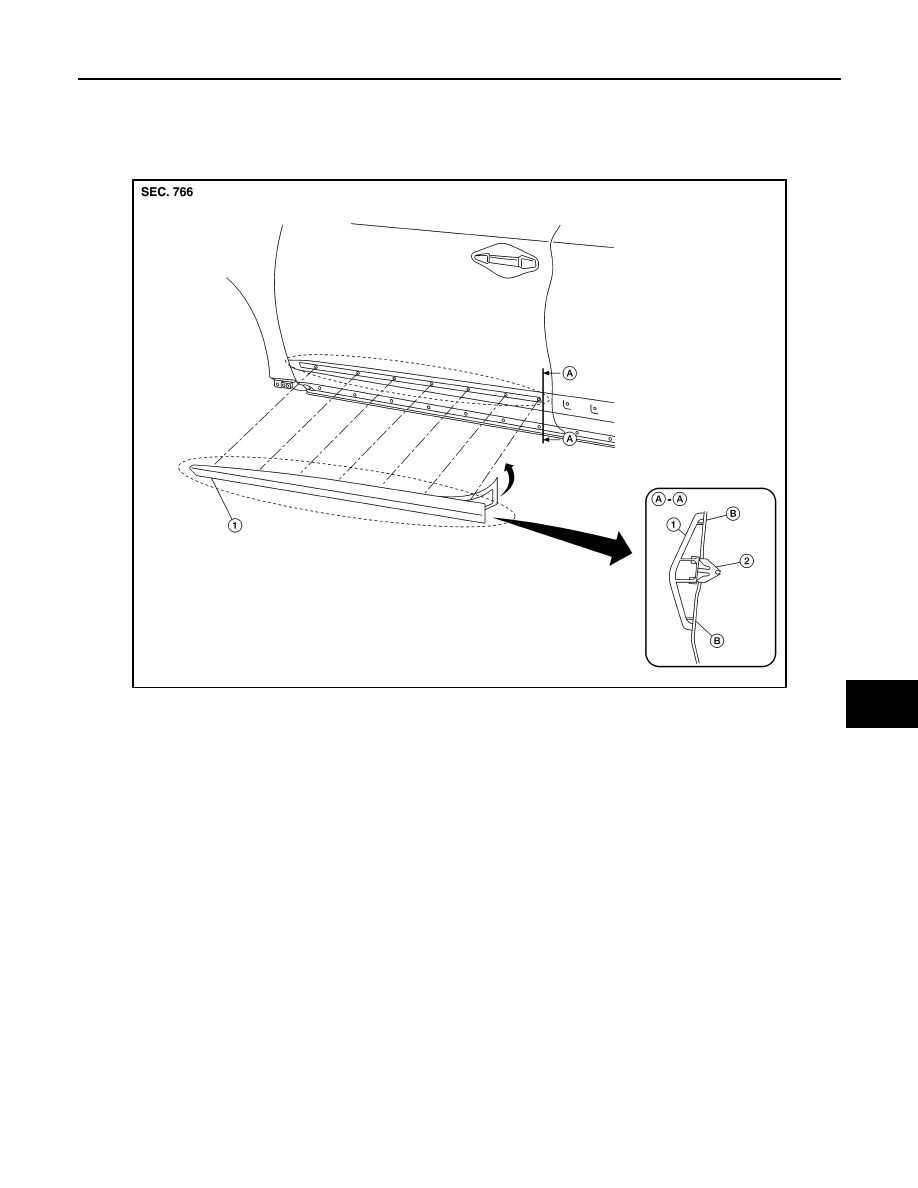

Front Door

AWKIA2133ZZ

1.

Front door side guard molding

2. Clip

B.

Double-faced adhesive tape

EXT-36

< REMOVAL AND INSTALLATION >

SIDE GUARD MOLDING

Rear Door

Removal and Installation

INFOID:0000000009176353

REMOVAL

CAUTION:

Do not apply tack-paper adhesive remover to body panel surface finished with lacquer-based paints.

• Original side guard molding is affixed to body panel with double-faced adhesive tape.
1. Heat molding to between 30

° - 40°C (86° - 104°F) with a heat gun.

2. Raise end of molding to release clips, then cut away tape to remove molding. Remove all traces of tape.

INSTALLATION

• On vehicles coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No. 4210 or equiva-

lent, after priming with 3M primer Product No. N200 or C-100 or equivalent.

• The repair parts are also affixed with double-faced adhesive tape.

• To re-use existing molding, clean all traces of double-faced adhesive tape from the molding and apply new

double-faced adhesive tape to the molding.

1. Clean the panel surface with isopropyl alcohol or equivalent to degrease the surface.
2. Heat the panel and molding tape surface to 30

° - 40°C (86° - 104°F).

3. Apply the side guard molding.

• Remove the backing sheet from the tape surface.

• Align the locating pin into the hole in the outer door.

• Continue aligning the pins into their corresponding holes in the outer door during installation.

4. Press ends by hand and use a roller to apply 5 kg-f (11 ft-lbs) to press molding to door surface.

• Apply even pressure along molding to insure proper wet out.

CAUTION:

To secure contact, do not wash vehicle for 24 hours after installation.

AWKIA2134ZZ

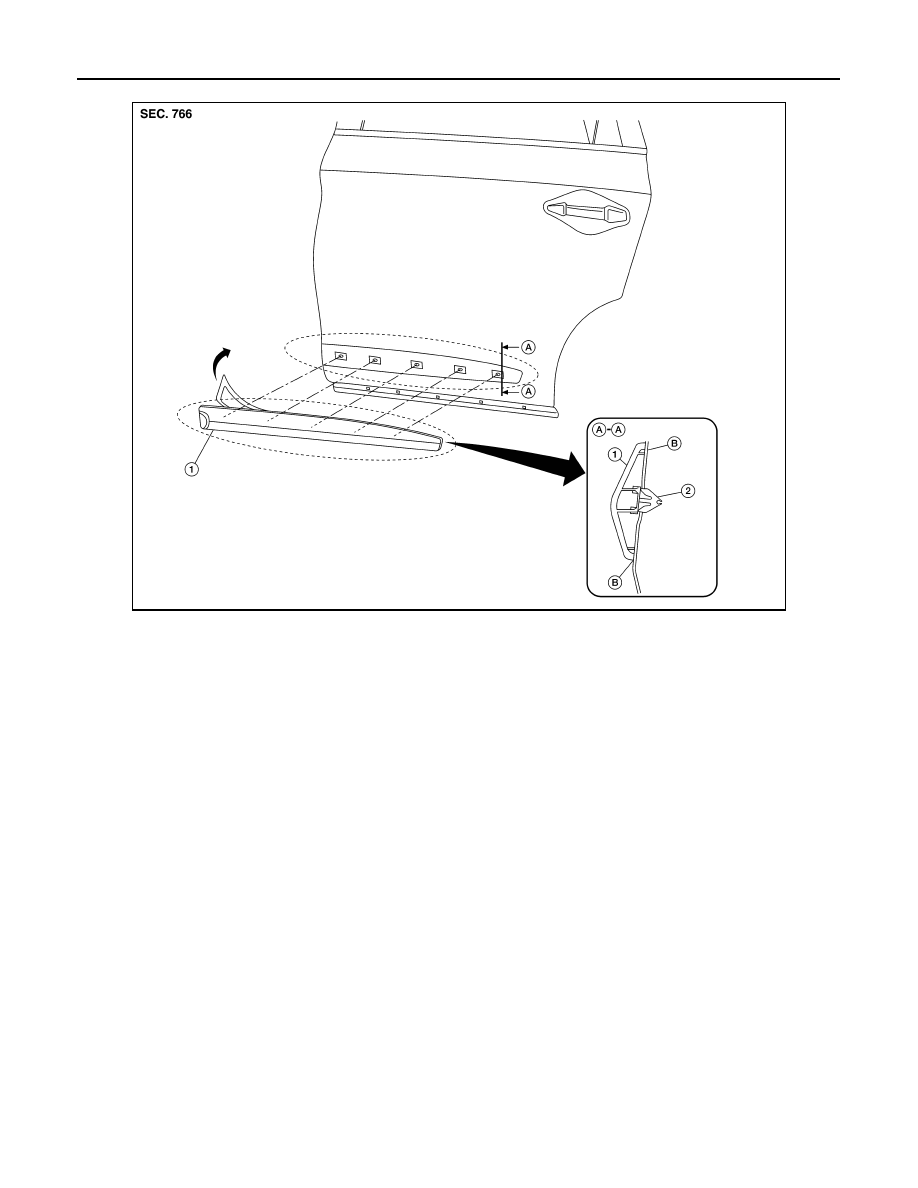

1.

Rear door side guard molding

2. Clip

B.

Double-faced adhesive tape

ROOF RACK

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ROOF RACK

Exploded View

INFOID:0000000009763648

Removal and Installation

INFOID:0000000009176354

REMOVAL

1. Remove the front and rear covers using a suitable tool, then remove the roof rack bolts at the four corners

and slide the roof rack back enough to release from roof.

2. Remove the complete roof rack from vehicle.
3. Remove the front and rear sliding crossbar bolts (if equipped) and remove.

INSTALLATION

Installation is in the reverse order of removal.

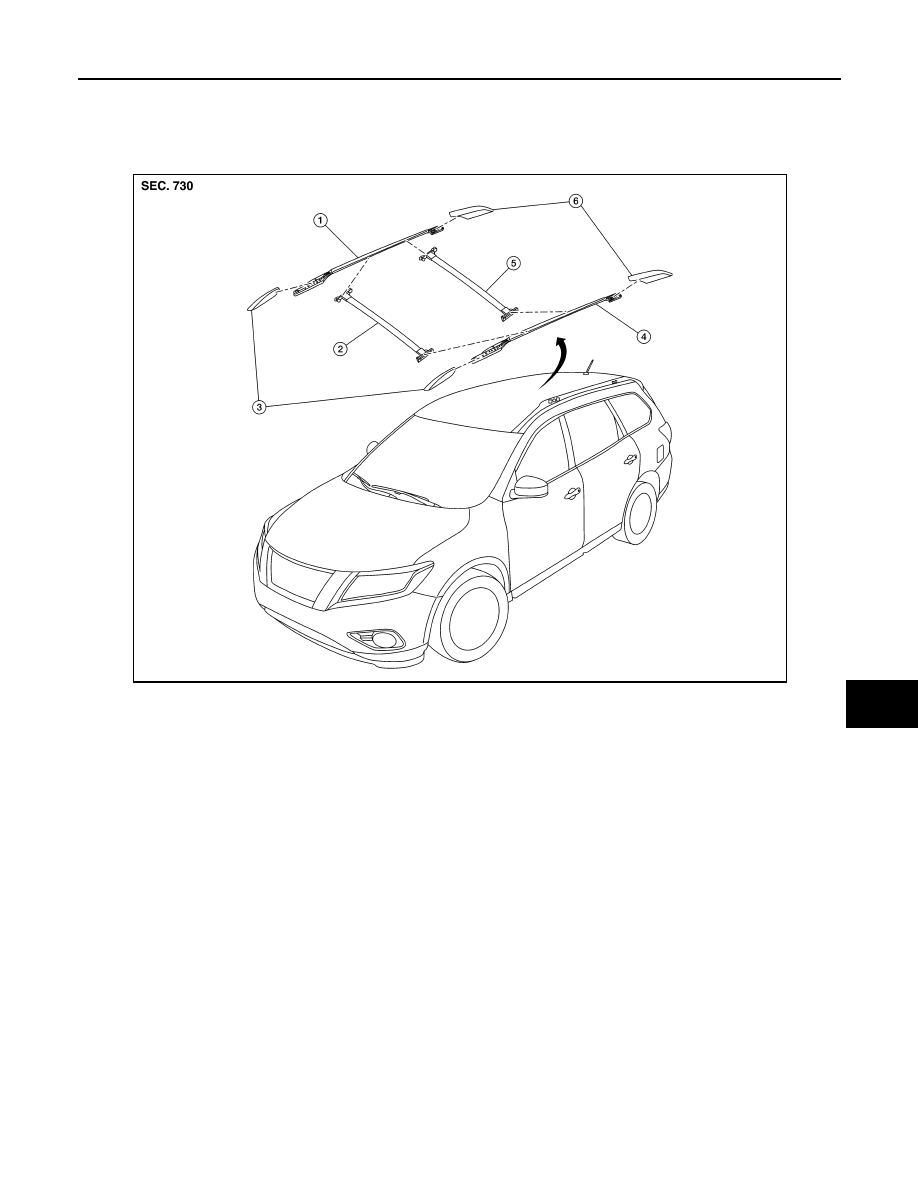

1.

Roof rack side rail (RH)

2.

Front sliding crossbar (if
equipped)

3. Front covers

4.

Roof rack side rail (LH)

5.

Rear sliding crossbar (if
equipped)

6. Rear covers

ALKIA2910ZZ

EXT-38

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE LOWER MOLDING

DOOR OUTSIDE LOWER MOLDING

Exploded View

INFOID:0000000009176355

Removal and Installation

INFOID:0000000009176356

FRONT FENDER OUTSIDE LOWER MOLDING

Removal

1. Remove the front fender protector screw.
2. Release the clips from the front fender outside lower molding

(1), using a suitable tool (A).

CAUTION:

• Apply protective tape (B) to the front fender to protect the

painted surface from damage.

• Release the clips slowly and carefully.

• Do not pull the front fender outside lower molding.

: Clip

3. Remove the front fender outside lower molding.

Installation

1.

Front fender outside lower molding

2.

Front door outside lower molding

3.

Rear door outside lower molding

A.

Outside lower molding

B.

Clip

C.

Outer sheet metal

D.

Adhesive

AWKIA2135ZZ

ALKIA2491ZZ
