EXL-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000009764005

AUTO ACTIVE TEST

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.

• Front wiper (LO, HI)

• Front fog lamps

• Parking lamps

• Side marker lamps

• Tail lamps

• License plate lamps

• Daytime running lamps

• Headlamps (LO, HI)

• A/C compressor

• Cooling fans (LO, HI)

Operation Procedure

CAUTION:

Do not start the engine.

NOTE:

When auto active test is performed with hood opened, sprinkle water on windshield before hand.

NOTE:

• If auto active test mode cannot be actuated, check door switch system. Refer to

DLK-170,

"Component Function Check"

.

• When auto active test mode has to be cancelled halfway through test, turn ignition switch OFF.
1. Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper

operation)

2. Turn ignition switch OFF.
3. Turn the ignition switch ON, and within 20 seconds, press the front door switch LH 10 times. Then turn the

ignition switch OFF.

4. Turn the ignition switch ON within 10 seconds. After that the horn sounds once, and the auto active test

starts.

5. After a series of the following operations is repeated 3 times, auto active test is completed.

Inspection in Auto Active Test Mode

When auto active test mode is actuated, the following operation sequence is repeated 3 times.

*: Outputs duty ratio of 50% for 5 seconds

→ duty ratio of 100% for 5 seconds on the cooling fan control module.

Operation se-

quence

Inspection Location

Operation

1

Front wiper

LO for 3 seconds

→ HI for 3 seconds

2

• Front  fog  lamps
• Parking lamps
• Side marker lamps
• Tail  lamps
• License plate lamps

10 seconds

3

Daytime running lamps

10 seconds

4

Headlamps

LO

⇔ HI 5 times

5

A/C compressor

ON

⇔ OFF 5 times

6

*

Cooling fans

LO for 5 seconds

→ HI for 5 seconds

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

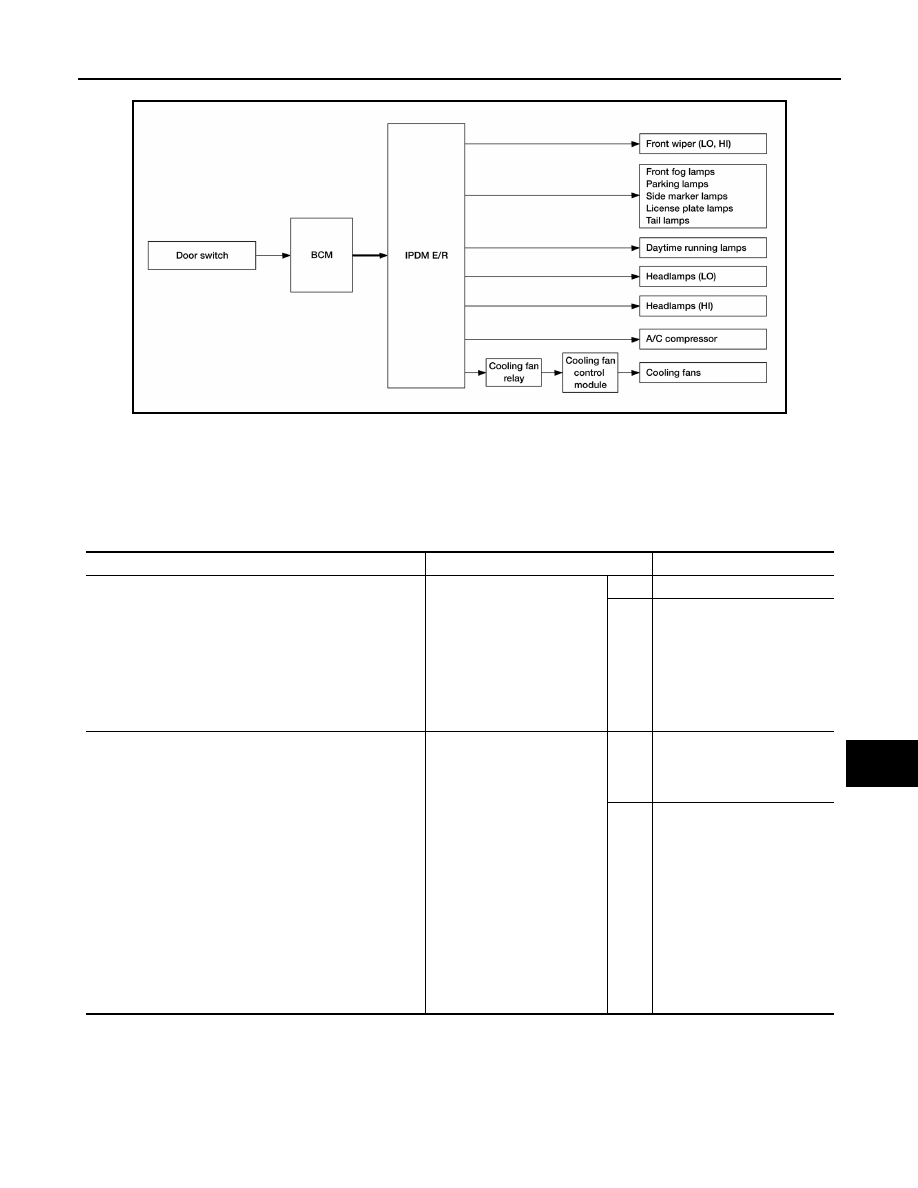

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto

active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test mode

CONSULT Function (IPDM E/R)

INFOID:0000000009764006

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

 ON (for at least 5 seconds)  OFF. If this step is not performed, the BCM may not go

to ”sleep mode”, potentially causing a discharged battery and no-start condition.

AWMIA1280GB

Symptom

Inspection contents

Possible cause

Any of the following components do not operate

• Front fog lamps
• Parking  lamps
• Side marker lamps
• License plate lamps
• Tail  lamps
• Daytime running lamps
• Headlamp (HI, LO)
• Front wiper

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground cir-

cuit

• Harness or connector be-

tween IPDM E/R and appli-
cable system

• IPDM E/R

Cooling fans do not operate

Perform auto active test.
Do the cooling fans operate?

YES

• ECM signal input circuit
• CAN communication signal

between ECM and IPDM E/
R

NO

• Cooling fans
• Harness or connectors be-

tween cooling fans and
cooling fan control module

• Cooling fan control module
• Harness or connectors be-

tween cooling fan relay and
cooling fan control module

• Cooling fan relay
• Harness or connectors be-

tween IPDM E/R and cool-
ing fan relay

• IPDM E/R

EXL-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.

ECU IDENTIFICATION

The IPDM E/R part number is displayed.

SELF DIAGNOSTIC RESULT

Refer to

PCS-20, "DTC Index"

.

DATA MONITOR

Direct Diagnostic Mode

Description

Ecu Identification

The IPDM E/R part number is displayed.

Self Diagnostic Result

The IPDM E/R self diagnostic results are displayed.

Data Monitor

The IPDM E/R input/output data is displayed in real time.

Active Test

The IPDM E/R activates outputs to test components.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item [Unit]

Main

Signals

Description

RAD FAN REQ [%]

×

Indicates cooling fan speed signal received from ECM on CAN communication
line

AC COMP REQ [On/Off]

×

Indicates A/C compressor request signal received from ECM on CAN commu-
nication line

TAIL&CLR REQ [On/Off]

×

Indicates position light request signal received from BCM on CAN communica-
tion line

HL LO REQ [On/Off]

×

Indicates low beam request signal received from BCM on CAN communication
line

HL HI REQ [On/Off]

×

Indicates high beam request signal received from BCM on CAN communication
line

FR FOG REQ [On/Off]

×

Indicates front fog light request signal received from BCM on CAN communica-
tion line

FR WIP REQ [Stop/1LOW/Low/Hi]

×

Indicates front wiper request signal received from BCM on CAN communication
line

WIP AUTO STOP [STOP P/ACT P]

×

Indicates condition of front wiper auto stop signal

WIP PROT [Off/BLOCK]

×

Indicates condition of front wiper fail-safe operation

IGN RLY1 -REQ [On/Off]

Indicates ignition switch ON signal received from BCM on CAN communication
line

IGN RLY [On/Off]

×

Indicates condition of ignition relay

PUSH SW [On/Off]

Indicates condition of push-button ignition switch

INTER/NP SW [On/Off]

Indicates condition of CVT shift position

ST RLY CONT [On/Off]

Indicates starter relay status signal received from BCM on CAN communication
line

IHBT RLY -REQ [On/Off]

Indicates starter control relay signal received from BCM on CAN communication
line

ST/INHI RLY [Off/ ST /INHI]

Indicates condition of starter relay and starter control relay

DETENT SW [On/Off]

Indicates condition of CVT shift selector (park position switch)

DTRL REQ [Off]

Indicates daytime light request signal received from BCM on CAN communica-
tion line

HOOD SW [On/Off]

Indicates condition of hood switch

THFT HRN REQ [On/Off]

Indicates theft warning horn request signal received from BCM on CAN commu-
nication line

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ACTIVE TEST

CAN DIAG SUPPORT MNTR

Refer to

LAN-17, "CAN Diagnostic Support Monitor"

.

HORN CHIRP [On/Off]

Indicates horn reminder signal received from BCM on CAN communication line

HOOD SW 2 [On/Off]

Indicates condition of hood switch

Monitor Item [Unit]

Main

Signals

Description

Test item

Description

HORN

This test is able to check horn operation [On].

FRONT WIPER

This test is able to check wiper motor operation [Hi/Lo/Off].

MOTOR FAN

This test is able to check cooling fan operation [4/3/2/1].

EXTERNAL LAMPS

This test is able to check external lamp operation [Fog/Hi/Lo/Tail/Off].
