CYLINDER BLOCK

EM-123

< UNIT DISASSEMBLY AND ASSEMBLY >

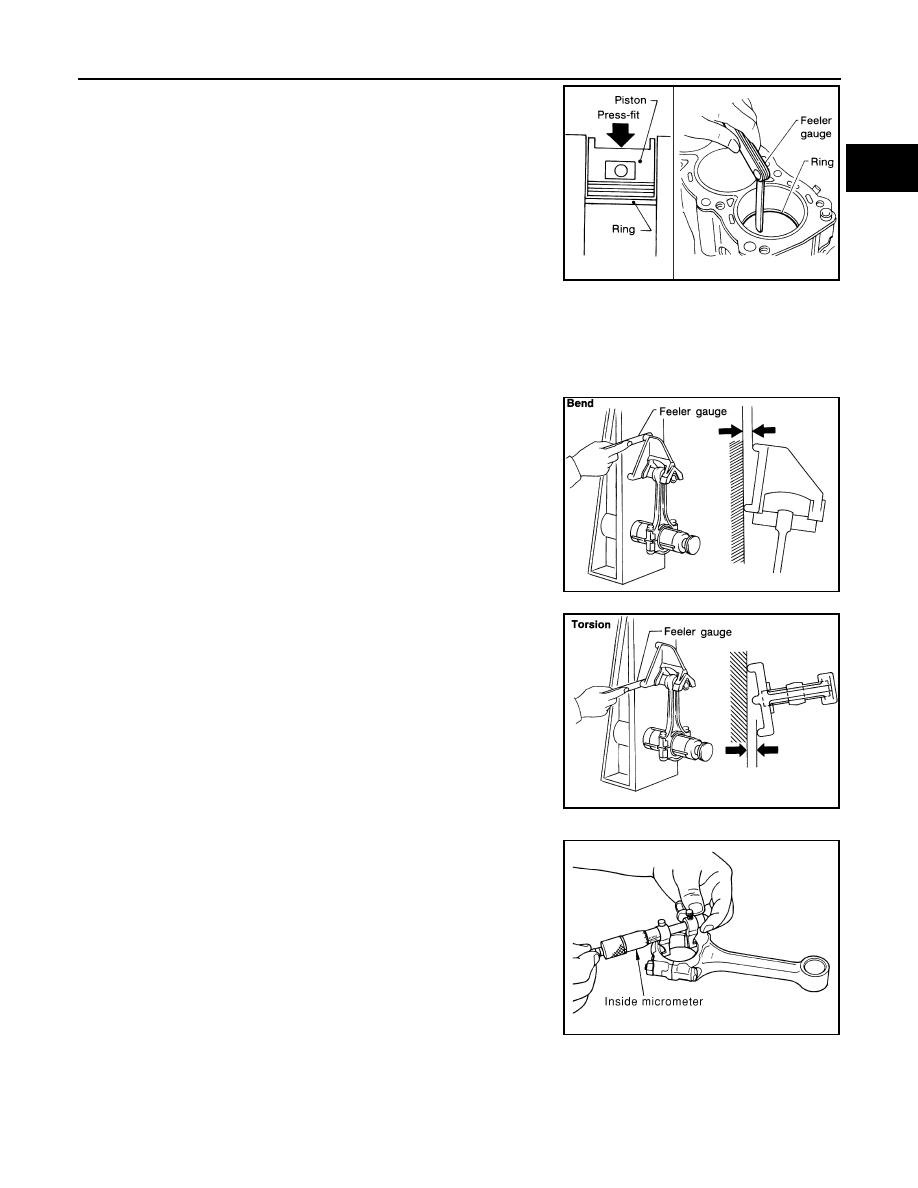

• Insert piston ring until it is in the middle of the cylinder bore and

measure the end gap.

• If out of specification, replace piston ring.

CONNECTING ROD BEND AND TORSION

• If it exceeds the limit, replace connecting rod assembly.

CONNECTING ROD BEARING HOUSING DIAMETER (BIG END)

• Install the connecting rod cap without the connecting rod bearing

installed. After tightening the connecting rod nut to the specified

torque, measure the connecting rod bearing housing big end inner

diameter using an inside micrometer.

CONNECTING ROD BUSHING OIL CLEARANCE (SMALL END)

Inner Diameter of Connecting Rod (Small End)

Standard
Top ring

: 0.23 - 0.28 mm (0.0091 - 0.0110 in)

2nd ring

: 0.33 - 0.43 mm (0.0130 - 0.0169 in)

Oil ring

: 0.20 - 0.45 mm (0.0079 - 0.0177 in)

Limit:
Top ring

: 0.50 mm (0.0197 in)

2nd ring

: 0.62 mm (0.0244 in)

Oil ring

: 0.80 mm (0.0315 in)

SEM599A

Bend

: Limit 0.15 mm (0.0059 in) per 100 mm
(3.94 in) length

Torsion

: Limit 0.30 mm (0.0118 in) per 100 mm
(3.94 in) length

SEM038F

SEM003F

Standard

: 55.000 - 55.013 mm (2.1654 - 2.1659 in)

PBIC0119E

EM-124

< UNIT DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

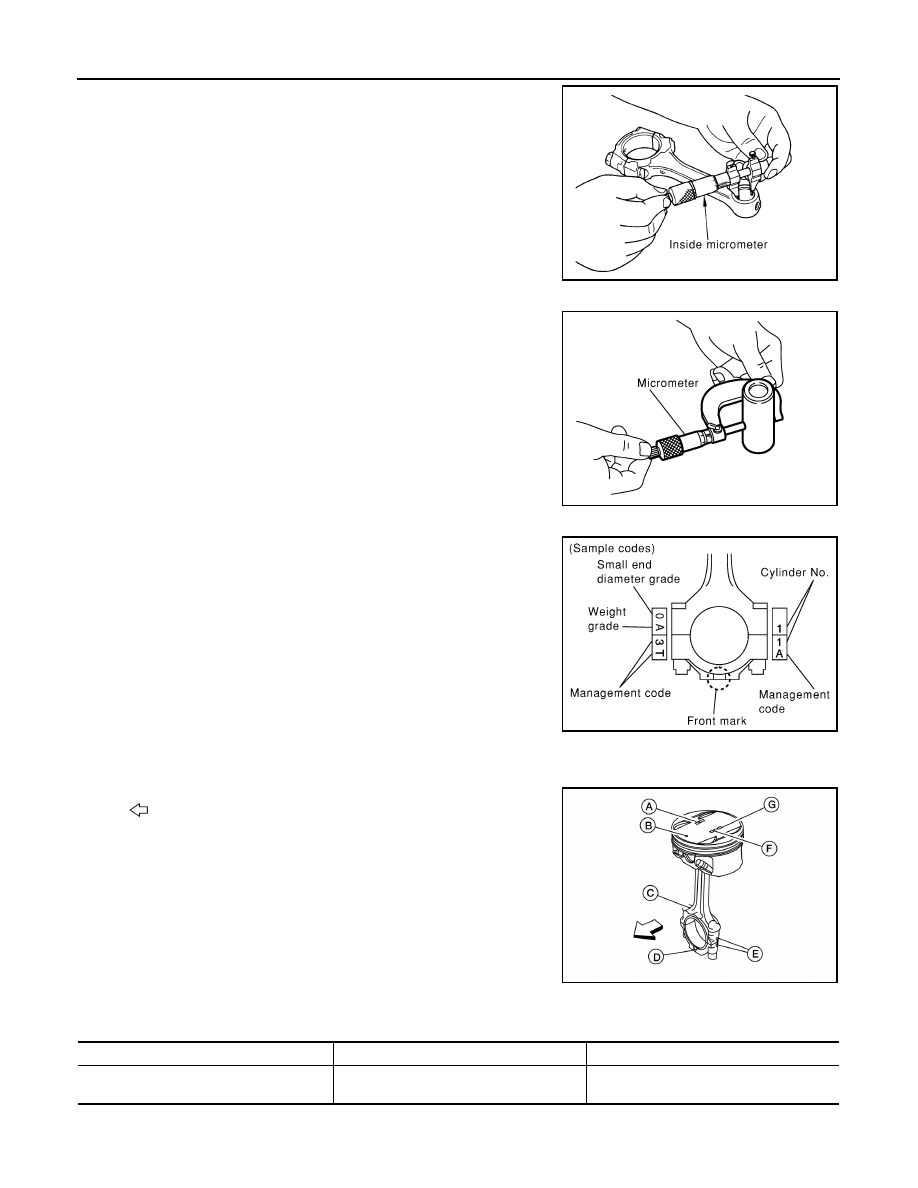

• Measure inner diameter of piston pin bushing.

Outer Diameter of Piston Pin

• Measure outer diameter of piston pin.

Connecting Rod Bushing Oil Clearance (Small End)

(Connecting rod small end oil clearance) = (Inner diameter of con-

necting rod small end) – (Outer diameter of piston pin)

• If the measured value exceeds the standard, replace the connect-

ing rod assembly and/or piston and piston pin assembly.

• If replacing the piston and piston pin assembly, use the Table for

Selective Fitting for Piston to select the piston corresponding to the

applicable bore grade of the cylinder block to be used. Follow the

"PISTON-TO-CYLINDER BORE CLEARANCE" procedure.

Factory installed parts grading:

Service parts apply only to grade 0.

Unit: mm (in)

Standard

Grade No. 0
: 22.000 - 22.006 mm (0.8661 - 0.8664 in)
Grade No. 1
: 22.006 - 22.012 mm (0.8664 - 0.8666 in)

PBIC0120E

Standard

Grade No. 0
: 21.989 - 21.995 mm (0.8657 - 0.8659 in)
Grade No. 1
: 21.995 - 22.001 mm (0.8659 -0.8662 in)

PBIC0117E

Standard

: 0.005 - 0.017 mm (0.0002 - 0.0007 in)

Limit

: 0.030 mm (0.0012 in)

SEM457G

: Engine front

(A)

: Piston grade No.

(B)

: Piston front mark

(C)

: Oil hole

(D)

: Connecting rod front mark

(E)

: Cylinder No.

(F)

: Pin grade No.

(G)

: Crown I.D. code

AWBIA1399ZZ

Grade

Connecting rod small end inner diameter

22.000 - 22.006

(0.8661 - 0.8664)

22.006 - 22.012

(0.8664 - 0.8666)

CYLINDER BLOCK

EM-125

< UNIT DISASSEMBLY AND ASSEMBLY >

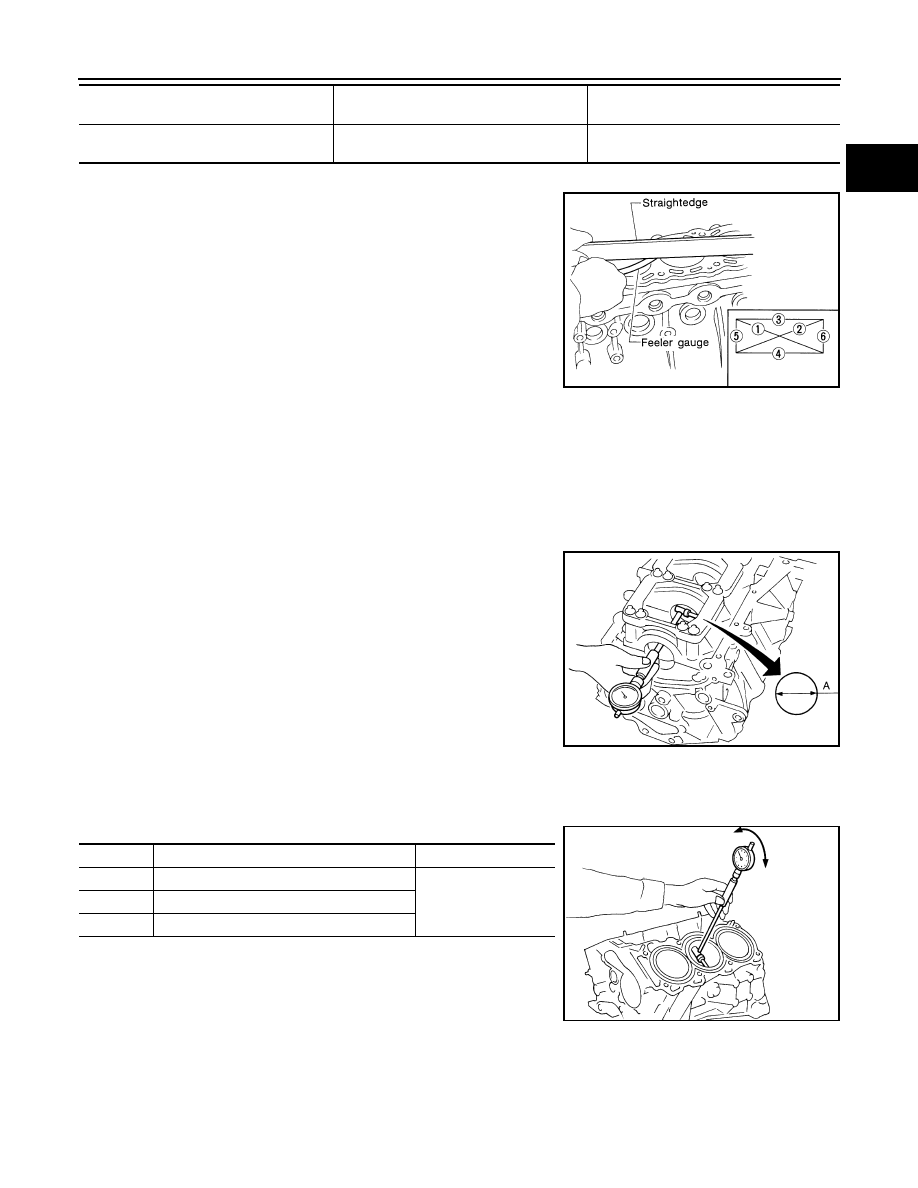

CYLINDER BLOCK DISTORTION

• Using a scraper, remove any old gasket material on the cylinder

block surface and remove any engine oil, scale, carbon, or other

contamination.

CAUTION:

Be careful not to allow gasket flakes to enter the engine oil or

engine coolant passages.

• Measure the distortion on the block upper face at different points in

six directions.

• If out of specification, resurface the cylinder block. The allowable

amount of resurfacing is dependent on the amount of any cylinder

head resurfacing. The resurfacing limit is [amount of cylinder head resurfacing] + [amount of cylinder head

resurfacing] = 0.2 mm (0.008 in).

INNER DIAMETER OF MAIN BEARING HOUSING

• Install the main bearing caps with the main bearings removed, and tighten the bolts to the specified torque.

• Using suitable tool, measure the inner diameter of the main bear-

ing housing (A).

• If out of the standard, replace the cylinder block and main bearing

caps as an assembly.

NOTE:

These components cannot be replaced as a single unit, because

they were processed together.

PISTON-TO-CYLINDER BORE CLEARANCE

1. Using suitable tool, measure cylinder bore for wear, out-of-round and taper at (A), (B) and (C). The X axis

is in the longitudinal direction of the engine.

Cylinder bore inner diameter

Piston pin outer diameter

21.989 - 21.995

(0.8657 - 0.8659)

21.995 - 22. 001

(0.8659 - 0.8662)

Piston pin hole diameter

21.993 - 21.999

(0.8659 - 0.8661)

21.999 - 22.005

(0.8661 - 0.8663)

Distortion limit

: 0.10 mm (0.0039 in)

Cylinder block height : 214.95 - 215.05 mm

(8.4626 - 8.4665 in)

SEM123C

Standard

: 63.993 - 64.017 mm (2.5194 - 2.5203 in)

SEM845E

Grade No.

Standard inner diameter

Wear limit

No. 1

95.500 - 95.510 mm (3.7598 - 3.7602 in)

0.20 mm (0.0079 in)

No. 2

95.510 - 95.520 mm (3.7602 - 3.7606 in)

No. 3

95.520 - 95.530 mm (3.7606 - 3.7610 in)

SEM843E

EM-126

< UNIT DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

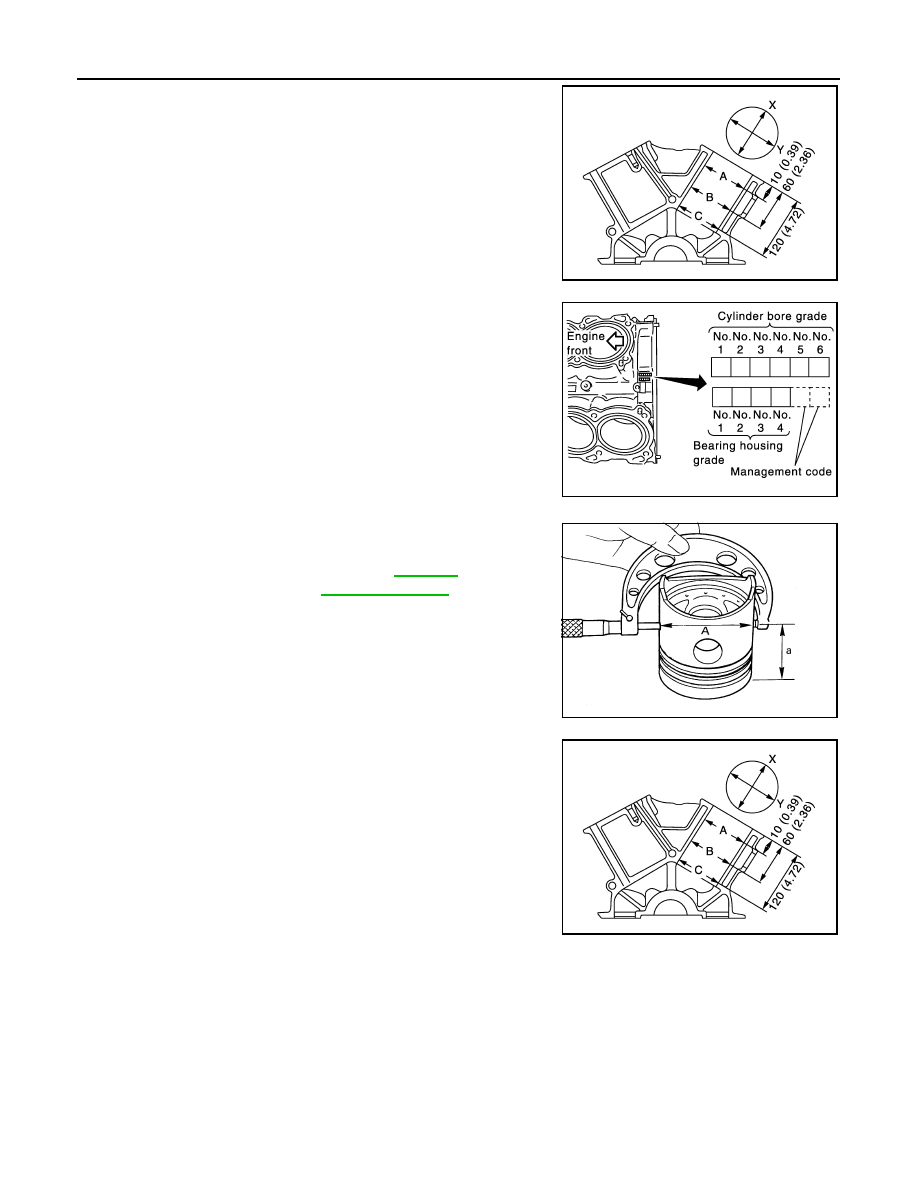

If it exceeds the limit, rebore all cylinders. Replace cylinder block

if necessary.

2. Check for scratches and seizure. If seizure is found, hone it.

• If both cylinder block and piston are replaced with new

ones, select piston of the same grade number punched on

cylinder block rear position. These numbers are punched

in either Arabic or Roman numerals.

3. Measure piston skirt diameter, using suitable tool.

4. Check that piston-to-bore clearance is within specification.

• The piston-to-bore clearance is measured at the (B) level in

the cylinder as shown.

5. Cylinder bore size is determined by adding piston-to-bore clearance to piston diameter.

Out-of-round (Difference
between X and Y)

: limit 0.015 mm (0.0006 in)

Taper (Difference between
A and C)

: limit 0.010 mm (0.0004 in)

JPBIA2238GB

SEM756G

Piston diameter (A)

: Refer to

EM-140,

"Cylinder Block"

Measuring point (a)
(Distance from the top)

: 38.0 mm (1.496 in)

SEM258C

Piston-to-bore
clearance at (B)

: 0.010 - 0.030 mm (0.0004 - 0.0012 in)

JPBIA2238GB

Rebored size calculation : D = A + B

− C

where,
(D)

: Bored diameter

(A)

: Piston diameter as measured

(B)

: Piston-to-bore clearance

(C)

: Honing allowance 0.02 mm (0.0008 in)
