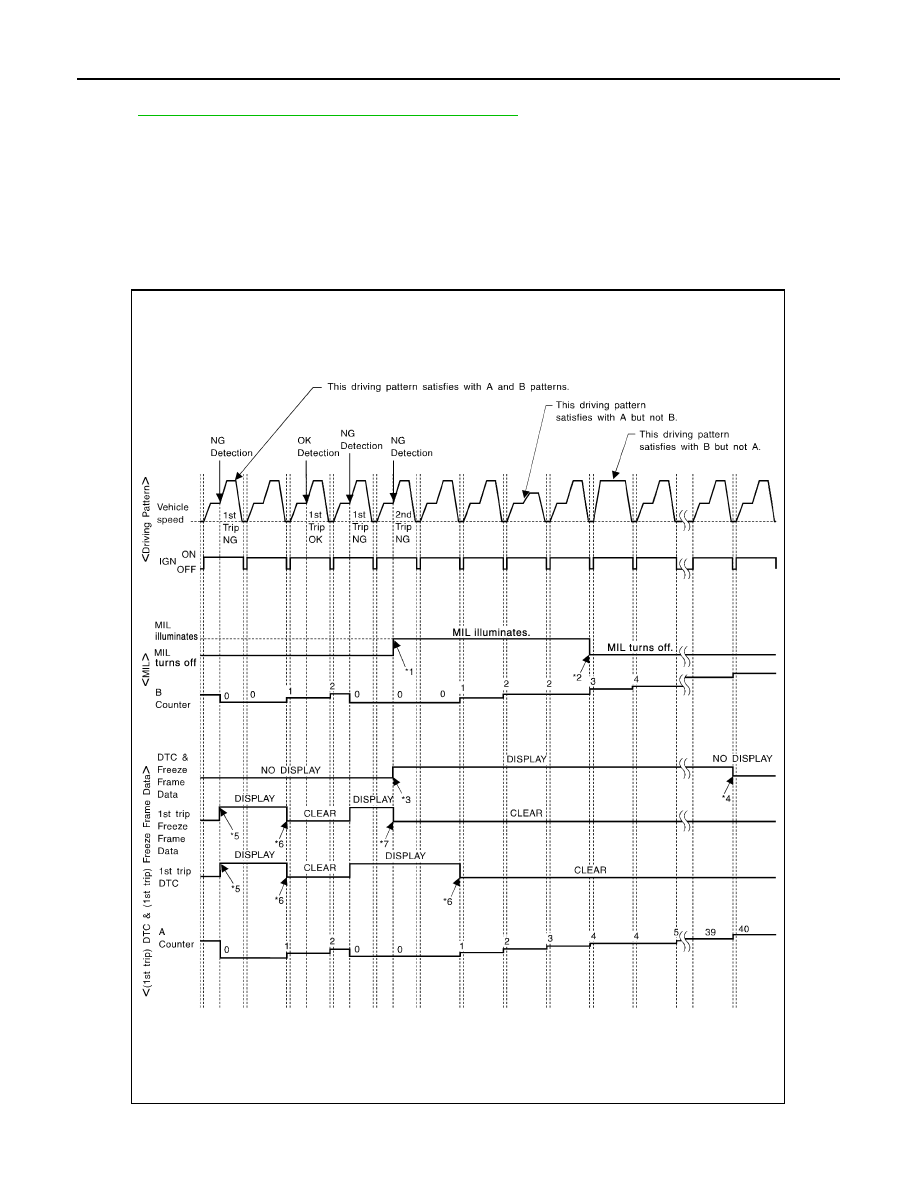

EC-54 < SYSTEM DESCRIPTION > [VQ35DE] DIAGNOSIS SYSTEM (ECM) Driving Pattern C EC-55, "DIAGNOSIS DESCRIPTION : Driving Pattern" . Example: If the stored freeze frame data is as per the following: Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80 °C (176°F) To be satisfied with driving pattern C, the vehicle should run under the following conditions: Engine speed: 475 – 1,225 rpm, Calculated load value: 27 – 33%, Engine coolant temperature: more than 70 °C (158°F) Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns Except For “Misfire <Exhaust JMBIA1418GB |
